PARKER AH465315U001

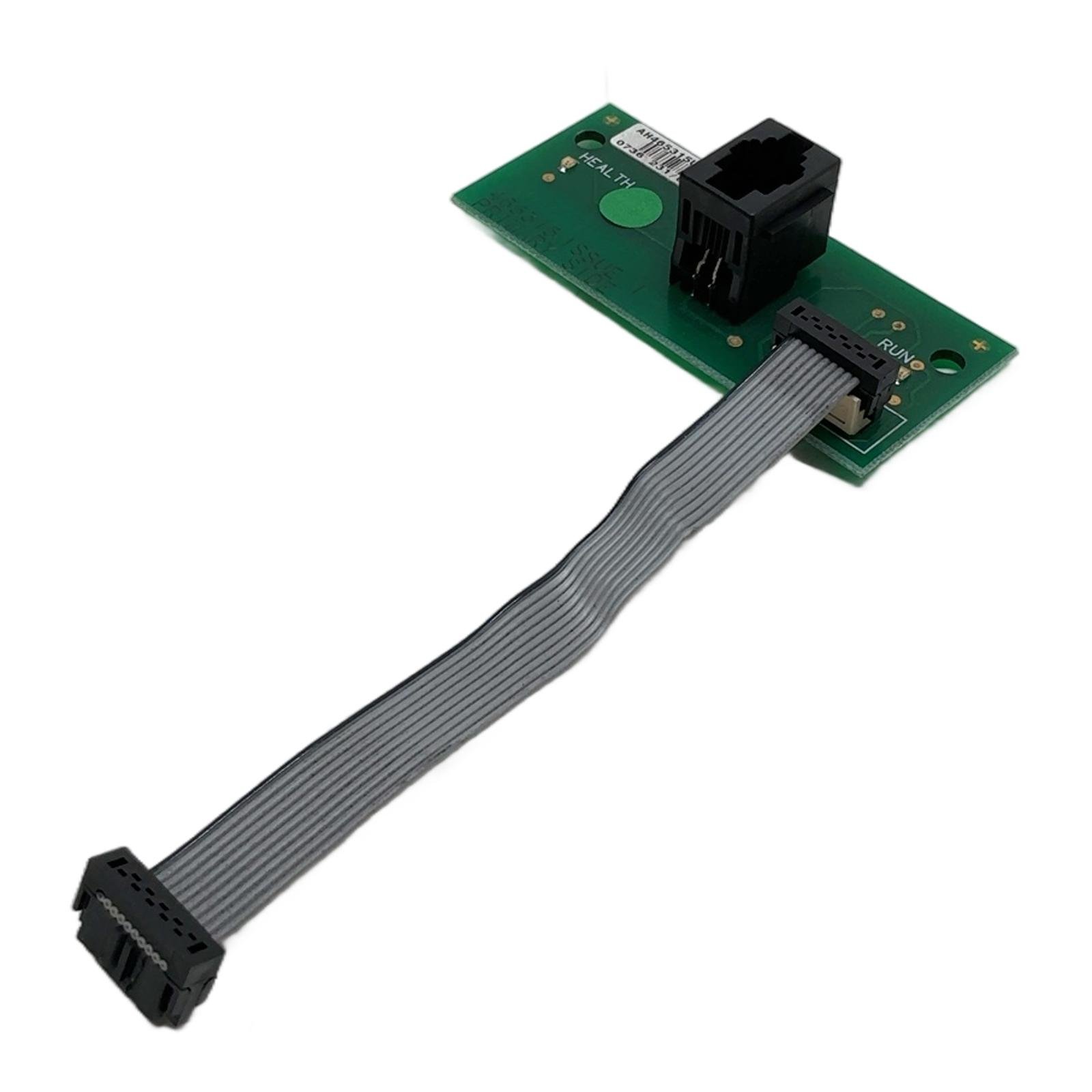

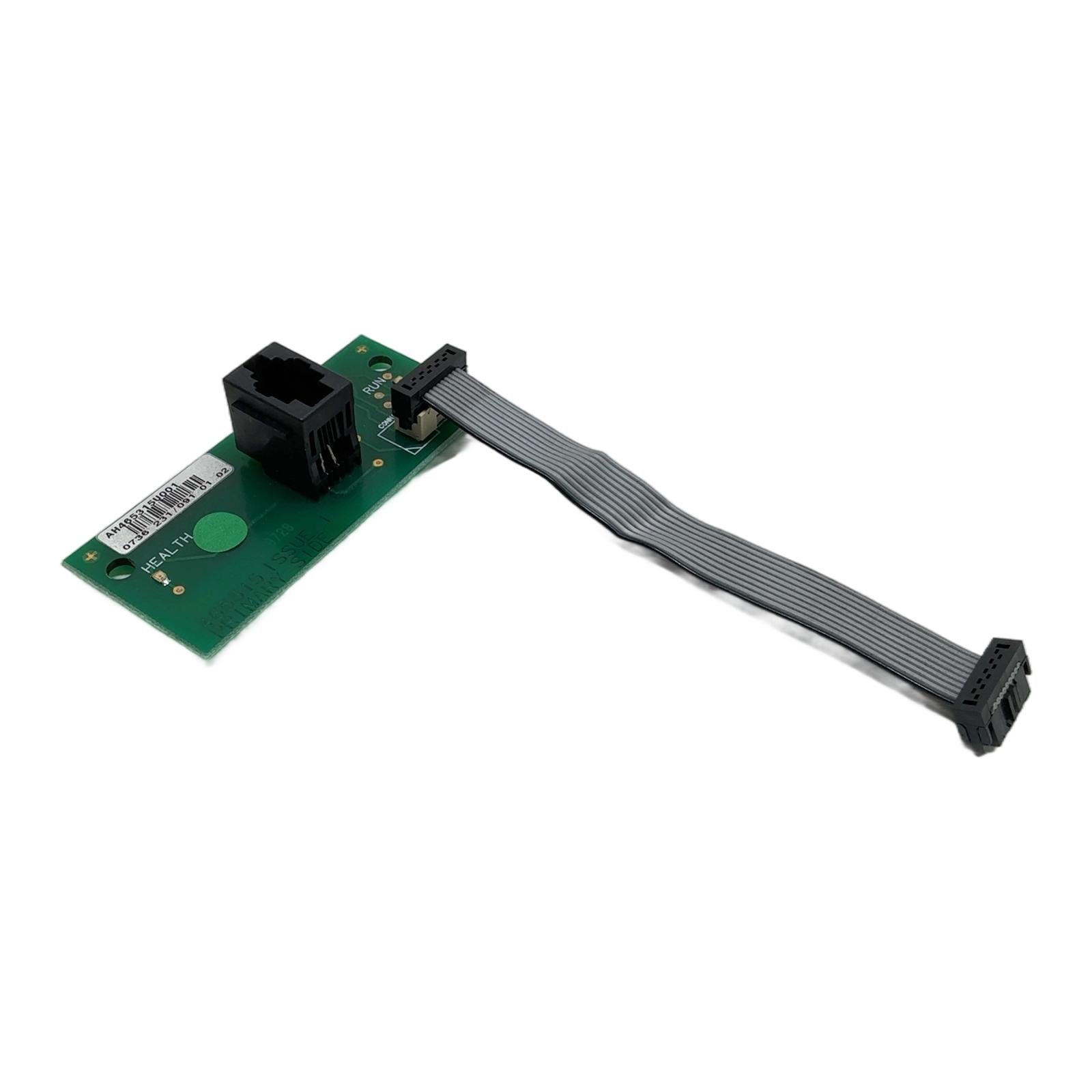

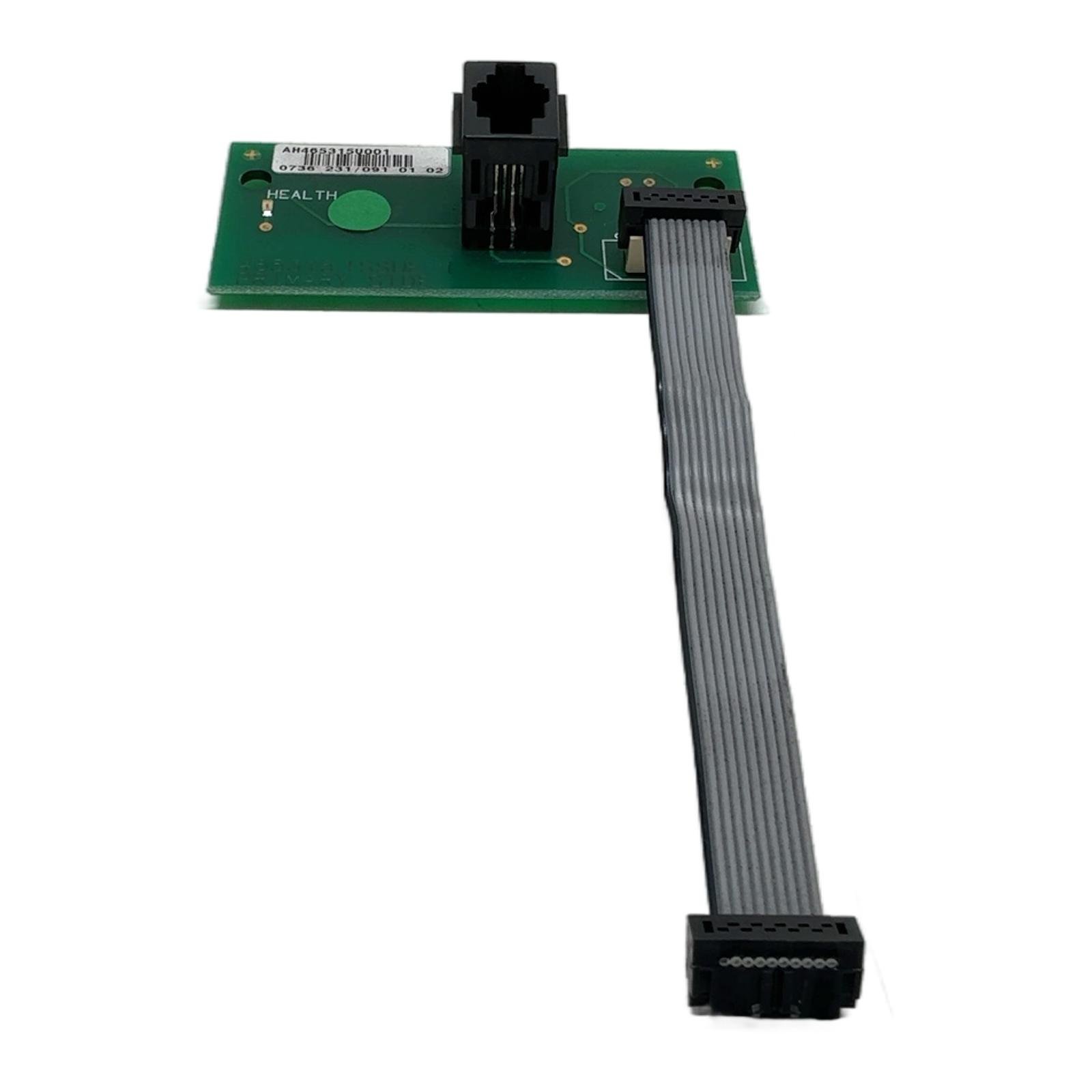

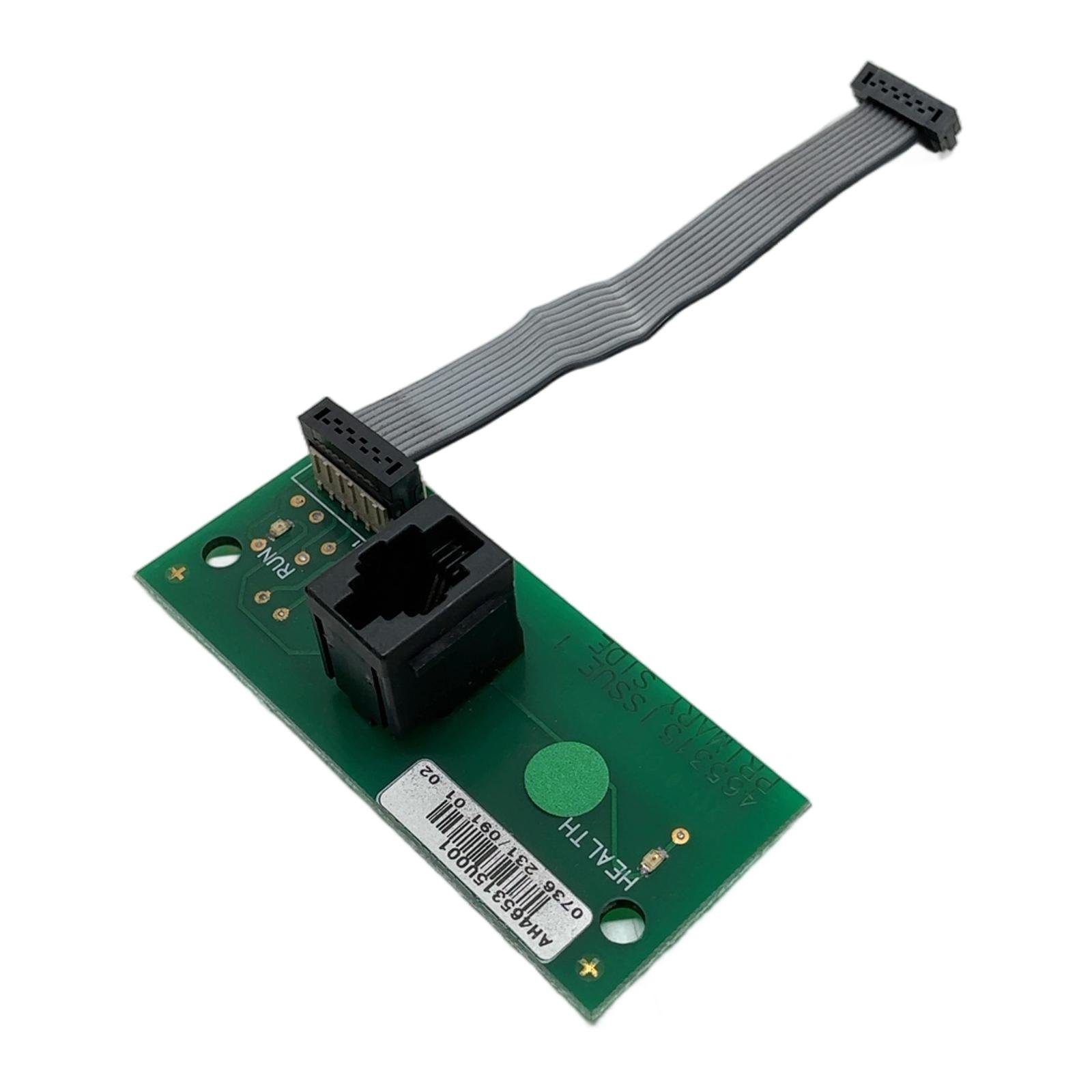

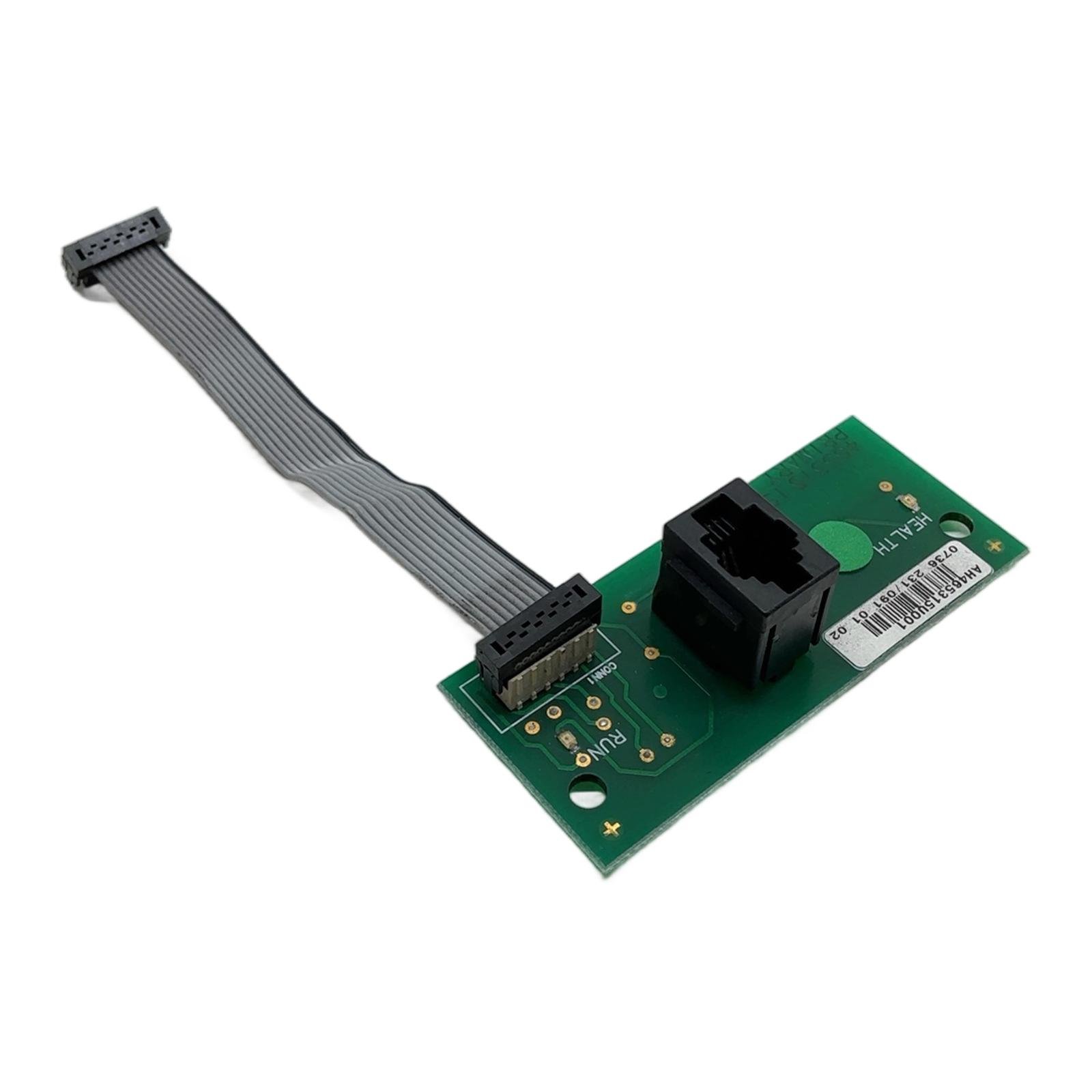

Parker Encoder Feedback Card for 590+ DC Drives Description This is the AH465315U001 encoder feedback option card, an essential component for the Parker (formerly Eurotherm) 590+ and 591+ series of DC drives. It provides a dedicated interface for connecting an incremental encoder, enabling precise, closed-loop speed and position control for demanding industrial applications. Specifications Manufacturer: Parker Part Number: AH465315U001 Alternate Part Number: 465315 Issue 1 Compatibility: Parker 590+ & 591+ Series DC Drives Function: Encoder Feedback Interface Input Connector: RJ45 Style Output Connector: 10-pin Ribbon Cable LED Indicators: Health, Run Label Info AH465315U001 465315 ISSUE 1 Application This module is used in applications requiring high-precision motor speed regulation, such as in converting, printing, and material handling machinery. It allows the 590+ drive to read motor speed directly from an encoder, providing superior performance compared to open-loop (tach-less) control. Country of Origin Made in the United Kingdom. CO2 Impact By purchasing this refurbished or new-old-stock part, you are saving approximately 1.2 kg of CO2 compared to the production of a new one. This is a sustainable choice for maintaining your existing equipment. Availability This item is a legacy component but is available from our stock. Ideal for repairs and extending the life of your existing 590+ drive installations. Order now from profideals for expert support and fast delivery. FAQ Is this feedback card compatible with the newer Parker DC590+ series drives?While physically similar, it is crucial to verify the firmware compatibility between the drive and the feedback card. This card, AH465315U001, is specifically designated for the 590+ series. Compatibility with DC590+ is not guaranteed without checking the drive’s technical manual. What type of encoder signals does this card accept?This card is designed for standard incremental encoders that output A, B, and sometimes Z (index) quadrature signals. It typically accepts 5V TTL or similar logic level signals via its RJ45-style connector. Always refer to the 590+ drive manual for specific voltage and wiring configurations. My drive shows a fault after installing this card. What are the first troubleshooting steps?First, ensure the ribbon cable is securely seated on both the feedback card and the drive’s main control board. Check that the “HEALTH” LED on the card is illuminated. Verify the encoder wiring is correct and that the drive parameters are configured to use an encoder for feedback. An incorrect parameter setting is a common cause of faults. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Current date: Friday, March 13, 2026
