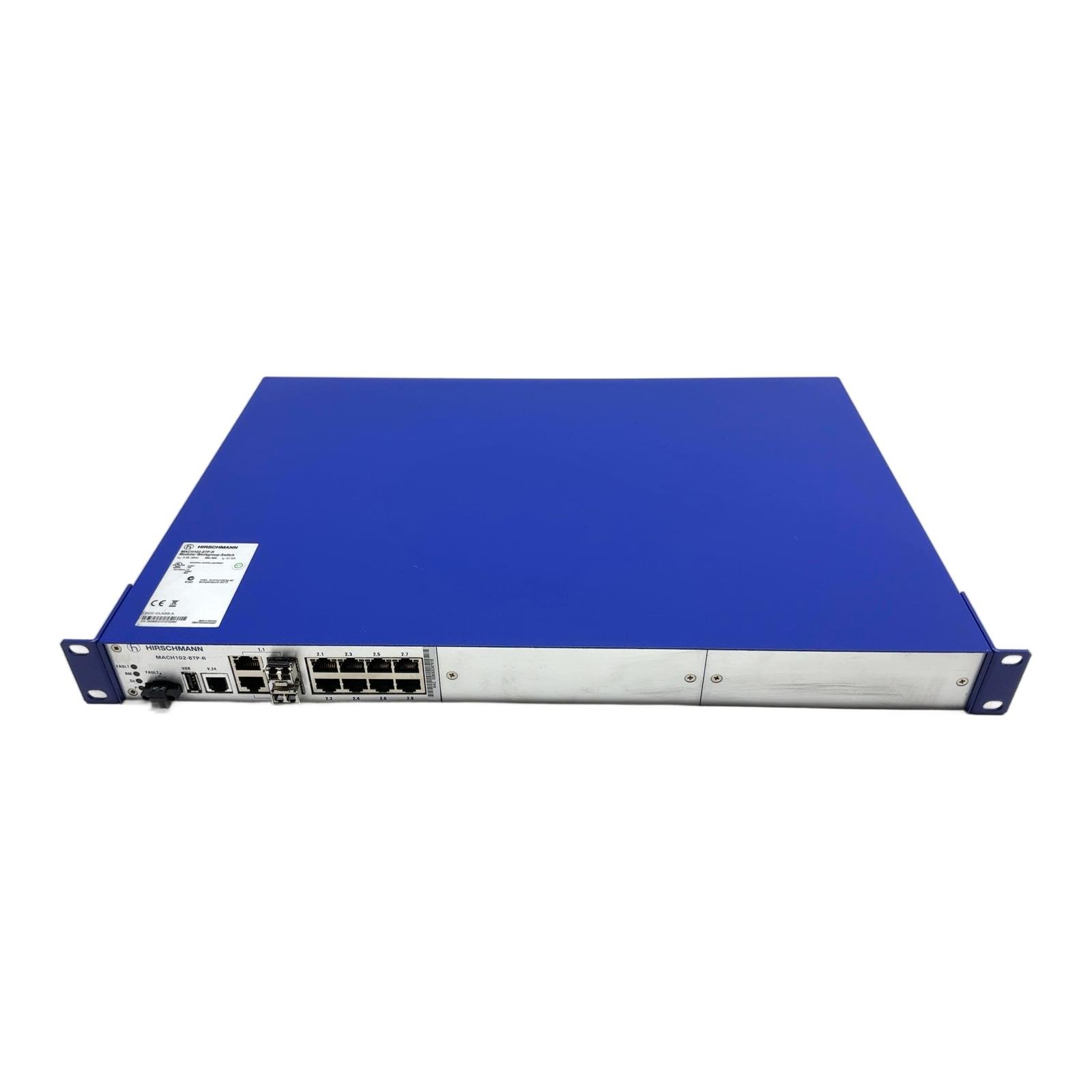

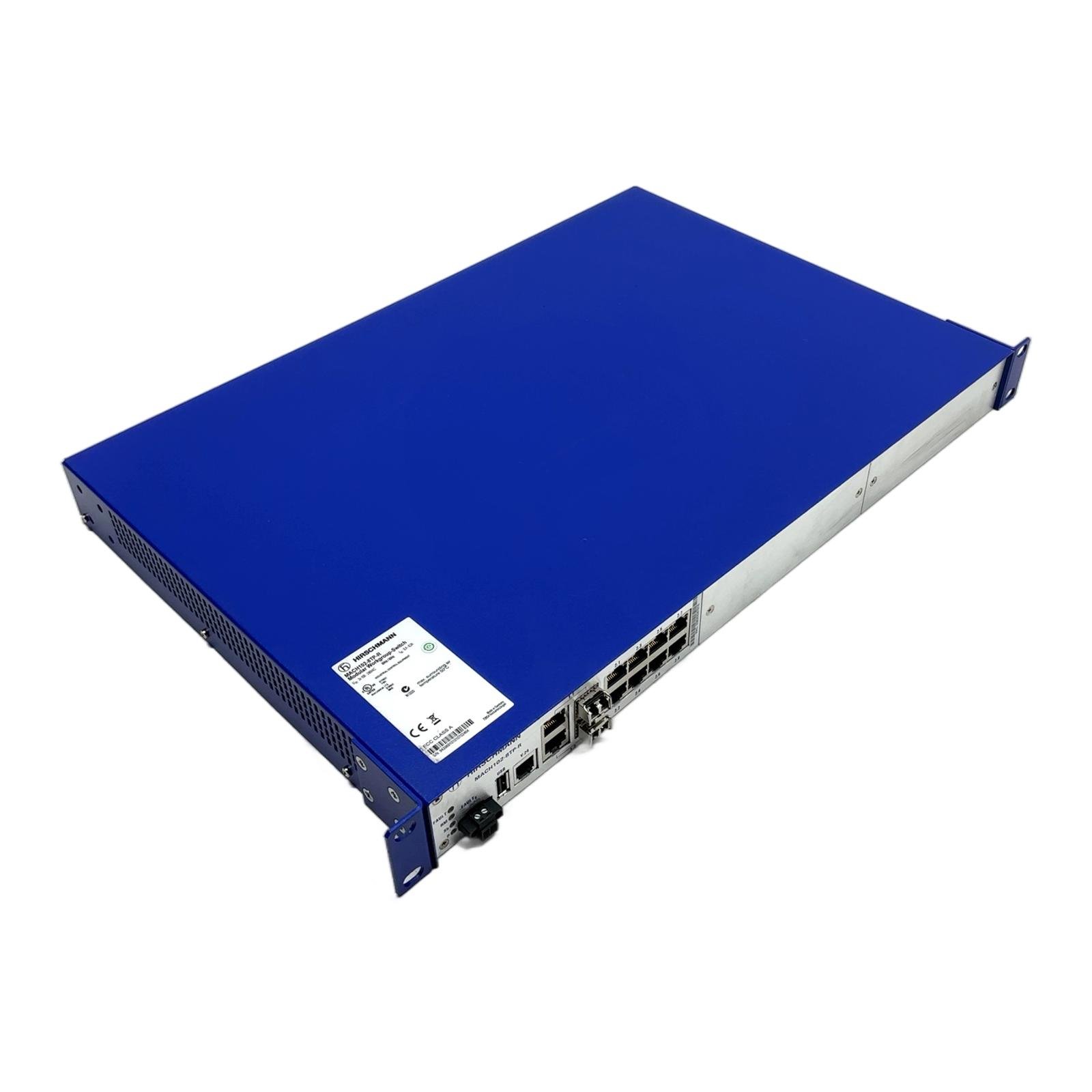

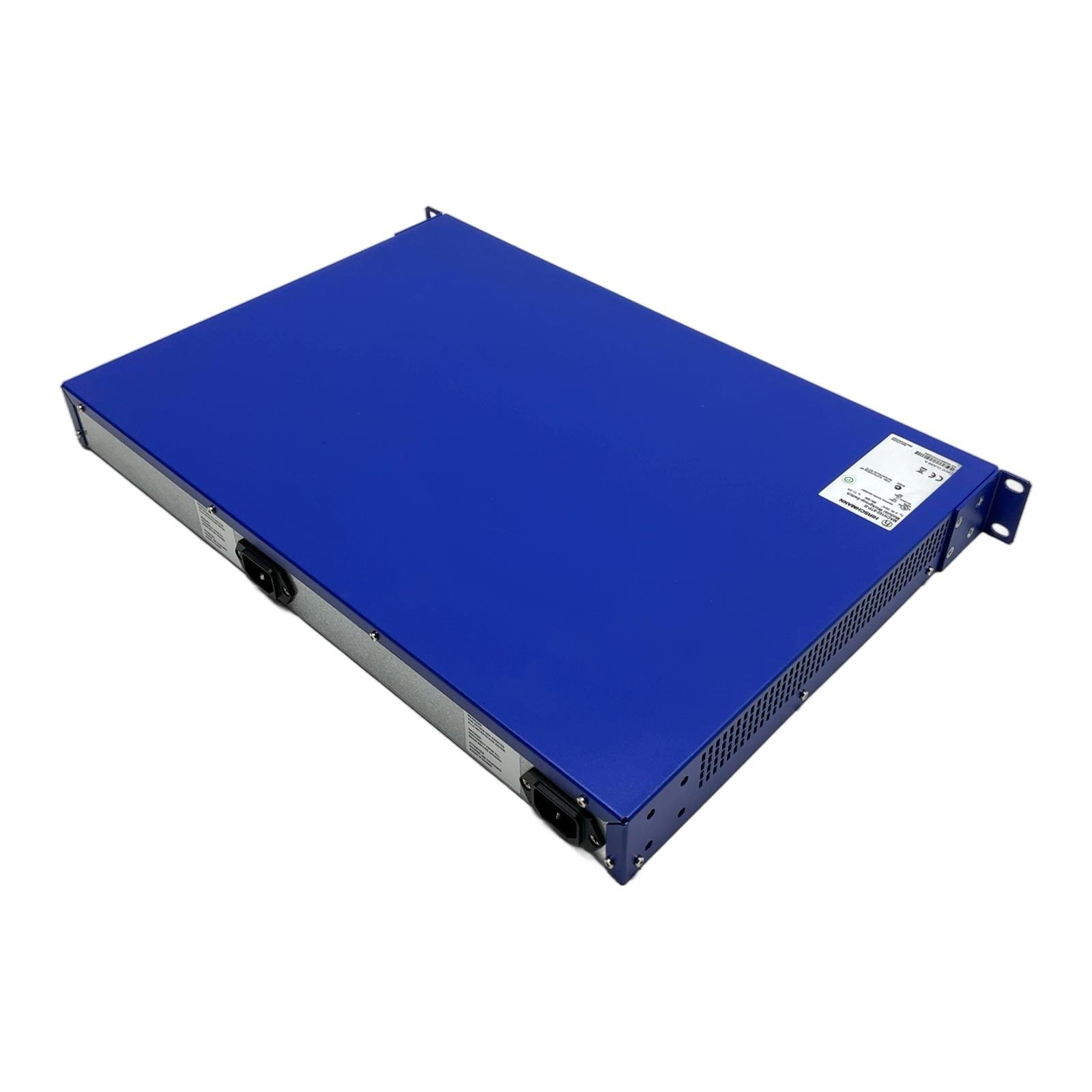

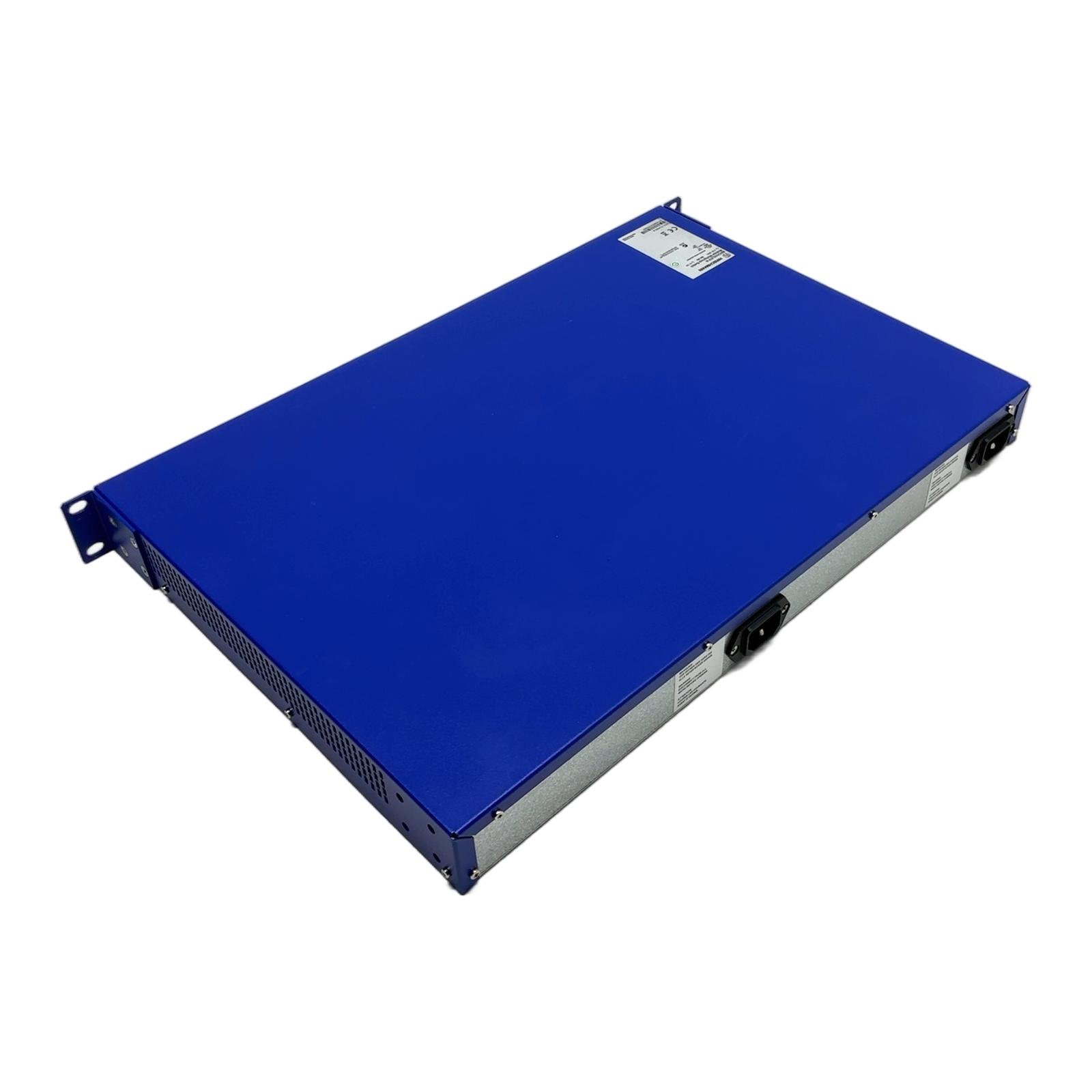

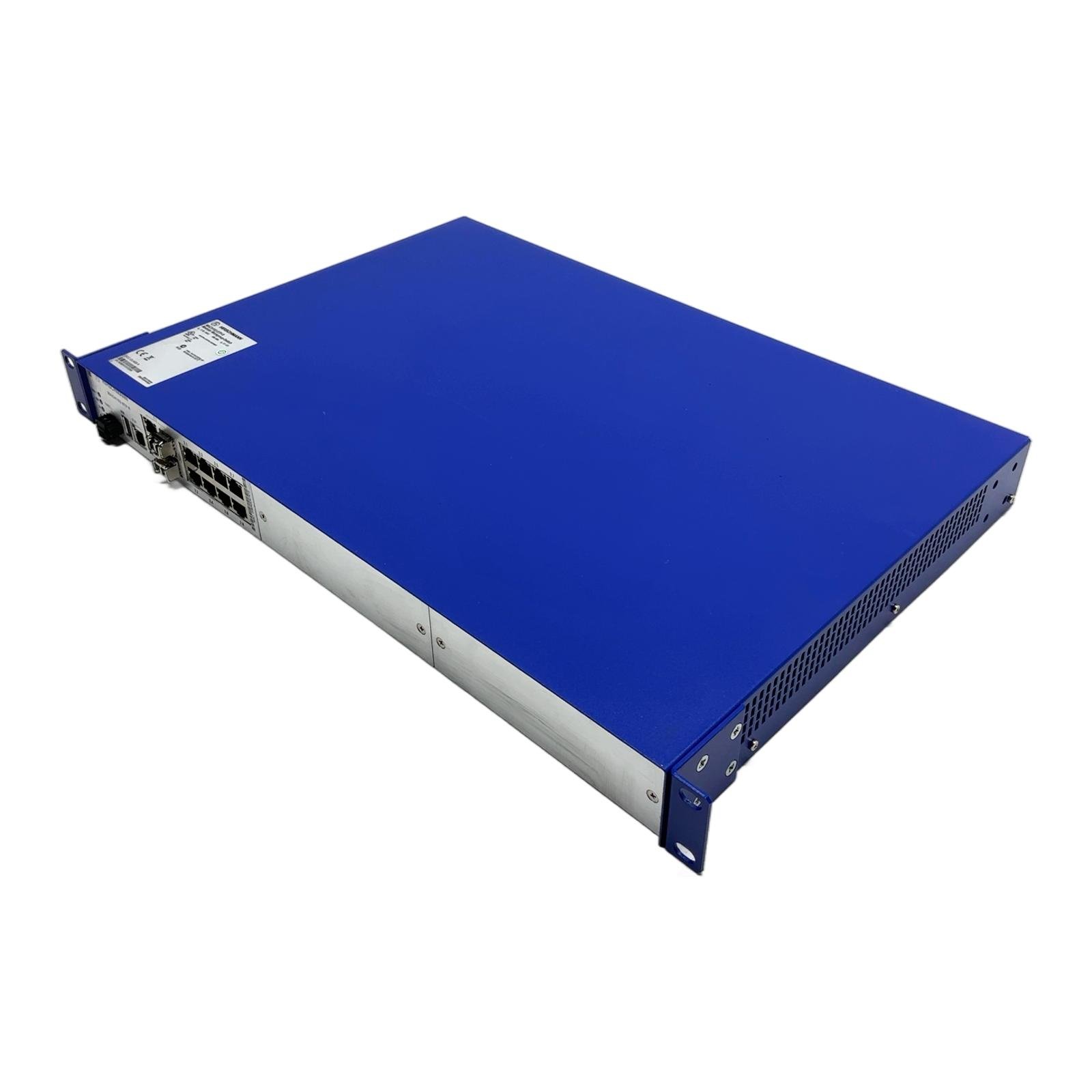

HIRSCHMANN MACH102-8TP-R 943969-101

Hirschmann MACH102-8TP-R Modular Industrial Ethernet Switch Description The Hirschmann MACH102-8TP-R is a high-performance, managed industrial Ethernet switch designed for robust performance in automation and control networks. This rack-mountable unit provides a reliable backbone for your industrial communication infrastructure, featuring a combination of copper and fiber optic ports for maximum flexibility and redundant power supplies for high availability. Specifications Model: MACH102-8TP-R Part Number: 943969-101 Port Configuration: 8 x 10/100/1000BASE-T (RJ45), 2 x 100/1000BASE SFP slots Management: Layer 2 Managed Switch Input Voltage: 2 x 100-240VAC (Redundant) Frequency: 50/60Hz Operating Temperature: Up to 50 deg C Mounting: 19-inch Rack Mount Label Info Manufacturer: Hirschmann (a Belden Brand) Model: MACH102-8TP-R Serial Number: 943969101010702464 Certifications: CE, UL, FCC Class A Application Ideal for network backbones in factory automation, machine building, and process control applications where high network availability and data throughput are critical. Country of Origin Made in Germany. CO2 Impact By reusing this industrial switch, you are helping to avoid approximately 160 kg of CO2 emissions associated with the production of a new one. This choice supports a more sustainable industrial sector. Availability This unit is a tested, fully functional pre-owned item, available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of SFP modules are compatible with the MACH102-8TP-R?The MACH102-8TP-R supports standard 100FX and 1000BASE SFP (Small Form-factor Pluggable) transceivers. You can use Hirschmann branded SFPs or compatible third-party modules for multi-mode or single-mode fiber optic connections. Always check the datasheet for the exact supported models. Can this switch be managed, and if so, through which interface?Yes, this is a managed Layer 2 switch. It can be configured and monitored through a command-line interface (CLI) via the serial console port, a web-based interface (HTTPS/HTTP), or using SNMP (Simple Network Management Protocol). What does the “-R” suffix in MACH102-8TP-R signify?The “-R” suffix in the Hirschmann MACH series typically indicates a rack-mount version designed for installation in standard 19-inch industrial cabinets. It also often implies features like redundant power inputs, which this model has. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Current Date: Friday, March 13, 2026
