PARKER AH385870U001

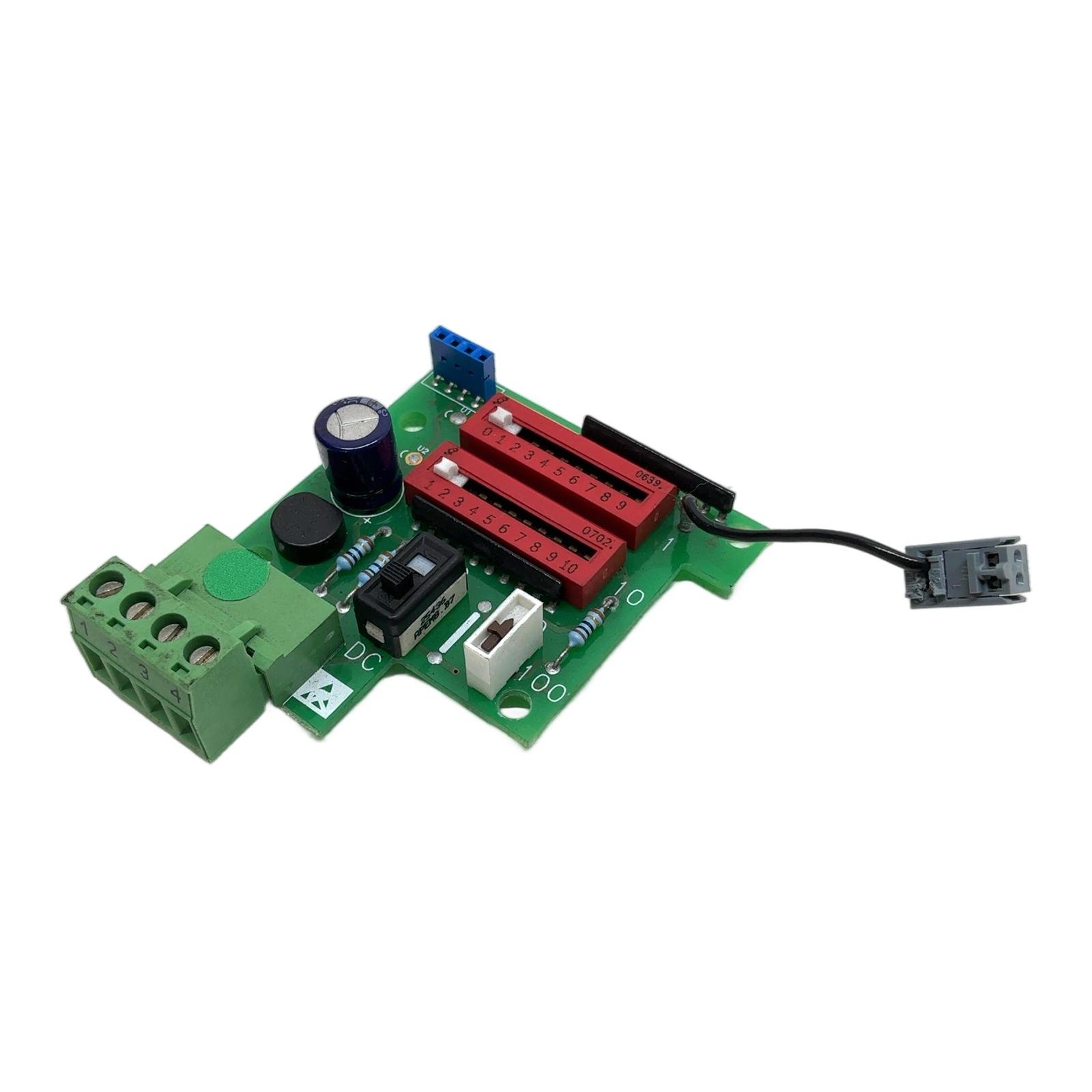

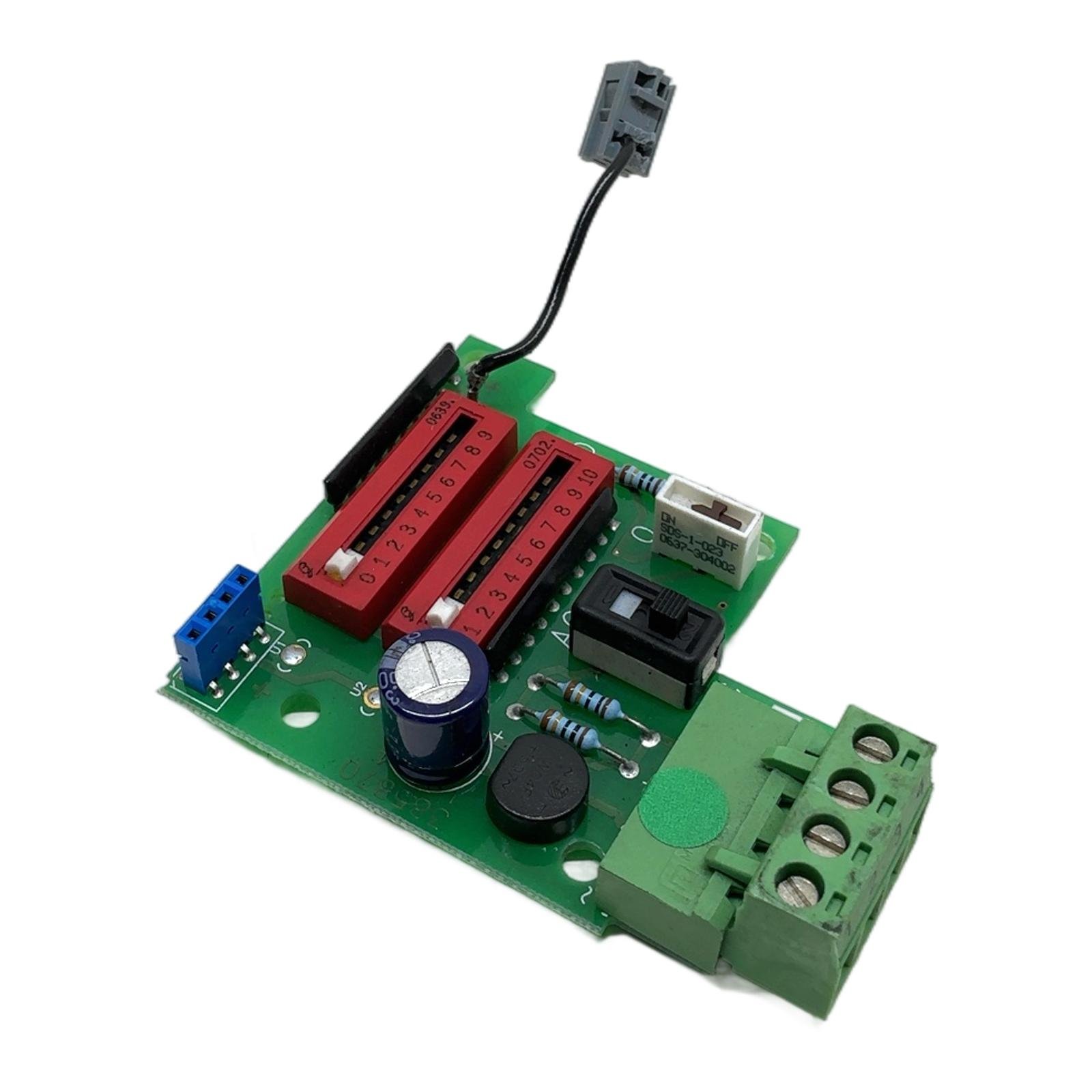

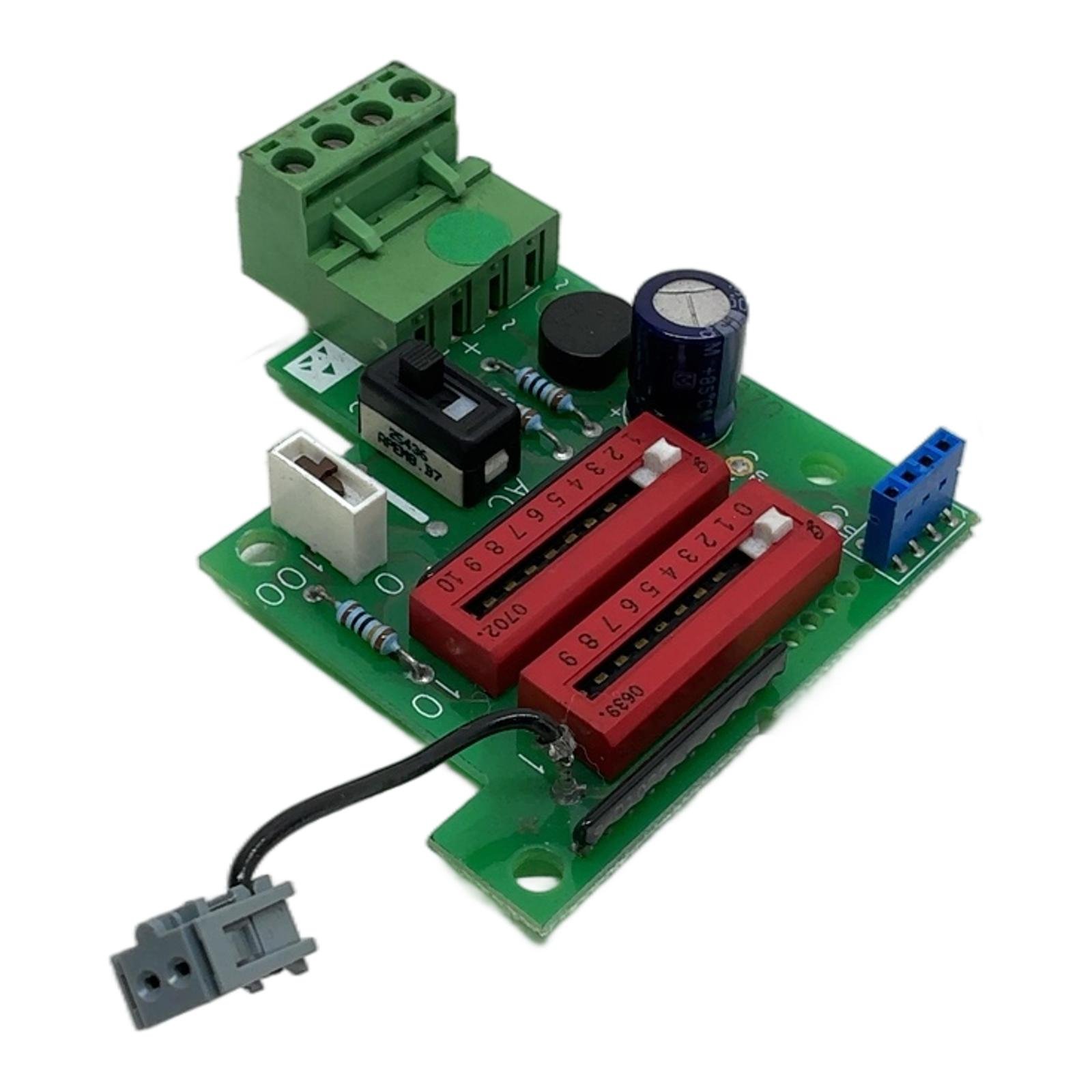

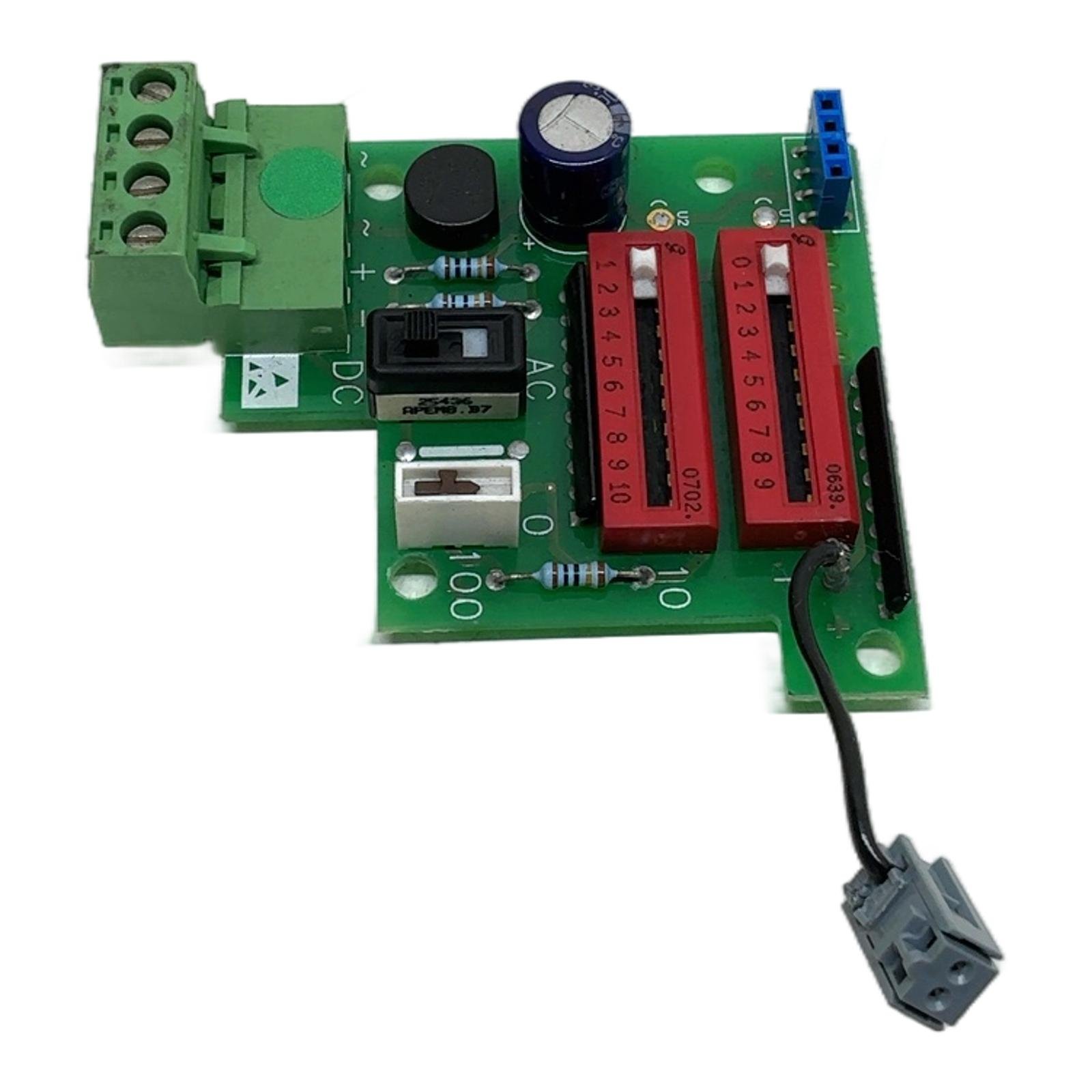

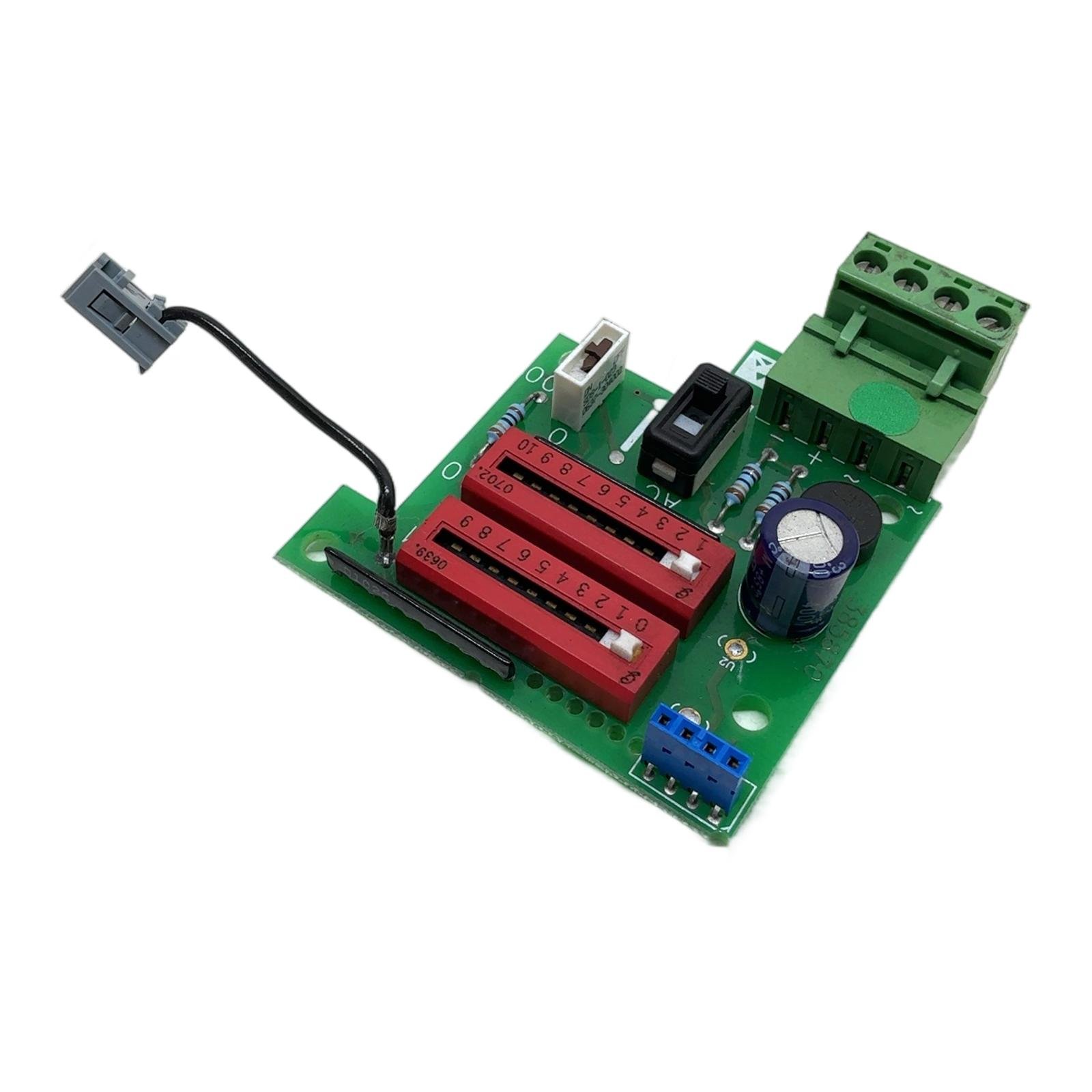

Parker SSD Encoder Feedback Board for 590+ Drives Description This is the AH385870U001 Tacho Calibration and Encoder Feedback Board for the Parker SSD (Eurotherm) 590+ series of DC variable speed drives. This essential plug-in module allows the drive to accurately read speed feedback from either an analog tachogenerator or a digital encoder. It provides the necessary signal conditioning and scaling, configured via onboard DIP switches, to ensure precise motor speed control in demanding applications. Specifications Manufacturer: Parker SSD Drives Part Number: AH385870U001 Compatibility: Parker SSD 590+, 591+ Series DC Drives Function: Feedback signal scaling and conditioning Input Types: Analog Tacho, Digital Encoder Configuration: Dual 10-position DIP switches Label Info Part No: AH385870U001 Board Revision: ISS 4 Application This board is installed within a Parker 590+ series drive to enable closed-loop motor speed regulation. It is vital for applications requiring high accuracy and dynamic response, such as in printing, converting, and material handling machinery. Country of Origin Manufactured in the United Kingdom. CO2 Impact By purchasing this pre-owned component, you are actively participating in the circular economy. The reuse of this board avoids the production of a new one, saving an estimated 2.0 kg of CO2. This is equivalent to the emissions from driving a car for 10 kilometers. Availability This item is a readily available, tested spare part for an obsolete drive series. Order now from profideals for expert support and fast delivery. FAQ What are the DIP switches on the AH385870U001 board used for? The dual DIP switches are used to set the scaling factor for the incoming feedback signal. This allows the board to correctly calibrate different tachogenerator voltages or encoder pulse rates to the standard internal voltage reference of the 590+ drive, ensuring accurate speed regulation. Is this board compatible with the newer Parker DC590+ series drives? No, this feedback board is specifically designed for the older 590+ series. The newer DC590+ series utilizes different feedback technology cards and connection methods. You must use the AH385870U001 only with the compatible 590, 590+, 591, and 591+ series drives. Can this board accept both tachogenerator and encoder feedback signals? Yes, this board is a versatile feedback option. It can be configured to accept analog voltage signals from a DC tachogenerator or pulse train signals from an incremental encoder. The correct configuration and scaling are set via the DIP switches and potentially some jumper links on the main drive controller. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
