REXROTH Z2FS 10-5-34/V R900517812

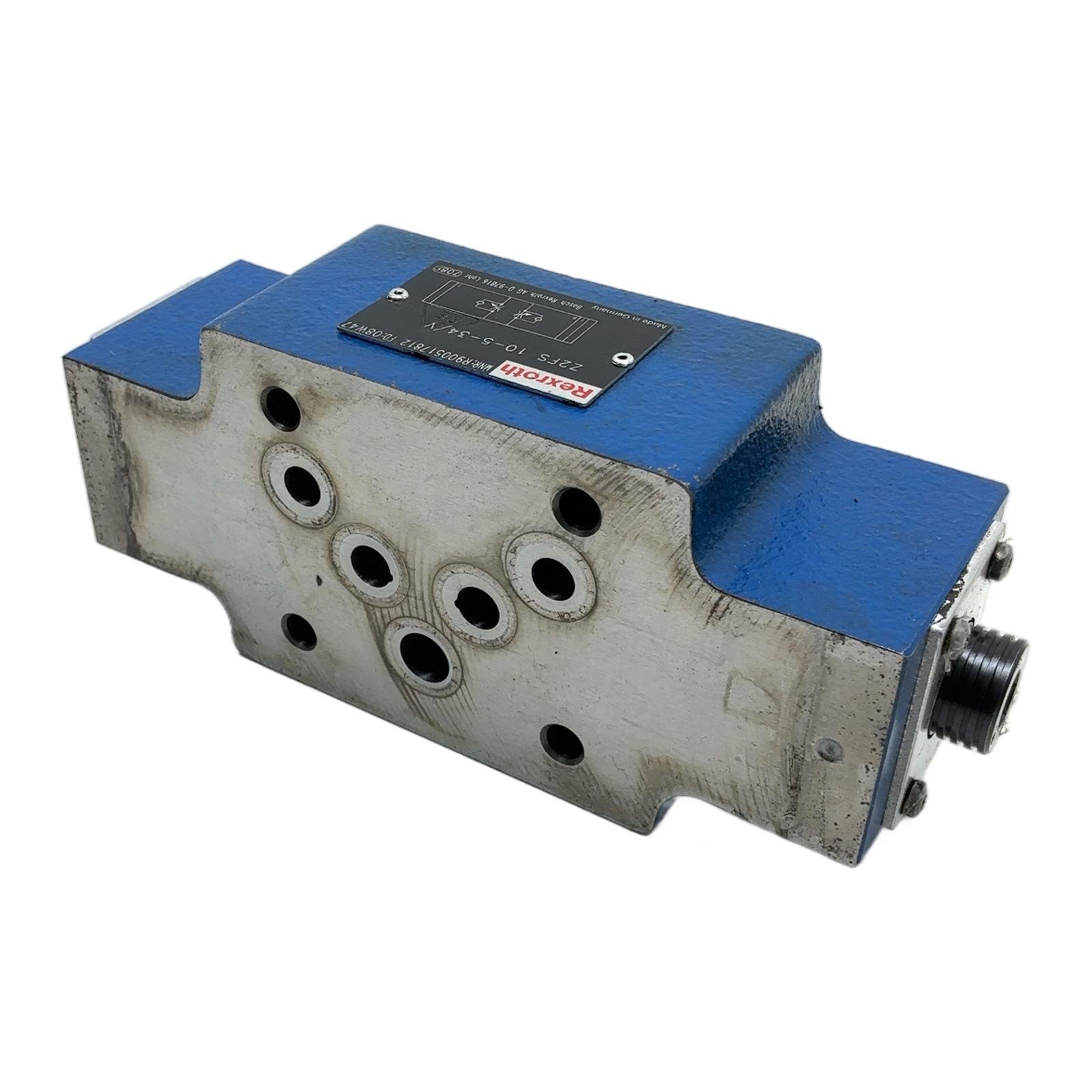

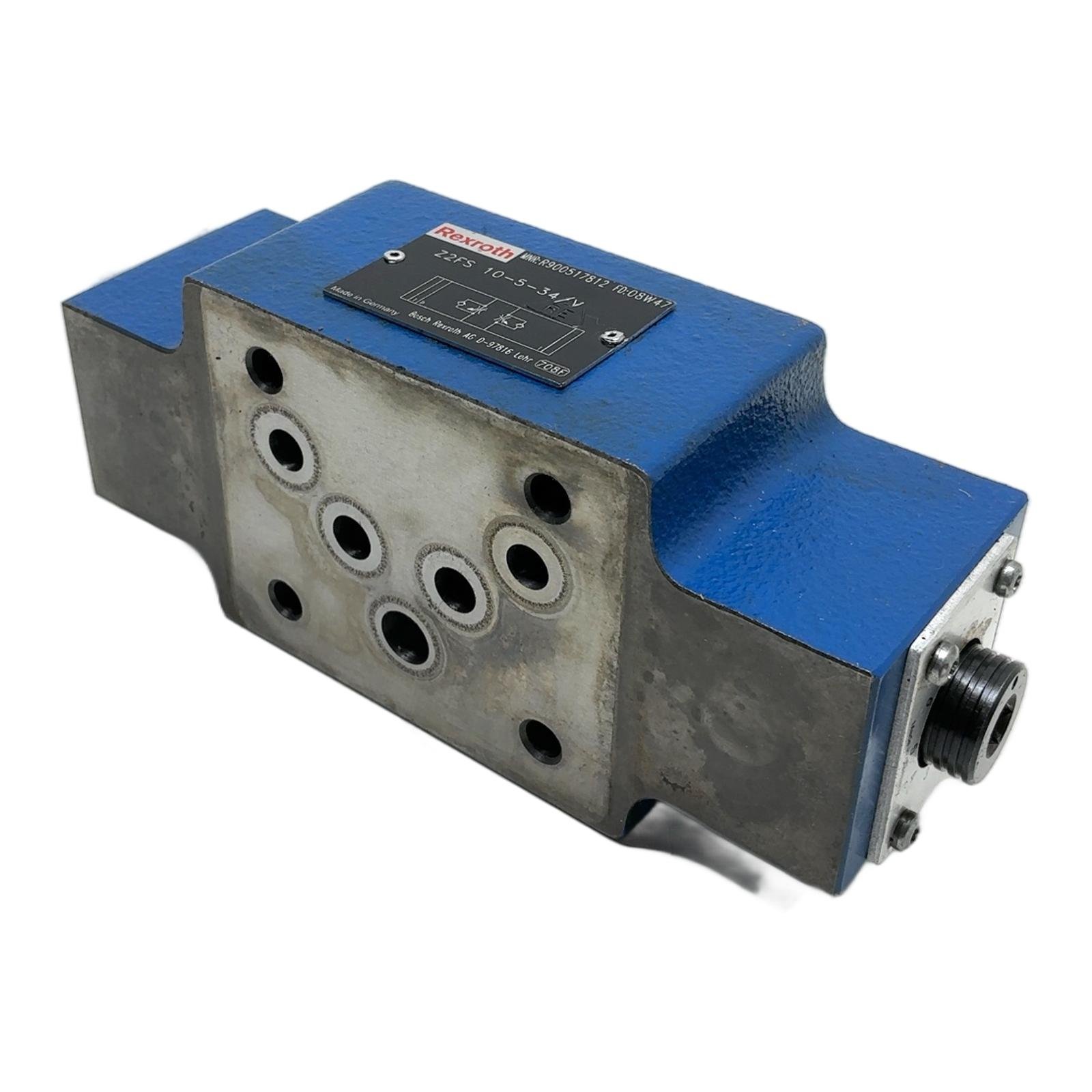

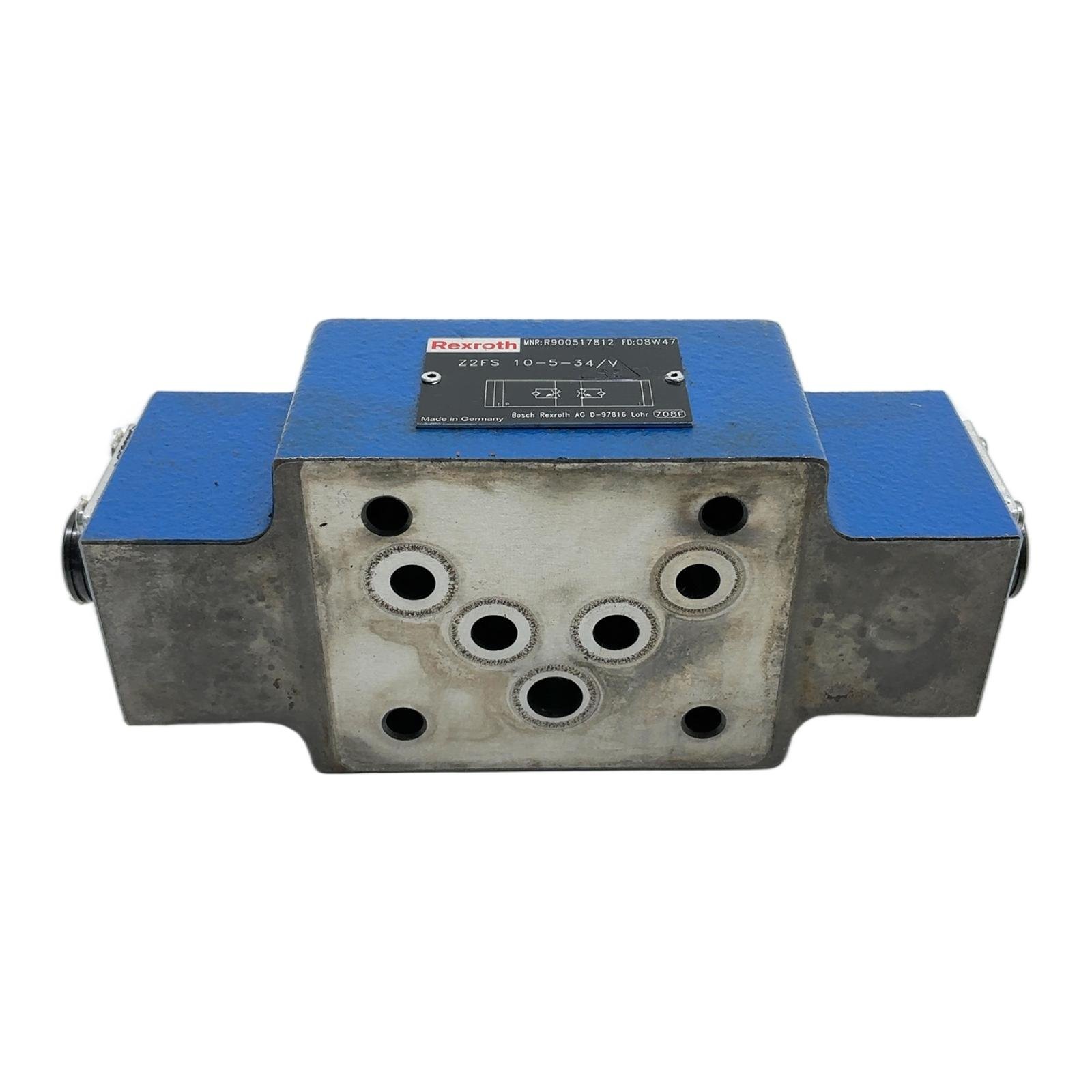

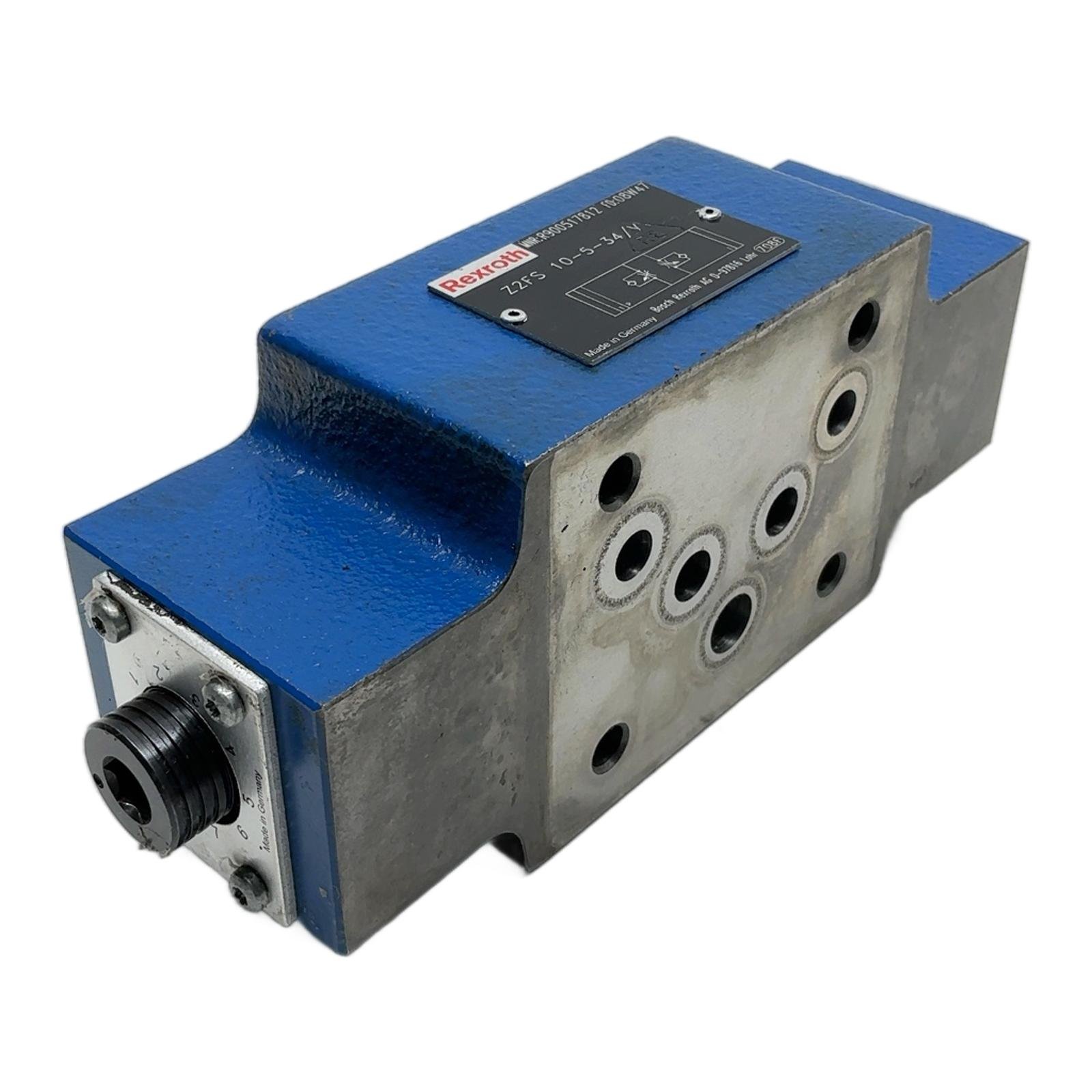

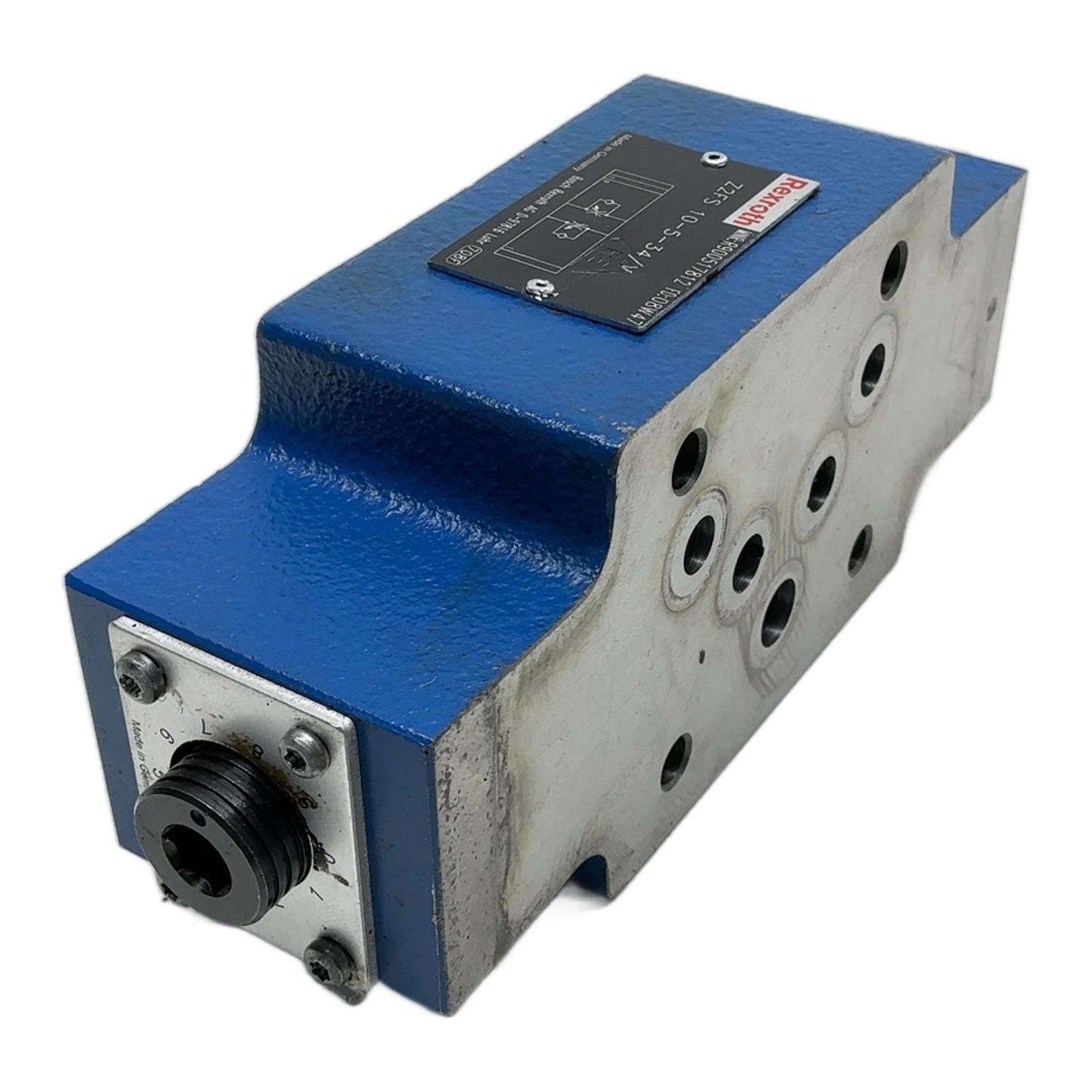

Rexroth Z2FS 10 Hydraulic Throttle Check Valve Description This is a Rexroth Z2FS 10-5-34/V hydraulic throttle check valve, identified by material number R900517812. It is a sandwich plate valve of nominal size 10 (NG10), designed for mounting in vertical stacking systems. The primary function is to control the flow rate (throttling) in one direction and allow free flow in the opposite direction. This model is ideal for meter-in or meter-out applications, providing precise control over actuator speed. Specifications Manufacturer: Rexroth (Bosch Rexroth AG) Type: Z2FS 10-5-34/V Material Number: R900517812 Valve Type: Throttle Check Valve Sandwich Plate Nominal Size: NG10 (CETOP 5) Maximum Operating Pressure: 315 bar Maximum Flow Rate: 160 L/min Sealing: /V for Viton (FKM) seals Label Info FD (Production Date): 08W47 (Week 47, 2008) Address: Bosch Rexroth AG D-97816 Lohr Application This valve is commonly used in industrial hydraulic circuits, such as in machine tools, presses, and manufacturing equipment, to control the speed of hydraulic cylinders and motors. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned valve prevents the CO2 emissions associated with manufacturing a new one, estimated at 5.6 kg. This saving is comparable to the emissions from driving a car for 28 kilometers. Availability This item is a tested, pre-owned unit in excellent working condition. It is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the “/V” suffix in the type number Z2FS 10-5-34/V?The “/V” indicates that the valve is fitted with Viton (FKM) seals. These seals offer superior resistance to high temperatures and a broader range of chemicals and hydraulic fluids compared to standard NBR seals. What is the nominal size (NG) of this valve and what does it mean?The nominal size is NG10, which corresponds to the CETOP 5 mounting pattern standard. This ensures interchangeability with other NG10 valves and subplates from various manufacturers, defining the port locations and mounting bolt pattern. Can this valve be used for meter-in or meter-out control?Yes, absolutely. By correctly orienting the sandwich plate during installation, it can be configured to control flow into the actuator (meter-in) or out of the actuator (meter-out), allowing for precise speed control. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
