ASCO SCG551A001MS 24/DC
ASCO SCG551A001MS 24/DC
€ 137,95
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
ASCO |
| Category |
Valves |
| Description |
Solenoid Coil |
| MPN |
SCG551A001MS 24/DC |
| Other Notations |
SCG551A001MS 24/DC ,SCG551A001MS24/DC |
| Fabr. Art. Nr. |
SCG551A001MS 24/DC |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

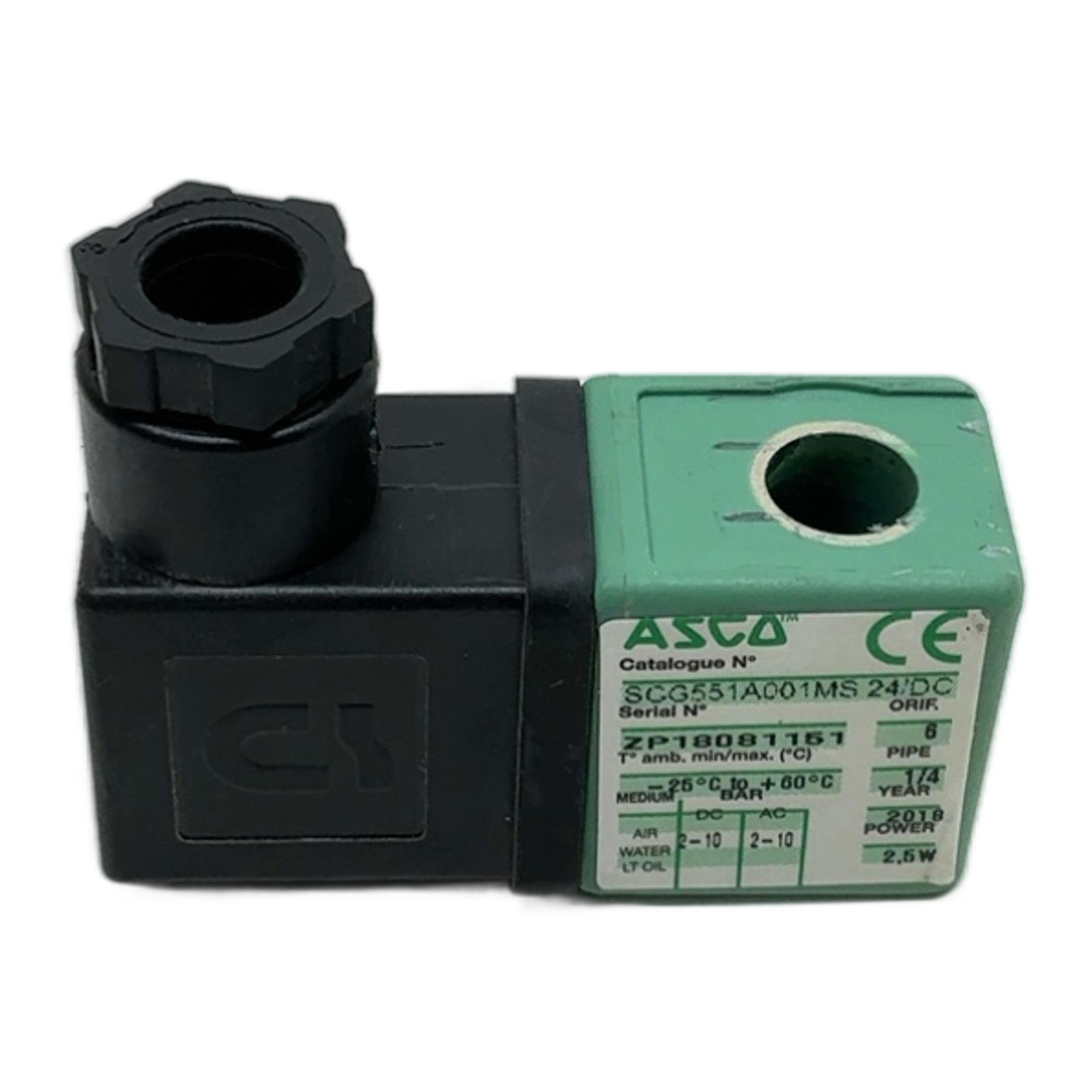

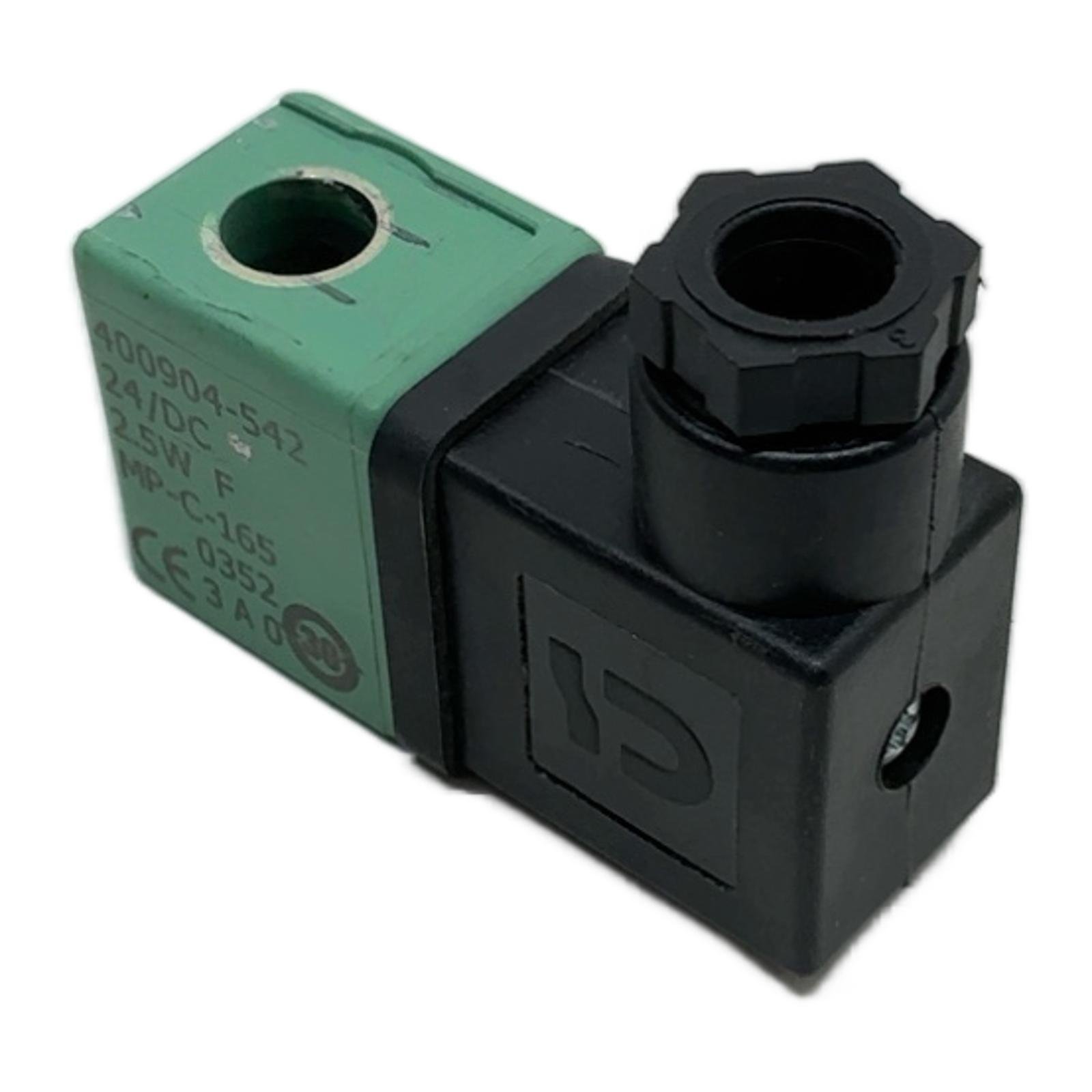

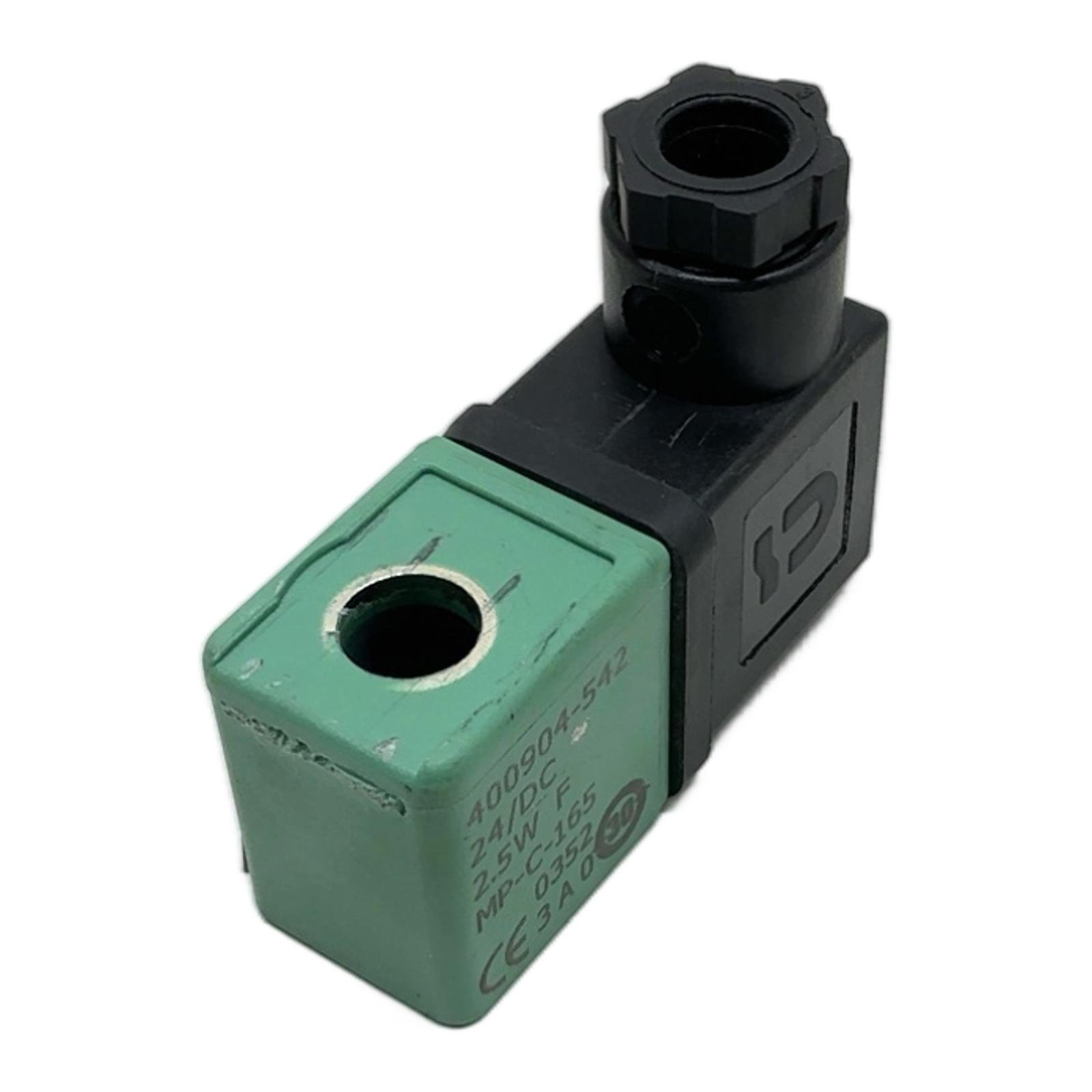

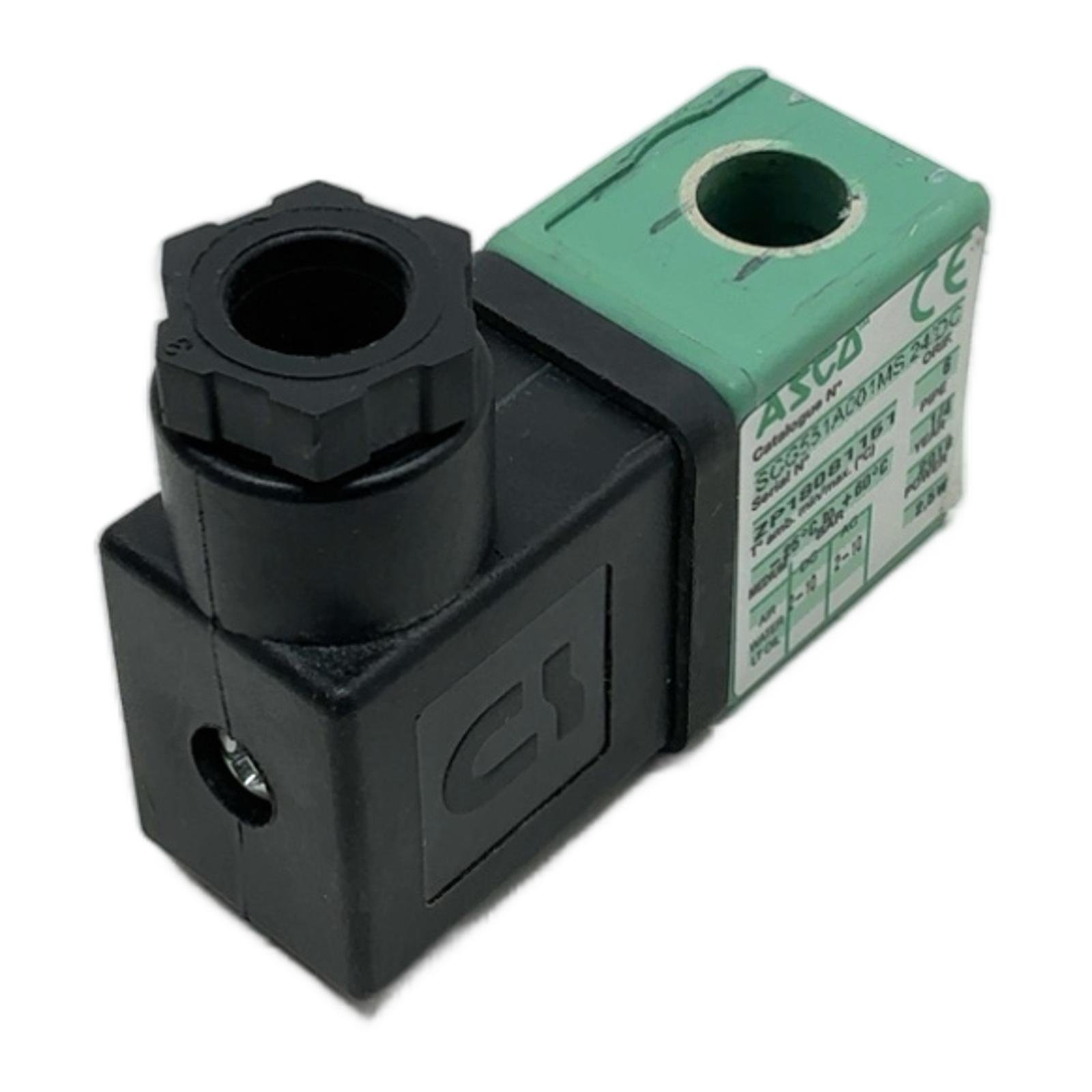

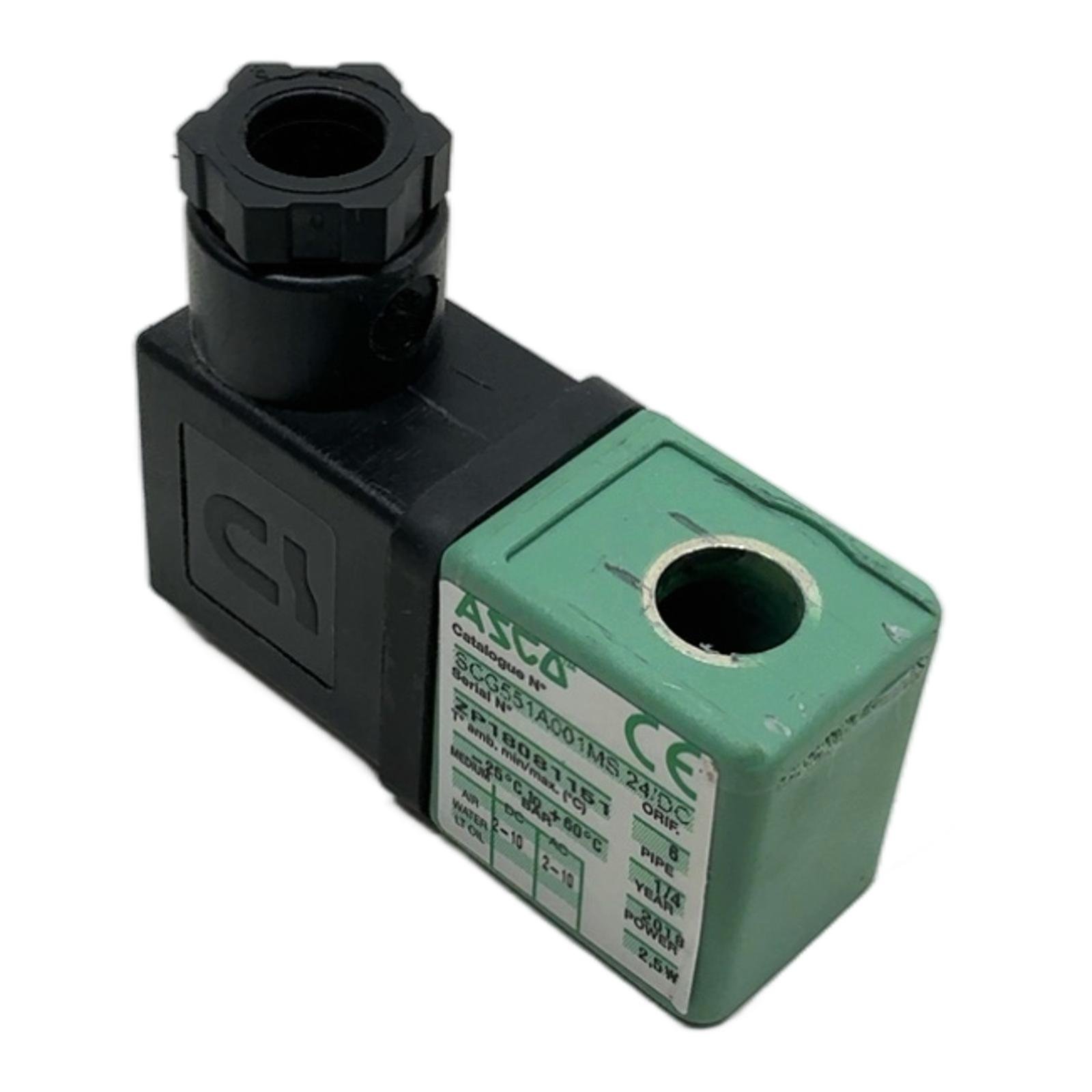

ASCO 24V DC Solenoid Coil for 551 Series Valves Description This is a replacement solenoid coil from ASCO, part number 400904-542. It is designed to operate on a 24V DC supply with a power rating of 2.5 Watts. This coil is a standard component for many valves in the ASCO 551 series, known for their reliability in air, water, and light oil applications. The unit includes a DIN 43650 Form A electrical connector for straightforward installation. Specifications Manufacturer: ASCO Coil Part Number: 400904-542 Coil Model: MP-C-165 Voltage: 24V DC Power Consumption: 2.5W Compatible Valve Series: ASCO 551 (e.g., SCG551A001MS) Ambient Temperature Range: -25 deg C to +60 deg C Connector Type: DIN 43650 Form A Label Info Catalogue N: SCG551A001MS 24/DC Serial N: ZP18081151 Year: 2018 Application This solenoid coil is used to actuate pneumatic valves in a variety of industrial automation systems, including manufacturing lines, process control, and material handling equipment. CO2 Impact By purchasing this pre-owned component, you are actively participating in the circular economy and have helped prevent the emission of 6.0 kg of CO2 associated with the production of a new part. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What series of ASCO valves is this coil compatible with?This coil is specifically designed for the ASCO 551 series of spool valves. The label indicates it was originally part of a SCG551A001MS valve assembly. What type of electrical connector is required for this coil?This coil uses a standard DIN 43650 Form A connector. This product is supplied with the connector attached. Can this 24V DC coil be used with a 24V AC power source?No, absolutely not. This coil is rated for 24V DC (Direct Current) only. Applying AC (Alternating Current) voltage will cause overheating and rapid failure of the coil. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
