LEGRAND 048 86 004886

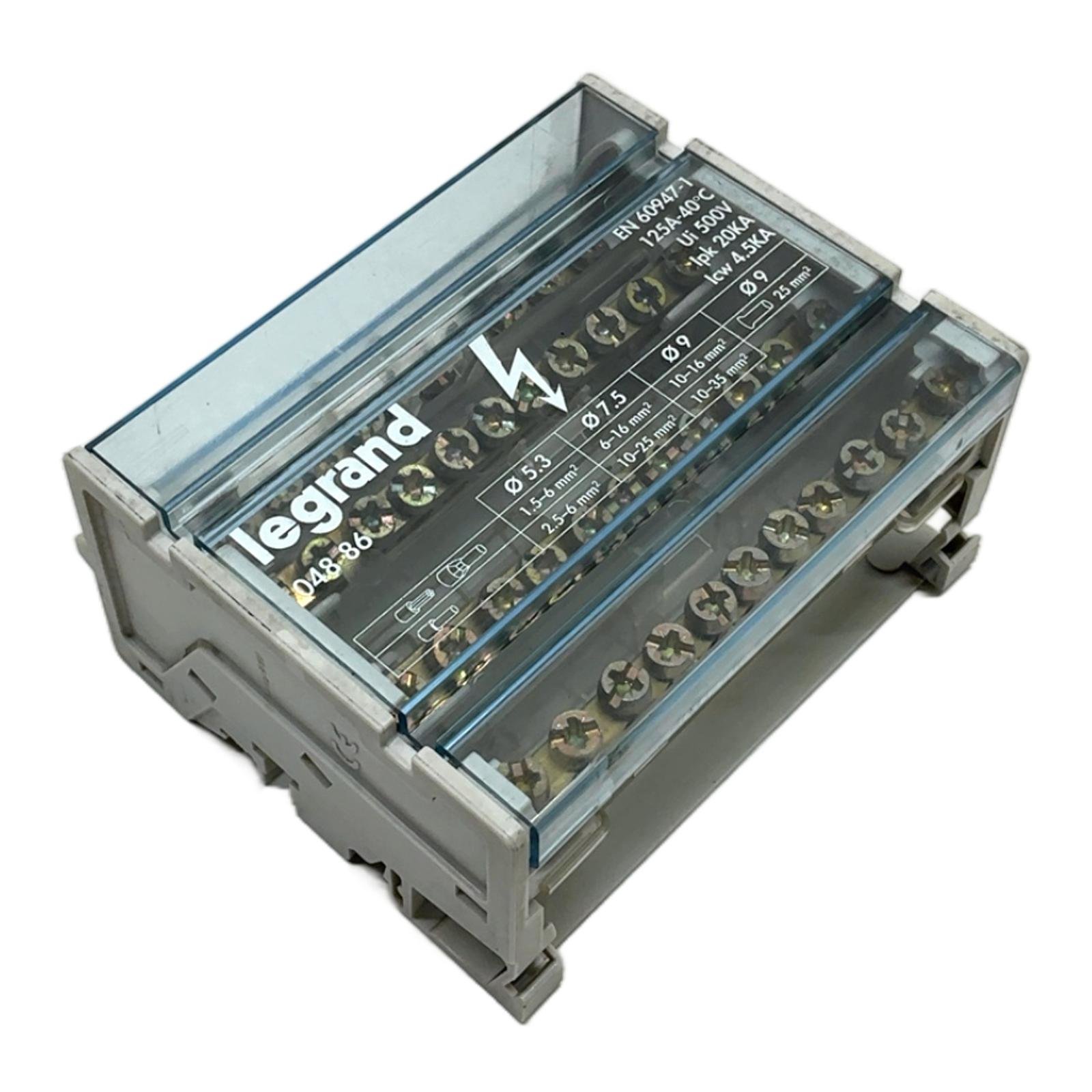

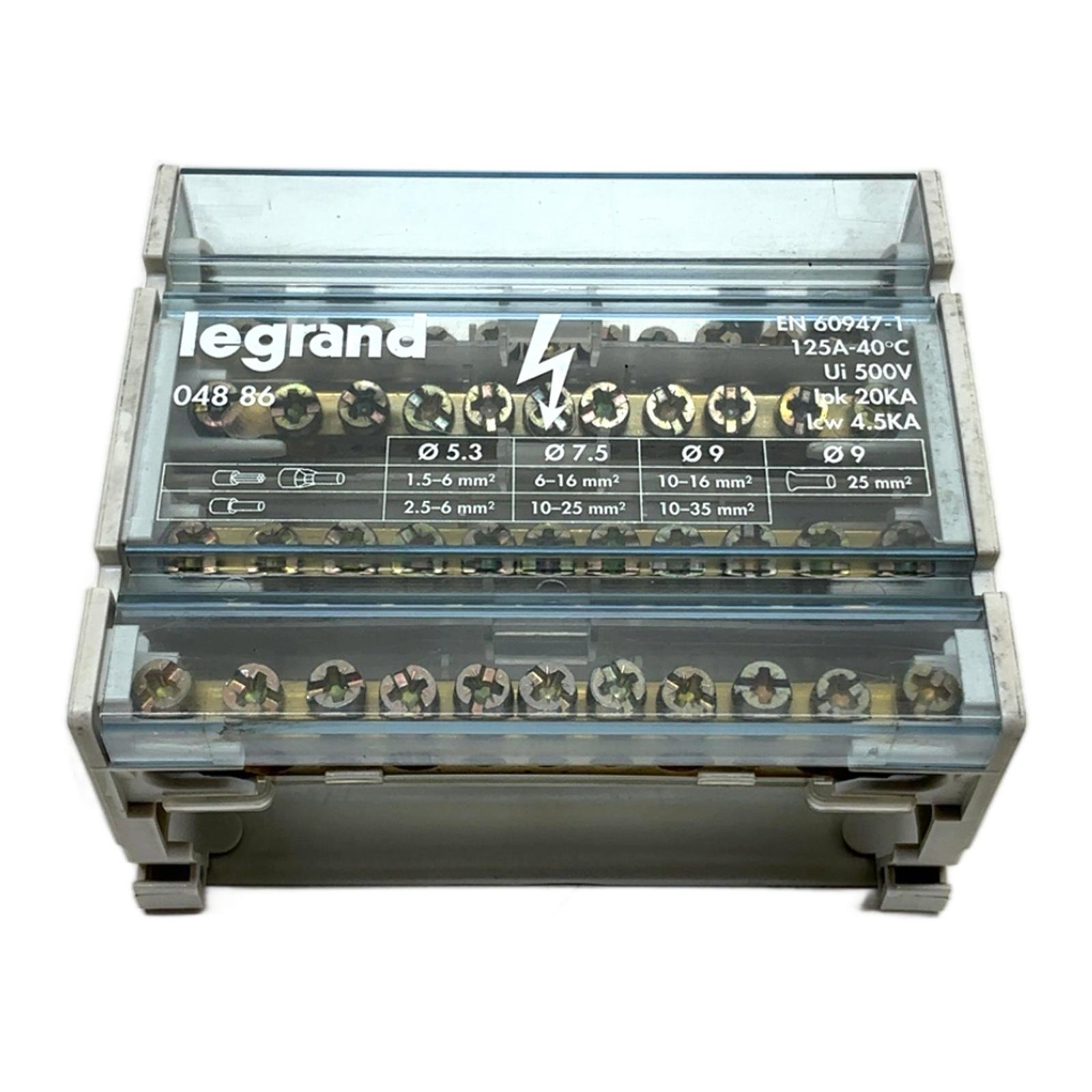

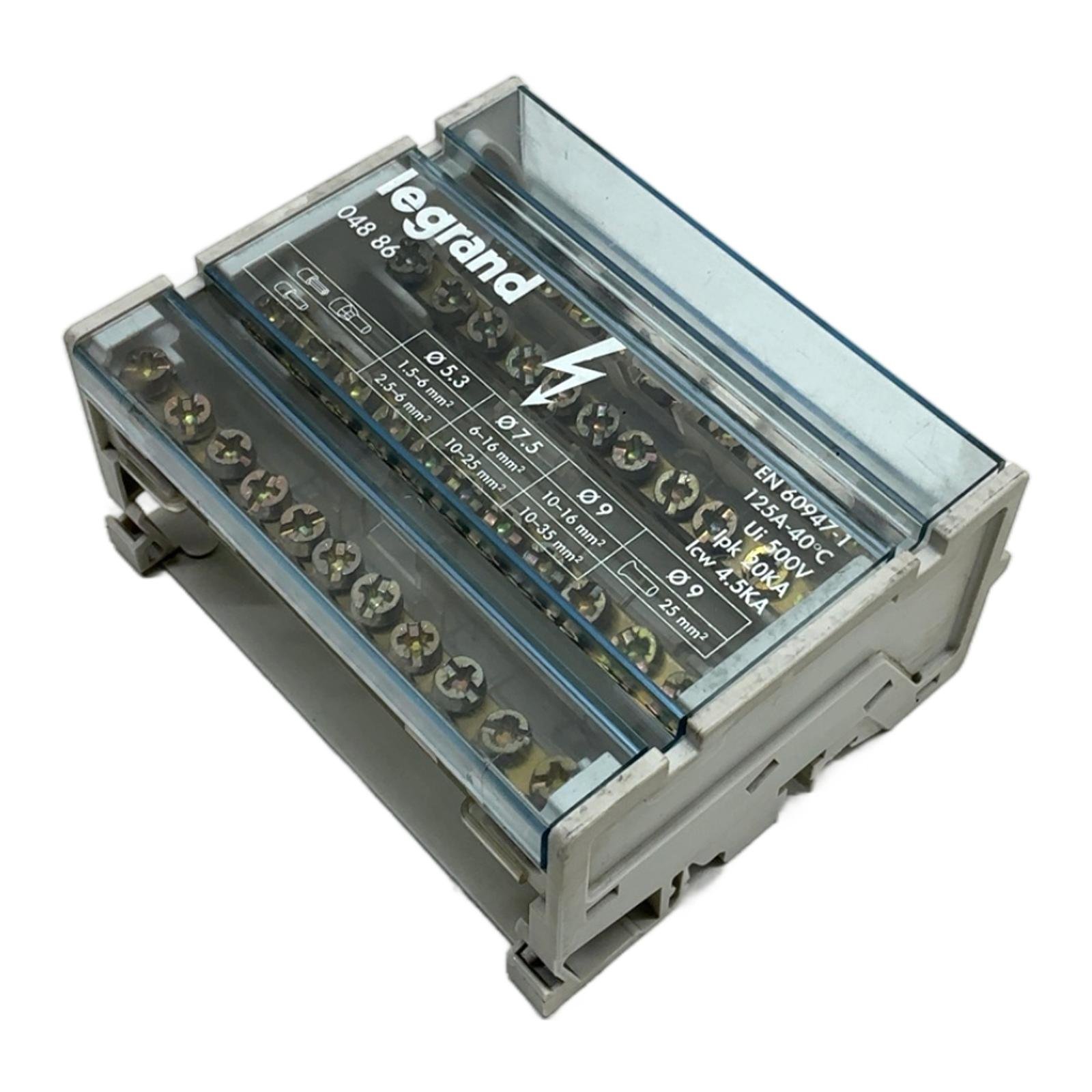

Legrand 048 86 4-Pole Distribution Block Description The Legrand 048 86 is a high-quality, modular tetrapolar distribution block designed for efficient power distribution in industrial and commercial electrical panels. With a current rating of 125A and a voltage rating of 500V, it provides a secure and organized method for connecting multiple conductors. This block is built for mounting on a standard DIN rail and complies with EN 60947-1 standards for safety and performance. Specifications Manufacturer: Legrand Type: 048 86 Rated Current (Ie): 125A at 40 deg C Rated Insulation Voltage (Ui): 500V Peak Withstand Current (Ipk): 20kA Short-time Withstand Current (Icw): 4.5kA for 1s Number of Poles: 4 Mounting: DIN Rail Connections per bar: Varies by wire size Label Info Brand: Legrand Model: 048 86 Standard: EN 60947-1 Application Ideal for use in control cabinets, distribution boards, and machine control systems where multiple power lines need to be split and distributed safely and reliably from a single source. Country of Origin This product is manufactured by Legrand in France. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid 8.0 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the CO2 captured by a tree in over a year. Availability This item is an obsolete part but is available from our stock. Limited quantities available. Order now from profideals for expert support and fast delivery. FAQ What is the maximum torque for the screw terminals on the Legrand 048 86?While the datasheet for this obsolete model is not readily available, for the modern equivalent (Legrand 4048 86), the recommended tightening torque for the largest terminals (35 mm2) is 3.5 Nm. It is advisable to use a calibrated torque screwdriver to ensure a secure and safe connection. Can this distribution block be mounted on any standard DIN rail?Yes, the Legrand 048 86 is designed for mounting on a standard 35mm DIN rail (also known as a top-hat rail, TH 35), which is the most common type used in industrial control panels and distribution boards. Is this block suitable for both copper and aluminum conductors?This distribution block is designed for use with copper conductors. Using aluminum conductors requires special precautions, such as using an anti-oxidant compound and ensuring the terminals are rated for Al/Cu connections, which is not specified for this model. For safety, it is recommended to use only copper wires. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
