DANFOSS OMTS 200 151B3037

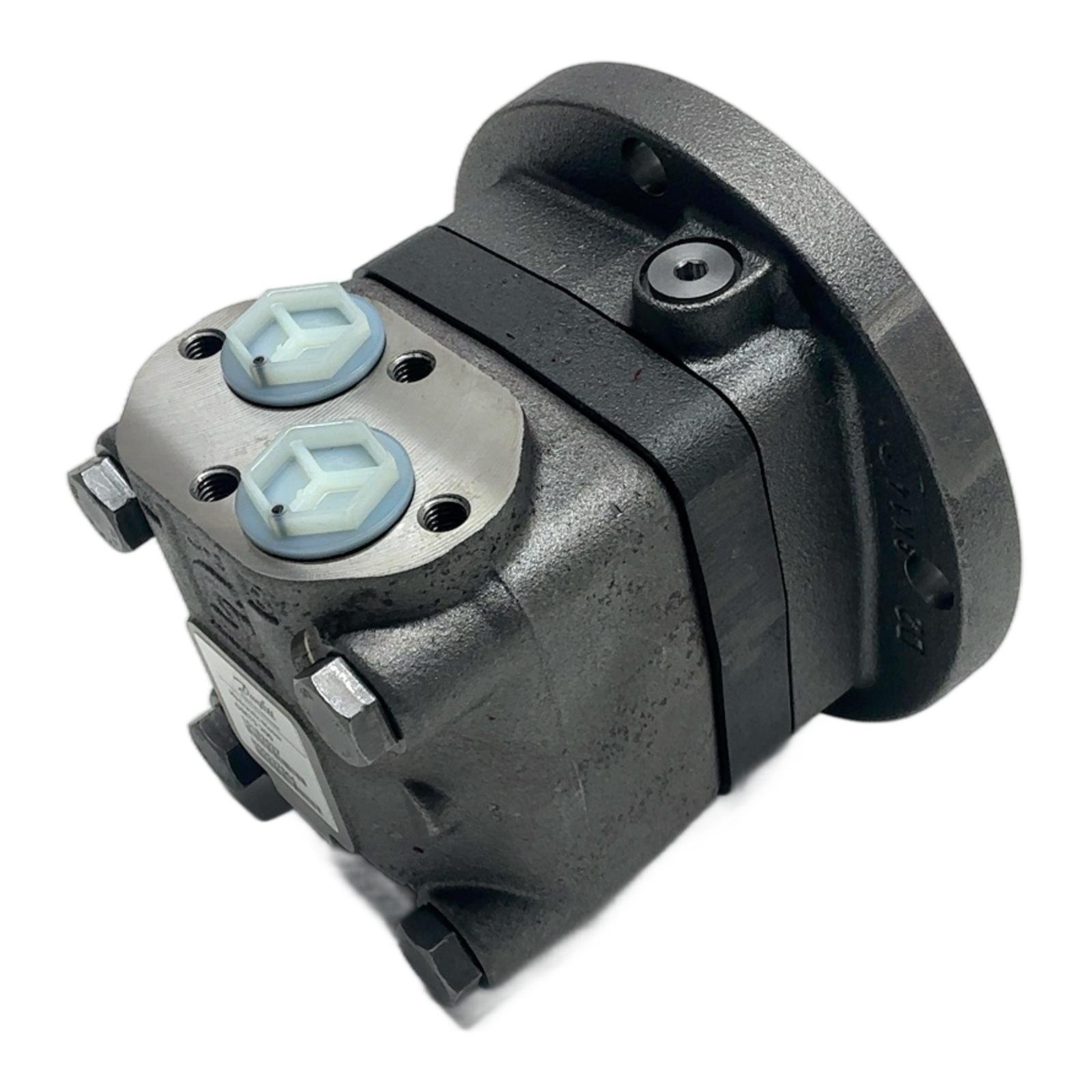

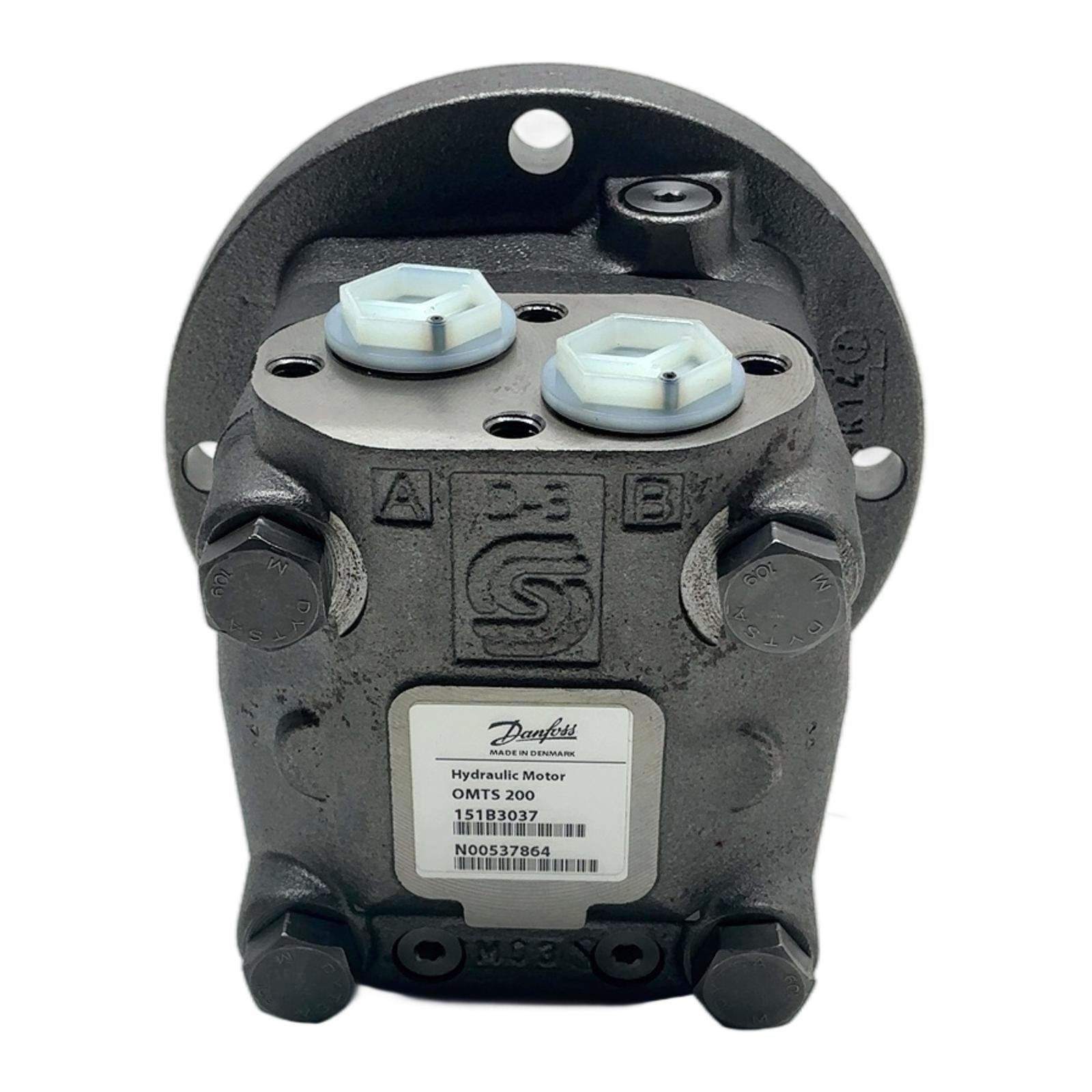

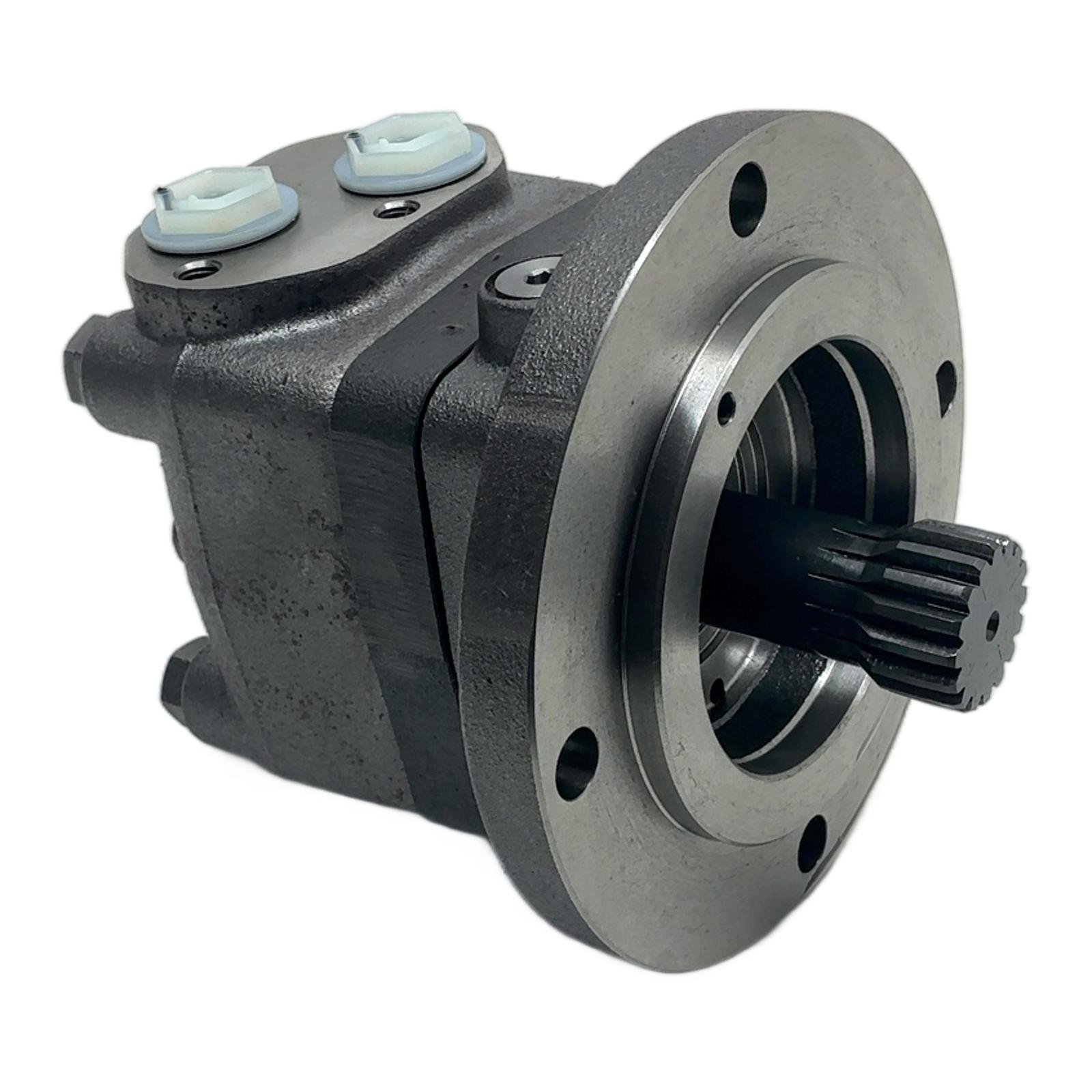

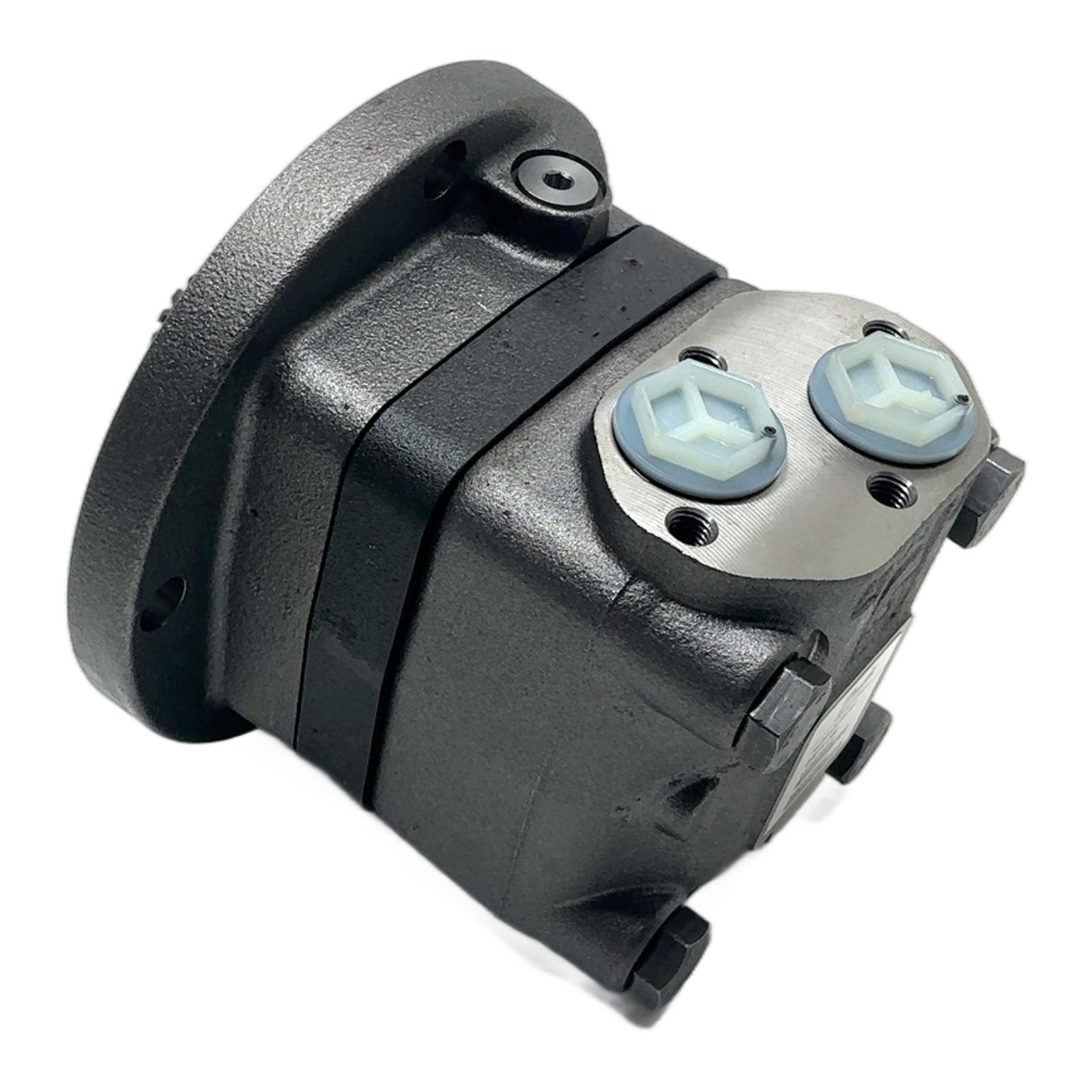

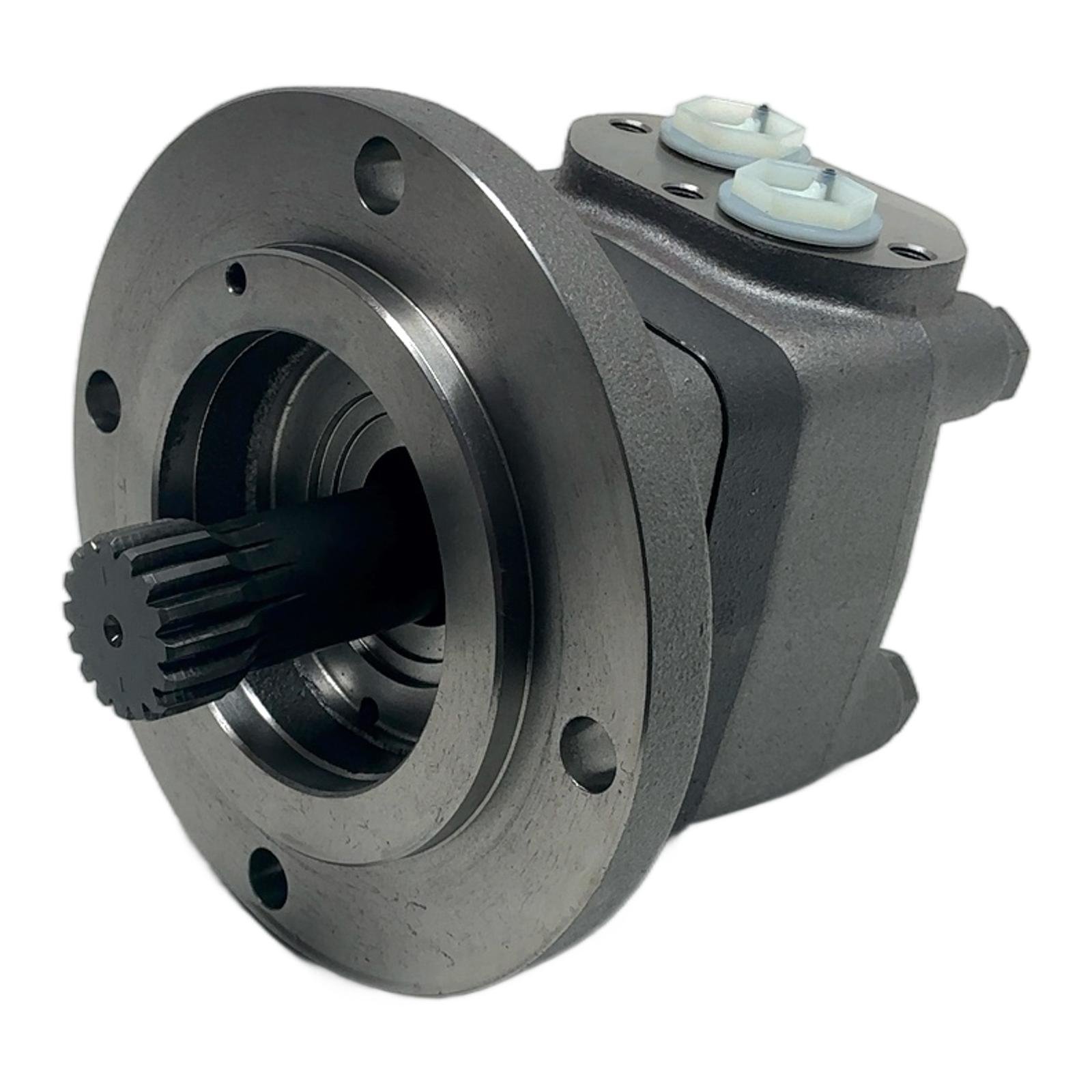

Danfoss OMTS 200 Hydraulic Motor Description This is a Danfoss OMTS 200 hydraulic orbital motor, part number 151B3037. It is a high-torque, low-speed motor designed for heavy-duty applications. The OMTS series features tapered roller bearings, enabling the motor to handle high radial loads. This makes it exceptionally suitable for applications such as wheel motors, conveyor drives, and winches. This unit is new old stock and comes in its original packaging with a set of NBR seals. Specifications Manufacturer: Danfoss Model: OMTS 200 Part Number: 151B3037 Displacement: 200 cm3/rev Shaft Type: Splined Mounting Flange: 4-Bolt Bearings: Tapered Roller Bearings Label Info Brand: Danfoss Type: OMTS 200 Code: 151B3037 Serial Number: N00537864 Application The robust design of the OMTS 200 makes it ideal for use in agricultural machinery, construction equipment, forestry vehicles, and stationary industrial machinery requiring high torque and reliability. Country of Origin Made in Denmark. CO2 Impact By purchasing this reused motor, you are contributing to a circular economy and saving approximately 23 kg of CO2 compared to the production of a new one. This is equivalent to the emissions of driving a car for 115 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of hydraulic fluid is recommended for the Danfoss OMTS 200 motor? Danfoss recommends using high-quality, mineral-based hydraulic fluids (Type HLP, DIN 51524) with a cleanliness level of at least 20/18/15 according to ISO 4406. Proper fluid maintenance is crucial for maximizing motor lifespan. Can this OMTS 200 motor handle high radial shaft loads? Yes, the ‘TS’ in the OMTS model name indicates it is equipped with tapered roller bearings. This design allows the motor to handle significantly higher static and dynamic radial loads compared to standard orbital motors. What is the main difference between the OMT and OMTS series from Danfoss? The primary difference lies in the bearing design. The OMT series uses robust needle roller bearings suitable for many applications. The OMTS series, like this model, incorporates tapered roller bearings specifically designed for applications with high radial loads, such as wheel drives or heavy-duty conveyors. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
