REXROTH 4WE 6 J62/EW230N9K4 R900911762

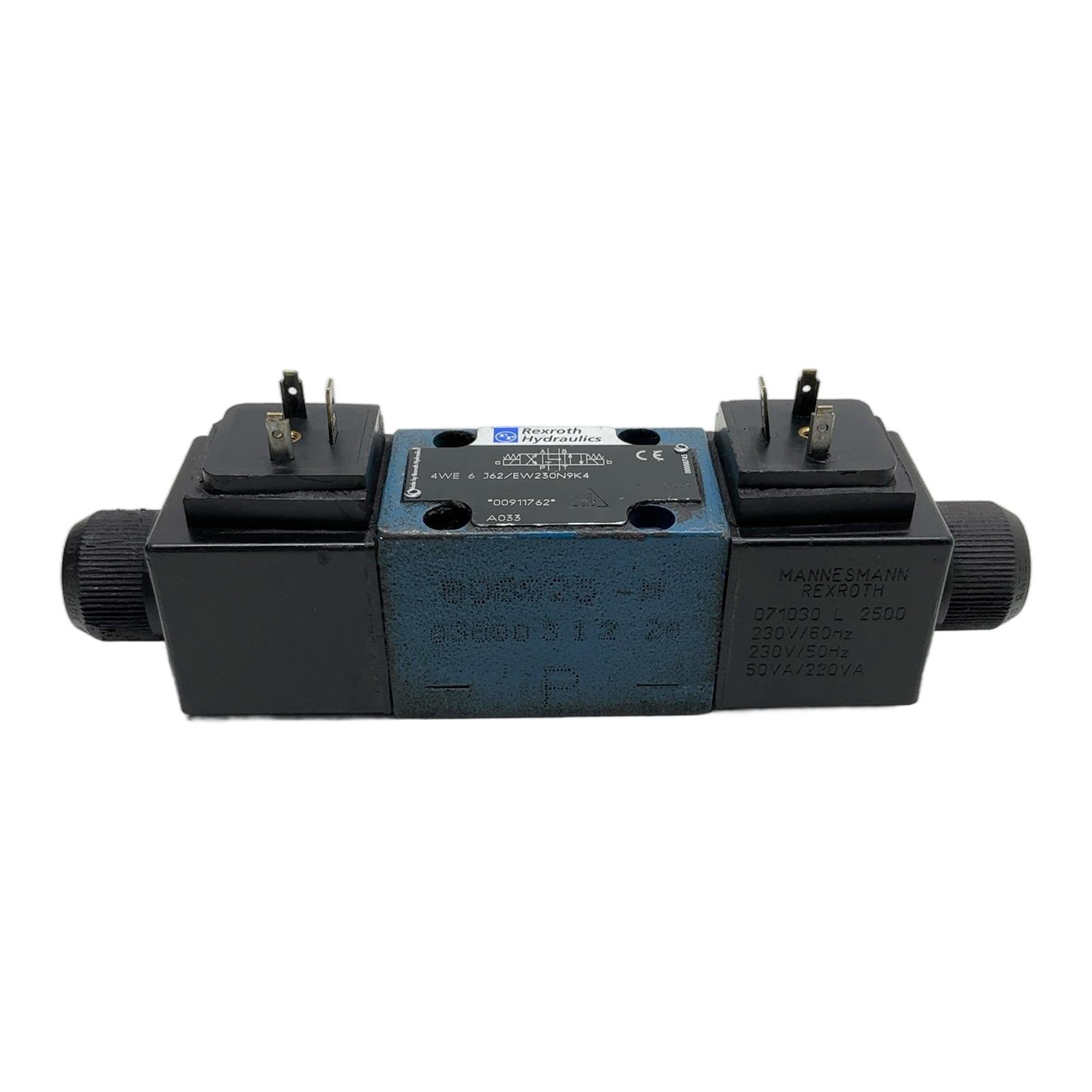

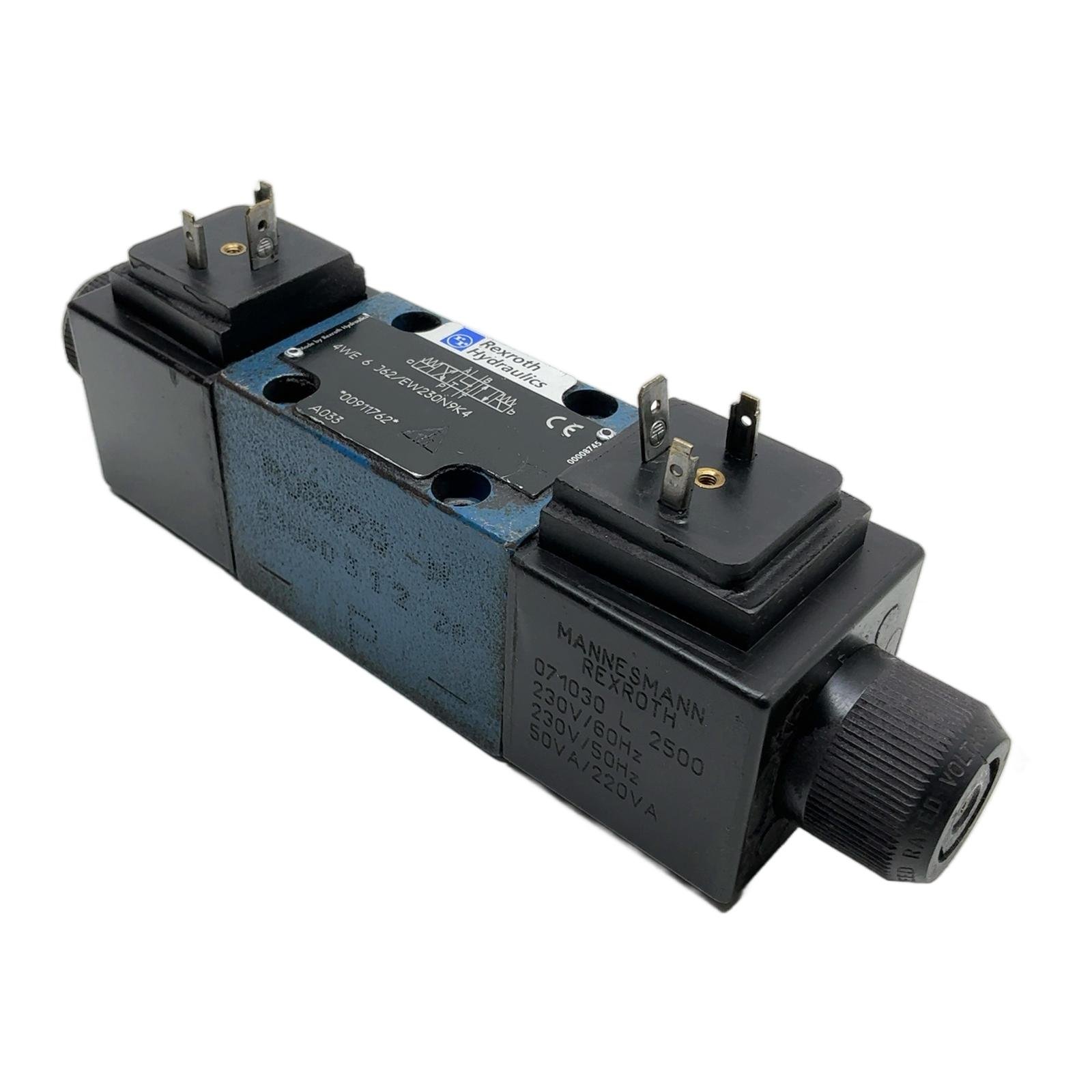

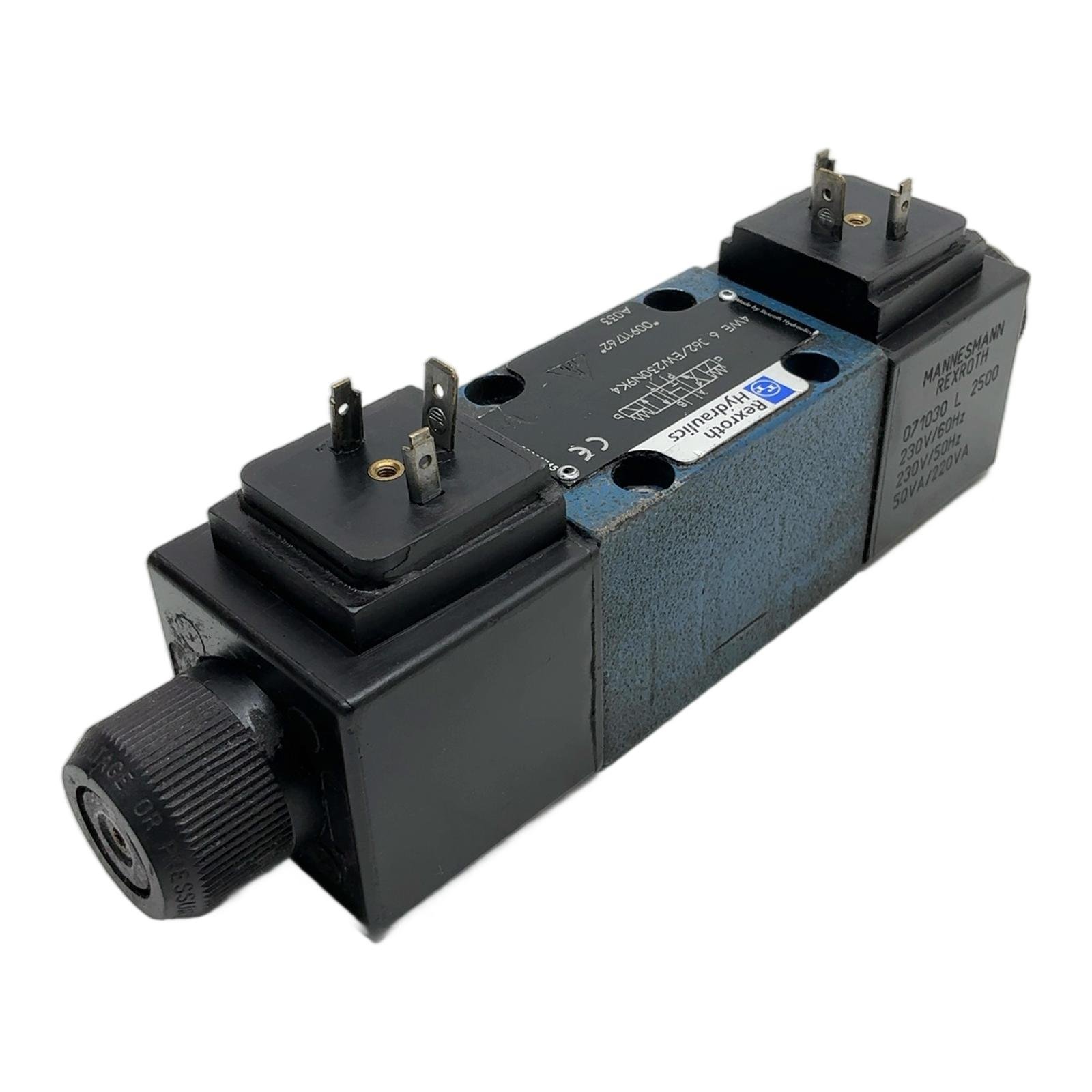

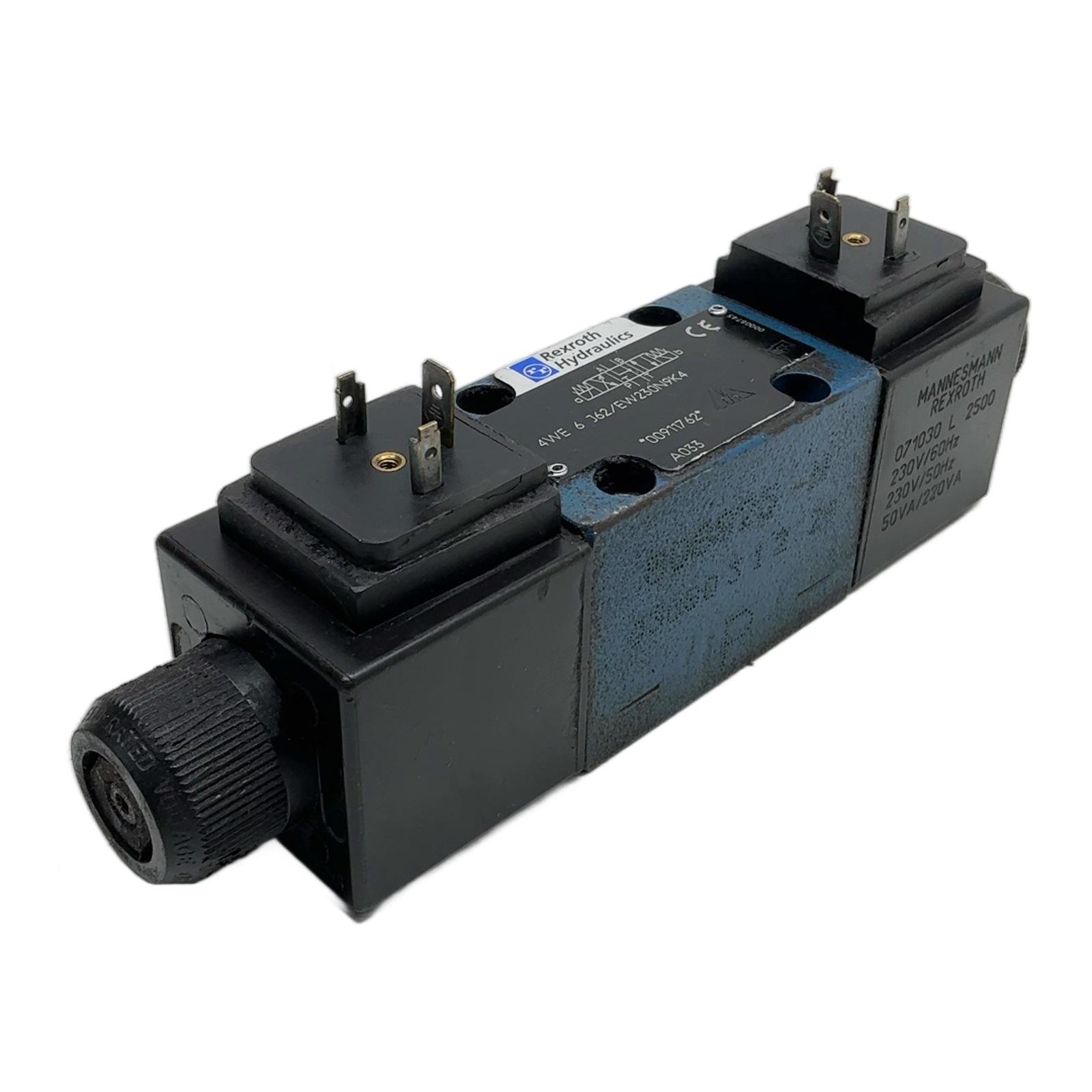

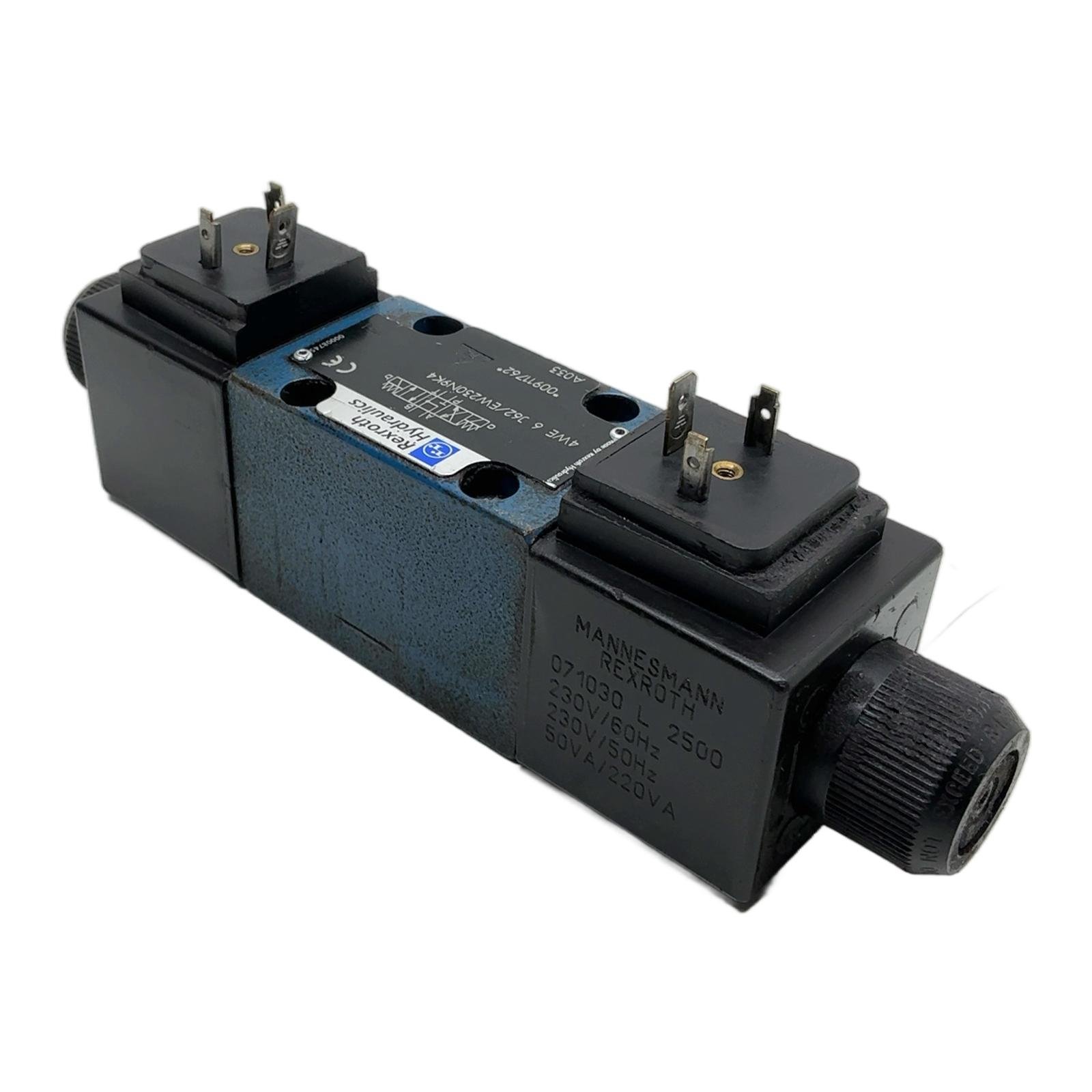

Rexroth Solenoid Operated Directional Valve NG6 230V AC Description This is a 4WE 6 series direct operated directional spool valve from Rexroth. It is a high-performance valve used to control the flow direction in hydraulic systems. This double solenoid model is actuated by 230V AC power and features a spring-centered ‘J’ spool. Its robust design and standard NG6 (CETOP 3) mounting interface make it a versatile choice for a wide range of industrial machinery. This unit is used but in good working condition. Specifications Manufacturer: Rexroth (Bosch Rexroth) Type: 4WE 6 J62/EW230N9K4 Material Number: R900911762 Valve Type: 4/3-way Directional Spool Valve Size: NG6 / CETOP 3 Actuation: Solenoid Operated Solenoid Voltage: 230V AC, 50/60 Hz Maximum Operating Pressure: 350 bar Maximum Flow Rate: 80 L/min Spool Symbol: J (Spring-centered, A/B/P/T blocked) Label Info Model: 4WE 6 J62/EW230N9K4 Part Nr: *00911762* Solenoid Coil: MANNESMANN REXROTH 071030 L 2500 Application This type of valve is commonly used in machine tools, manufacturing lines, mobile hydraulics, and general industrial automation to control cylinders, hydraulic motors, and other actuators. Country of Origin Germany CO2 Impact Reusing this component saves approximately 19.0 kg of CO2, which is equivalent to the emissions from driving 95 km in a standard car. Availability This is a used item, available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the “J” spool type in the model number 4WE 6 J62?The “J” indicates a specific spool configuration. In the center (de-energized) position, all ports (P, T, A, and B) are blocked, which holds the actuator in a fixed position. Can this 230V AC valve be operated with a different voltage, for example 24V DC?No, not without modification. The coils are specifically designed for 230V AC. To use a different voltage, such as 24V DC, both solenoid coils would need to be replaced with coils matching the desired voltage and current type (DC). What is the recommended hydraulic fluid cleanliness for this Rexroth valve to ensure a long service life?For Rexroth 4WE 6 valves, a fluid cleanliness level of at least ISO 4406 code 20/18/15 is recommended to prevent premature wear and ensure reliable operation. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
