FESTO DN-50-50-PPV 4992

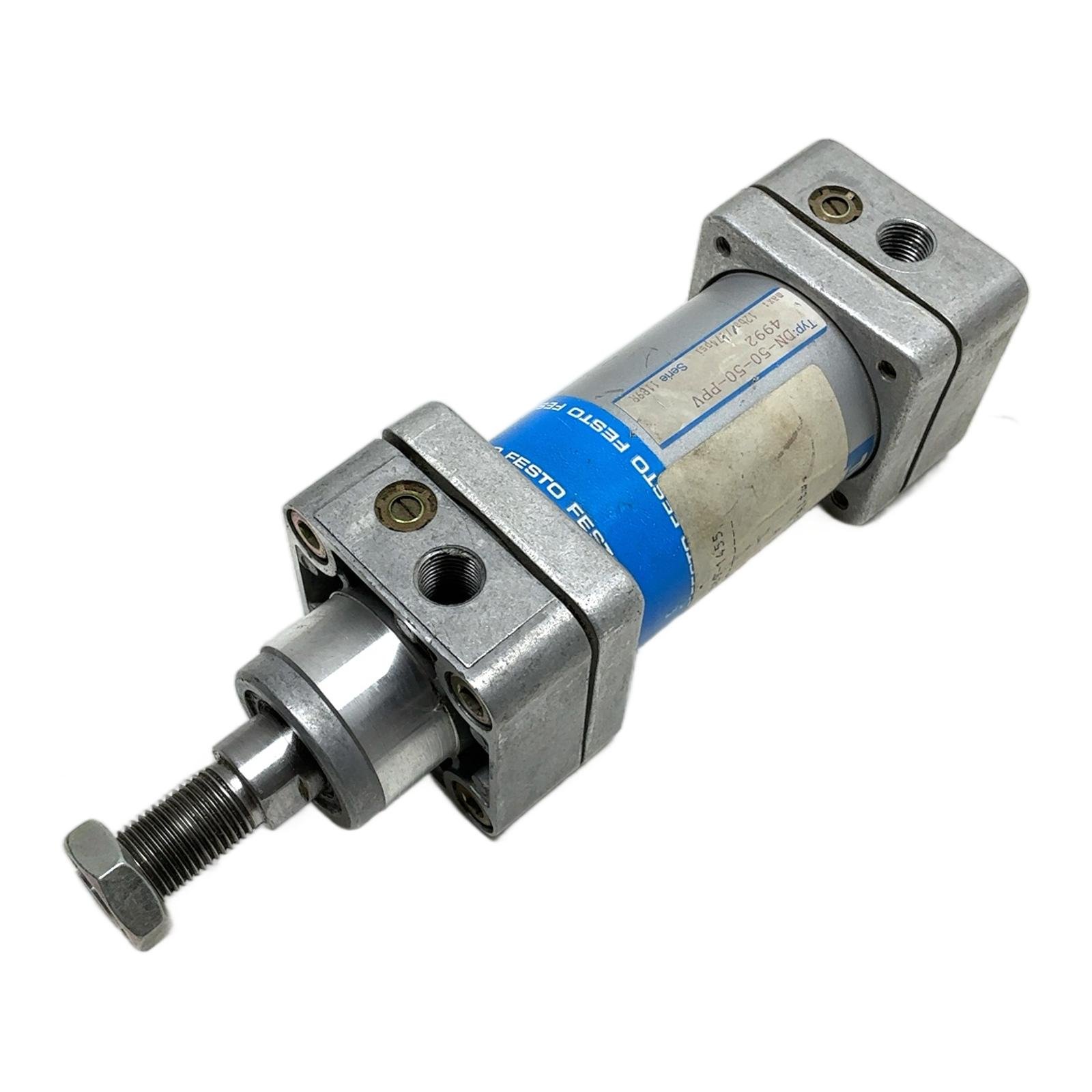

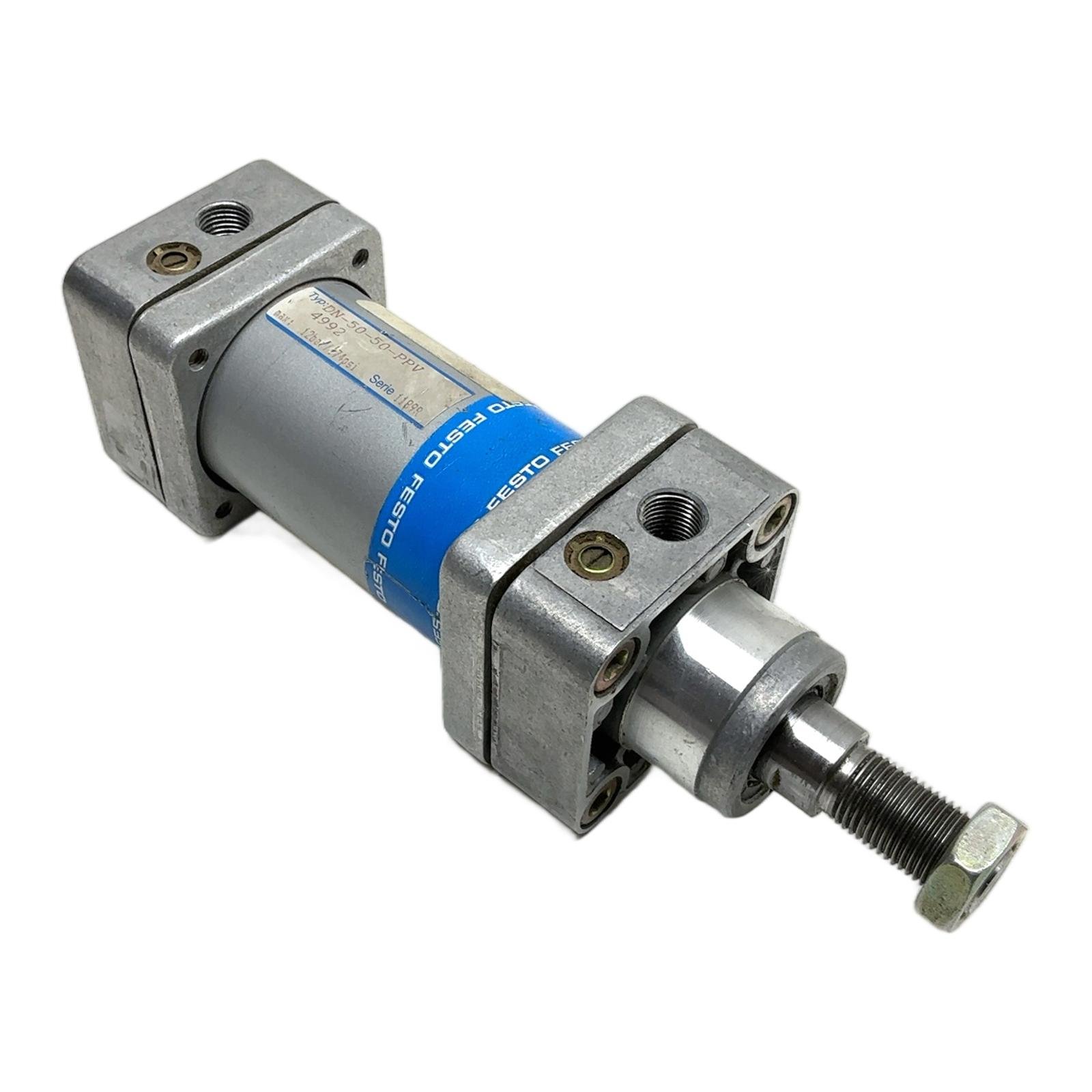

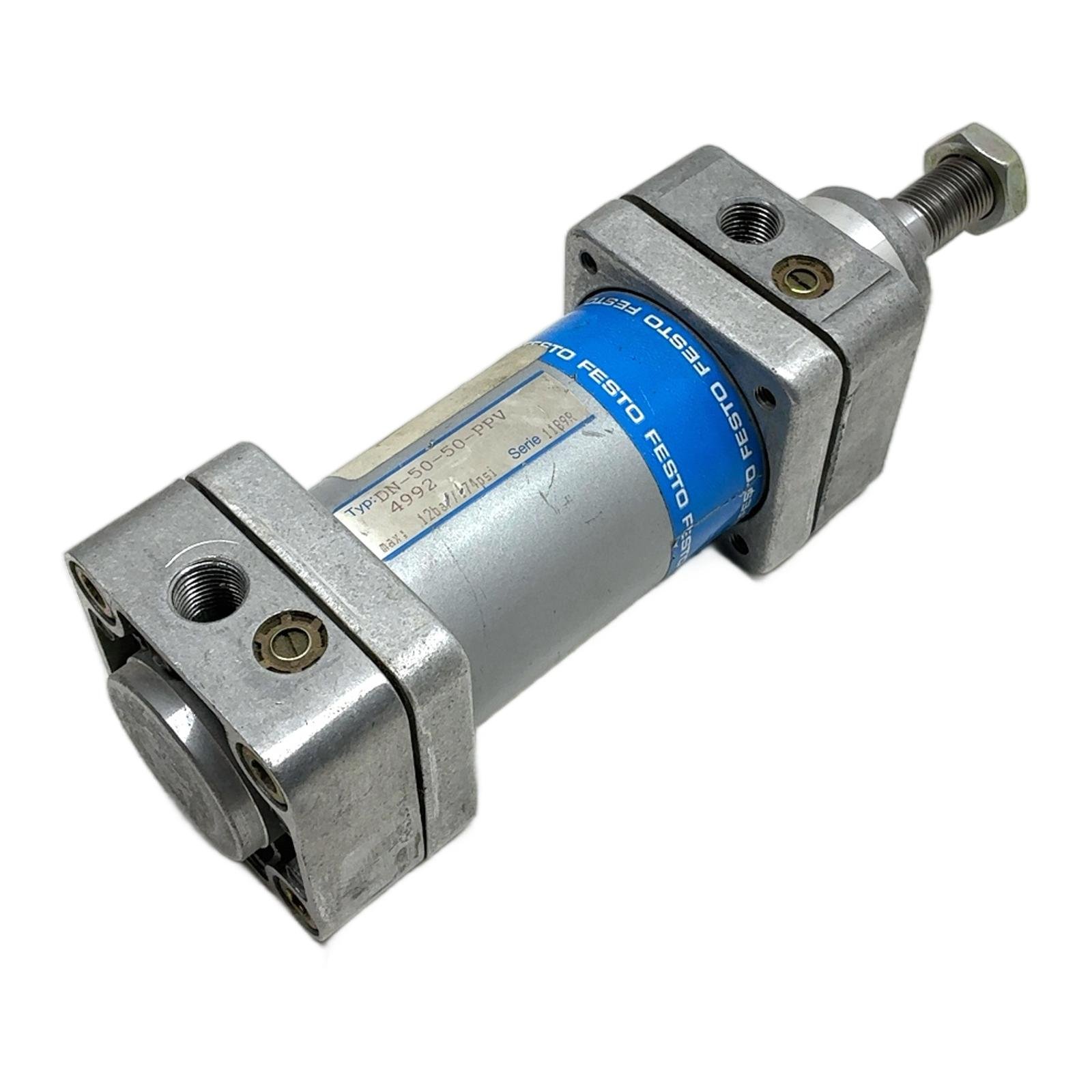

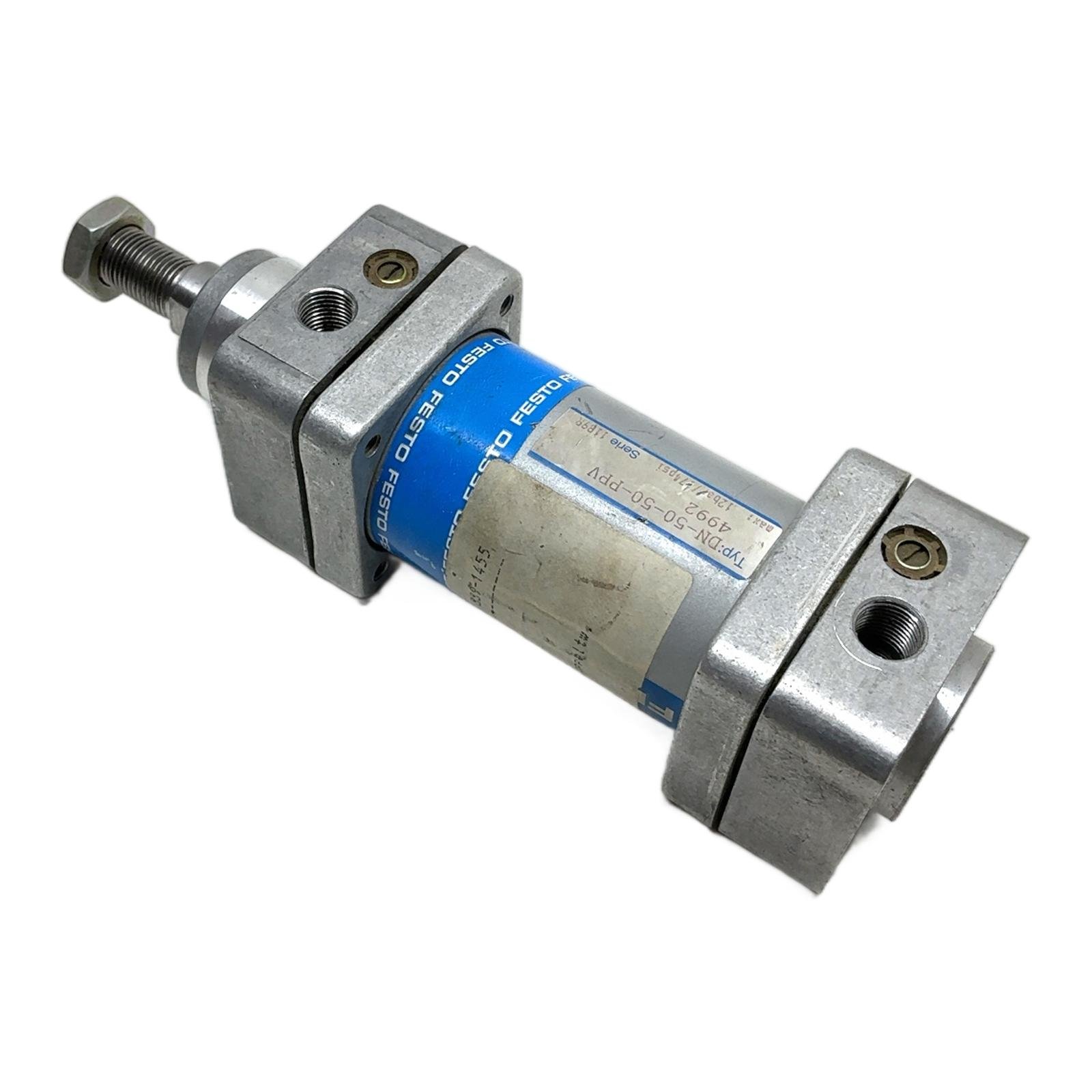

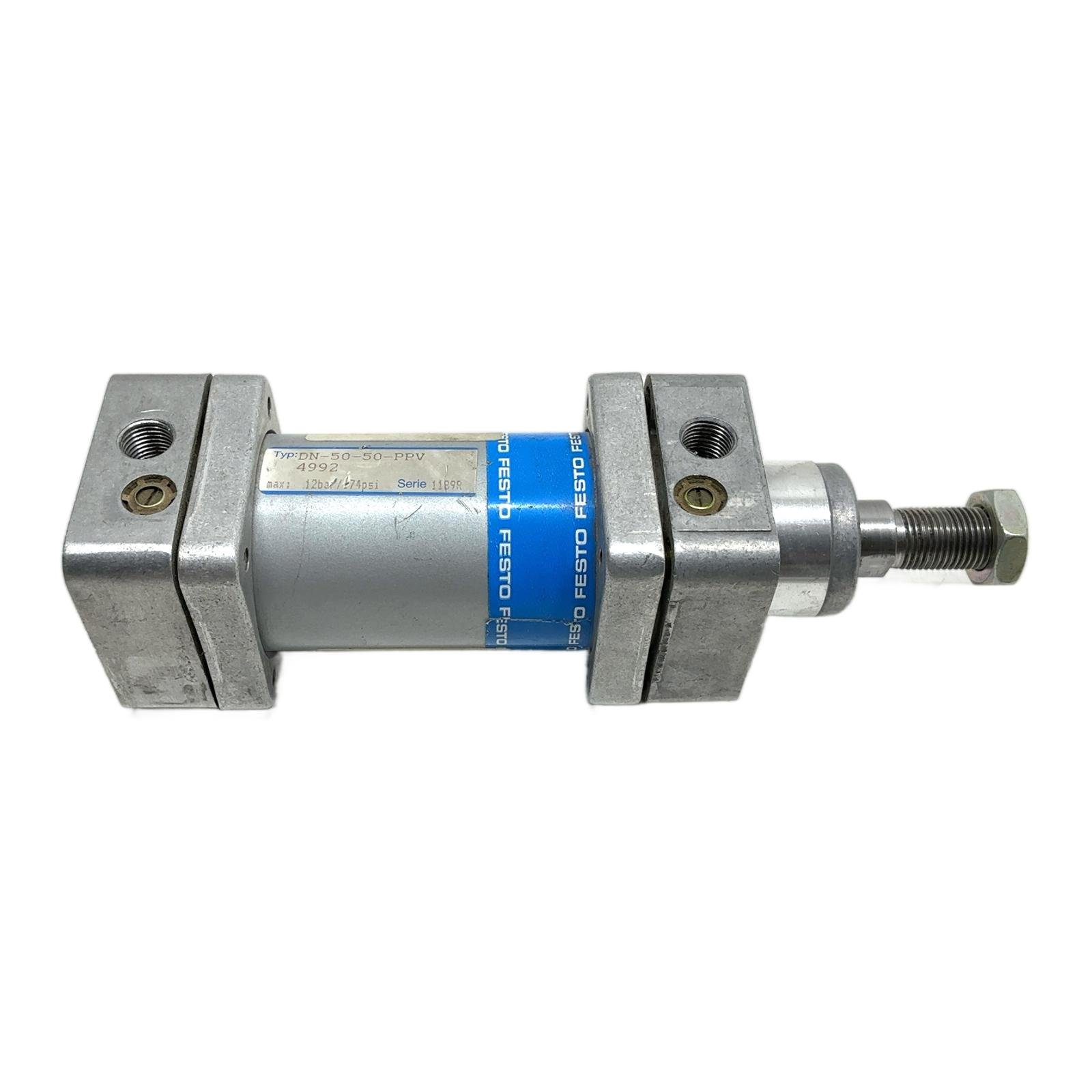

Festo DN-50-50-PPV Pneumatic Cylinder Description This is a Festo DN-50-50-PPV, a double-acting standard cylinder. It is engineered for reliability in various automation tasks. With a 50 mm bore and a 50 mm stroke, it delivers consistent performance. The adjustable pneumatic cushioning (PPV) at both ends ensures controlled movement and reduces impact, extending the life of the cylinder and associated machinery. Although this model is part of an obsolete series, it remains a valuable component for repairs and maintenance of existing systems. Specifications Manufacturer: Festo Type: DN-50-50-PPV Part Number: 4992 Piston Bore: 50 mm Stroke: 50 mm Action: Double-acting Cushioning: Pneumatic, adjustable at both ends (PPV) Maximum Operating Pressure: 12 bar (174 psi) Label Info Typ: DN-50-50-PPV Part Nr: 4992 Max: 12bar / 174psi Serie: 1199R Application This cylinder is suitable for a wide range of industrial applications including clamping, positioning, lifting, and pushing tasks in manufacturing, packaging, and material handling systems. Country of Origin Manufactured by Festo in Germany. CO2 Impact Opting for this pre-owned cylinder avoids the production of a new one, saving an estimated 15.0 kg of CO2. This is comparable to the emissions from driving a car for 75 kilometers. Availability This is an obsolete item, available as a refurbished part. Limited stock available. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘PPV’ designation in the model number DN-50-50-PPV?The ‘PPV’ designation indicates that the cylinder is equipped with adjustable pneumatic cushioning at both ends. This feature allows you to control the speed of the piston at the end of its stroke, reducing impact, noise, and vibration. Can this obsolete DN series cylinder be directly replaced by a modern Festo DSBC series cylinder?While the Festo DSBC series is the modern functional equivalent, it may not be a direct drop-in replacement. Mounting dimensions, overall length, and piston rod thread size should be carefully compared between the DN-50-50-PPV datasheet and the proposed DSBC equivalent to ensure mechanical compatibility without modifications. What is the maximum operating pressure for this cylinder and what type of compressed air should be used?The maximum operating pressure is 12 bar or 174 psi, as indicated on the label. It is designed to operate with filtered, lubricated, or non-lubricated compressed air according to ISO 8573-1:2010 [7:4:4]. Using properly prepared air is crucial for a long service life. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
