EATON VICKERS DG5V8H2C2TMUC10 / DGMFN-3-Y-A2W B2W-41 / DG4V36CMUC660

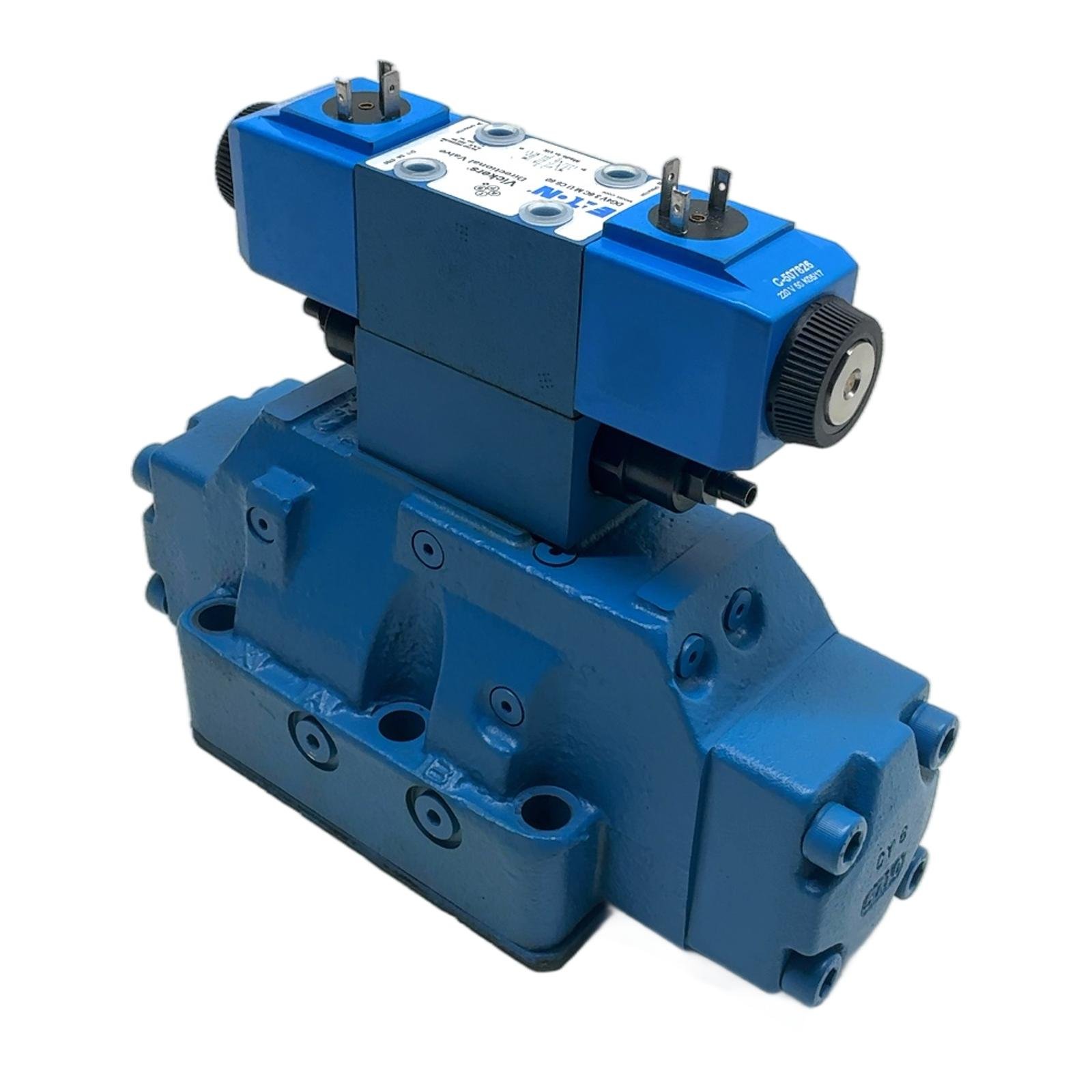

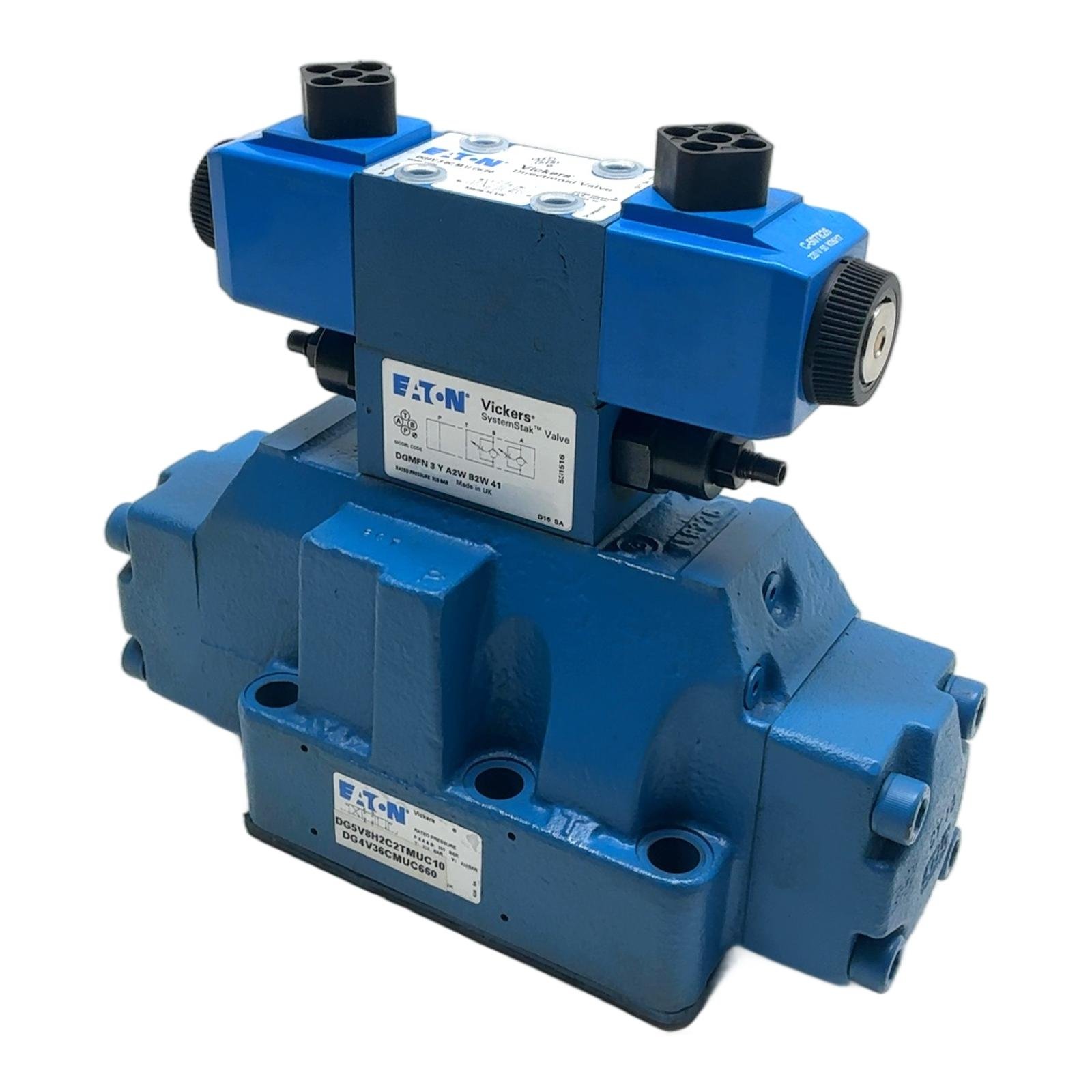

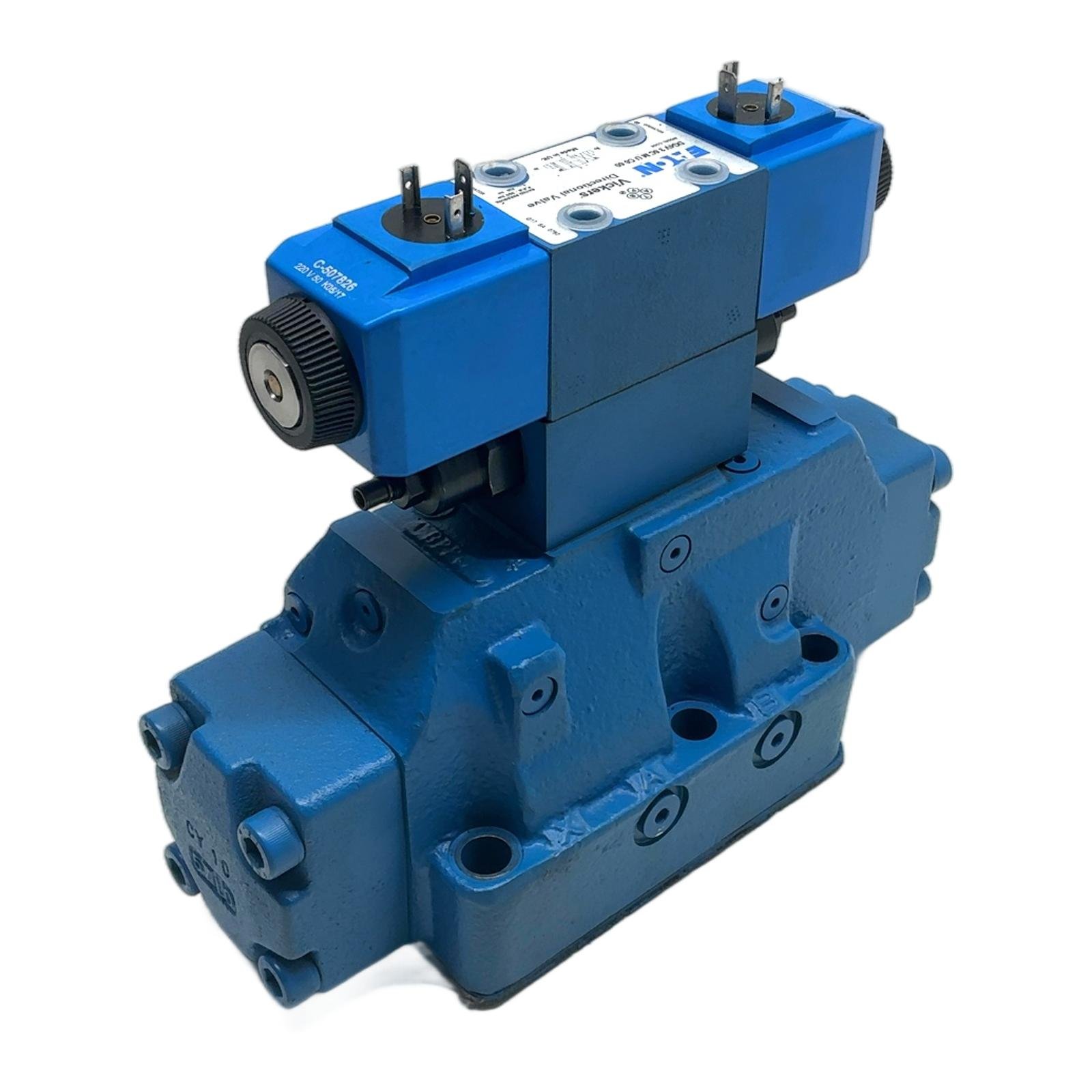

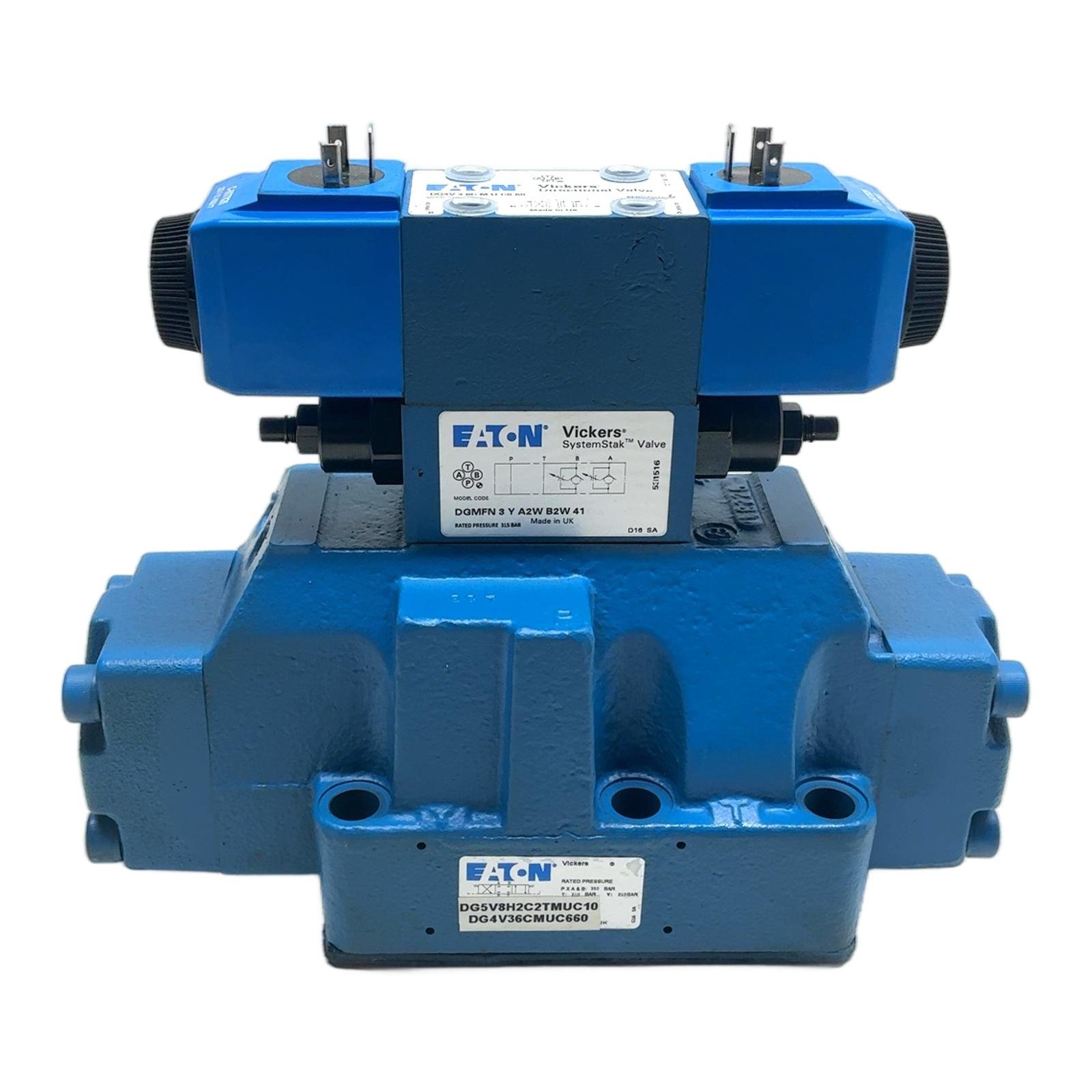

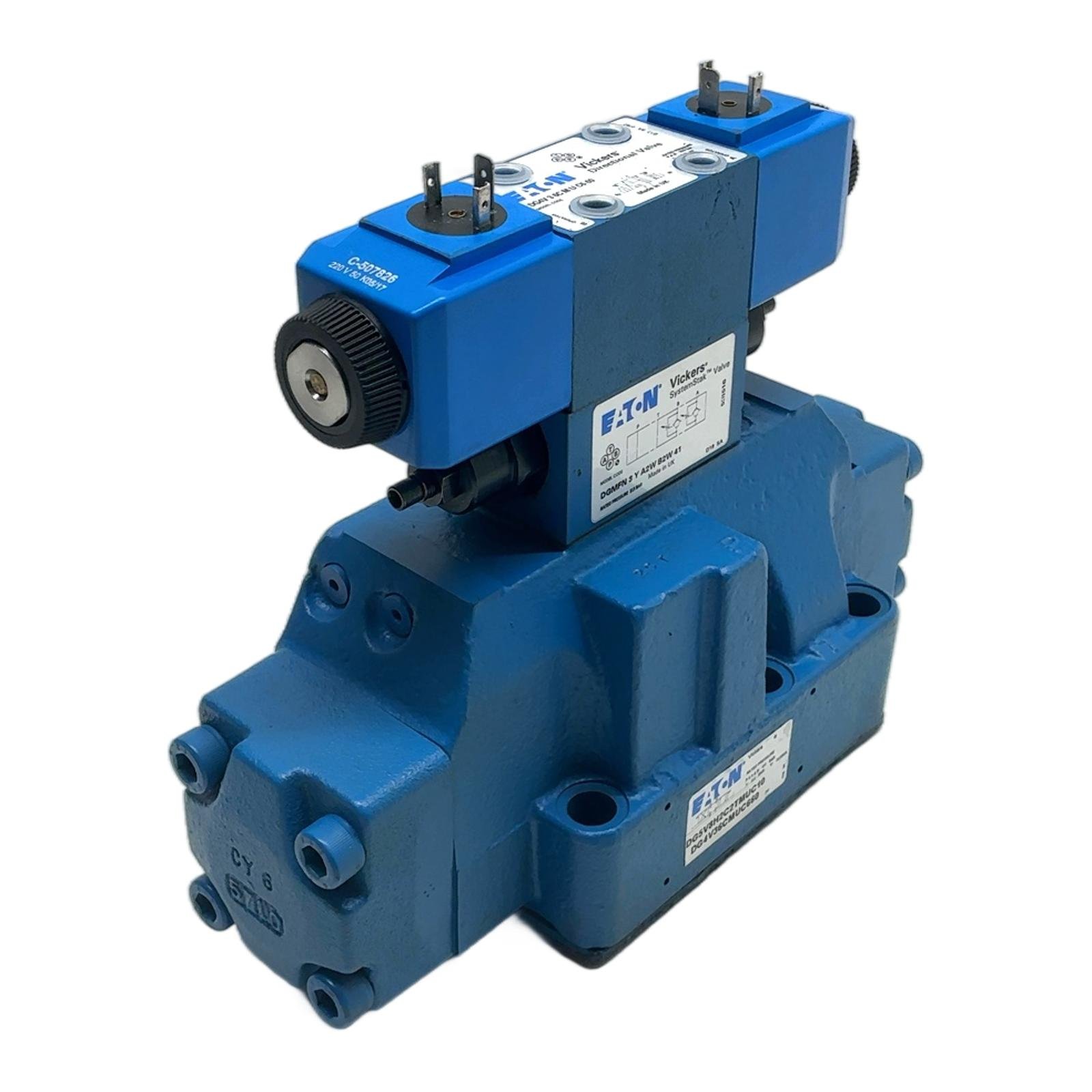

Eaton Vickers Hydraulic Valve Assembly Description This is a complete hydraulic valve stack from Eaton Vickers, engineered for high-performance industrial applications. The assembly is built around a powerful DG5V-8 pilot-operated directional valve, providing robust and reliable control for high-flow systems. It is complemented by a DGMFN SystemStak pressure-compensated flow control valve and a DG4V direct-operated directional valve, offering multi-layered control over your hydraulic circuit. This pre-assembled stack ensures component compatibility and simplifies system design and installation. Specifications Manufacturer: Eaton Vickers Main Valve Type: DG5V8H2C2TMUC10 (Pilot Operated Directional Valve) Flow Control Valve: DGMFN 3 Y A2W B2W 41 (SystemStak Pressure Compensated) Top Directional Valve: DG4V 3 6C M U C6 60 Interface Size: NG25 (CETOP 8) for main valve, NG6 (CETOP 3) for stacked valves Maximum Operating Pressure: 350 bar (5075 PSI) Solenoid Voltage: 220V AC, 50 Hz Seal Material: Viton (U-code) Label Info Label 1 (Main Valve): DG5V8H2C2TMUC10 / DG4V36CMUC660, P X A & B: 350 BAR, T: 210 BAR, Y: 210 BAR Label 2 (Middle Valve): DGMFN 3 Y A2W B2W 41, Rated Pressure 315 BAR Label 3 (Top Valve): DG4V 3 6C M U C6 60, P,A,B 350 bar, T 210 bar Application This valve assembly is ideal for controlling actuators in heavy-duty machinery such as industrial presses, injection molding machines, die casting equipment, and large-scale material handling systems where precise control of direction and speed is critical. Country of Origin Made in the United Kingdom. CO2 Impact Opting for this component saves an estimated 95 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for 475 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of hydraulic fluid is compatible with the ‘U’ (Viton) seals in this valve assembly?The ‘U’ designator indicates Viton seals, which are compatible with a wide range of hydraulic fluids, including petroleum-based oils, synthetic fluids, and high water content fluids. Always consult the Eaton datasheet for specific fluid compatibility and temperature ranges. Can the solenoid coils on the DG4V-3 valve (C-507826, 220V 50Hz) be replaced with a different voltage, for example, 24V DC?Yes, Eaton’s C-frame solenoid coils are generally interchangeable. You would need to replace the existing 220V AC coils with the appropriate 24V DC version, ensuring the part number matches the valve’s requirements for force and stroke. What do the manual adjustment knobs on the DGMFN-3 flow control valve do?The knobs on the DGMFN-3 valve allow for manual, tool-free adjustment of the hydraulic flow rate through ports A and B independently. This provides precise, on-the-fly control over actuator speed without needing to alter system pressure. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
