SKF H210

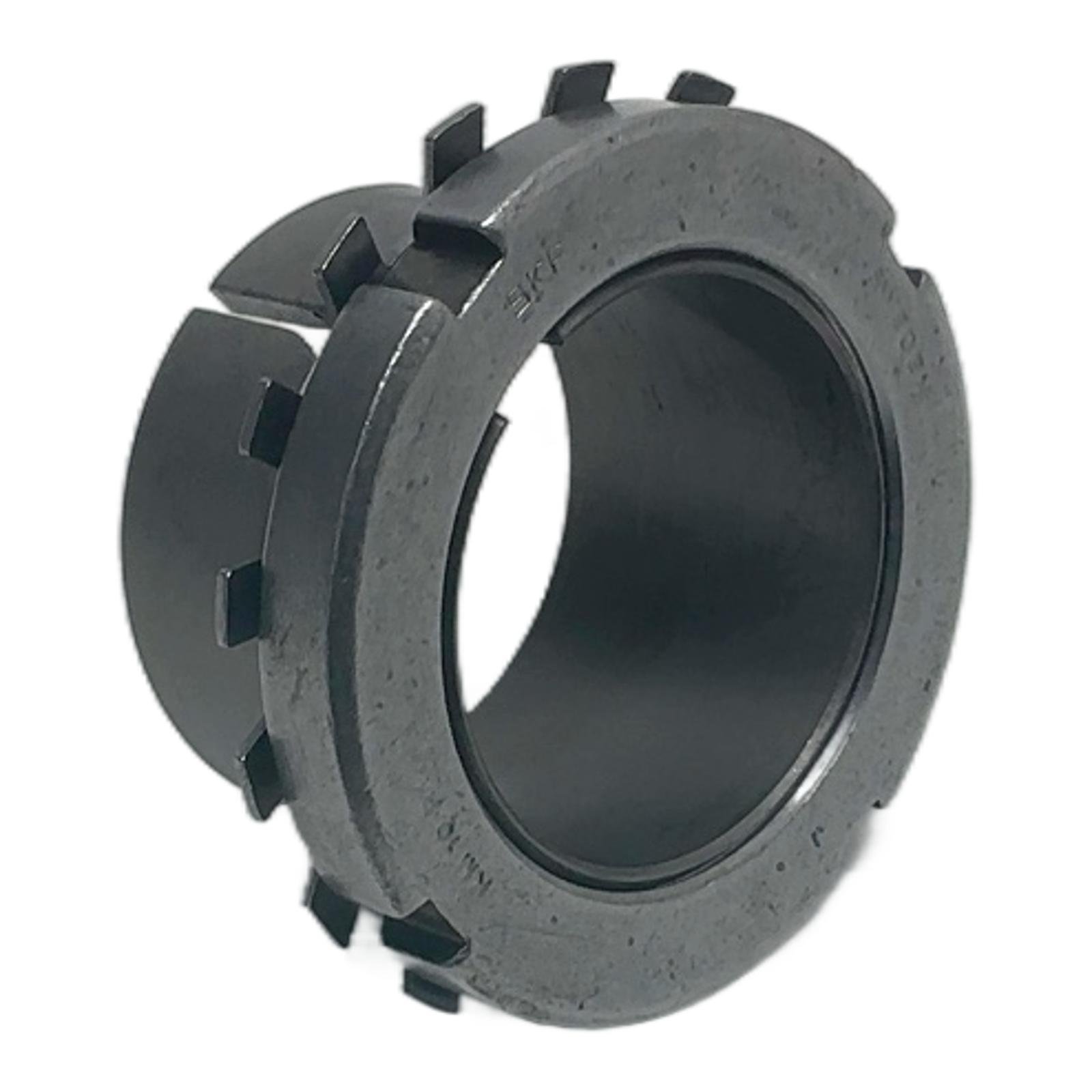

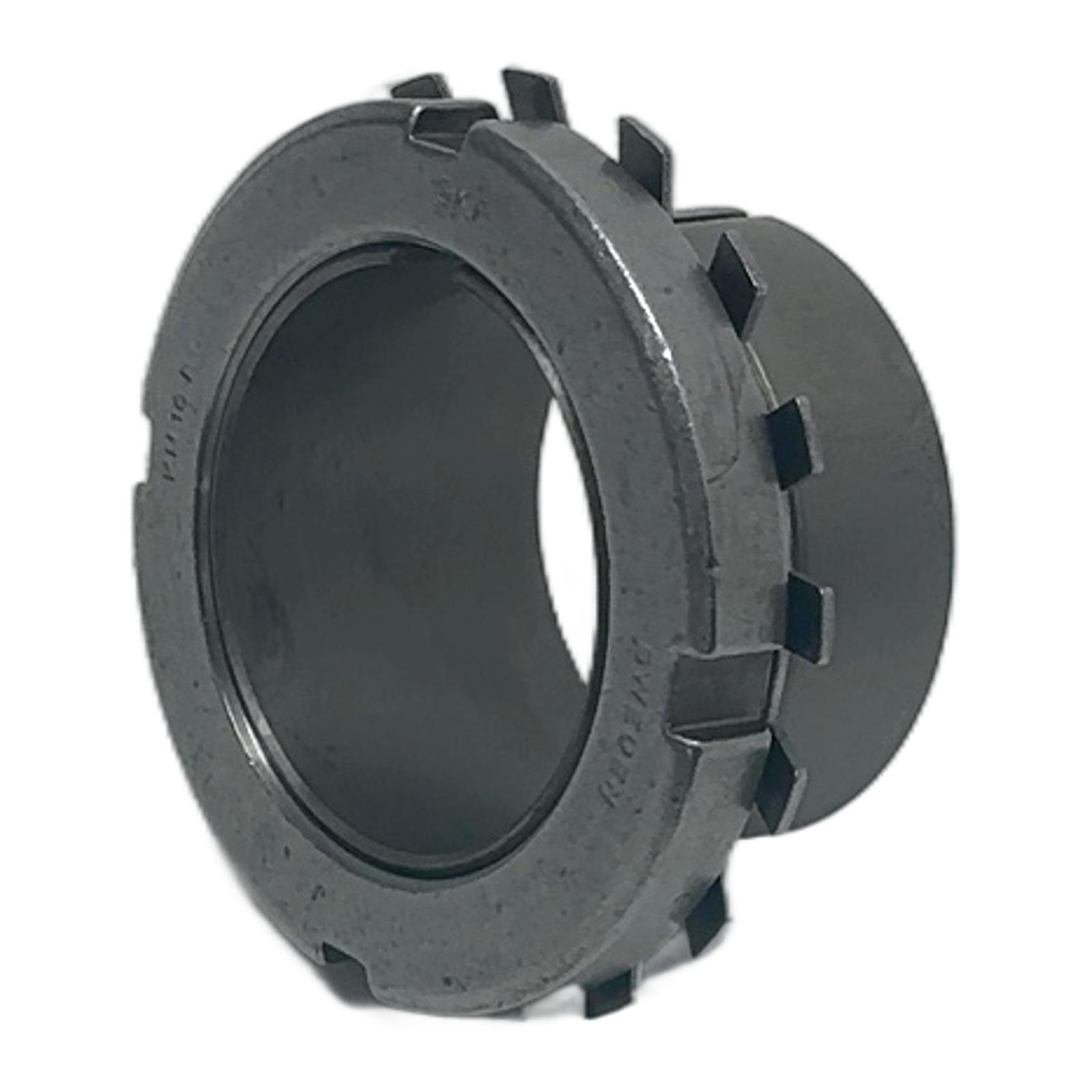

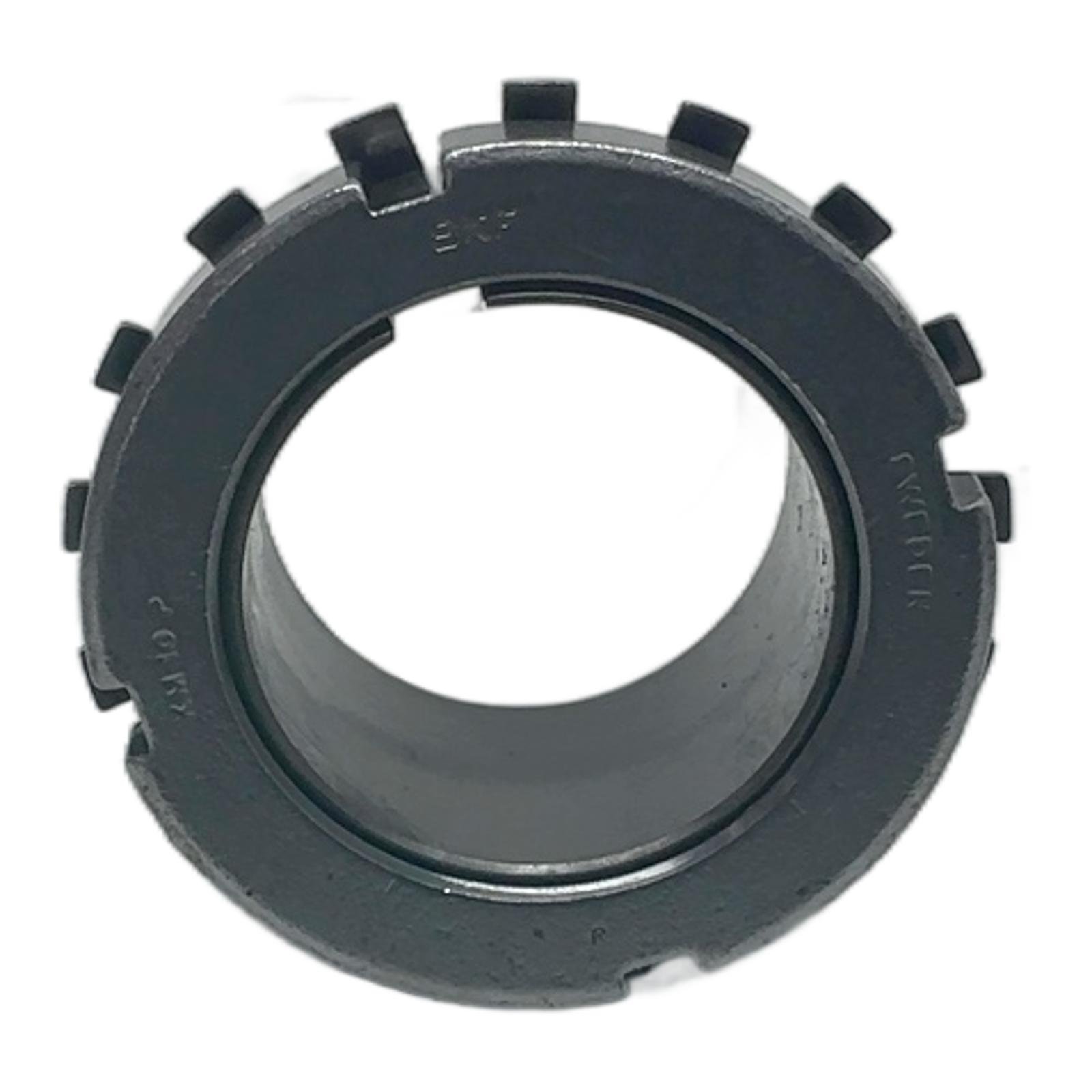

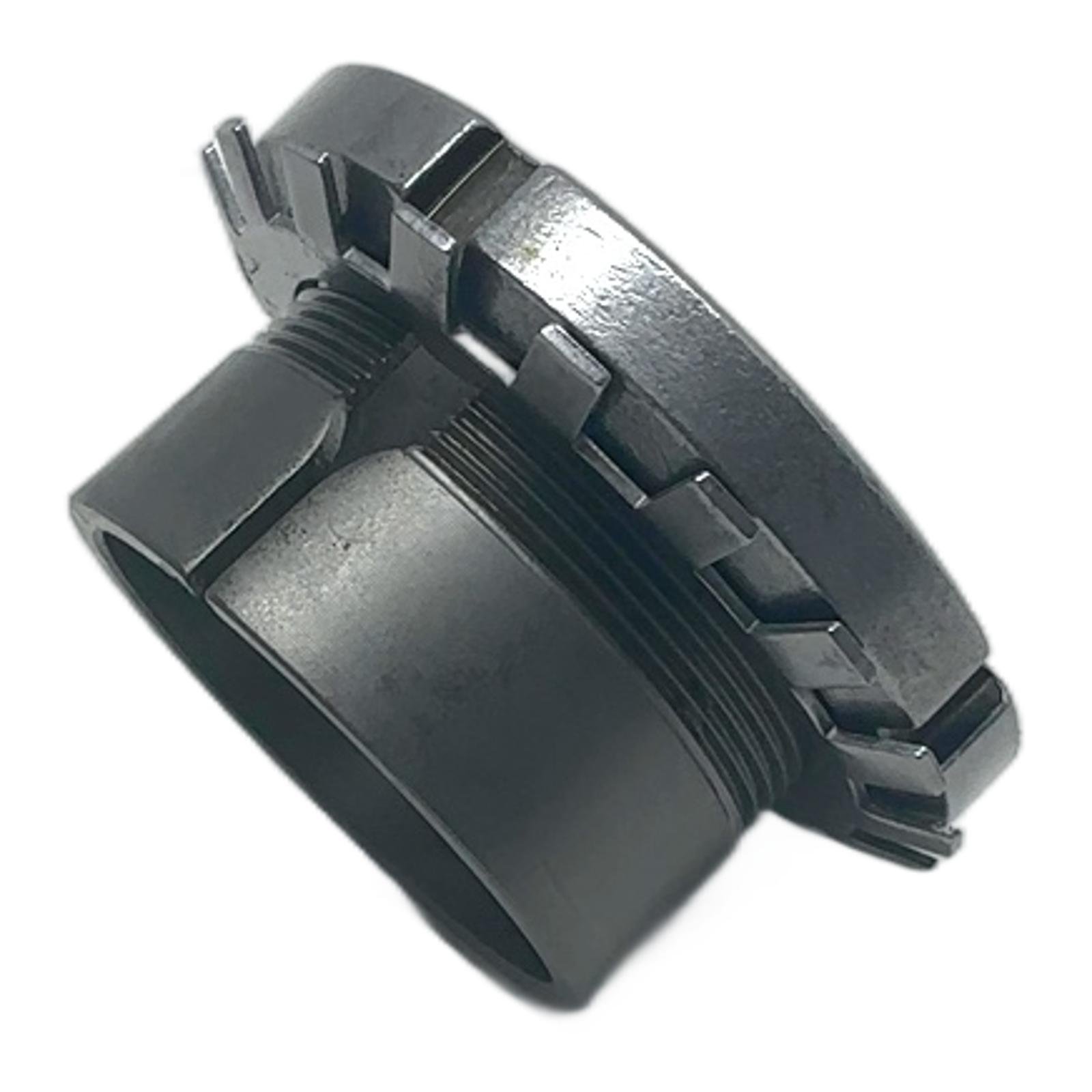

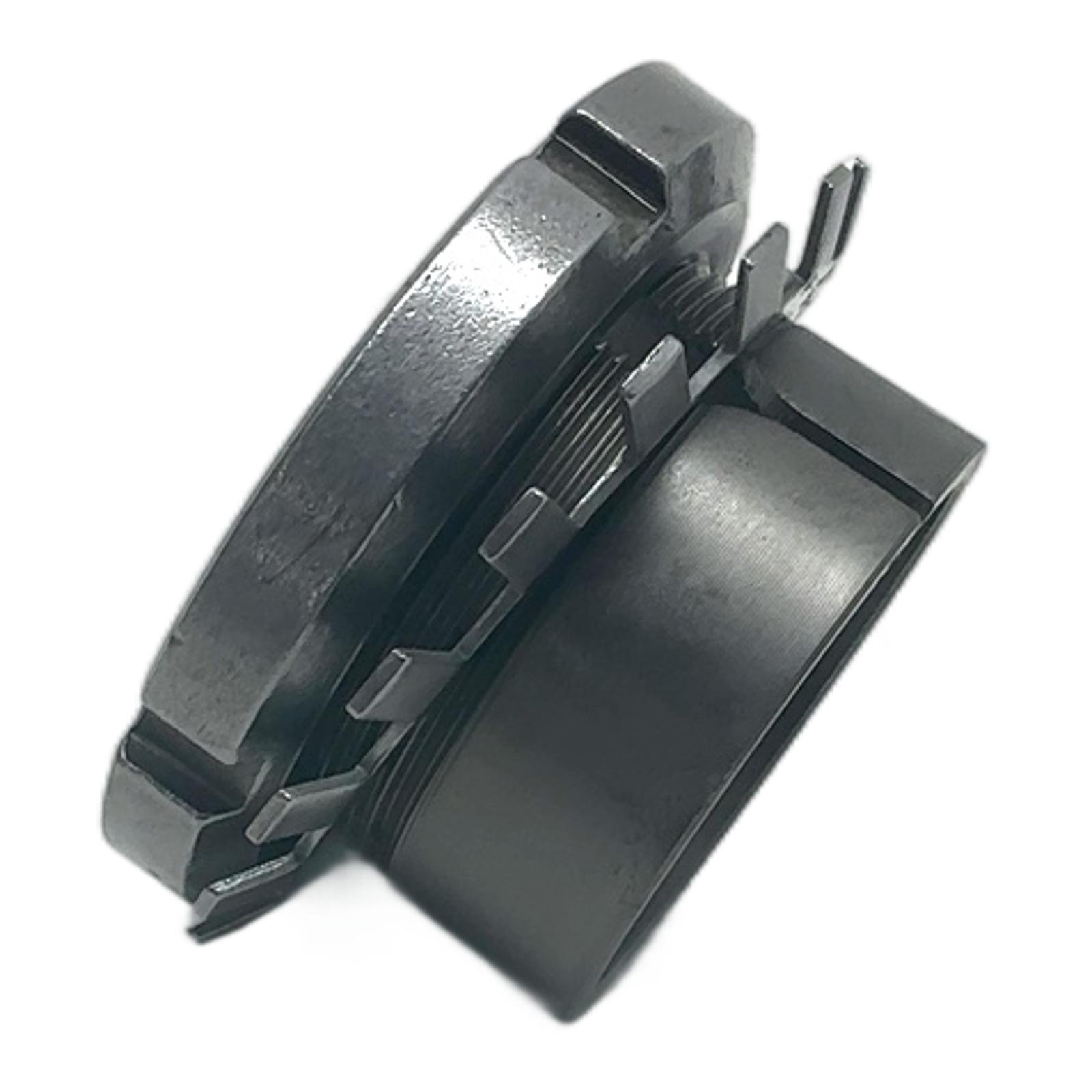

SKF H 210 Adapter Sleeve for 45mm Shafts Description The SKF H 210 is a metric adapter sleeve designed for locating bearings with a tapered bore onto cylindrical shafts. It simplifies the mounting process, allowing for a secure fit without the need for a shaft shoulder. This component is crucial for ensuring proper bearing alignment and performance in various machinery. Specifications Manufacturer: SKF Model: H 210 Bore Diameter (d1): 45 mm Outside Diameter (d): 65 mm Width (B1): 39 mm Thread Size (G): M50x1.5 Associated Lock Nut: KM 10 Associated Locking Device: MB 10 Material: Steel Application Used extensively in industrial equipment, including conveyors, fans, pumps, and agricultural machinery, where secure bearing mounting on straight shafts is required. Country of Origin Made in Sweden. CO2 Impact By reusing this component, you are saving approximately 0.56 kg of CO2. This saving is comparable to driving a car for 2.8 kilometers or charging a smartphone 67 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the correct procedure for mounting a bearing onto an H 210 adapter sleeve?Mounting requires driving the bearing up the tapered seat of the sleeve until the required reduction in radial internal clearance is achieved. This is typically done using a lock nut (like a KM 10) and a hook or impact spanner. Always refer to the SKF maintenance handbook for precise clearance reduction values for your specific bearing. Is the H 210 sleeve supplied with a lock nut and locking washer?No, the SKF H 210 adapter sleeve is typically supplied as a single component. The corresponding lock nut (KM 10) and locking washer (MB 10) must be ordered separately to complete the assembly. What is the material and surface treatment of the SKF H 210?The SKF H 210 is manufactured from high-quality steel, providing strength and durability. The surface is typically treated to resist corrosion during storage and handling, but it is not considered a permanent anti-corrosion coating for harsh operating environments. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
