SKF NU204 ECP

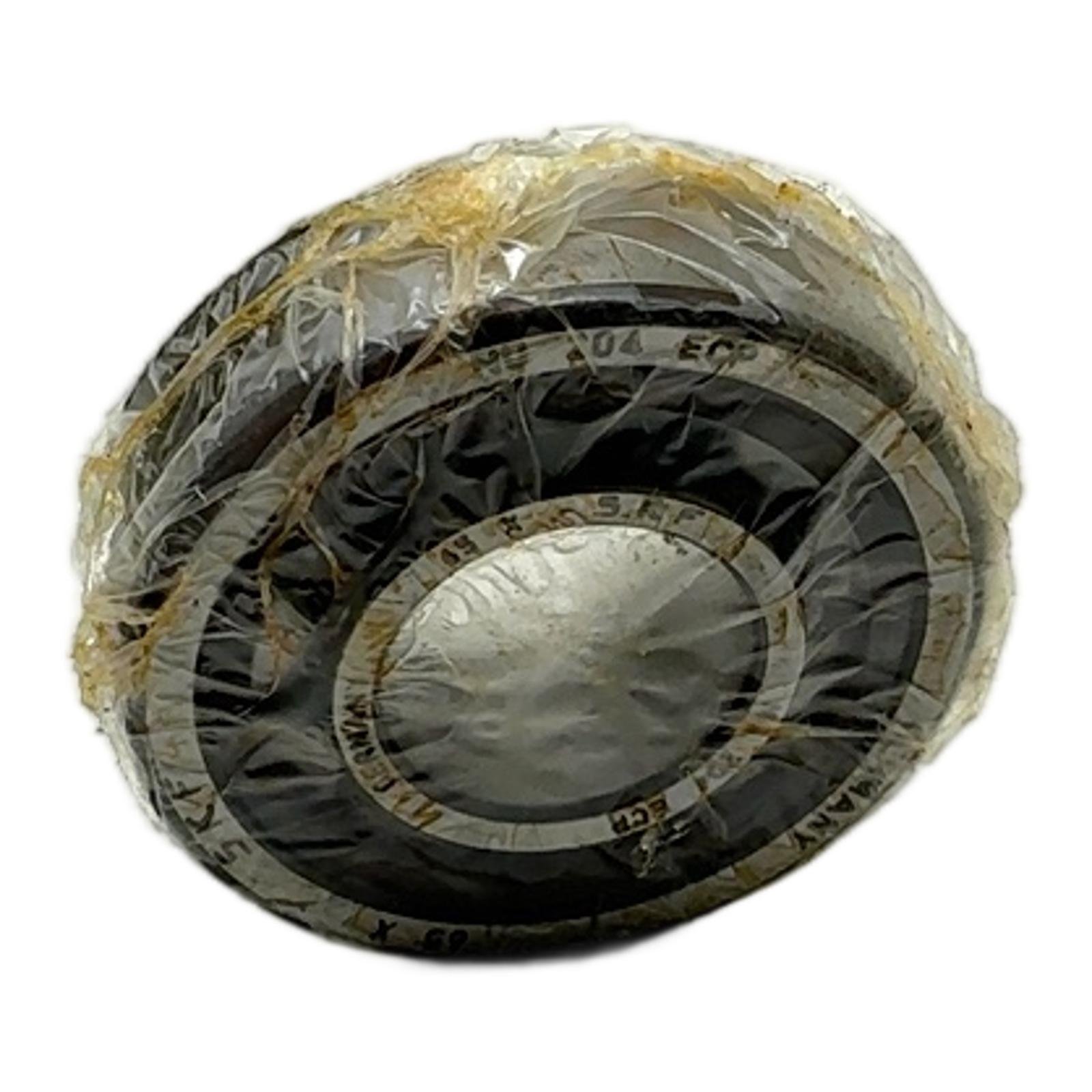

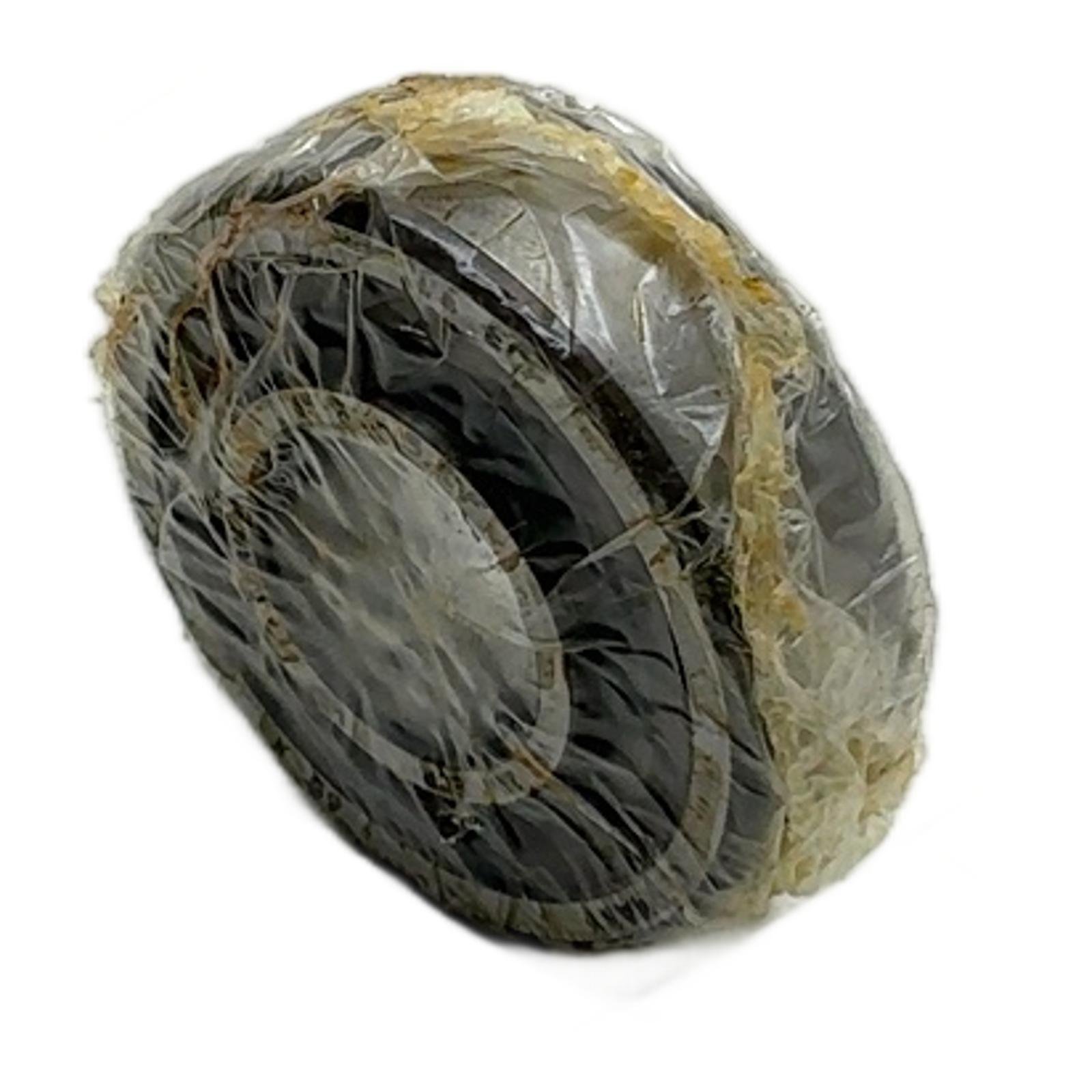

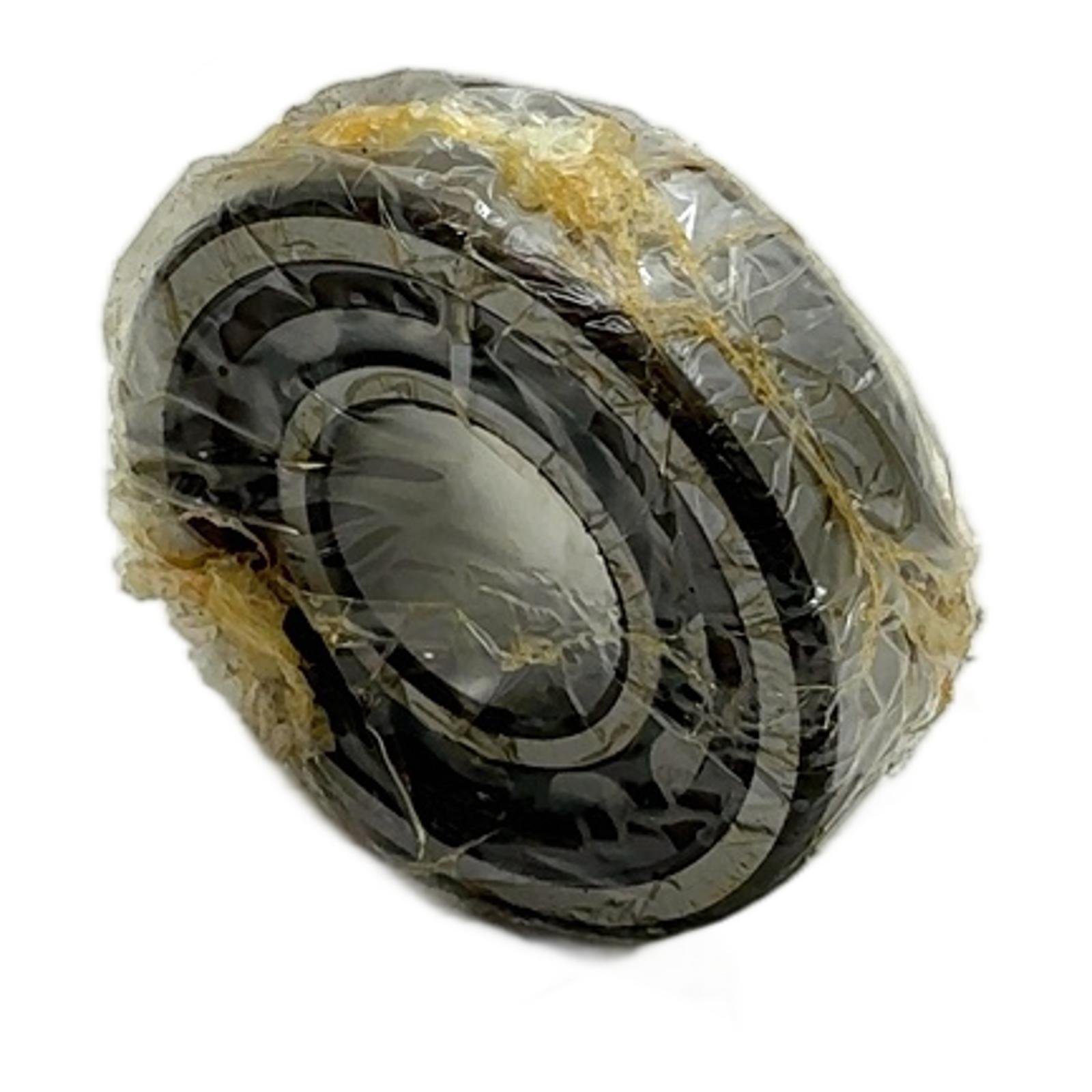

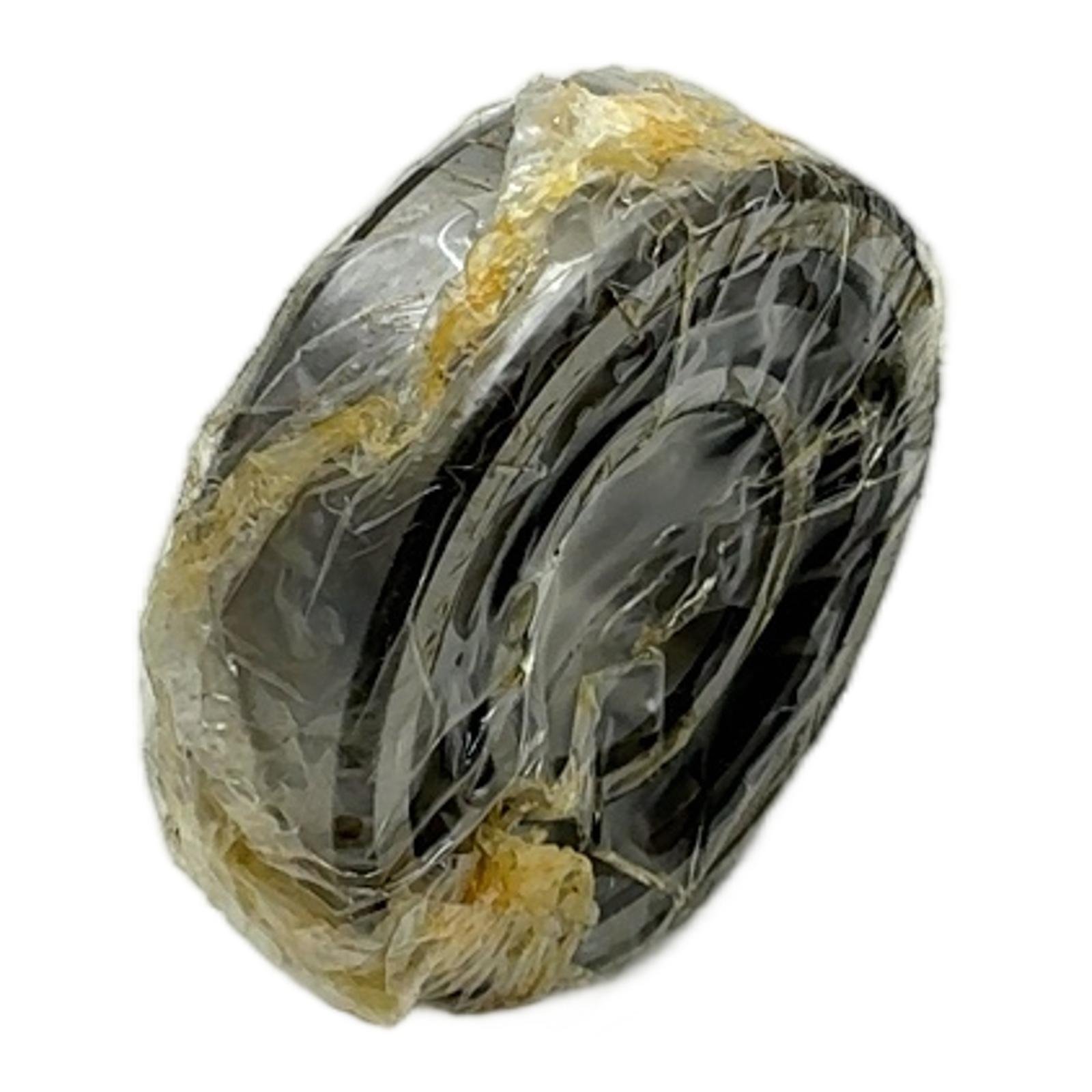

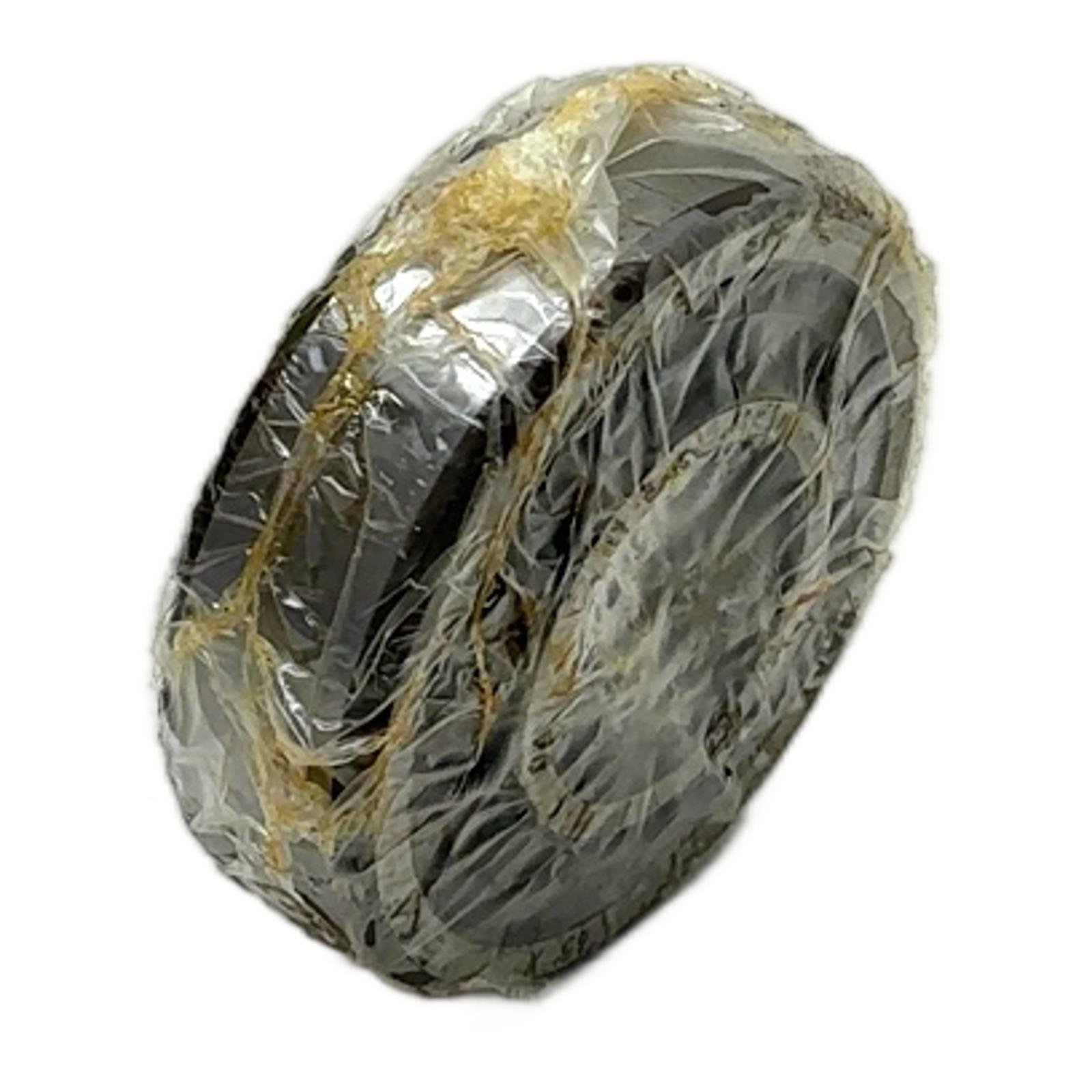

SKF Cylindrical Roller Bearing 20x47x14mm NU 204 ECP Description The SKF NU 204 ECP is a single-row cylindrical roller bearing designed for high performance in demanding industrial applications. It accommodates high radial loads and is suitable for high-speed operation. The ‘NU’ design means the inner ring has two flanges while the outer ring is flangeless, allowing for axial displacement of the shaft relative to the housing. This item is new old stock (NOS) with original, albeit worn, packaging. Specifications Manufacturer: SKF Type: NU 204 ECP Design: Single row cylindrical roller bearing Bore Diameter: 20 mm Outside Diameter: 47 mm Width: 14 mm Cage: Glass fibre reinforced polyamide (PA66) Seals: None (Open design) Label Info Brand: SKF Model: NU 204 ECP Country of Origin: Germany Application This bearing is commonly used in industrial gearboxes, automotive transmissions, electric motors, pumps, and various types of machinery where high radial loads are present. Country of Origin Made in Germany. CO2 Impact By purchasing this reused bearing, you are contributing to a circular economy and avoiding the CO2 emissions of new production, estimated at 0.22 kg. This saving is enough to charge a smartphone more than 26 times. Availability This is a New Old Stock (NOS) item. The product is unused, but the original packaging may show signs of wear. Limited quantity available. Order now from profideals for expert support and fast delivery. FAQ What does the ‘ECP’ suffix mean for the SKF NU 204 ECP?The ‘ECP’ suffix indicates specific design features. ‘E’ stands for an optimized internal design for increased load carrying capacity. ‘C’ represents an optimized roller end/flange contact. ‘P’ signifies a glass fibre reinforced PA66 (polyamide) cage, which is lightweight and suitable for high speeds. Is this bearing suitable for applications with axial loads?No, NU design cylindrical roller bearings like the NU 204 ECP are designed to accommodate high radial loads only. They cannot take any axial load. For combined loads, you would need a different type of bearing, such as an angular contact ball bearing. What type of lubrication is recommended for the NU 204 ECP?The appropriate lubrication depends on the operating conditions (speed, temperature, load). This bearing can be lubricated with either grease or oil. For high-speed applications, oil lubrication is often preferred. Always refer to the machine manufacturer’s manual or consult a lubrication expert for the specific application. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
