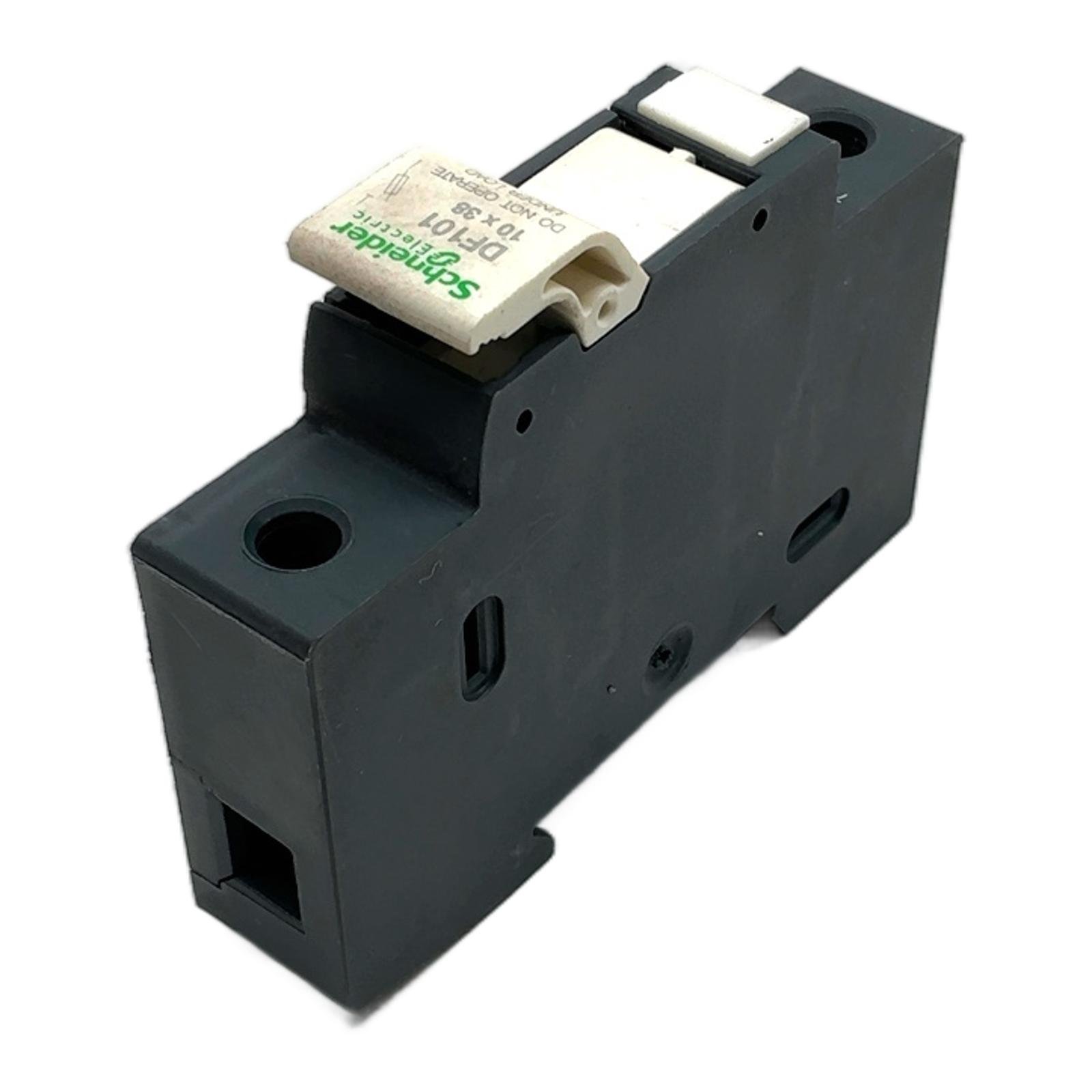

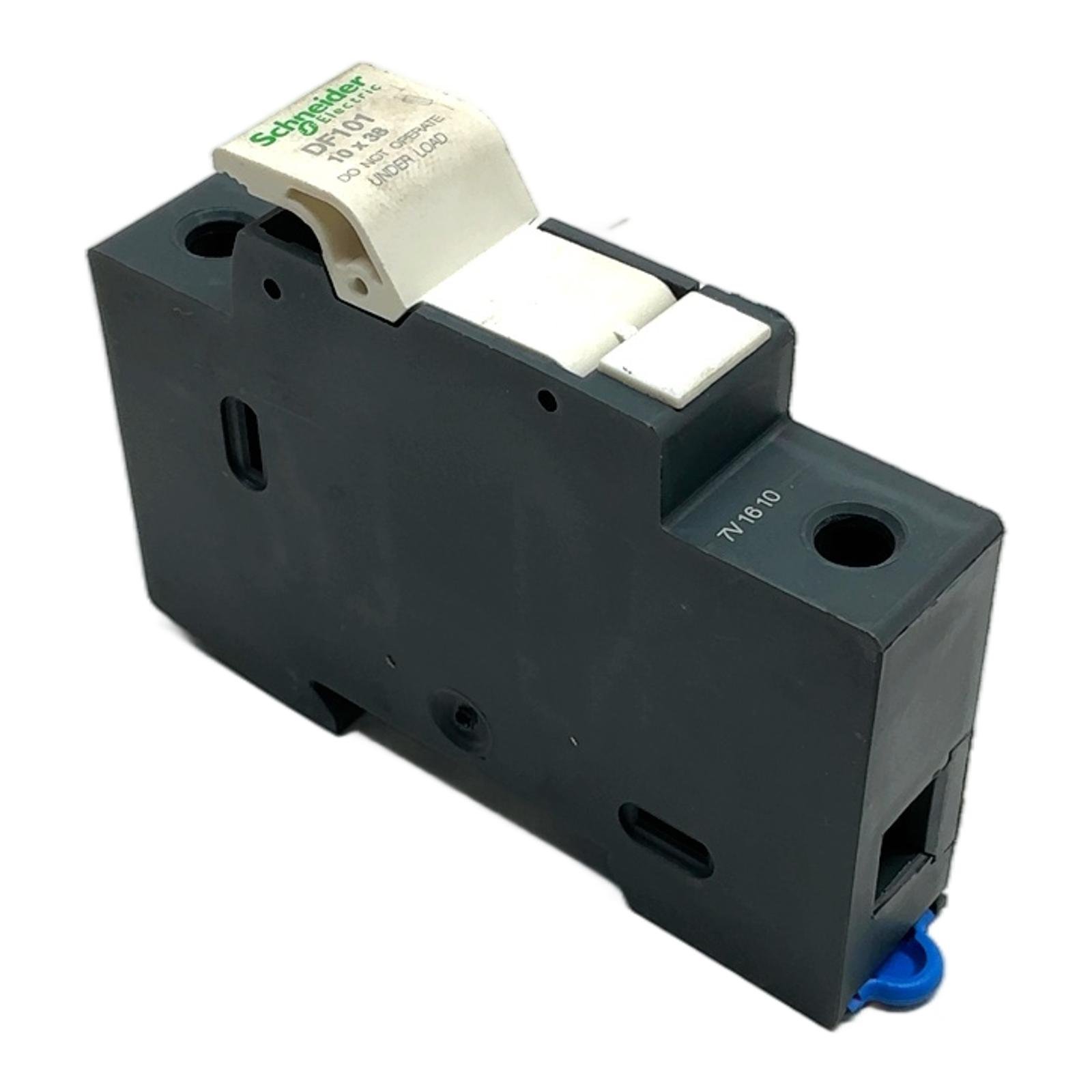

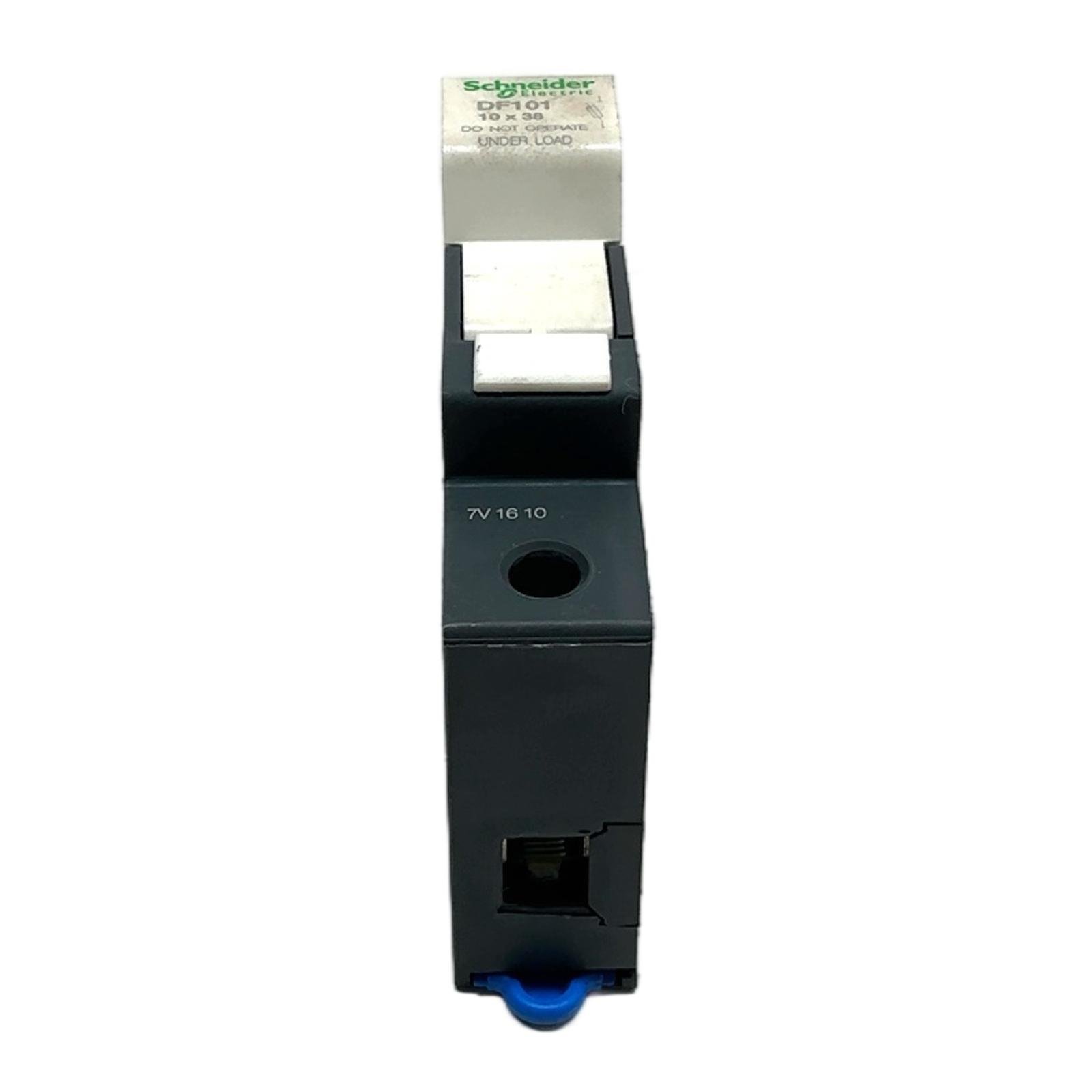

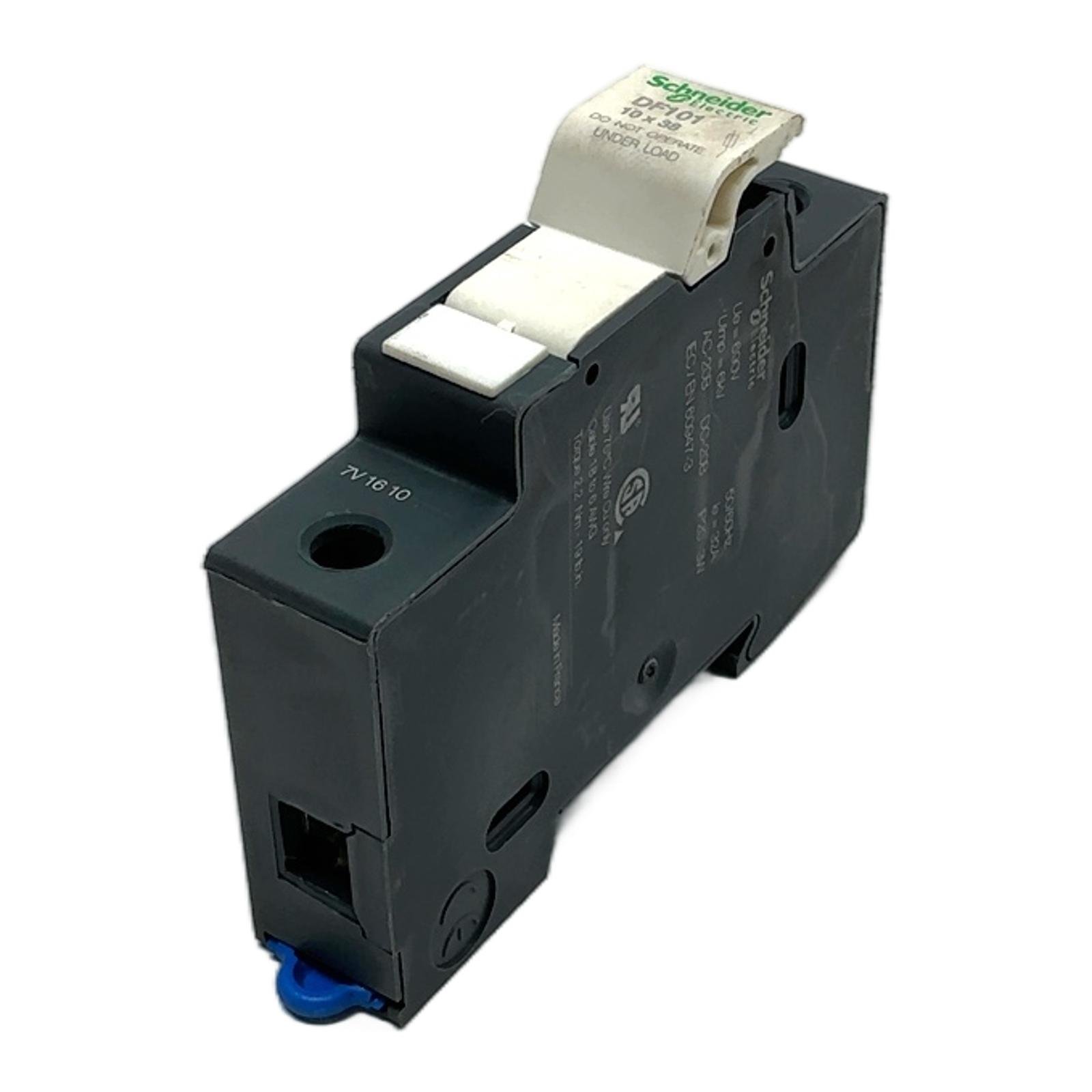

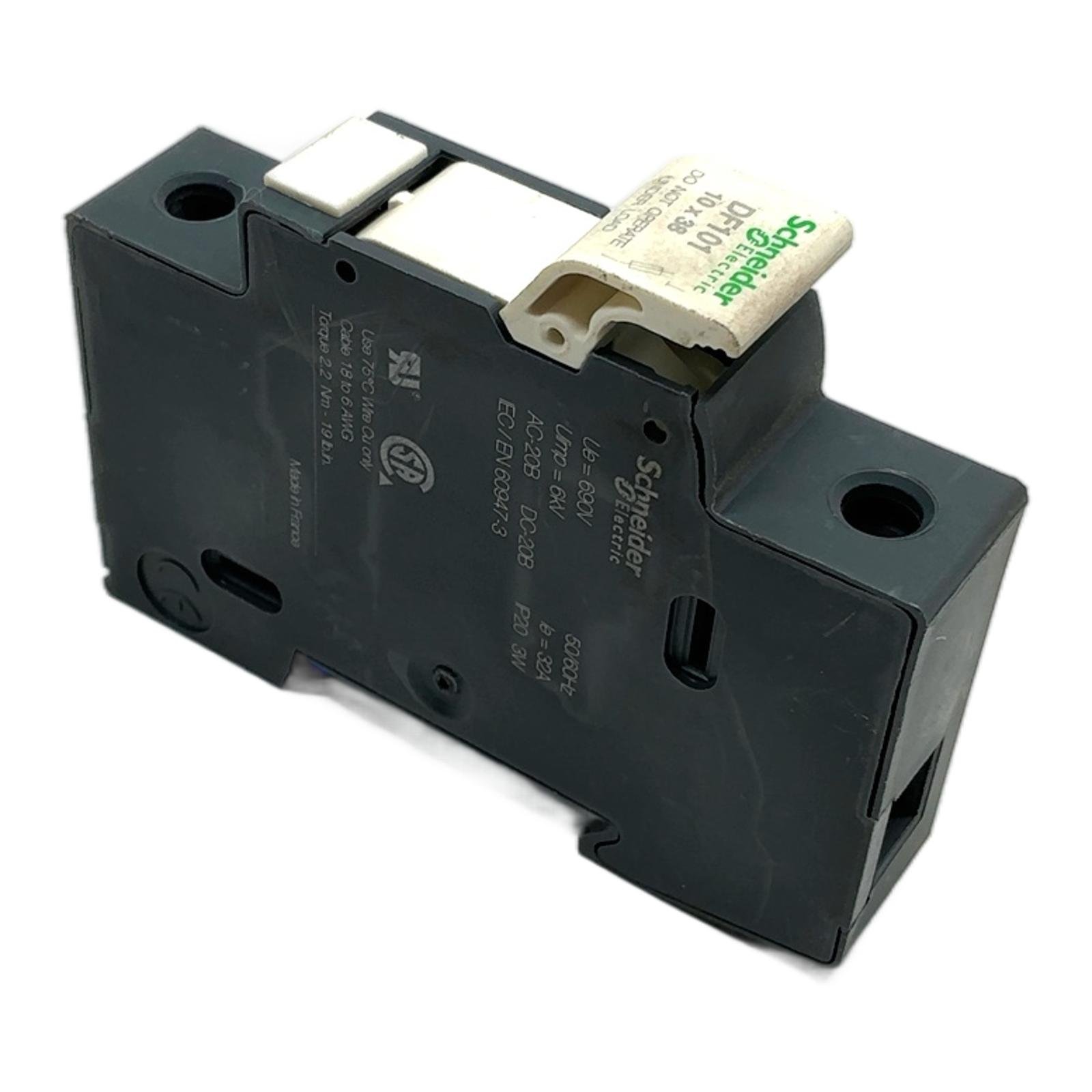

SCHNEIDER ELECTRIC DF101 013853

Schneider Electric Fuse Holder 32A 10x38mm DF101 Description The Schneider Electric DF101 is a high-quality, single-pole fuse holder designed for reliable circuit protection in industrial applications. Part of the TeSys range, this fuse disconnector is built for 10x38mm fuses and supports a rated current of up to 32A. It features a compact design for easy DIN rail mounting and is compliant with IEC/EN 60947-3 standards, ensuring safety and performance. Its robust construction makes it suitable for both AC and DC circuits. Specifications Manufacturer: Schneider Electric Model: DF101 Poles: 1-Pole Rated Operational Voltage (Ue): 690V AC Rated Operational Current (Ie): 32A Fuse Size: 10 x 38 mm Mounting: 35mm DIN Rail Standards: IEC/EN 60947-3 IP Rating: IP20 Label Info Uimp: 6kV Utilization Category: AC-20B, DC-20B Frequency: 50/60Hz Power Dissipation: 3W Application Ideal for protecting motors, transformers, and other electrical loads in industrial control panels, automation systems, and machinery. Its reliable performance ensures the safety and longevity of your equipment. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you are contributing to the circular economy and have helped avoid approximately 2.4 kg of CO2 emissions that would have been generated from manufacturing a new part. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type and size of fuse is compatible with the DF101?The DF101 is designed specifically for cylindrical fuses of size 10 x 38 mm. It is compatible with fuse types aM and gG. Can the DF101 be used in DC applications?Yes, the DF101 has a DC-20B utilization category rating, making it suitable for use in DC circuits. Always refer to the datasheet for specific voltage and current limitations in DC applications. What is the maximum wire size this fuse holder can accommodate?The terminals can accept copper wires ranging from 18 to 6 AWG (American Wire Gauge), which corresponds to approximately 1 to 16 mm squared. The recommended tightening torque is 2.2 Nm. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
