BAUMER IR12.P04S-11159790

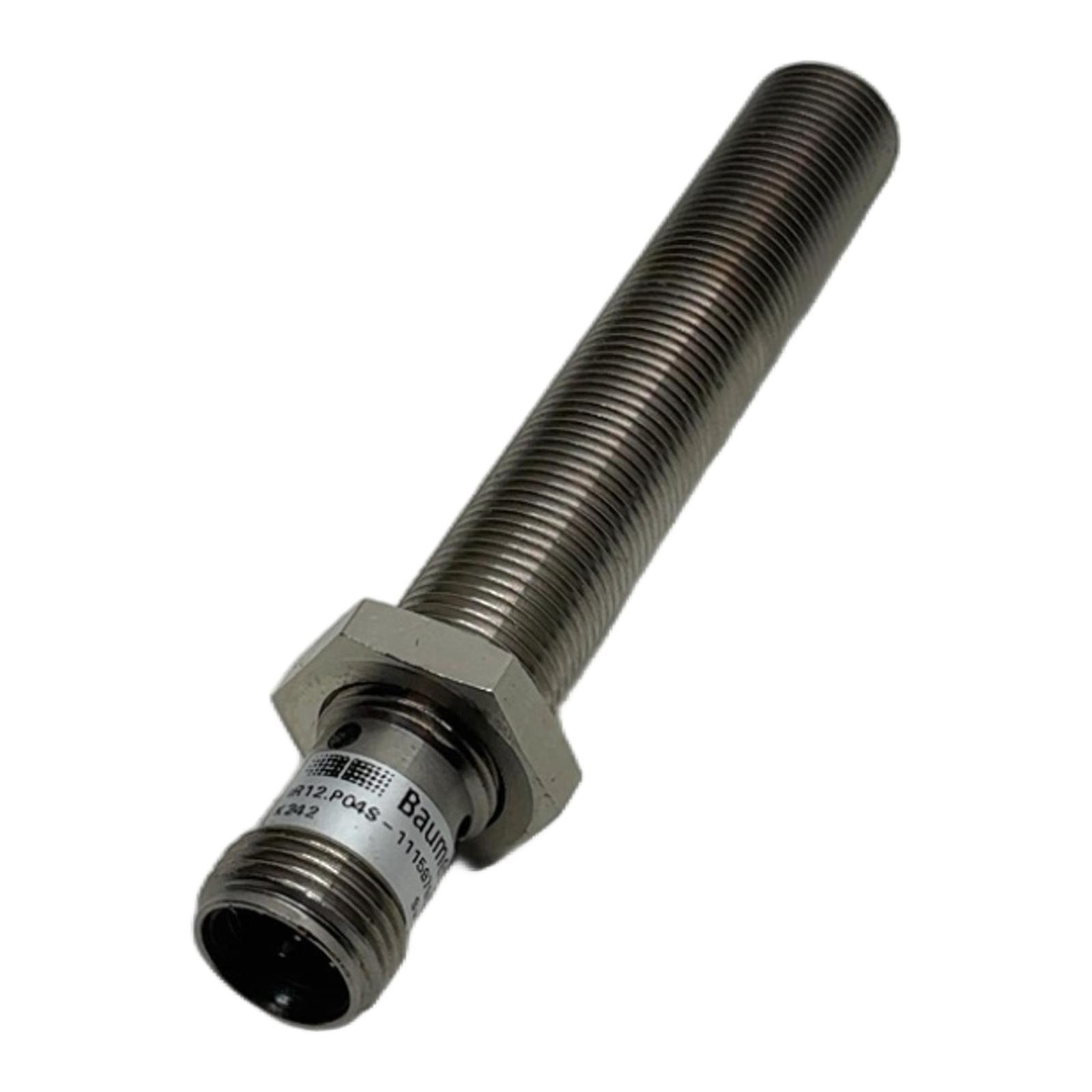

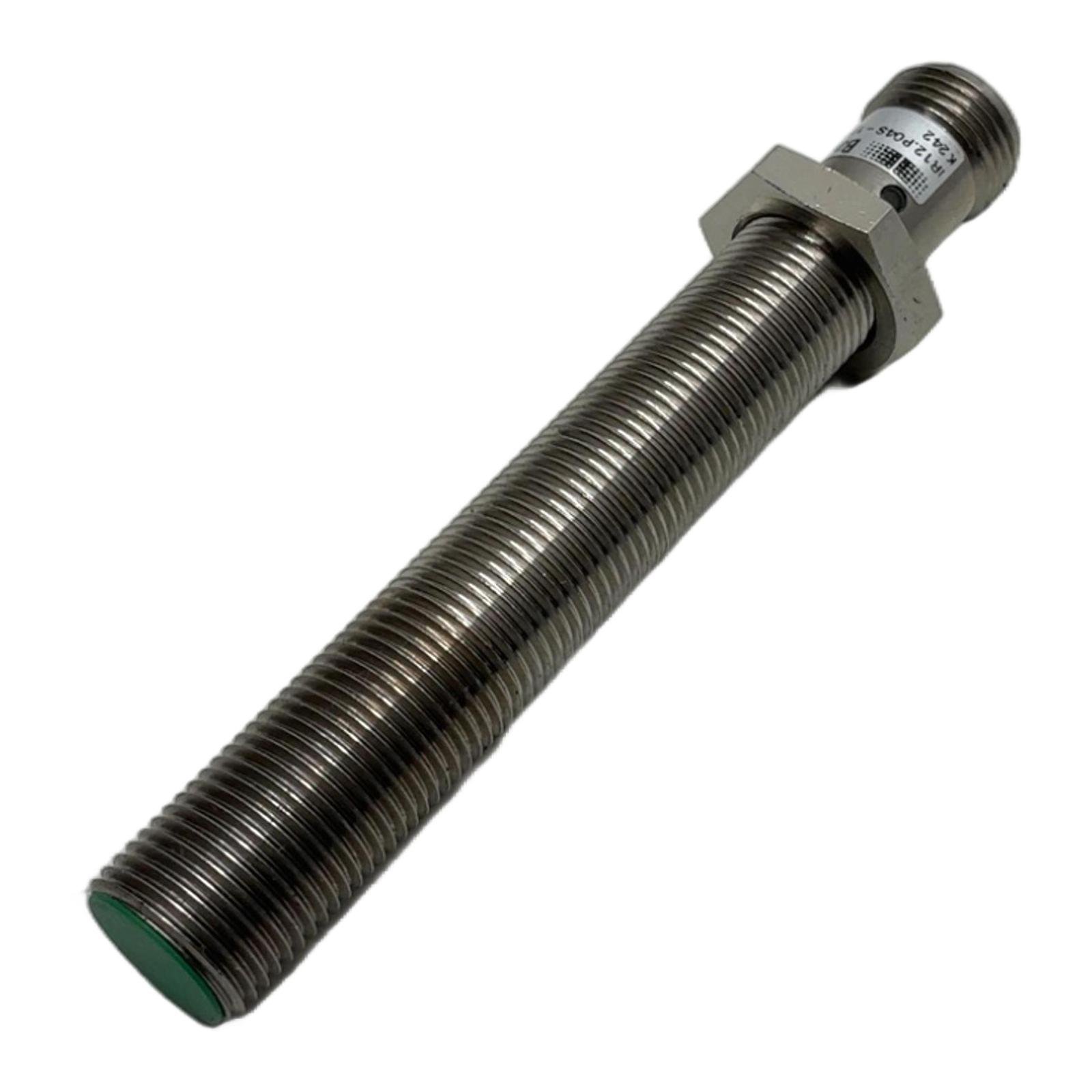

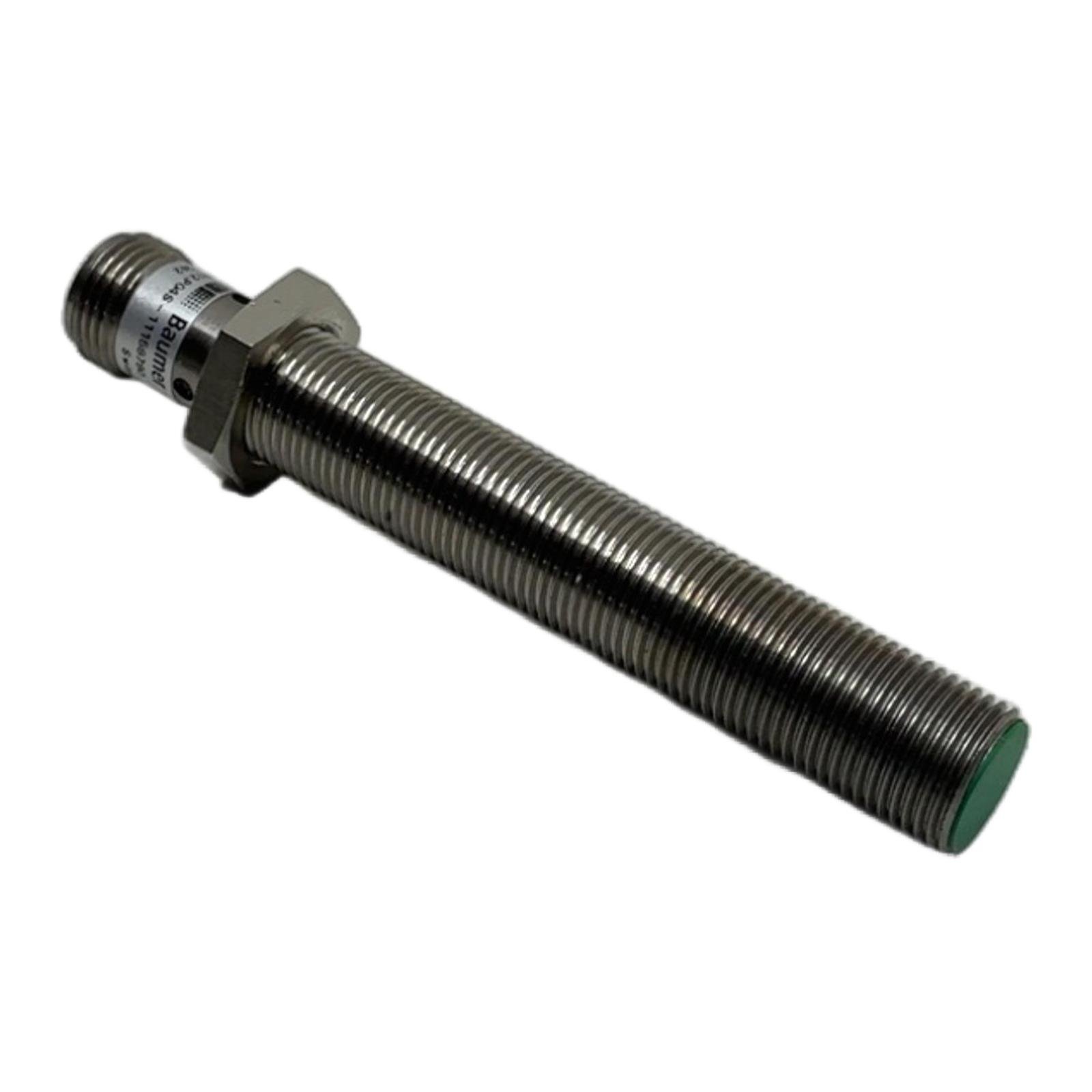

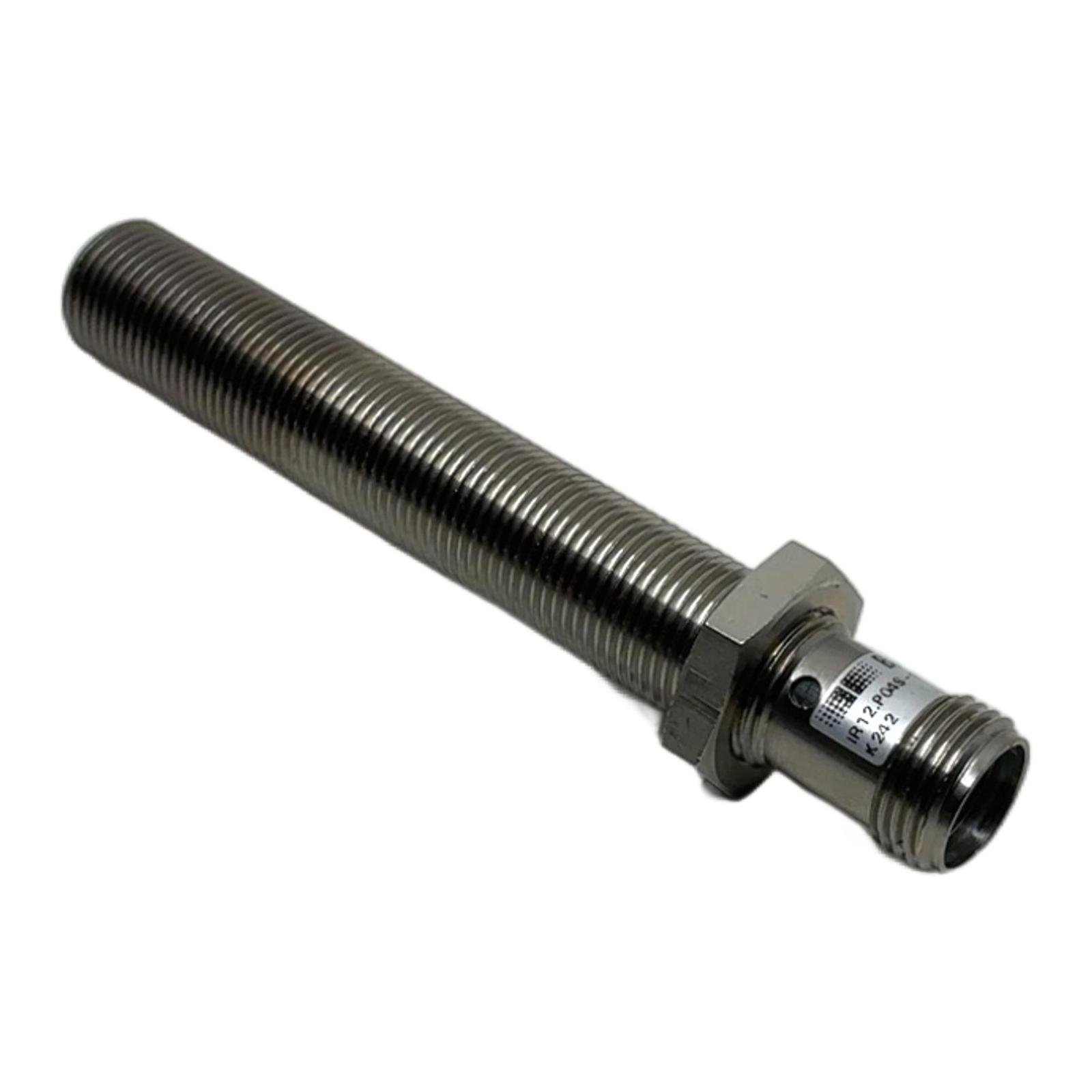

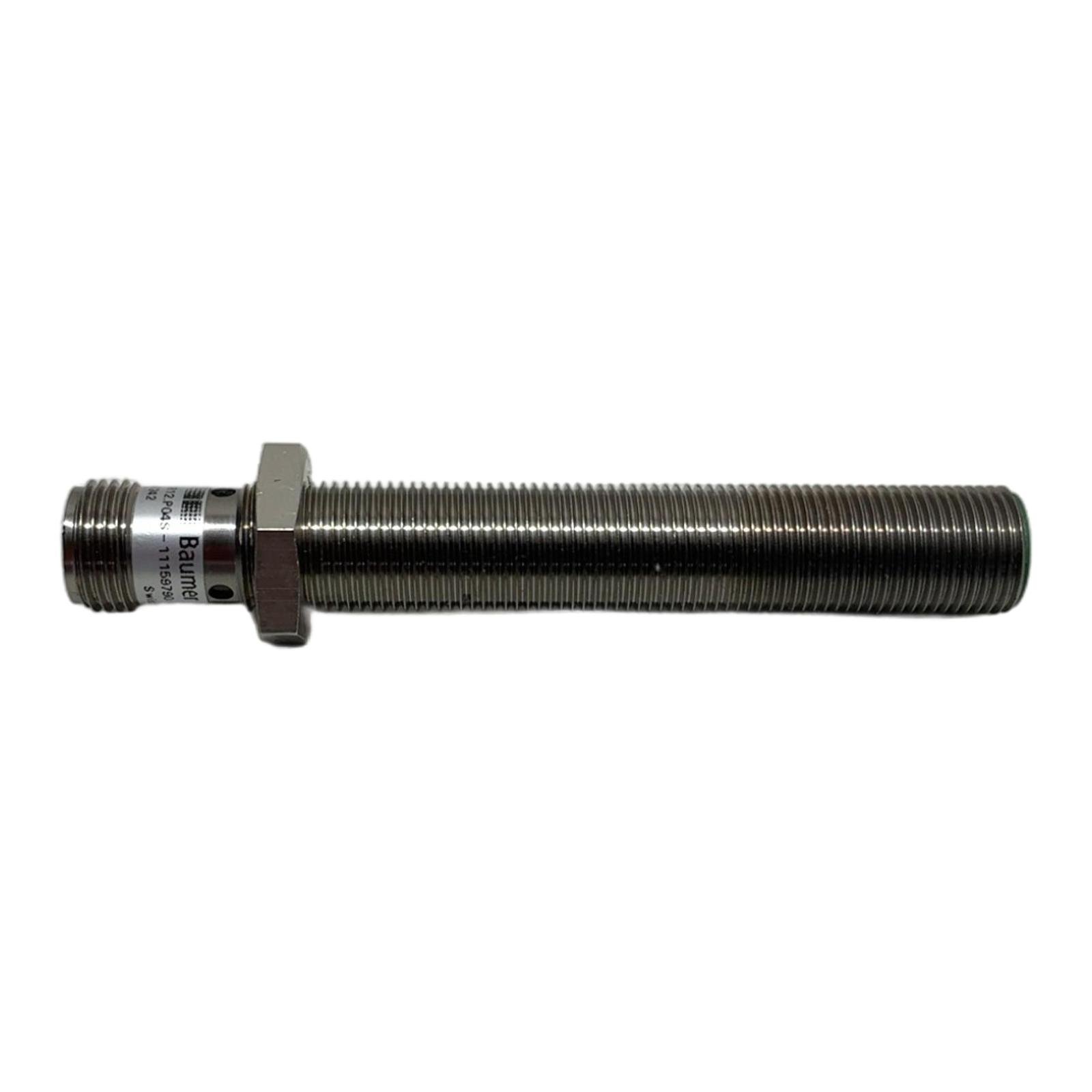

Baumer IR12.P04S-11159790 Inductive Proximity Sensor Description A robust and reliable M12 inductive proximity sensor from Baumer’s AlphaProx series. This sensor is designed for non-contact detection of metallic objects in a wide range of industrial automation applications, offering high precision and durability. Specifications Manufacturer: Baumer Type: IR12.P04S-11159790 Sensing Principle: Inductive Housing Diameter: M12 Sensing Distance (Sn): 4 mm Mounting Type: Non-flush Output Logic: PNP, Normally Open (NO) Operating Voltage: 10…30 VDC Connection: M12 Connector, 4-Pin Housing Material: Stainless steel Label Info Brand: Baumer Model: IR12.P04S Part Number: 11159790 Origin: Swiss Made Application Ideal for part detection, positioning, counting, and speed monitoring on conveyor systems, assembly lines, and in machine tools. Its rugged stainless steel construction ensures long service life even in demanding environments. Country of Origin This sensor is manufactured in Switzerland by Baumer, a brand known for its high-quality sensor solutions. CO2 Impact Choosing this pre-owned sensor saves approximately 3.0 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for 15 kilometers. Availability This is a used item in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between flush and non-flush mounting for this sensor?This is a non-flush mountable sensor, meaning its sensing face must protrude from the surrounding metal mounting surface. This design typically allows for a longer sensing range compared to a flush-mountable sensor of the same size. Is this sensor protected against short circuits and reverse polarity?Yes, sensors in the Baumer AlphaProx series are generally equipped with built-in protection against short circuits, overload, and reverse polarity to prevent damage during installation and operation. What type of cable and connector is required for the IR12.P04S-11159790?This sensor uses a standard 4-pin M12 connector. You will need a corresponding M12 female connector cable, typically with PUR or PVC sheathing depending on the application’s environmental requirements (e.g., oil resistance, flexing). profideals is not an authorized distributor or representative of the manufacturers displayed on this website. Brand names and trademarks featured are the property of their respective owners. Last Update: March 13, 2026
