FESTO FRM-D-MIDI 186523

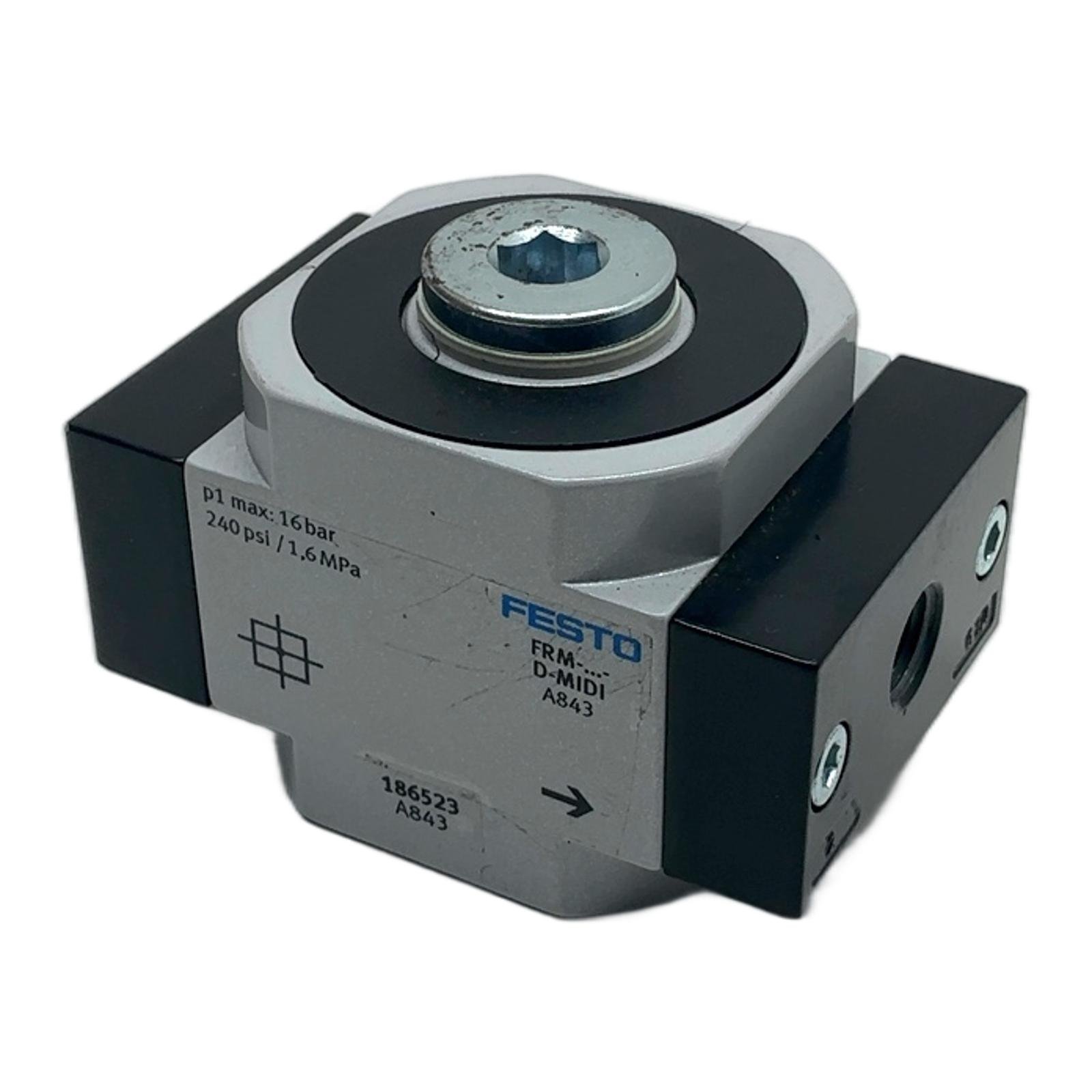

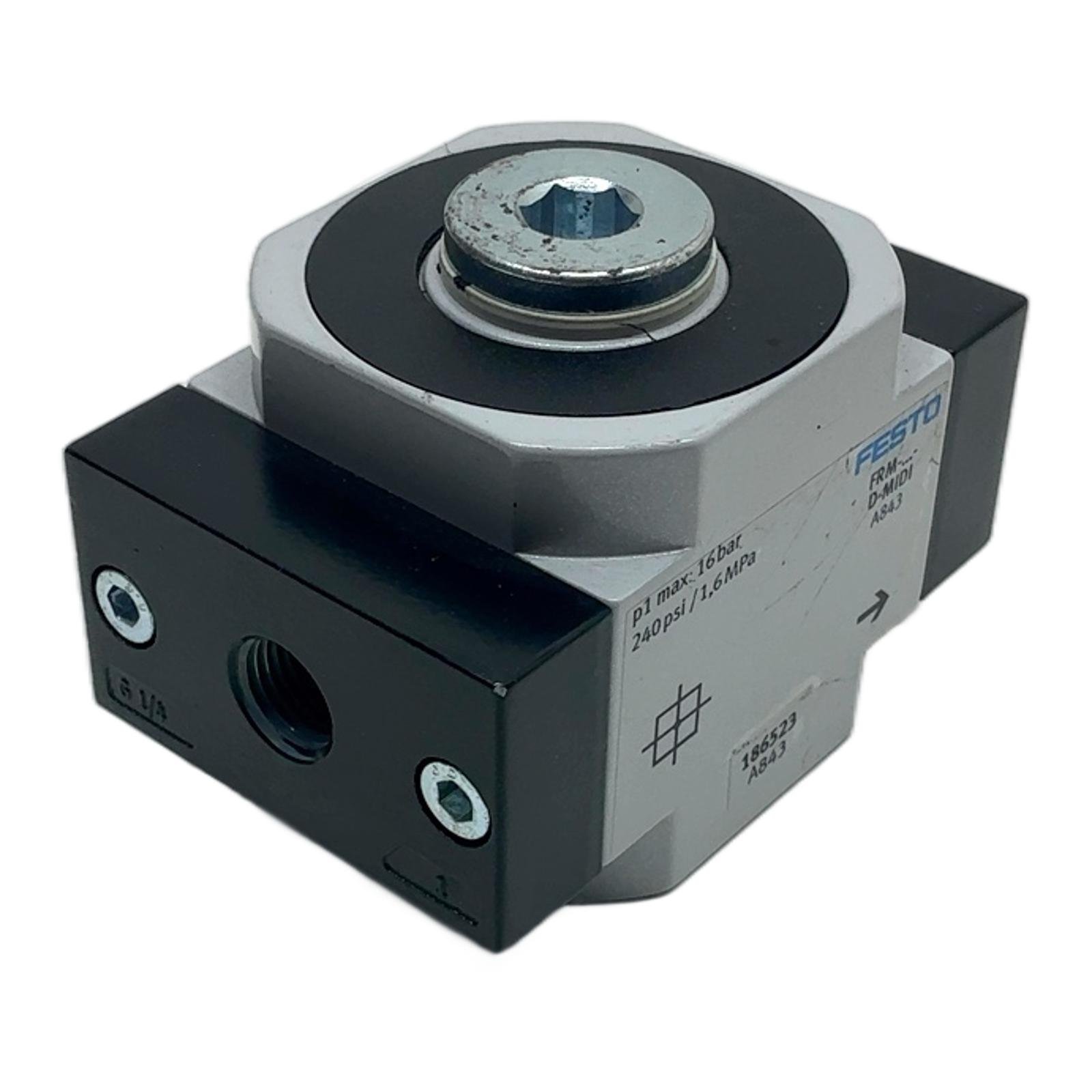

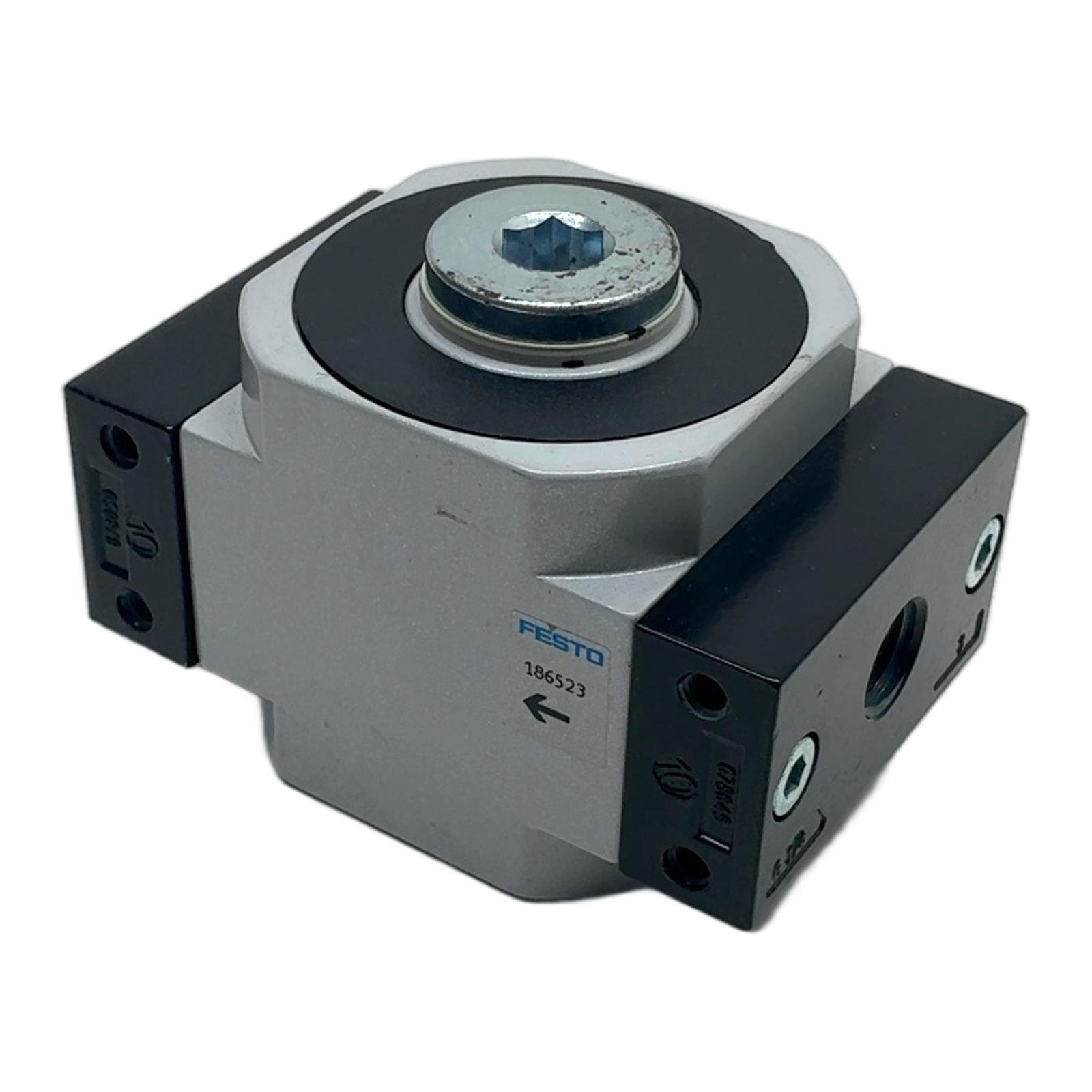

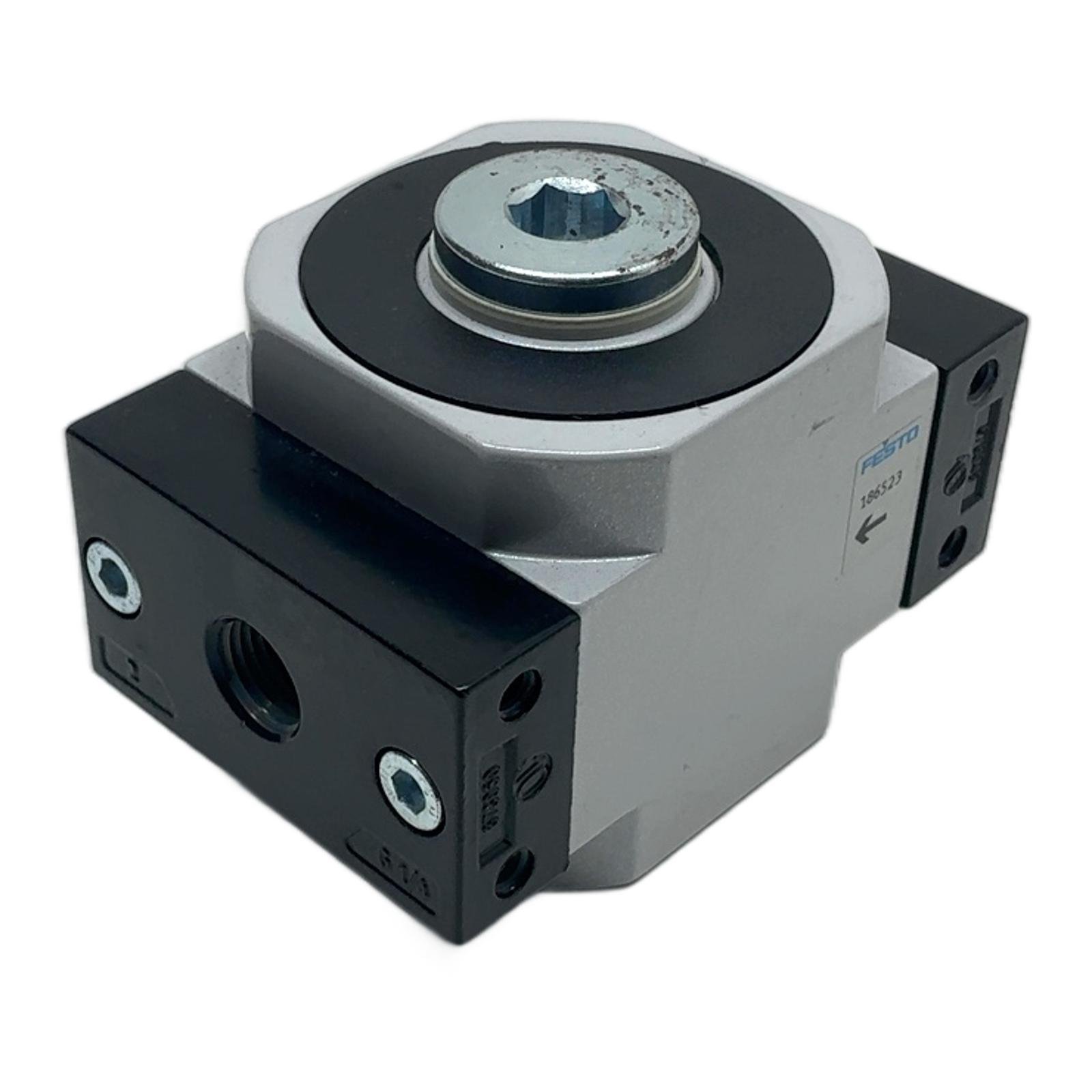

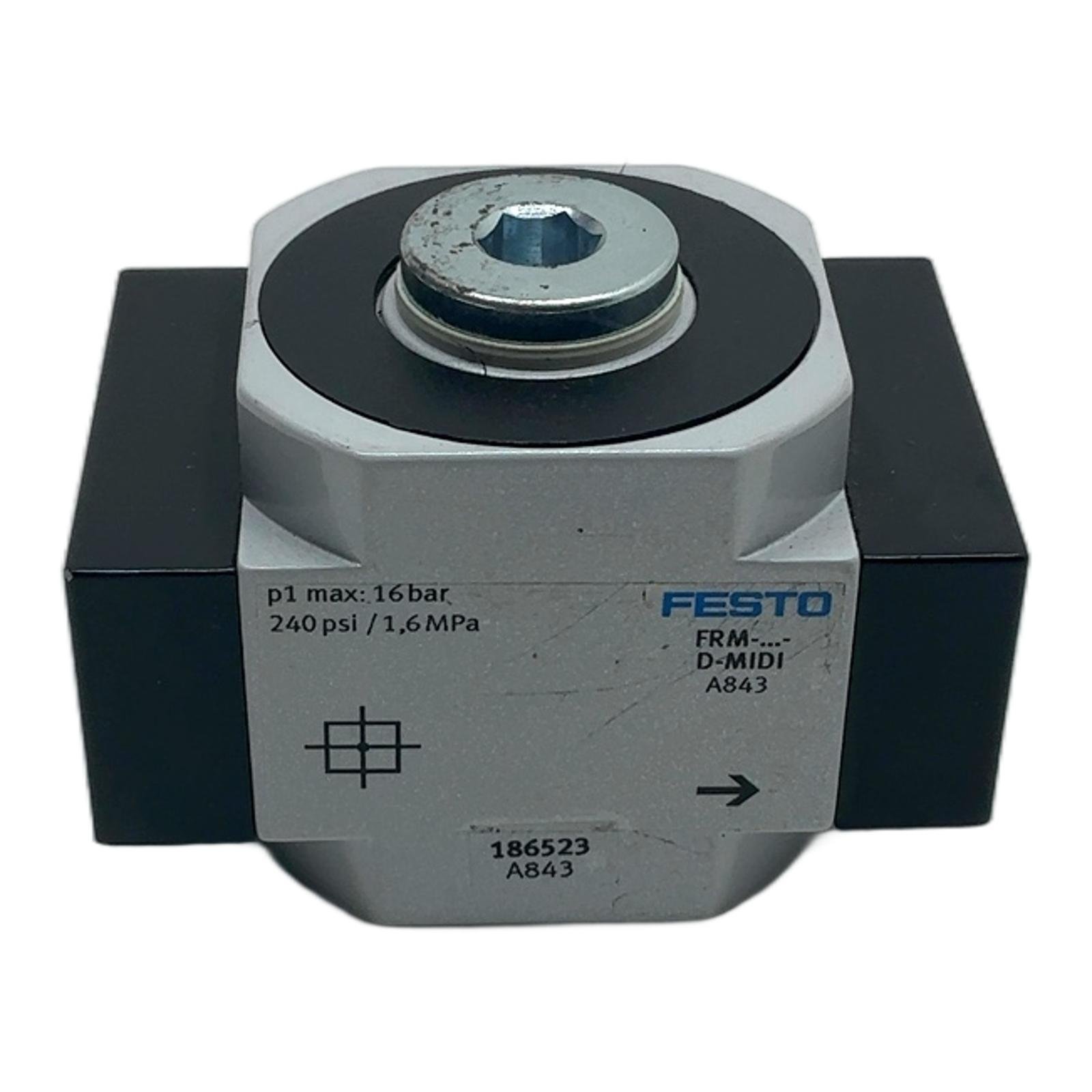

Festo Branching Module FRM-D-MIDI Description The Festo FRM-D-MIDI, with part number 186523, is a high-quality branching module designed for the D-Series MIDI air preparation units. It allows for the distribution of compressed air from a main line to multiple sub-circuits, providing flexibility in system design. This module is ideal for applications requiring multiple air takeoff points with conditioned air. Its robust die-cast aluminum construction ensures durability and a long service life in demanding industrial environments. Specifications Manufacturer: Festo Series: D-MIDI Type: Branching Module Model: FRM-D-MIDI Part Number: 186523 Maximum Operating Pressure: 16 bar / 1.6 MPa / 240 psi Pneumatic Connection (Main): G1/2 Pneumatic Connection (Branch): G1/4 Housing Material: Die-cast aluminum Assembly position: Any Label Info p1 max: 16bar 240 psi / 1.6MPa Type: FRM-…-D-MIDI Part No: 186523 Series Code: A843 Application This module is used in pneumatic control systems to create branches for untreated or treated compressed air. It is a key component in constructing modular Festo FRL (Filter-Regulator-Lubricator) service units, commonly found in factory automation, packaging machinery, and manufacturing lines. Country of Origin Made in Germany. CO2 Impact By choosing this pre-owned component, you are helping to avoid the 3.0 kg of CO2 emissions associated with the production of a new one. This sustainable choice supports a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the grid symbol on the label?The grid symbol on Festo air preparation units indicates a filter or conditioning component. In the context of the FRM-D-MIDI branching module, it signifies that the air passing through should be pre-conditioned, as this module is part of a larger Filter-Regulator-Lubricator (FRL) assembly. Can this FRM-D-MIDI module be used as a standalone component?While it can technically be used standalone to split an air line, the FRM-D-MIDI is specifically designed for modular integration with other Festo D-Series MIDI components like filters, regulators, and lubricators. It uses connecting plates and seals for a seamless, leak-proof assembly within a service unit combination. What are the thread sizes for the pneumatic connections on this module?The Festo FRM-D-MIDI (186523) typically features G1/2 threads for the main inlet and outlet ports, and one or more smaller G1/4 threaded ports on the side for branching off smaller air lines or for mounting pressure gauges. Always verify the specific configuration for your application. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
