FAG H320

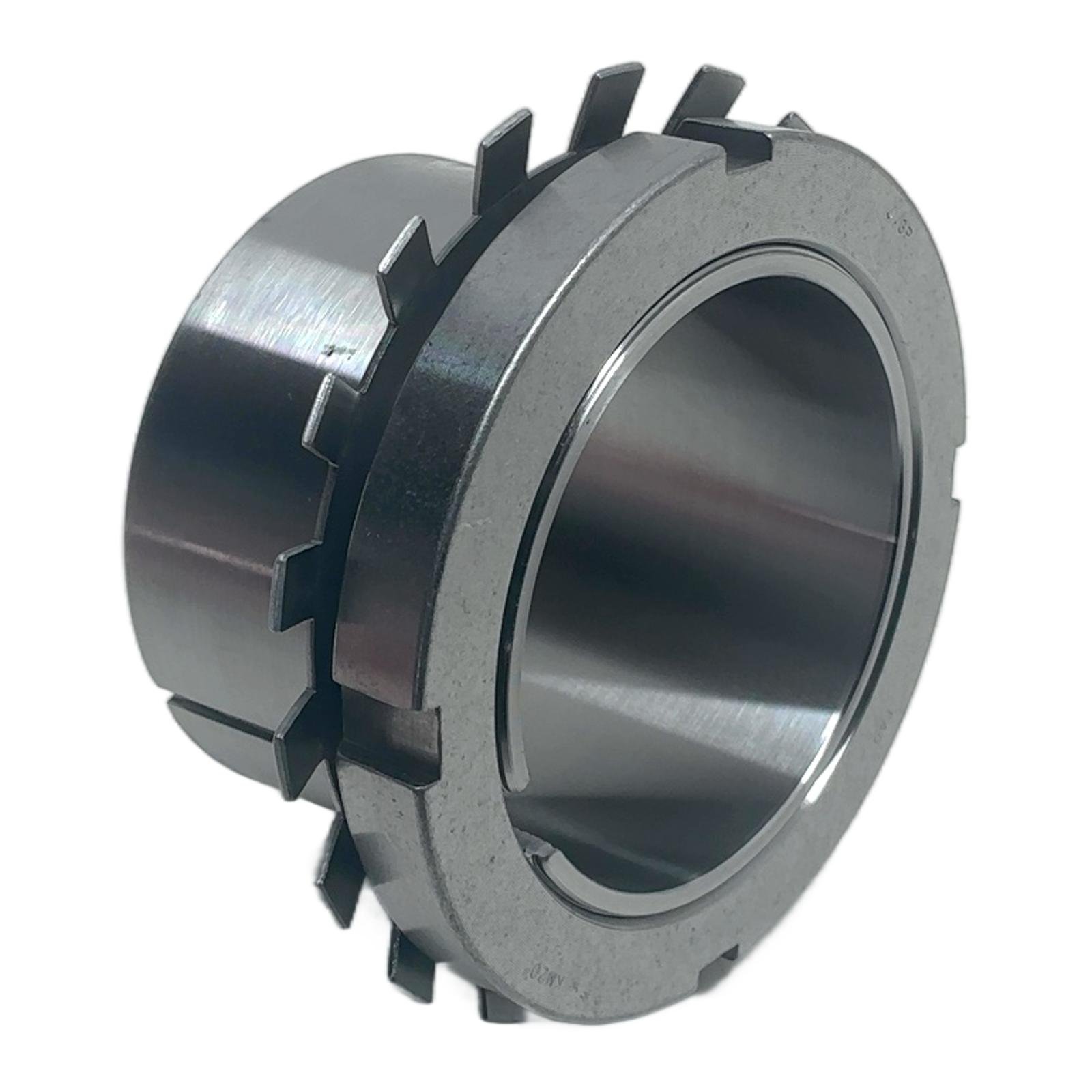

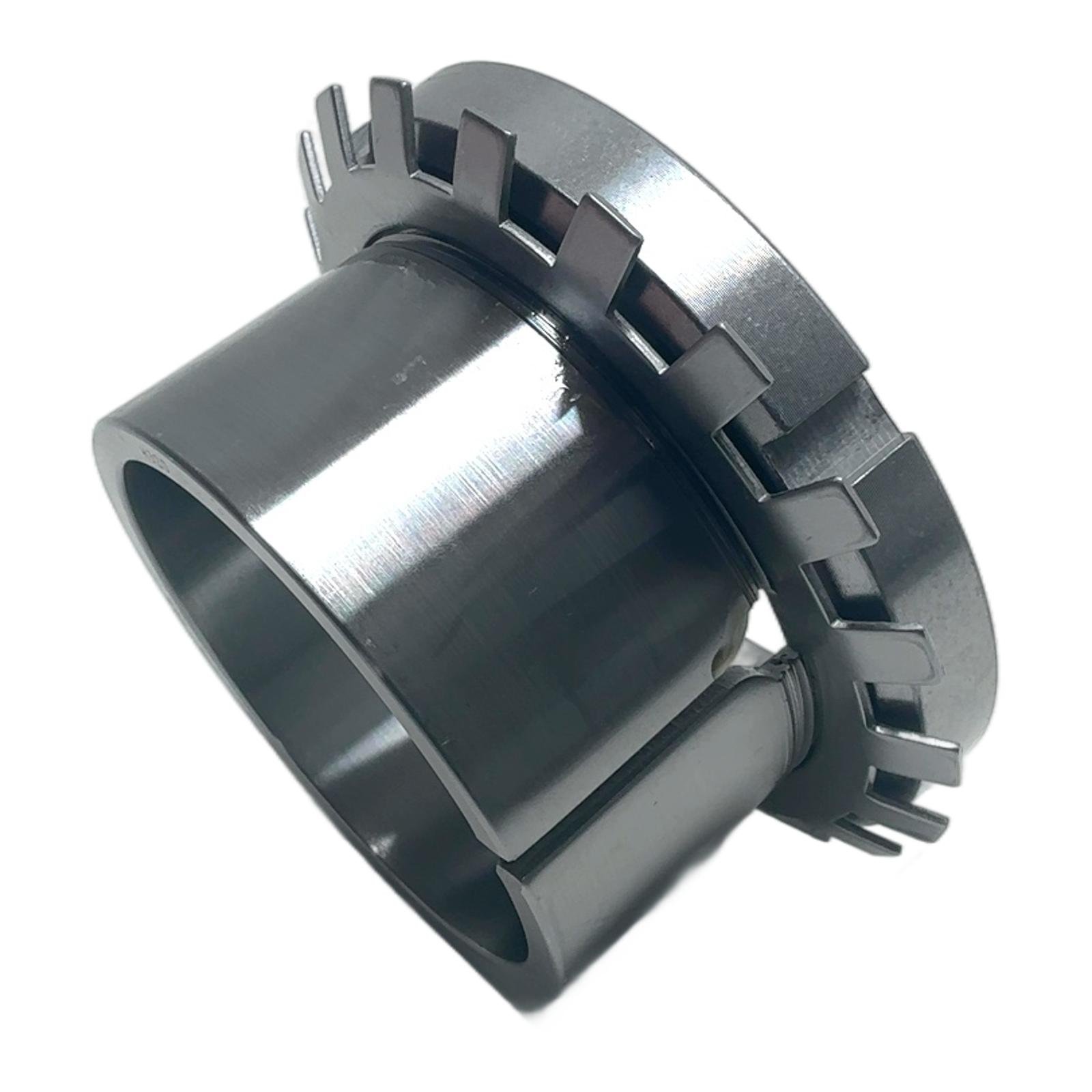

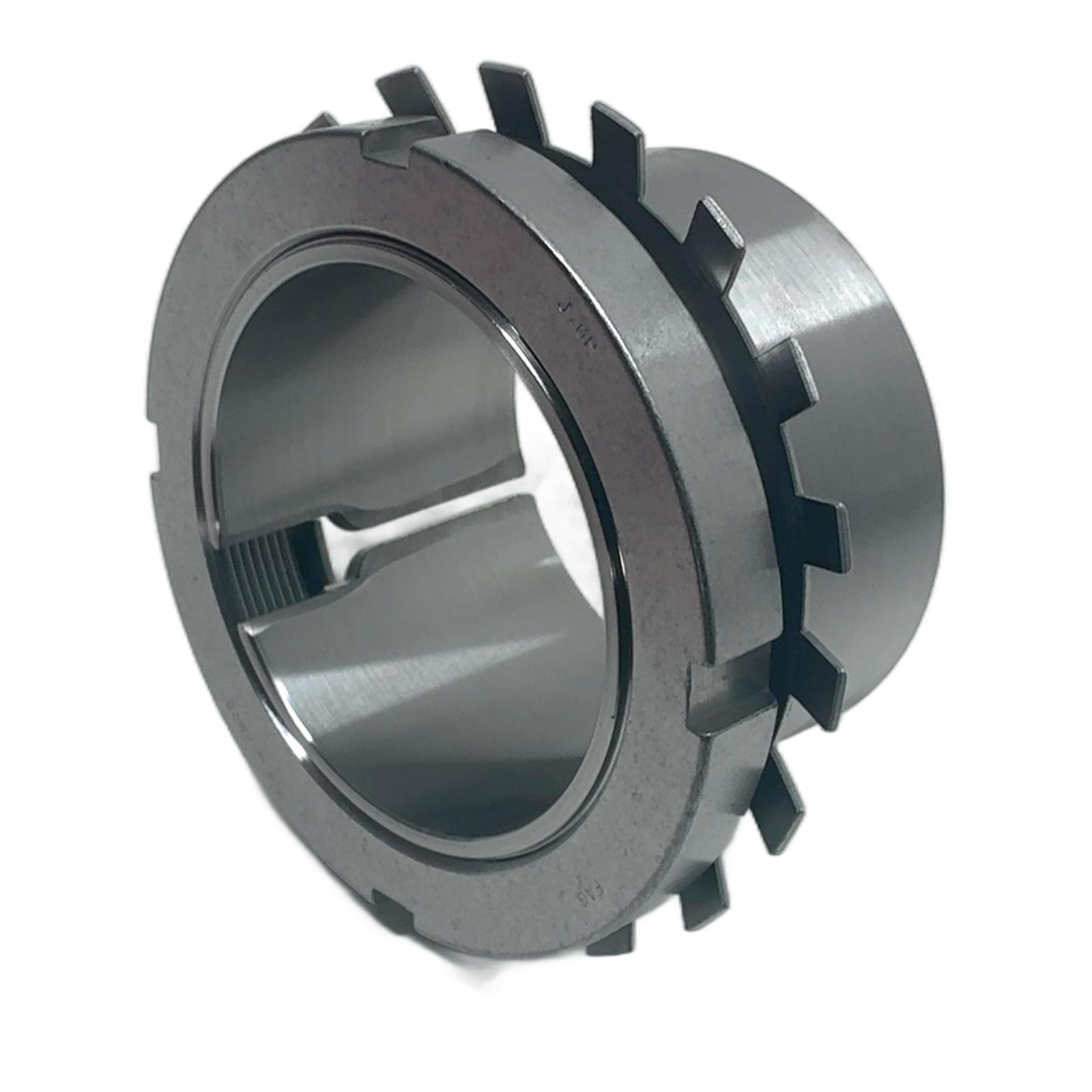

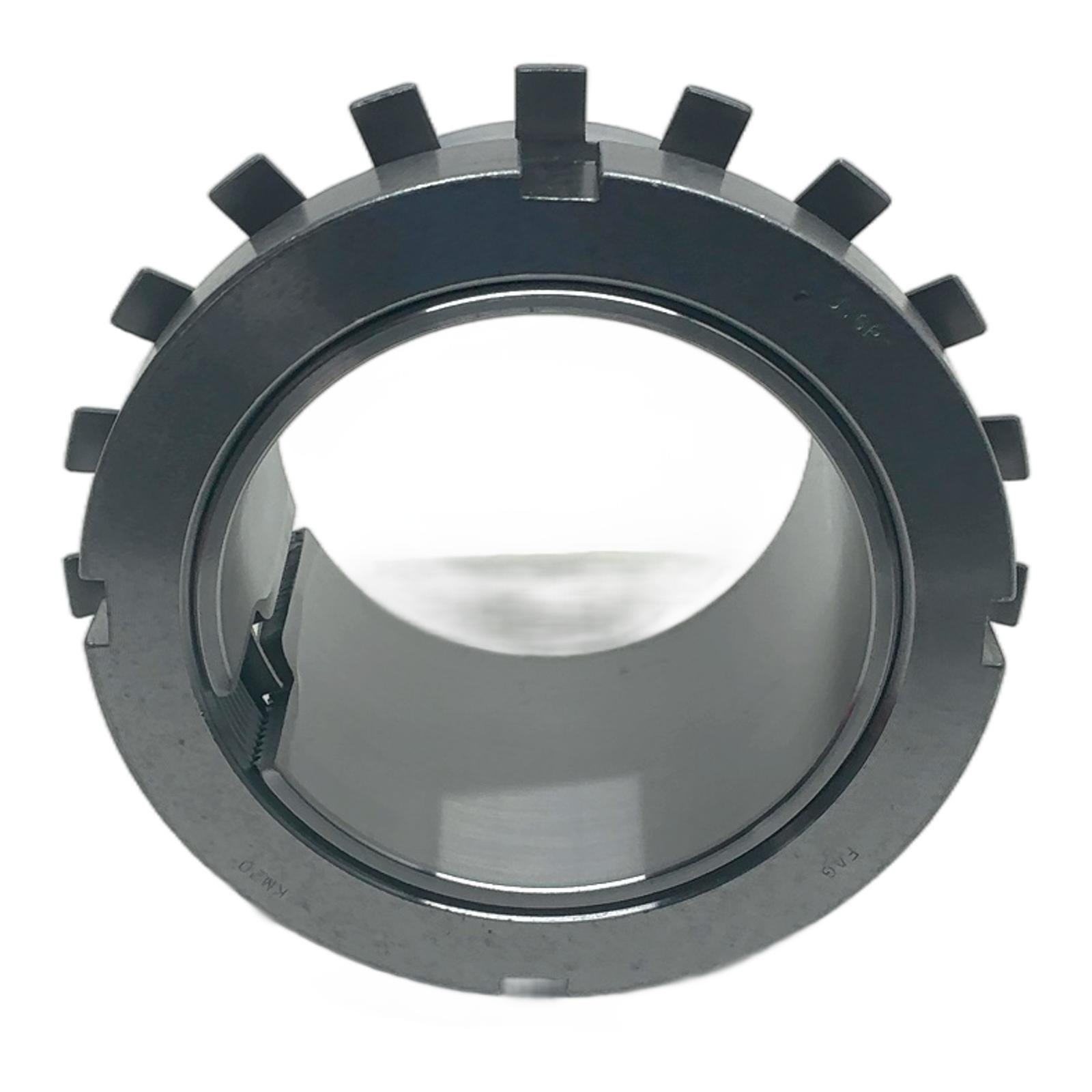

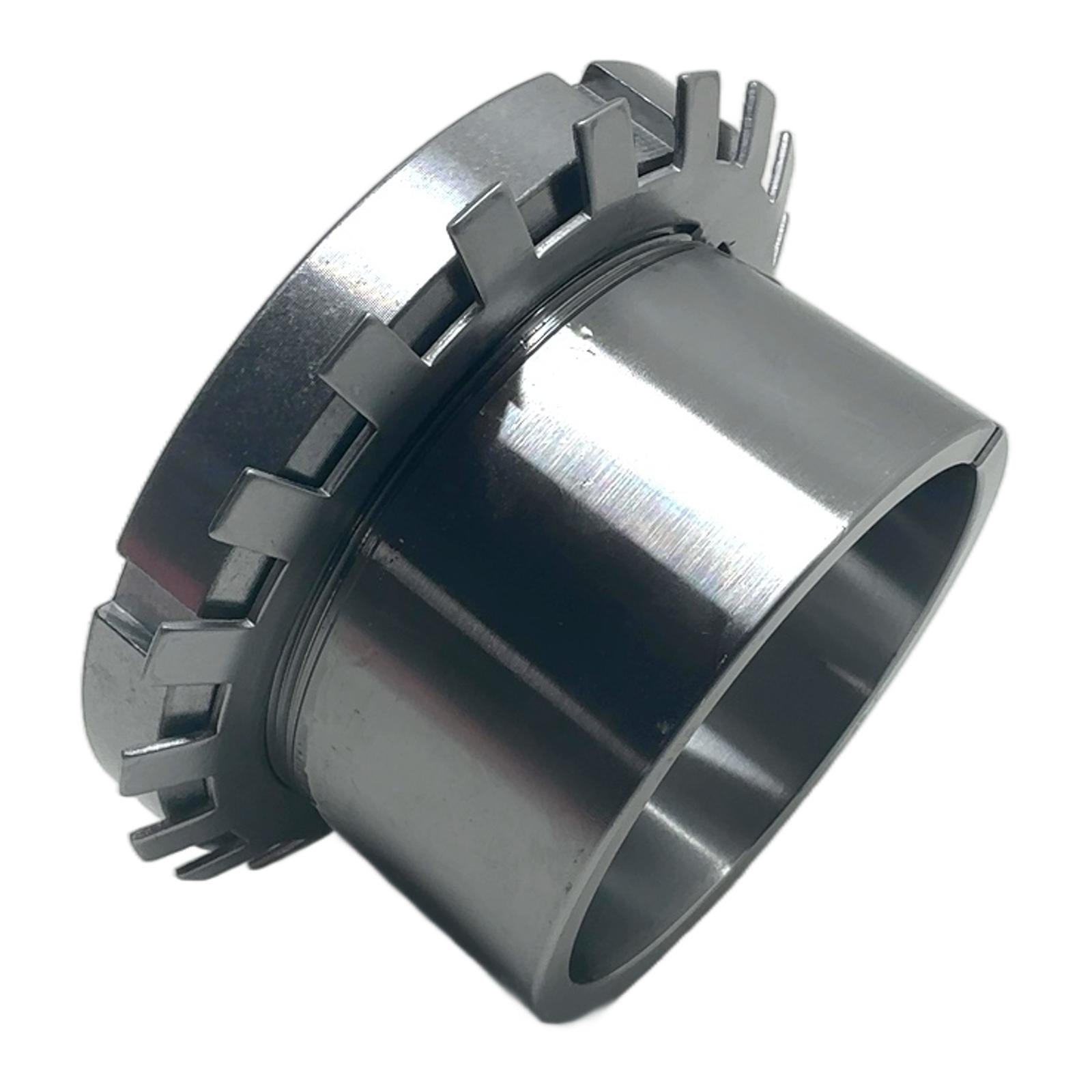

FAG H320 Adapter Sleeve Description The FAG H320 is a robust adapter sleeve designed for mounting tapered bore bearings onto cylindrical shafts. It allows for easy installation, secure positioning, and straightforward dismounting of bearings. Manufactured by FAG, a leader in bearing technology, this sleeve is made from high-grade steel for maximum durability and reliability in industrial machinery. Specifications Manufacturer: FAG Part Number: H320 Type: Adapter Sleeve Bore Diameter (d1): 90 mm Corresponding Bearings: 1320 K, 2220 K, 22220 K, 23220 K Material: Steel Label Info Model: H320 Part Nr: 24011300 EAN: 4012801217262 Application Adapter sleeves like the H320 are widely used in various industries, including agriculture, mining, manufacturing, and material handling. They are essential for mounting self-aligning ball bearings, spherical roller bearings, and CARB toroidal roller bearings on smooth or stepped shafts. Country of Origin This product is manufactured in China. CO2 Impact Choosing this new-old-stock adapter sleeve prevents the emission of approximately 4.2 kg of CO2, which would have been generated during the manufacturing of a new one. This saving is comparable to the emissions from driving a car for 21 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Does the H320 adapter sleeve come with a lock nut and locking washer?Typically, adapter sleeves are supplied as a complete unit with the appropriate lock nut and locking washer. For the H320, this would be the KM 20 lock nut and MB 20 locking washer. Please verify the contents upon receipt. What is the correct procedure for mounting a bearing onto this sleeve?Mounting involves pushing the sleeve into the bearing bore and then pressing the assembly onto the shaft to the correct position. The bearing is then secured by tightening the lock nut, which drives it up the taper. It is crucial to use proper tools and not to overtighten, as this can reduce the bearing’s internal clearance and lead to premature failure. Refer to the FAG mounting instructions for detailed guidance. What bearing series are compatible with the H320 adapter sleeve?The H320 sleeve is designed for use with bearings that have a 1:12 tapered bore, such as series 1320, 2220, 22220, and 23220. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Friday, March 13, 2026
