CAMOZZI DNX-32/50 L80021/00050

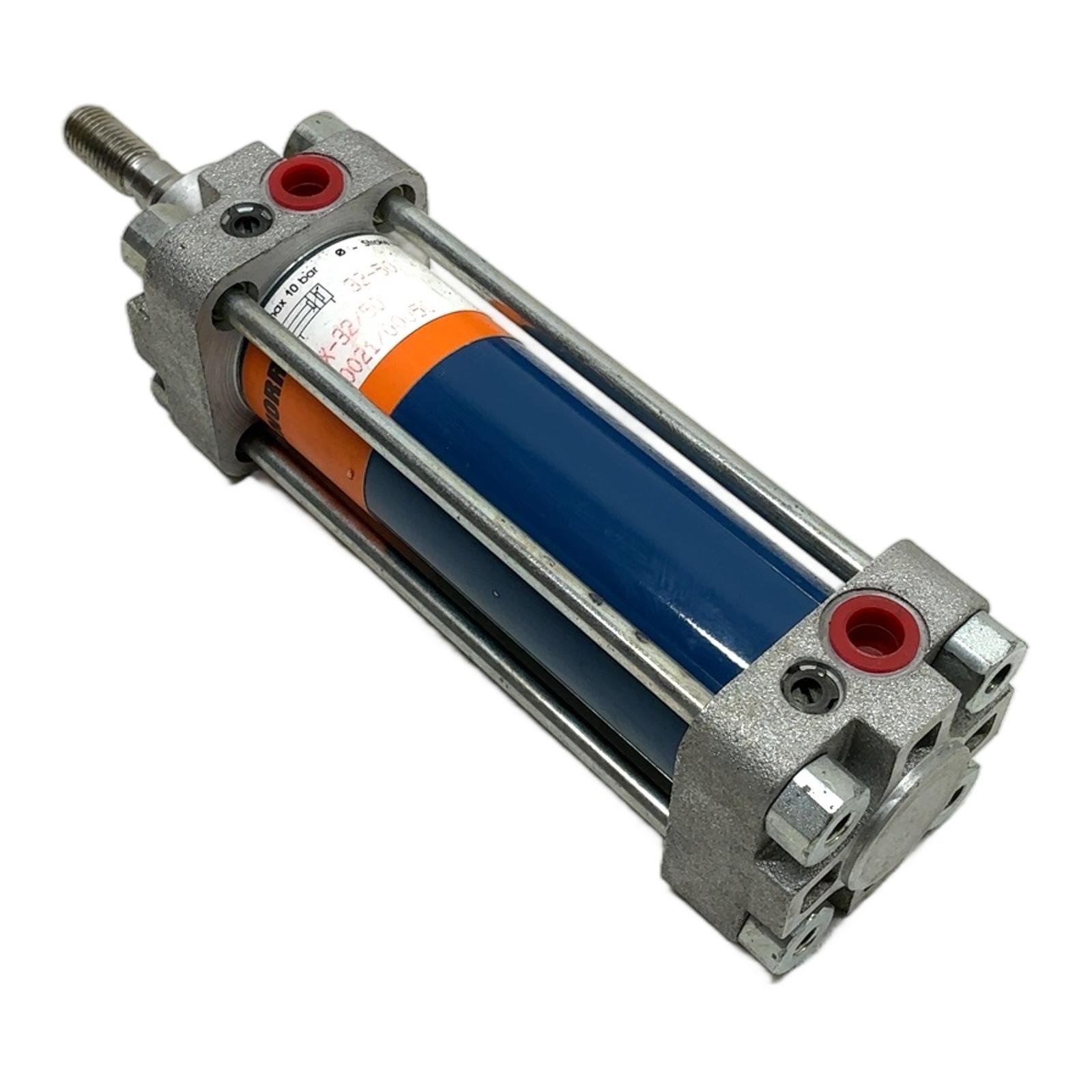

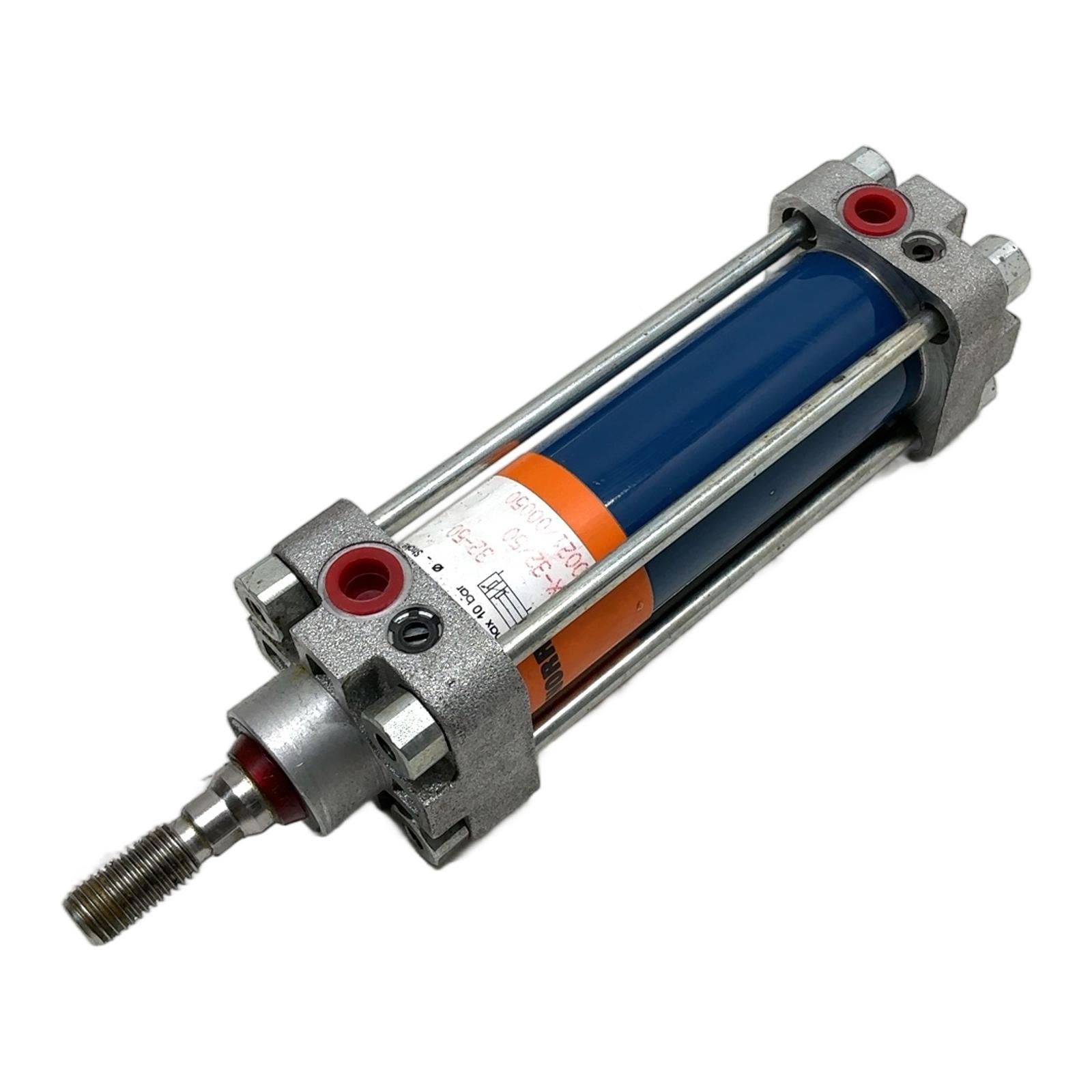

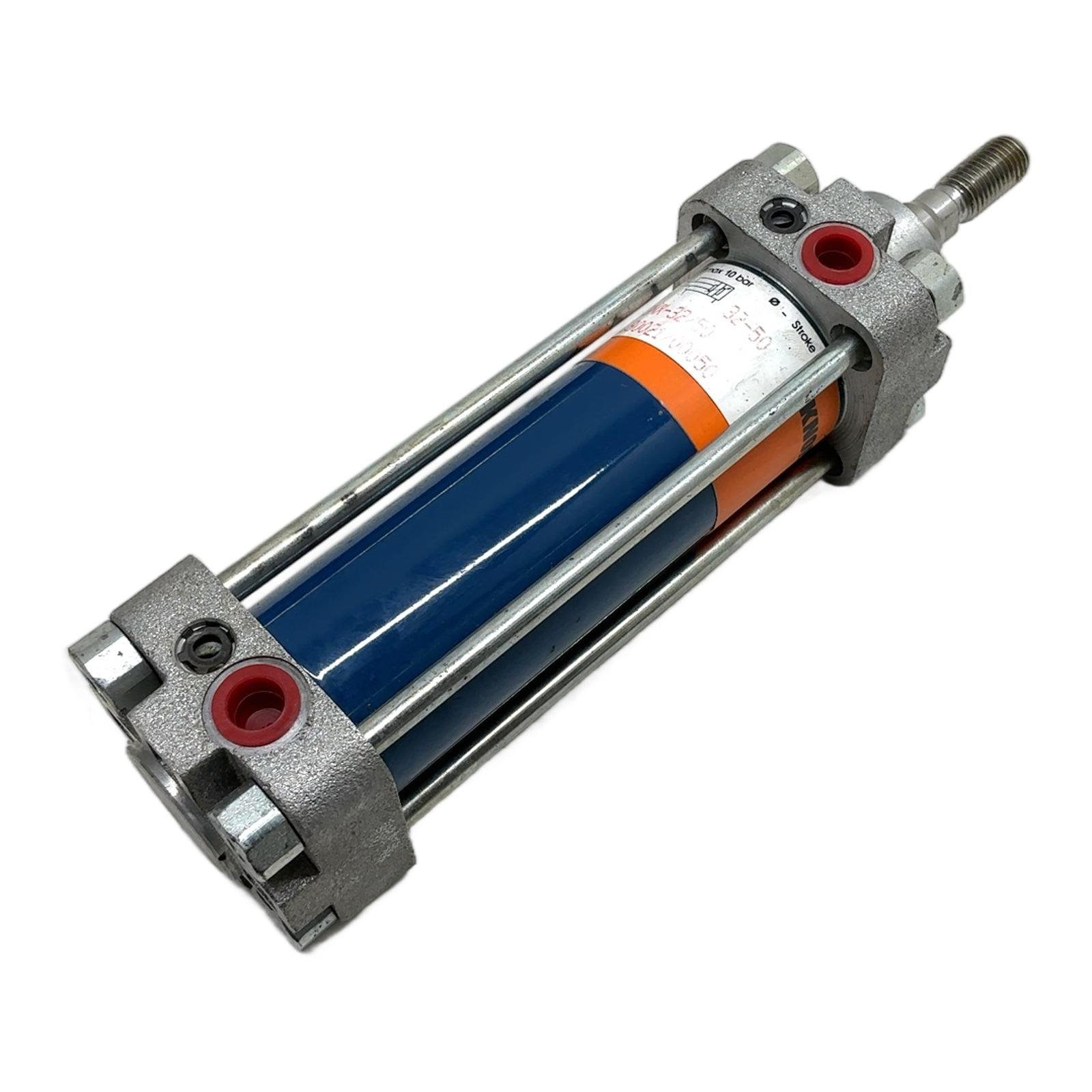

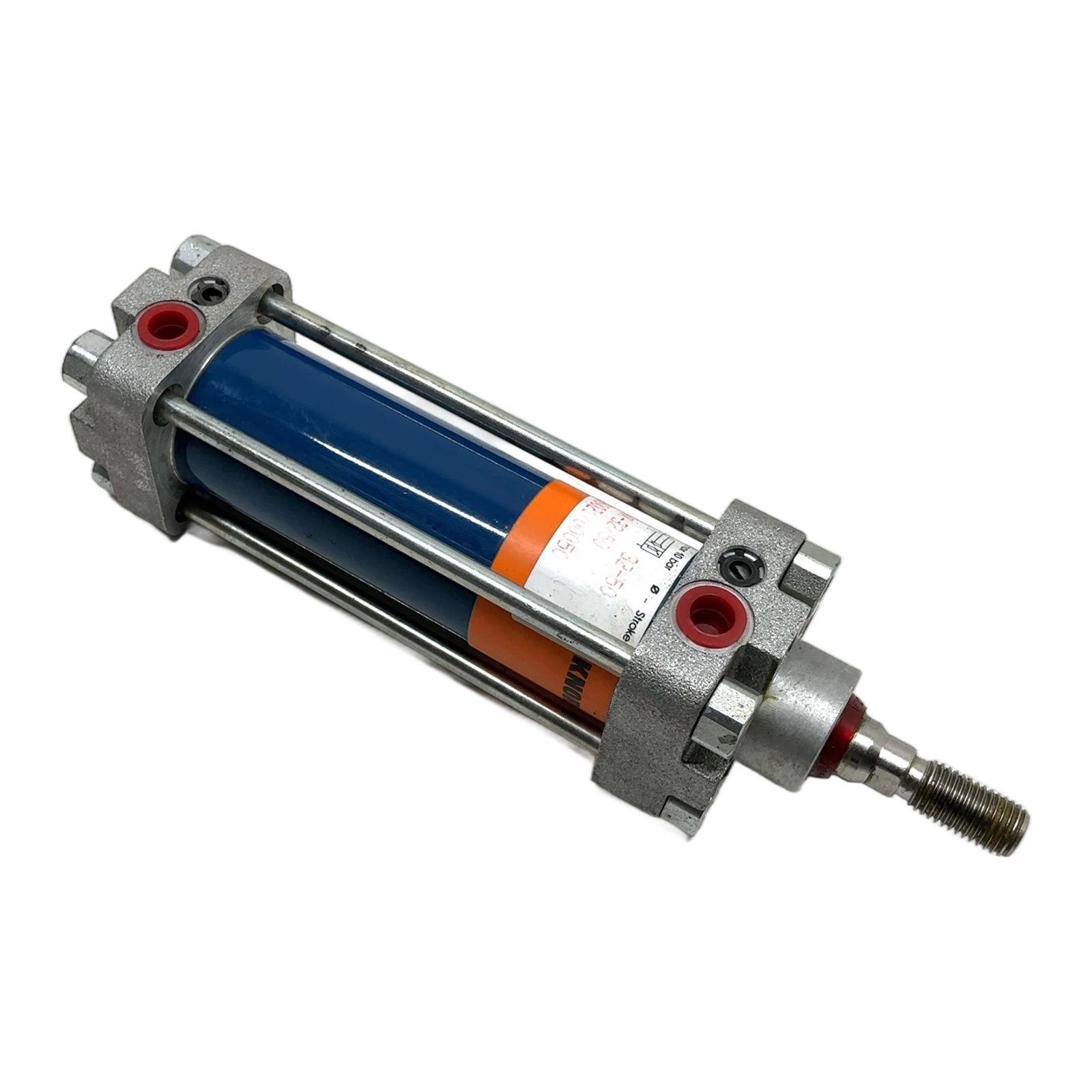

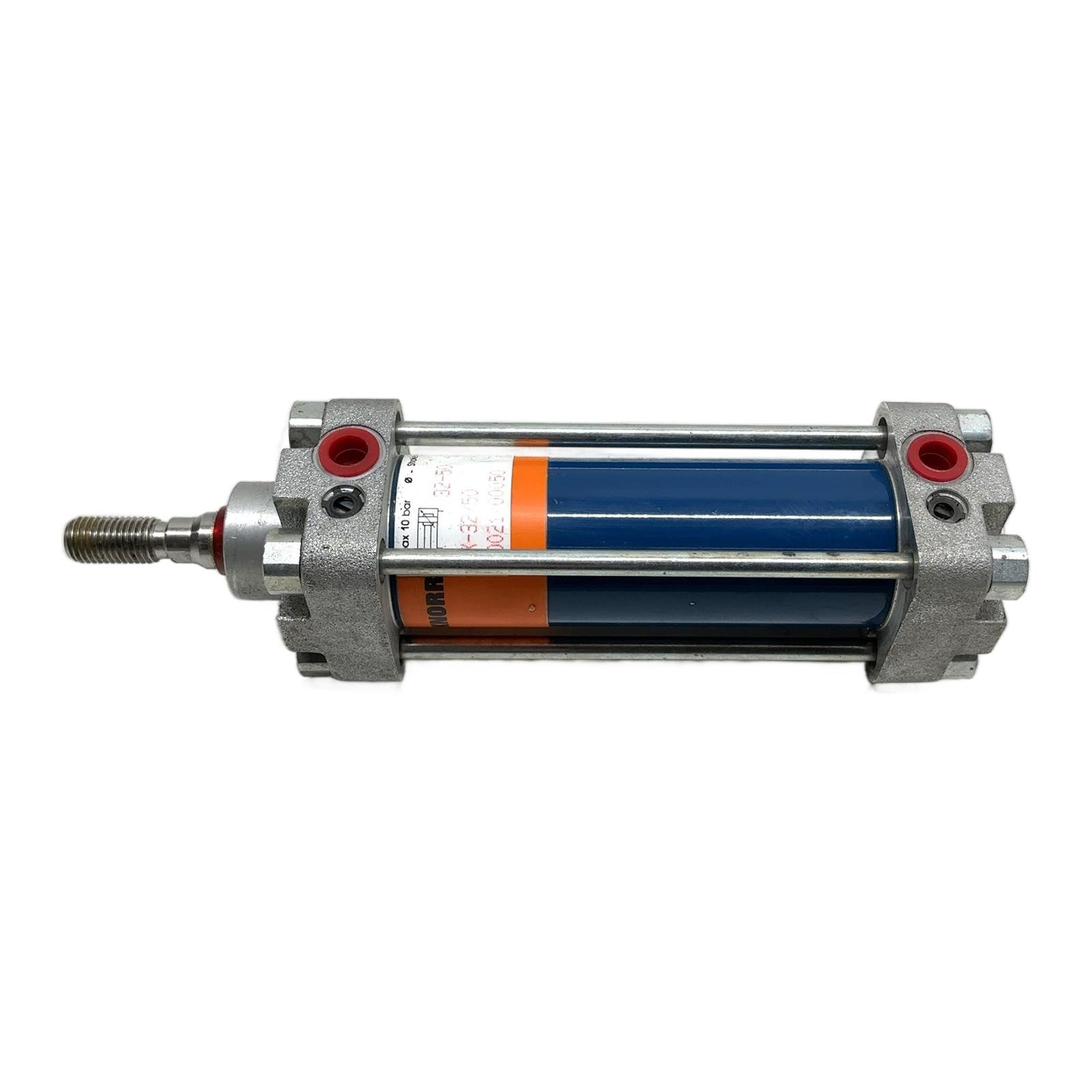

Knorr DNX-32/50 Pneumatic Tie-Rod Cylinder Description The Knorr DNX-32/50 is a high-quality, double-acting pneumatic cylinder built to the ISO 15552 standard. This ensures full interchangeability with other manufacturers’ cylinders of the same standard. Its robust tie-rod construction provides durability and reliable performance in demanding industrial environments. This cylinder is ideal for applications requiring precise and powerful linear movement. Specifications Manufacturer: Knorr Model: DNX-32/50 Bore Diameter: 32 mm Stroke Length: 50 mm Maximum Operating Pressure: 10 bar Standard: Conforms to ISO 15552 Cushioning: Pneumatic, adjustable at both ends (assumed standard feature) Piston Rod Thread: M10x1.25 Label Info Type: DNX-32/50 Pmax: 10 bar Serial/Order Code: L80021/00050 Application This cylinder is suitable for a wide variety of automation tasks, including clamping, positioning, pushing, lifting, and sorting applications in manufacturing, packaging, and material handling systems. Country of Origin Germany. CO2 Impact Choosing this pre-owned component saves approximately 4.2 kg of CO2 compared to a new one, contributing to a more sustainable operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Is this cylinder magnetically coupled for position sensing?Answer: Yes, standard ISO 15552 cylinders like the DNX series typically include a magnetic piston, allowing for the use of external cylinder sensors to detect piston position.Question?What are the port sizes for the air connections?Answer: For a 32mm bore ISO cylinder, the standard pneumatic connection port size is G1/8 inch.Question?Can this cylinder be operated without lubrication?Answer: Most modern ISO cylinders are designed for non-lubricated operation, as they are lubricated for life during assembly. However, if lubricated air is introduced once, it must be continued for the life of the cylinder. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
