GEA TUCHENHAGEN 8880-2122-1100-0000 / 3412-1111-1000-0000

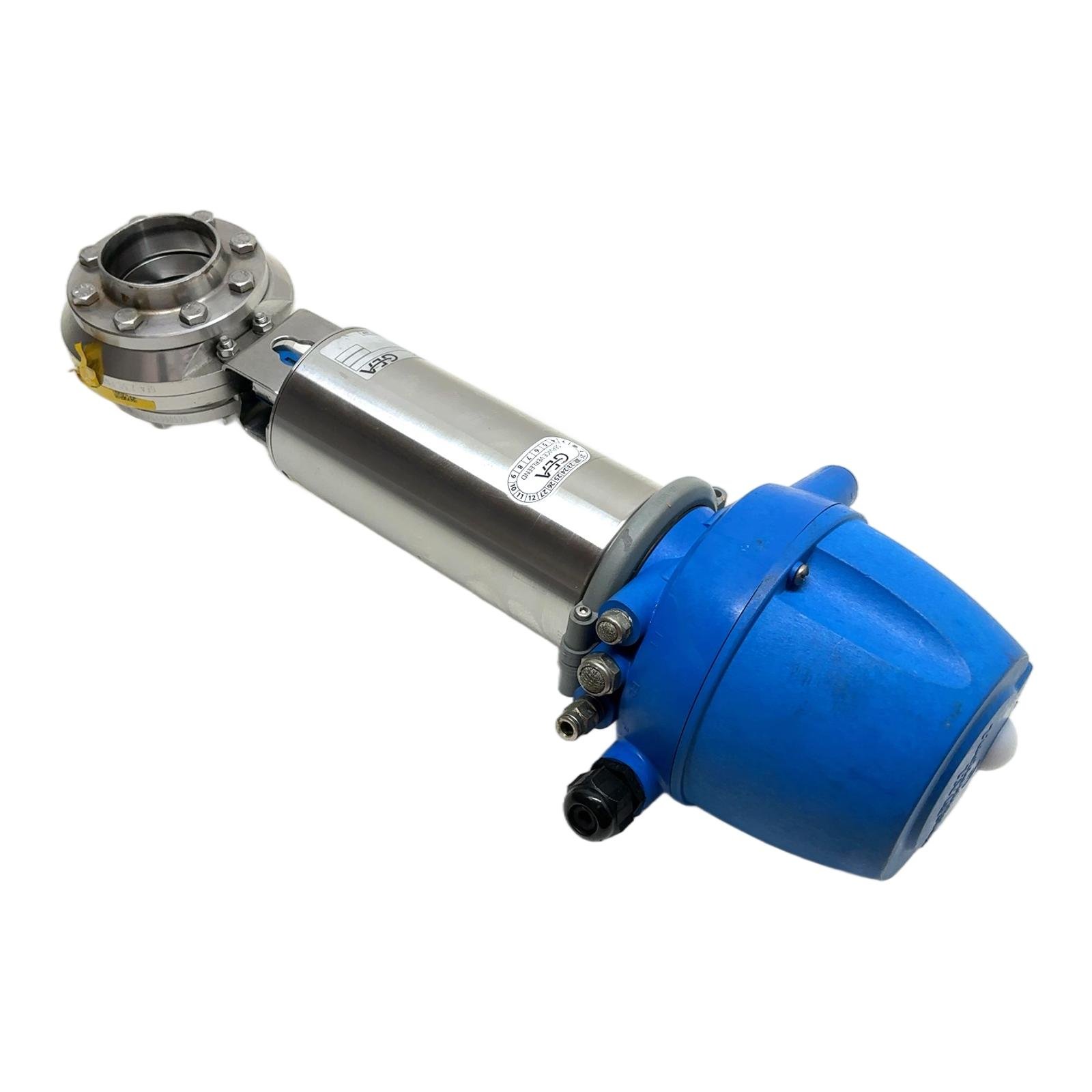

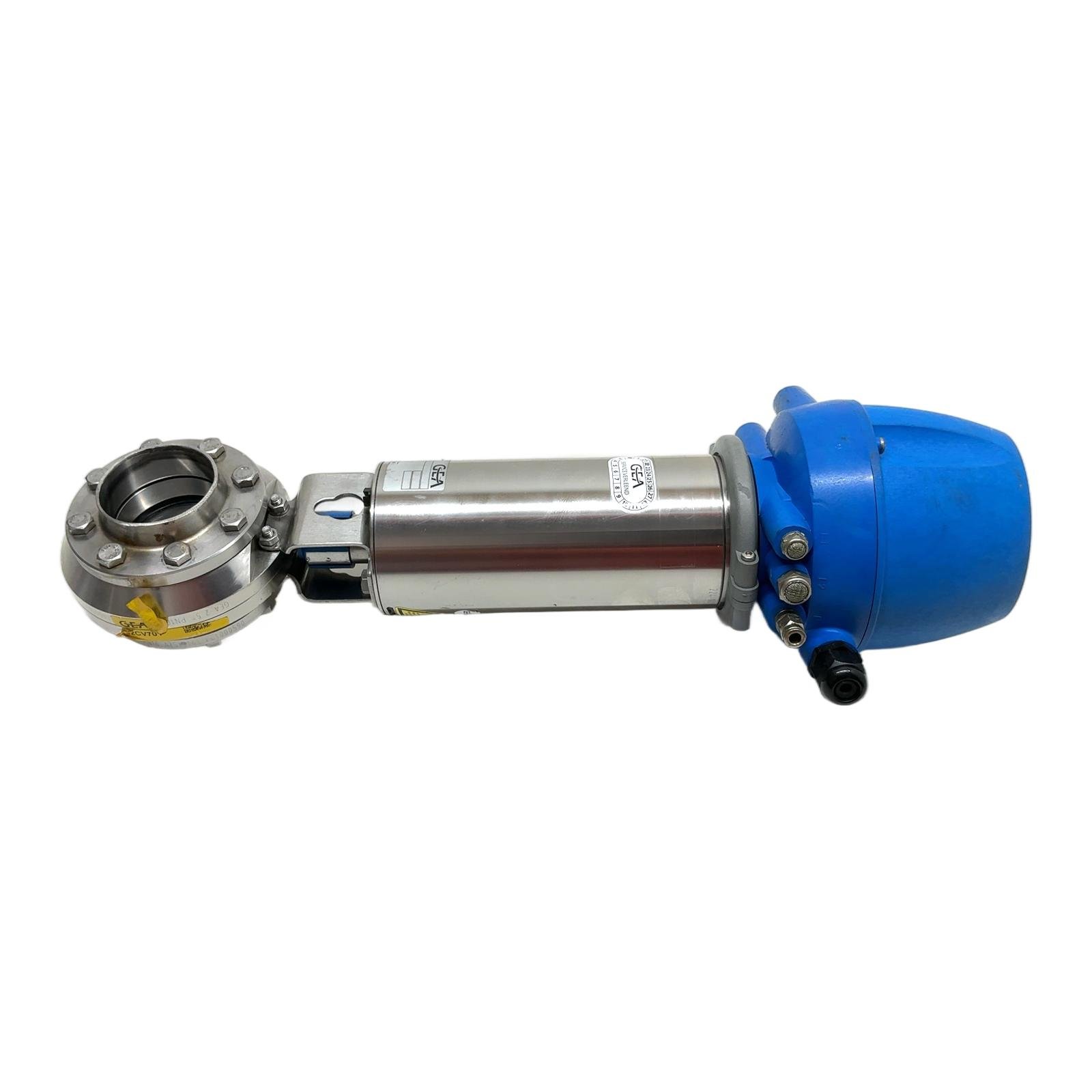

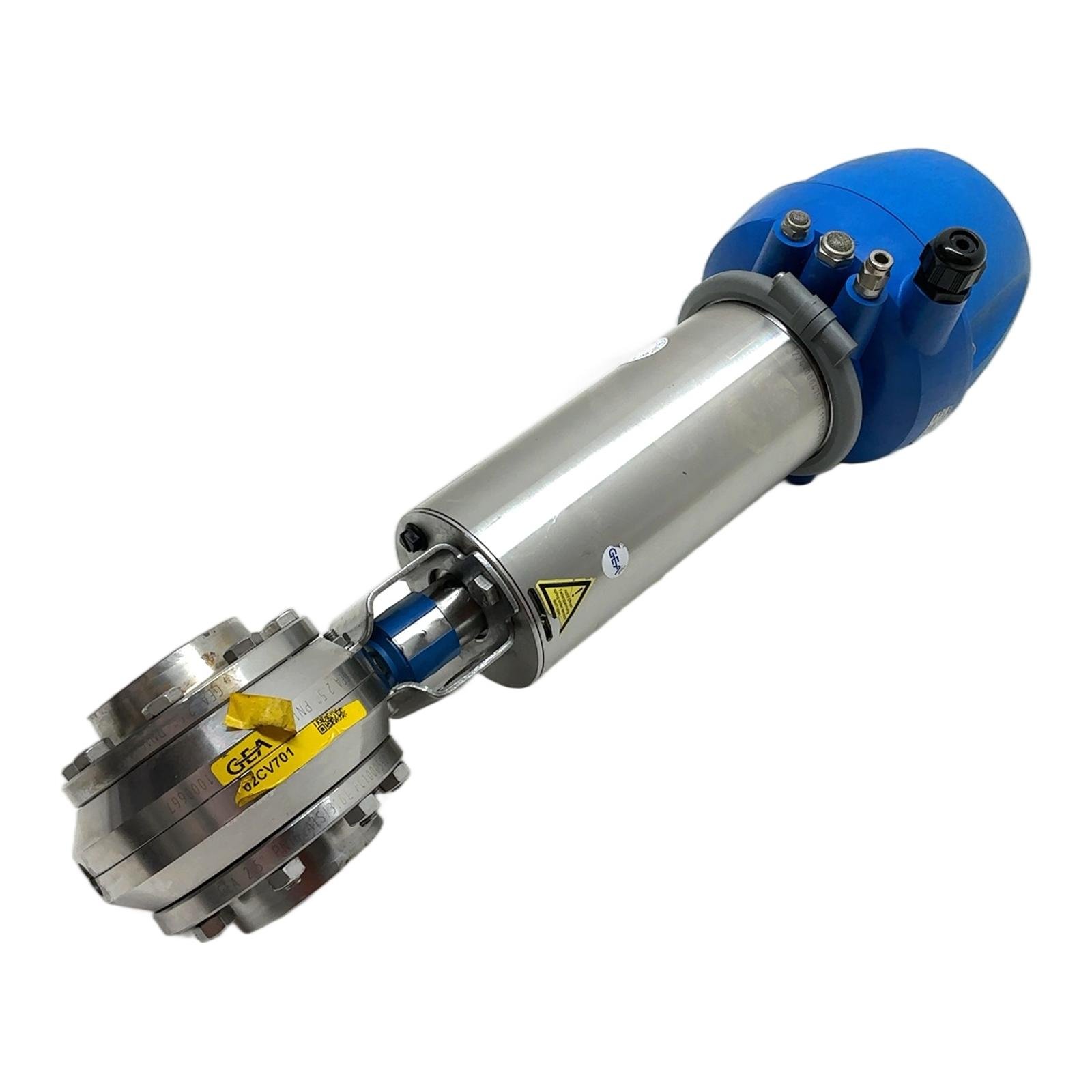

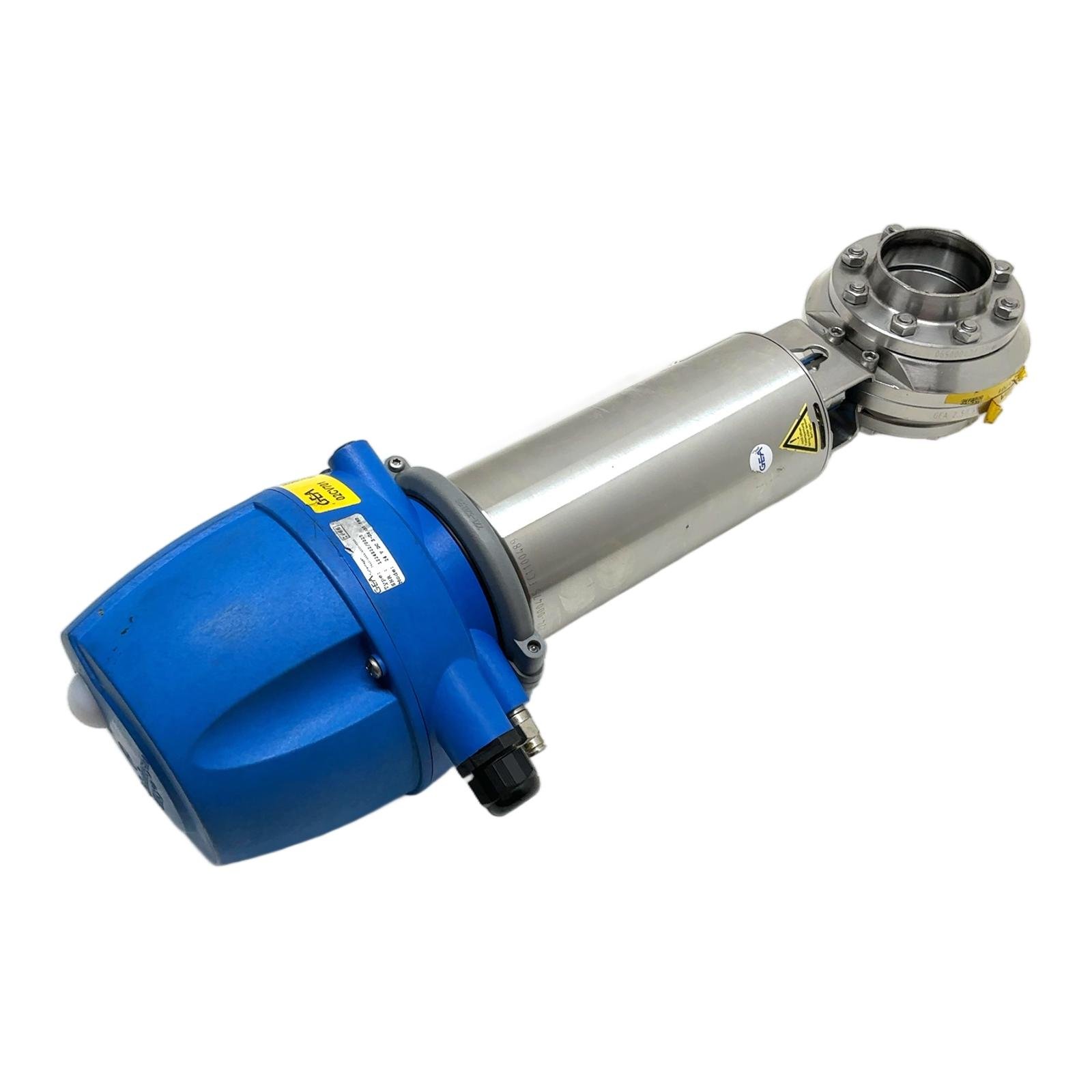

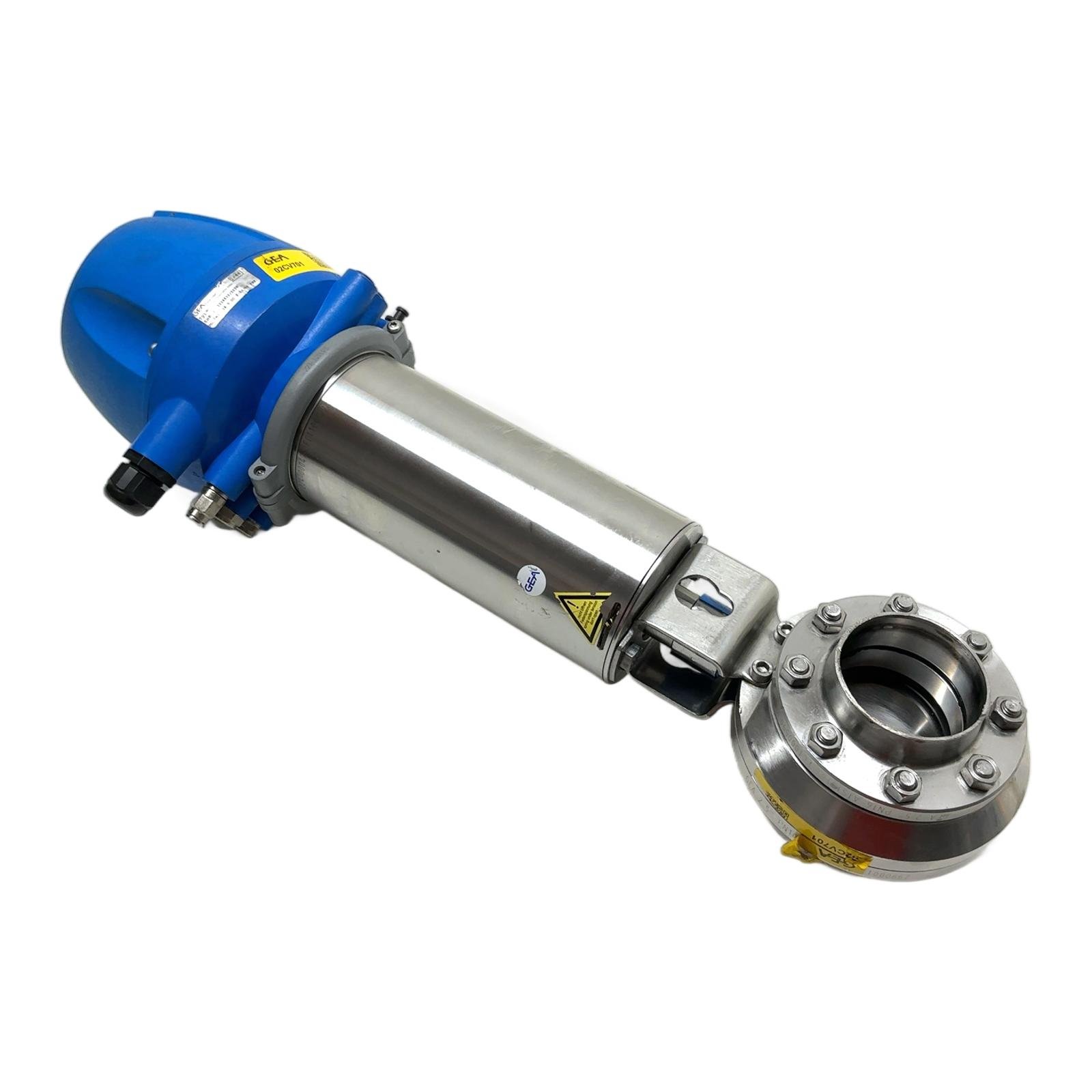

GEA Tuchenhagen Pneumatic Butterfly Valve with T.VIS A-15 Control Head Description This is a complete, pre-assembled pneumatic butterfly valve unit from GEA Tuchenhagen. It includes a 2.5-inch hygienic butterfly valve, a robust pneumatic actuator, and a T.VIS A-15 control head. This assembly is designed for automated control of fluids in hygienic process systems, commonly found in the food and beverage, dairy, and pharmaceutical industries. The AISI 316L stainless steel construction ensures high corrosion resistance and product purity. Specifications Manufacturer: GEA Tuchenhagen Valve Type: Butterfly Valve Actuator Type: Pneumatic Control Head: T.VIS A-15 (Type 3412-1111-1000-0000) Actuator Model: Type 8880-2122-1100-0000 Size: 2.5 inch Pressure Rating: PN10 (10 bar / 145 psi) Material (Wetted Parts): 1.4404 / AISI 316L Stainless Steel Seal Material: HNBR (FDA compliant) Control Head Voltage: 24V DC Signal Type: 3-wire PNP Required Air Pressure: min. 4.8 bar (69.6 psi), max. 8.0 bar (116 psi) Label Info Serial Number: 1224822/0020 Plant ID: 02CV701 Application Ideal for automated shut-off and control applications in hygienic process lines for liquids and gases. Suitable for industries such as breweries, dairies, beverage production, and pharmaceutical manufacturing. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned assembly saves an estimated 50.0 kg of CO2 compared to producing a new one. This is comparable to the emissions of a 250 km car journey. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the blue T.VIS A-15 control head?The T.VIS A-15 is a control and feedback unit. It receives signals to open or close the valve via integrated solenoid valves and provides electrical feedback (24V DC PNP) to the control system (e.g., a PLC) to confirm the valve’s open or closed position. Are the HNBR seals suitable for my application?HNBR (Hydrogenated Nitrile Butadiene Rubber) seals offer excellent resistance to oils, fats, and many chemicals, with a typical temperature range of -25 deg C to +150 deg C. Always verify chemical compatibility with your specific process media before installation. What air pressure is required to operate this actuator?The label specifies a minimum operating air pressure of 4.8 bar (69.6 psi) and a maximum of 8.0 bar (116 psi). Operating within this range is crucial for reliable performance. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
