FAG H313

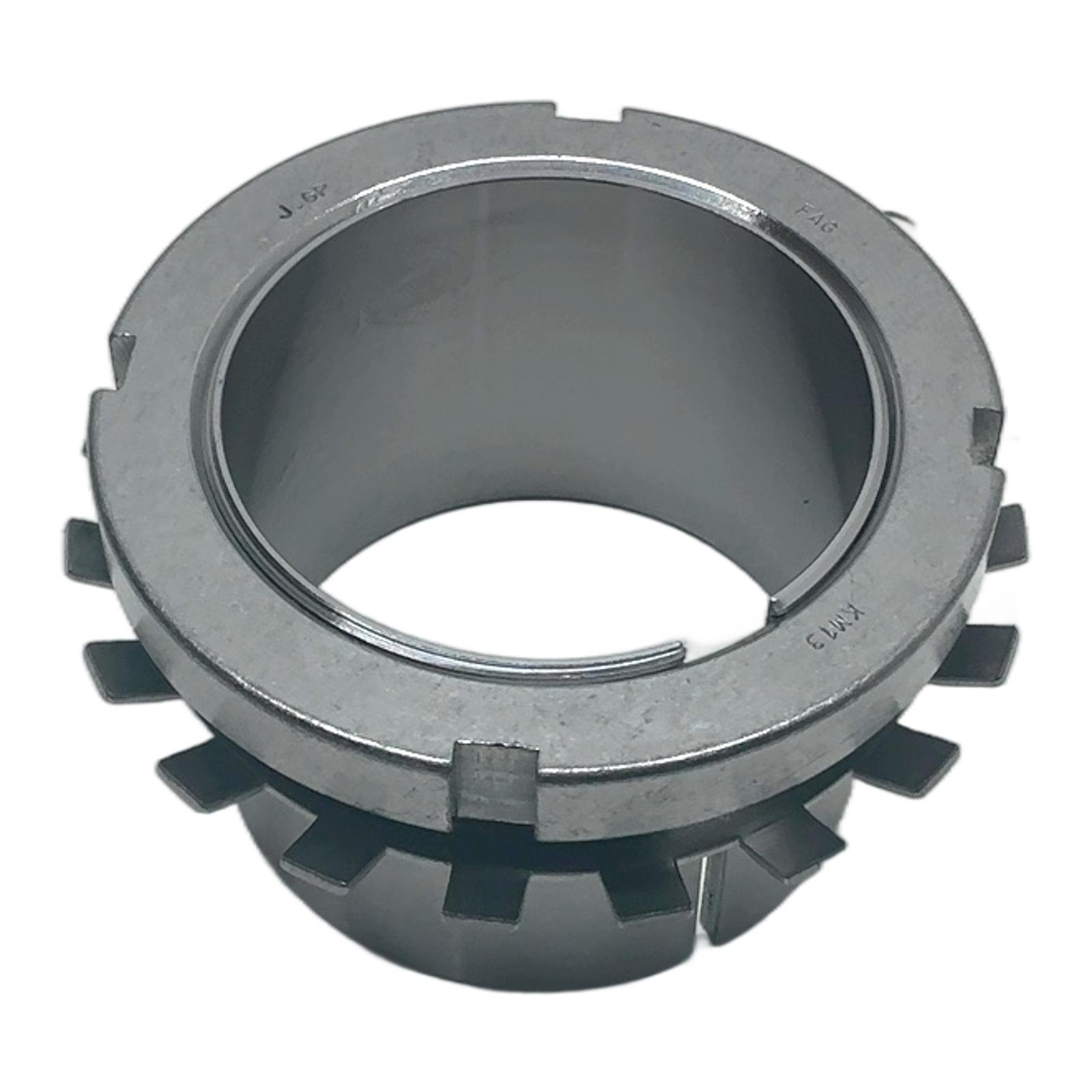

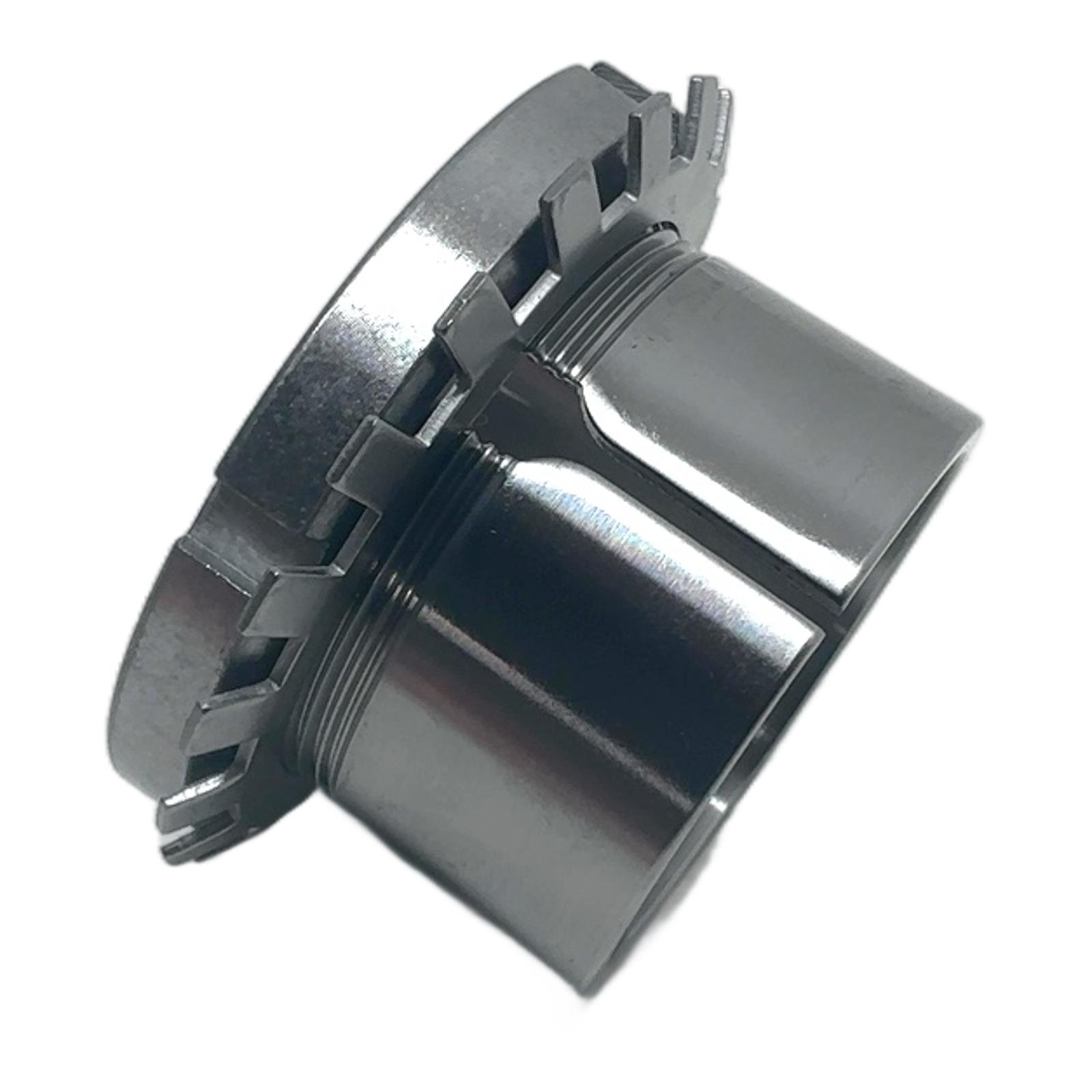

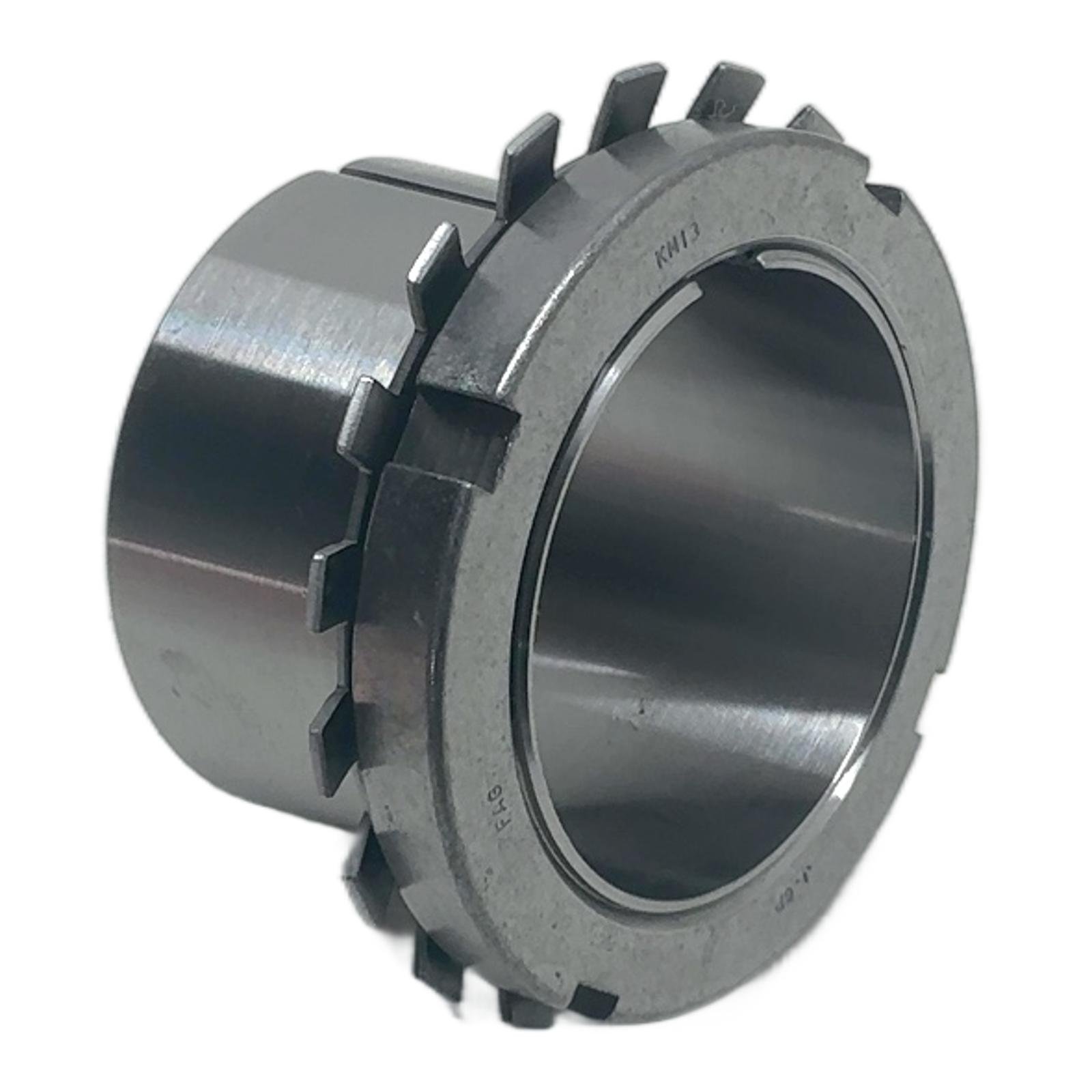

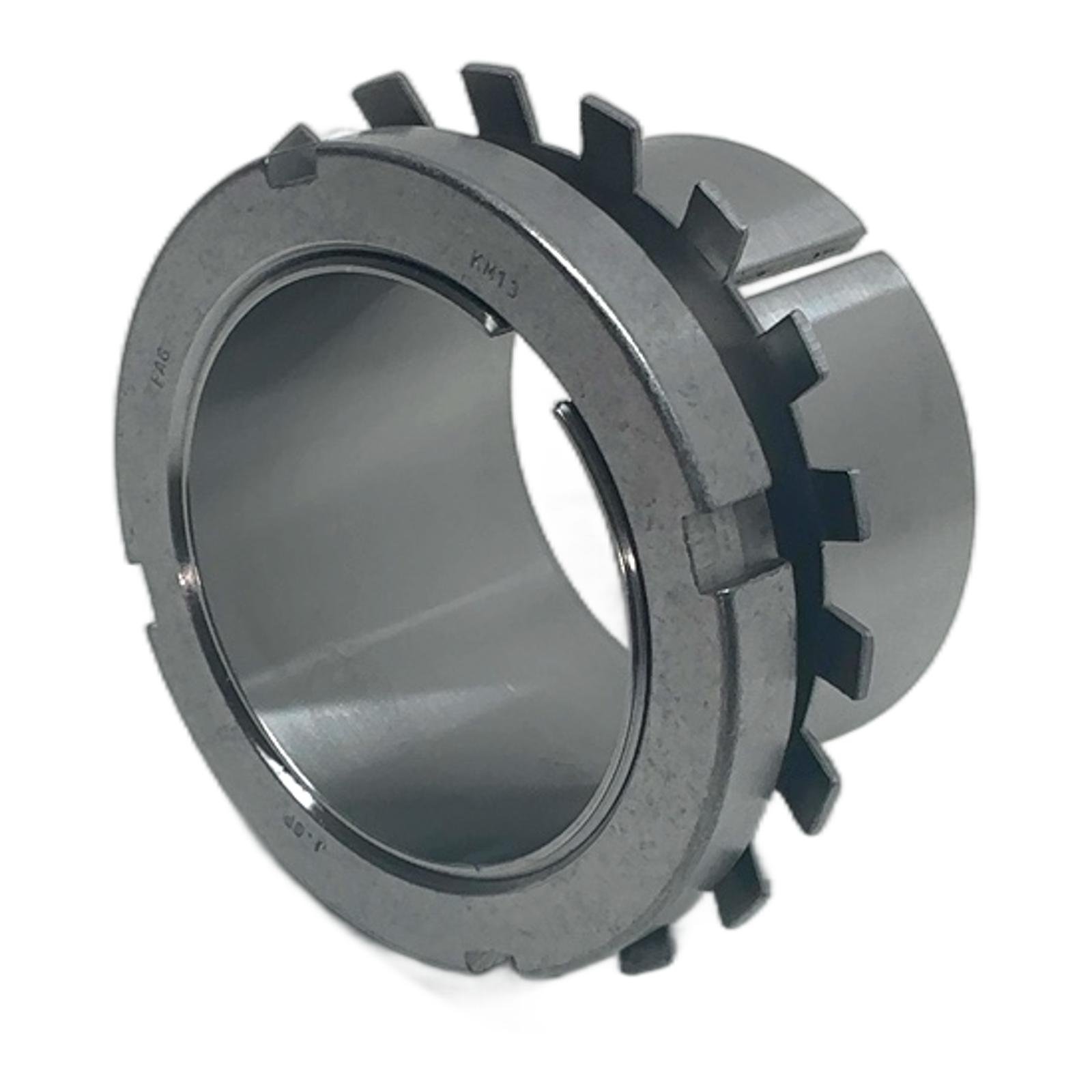

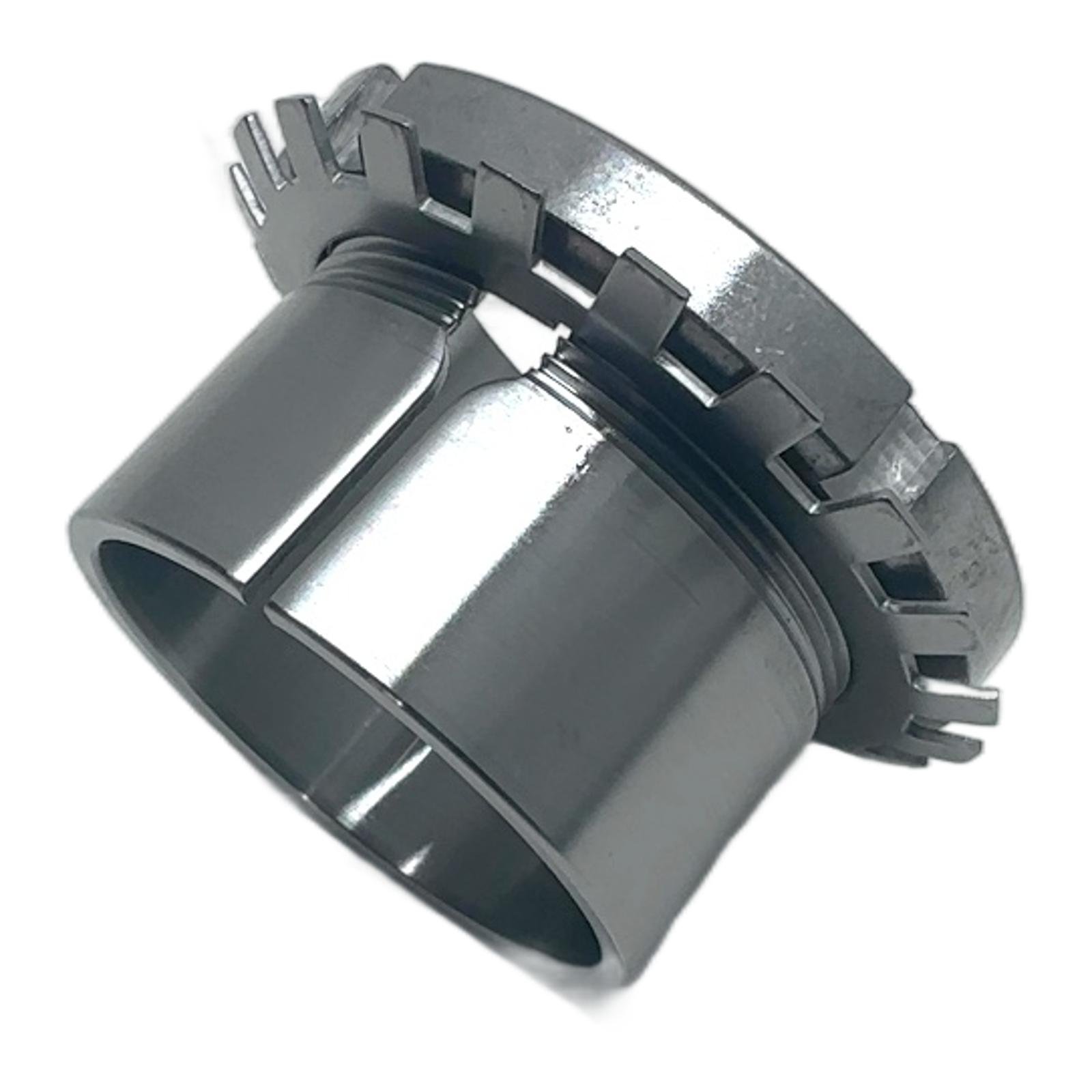

FAG H313 Adapter Sleeve for Bearings Description The FAG H313 is a high-quality adapter sleeve designed for mounting bearings with a tapered bore onto cylindrical shafts. As a product from a leading brand in the Schaeffler Group, it guarantees precision, reliability, and ease of installation. This sleeve is a crucial component for ensuring a secure and concentric fit, enabling optimal performance and longevity of your machinery. Specifications Shaft Diameter: 60 mm Bearing Bore Diameter (d): 65 mm Thread Size: M65x2 Material: High-grade Steel Corresponding Lock Nut: KM 13 Corresponding Lock Washer: MB 13 Label Info Manufacturer: FAG Type Number: H313 Part Number: 25021300 EAN: 4012801217088 Application This adapter sleeve is commonly used in various industrial applications, including conveyors, industrial fans, gearboxes, and agricultural machinery, where secure mounting of self-aligning ball bearings or spherical roller bearings is required. Country of Origin This product is manufactured by FAG in Germany. CO2 Impact Opting for this reused FAG adapter sleeve prevents the emission of approximately 1.3 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone over 150 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the correct lock nut and lock washer for the H313 adapter sleeve?The H313 sleeve is designed to be used with a KM 13 lock nut and an MB 13 locking washer for secure installation. What is the correct procedure for mounting a bearing onto an H313 sleeve?Mounting involves placing the sleeve on the shaft, positioning the bearing on the tapered seat, and then driving the bearing up the taper using the lock nut until the required reduction in radial internal clearance is achieved. Always refer to the manufacturer’s guidelines for specific clearance values. Is this adapter sleeve suitable for high-speed applications?Yes, FAG adapter sleeves are precision-machined for good concentricity, making them suitable for a wide range of applications, including those with higher speeds. However, for extreme high-speed applications, shaft and housing tolerances become critical and should be strictly followed. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
