ELGES GAL50-UK-2RS-A#EN

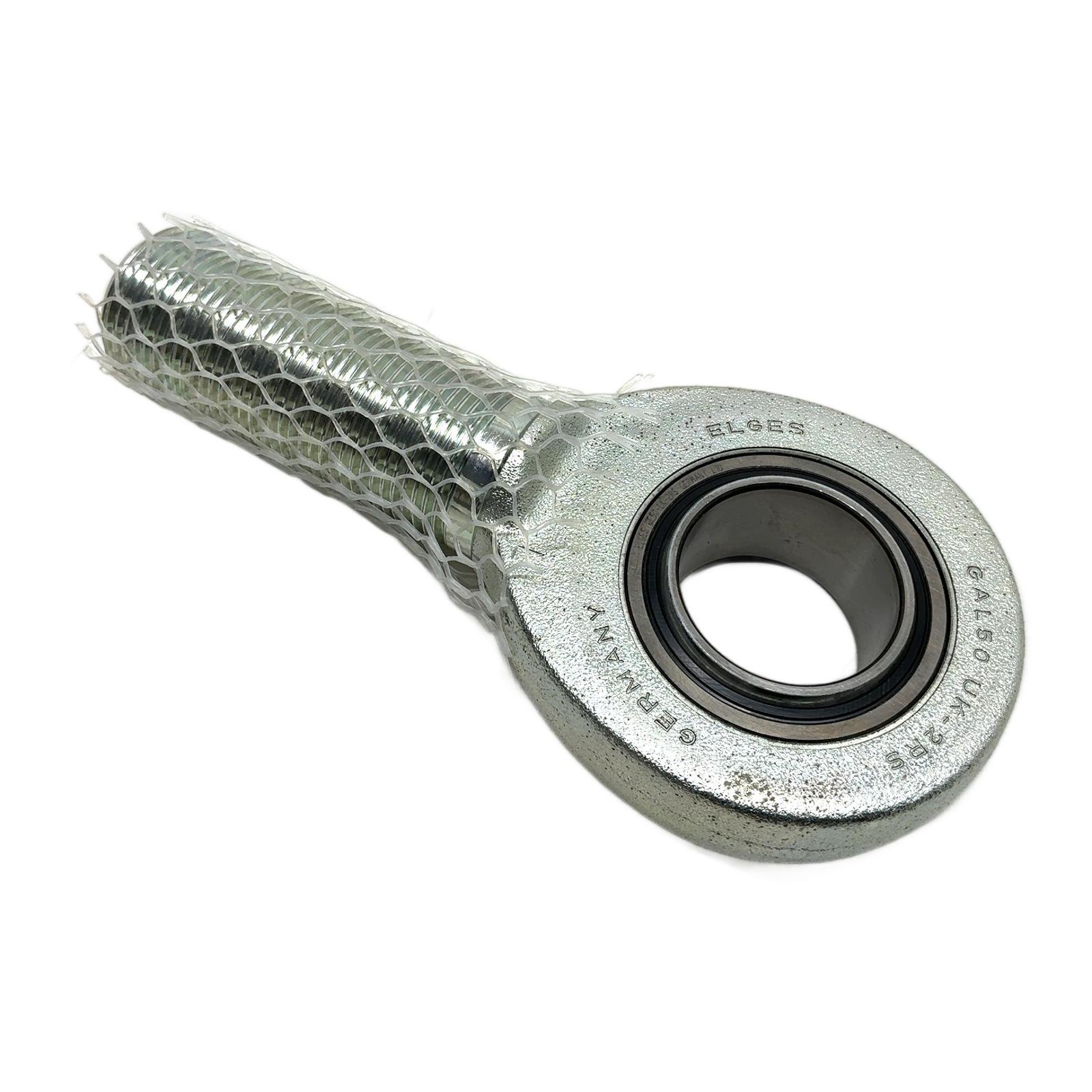

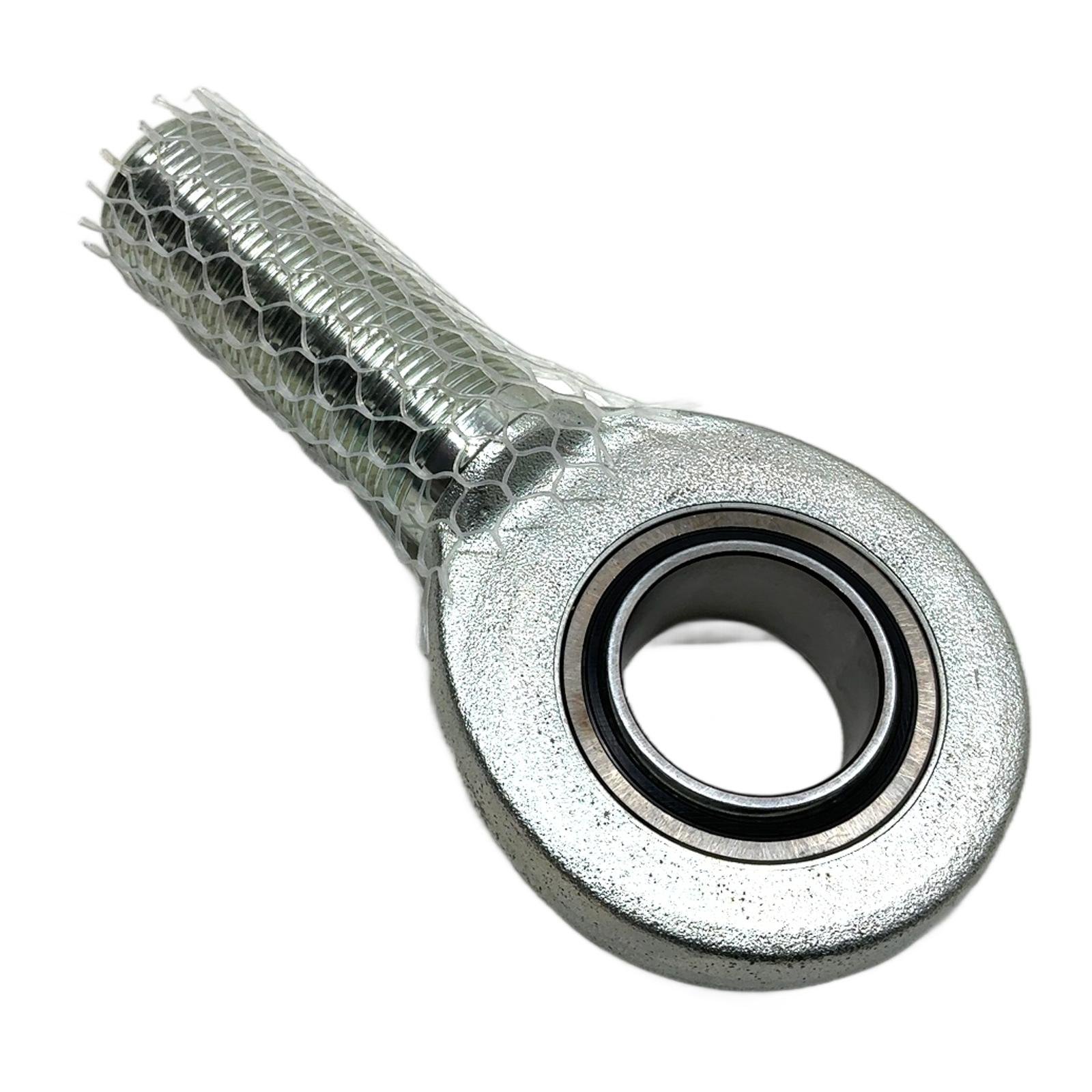

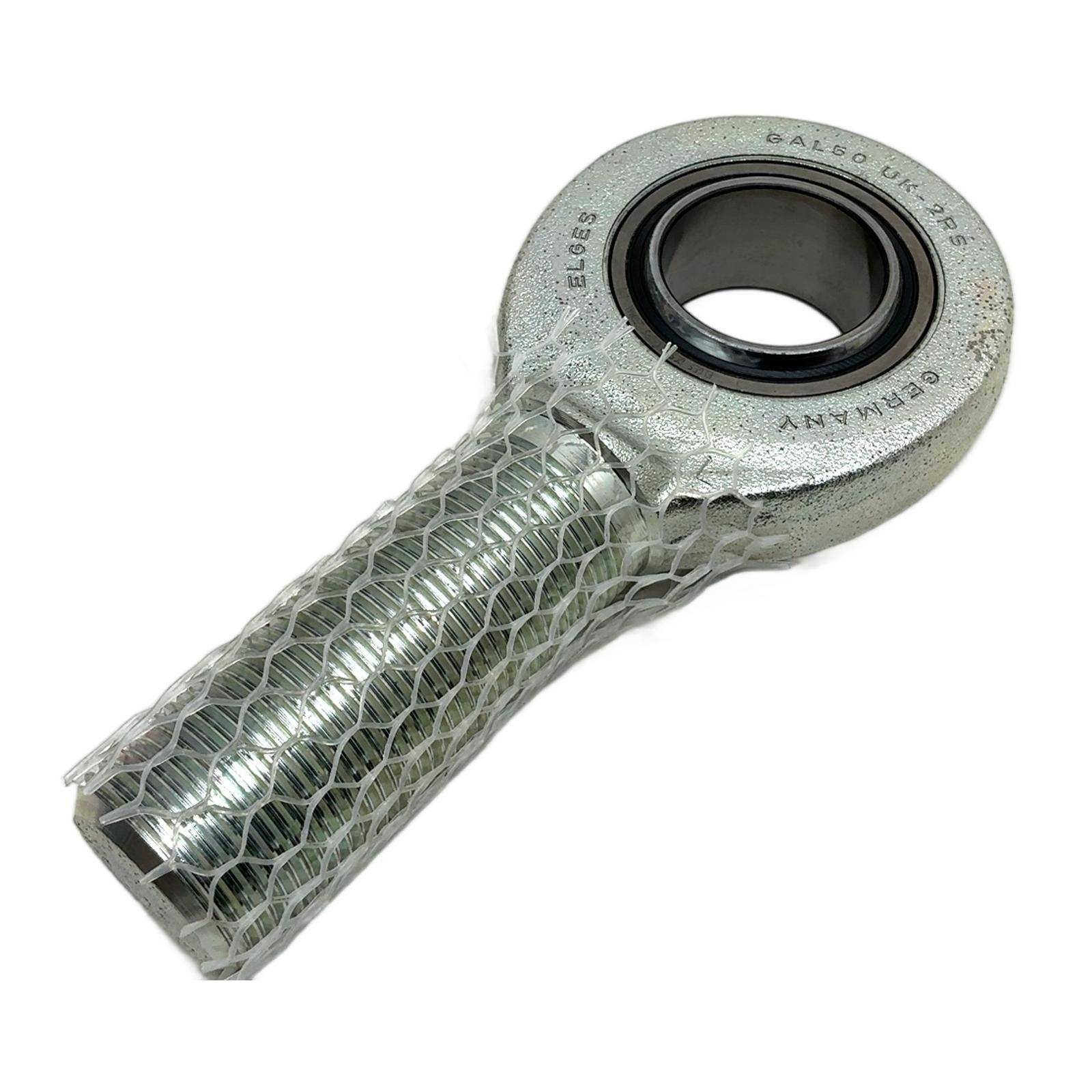

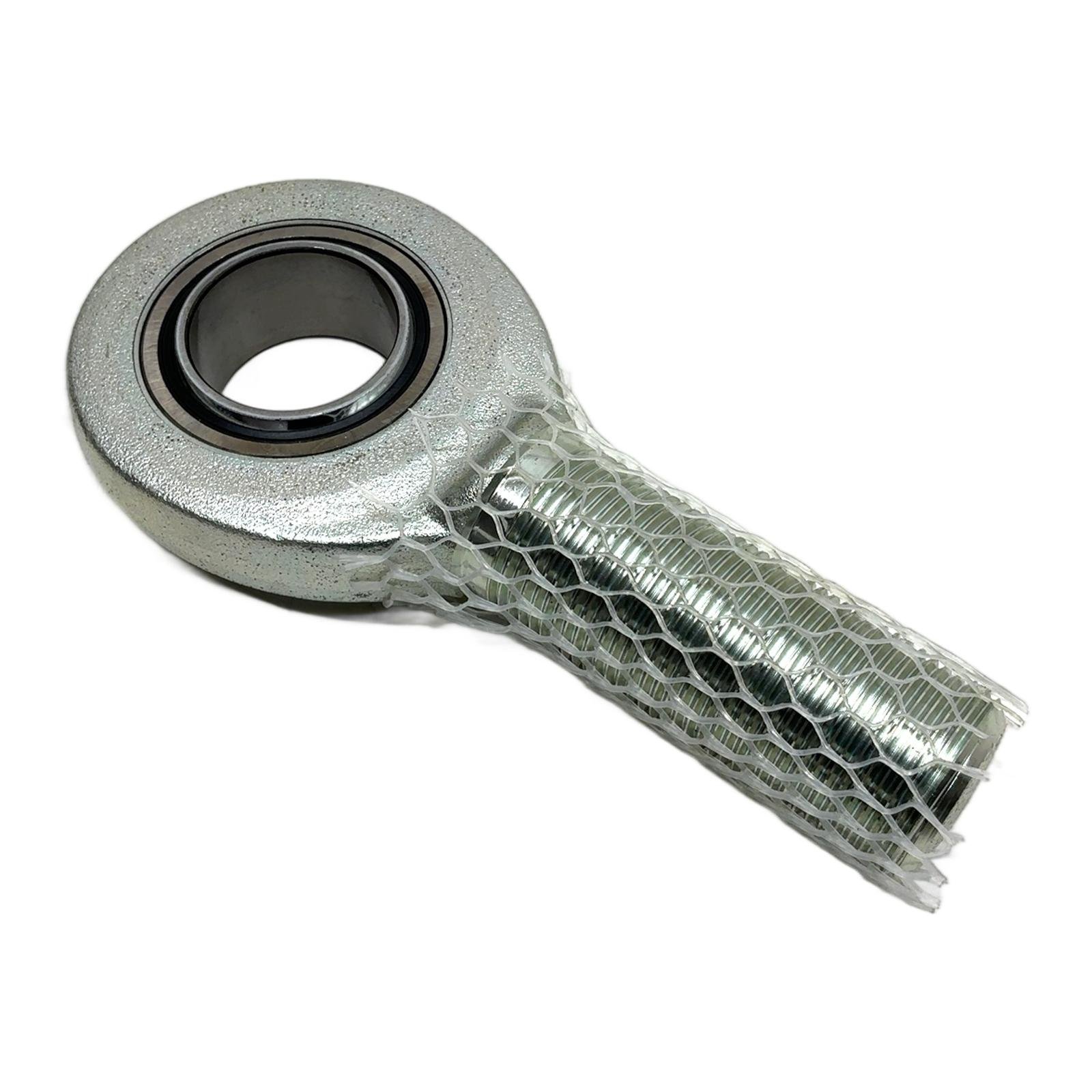

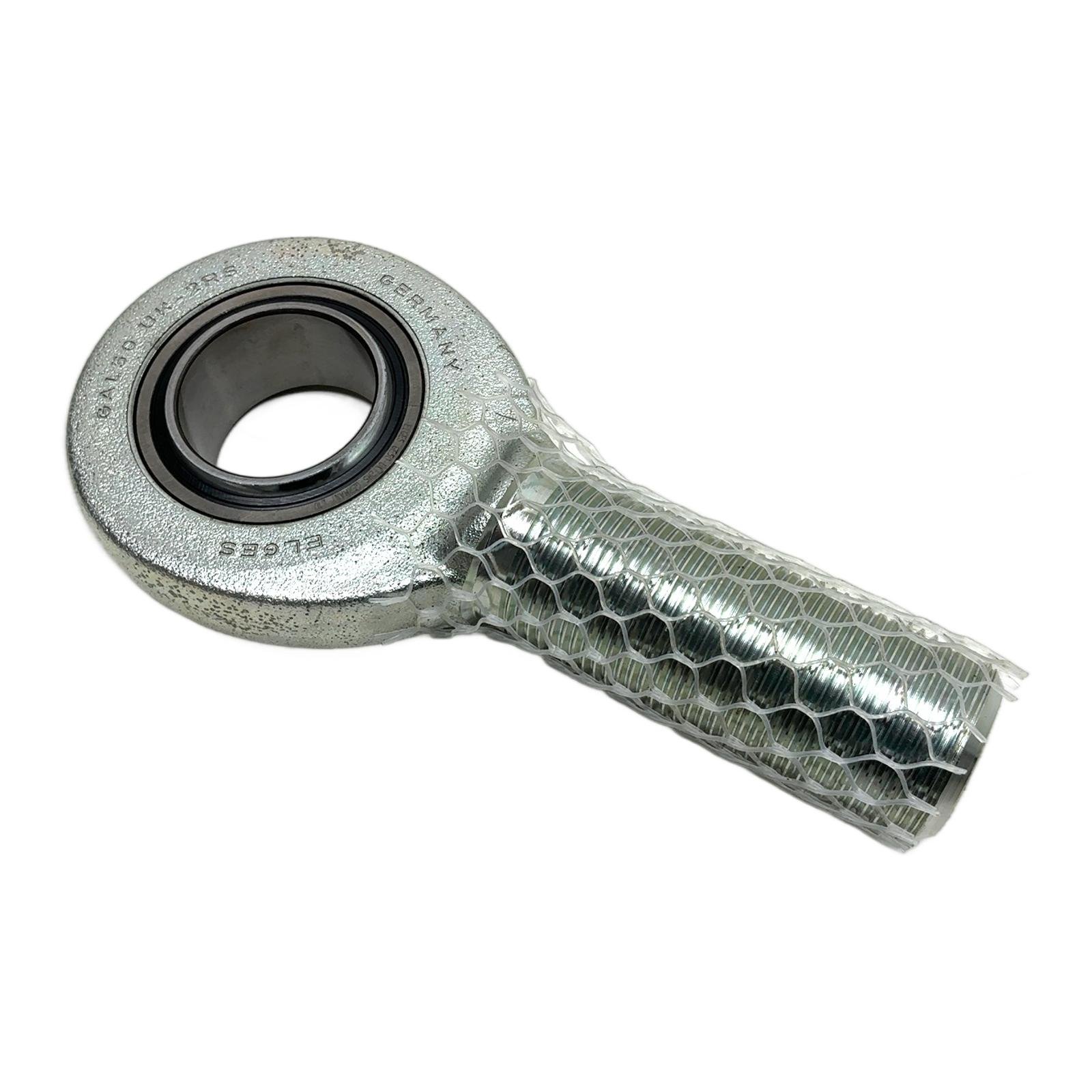

ELGES GAL50-UK-2RS Rod End Bearing Description The ELGES GAL50-UK-2RS is a robust, maintenance-free rod end with an external thread, designed for articulating joints in mechanical systems. Manufactured by Schaeffler, this component combines a high-strength housing with a spherical plain bearing (GE 50 UK-2RS) to accommodate misalignment and transfer heavy loads. Its integrated seals protect against contamination, ensuring a long operational life in harsh industrial environments. Specifications Manufacturer: ELGES (Schaeffler Group) Model: GAL50-UK-2RS Bore Diameter (d): 50 mm Thread Size: M48x3 (Right-Hand) Overall Length (l4): 205 mm Head Diameter (d2): 105 mm Dynamic Load Rating (C): 117 kN Static Load Rating (C0): 325 kN Sealing: 2RS, contact seals on both sides Maintenance Requirement: Maintenance-free Label Info Part Number: GAL50-UK-2RS-A#EN Identifier: 0012L1109/16637507 Application This rod end is commonly used in hydraulic and pneumatic cylinders, packaging machinery, agricultural equipment, and general mechanical engineering applications where oscillating or pivoting movements are required under load. Country of Origin Made in Germany. CO2 Impact Reusing this high-quality steel component prevents the emission of approximately 4.4 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving an average car for 22 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What does “maintenance-free” mean for the GAL50-UK-2RS? The “maintenance-free” designation means the bearing features a special sliding layer (e.g., PTFE composite) between the inner and outer rings. This self-lubricating design eliminates the need for periodic greasing, making it ideal for applications where regular maintenance is difficult or undesirable. Question? Is this a right-hand or left-hand thread? This is a standard right-hand thread. Rod ends with a left-hand thread would have an ‘L’ in their designation, for example, ‘GALI50-UK-2RS’. Since this model is GAL50-UK-2RS, it has a standard right-hand M48x3 thread. Question? What is the significance of the “UK” designation in the model number? The “UK” in GAL50-UK-2RS indicates that the rod end is fitted with a GE..-UK type spherical plain bearing. This type of bearing has an outer ring made of bearing steel and a maintenance-free sliding layer on the inner diameter, with seals on both sides (-2RS). It’s designed for high durability and performance without lubrication. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
