SCHNEIDER ELECTRIC GV3L40 40A

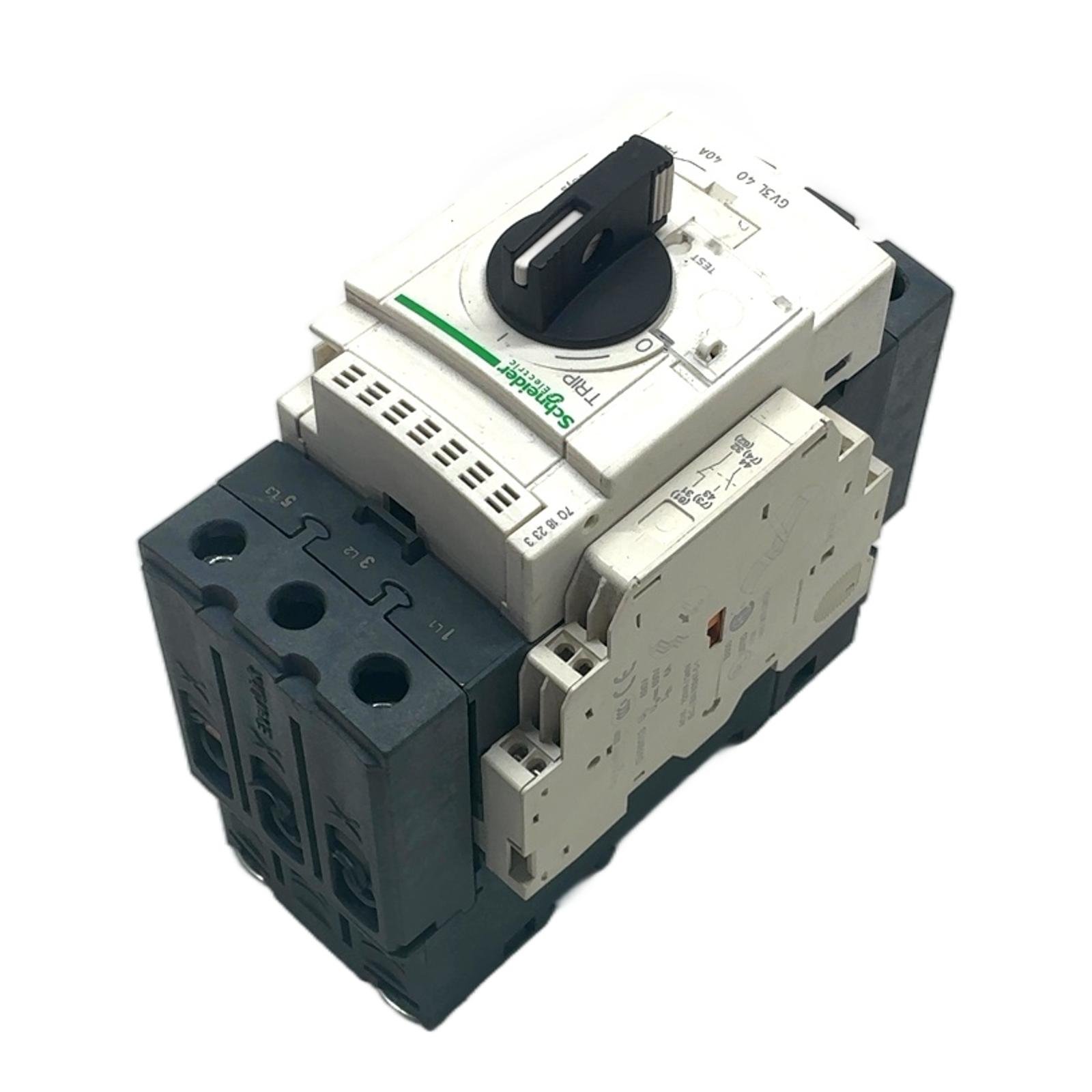

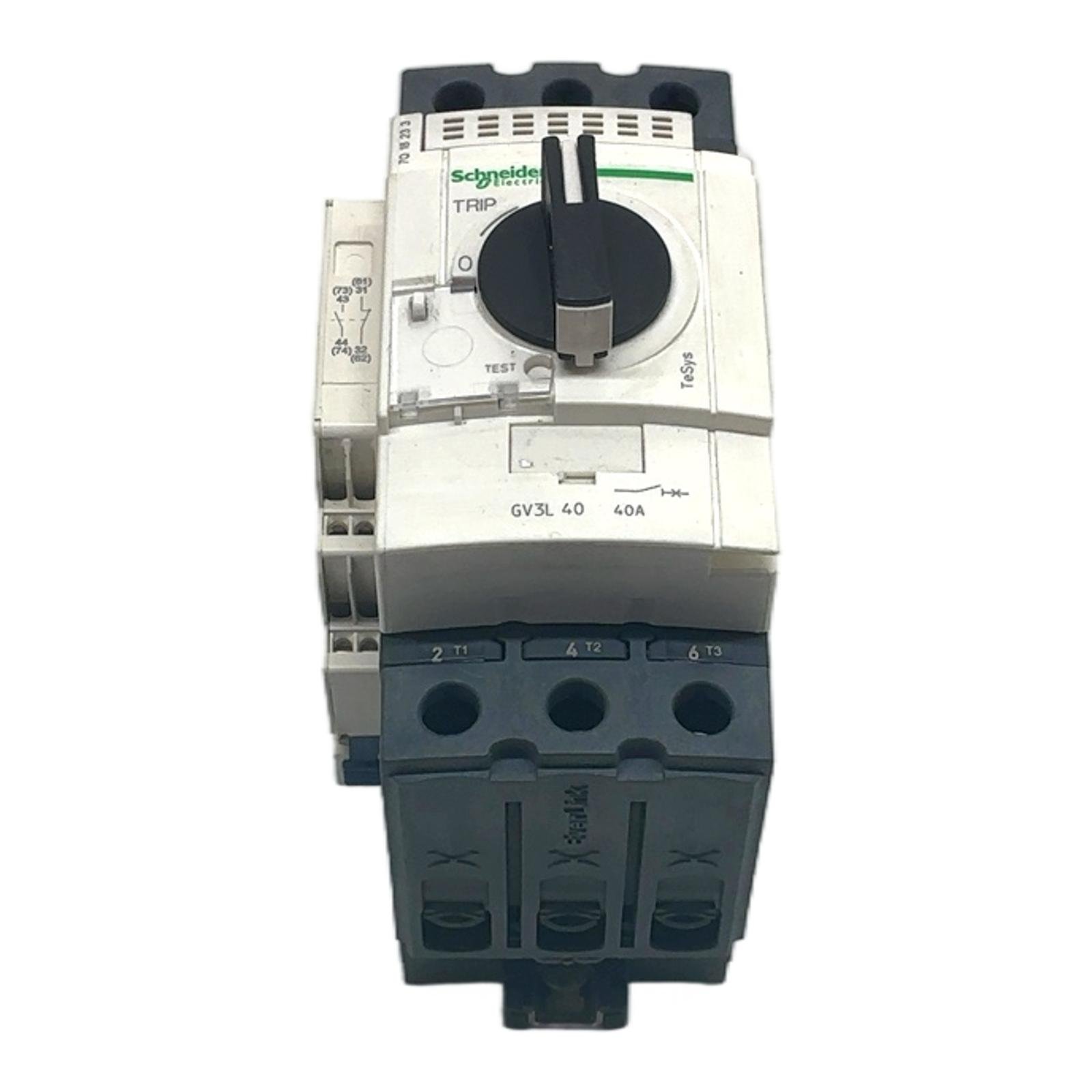

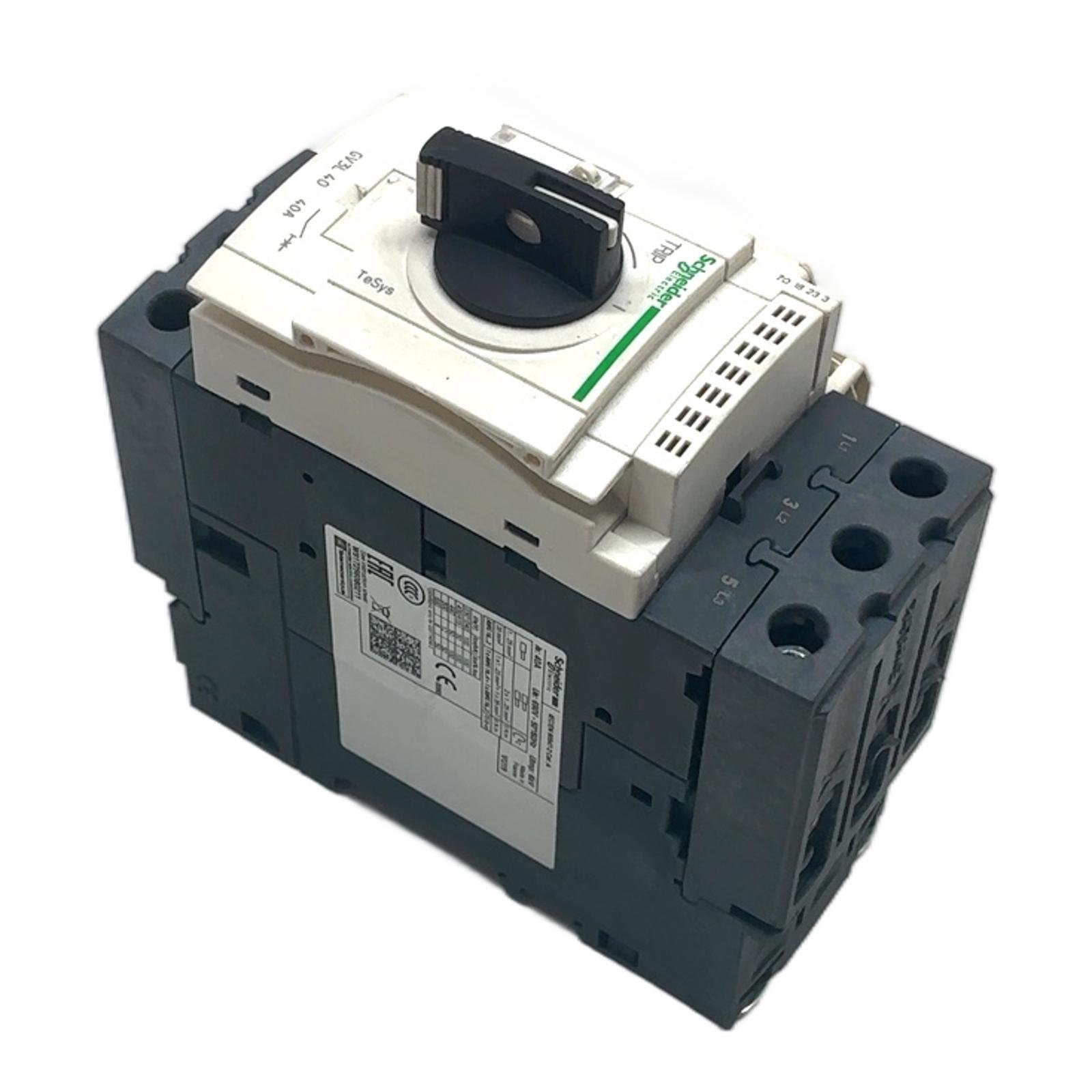

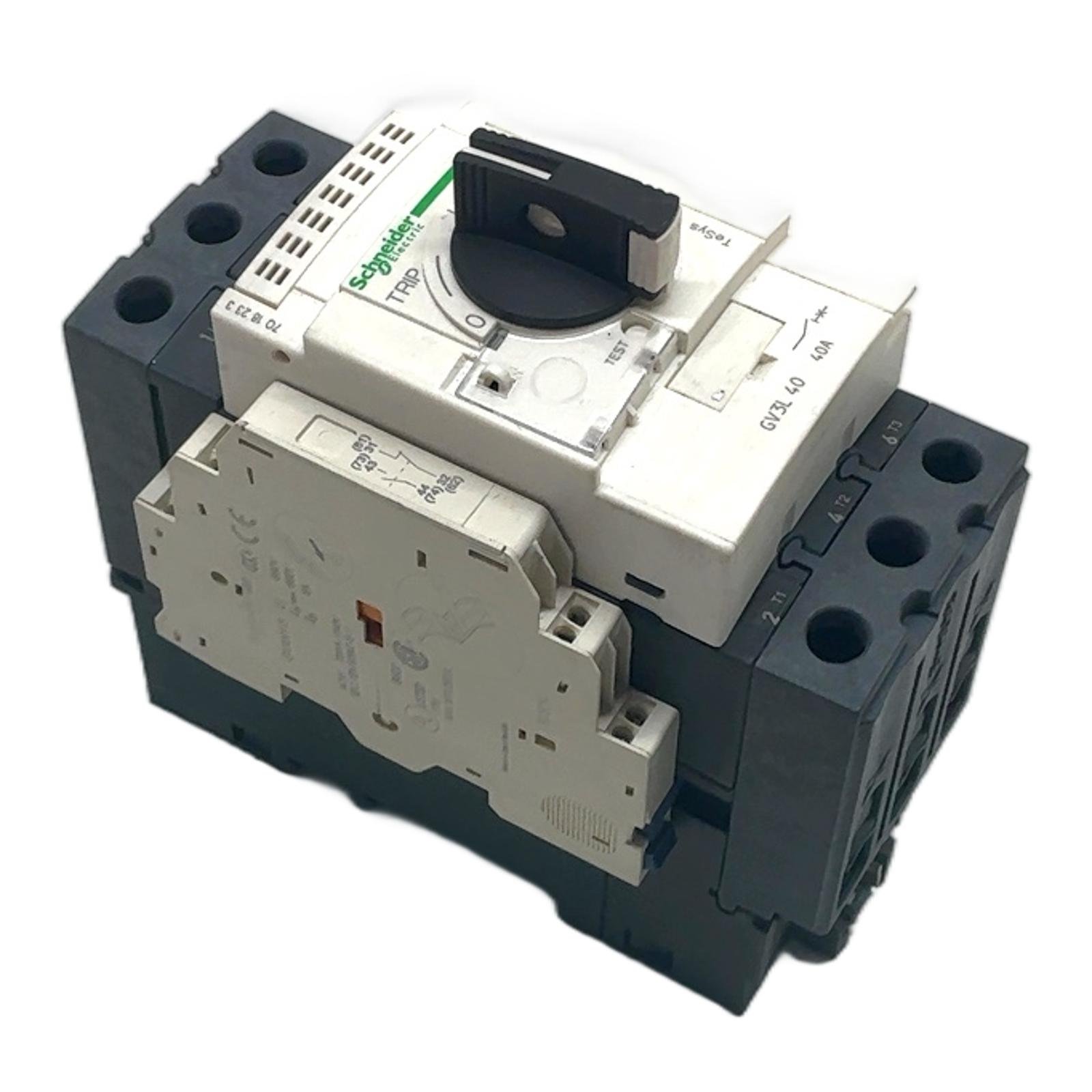

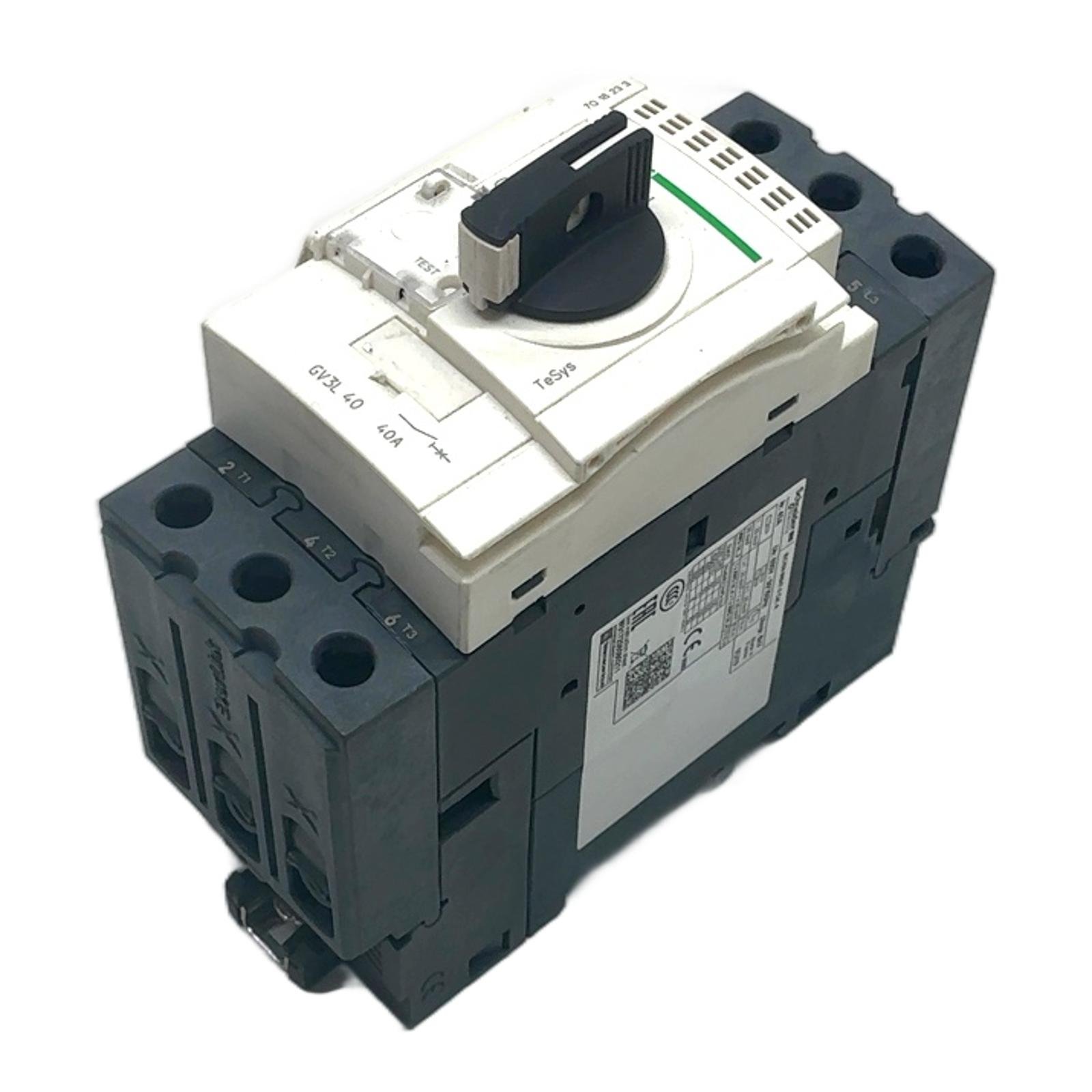

Schneider Electric GV3L40 Motor Circuit Breaker Description The Schneider Electric GV3L40 is a magnetic motor circuit breaker from the TeSys GV3 range. It provides short-circuit protection for 3-phase motors. With a rated current of 40A and a rotary handle for manual control, it is a reliable component for industrial motor control applications. This unit comes equipped with a GVAN113 side-mounted auxiliary contact block, providing one normally open (NO) and one normally closed (NC) contact for status signaling. Specifications Manufacturer: Schneider Electric Product Range: TeSys GV3 Model: GV3L40 Rated Operational Current (Ie): 40A Rated Operational Voltage (Ue): up to 690V AC Protection Type: Magnetic (Short-circuit only) Poles: 3-Pole Control Type: Rotary Handle Auxiliary Contact: GVAN113 (1 NO + 1 NC) included Label Info Breaking Capacity (Icu) at 400/415V: 50 kA Rated Impulse Withstand Voltage (Uimp): 6 kV Standards: IEC/EN 60947-2 Application The GV3L40 is designed for use in combination with a thermal overload relay and a contactor to create a complete Type 2 coordinated motor starter. It is suitable for protecting motor circuits in various industrial settings, including manufacturing, material handling, and HVAC systems. Country of Origin The main unit is made in France, and the auxiliary contact block is made in the Czech Republic. CO2 Impact Opting for this pre-owned unit over a new one prevents the emission of approximately 40 kg of CO2, a significant saving that supports sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a GV3L and a GV3P motor circuit breaker?The GV3L series, like this GV3L40, provides only magnetic (short-circuit) protection. It must be combined with a separate thermal overload relay for complete motor protection. The GV3P series integrates both thermal (overload) and magnetic (short-circuit) protection in a single device. Can this GV3L40 be used as a standalone device for motor protection?No, it is not recommended. The GV3L40 is a magnetic-only circuit breaker. For full protection against both short circuits and overloads, it needs to be paired with a thermal overload relay, such as one from the Schneider Electric LRD series, and a contactor like the LC1D series. What is the function of the included GVAN113 auxiliary contact block?The GVAN113 provides additional signaling contacts. It features one Normally Open (NO) and one Normally Closed (NC) contact. These can be used in the control circuit to indicate the status of the circuit breaker (e.g., tripped or off) to a PLC or to operate indicator lights. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
