SCHNEIDER ELECTRIC A9N15656

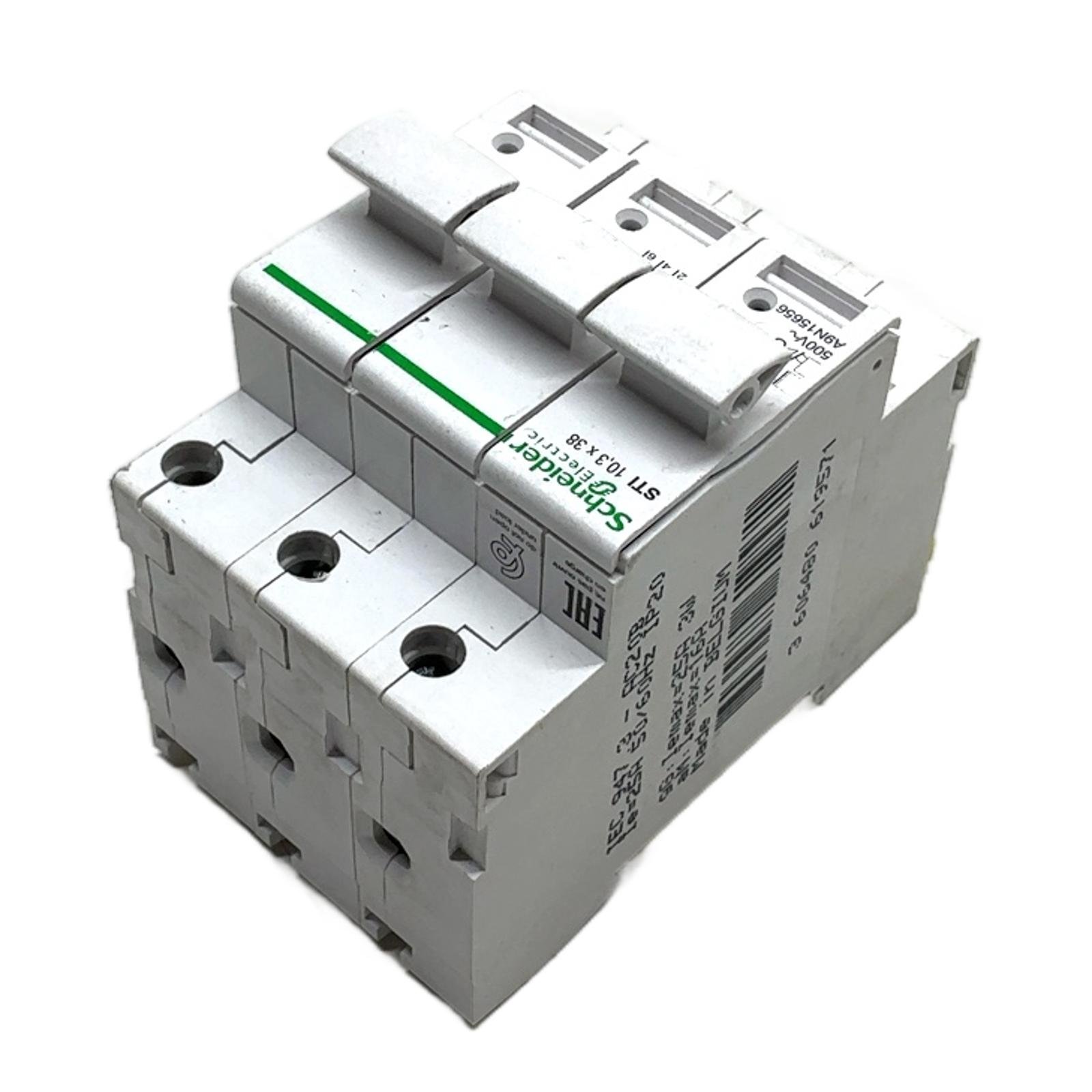

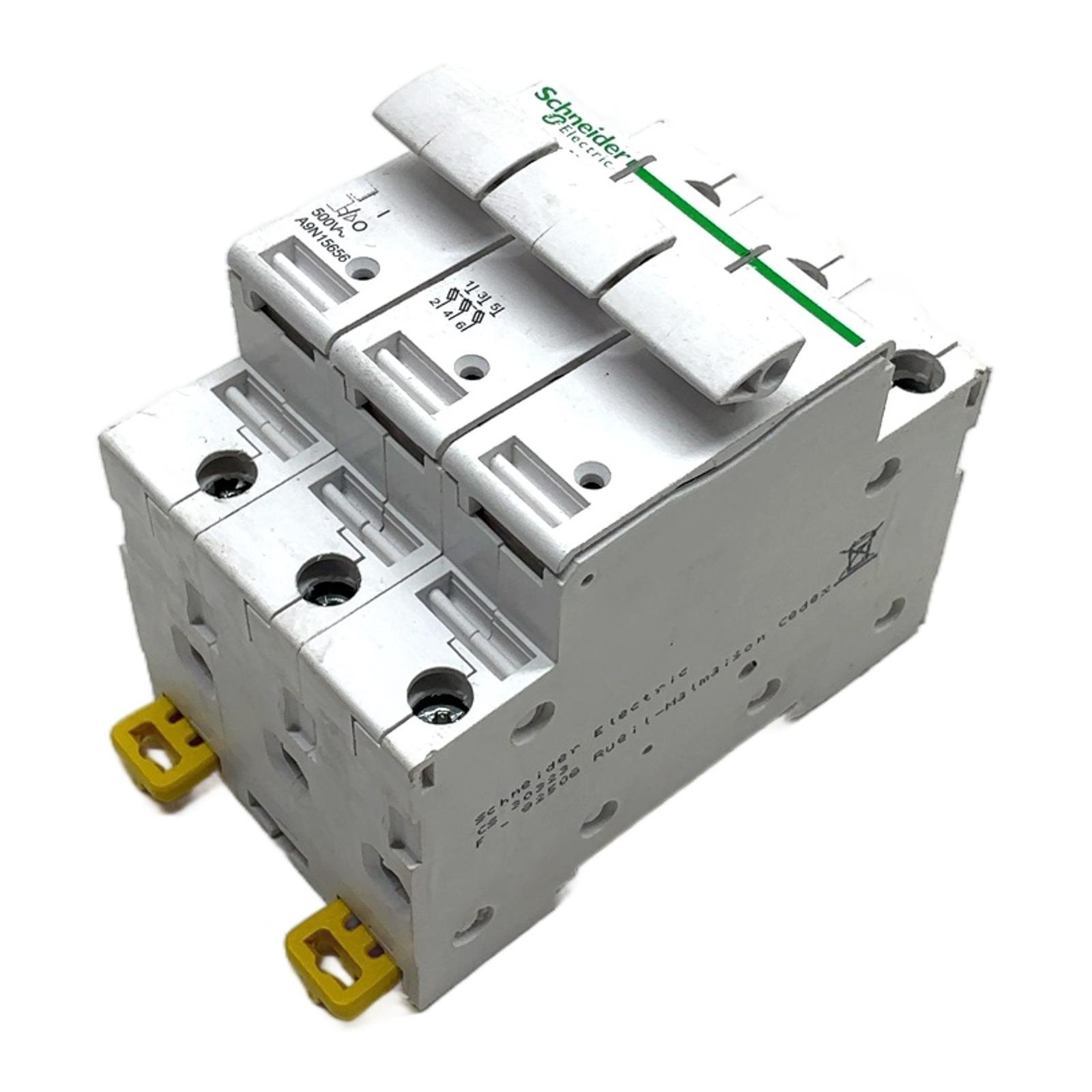

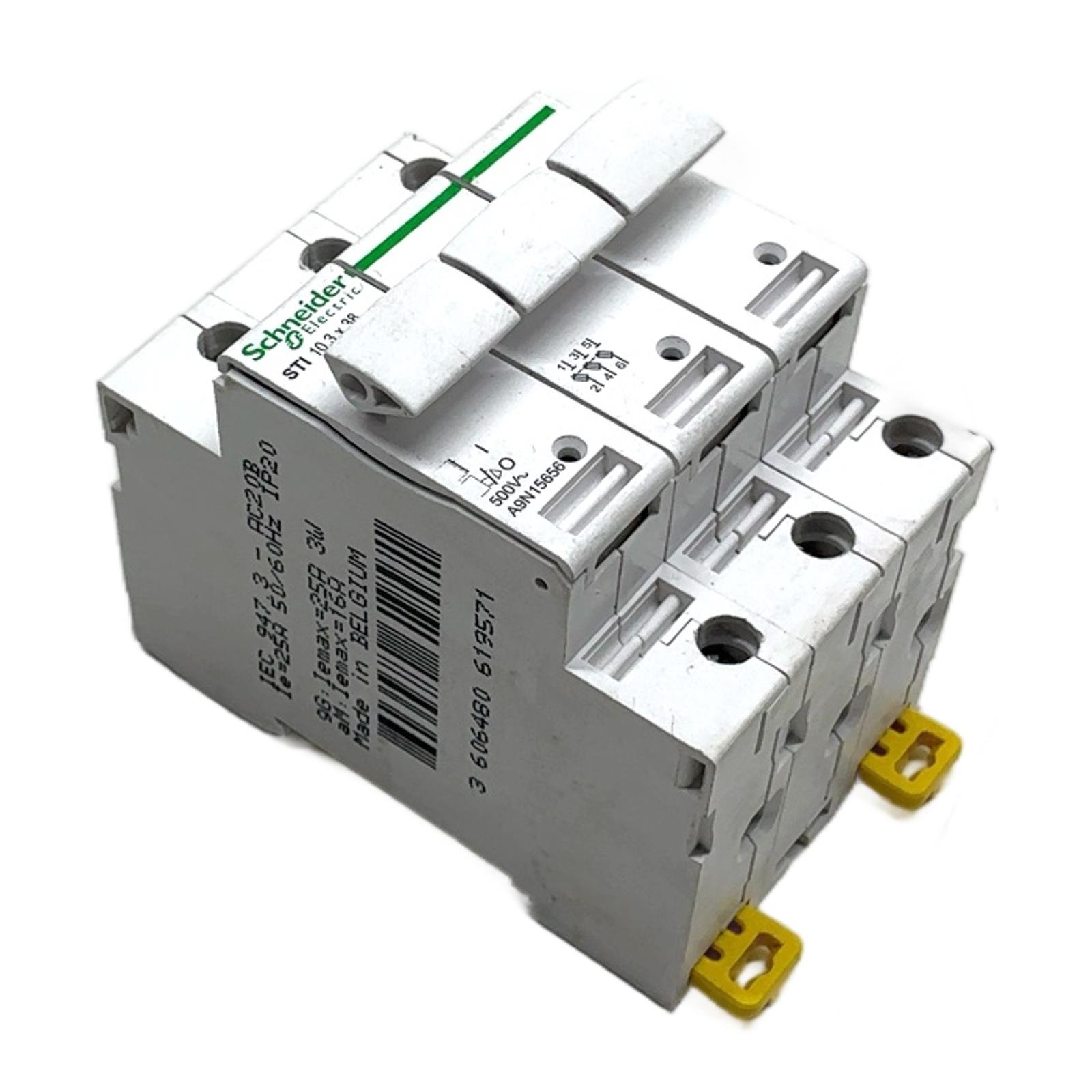

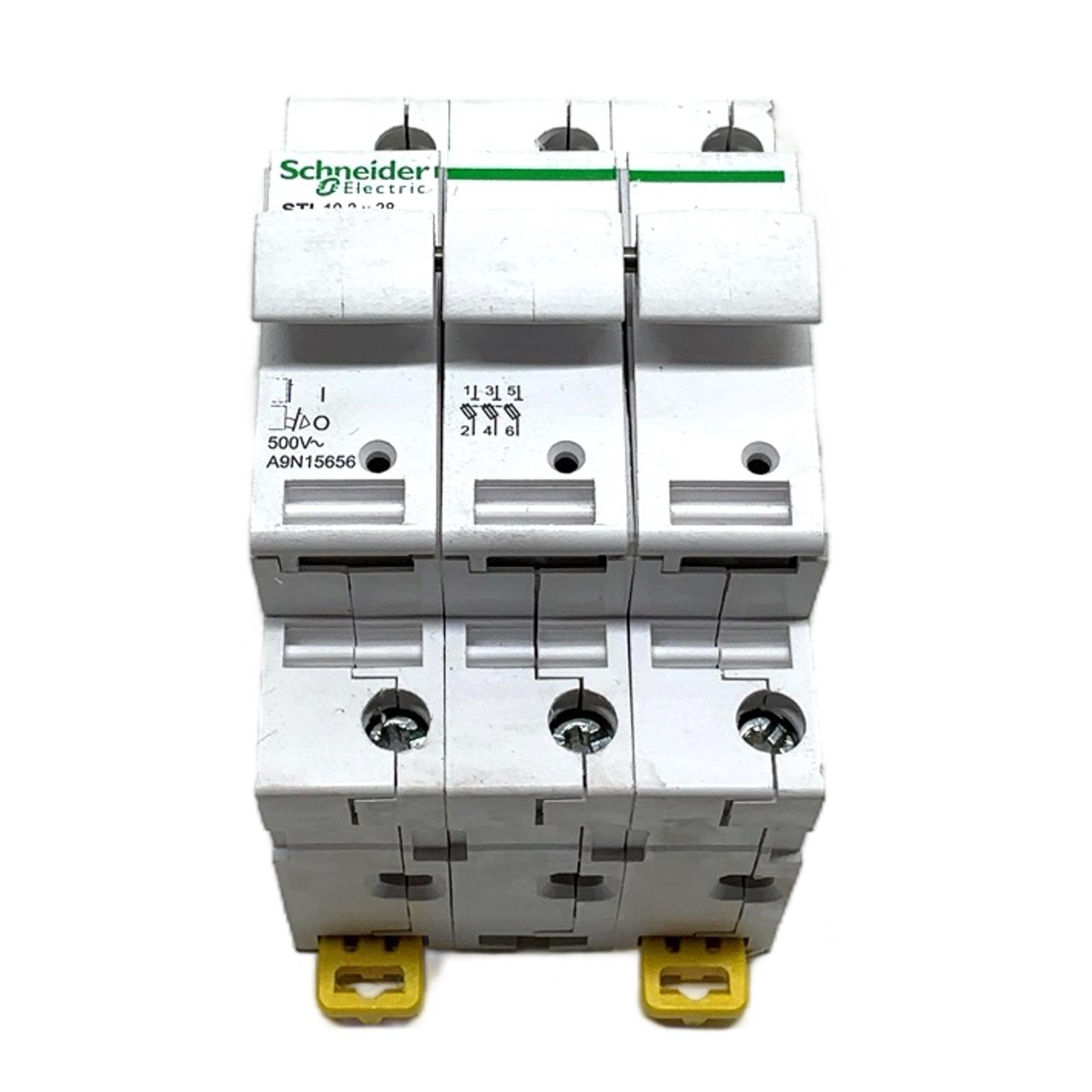

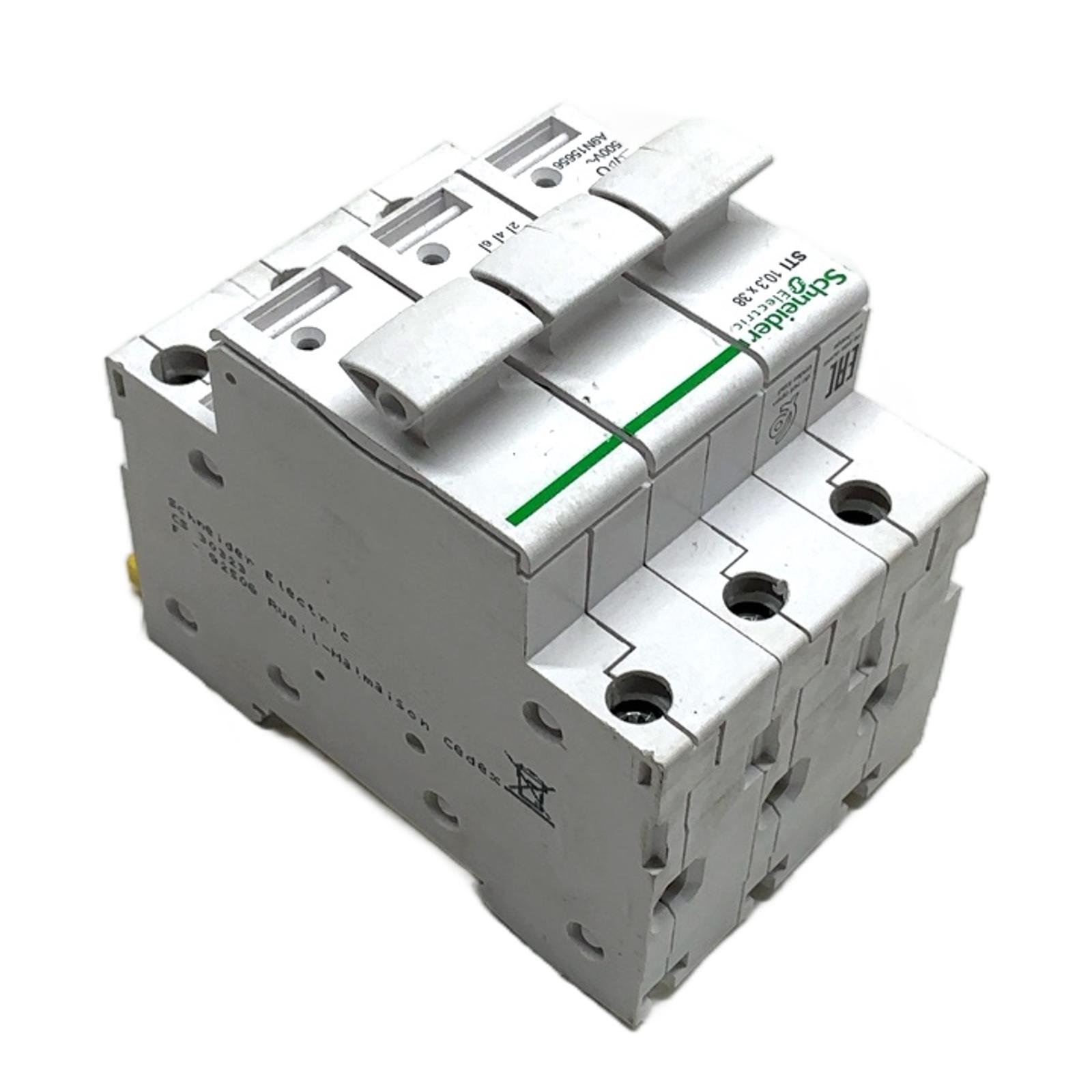

Schneider Electric A9N15656 Fuse Disconnector Description The Schneider Electric A9N15656 is a high-quality 3-pole fuse disconnector from the Acti9 STI range. It is designed to provide reliable overcurrent protection for electrical circuits in industrial and commercial applications. This device is suitable for DIN rail mounting and accommodates standard 10.3 x 38 mm fuses, offering a robust solution for circuit isolation and safety. Specifications Manufacturer: Schneider Electric Model: A9N15656 Product Range: Acti9 STI Number of Poles: 3 Rated Operational Current (Ie): 25 A Rated Operational Voltage (Ue): 500V AC Frequency: 50/60 Hz Fuse Size: 10.3 x 38 mm Mounting Support: 35mm DIN rail Protection Rating: IP20 Label Info Standards: IEC 947.3 Max Current gG: 25A Max Current aM: 16A Application Ideal for use in industrial control panels, distribution boards, and machine safety circuits where reliable overcurrent protection and a means of disconnection are required. Country of Origin Made in Belgium. CO2 Impact By purchasing this reconditioned component, you are saving approximately 7.2 kg of CO2 emissions compared to a new one. This is equivalent to the CO2 absorbed by a mature tree in a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What size fuse does the A9N15656 accommodate? Answer:This fuse disconnector is designed for 10.3 x 38 mm cylindrical fuses. Question?Is this fuse disconnector suitable for both AC and DC applications? Answer:No, the A9N15656 is specifically designed and rated for AC circuits up to 500V, as indicated by the ‘500V~’ marking. Question?What is the difference between the ‘gG’ and ‘aM’ current ratings mentioned on the device? Answer:These refer to different types of fuses. ‘gG’ are general-purpose fuses for overload and short-circuit protection, while ‘aM’ fuses are for motor protection, providing only short-circuit protection. The holder is rated for a maximum of 25A with gG fuses and 16A with aM fuses. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
