SNR 3208.B.G15

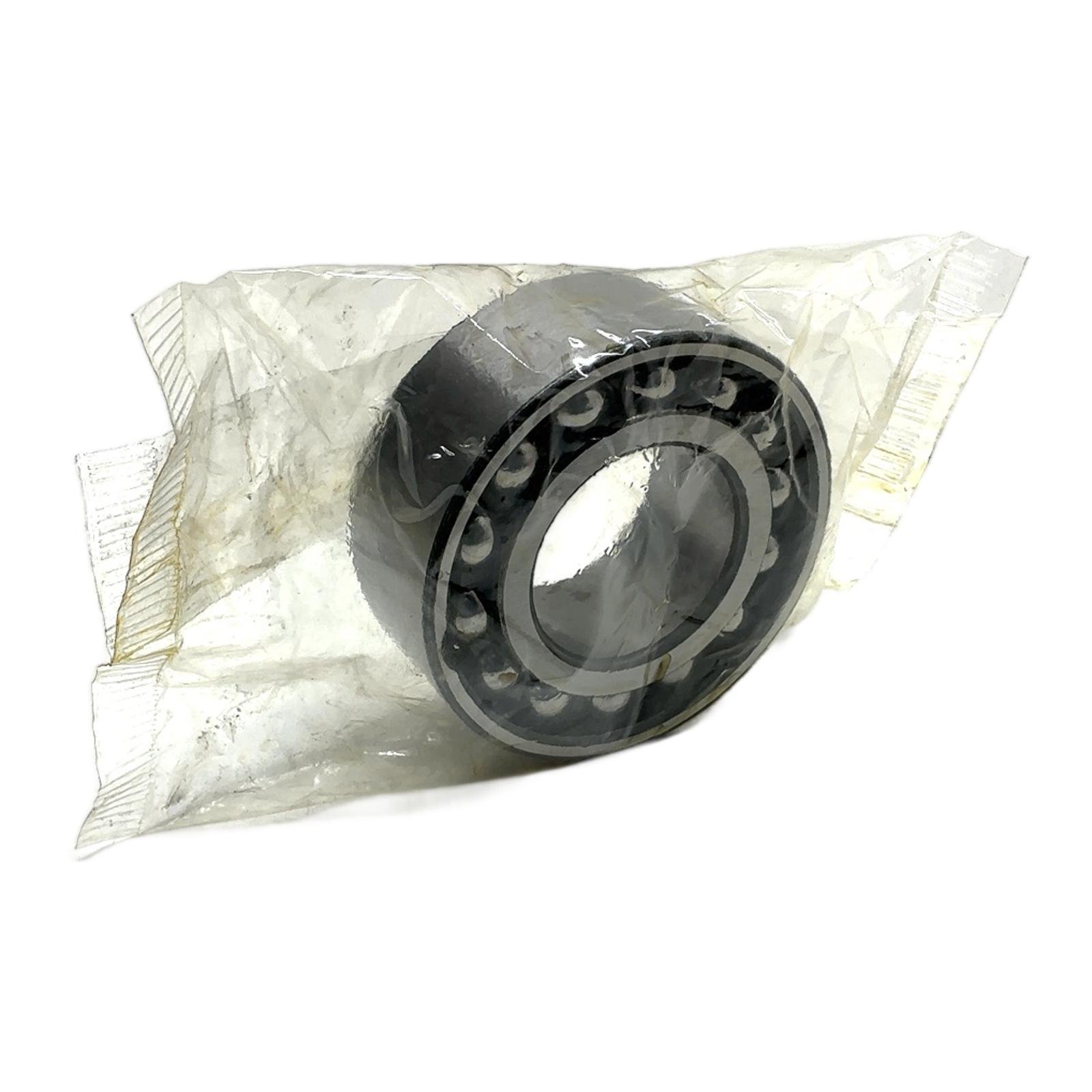

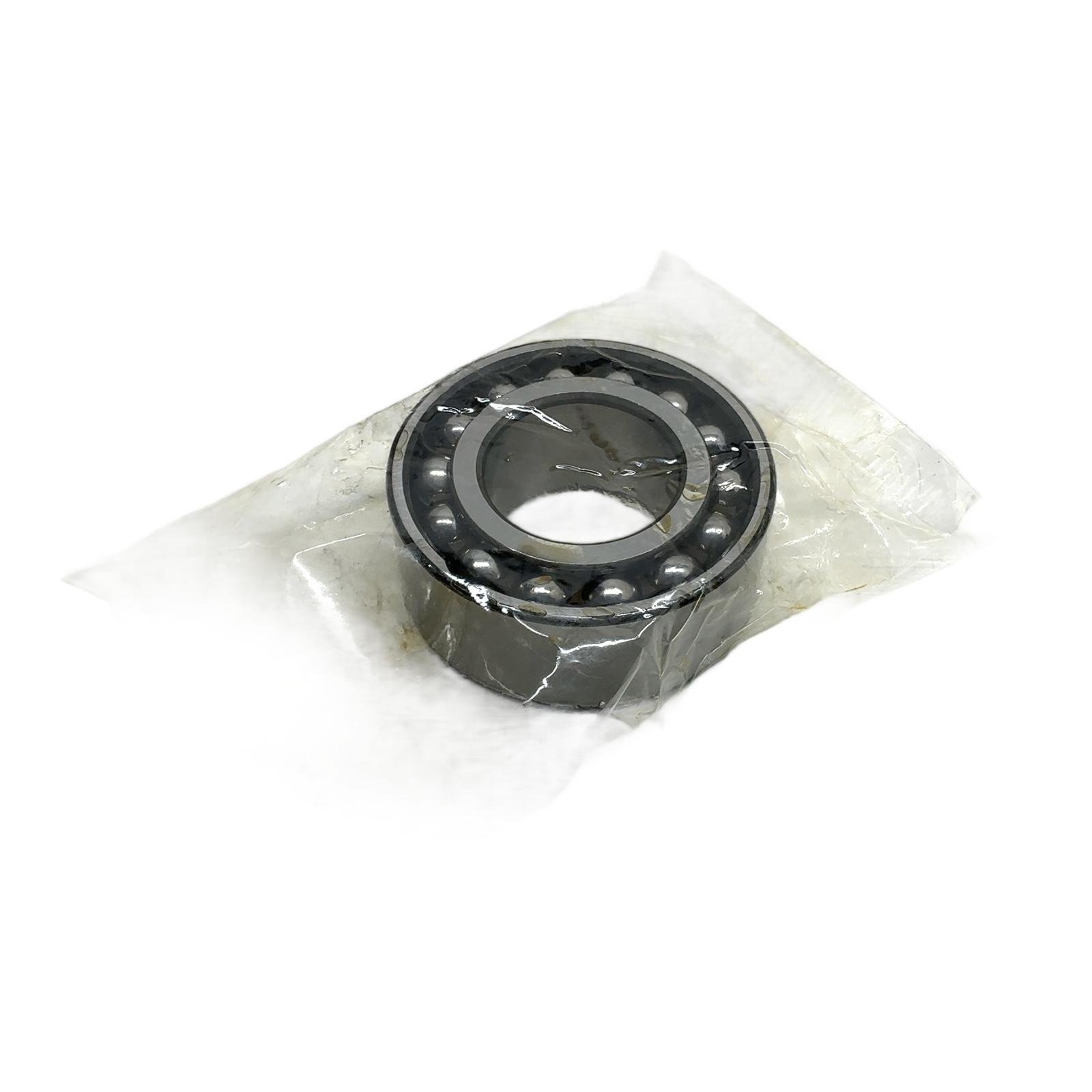

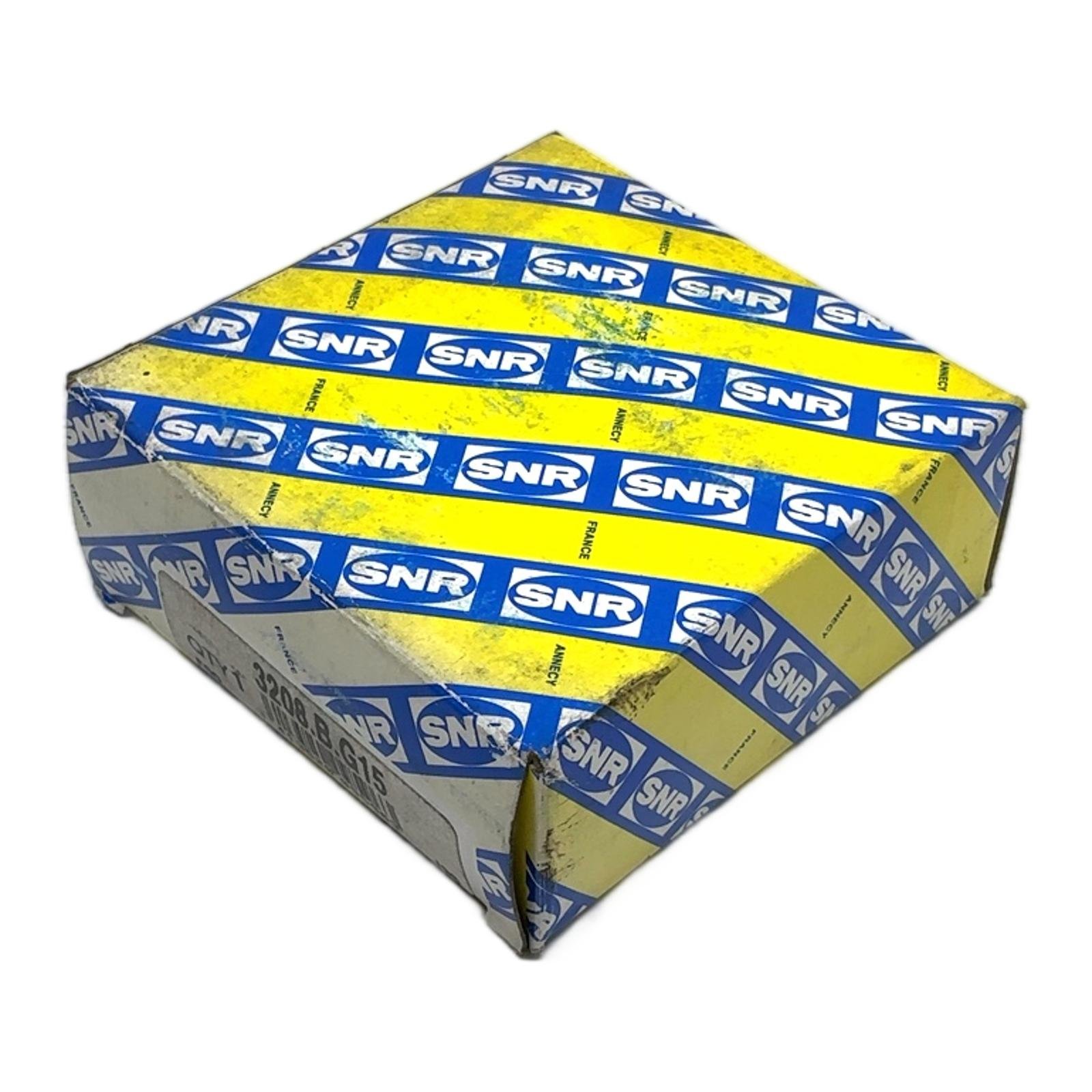

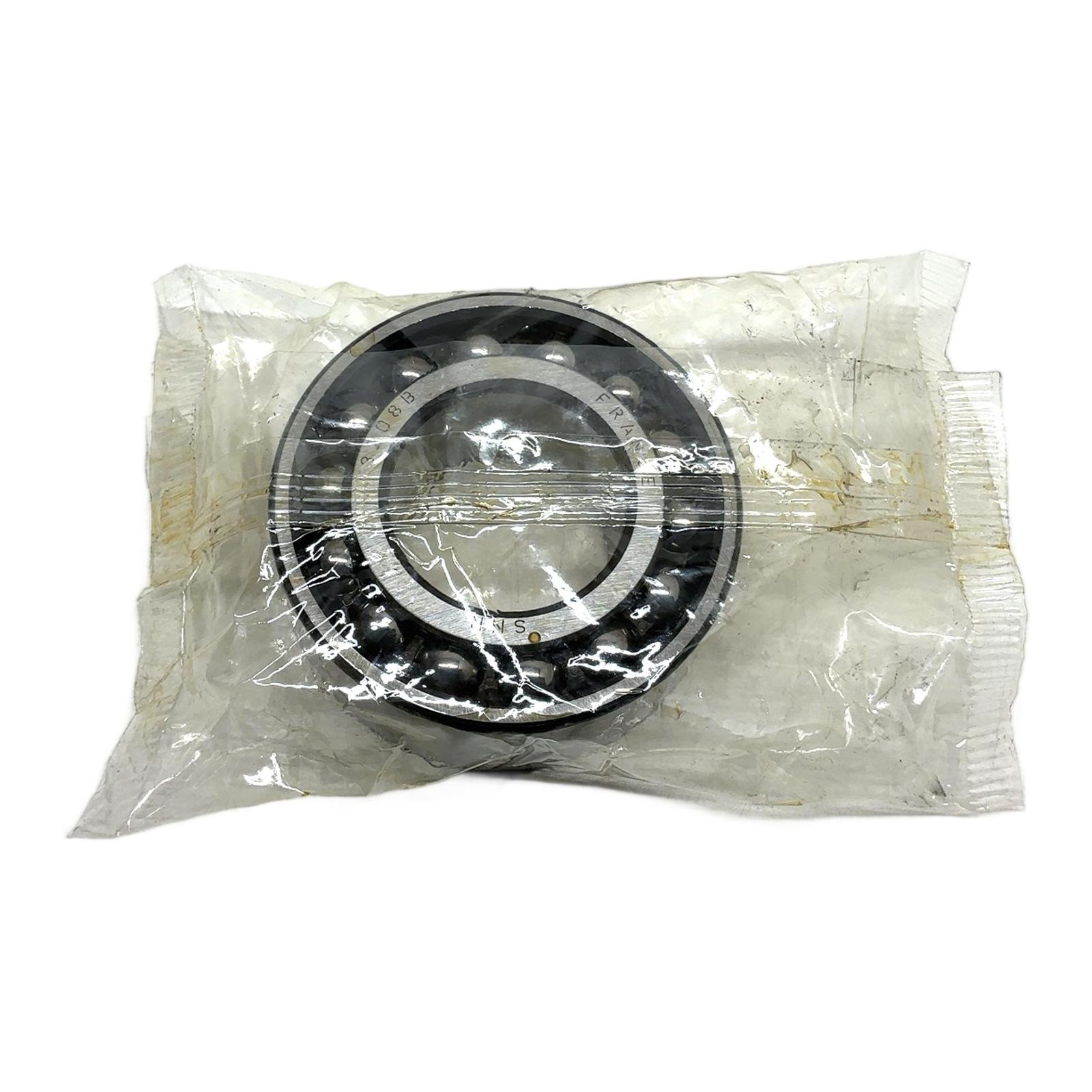

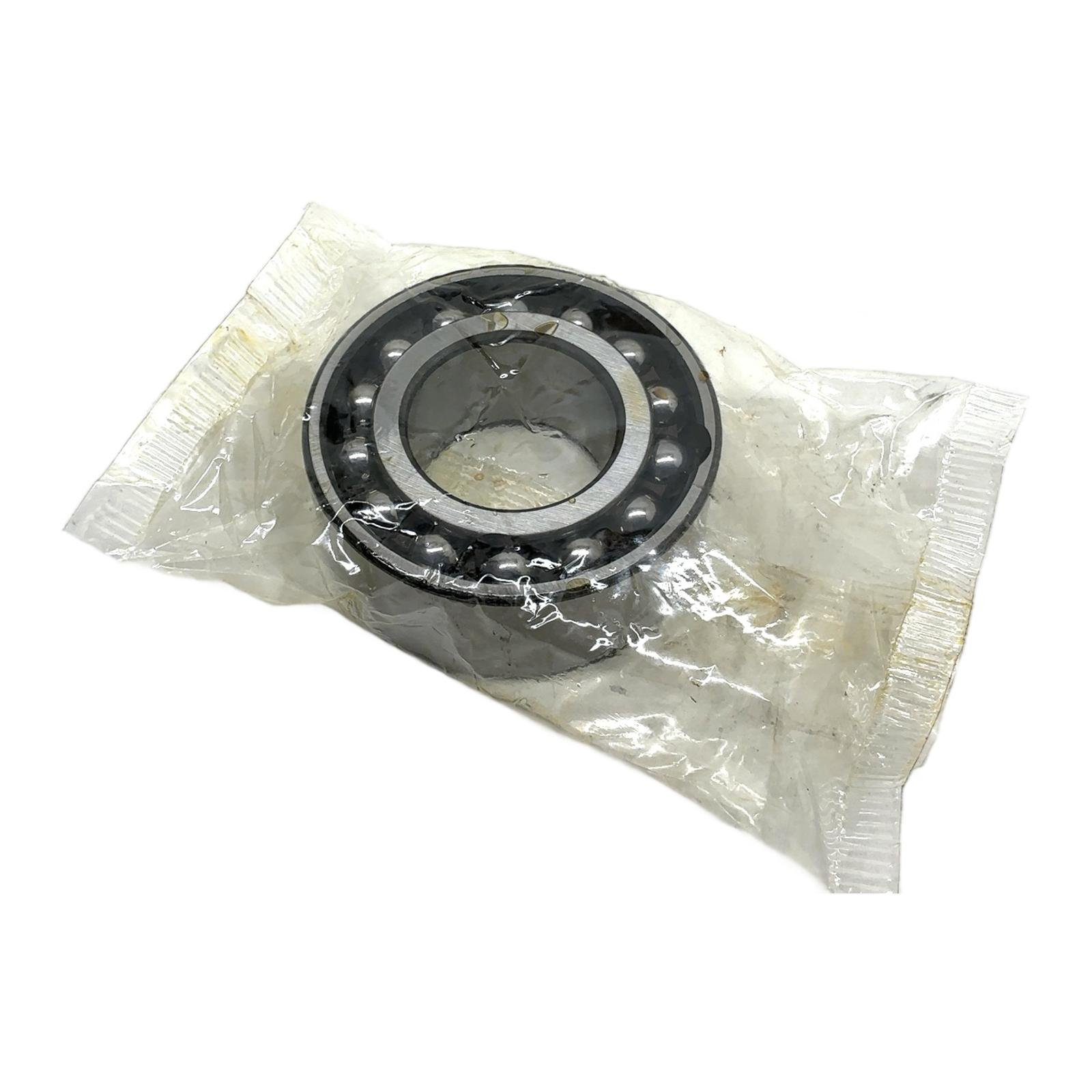

<h2>SNR 3208.B.G15 Double Row Angular Contact Ball Bearing</h2> <h3>Description</h3> <p>This is a high-quality double row angular contact ball bearing, model 3208.B.G15, manufactured by SNR. It is designed to accommodate combined radial and axial loads, providing stiff bearing arrangements. This bearing is suitable for applications where rigid axial guidance is required.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: SNR</li> <li>Type Number: 3208.B.G15</li> <li>Bearing Type: Double Row Angular Contact Ball Bearing</li> <li>Bore Diameter (d): 40 mm</li> <li>Outer Diameter (D): 80 mm</li> <li>Width (B): 30.2 mm</li> <li>Contact Angle: 30 degrees (Suffix B)</li> <li>Clearance: Reduced axial internal clearance (Suffix G15)</li> <li>Sealing: Open (no seals)</li> </ul> <h3>Label Info</h3> <ul> <li>Brand: SNR</li> <li>Model: 3208.B.G15</li> <li>EAN: 3413520095963</li> </ul> <h3>Application</h3> <p>These bearings are ideal for use in gearboxes, pumps, and machine tool spindles where precision and load-bearing capacity are crucial.</p> <h3>Country of Origin</h3> <p>Made in France.</p> <h3>CO2 Impact</h3> <p>By purchasing this reused bearing, you are saving approximately 1.26 kg of CO2 compared to a new production. This is equivalent to the emissions from driving a car for over 6 kilometers.</p> <h3>Availability</h3> <p>This item is a New Old Stock (NOS) product in its original, sealed inner packaging. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p> <strong>What does the ‘B.G15’ suffix signify on this SNR 3208 bearing?</strong><br><p>The ‘B’ indicates a 30-degree contact angle, which is standard for this type of bearing, allowing it to handle significant axial loads. The ‘G15′ is an SNR-specific designation for a reduced axial internal clearance group, which provides higher running accuracy and rigidity, essential for precision applications like machine tool spindles.</p> <strong>Is this bearing pre-lubricated and ready for installation?</strong><br><p>This bearing is an open type and is typically shipped with a corrosion-preventive coating, not a full operational lubricant charge. It must be properly lubricated with grease or oil according to the application’s requirements before being put into service.</p> <strong>Can this SNR 3208.B.G15 replace a standard 3208 bearing from another brand?</strong><br><p>Yes, the basic dimensions (40x80x30.2mm) are standardized. However, you must ensure the ‘B’ contact angle (30 deg) and the ‘G15′ special clearance are compatible with your application’s requirements. If your original bearing had a standard clearance (like CN), using a G15 might result in improper preload if not installed correctly.</p> </p> <p>Last Update: Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p>
