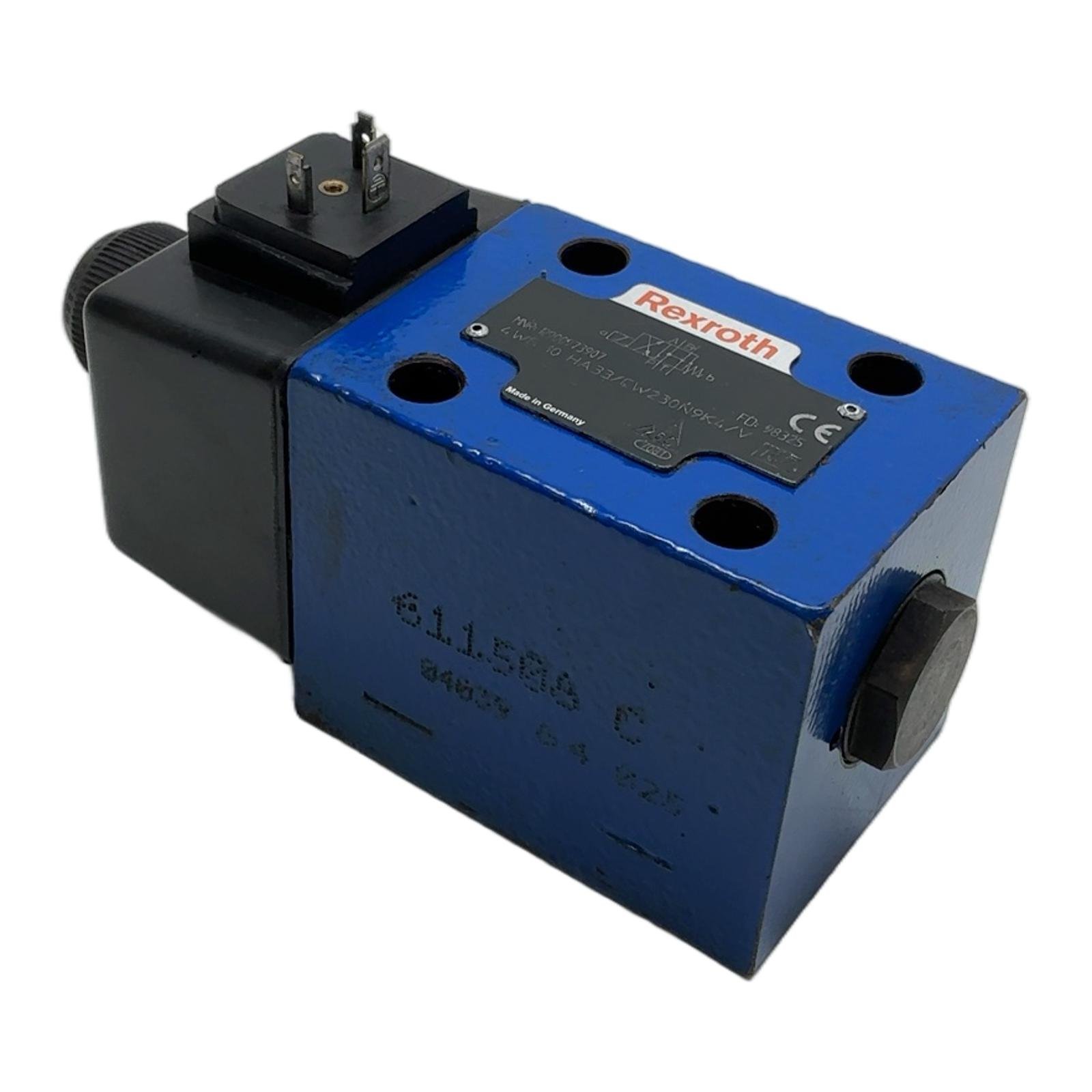

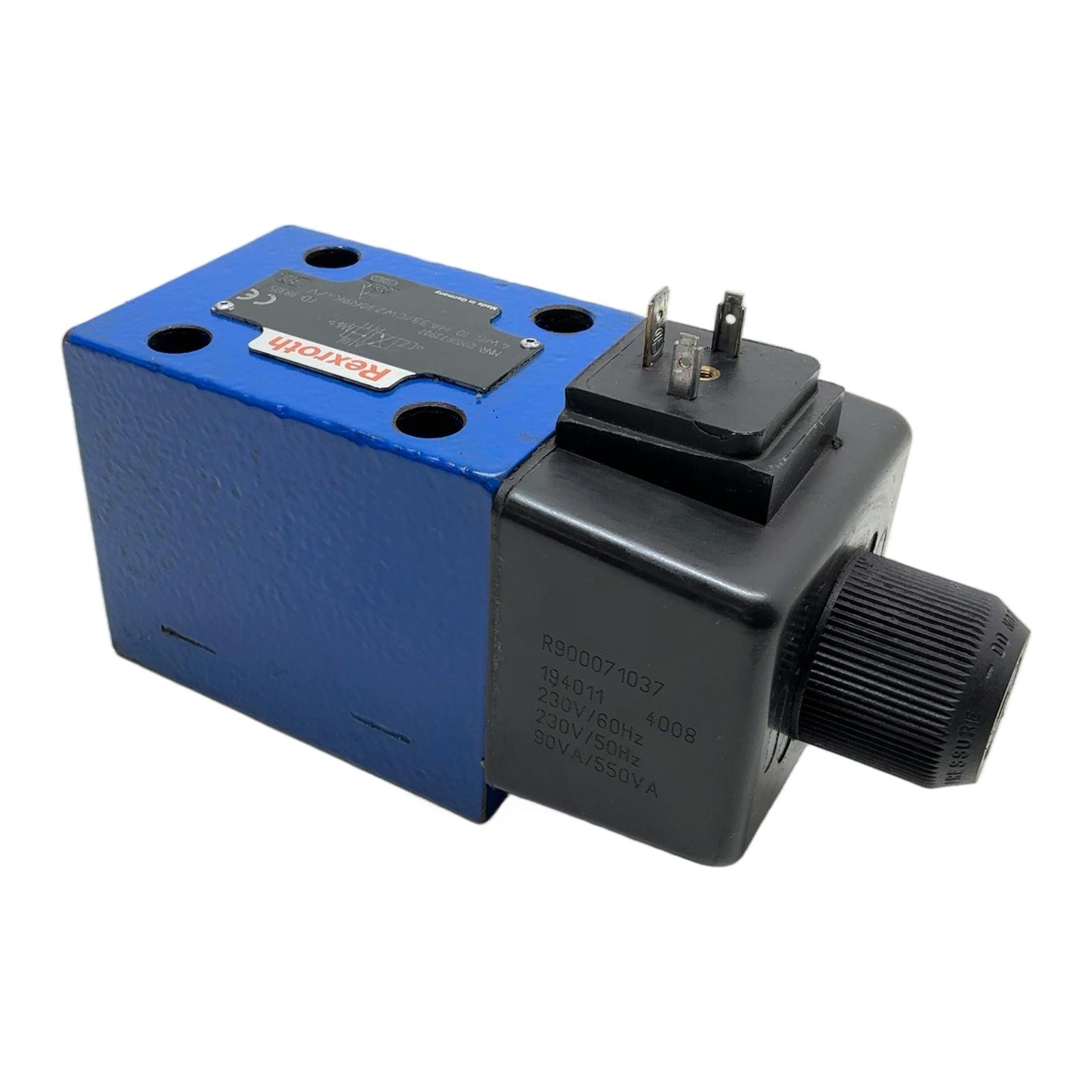

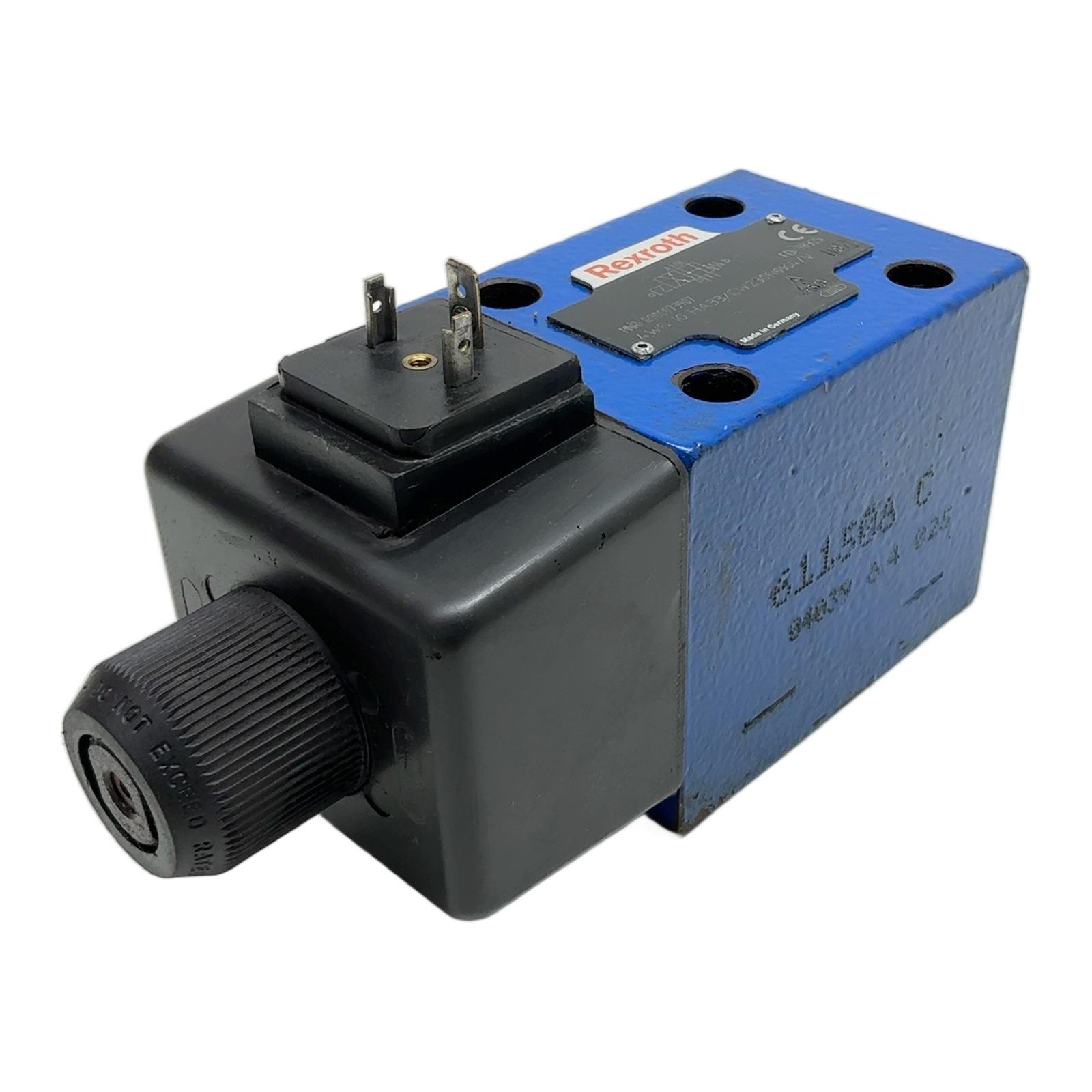

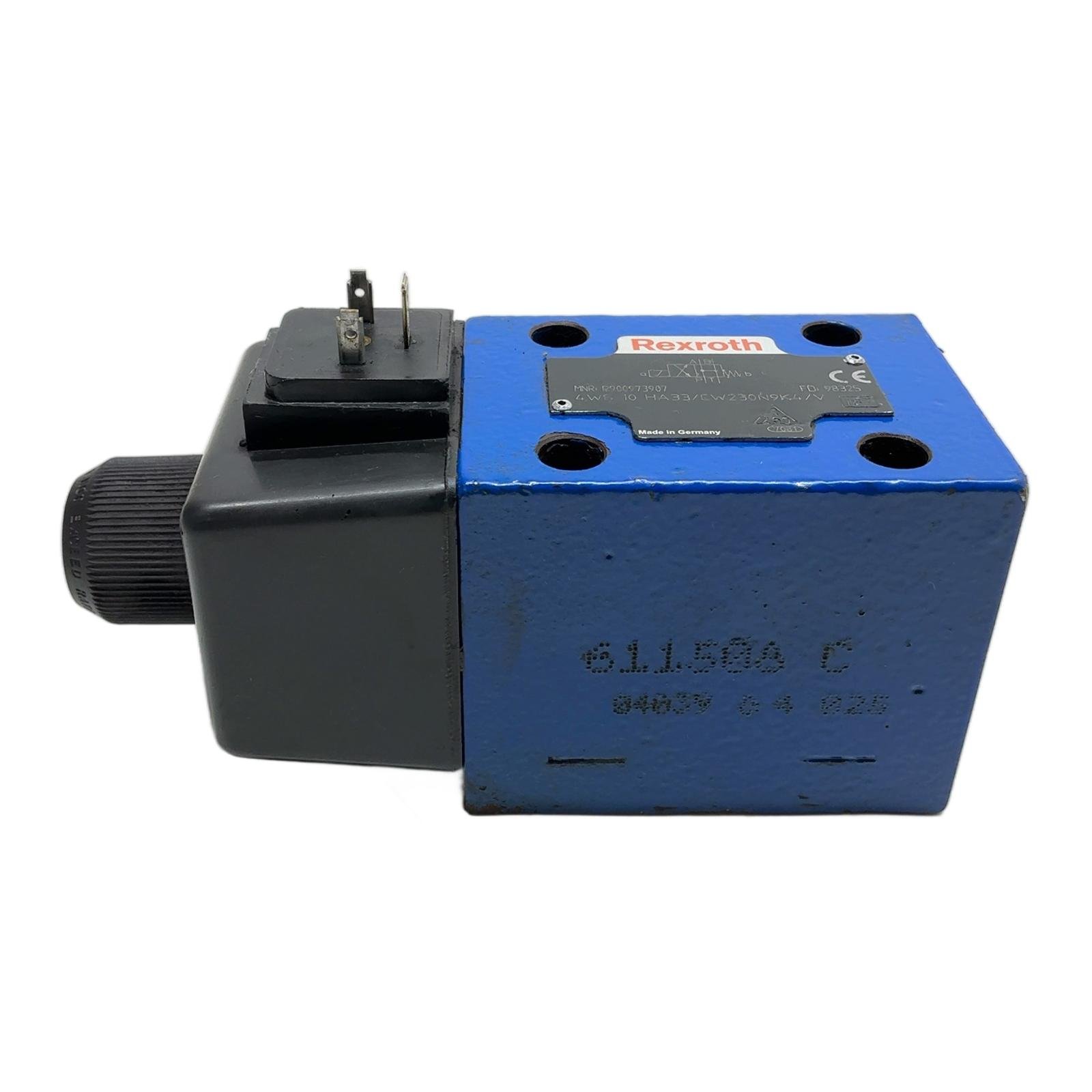

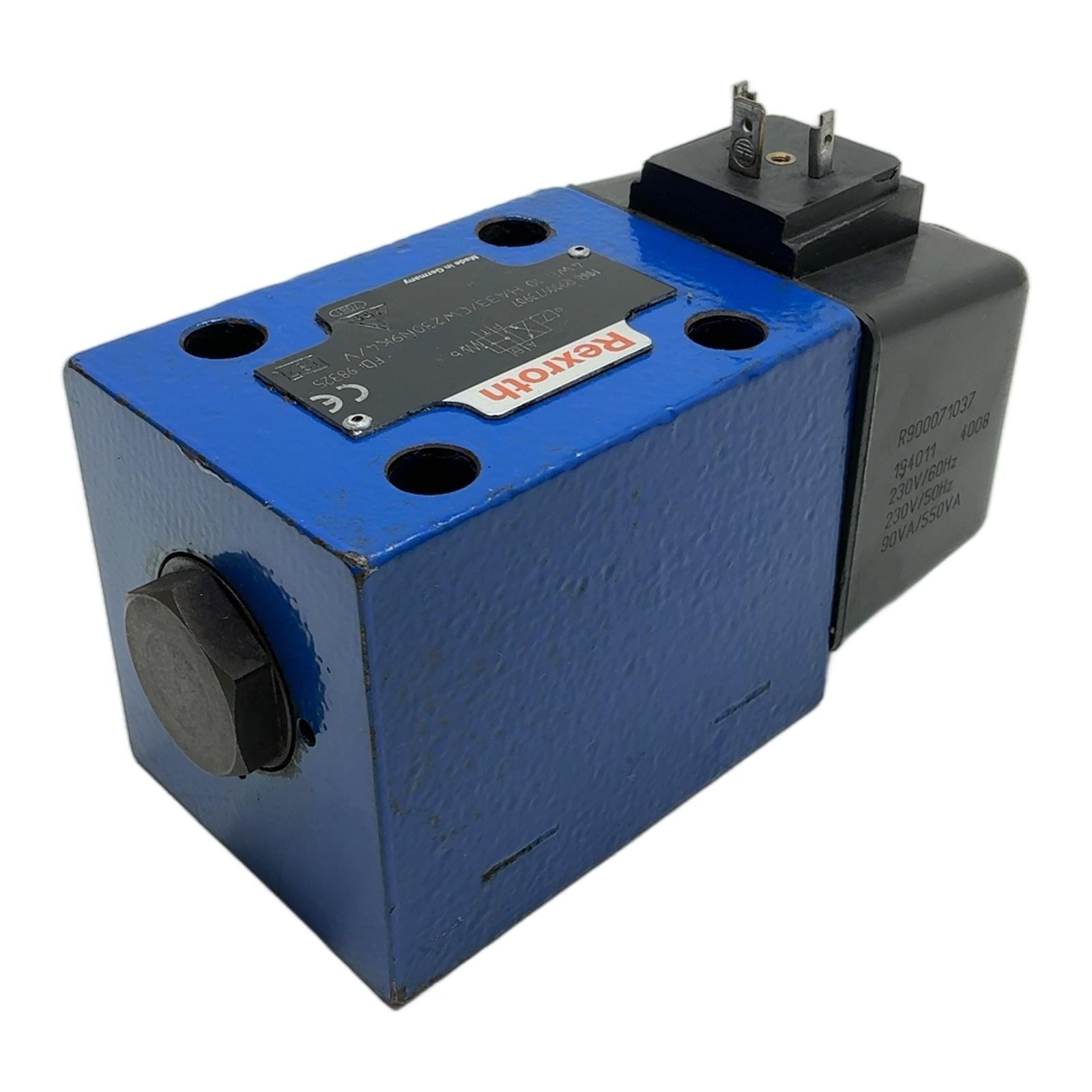

REXROTH 4WE 10 HA33/CW230N9K4/V R900973907

Rexroth Hydraulic Directional Control Valve NG10 Description This is a 4/3-way directional spool valve, model 4WE 10 HA33/CW230N9K4/V, from Bosch Rexroth. It is a direct-operated valve with solenoid actuation, designed for reliable performance in industrial hydraulic systems. This particular model operates on 230V AC and features a spring-centered spool with the ‘HA’ configuration, which connects ports P to T in the neutral position. The NG10 size (CETOP 5) ensures standard mounting compatibility. Specifications Manufacturer: Rexroth Type: 4WE 10 HA33/CW230N9K4/V Material Number: R900973907 Actuation: Solenoid, single Control Voltage: 230V AC 50/60Hz Size: NG10 / CETOP 5 Spool Symbol: HA (P-T connected in center position) Seals: FKM (Viton) Electrical Connection: DIN EN 175301-803 connector Manual Override: Concealed (N9) Label Info MNR: R900973907 FD: 98325 Solenoid Coil MNR: R900071037 Application This type of valve is widely used in machine tools, presses, plastic injection molding machines, and general industrial machinery for precise control of hydraulic actuators like cylinders and motors. Country of Origin Made in Germany. CO2 Impact By purchasing this reused item, you are helping to avoid approximately 14 kg of CO2 emissions associated with the production of a new one. Availability This is an obsolete item, but it is in stock and ready for immediate dispatch. Ideal for repairs and maintaining older equipment. Order now from profideals for expert support and fast delivery. FAQ What do the designations in ‘4WE 10 HA33/CW230N9K4/V’ mean?This code specifies the valve’s function: 4WE = 4-way directional valve, 10 = nominal size NG10, HA = spool type (spring-centered, P to T in center position), 33/ = component series, CW230 = 230V AC solenoid type, N9 = with concealed manual override, K4 = electrical connector type, V = FKM seals. Can I use a different voltage solenoid coil with this valve body?Yes, the solenoid coil (part no. R900071037) can be replaced. You can mount a different coil from the same Rexroth series with a different voltage (e.g., 24V DC) as long as it is compatible with the valve stem and provides the required actuation force. Always check the datasheet for compatible coil part numbers. What is the maximum operating pressure for this valve?According to the datasheet for the 4WE 10 … /3X series, the maximum operating pressure for ports P, A, and B is 315 bar (4568 PSI), and for port T (the return line), it is 160 bar (2320 PSI). Always verify this against your specific application’s requirements. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
