SCHNEIDER ELECTRIC CAD32BD

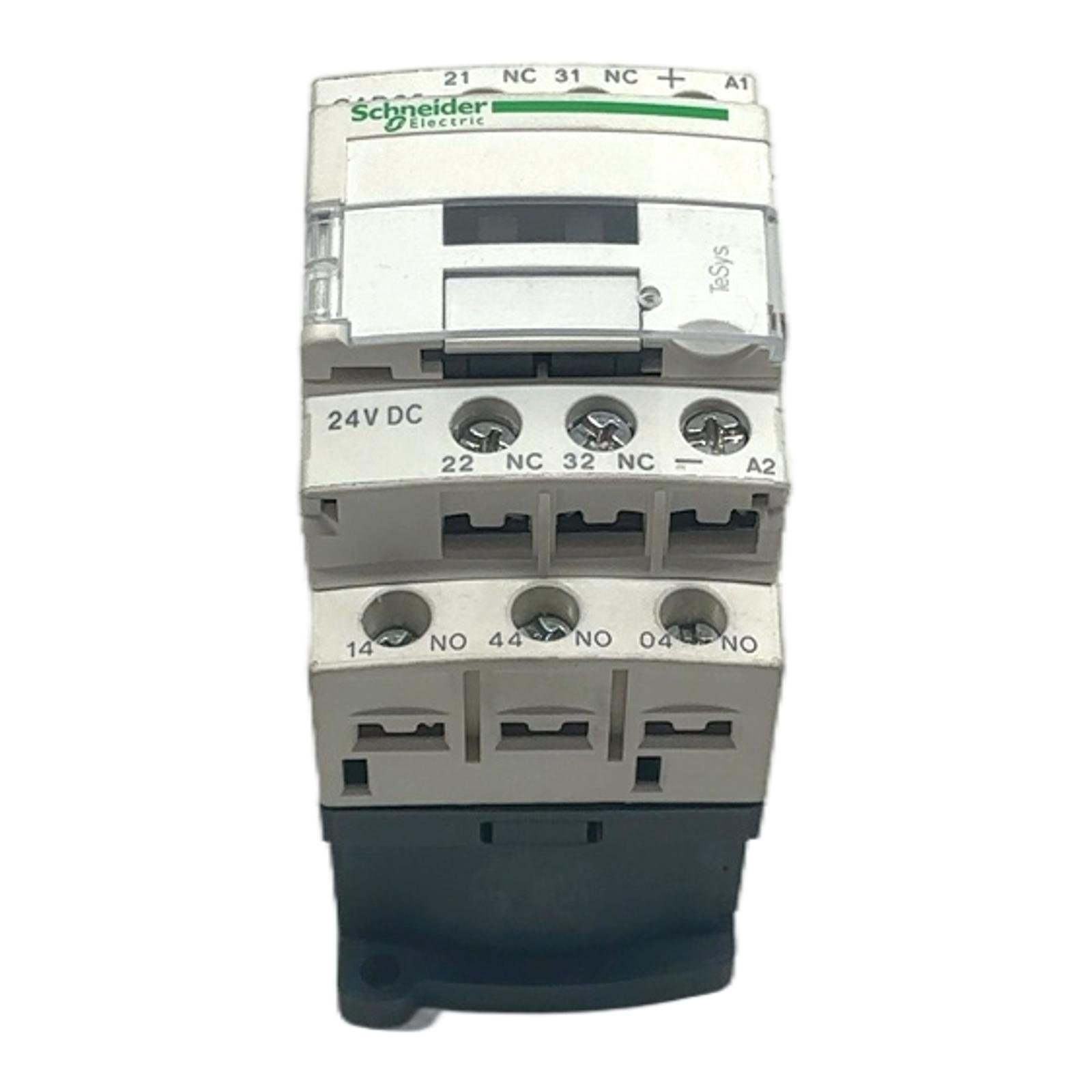

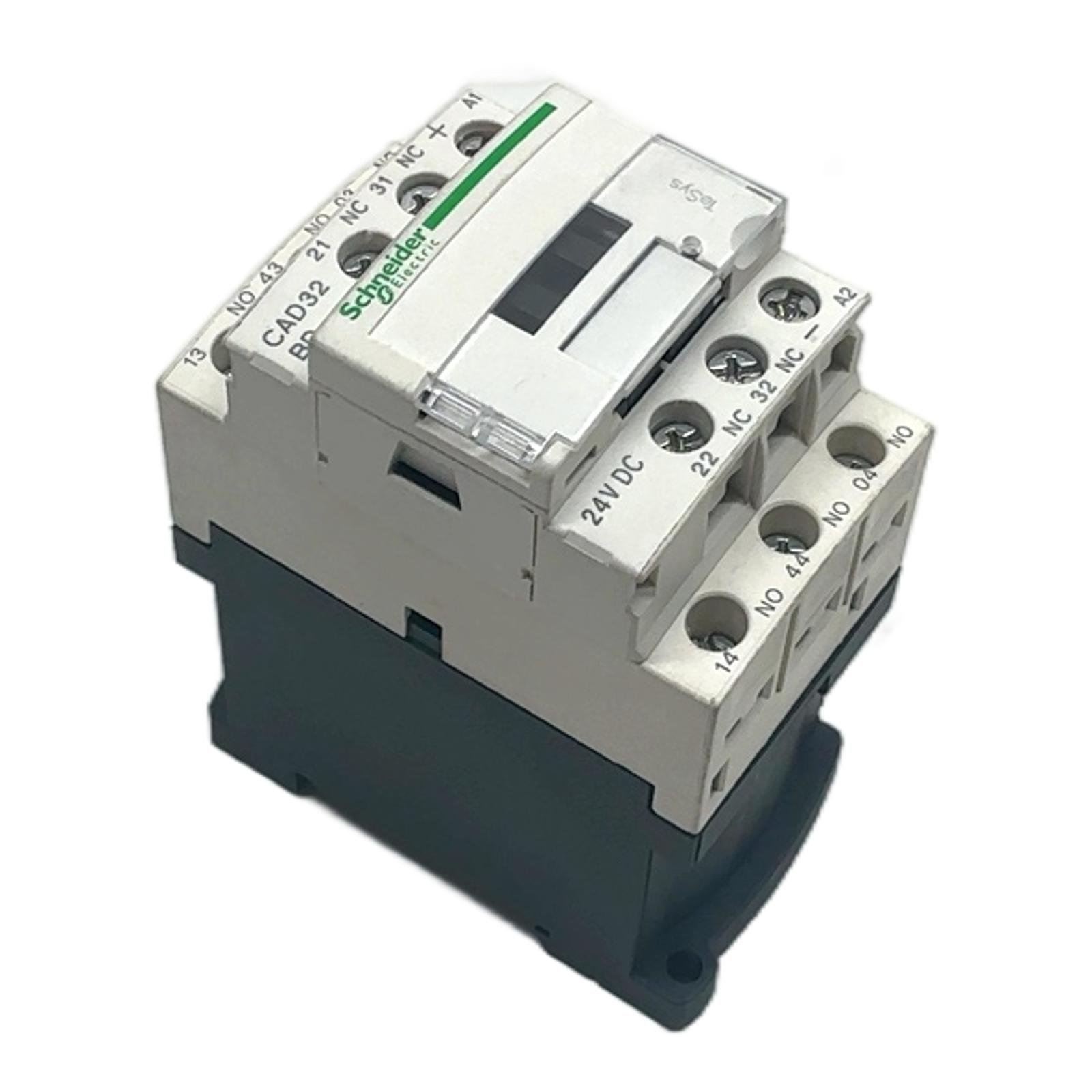

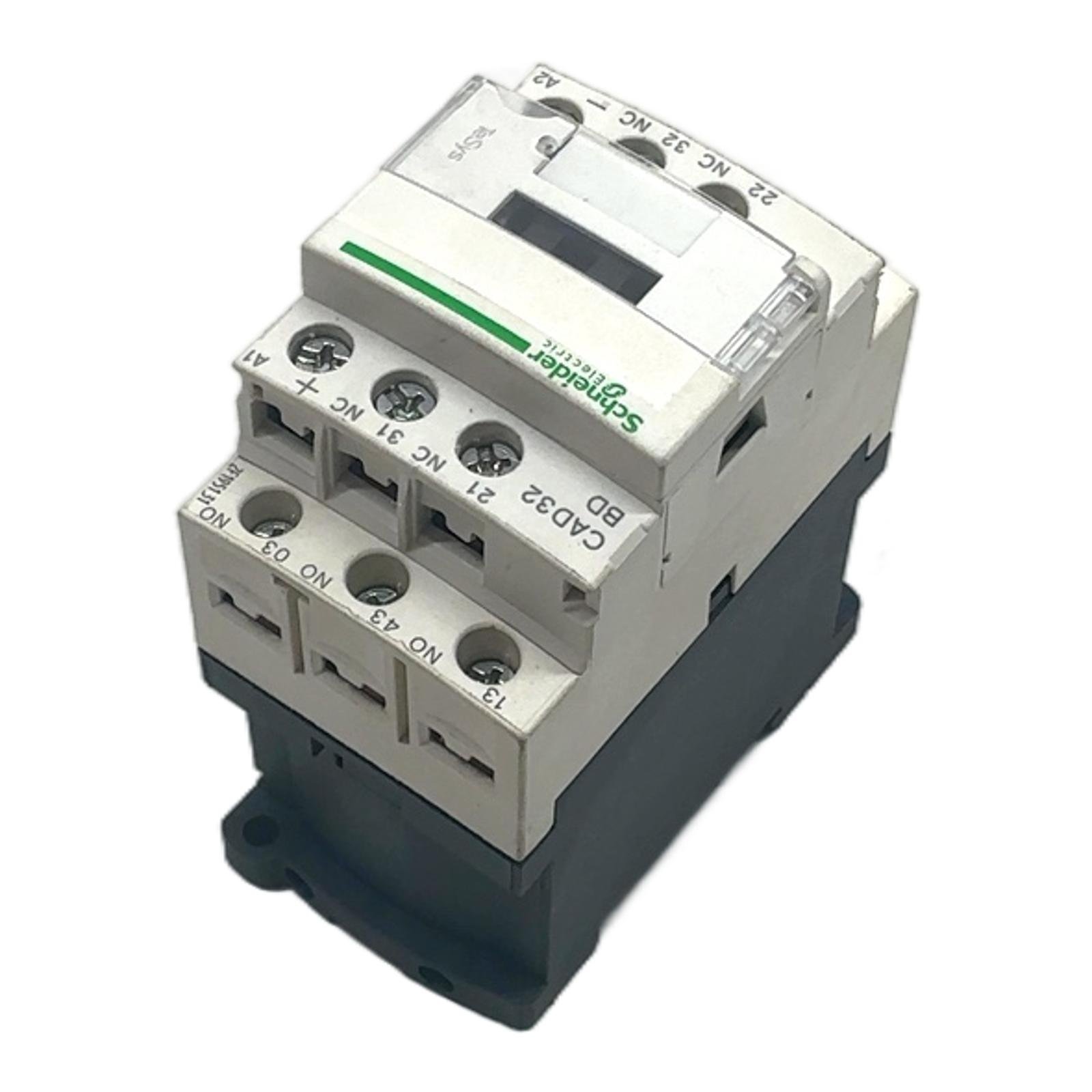

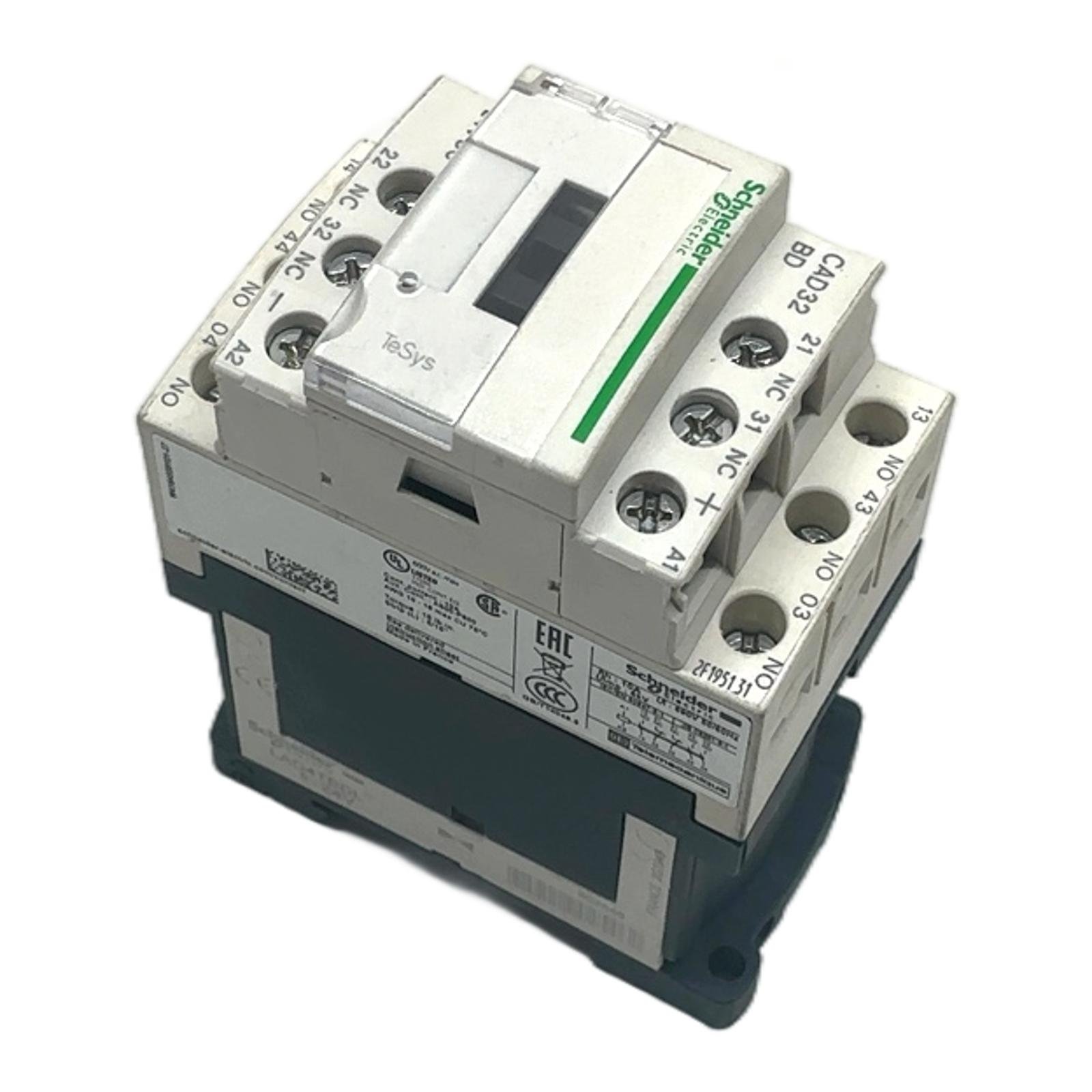

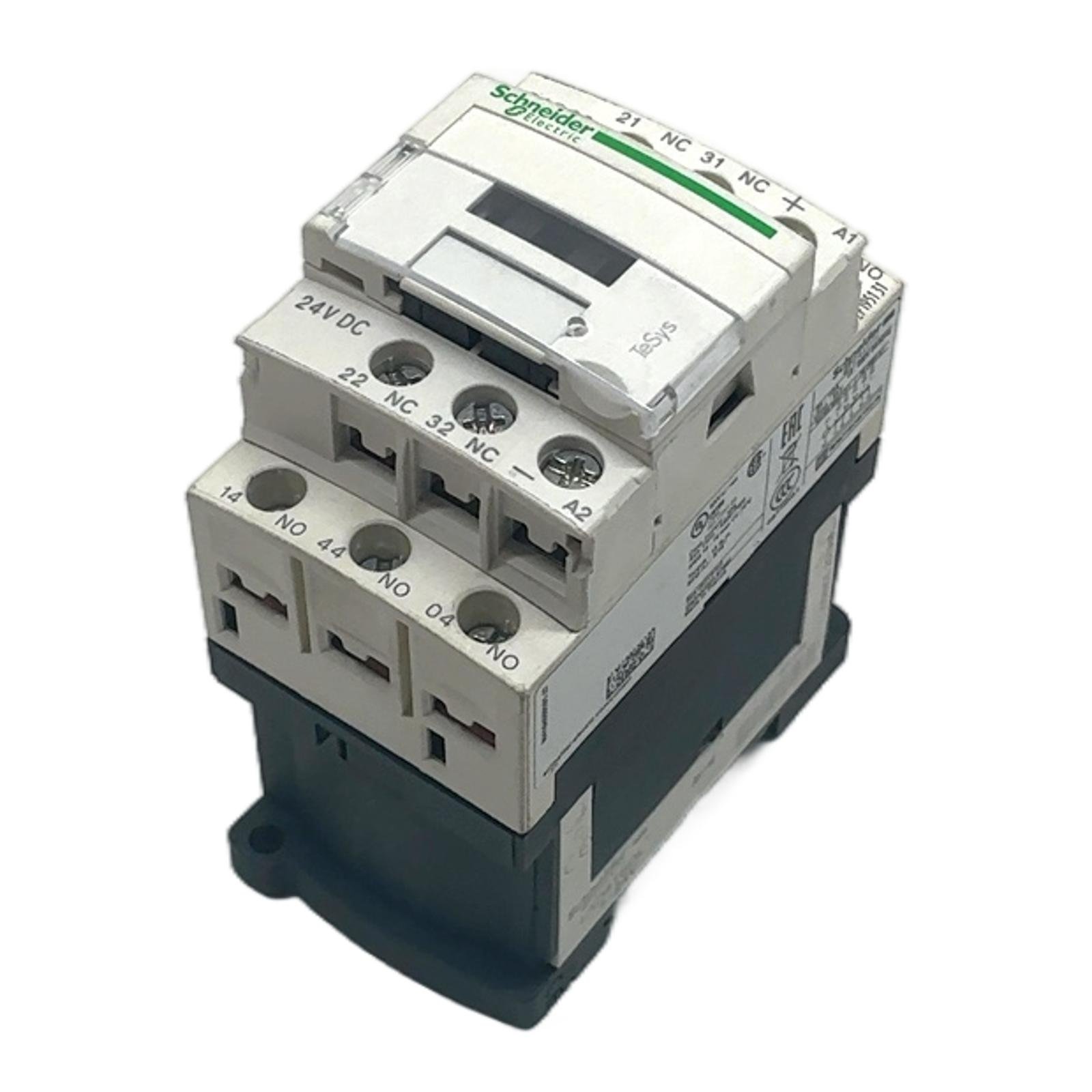

Schneider Electric TeSys D Control Relay Description The CAD32BD is a high-performance control relay from Schneider Electric’s TeSys D series. It is engineered for switching control circuits in industrial applications, offering high reliability and a long mechanical and electrical life. This unit operates with a 24V DC coil and provides a flexible contact arrangement for diverse control logic tasks. Specifications Manufacturer: Schneider Electric Series: TeSys D Model: CAD32BD Coil Voltage: 24V DC Contact Configuration: 3 Normally Open (NO) + 2 Normally Closed (NC) Conventional Free Air Thermal Current (Ith): 10 A at 60 deg. C Rated Insulation Voltage (Ui): 690V AC conforming to IEC 60947-5-1 Rated Impulse Withstand Voltage (Uimp): 6 kV Mounting: DIN Rail or Panel Mount Label Info Model: CAD32 BD Coil: 24V DC Accessory: LAD4TBDL (5-24V Surge Suppressor) Application Ideal for use in industrial automation panels, motor control centers (MCCs), and other systems requiring reliable logic switching. It is commonly used for contact multiplication in PLC applications and for general control circuit duties. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you help avoid the emission of approximately 22.0 kg of CO2, which is the estimated impact of producing a new one. This saving is comparable to driving a car for 110 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the included LAD4TBDL module?The LAD4TBDL is a surge suppressor module with a Transil diode. It is connected across the A1 and A2 coil terminals to protect the control circuit from voltage spikes that can occur when the DC coil is de-energized. What is the meaning of ‘3NO + 2NC’ in the contact configuration?This refers to the number and type of auxiliary contacts. The relay has three ‘Normally Open’ (NO) contacts, which are open when the coil is not energized and close when it is. It also has two ‘Normally Closed’ (NC) contacts, which are closed when the coil is de-energized and open when it is energized. Can this CAD32BD relay be used with a PLC output?Yes, absolutely. The 24V DC coil is a standard voltage for PLC transistor or relay outputs. The low power consumption of the BD coil type makes it particularly suitable for direct connection to PLC digital outputs without needing an interposing relay. Always check the current sourcing/sinking capability of your specific PLC output module. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
