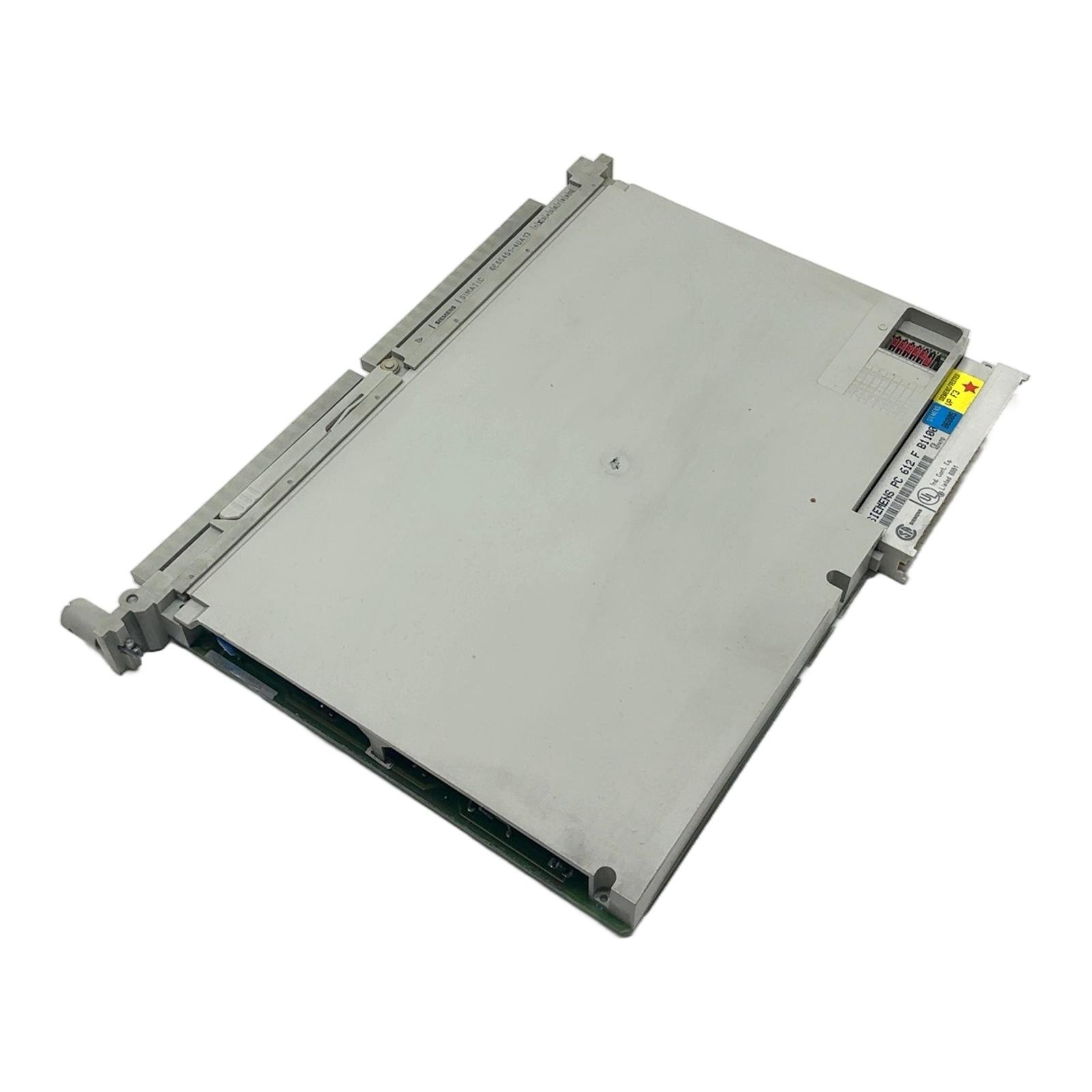

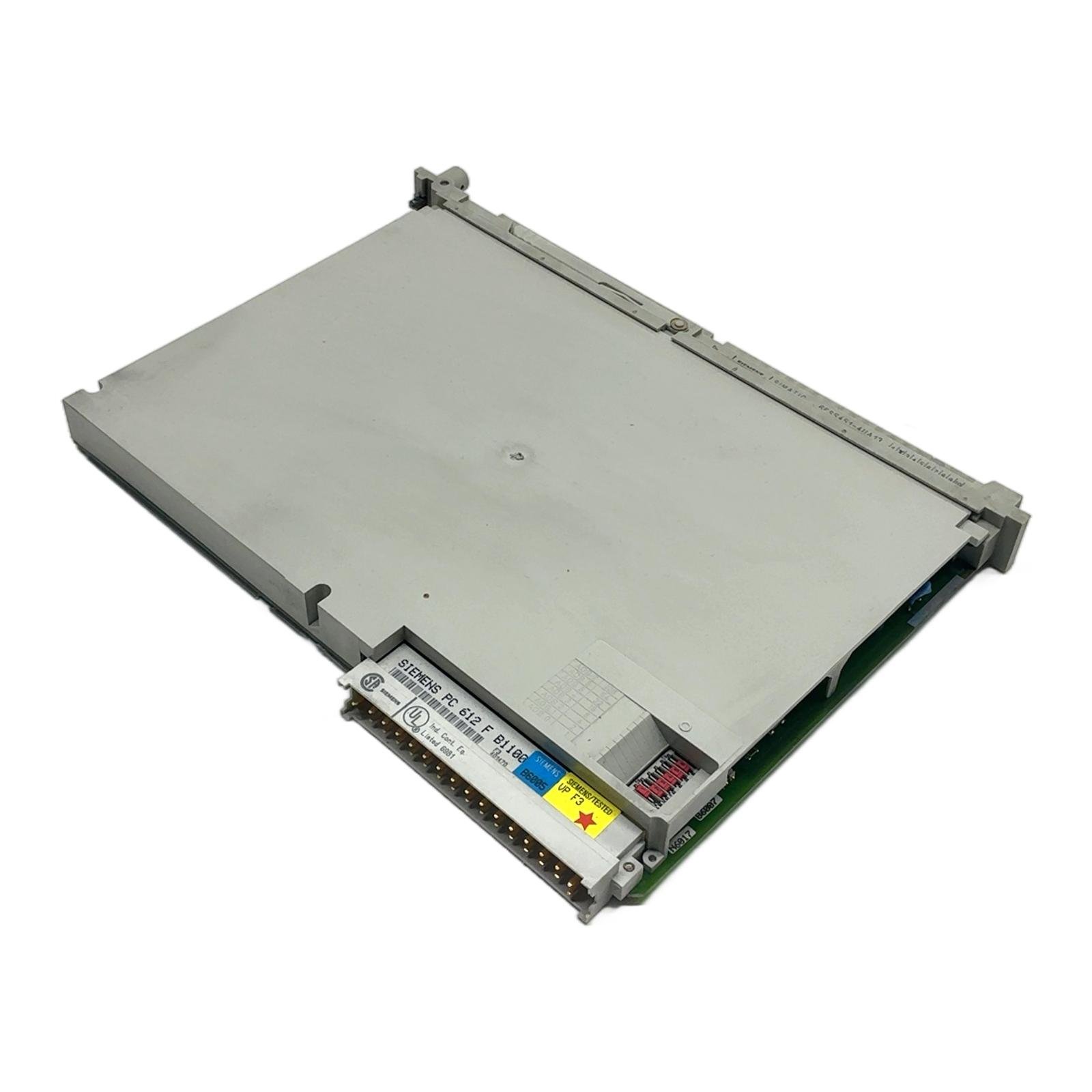

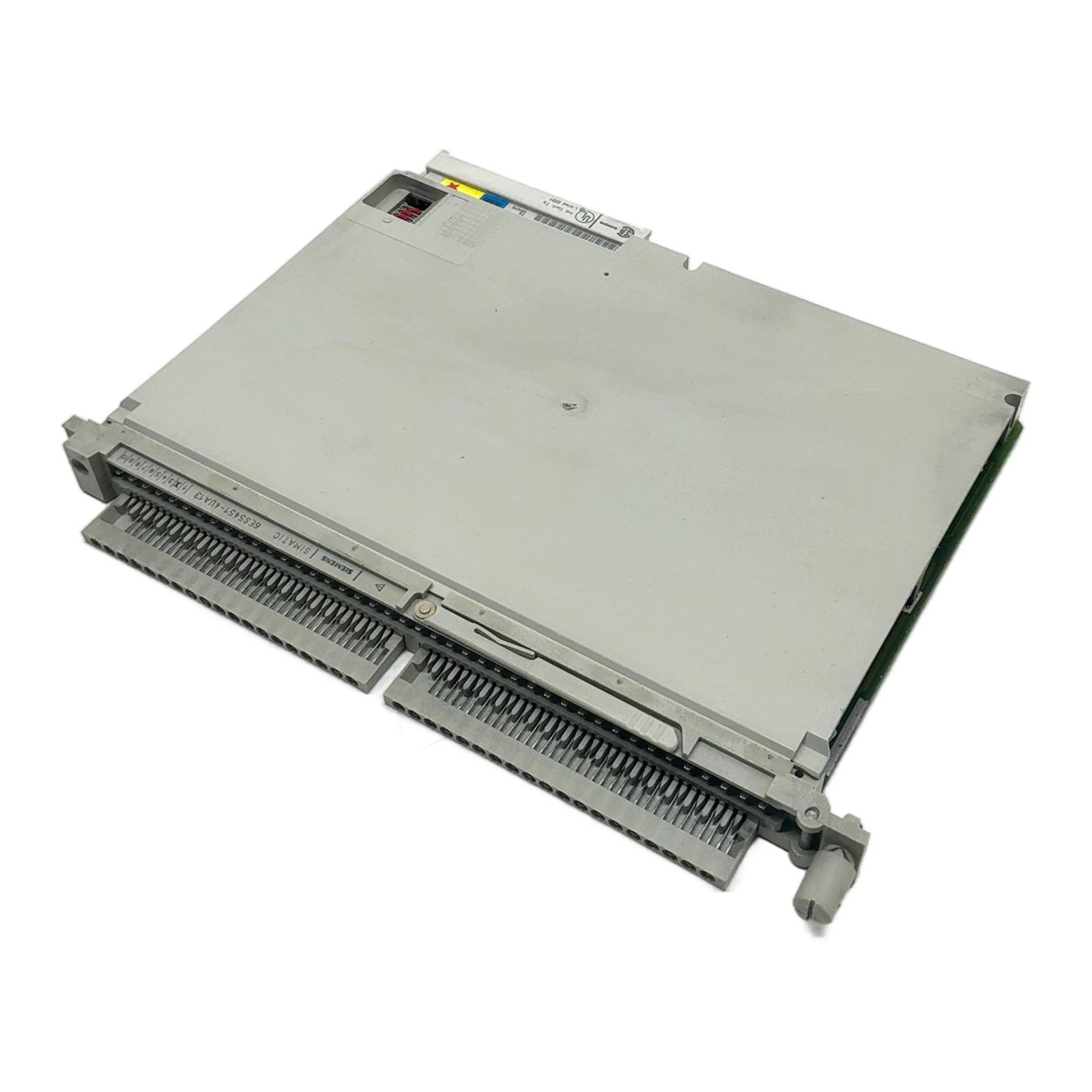

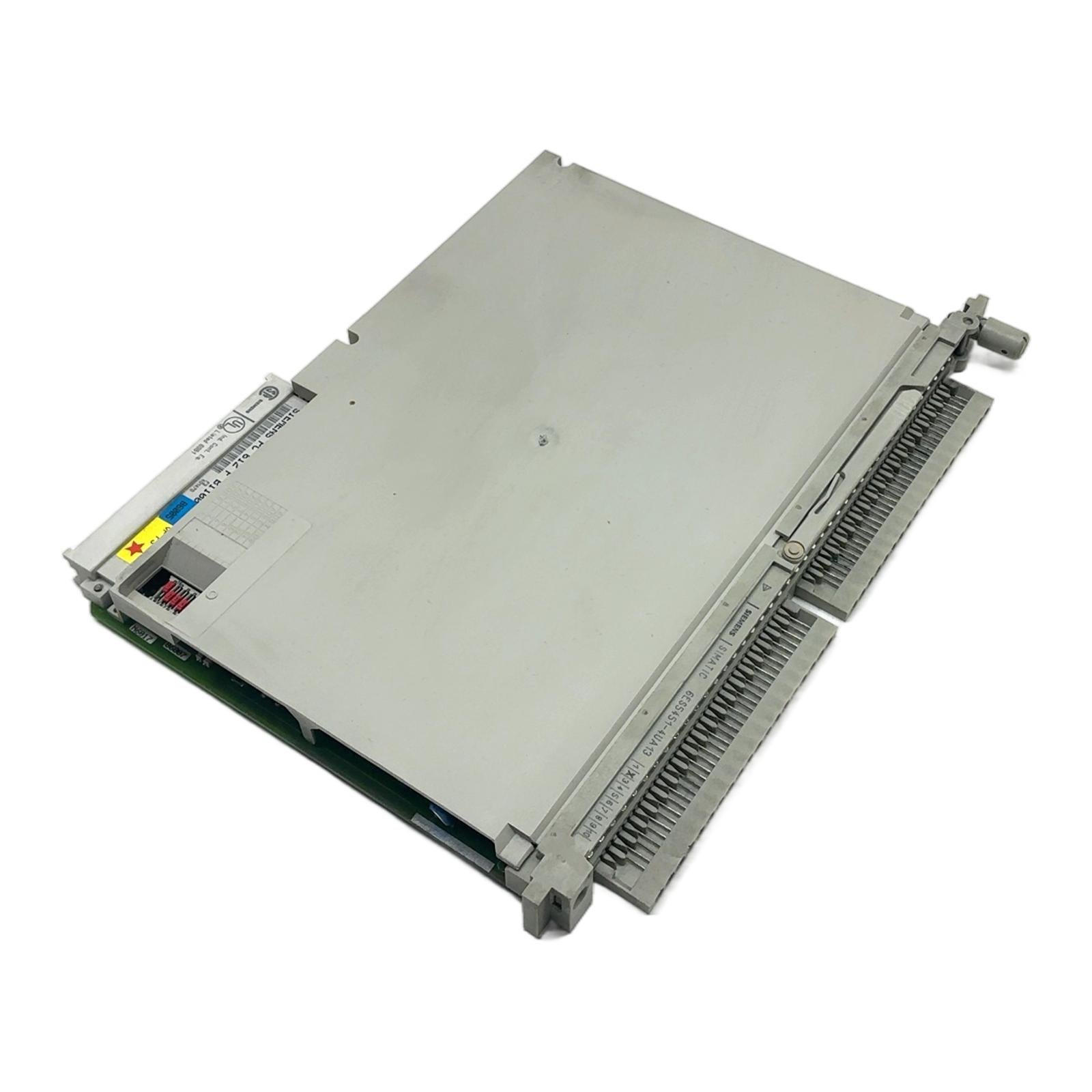

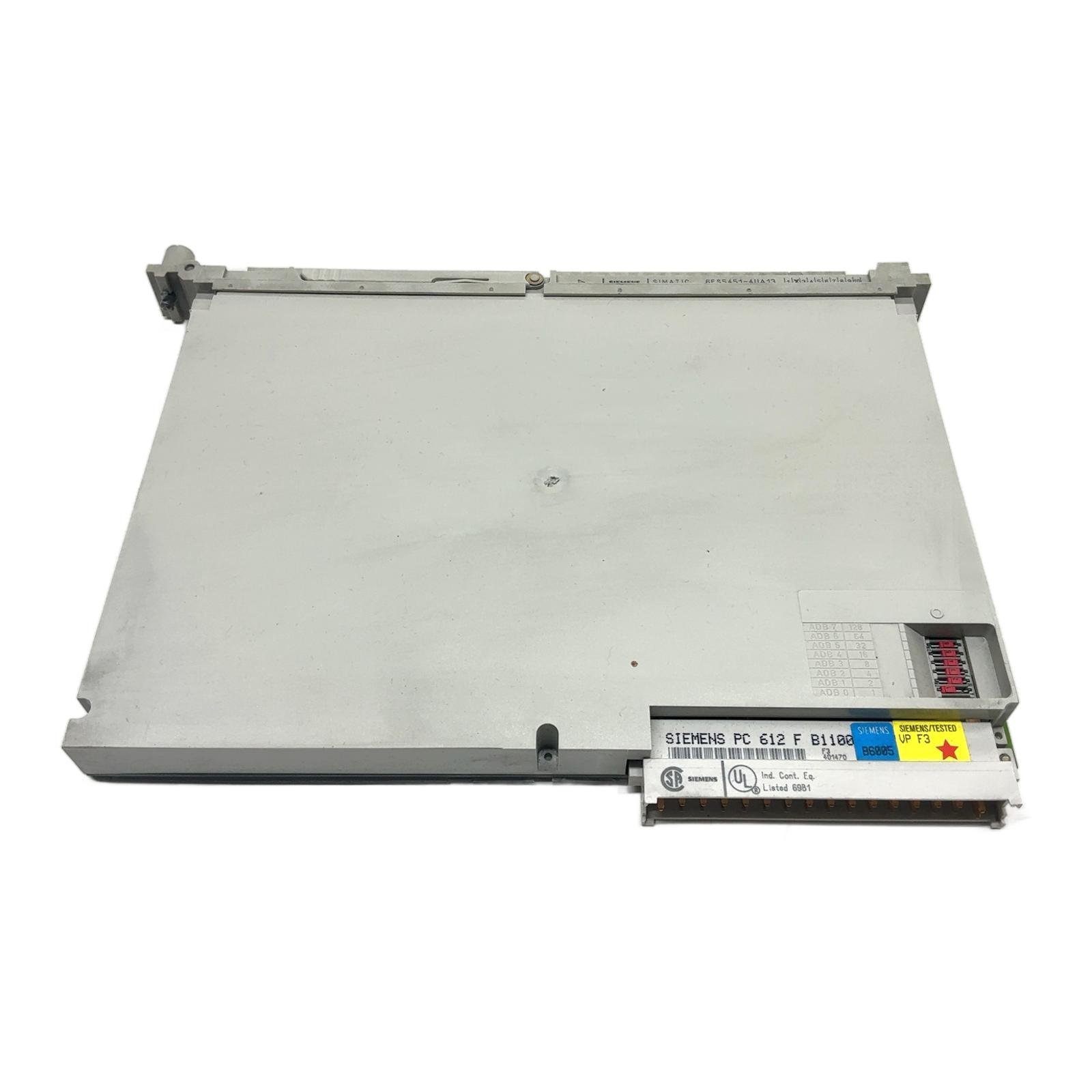

SIEMENS 6ES5451-4UA13

Siemens SIMATIC S5 Digital Output Module Description The 6ES5451-4UA13 is a digital output module for the robust and reliable Siemens SIMATIC S5 PLC series. This module features 32 digital outputs, each rated for 24V DC and 0.5A, designed for controlling a wide range of industrial actuators such as solenoid valves, contactors, and signal lamps. It is an essential component for maintaining and extending the life of automated systems built on the S5-115U, S5-135U, or S5-155U platforms. Specifications Manufacturer: Siemens Product Family: SIMATIC S5 Model Number: 6ES5451-4UA13 Module Type: Digital Output Module Number of Outputs: 32 Output Voltage: 24V DC Output Current: 0.5 A per output Power Dissipation: approx. 9 W Connection: Front connector required Label Info Part Number: 6ES5451-4UA13 Version (E-Stand): 02 Application This module is suitable for applications requiring the switching of DC loads in automated manufacturing, process control, and material handling systems that utilize the Siemens SIMATIC S5 infrastructure. Country of Origin Made in Germany. CO2 Impact By purchasing this refurbished or surplus module, you are contributing to the circular economy. Reusing this component avoids the emission of approximately 24 kg of CO2 that would be required for the production of a new one. This saving is equivalent to driving a car for 120 kilometers. Availability This product is an obsolete item but is available as a spare part to ensure the longevity of your existing installations. Order now from profideals for expert support and fast delivery. FAQ Question? Is this module compatible with a SIMATIC S7 system? AnswerNo, this is a SIMATIC S5 module and is not mechanically or electronically compatible with any SIMATIC S7 racks or processors. Question? What is the significance of the “E-Stand 02” on the label? AnswerThe “E-Stand” or “Ausgabestand” refers to the hardware revision of the module. Version 02 is a specific hardware release. When replacing a module, it is generally best to match the E-Stand, although later versions are often backward-compatible. Question? Does this module require an external power supply for the outputs? AnswerYes. While the module’s logic is powered by the S5 backplane, the 24V DC load voltage for the 32 outputs must be supplied externally to the module’s front connector terminals. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
