LEGRAND 048 84

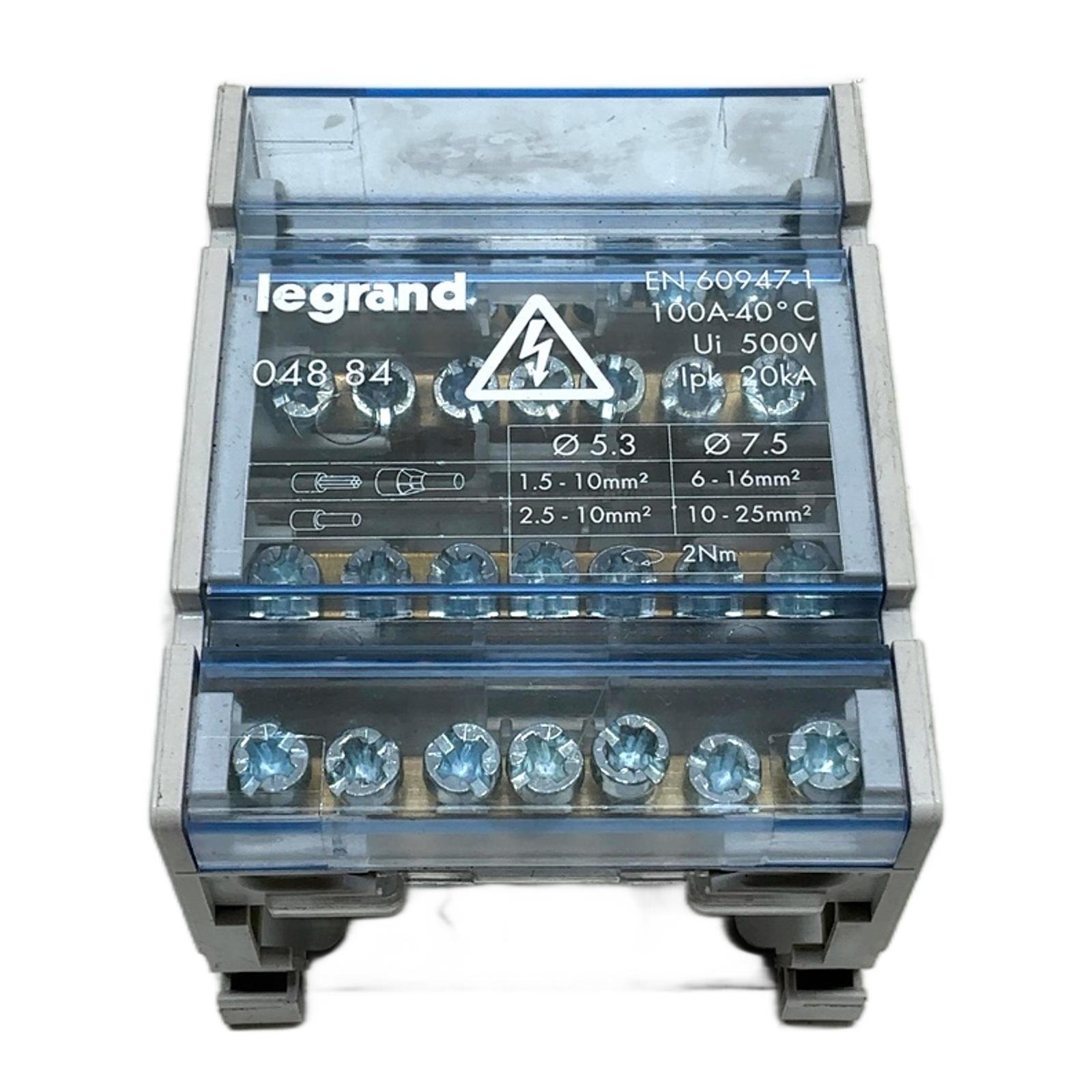

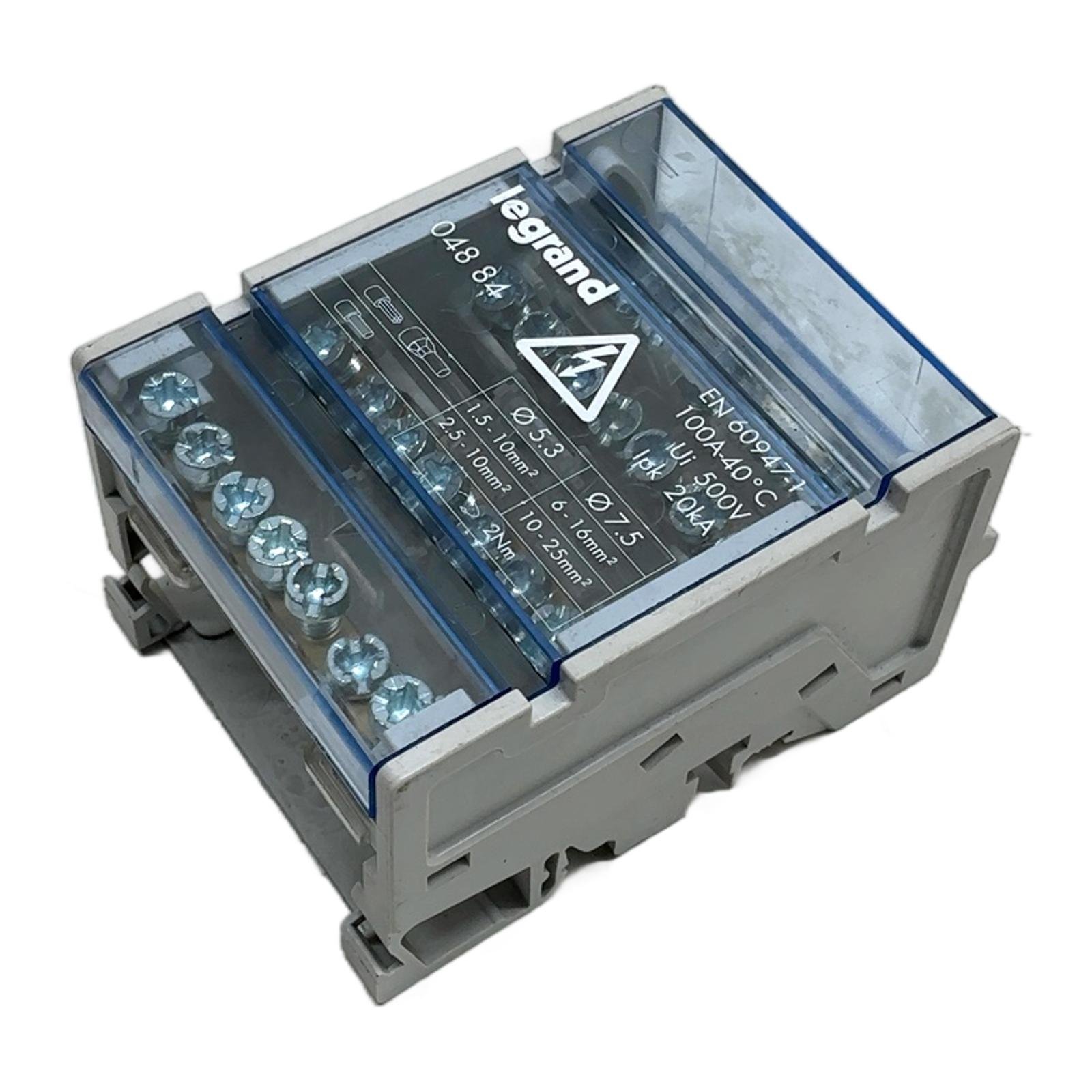

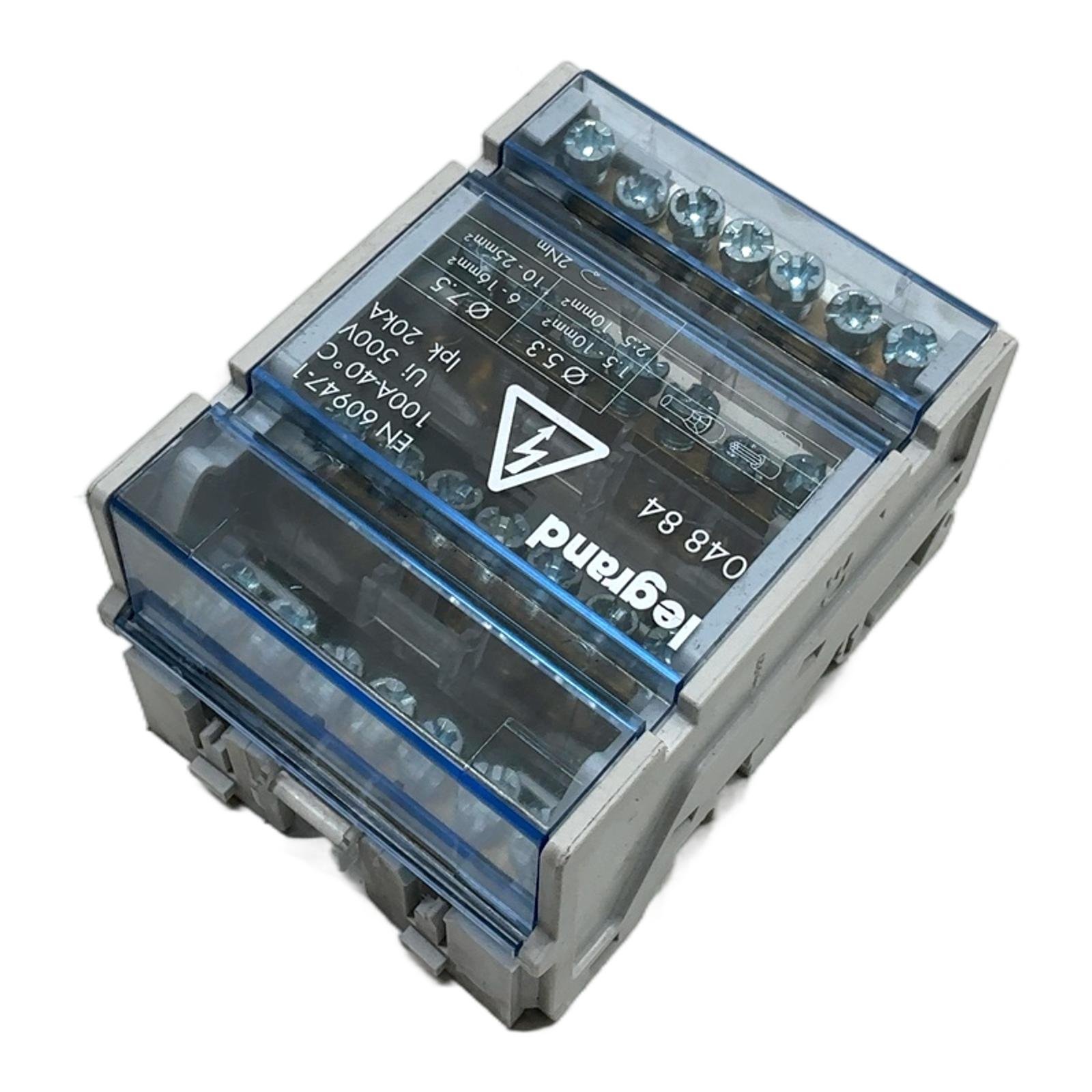

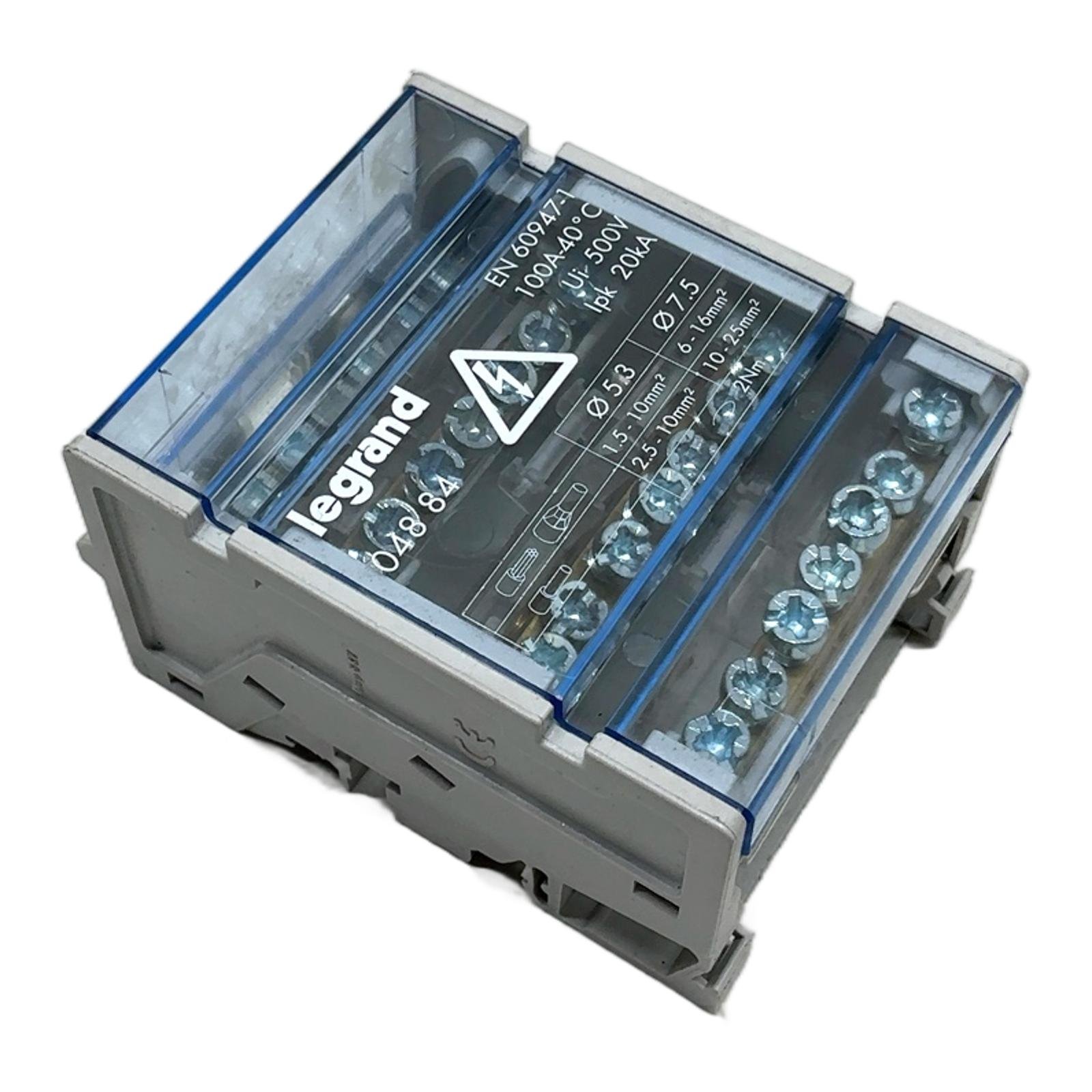

Legrand Distribution Terminal Block 100A 048 84 Description The Legrand 048 84 is a high-quality, 2-pole distribution terminal block designed for reliable power distribution within electrical enclosures. With a nominal current rating of 100A and a voltage rating of 500V, it is suitable for a wide range of industrial applications. Its compact design allows for easy mounting on a standard DIN rail, saving valuable panel space. The transparent cover provides protection against accidental contact while allowing for visual inspection of the connections. Specifications Manufacturer: Legrand Type: 048 84 Number of Poles: 2 Rated Current (In): 100A at 40 deg C Rated Insulation Voltage (Ui): 500V Rated Peak Withstand Current (Ipk): 20kA Mounting: DIN Rail Standard: EN 60947-1 Label Info Input Connection: 1.5-10mm2 (solid), 2.5-10mm2 (flexible) Output Connections: 6-16mm2 (solid), 10-25mm2 (flexible) Screw Tightening Torque: 2Nm Application Ideal for use in industrial control panels, switchboards, and automation systems for distributing power from a main feeder to multiple smaller circuits safely and efficiently. Country of Origin This product is manufactured by Legrand in France. CO2 Impact By purchasing this pre-owned component, you are contributing to the circular economy and helping to avoid approximately 6.0 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the wire size ranges for the input and output terminals?The block accommodates two sets of wire sizes. The smaller terminals accept 1.5 to 10mm squared wire, while the larger terminals accept 6 to 25mm squared wire, depending on whether the conductor is solid or flexible. Is this terminal block suitable for both copper and aluminum conductors?The Legrand 048 84 is designed for use with copper conductors only. Using aluminum conductors can lead to galvanic corrosion and connection failure unless a suitable anti-oxidant paste is used and local regulations permit it. Always consult the manufacturer’s datasheet. What is the recommended tightening torque for the terminal screws?The recommended tightening torque for all terminal screws on this block is 2 Newton-meters (Nm), as indicated on the product label. Using a calibrated torque screwdriver is essential for ensuring a secure and safe electrical connection. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Current Date: Friday, March 13, 2026
