REXROTH 4WE10D33/CW230N9K4 R900912496

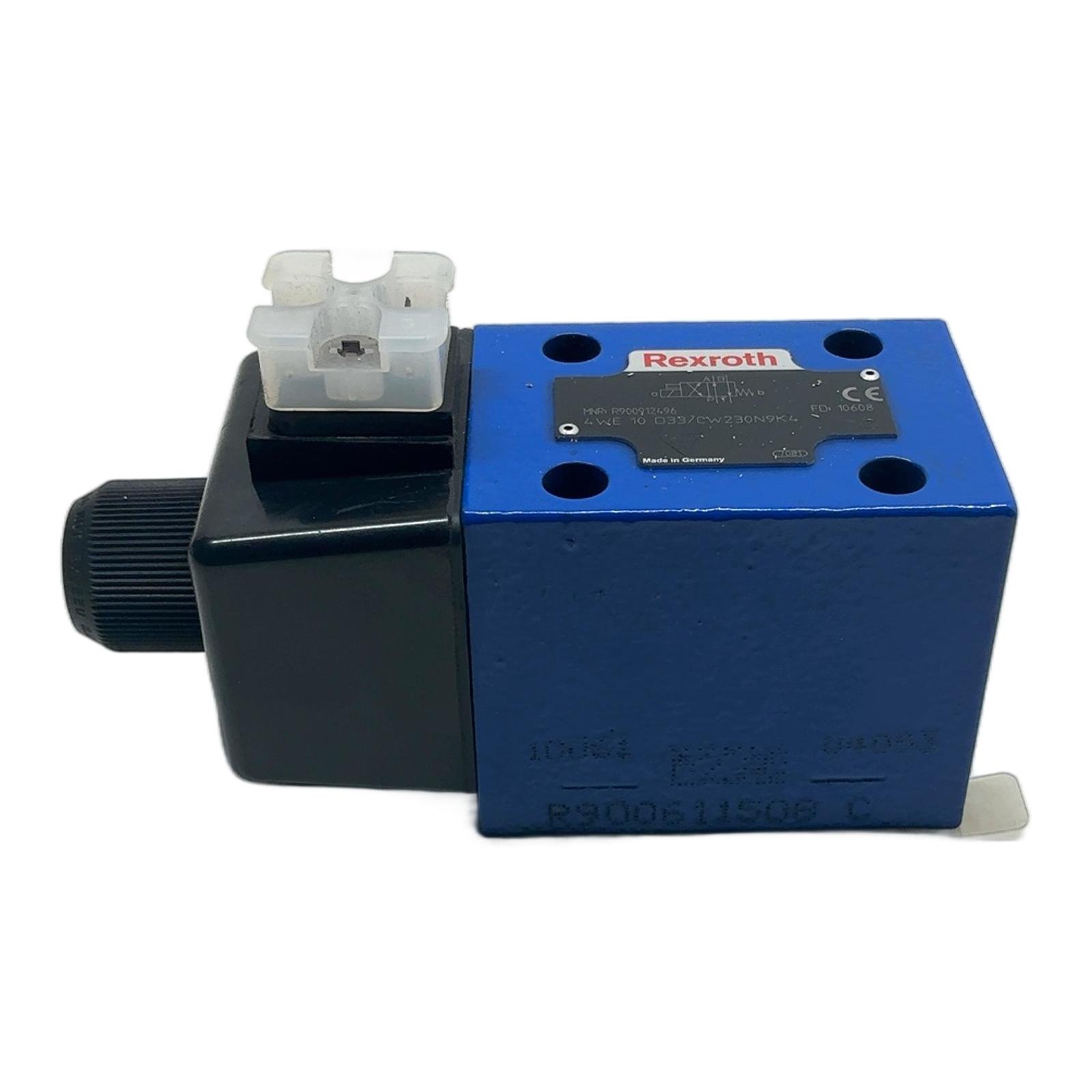

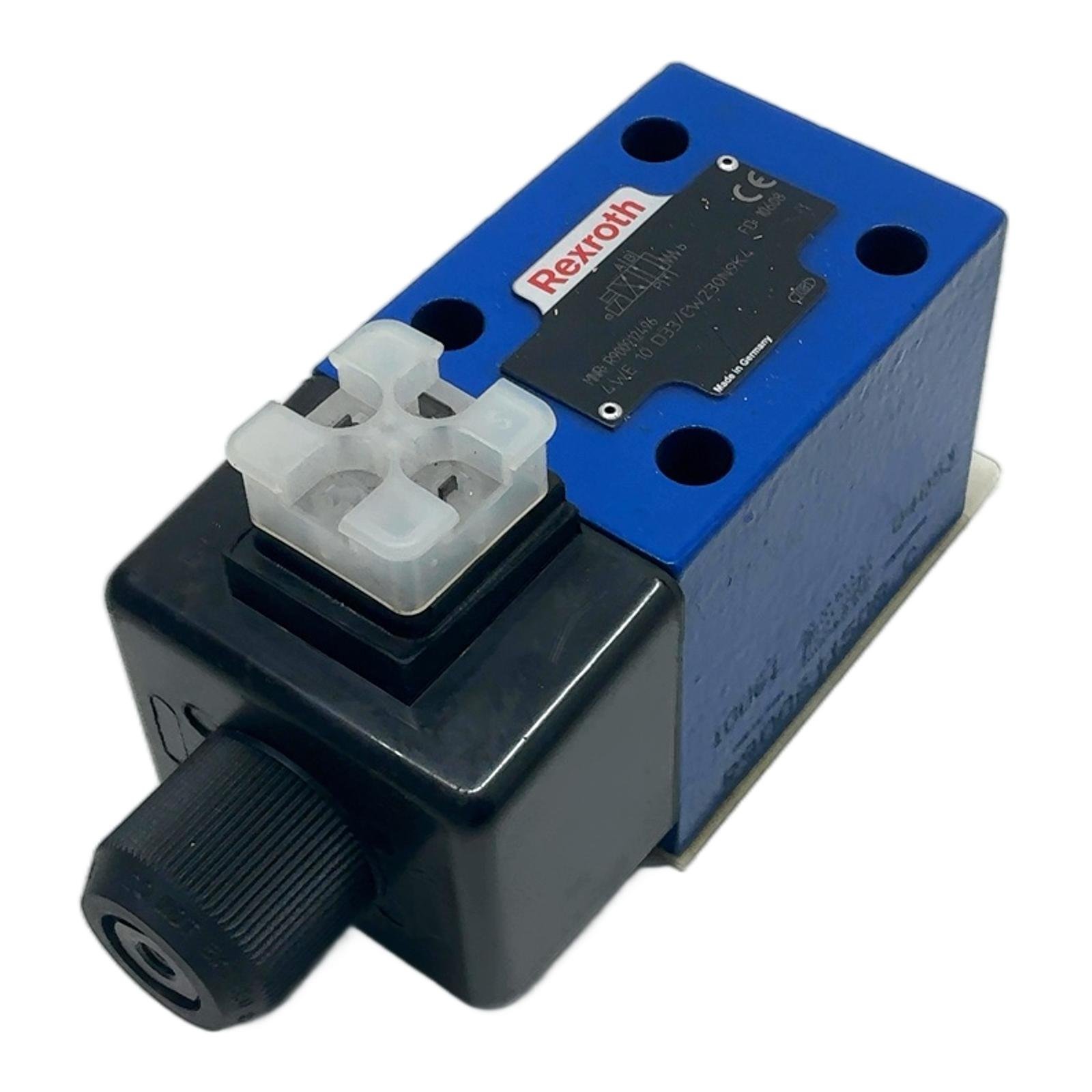

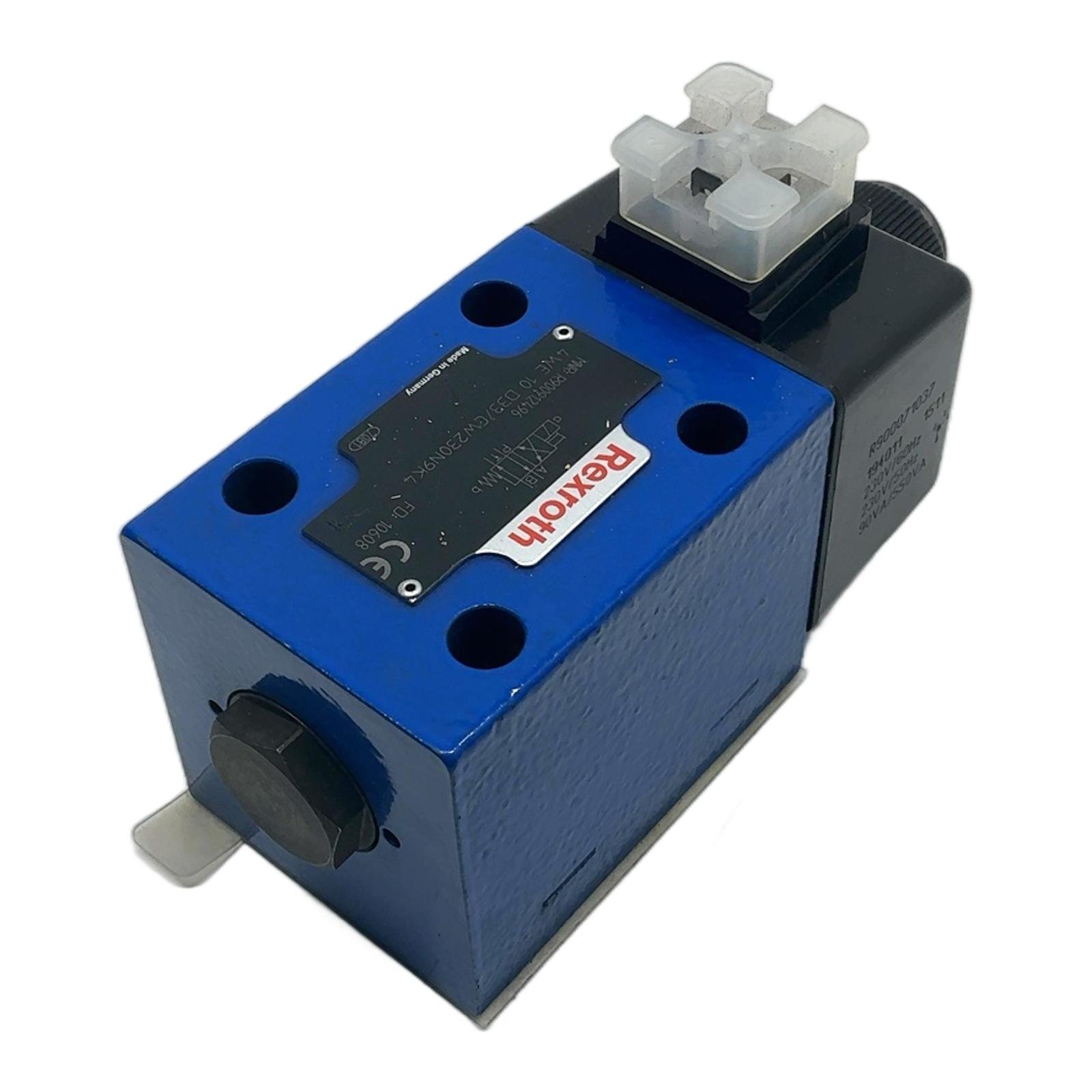

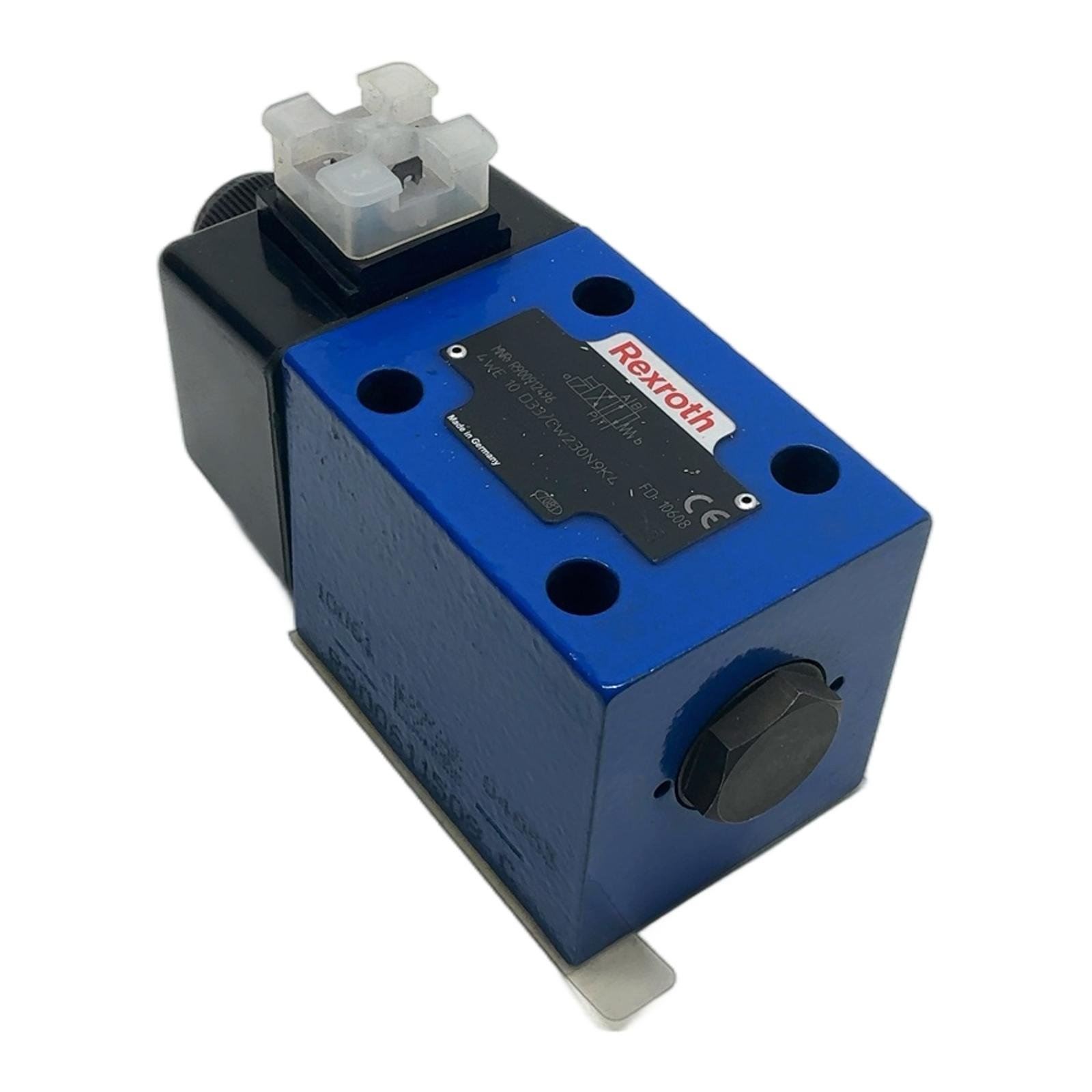

Rexroth 4WE 10 D33/CW230N9K4 Hydraulic Valve Description This is a direct-operated directional spool valve, model 4WE 10 D33/CW230N9K4, from Bosch Rexroth. It is a size NG10 valve with a standard porting pattern according to ISO 4401-05-04-0-94 (CETOP 5). This 4/3-way valve is solenoid-actuated and designed for high reliability in demanding industrial hydraulic applications. The ‘D’ spool configuration provides a float center position, where work ports A and B are connected to the tank while the pressure port P is blocked. Specifications Manufacturer: Rexroth Type: 4WE 10 D33/CW230N9K4 Material Number (MNR): R900912496 Valve Type: 4/3-Way Directional Spool Valve Size: NG10 / CETOP 5 Actuation: Solenoid with concealed manual override Solenoid Voltage: 230V AC, 50/60 Hz Spool Symbol: D Maximum Operating Pressure: 315 bar Connector: Base for DIN EN 175301-803 Label Info MNR: R900912496 Type: 4WE 10 D33/CW230N9K4 FD: 10608 Application This valve is widely used in industrial machinery, manufacturing plants, and mobile hydraulics to control the direction of hydraulic cylinders and motors. Country of Origin Made in Germany. CO2 Impact Opting for this refurbished component over a new one prevents the emission of approximately 9.0 kg of CO2. This saving is equivalent to the CO2 absorbed by a mature tree over a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘NG10′ size designation?NG10 refers to the nominal size of the valve’s mounting interface, conforming to CETOP 5 and ISO 4401 standards. This ensures interchangeability with other NG10 standard valves and subplates, specifying a port pattern and flow capacity suitable for medium-sized hydraulic applications. Can the 230V AC solenoid coil be replaced with a different voltage, like 24V DC?Yes, the solenoid coil on this valve is typically modular. You can replace the CW230N9K4 coil with a compatible Rexroth DC coil (e.g., CG24N9K4 for 24V DC), provided the valve body’s actuator pin is compatible. Always consult the datasheet to ensure proper fit and function. What does the spool symbol ‘D’ indicate about the valve’s function in its center position?The ‘D’ spool configuration for this 4/3-way valve means it has a float or tandem center. In the neutral, non-actuated position, the pressure port (P) is blocked, while the work ports (A and B) are connected to the tank port (T). This allows the actuator, such as a hydraulic cylinder, to ‘float’ or be moved manually. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
