SCHNEIDER ELECTRIC LX1FH2202 055335

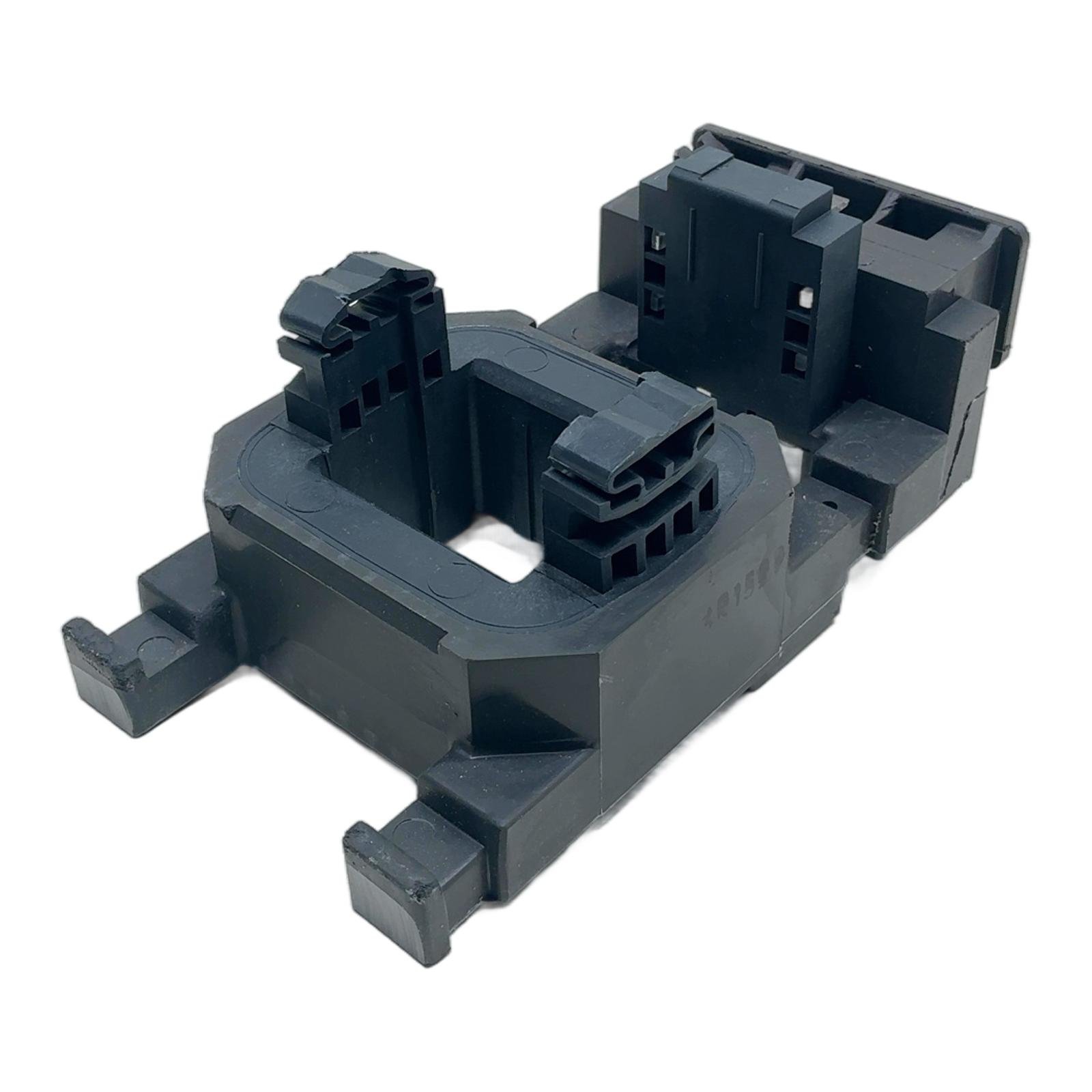

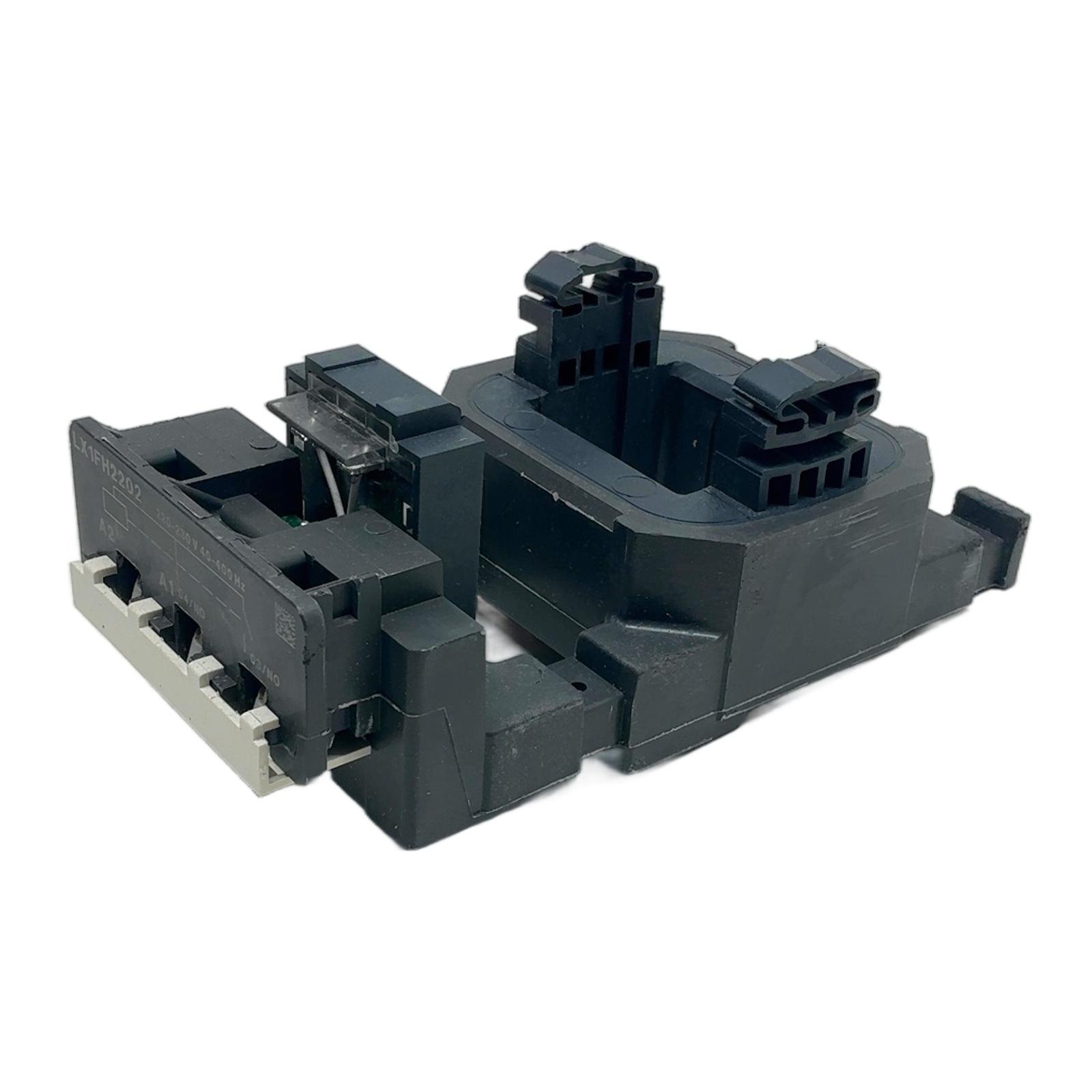

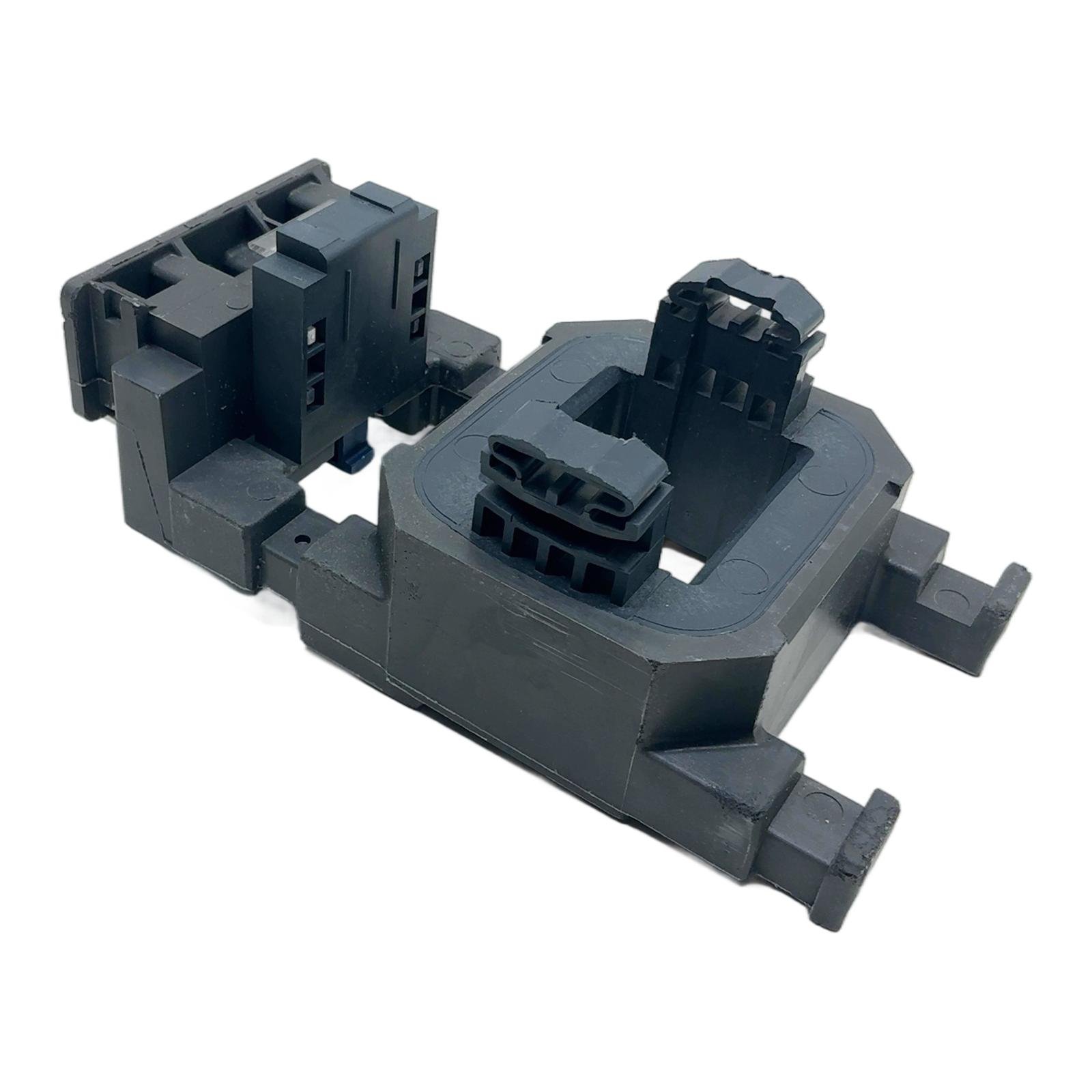

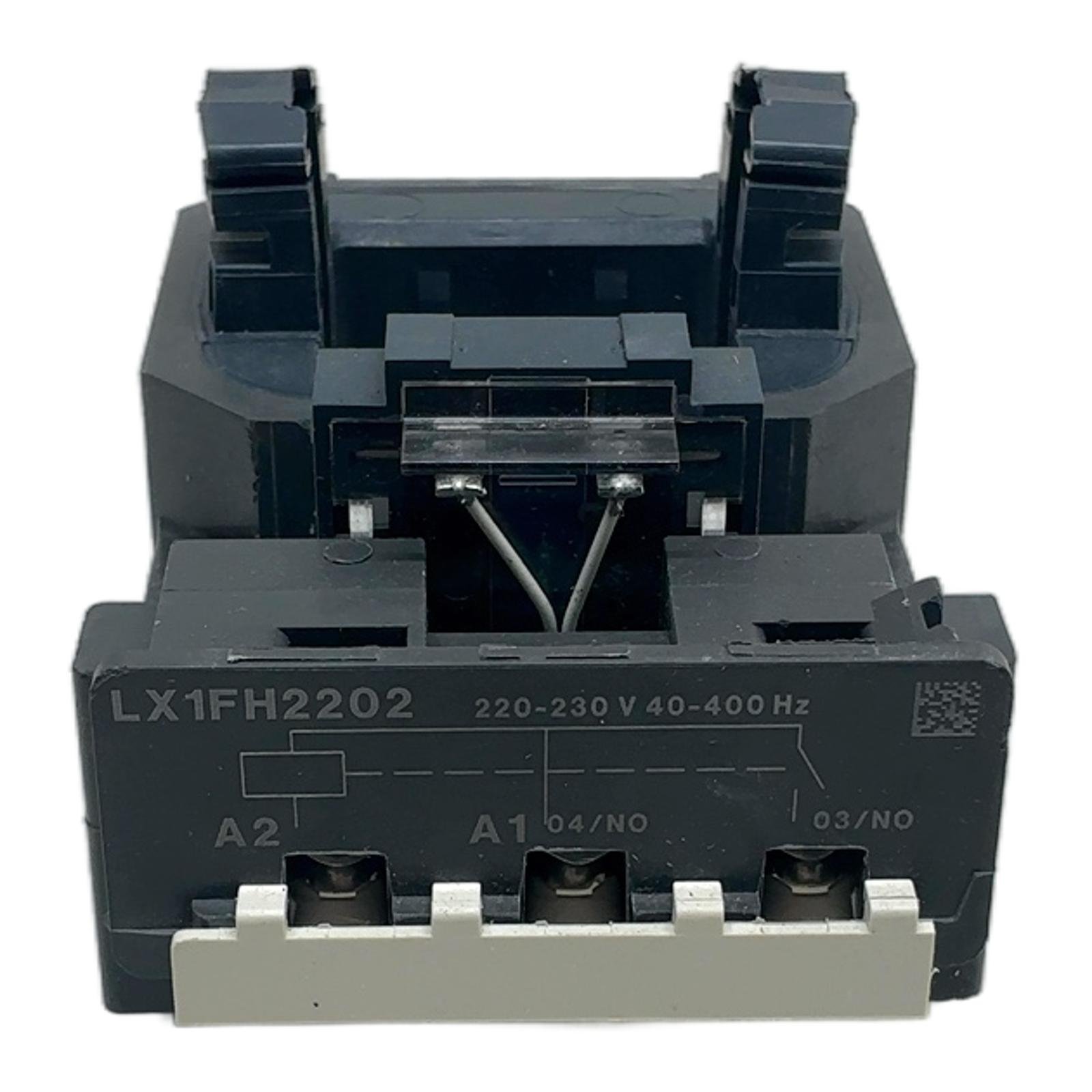

Schneider Electric LX1FH2202 TeSys F Contactor Coil Description The Schneider Electric LX1FH2202 is a high-quality replacement coil designed for the TeSys F series of contactors. This component is essential for the electromagnetic operation of contactors, providing reliable switching for motor control and other heavy-duty electrical loads. It is engineered for a long operational life and consistent performance in demanding industrial environments. Specifications Manufacturer: Schneider Electric Product Range: TeSys F Model: LX1FH2202 Part Number: 055335 Component Type: Contactor Coil Control Circuit Voltage: 220 to 230 V AC Frequency Range: 40 to 400 Hz Compatibility: For use with TeSys F contactors LC1F115, LC1F150, and LC1F185 Label Info Model: LX1FH2202 Voltage: 220-230 V Frequency: 40-400 Hz Terminals: A1, A2, 93/NO, 94/NO Application This coil is used in various industrial applications including motor starting, isolation, and control systems within manufacturing plants, infrastructure projects, and commercial buildings where TeSys F contactors are deployed. Country of Origin Made in Czech Republic. CO2 Impact By purchasing this pre-owned item, you are contributing to a circular economy and helping to avoid approximately 20 kg of CO2 emissions associated with the production of a new unit. This saving is comparable to driving a car for 100 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the inrush power consumption of the LX1FH2202 coil? Answer?The inrush power consumption at 60 Hz is approximately 650 to 800 VA, and the holding power is around 6 to 10 VA. This is important for power supply sizing. Question?Can this coil be used on a 50 Hz supply? Answer?Yes, the coil is rated for a wide frequency range of 40 to 400 Hz, making it fully compatible with both 50 Hz and 60 Hz electrical systems without any performance degradation. Question?What is the average operating time for this coil when energizing an LC1F185 contactor? Answer?The average operating time on closing is typically between 30 to 50 milliseconds, and on opening, it ranges from 130 to 160 milliseconds, ensuring rapid and safe circuit control. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
