NVENT ERIFLEX 563830 TD100/125AL

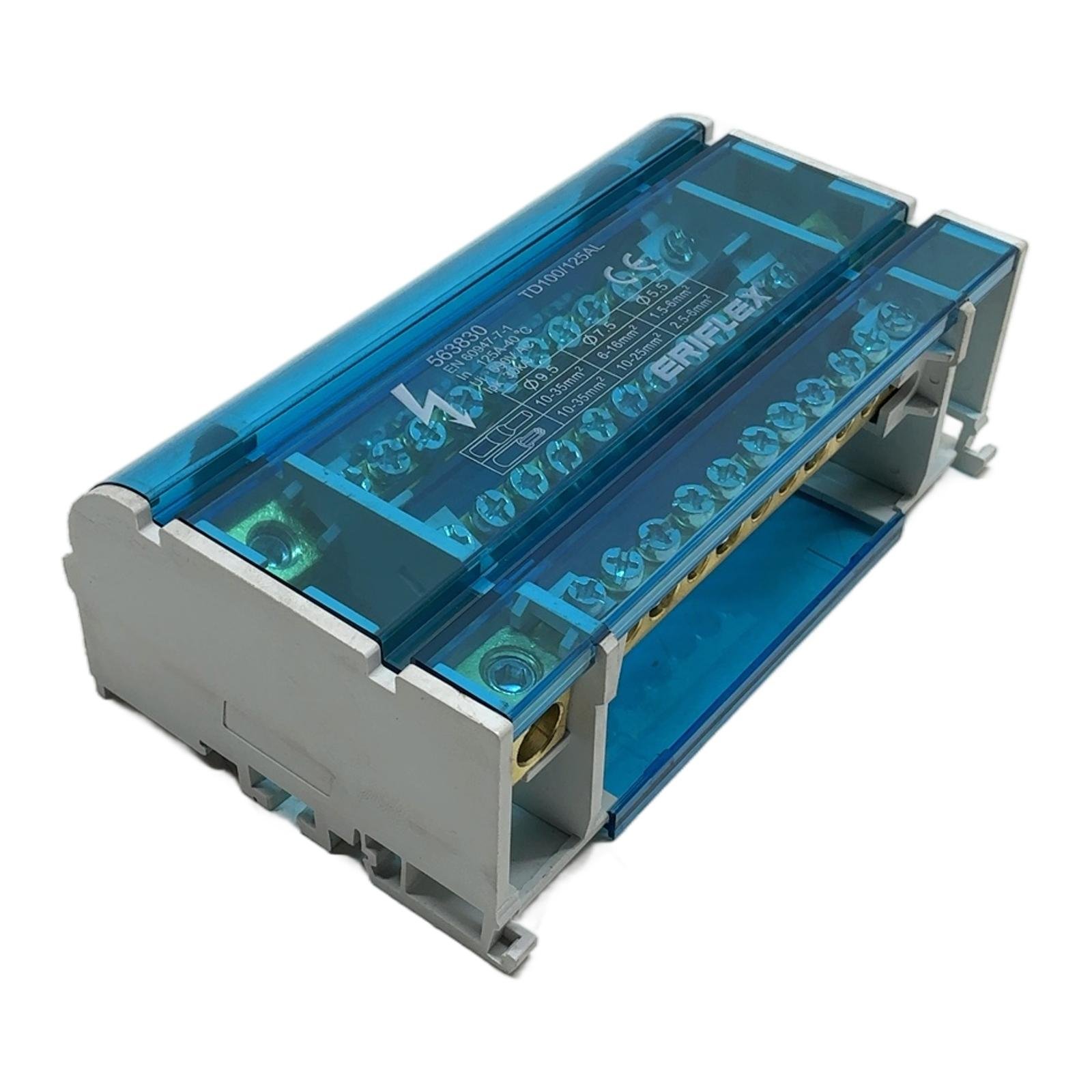

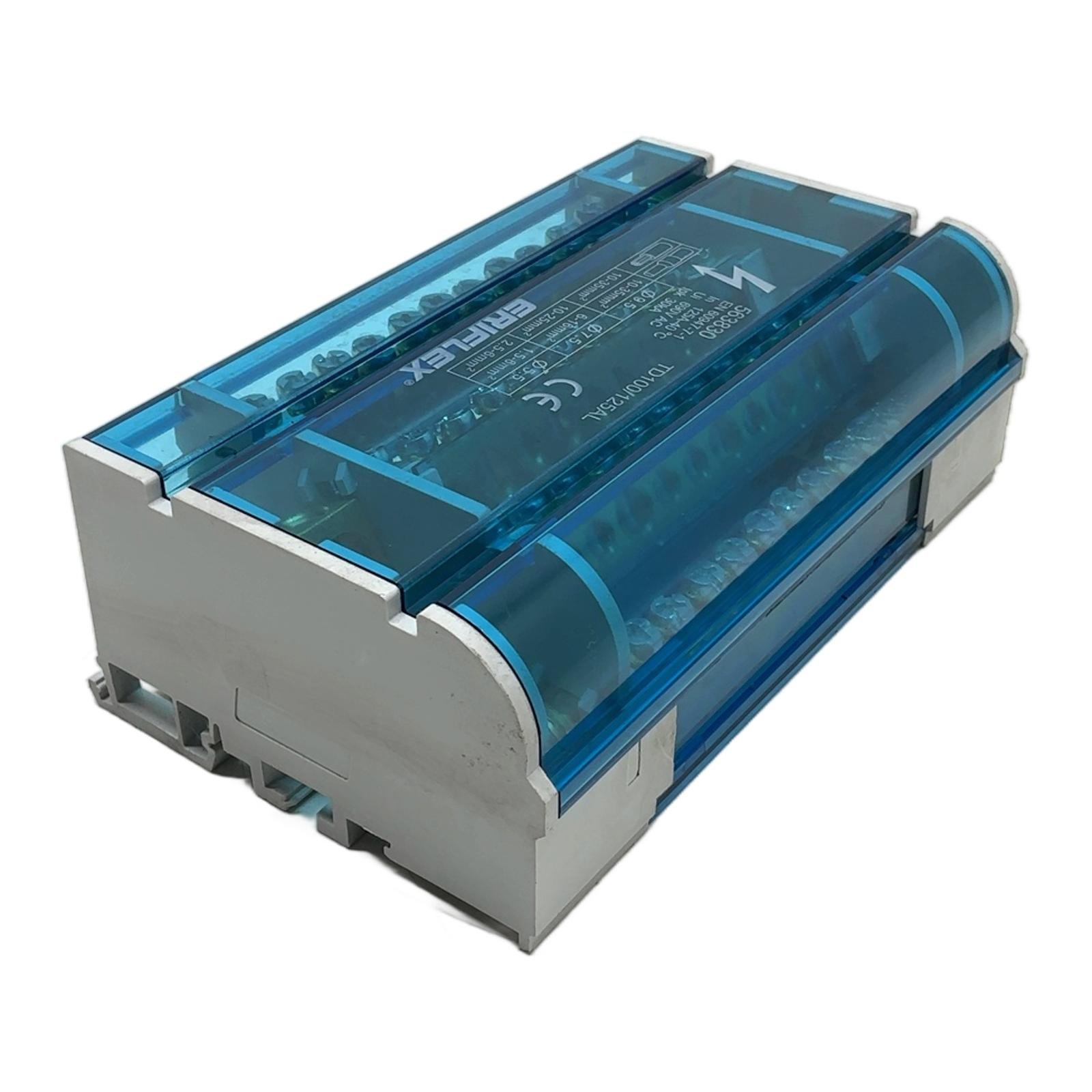

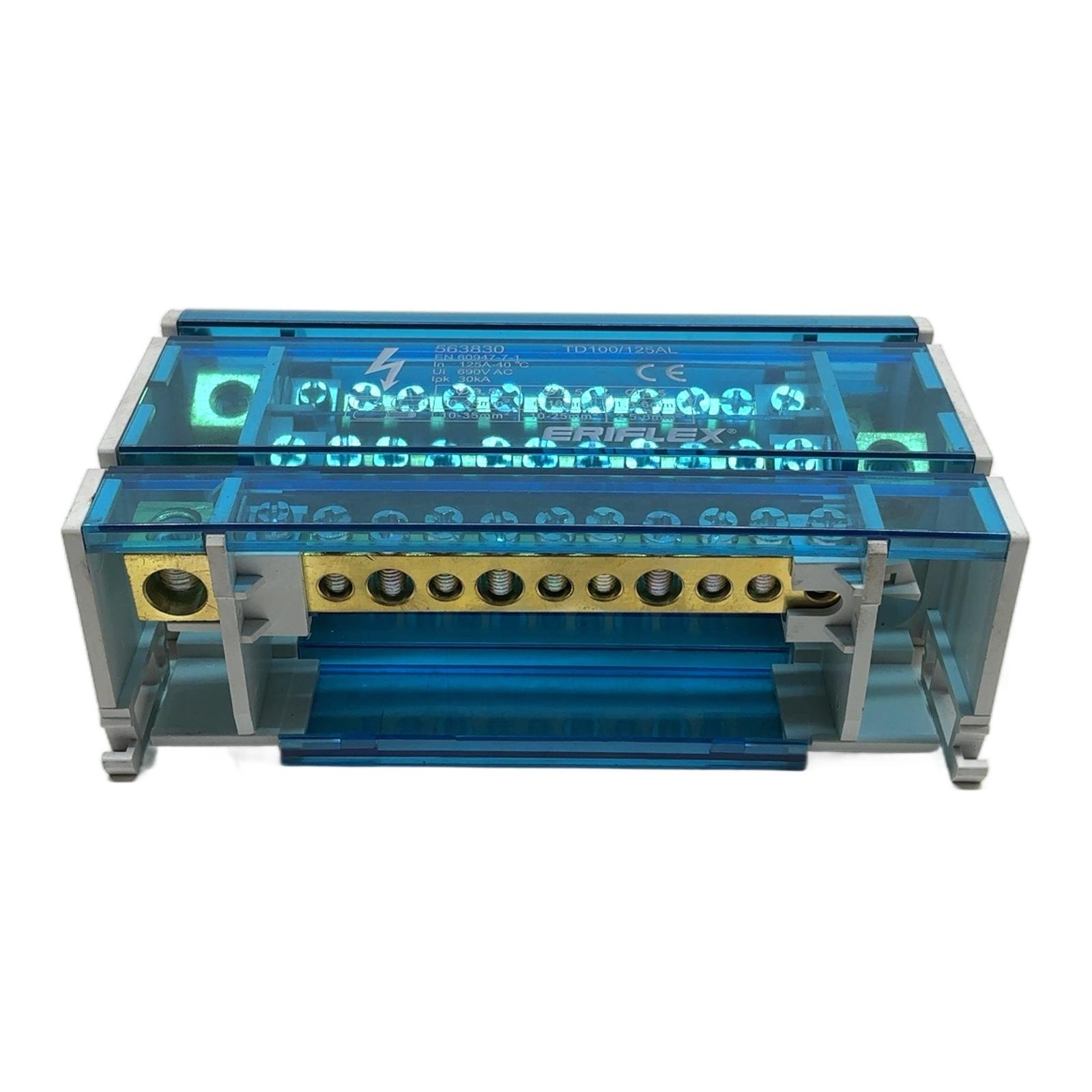

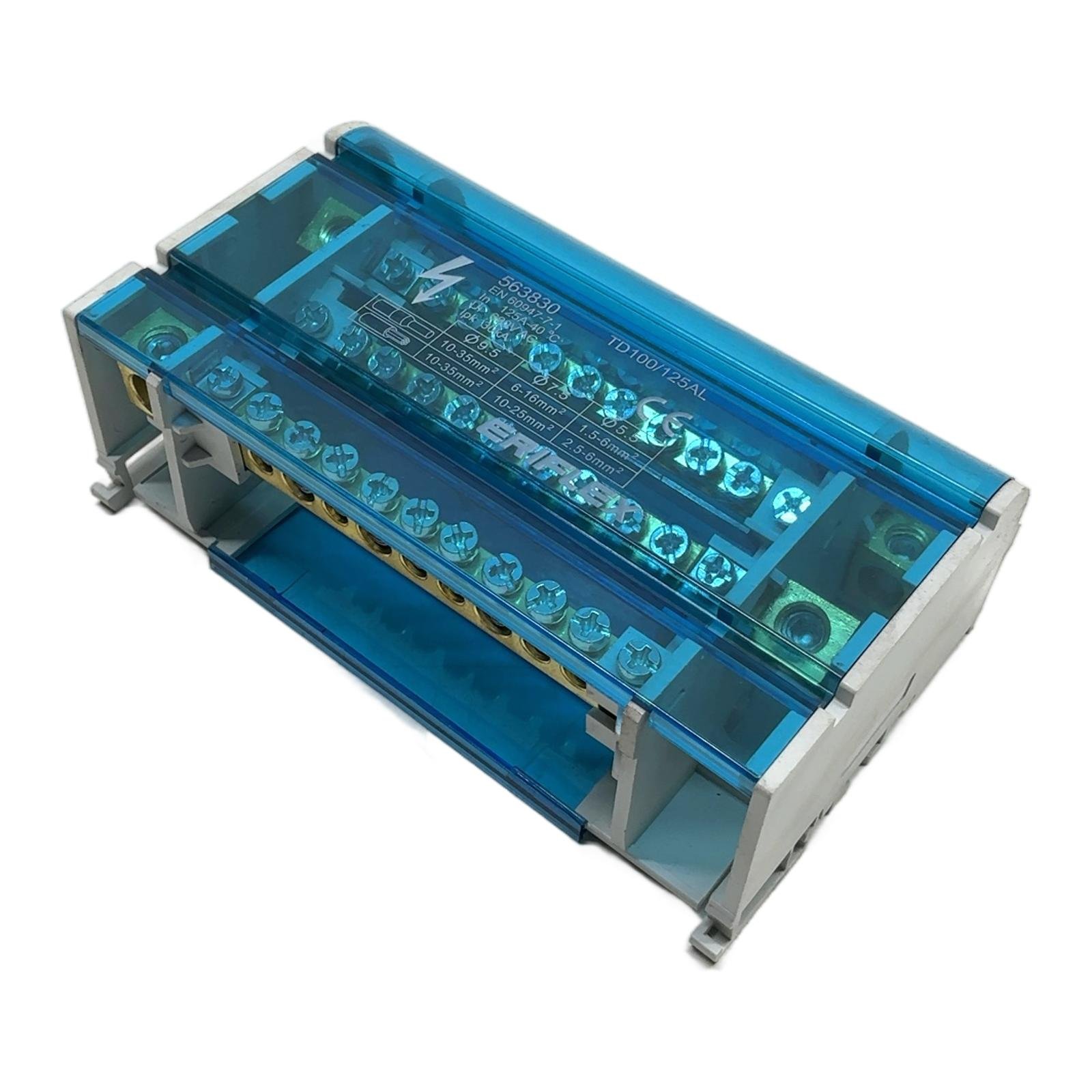

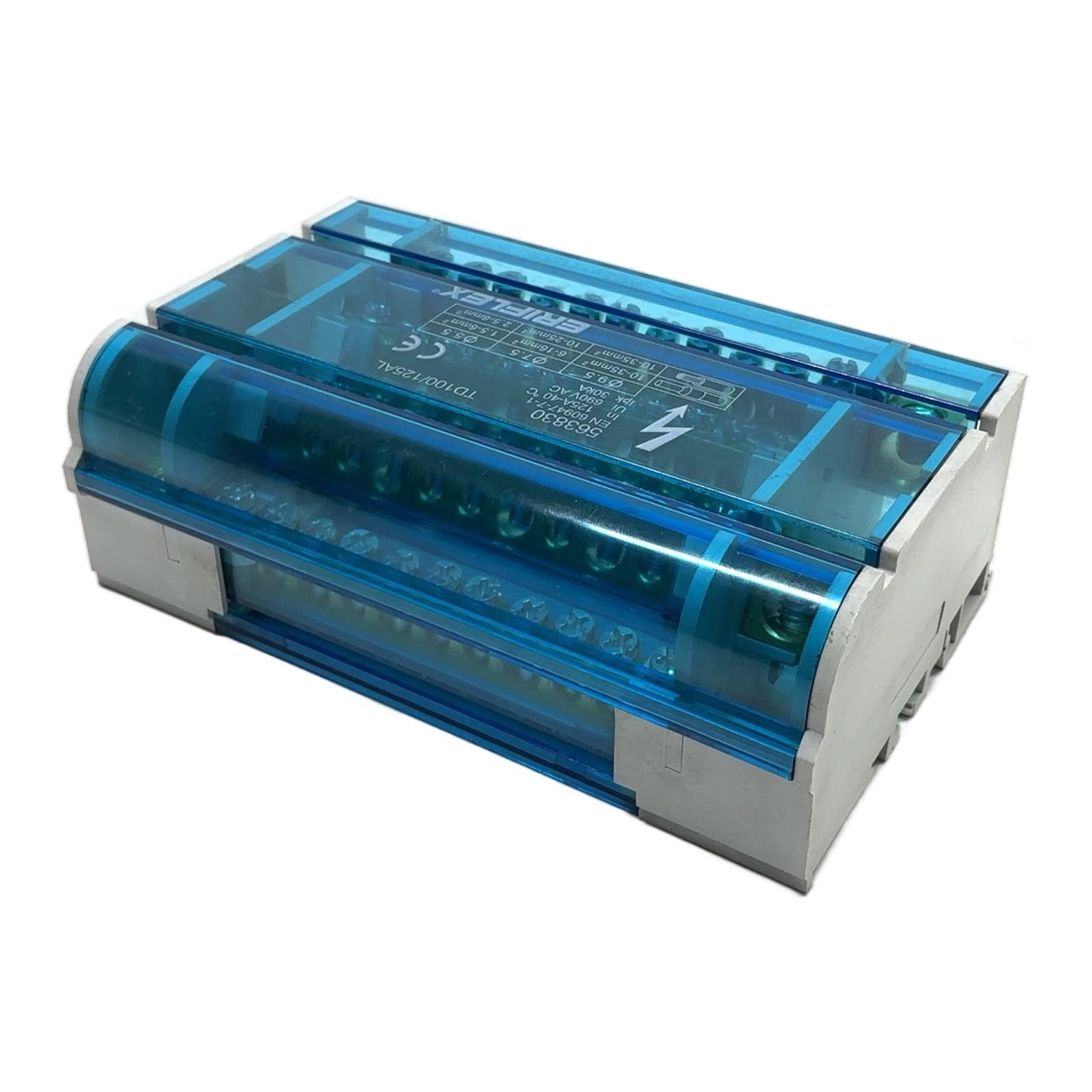

nVent ERIFLEX 125A Power Distribution Block Description The nVent ERIFLEX 563830 (TD100/125AL) is a high-quality, single-pole power distribution block designed for safe and efficient power management in industrial environments. It features a compact design for DIN rail mounting, a transparent, finger-safe cover, and is rated for up to 125A. This block allows for a single large input conductor to be split into multiple smaller output conductors, simplifying wiring in control cabinets. Specifications Manufacturer: nVent ERIFLEX Part Number: 563830 Type: TD100/125AL Nominal Current (In): 125 A at 40 deg C Insulation Voltage (Ui): 690V AC Poles: 1 Mounting: DIN Rail Input Connection: 1 x 10-35 mm2 Output Connections: 5 x 6-16 mm2 and 6 x 2.5-6 mm2 Conductor Compatibility: Copper (Cu) and Aluminum (Al) Label Info 563830 TD100/125AL EN 60947-7-1 In: 125A – 40 deg C Ui: 690V AC Application Ideal for power distribution within industrial control panels, switchboards, HVAC systems, and machinery where reliable power splitting is required. Country of Origin This product is typically manufactured in France. CO2 Impact By purchasing this reused nVent ERIFLEX distribution block, you are helping to avoid approximately 10.0 kg of CO2 emissions associated with the production of a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the tightening torque for the connection screws?The manufacturer recommends specific tightening torques for each terminal size to ensure a secure connection. For the main 10-35mm2 terminal, it is typically around 3 Nm, and for the smaller terminals, it is between 1.2 to 2 Nm. Always consult the official datasheet for exact values. Is this distribution block suitable for both copper and aluminum conductors?Yes, the ‘AL’ in the type number TD100/125AL indicates it is designed for both copper (Cu) and aluminum (Al) conductors. The terminals are tin-plated to prevent galvanic corrosion when used with aluminum wires. Can multiple ERIFLEX 563830 blocks be ganged together on a DIN rail?Yes, these blocks are designed with a modular interlocking feature on the side, allowing multiple single-pole blocks to be securely clipped together to create multi-pole distribution systems, for instance for 3-phase applications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
