FUJI ELECTRIC FVR015E7S-7EX

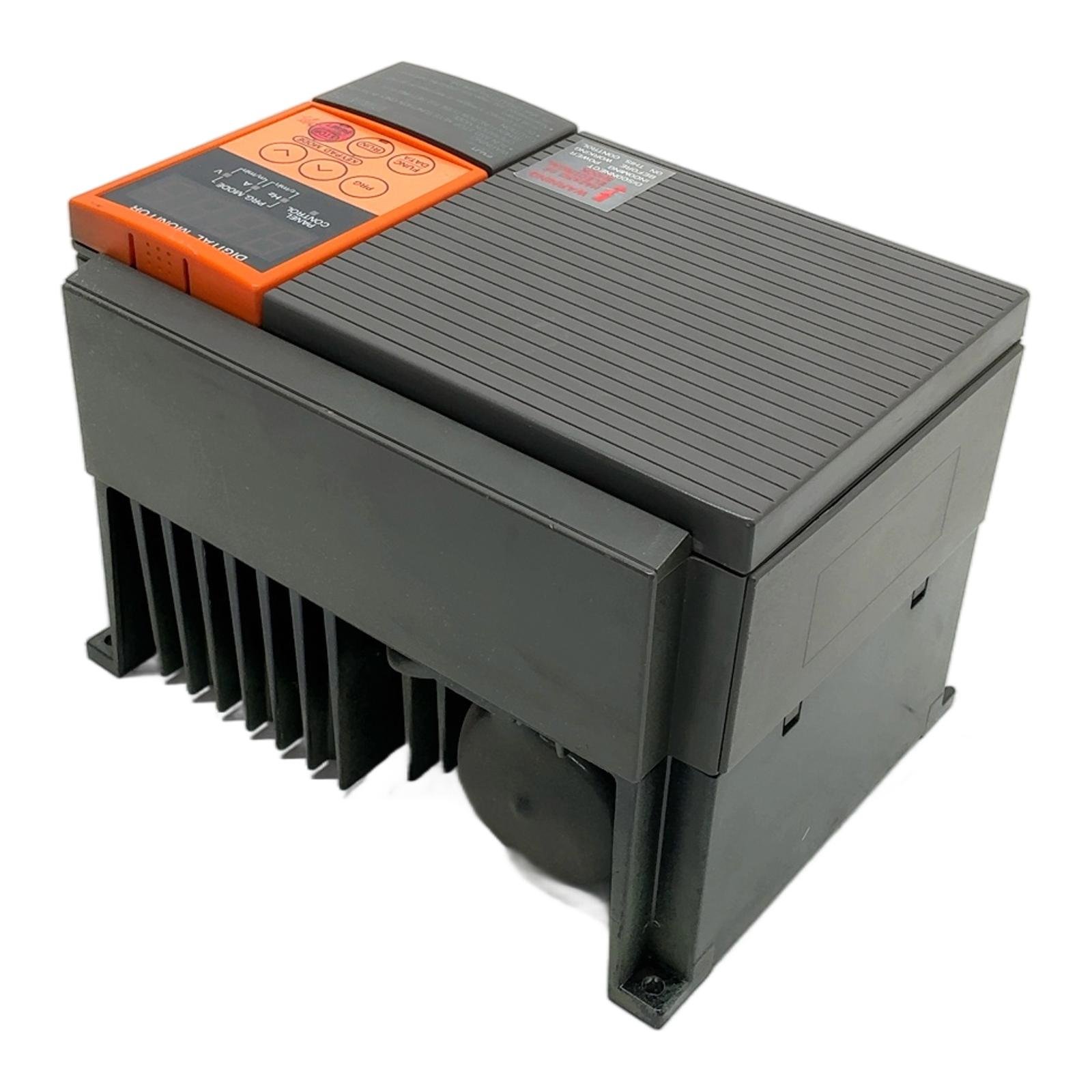

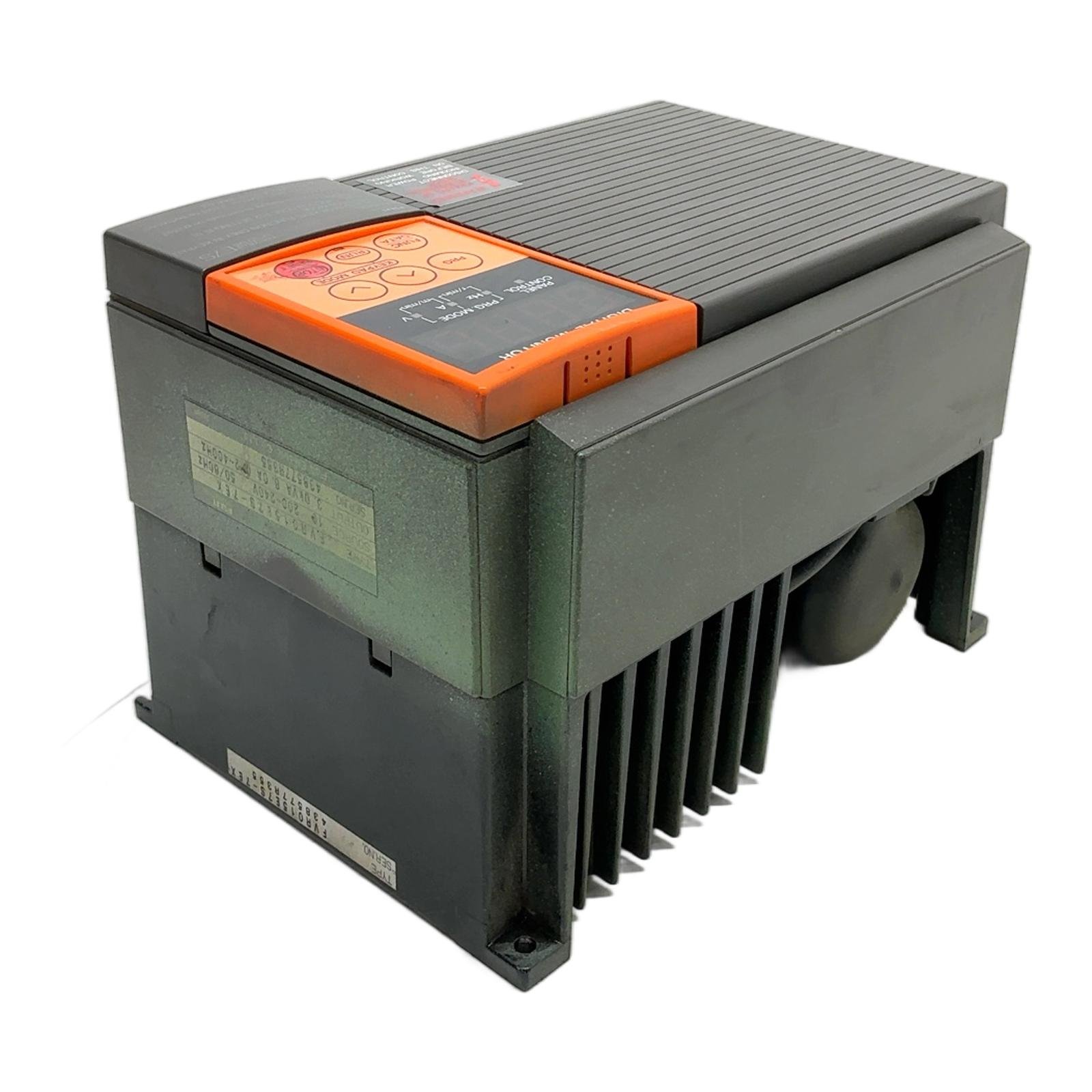

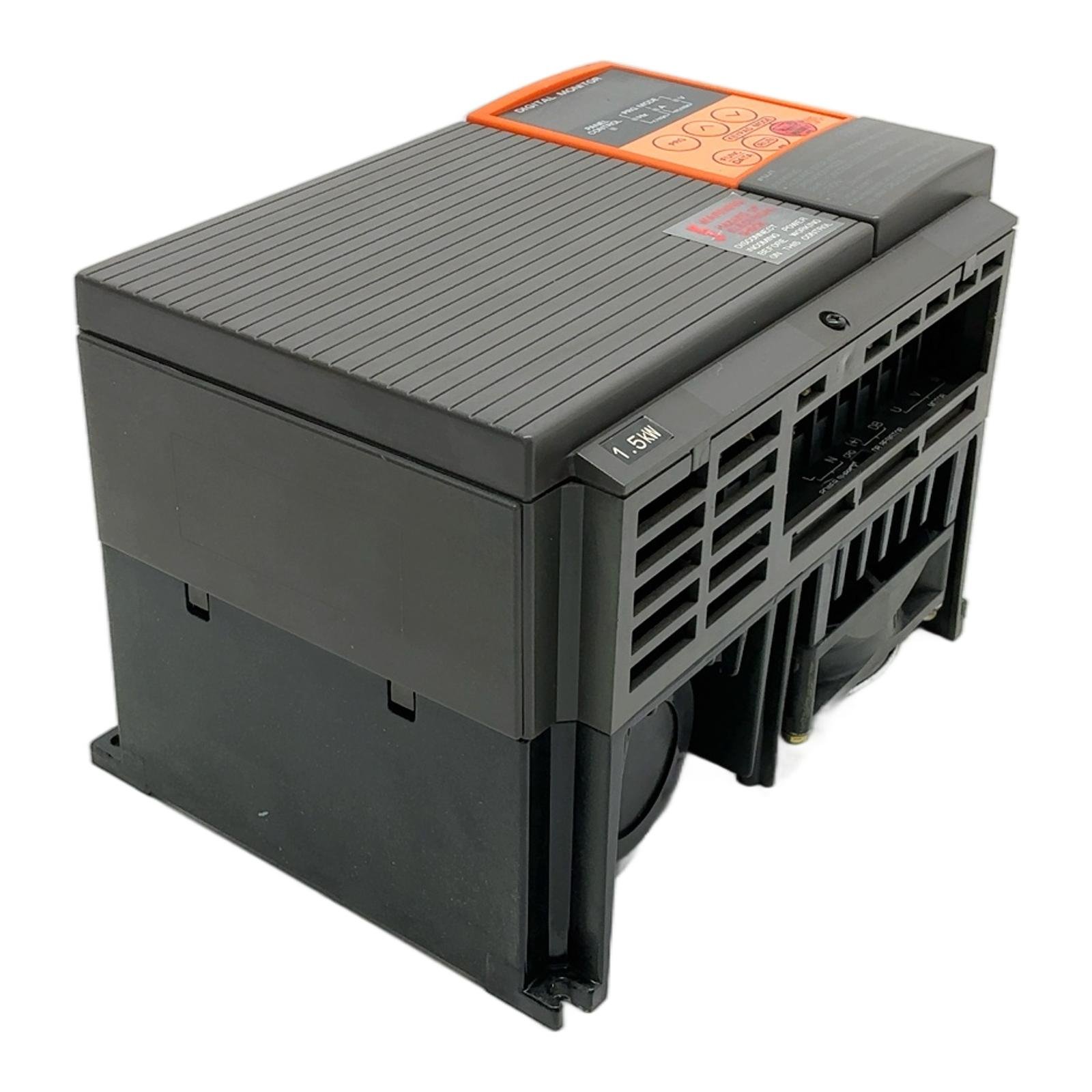

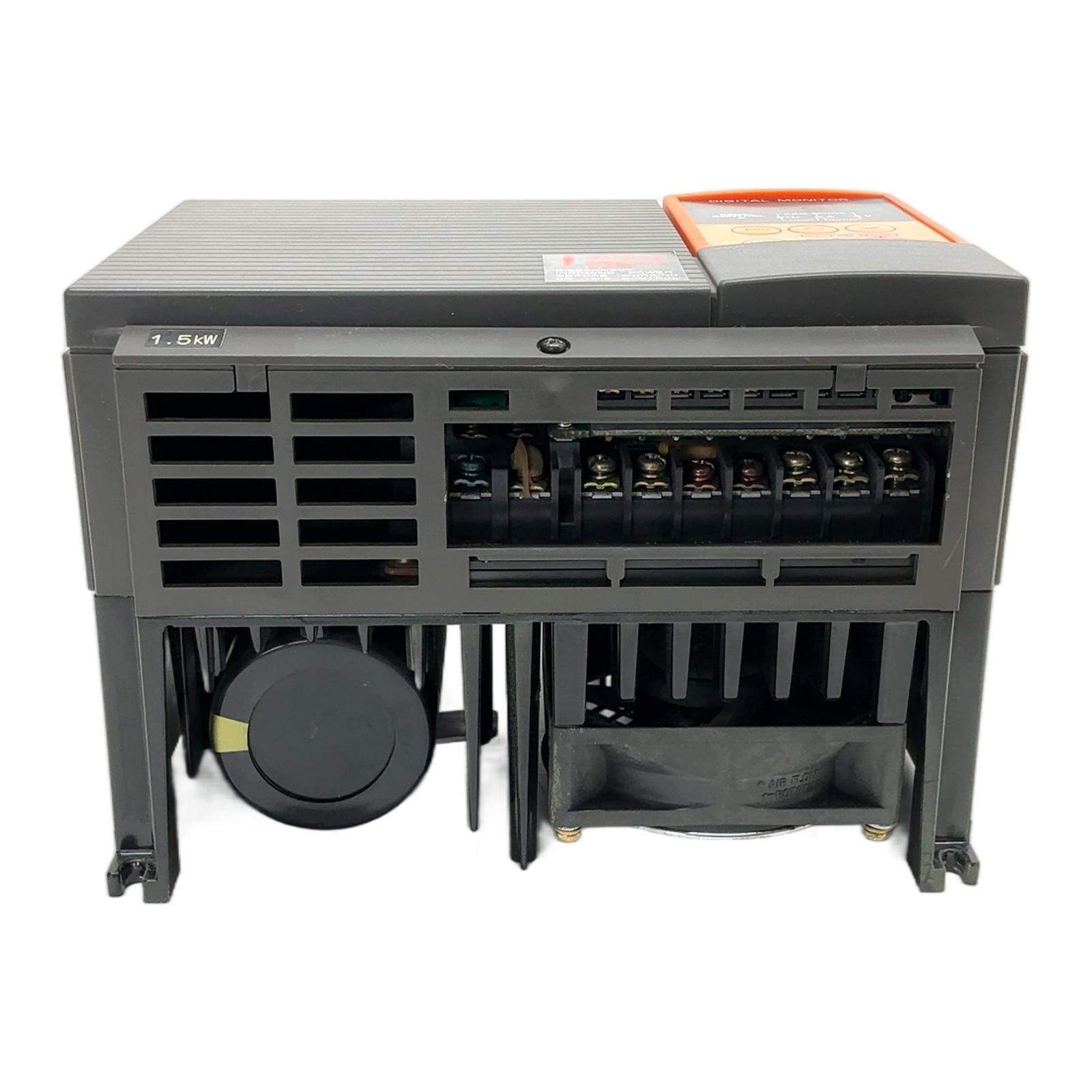

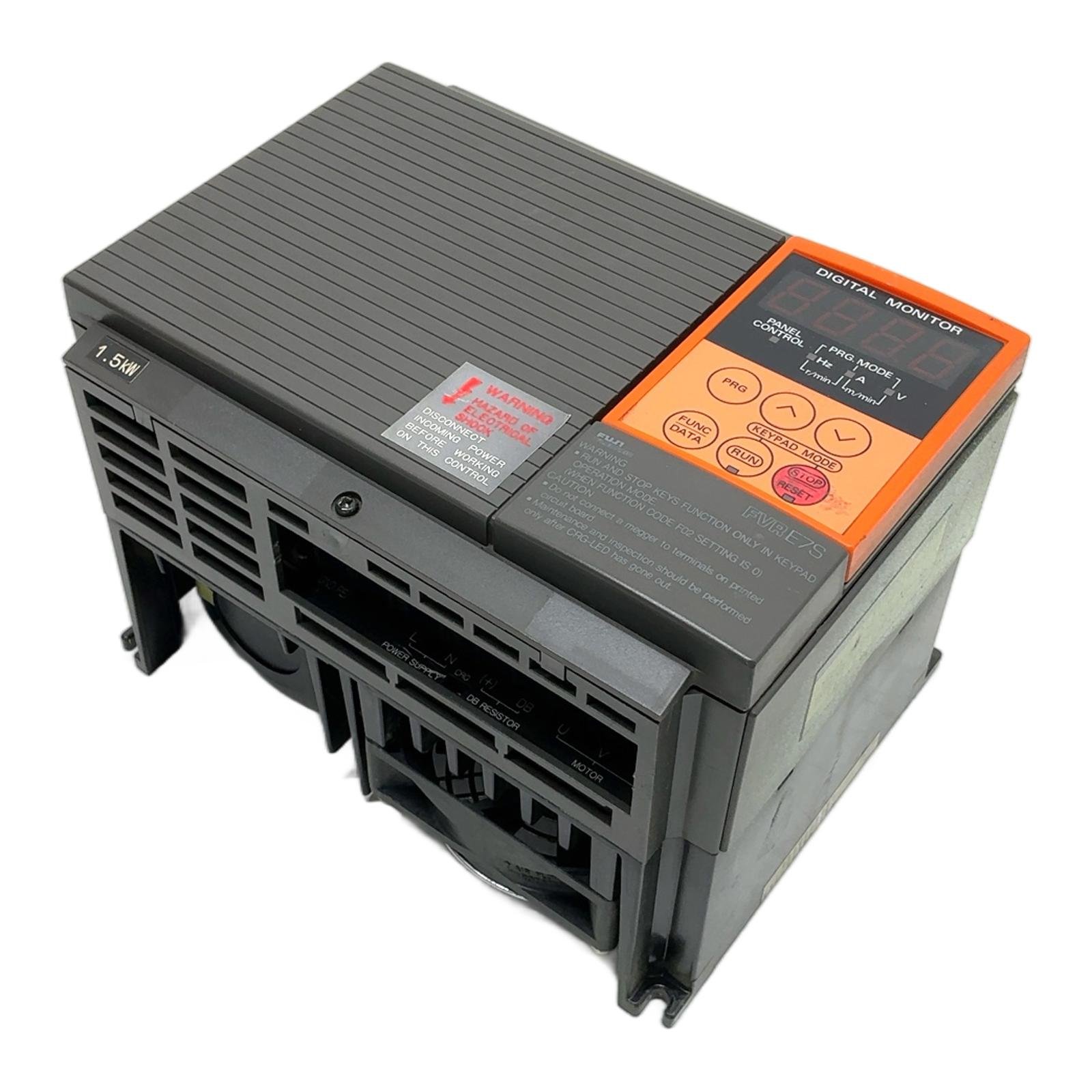

Fuji Electric Frequency Inverter 1.5kW FVR015E7S-7EX Description The FVR015E7S-7EX is a versatile and compact frequency inverter from Fuji Electric, designed for precise control of AC motors. This 1.5 kW model operates on a single-phase 200-240V input, making it ideal for applications where three-phase power is not available. Part of the reliable FVR-E7S series, it provides a cost-effective solution for speed control in various industrial machines. Specifications Manufacturer: Fuji Electric Model: FVR015E7S-7EX Power Rating: 1.5 kW Input Voltage: 1-phase 200-240V AC, 50/60 Hz Output Voltage: 3-phase 200-240V AC Output Current: 8.0 A Output Frequency Range: 0.2 to 400 Hz Control Method: V/f Control Enclosure: IP20 Label Info Type: FVR015E7S-7EX Serial Number: 438577R355 Input: 1PH 200-240V 50/60Hz Output: 3.0kVA 8.0A 0.2-400Hz Application This frequency inverter is suitable for a wide range of applications, including conveyor belts, fans, pumps, and other machinery requiring variable speed motor control in a compact form factor. CO2 Impact Opting for this reused Fuji Electric inverter instead of a new one prevents the emission of approximately 100 kg of CO2. This saving is a direct result of avoiding the energy-intensive manufacturing process of new electronics. Availability This is an obsolete item but available from our stock as a reliable spare part. Perfect for maintaining existing systems without costly upgrades. Order now from profideals for expert support and fast delivery. FAQ What is the main difference between single-phase input and three-phase output on this drive?This drive is designed for installations where only single-phase power is available. It internally converts the single-phase 230V input into a three-phase output to run a standard three-phase industrial motor, providing full variable speed control. Can I use a modern Fuji FRENIC series keypad with this older FVR-E7S model?No, the keypads are generally not interchangeable between different drive series due to differences in firmware, communication protocols, and physical connectors. You must use the integrated keypad or a remote keypad specifically designed for the FVR-E7S series. What should I check before replacing an old FVR015E7S-7EX?First, verify the motor’s nameplate data (voltage, current, power) matches the drive’s capacity. Second, ensure all programmed parameters from the old drive (like acceleration/deceleration times, motor data, and I/O assignments) are documented so they can be transferred to the replacement unit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
