REXROTH 4WE 10 J33/CG24N9K4 R900589988

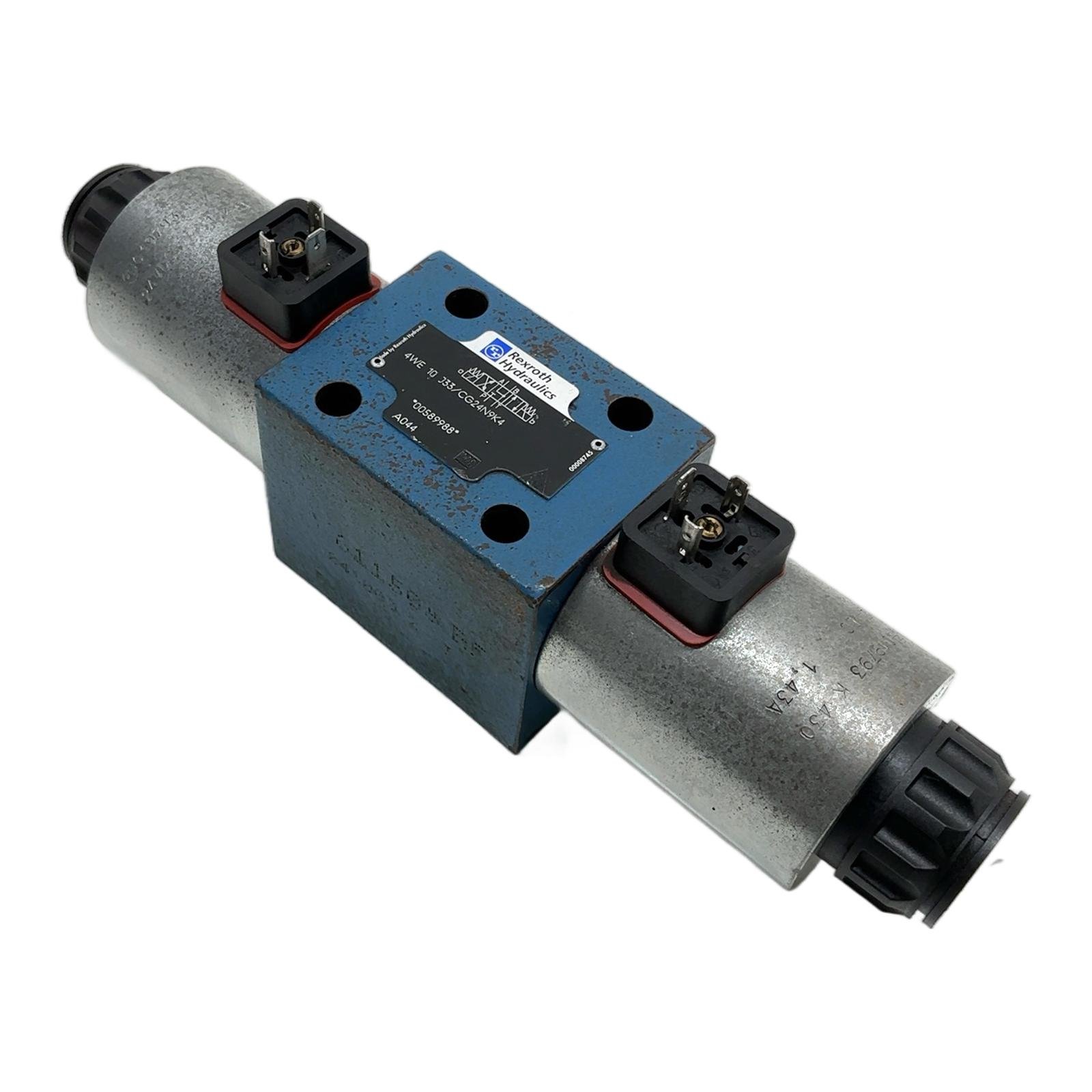

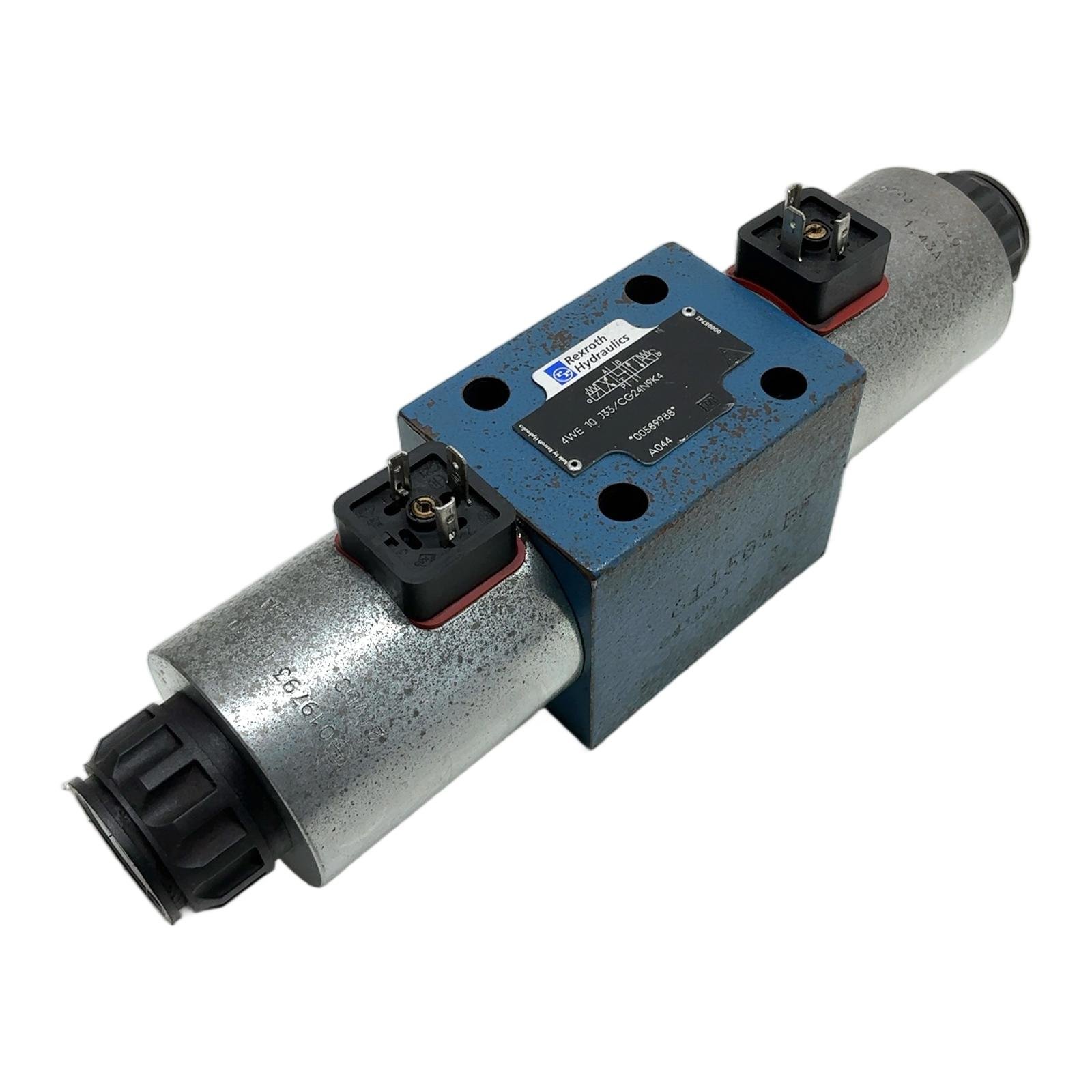

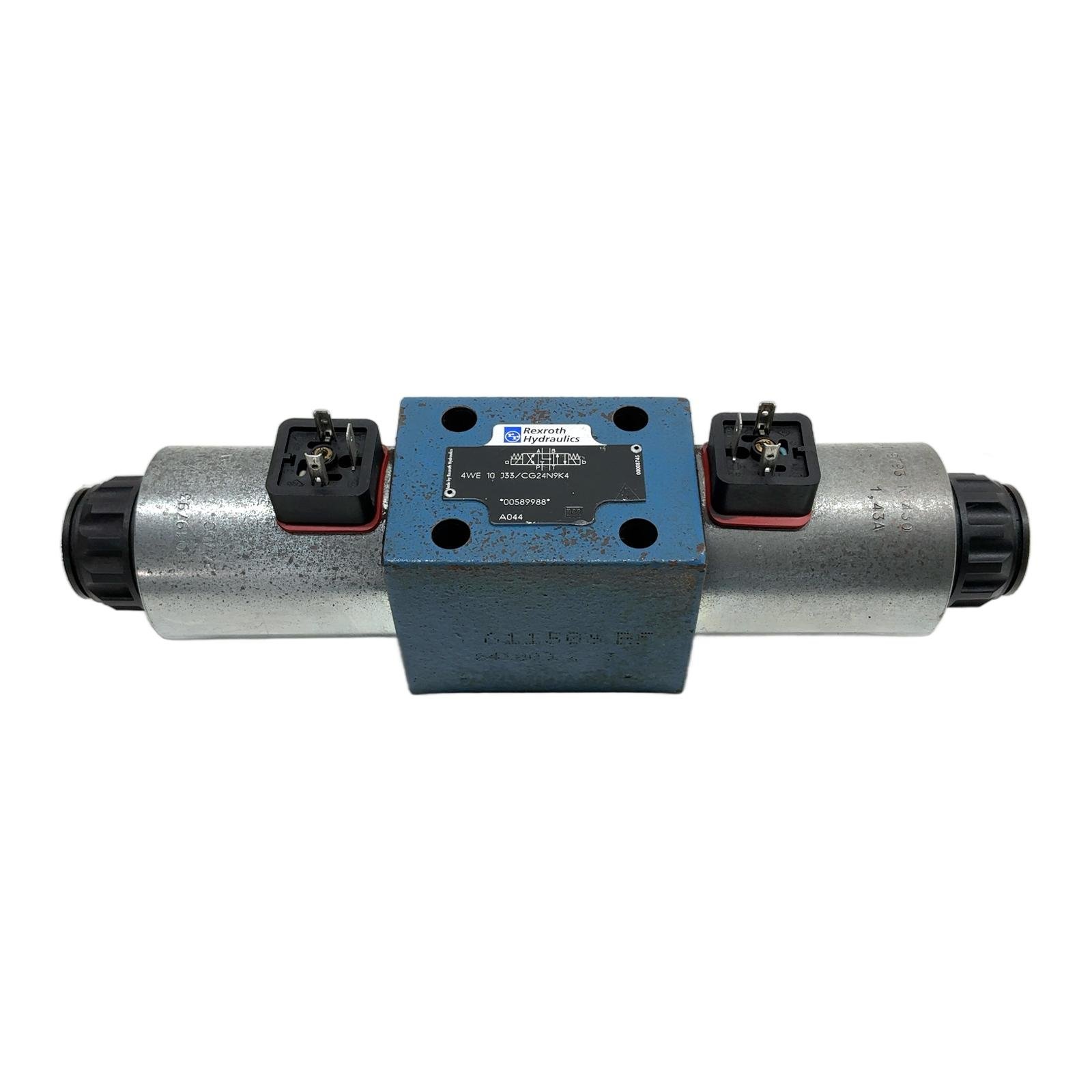

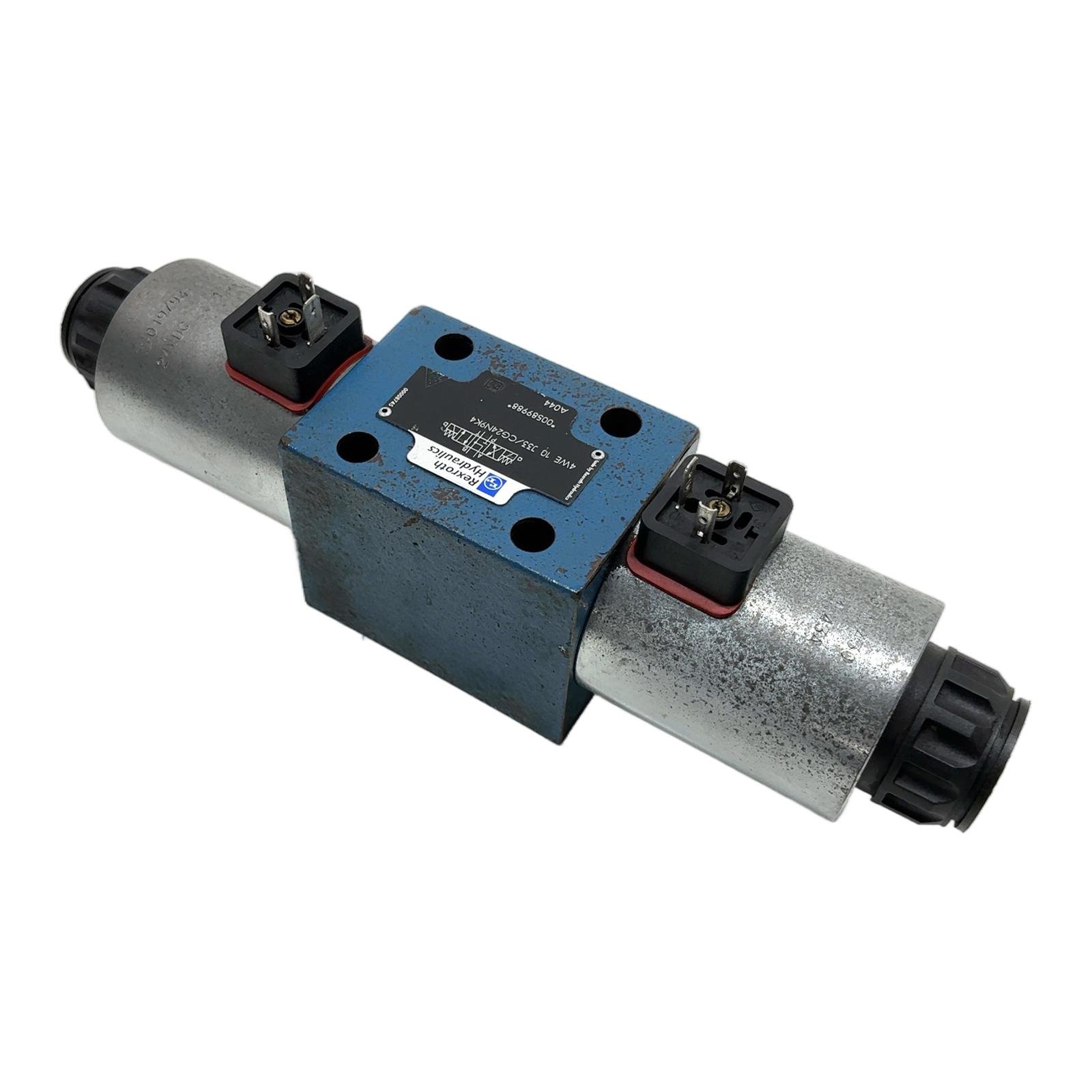

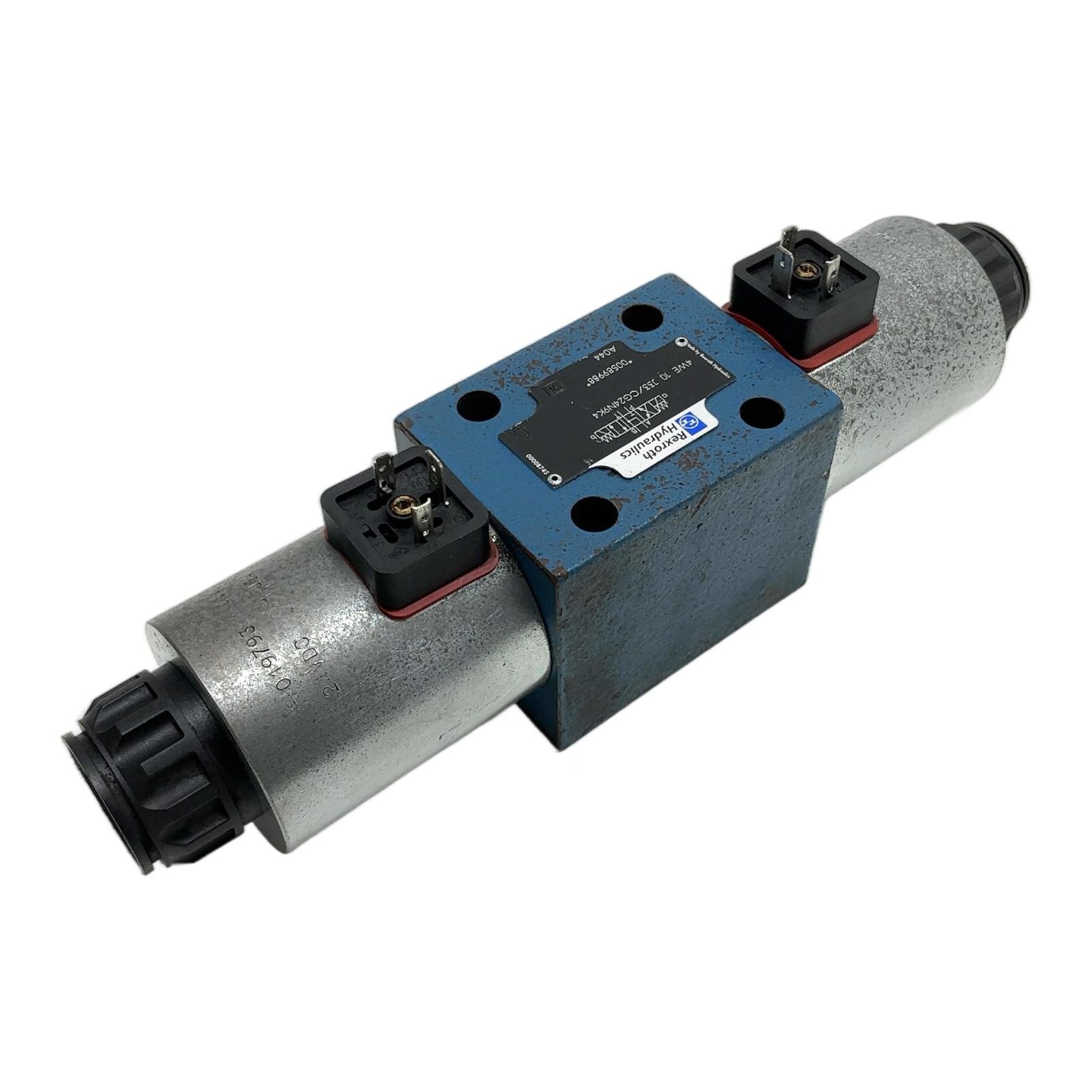

Rexroth 4WE 10 Series Hydraulic Directional Valve Description This is a 4WE 10 J33/CG24N9K4 direct-operated directional spool valve from Bosch Rexroth. It is a high-performance, solenoid-actuated valve used to control the flow direction in a hydraulic system. Engineered for reliability and precision, this valve is suitable for a wide range of industrial applications. The NG10 size and ISO 4401 mounting pattern ensure compatibility and ease of installation. Specifications Manufacturer: Rexroth Series: 4WE 10 Type: 4WE 10 J33/CG24N9K4 Material Number: R900589988 Valve Type: 4/3-way Directional Spool Valve Size: NG10 (CETOP 5 / ISO 4401-05) Actuation: Solenoid-operated Solenoid Voltage: 24V DC Electrical Connection: DIN EN 175301-803 connector Maximum Operating Pressure: 350 bar (5075 psi) Label Info Model: 4WE 10 J33/CG24N9K4 Part Number: 00589988 Application Ideal for use in machine tools, manufacturing equipment, presses, and mobile hydraulics where precise and reliable directional control is required. Country of Origin Made in Germany. CO2 Impact Reusing this hydraulic valve saves approximately 49 kg of CO2, contributing to a more sustainable operation by avoiding the production of a new component. Availability This item is a used, tested component in excellent working condition. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the “J33” spool symbol? The “J33” designation refers to the specific spool configuration which provides a P-A/B-T flow path in one actuated position and P-B/A-T in the other, with all ports blocked in the central, spring-centered position. This is a common setup for controlling double-acting cylinders. Can I replace the 24VDC solenoids with a different voltage, like 110VAC? Yes, Rexroth offers interchangeable solenoids for the 4WE 10 series. You would need to purchase the correct solenoid coils and potentially different connectors for the desired voltage, but the valve body itself is compatible. What is the required hydraulic fluid cleanliness level for the Rexroth 4WE 10 series? For optimal performance and a long service life, Bosch Rexroth recommends a fluid cleanliness level of at least 20/18/15 according to ISO 4406. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
