IMI NORGREN Y68A-AGN-N1N

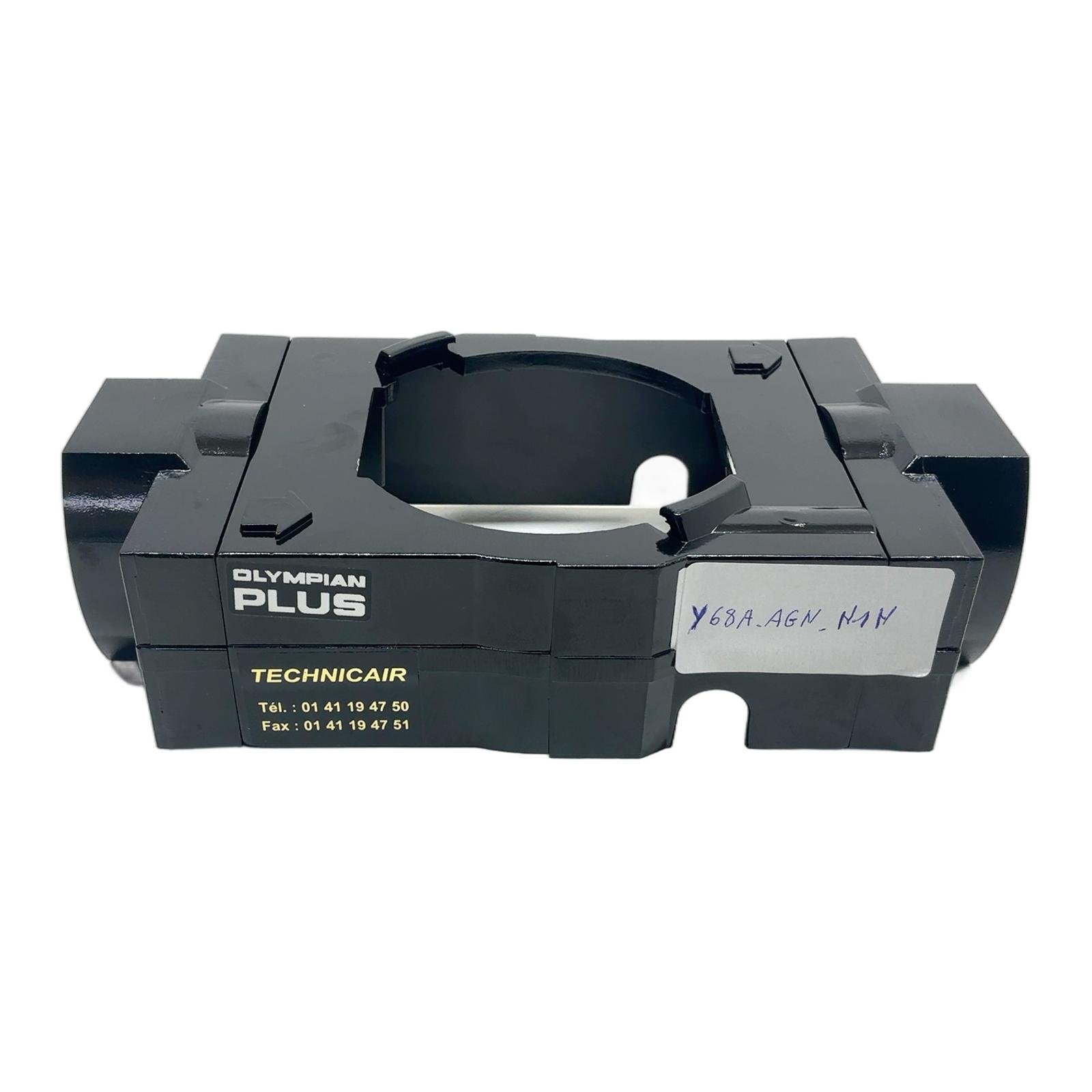

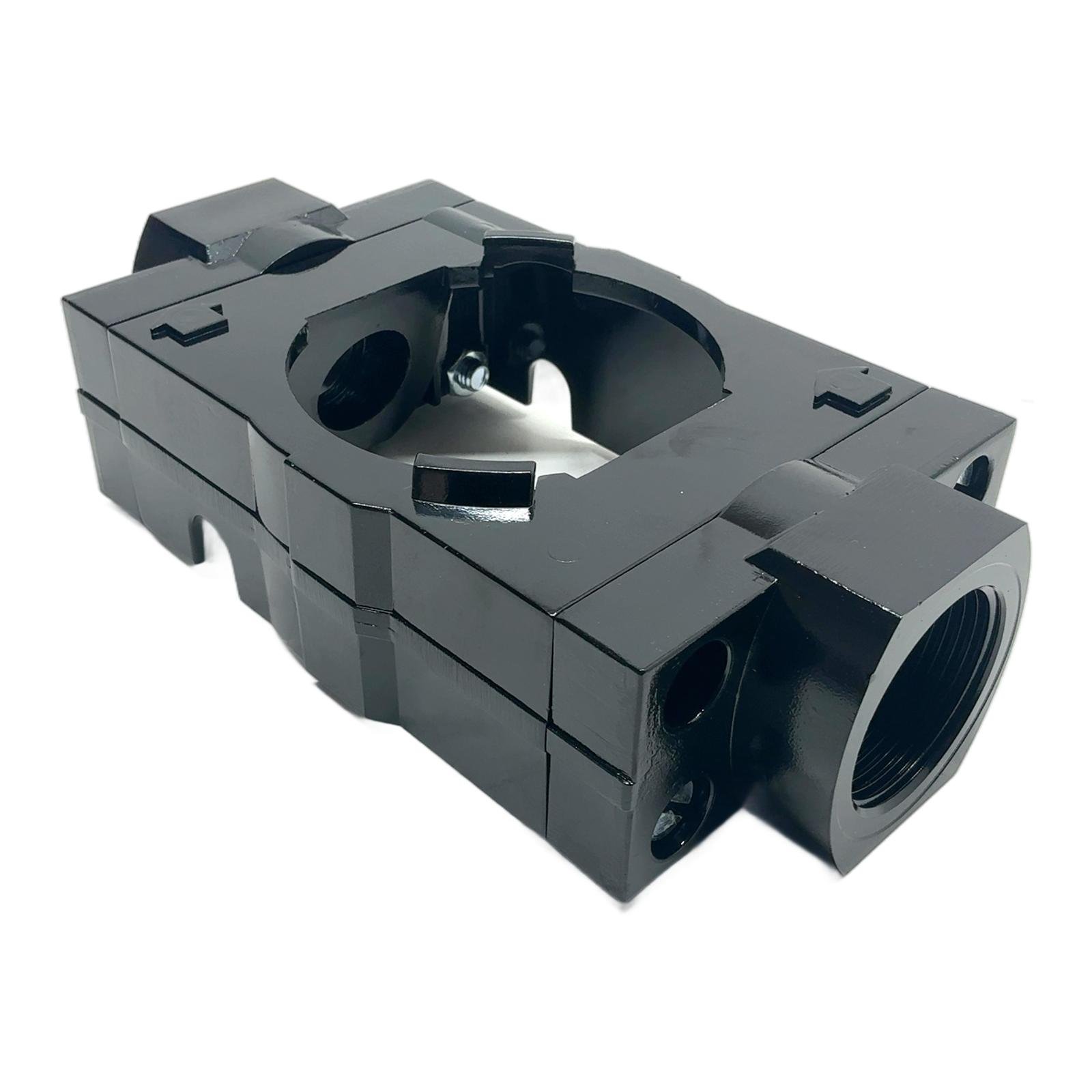

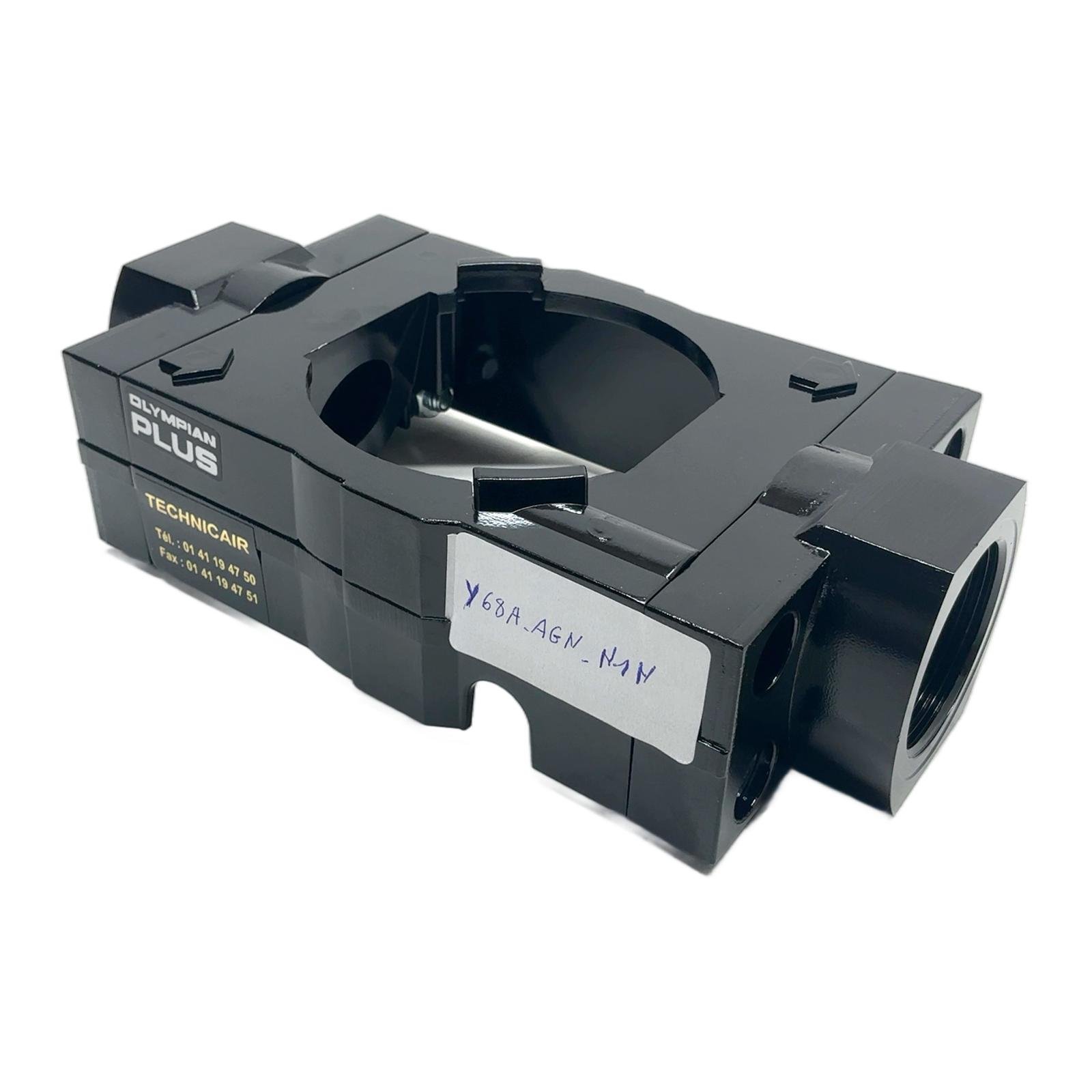

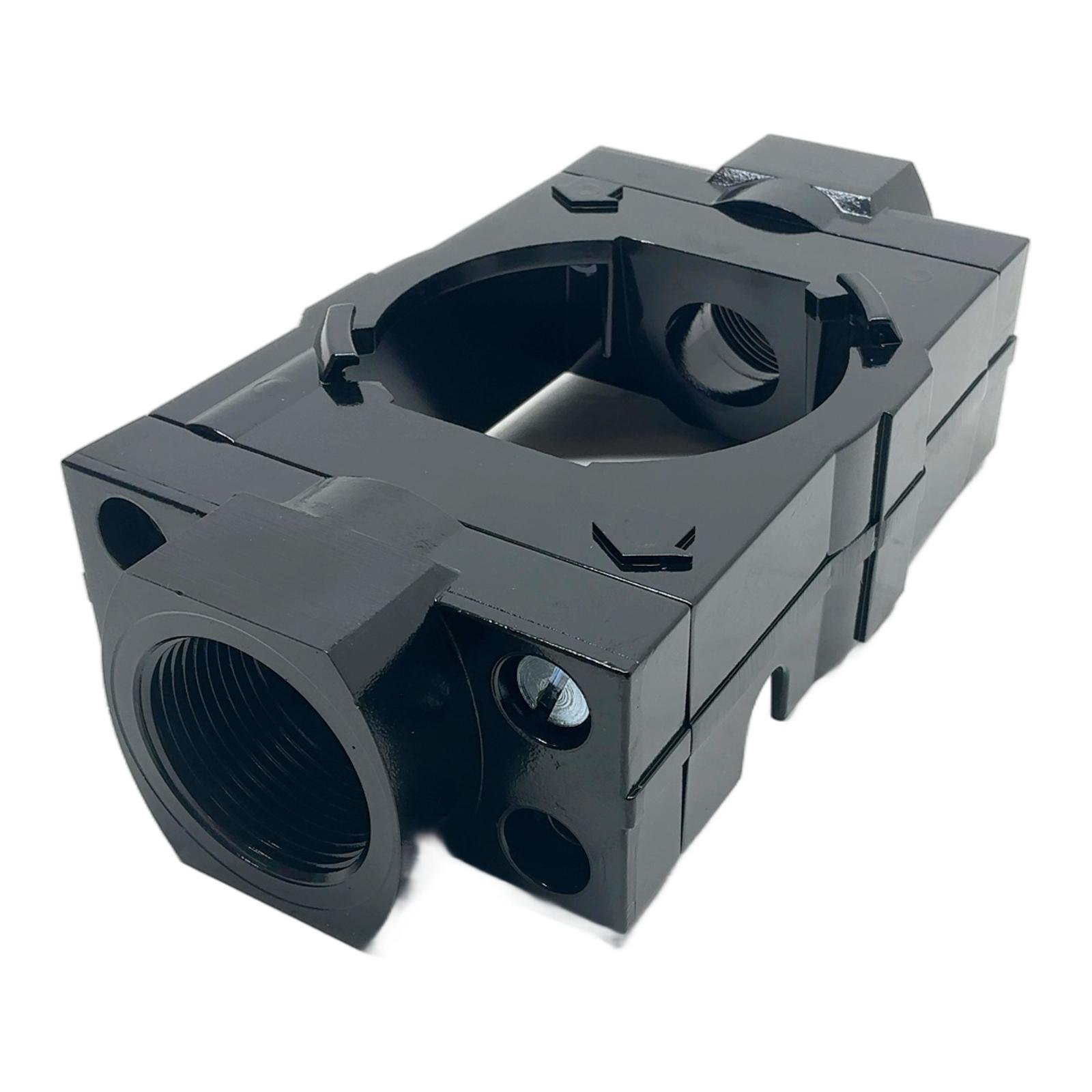

Norgren Olympian Plus Mounting Yoke G1-1/4 Y68A-AGN-N1N Description This is a single yoke assembly, part number Y68A-AGN-N1N, from the Norgren Olympian Plus 68 series. It is designed for integrating modular compressed air preparation components, such as filters, regulators, and lubricators, into a pneumatic system. The ‘plug-in’ design allows for individual components to be installed or removed quickly and easily without disturbing the main pipework, significantly reducing downtime during maintenance. This yoke is constructed from high-quality die-cast aluminium for durability and features G1-1/4 threaded ports. Specifications Manufacturer: Norgren Series: Olympian Plus 68 Product Type: Single Yoke Assembly Model: Y68A-AGN-N1N Port Connection: G1-1/4 (BSPP Parallel Thread) Body Material: Die-cast Aluminium Ambient Temperature Range: -20 deg C to +80 deg C Version: Standard, without shut-off valve Label Info Brand: Norgren Part Number: Y68A-AGN-N1N Description on label: EMBASE SIMPLE G1-1/4 Application This mounting yoke is an essential component for building modular FRL (Filter-Regulator-Lubricator) assemblies in industrial automation, manufacturing, processing plants, and any application requiring high-quality compressed air treatment. Its large G1-1/4 port size makes it suitable for high-flow pneumatic systems. Country of Origin Norgren is a global manufacturer with production facilities worldwide, including in Europe, North America, and Asia. CO2 Impact Choosing this reused Norgren yoke assembly over a new one prevents the emission of approximately 18.0 kg of CO2. This saving is achieved by avoiding the energy-intensive production of new aluminium parts. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the primary advantage of the Olympian Plus ‘plug-in’ system?The main advantage is the ability to remove and replace an individual air preparation unit (like a filter or regulator) in seconds without having to shut down the entire compressed air line or disturb any pipe connections. This drastically minimizes production downtime during maintenance. Is this yoke compatible with other Norgren series or only the Olympian Plus 68?This yoke is specifically designed for the Norgren Olympian Plus 68 series. It is not compatible with other series like the 64 series or different brands due to its unique physical dimensions and connection design. What is the maximum operating pressure for this Y68A-AGN-N1N yoke?The yoke itself is a passive mounting component. The pressure rating of the complete assembly is determined by the installed FRL unit. However, the Olympian Plus 68 series components are typically rated for pressures up to 17 bar (250 psi). Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
