HYDAC 4WE 10 J S01-24DG/V 6063163

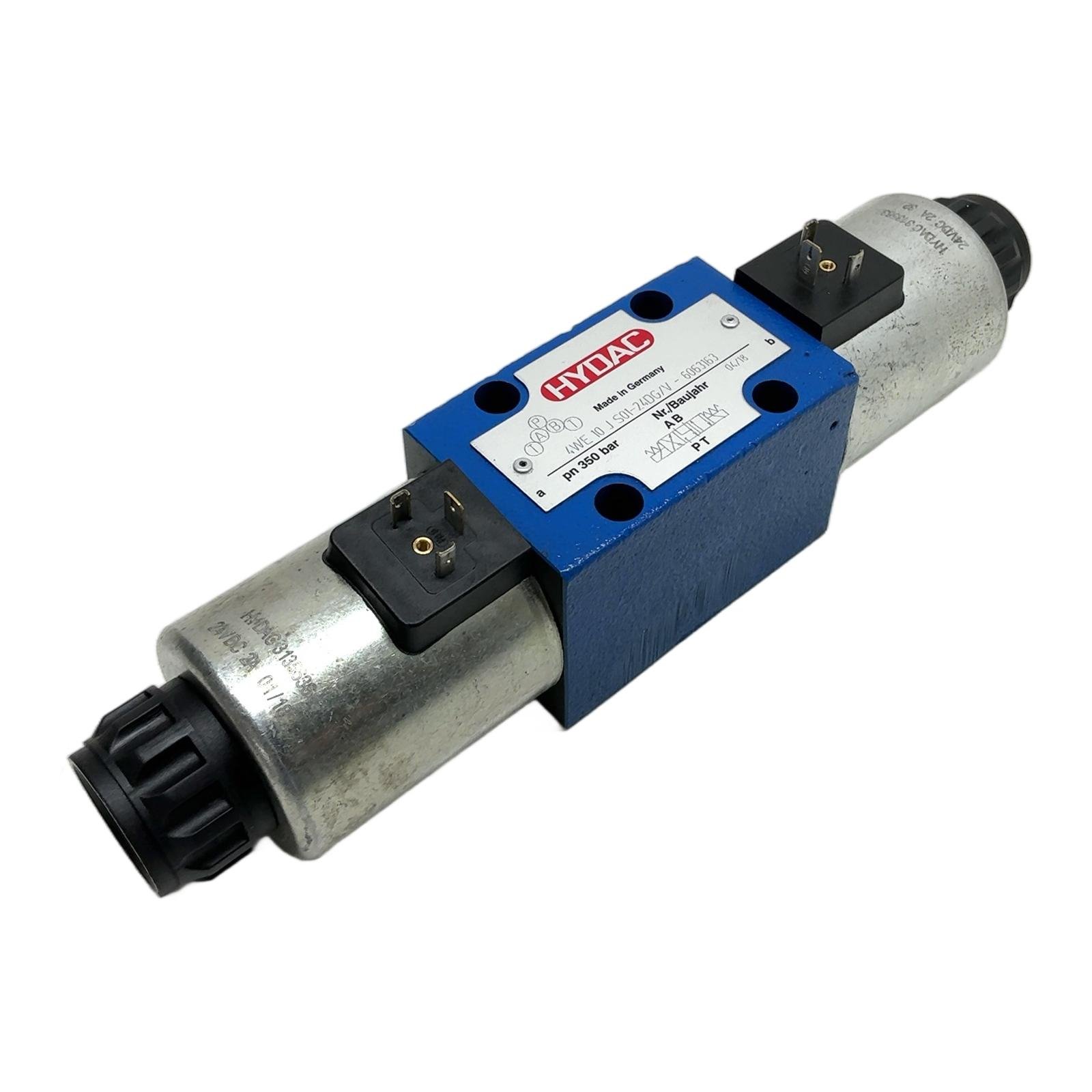

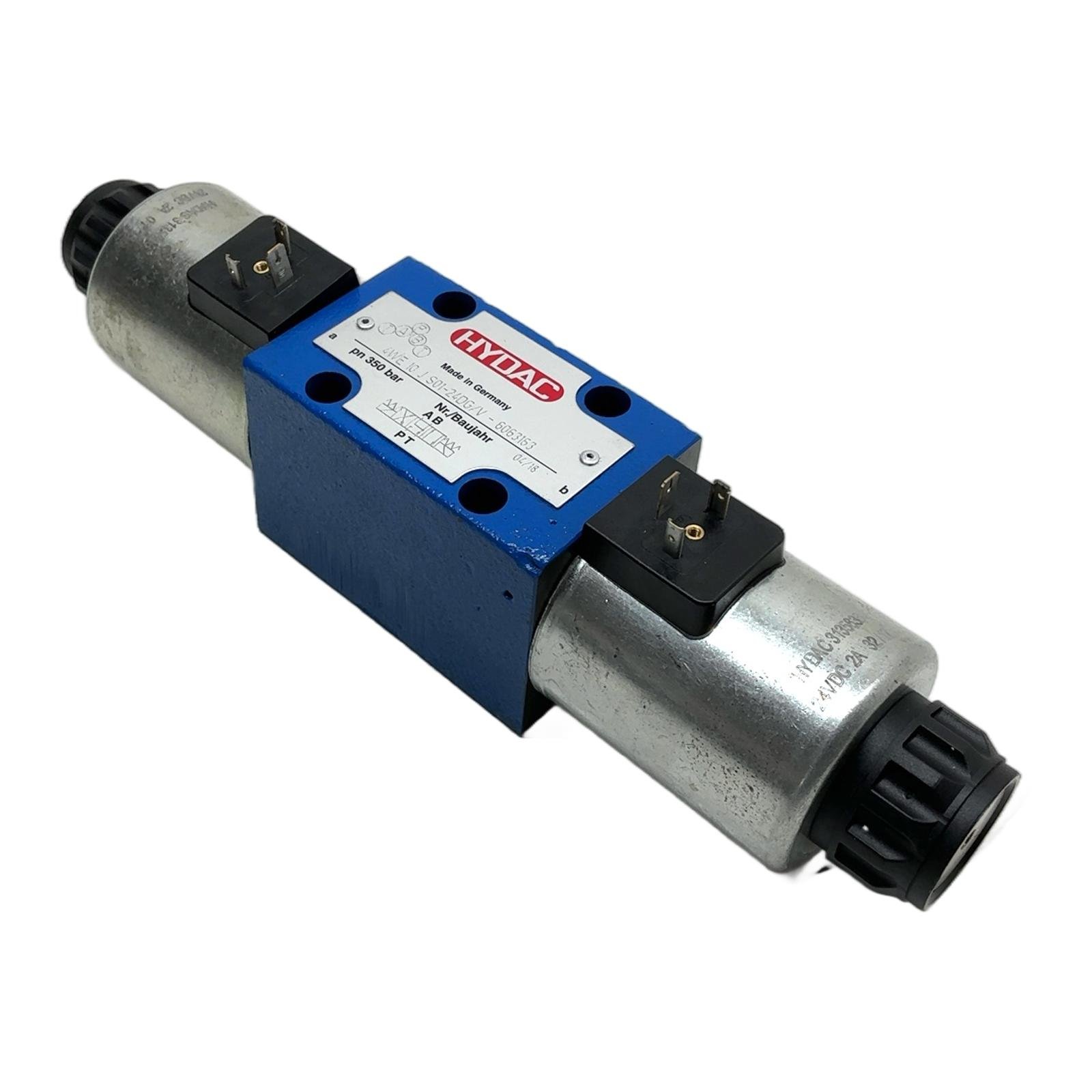

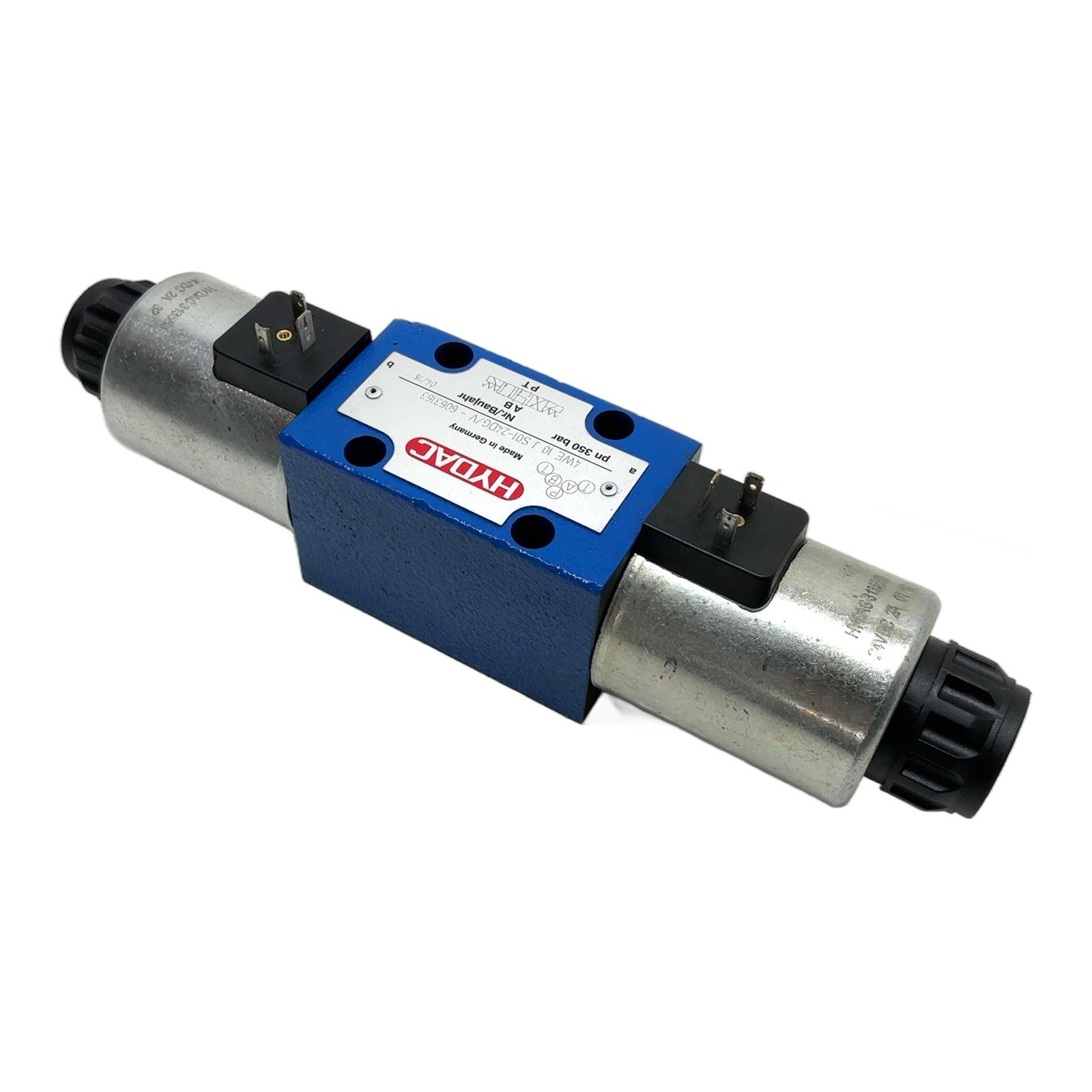

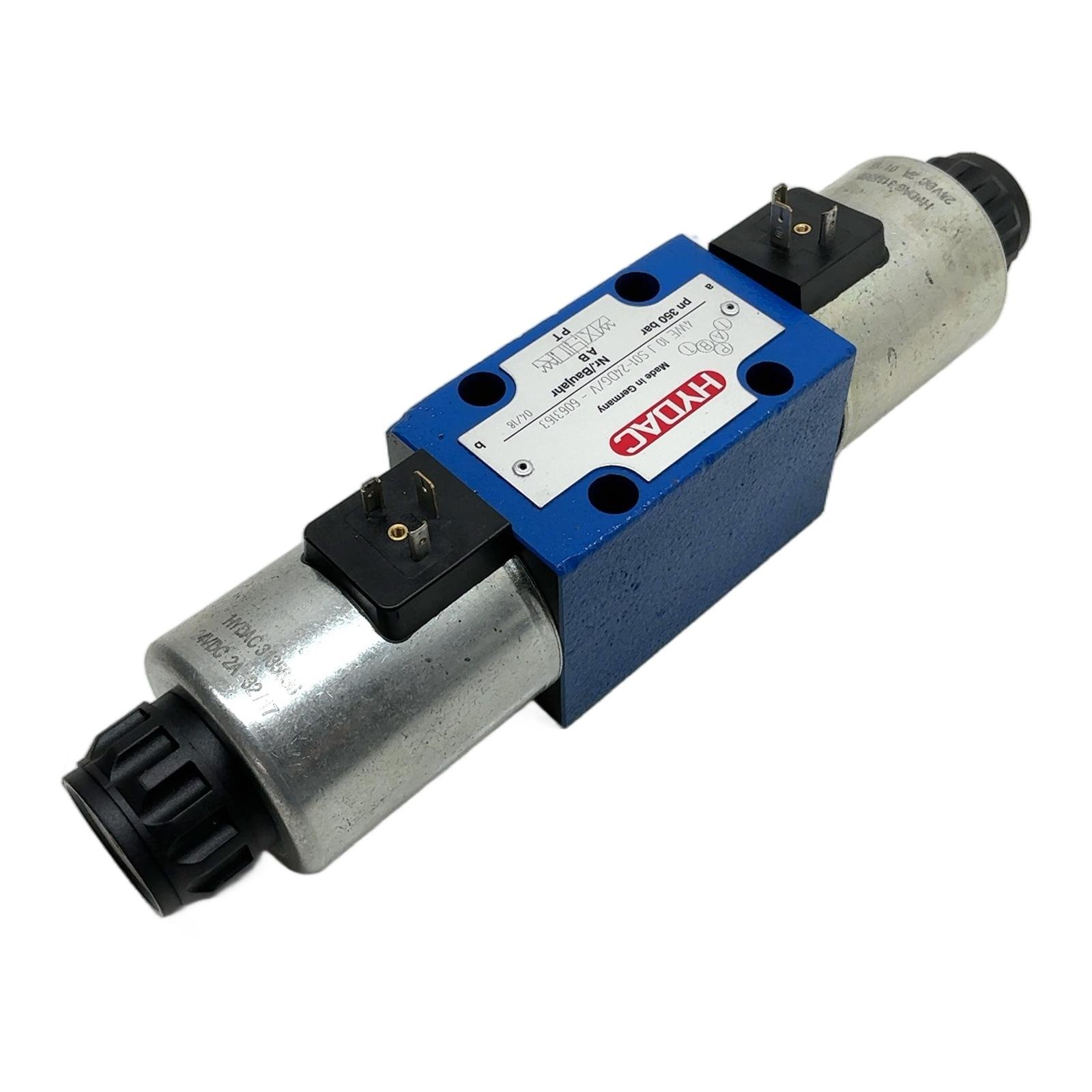

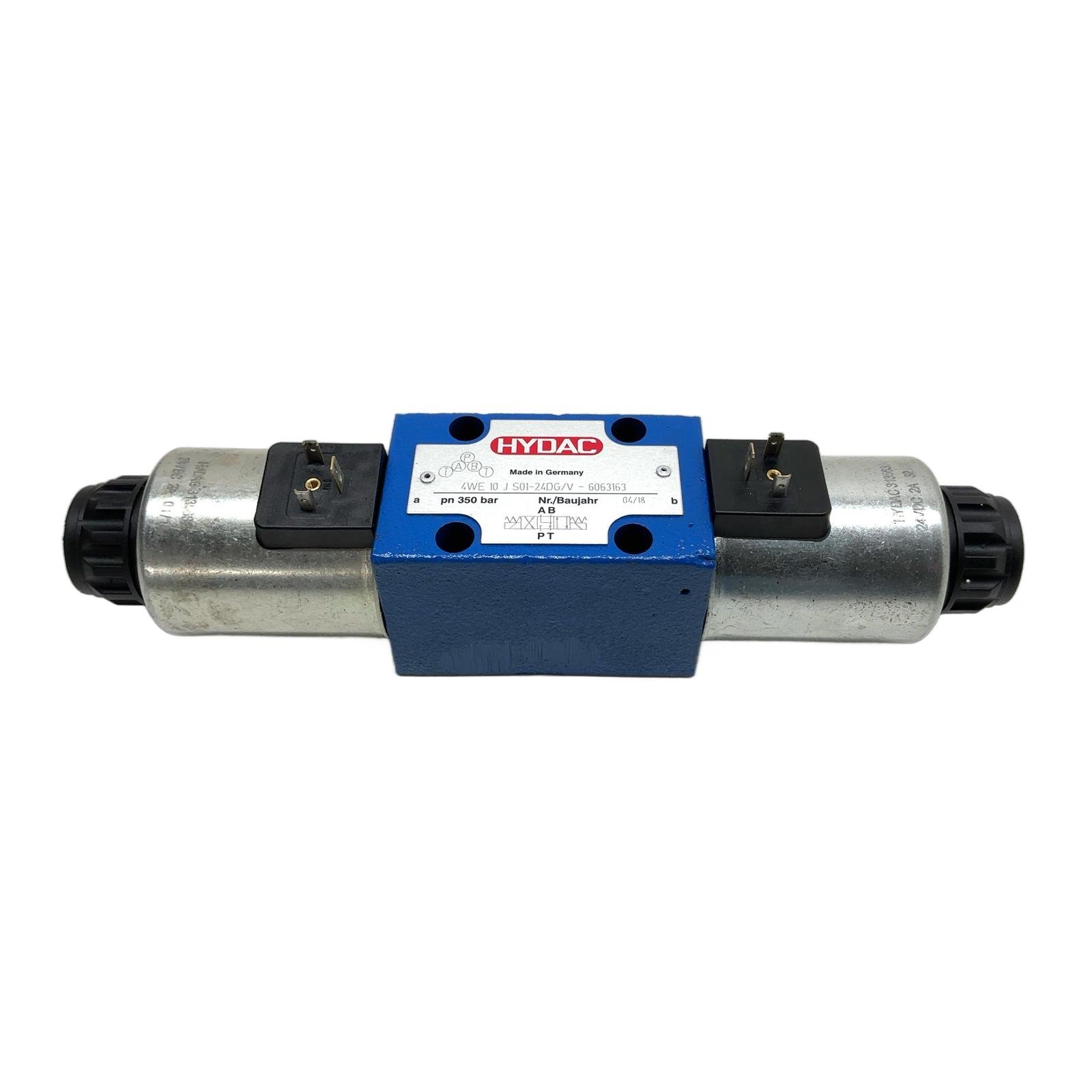

HYDAC 4WE 10 J S01-24DG/V Directional Spool Valve Description This is a direct solenoid operated directional spool valve from HYDAC, model 4WE 10 J S01-24DG/V. It is a 4/3-way valve with a closed-center spool configuration, designed for high-pressure hydraulic applications up to 350 bar. Its NG10 (CETOP 5) mounting interface ensures compatibility and easy installation in standard hydraulic systems. The 24V DC solenoids provide reliable and fast switching for precise control of hydraulic actuators. Specifications Manufacturer: HYDAC Type: 4WE 10 J S01-24DG/V Part Number: 6063163 Valve Type: 4/3-Way Directional Spool Valve Actuation: Dual Solenoid, spring-centered Nominal Size: NG10 / CETOP 5 Maximum Operating Pressure: 350 bar Spool Type: J (Closed Center, A, B, P, T blocked) Control Voltage: 24V DC Seal Material: Viton (FKM) Label Info Model: 4WE 10 J S01-24DG/V – 6063163 Pressure (pn): 350 bar Date of Manufacture: 04/18 (April 2018) Application This valve is suitable for a wide range of industrial applications, including machine tools, presses, manufacturing lines, and mobile machinery, where reliable directional control of hydraulic fluid is required. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned valve, you are avoiding approximately 13 kg of CO2 emissions associated with the manufacturing of a new unit. This is a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘J’ spool in the model number 4WE 10 J S01-24DG/V? The ‘J’ denotes the spool type. In this case, it is a closed-center spool. When the valve is in its neutral, unactuated position, all ports (P, T, A, and B) are blocked, preventing any fluid flow and holding the actuator in position. What type of electrical connector is required for these solenoids? These solenoids use a standard DIN 43650-A (ISO 4400) connector. It’s a common, rectangular 3-pin connector widely used in industrial hydraulics for its robustness and ease of connection. Is this valve suitable for use with hydraulic fluids other than standard mineral oil? Yes. The ‘/V’ at the end of the part number indicates that the valve is fitted with Viton (FKM) seals. These seals offer excellent compatibility with a wide range of fluids, including synthetic esters and water glycols, and are suitable for higher temperature applications compared to standard NBR seals. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
