HYDAC 4WE 10 D S01-24DG/V 6063155

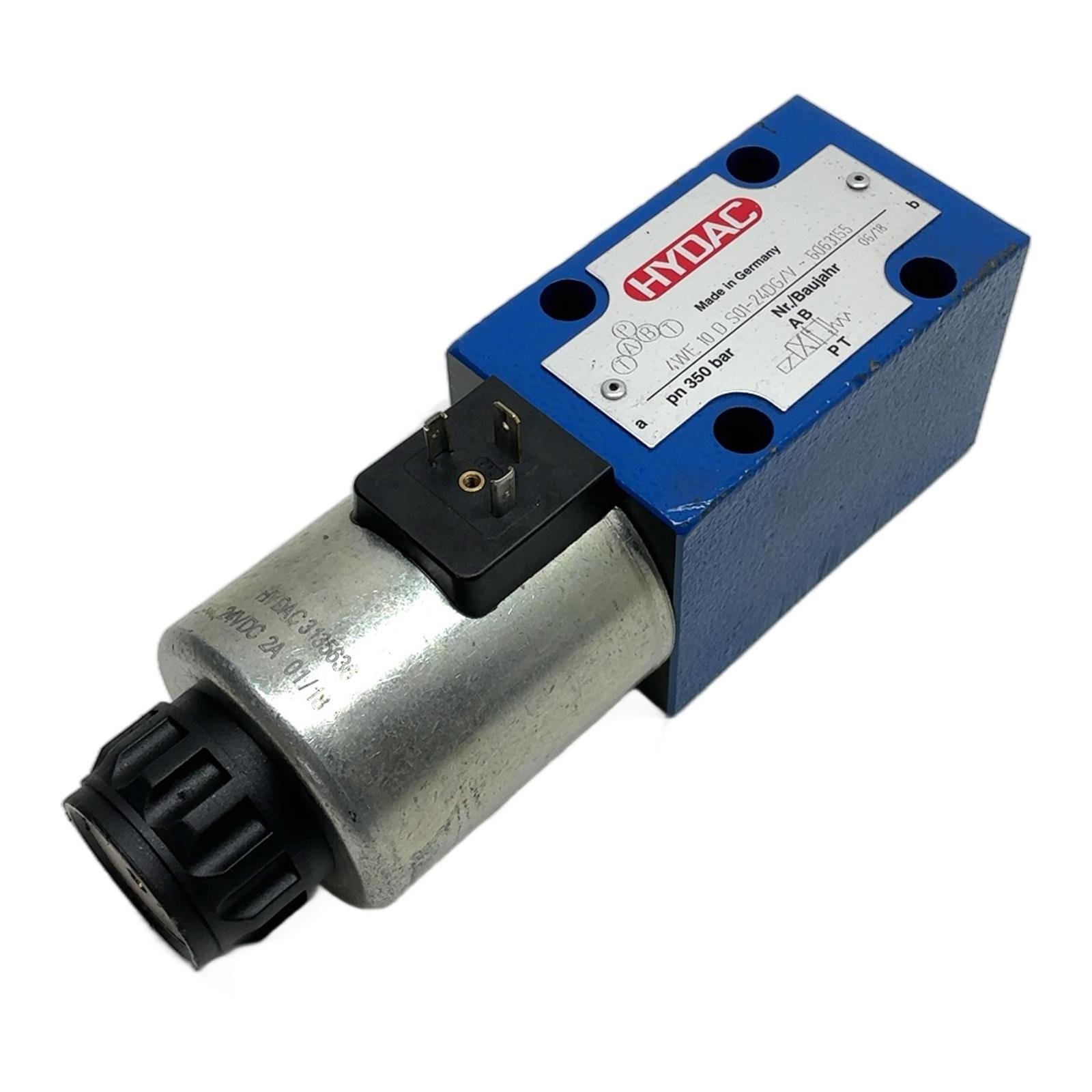

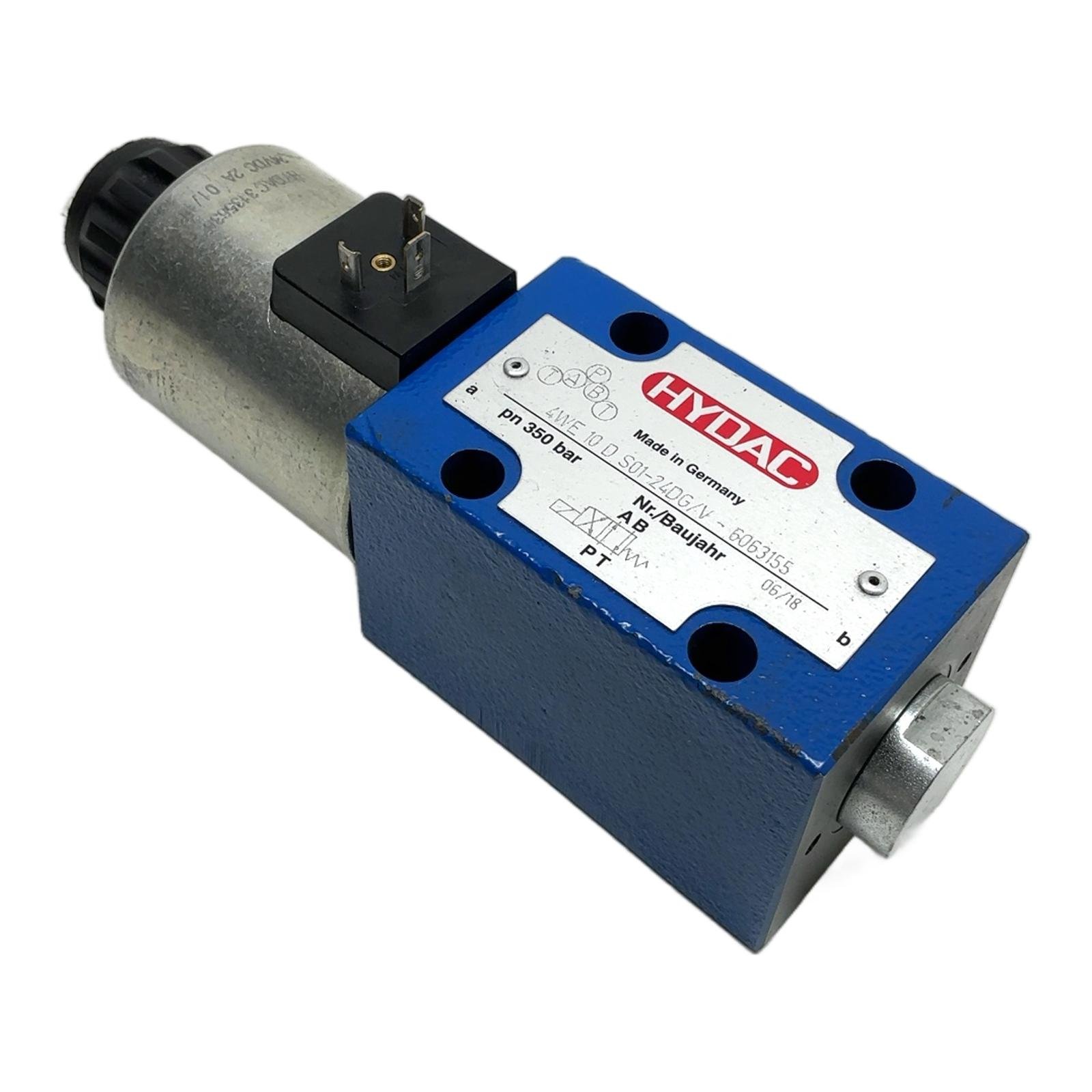

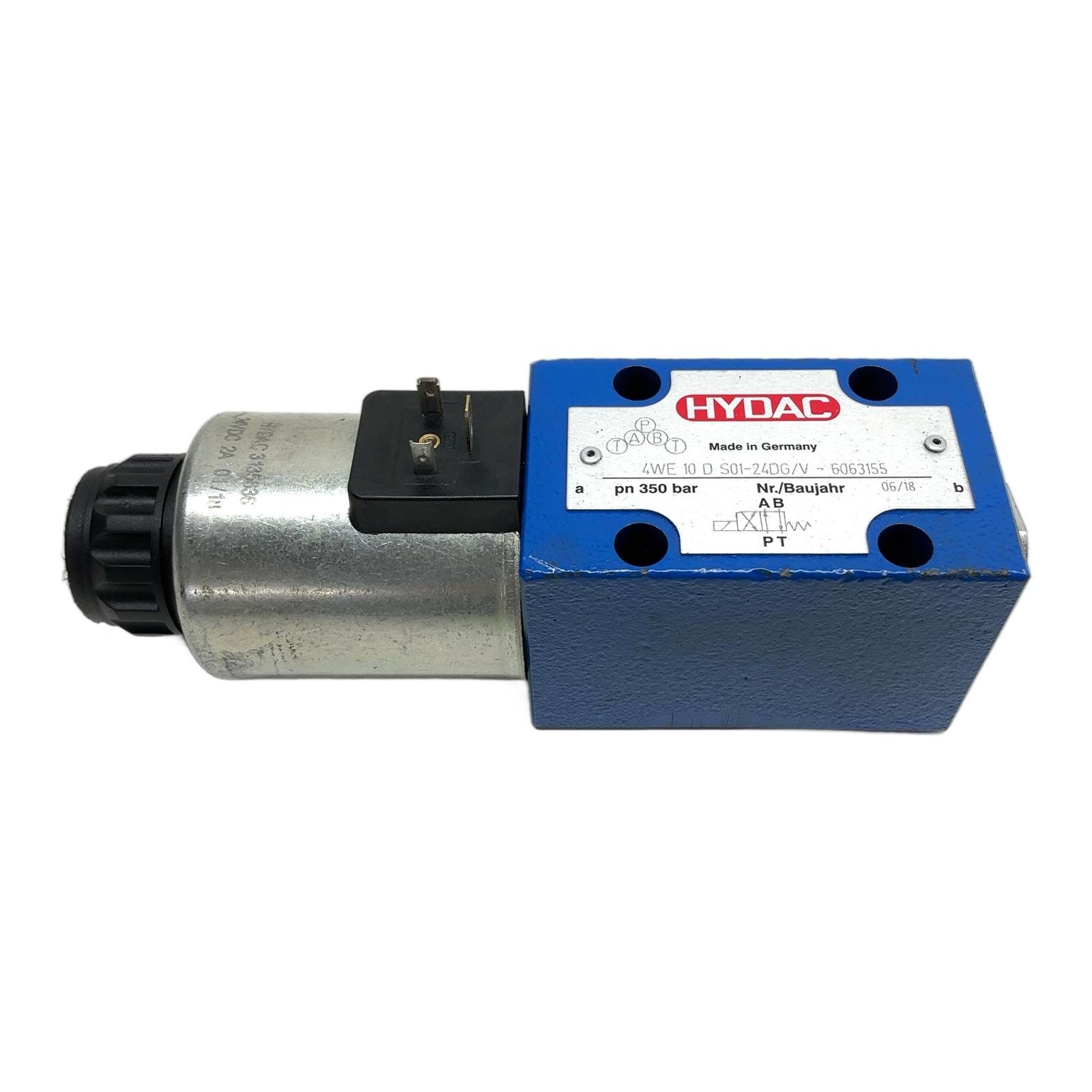

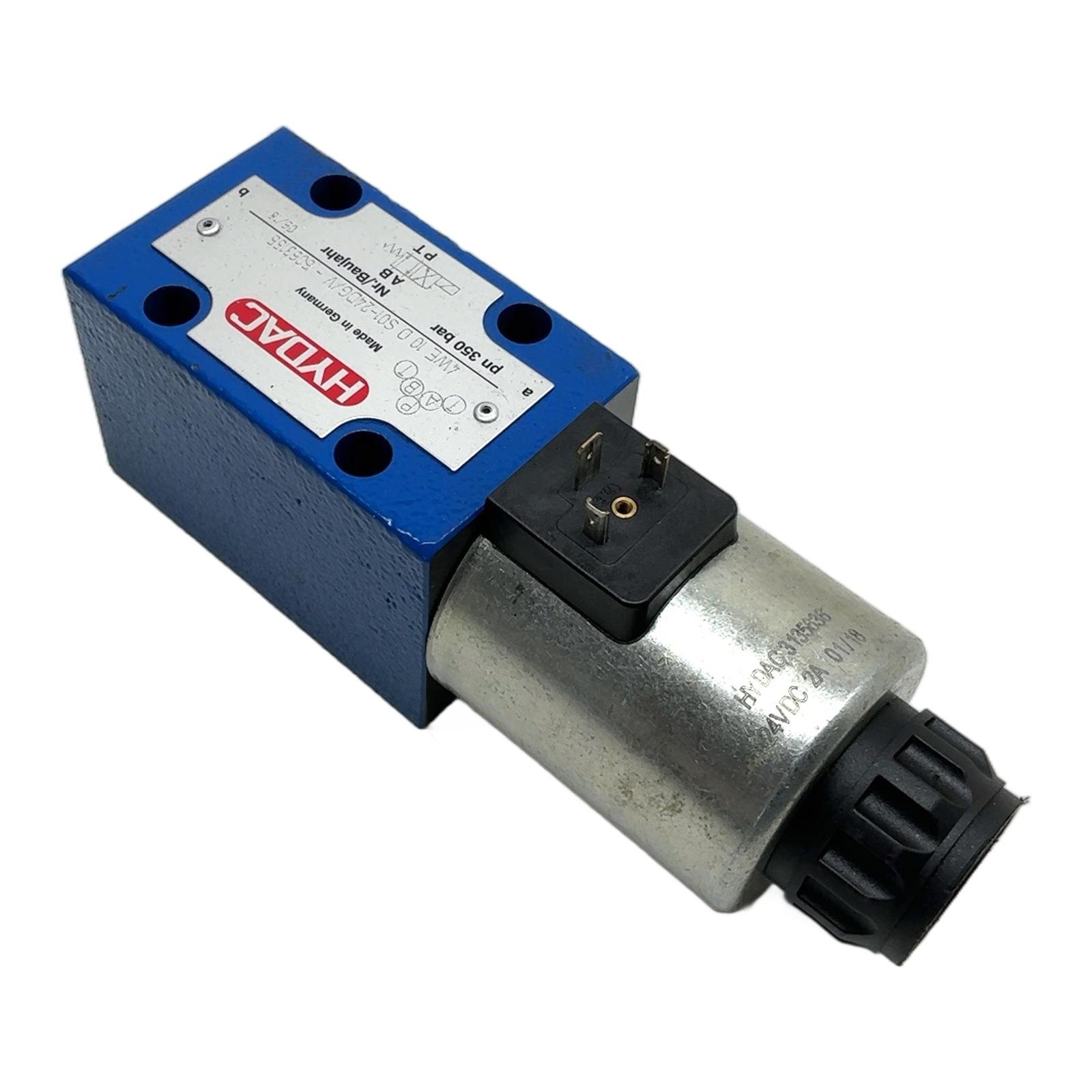

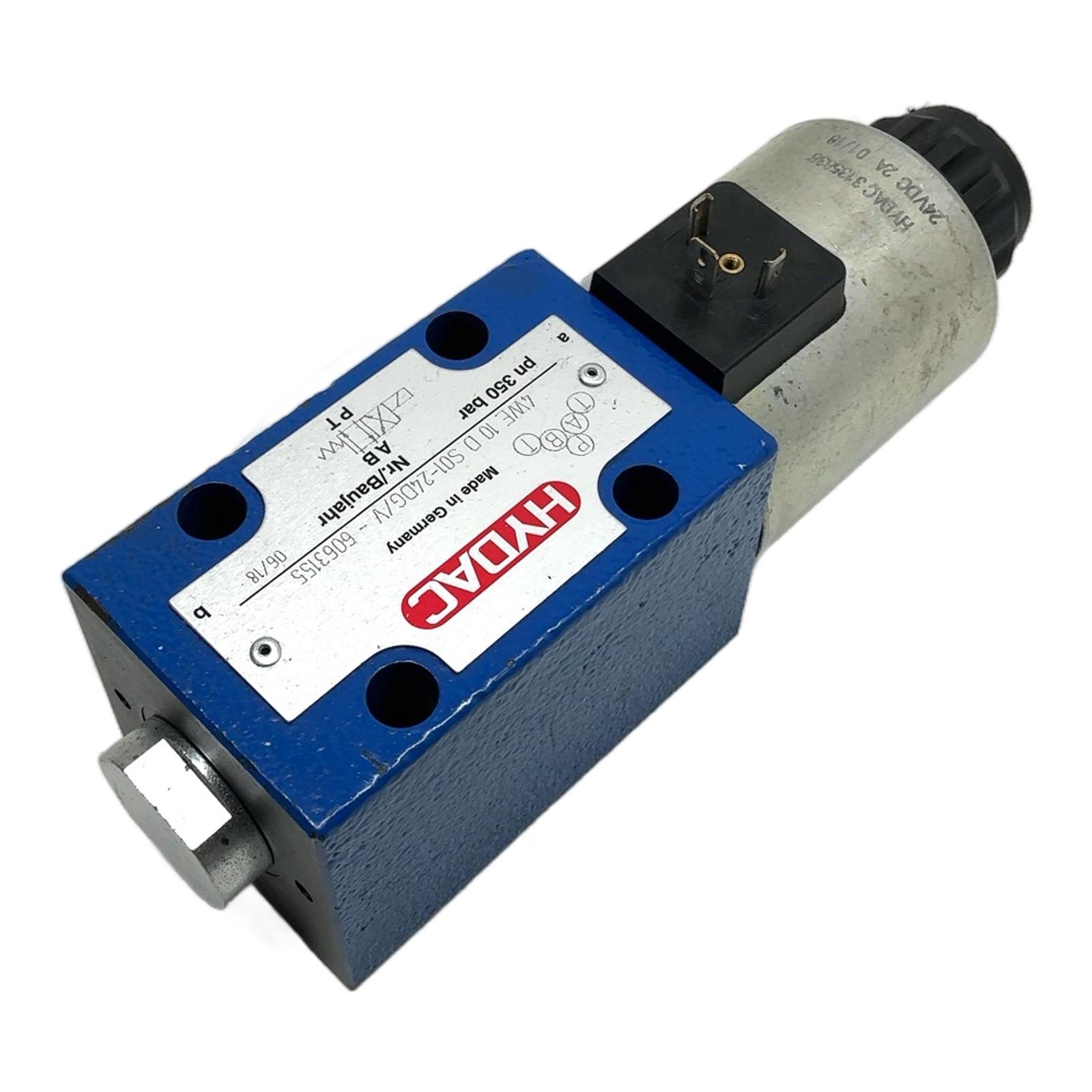

HYDAC 4WE 10 Series Hydraulic Directional Valve Description This is a HYDAC 4WE 10 D S01-24DG/V, a high-performance, solenoid-operated directional spool valve. Designed for reliability in industrial hydraulic systems, it controls the start, stop, and direction of fluid flow. Its robust construction ensures a long service life even under demanding conditions with pressures up to 350 bar. This model features a single 24V DC solenoid and spring return for default positioning. Specifications Manufacturer: HYDAC Type: 4WE 10 D S01-24DG/V Part Number: 6063155 Valve Size: NG10 / CETOP 5 Control Type: Solenoid-operated Function: 4/2-way directional control valve Solenoid Voltage: 24V DC Maximum Operating Pressure: 350 bar Seals: Viton (V) Label Info Valve P/N: 6063155 Date of Manufacture: 06/18 Coil P/N: 3135636 Coil Spec: 24VDC 2A Application This valve is ideal for use in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery where precise hydraulic control is required. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you are helping to prevent the emission of approximately 13 kg of CO2, which would have been generated during the production of a new unit. This saving is comparable to driving a car for 65 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the “NG10” size designation?NG10 (from the German “Nenngroesse 10”) refers to the nominal size of the valve’s mounting interface, conforming to standards like CETOP 5 and ISO 4401-05. This ensures interchangeability with other NG10-sized valves and subplates from various manufacturers. Can the 24V DC solenoid coil (part no. 3135636) be replaced separately if it fails?Yes, the solenoid coil on this HYDAC valve is a modular component. It can be easily unscrewed and replaced without having to remove the entire valve from the hydraulic system, which significantly simplifies maintenance. What type of hydraulic fluid is compatible with the “V” designation for the seals?The ‘/V’ in the type number indicates that the valve is fitted with Viton (FKM) seals. These seals are suitable for use with mineral oils (HL, HLP), synthetic fluids (HFD), and have excellent temperature and chemical resistance compared to standard NBR seals. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
