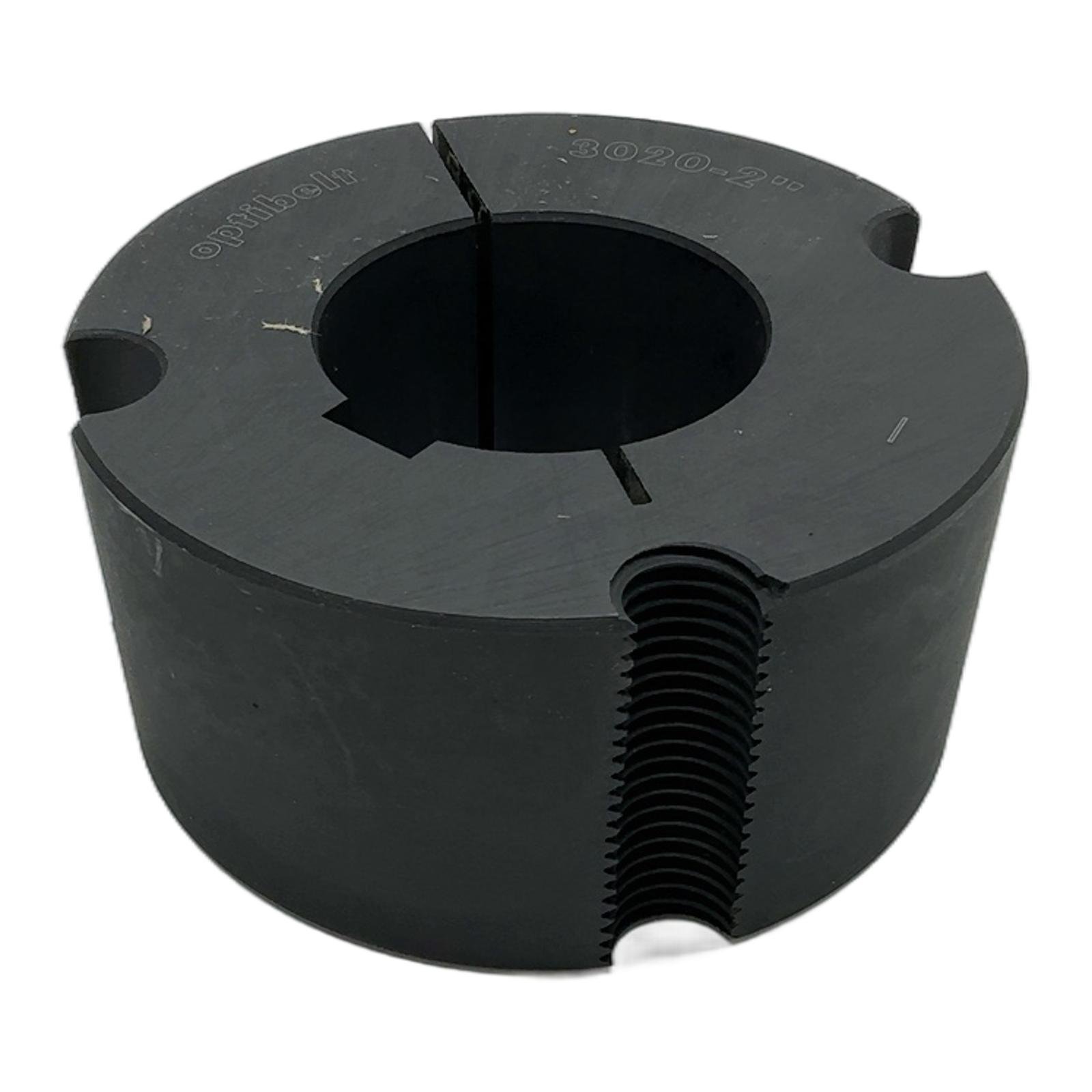

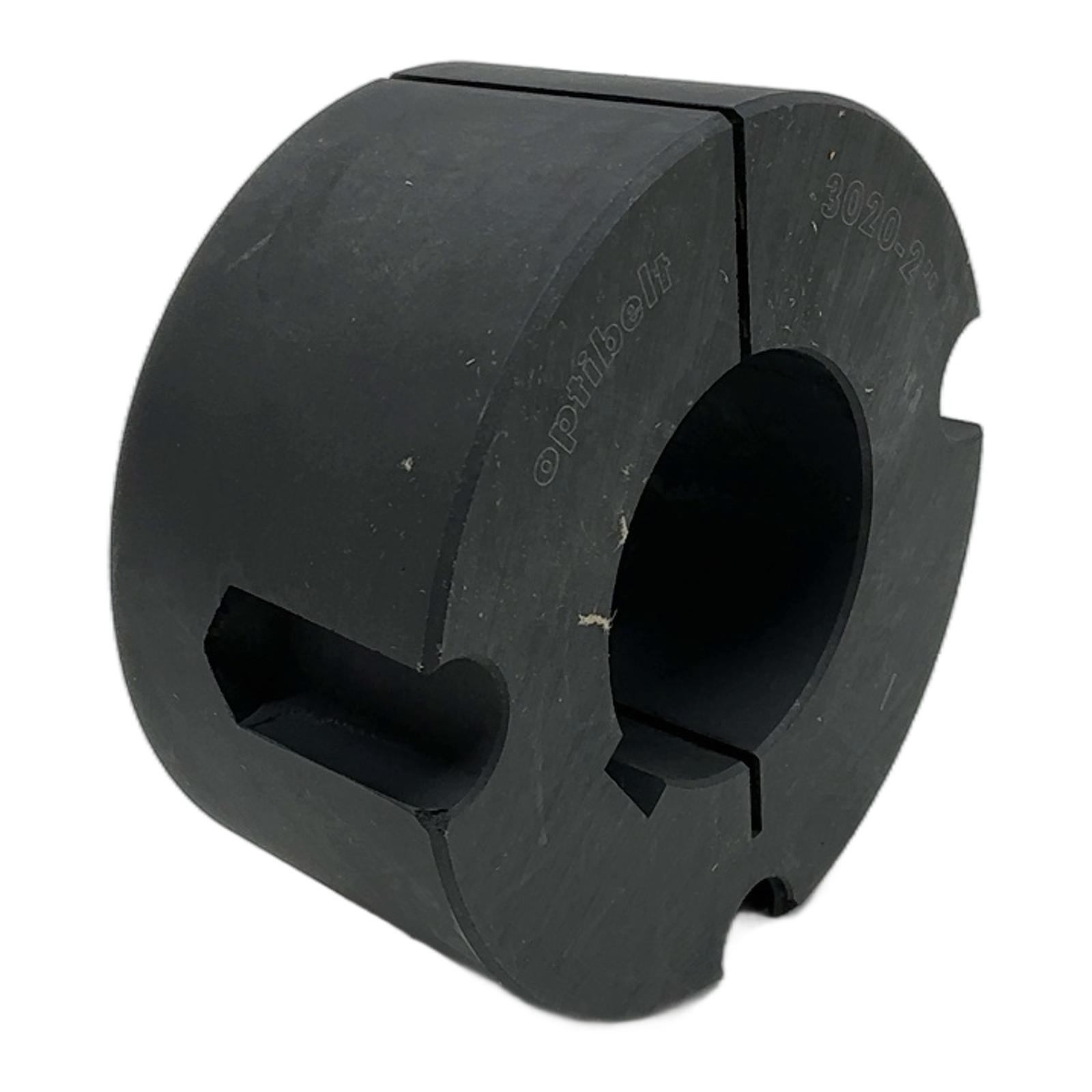

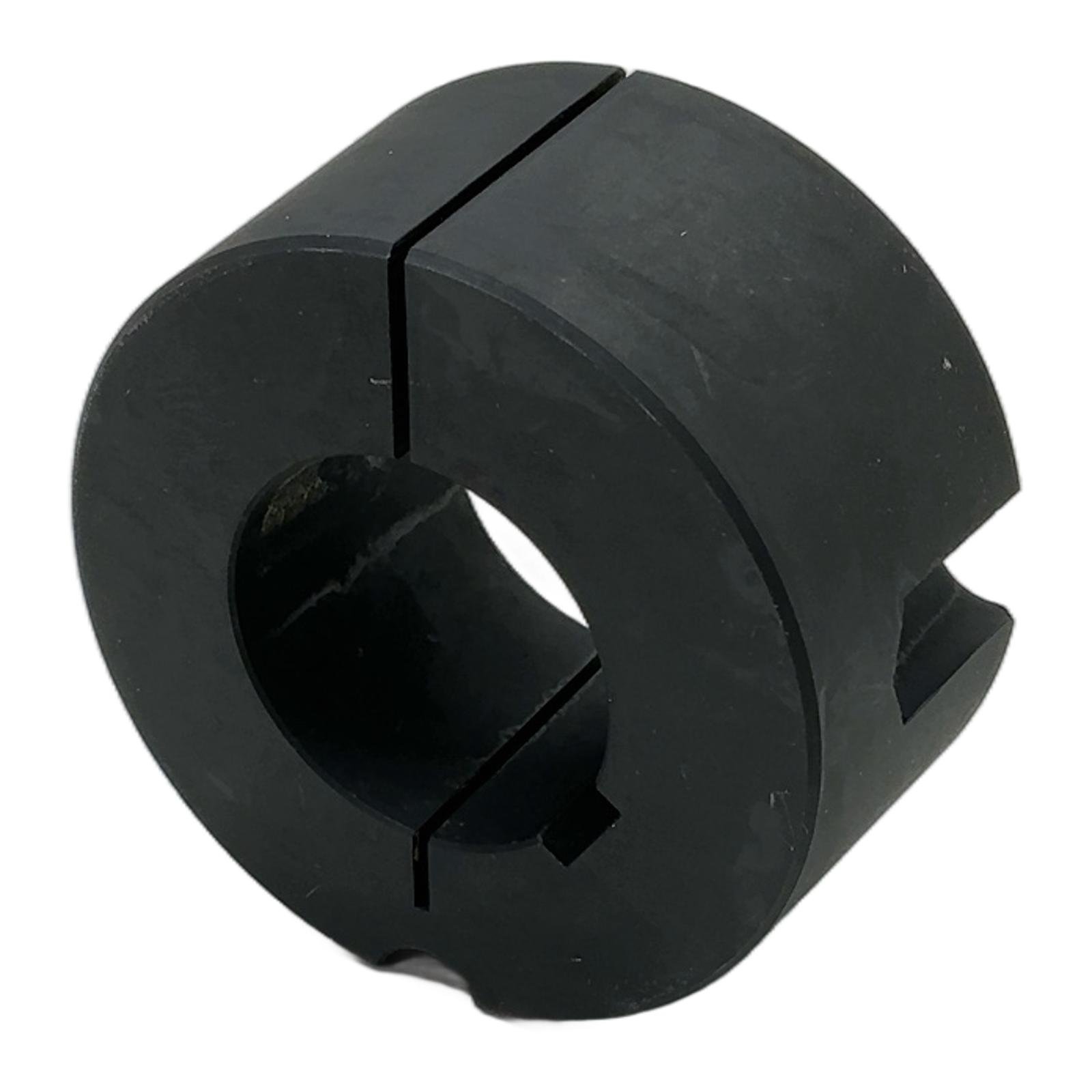

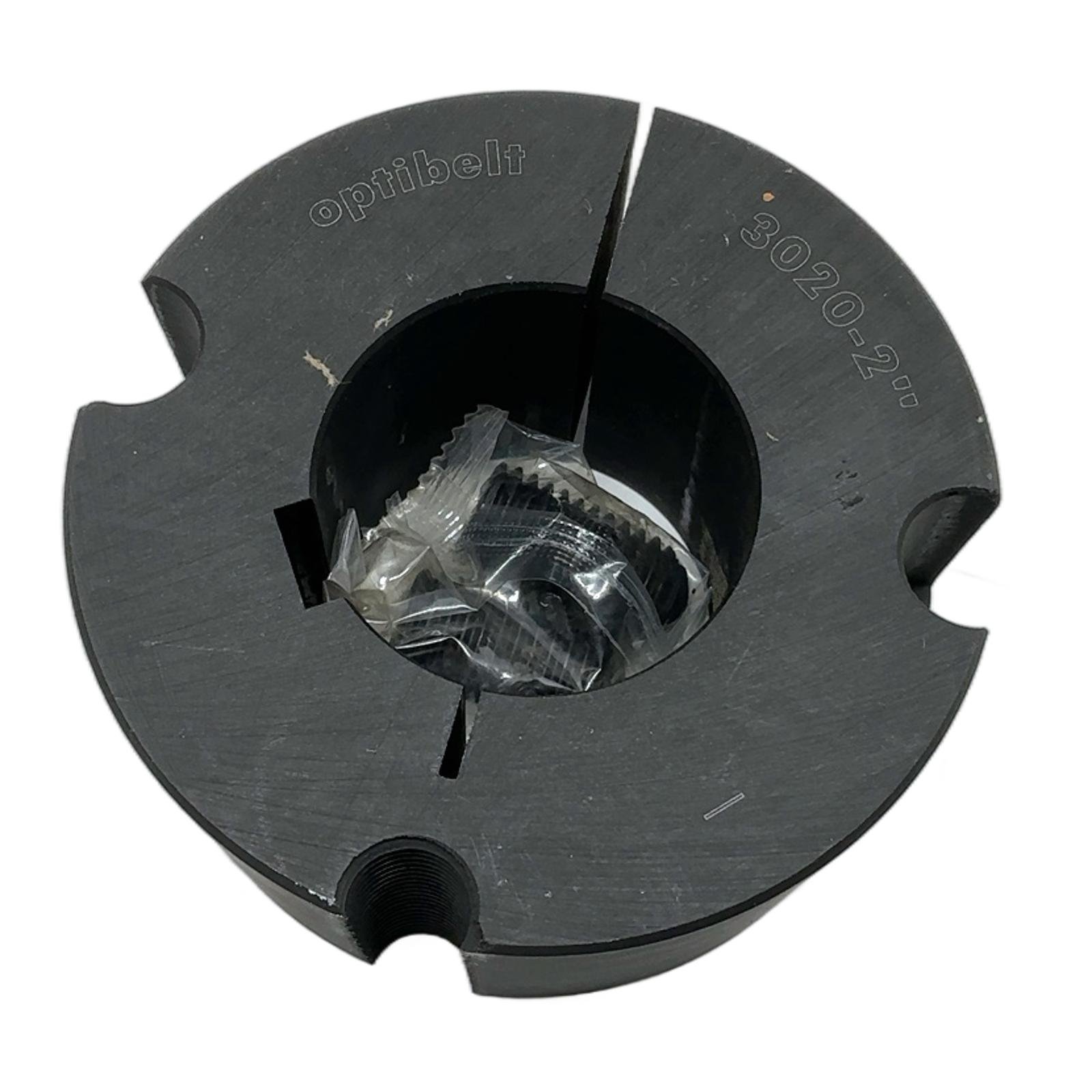

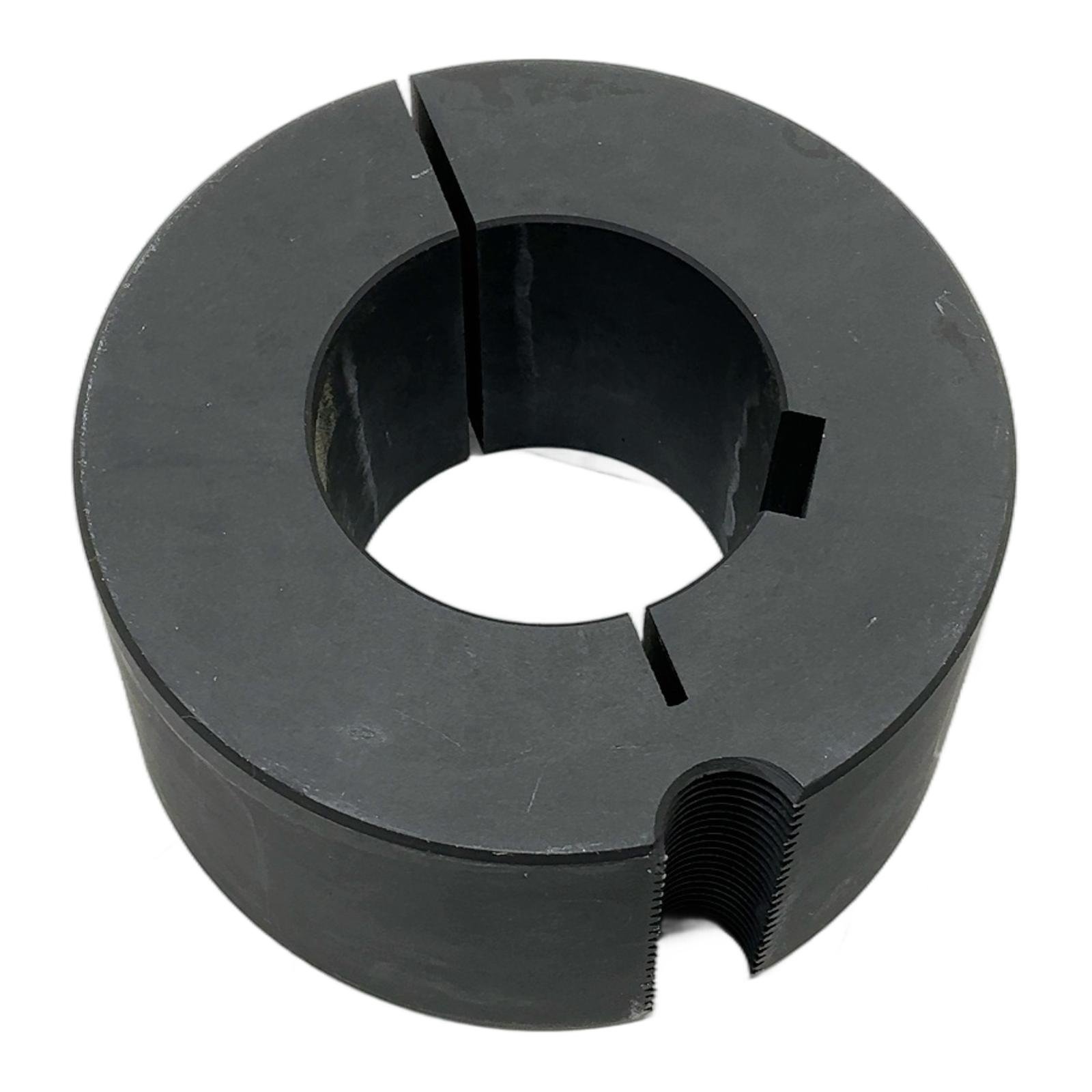

OPTIBELT TB 3020 2″

Optibelt 3020 Taper Lock Bush – 2-inch Bore Description The Optibelt TB 3020 is a high-quality taper lock bush designed for securely mounting pulleys, sprockets, and other transmission components onto a 2-inch shaft. Made from durable cast iron, it provides a reliable and backlash-free connection, ensuring optimal performance in a wide range of industrial applications. The split design allows for easy installation and removal. Specifications Manufacturer: Optibelt Type: TB 3020 Bore Diameter: 2 inches (Imperial) Material: Cast Iron For use with: Pulleys, Sprockets, Couplings Fixing: Keyed with two set screws (included) Label Info Brand: Optibelt Type: 3020 Bore: 2″ Application This taper bush is commonly used in conveyor systems, agricultural machinery, industrial fans, pumps, and general mechanical power transmission systems where a secure shaft connection is critical. Country of Origin This product is manufactured by the Arntz Optibelt Group in Germany. CO2 Impact Choosing this reused component over a new one prevents the emission of approximately 5.0 kg of CO2, which is comparable to driving a car for 25 kilometers. This makes it an environmentally responsible choice for your machinery. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the correct procedure for installing a 3020 taper bush?First, ensure the shaft, bore of the bush, and inner bore of the pulley are clean and free of oil or debris. Insert the bush into the pulley, aligning the holes. Lightly oil the threads of the set screws and insert them. Slide the complete assembly onto the shaft, position it correctly, and then tighten the screws alternately and evenly to the manufacturer’s recommended torque. What is the standard keyway size for a 2-inch bore on a 3020 taper bush?According to ANSI/BS standards, a 2-inch bore typically requires a 1/2 inch width x 1/4 inch depth keyway. However, it is always best to confirm this with the official Optibelt technical documentation or measure the existing keyway to ensure a proper fit. Can this cast iron bush be used in high-vibration environments?Yes, the taper lock design provides a high clamping force and excellent concentricity, which makes it very effective in resisting vibration and shock loads. For applications with extreme vibration, it is good practice to perform periodic checks to ensure the set screws remain at their specified torque. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
