ALLEN-BRADLEY 100-C23DJ10

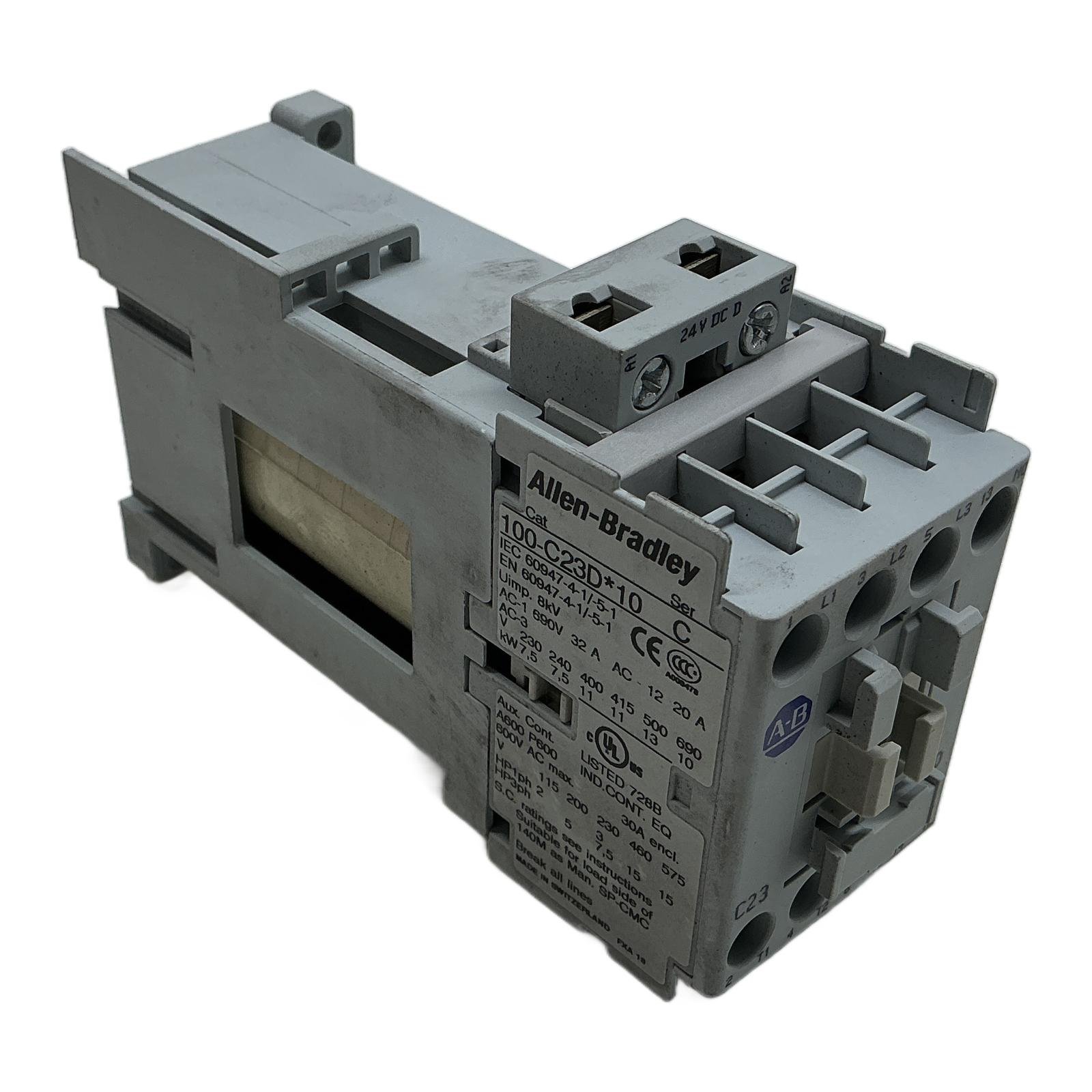

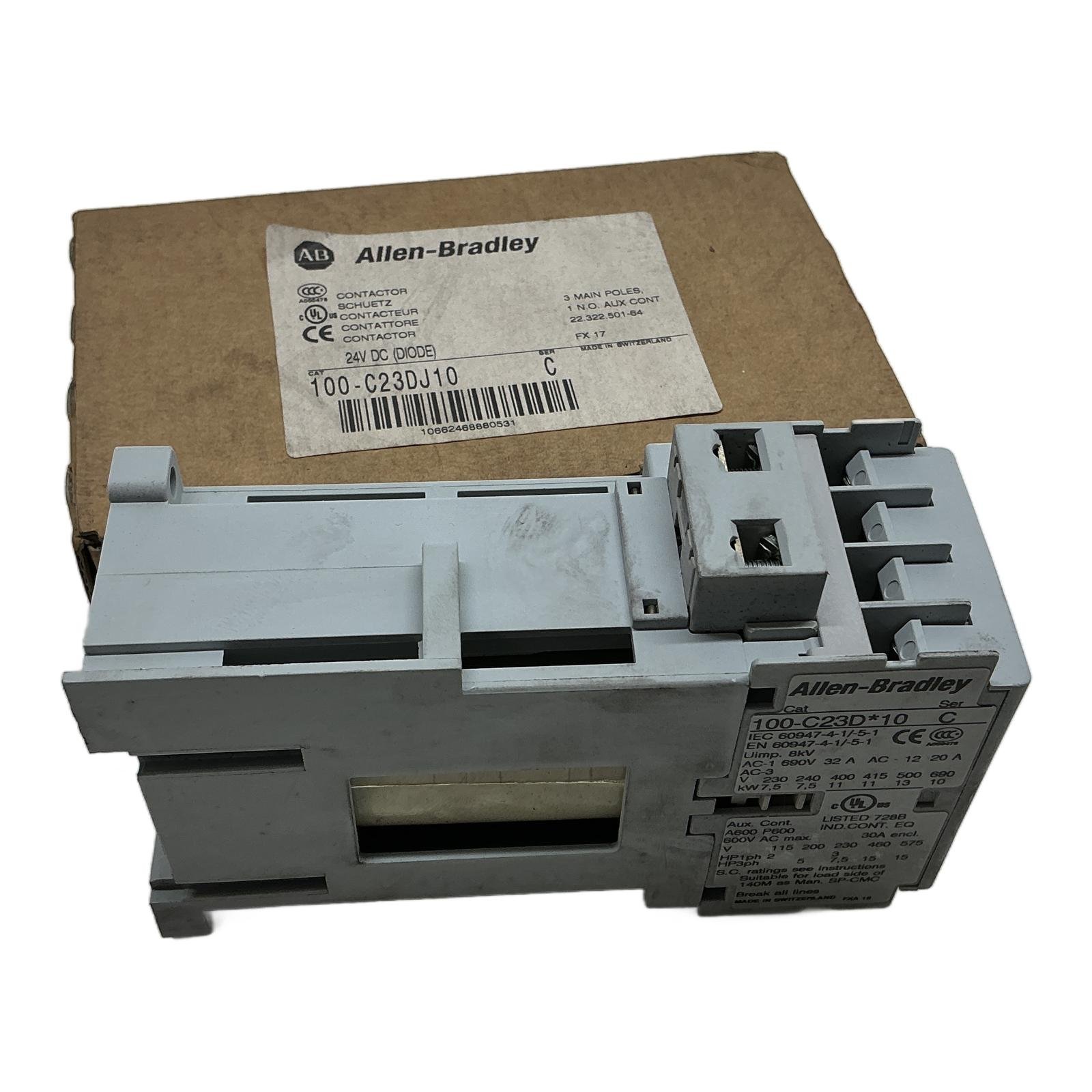

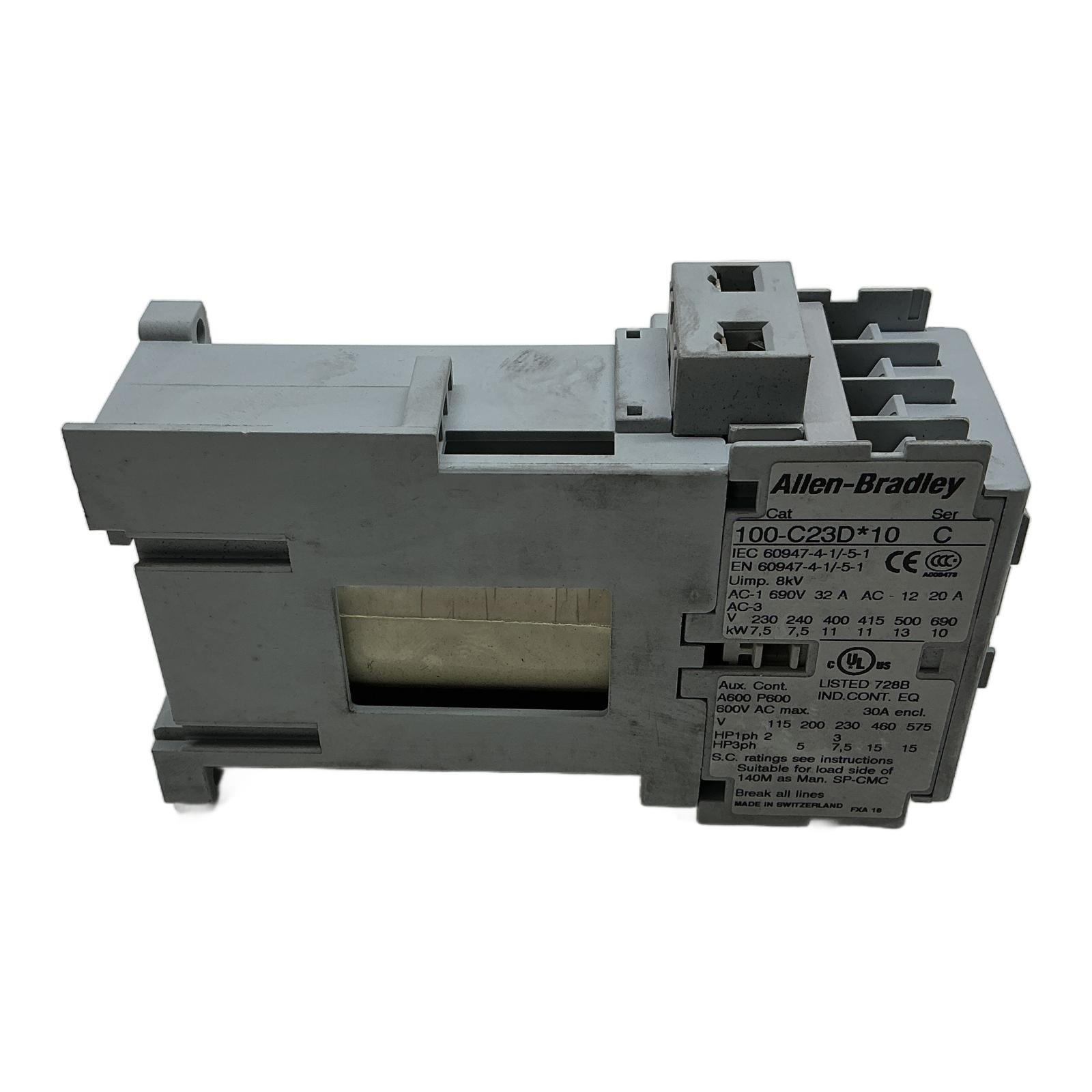

Allen-Bradley 100-C23DJ10 IEC Contactor Description The Allen-Bradley 100-C23DJ10 is a high-performance 3-pole contactor designed for motor control and power switching applications. It features a 24V DC coil with an integrated diode for protection and includes one built-in normally open auxiliary contact. Part of the reliable Bulletin 100-C series, this contactor is known for its durability, compact size, and compliance with global standards like IEC and UL. Specifications Manufacturer: Allen-Bradley Model: 100-C23DJ10 Series: C Coil Voltage: 24V DC (with Diode) Main Contacts: 3-Pole Auxiliary Contacts: 1 N.O. AC-3 Rating (400V): 11 kW AC-1 Thermal Current (Ith): 32 A Max Voltage: 690V AC (IEC), 600V AC (UL) Standards: IEC 60947-4-1, EN 60947-4-1, UL Listed Label Info Cat: 100-C23D*10 Ser: C Uimp: 8kV Application Ideal for direct-on-line starting of motors, switching resistive loads, and integration into industrial control panels for manufacturing, material handling, and HVAC systems. Country of Origin Made in Switzerland. CO2 Impact By purchasing this reconditioned item instead of a new one, you help save 18.0 kg of CO2. This is comparable to the emissions of driving a car for 90 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What does the ‘DJ’ in the part number 100-C23DJ10 signify?Answer:The ‘DJ’ specifies the coil type and auxiliary contact configuration. ‘D’ indicates a standard IEC frame size, and ‘J’ designates a 24V DC coil with an integrated diode and a standard 1 normally open (N.O.) auxiliary contact.Question?Can I add more auxiliary contacts to this 100-C23D*10 contactor?Answer:Yes, the Bulletin 100-C contactors are designed to be modular. You can mount additional front- or side-mounted auxiliary contact blocks, such as the Allen-Bradley 100-S series, to expand the number of N.O. or N.C. contacts as needed for your application.Question?What is the purpose of the integrated diode in the 24V DC coil?Answer:The integrated diode serves as a suppression device to clamp the voltage spike (back EMF) that occurs when the DC coil is de-energized. This protects sensitive control electronics, such as PLC outputs, from potential damage caused by this inductive kickback.profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
