SCHNEIDER ELECTRIC RM35UA13MW

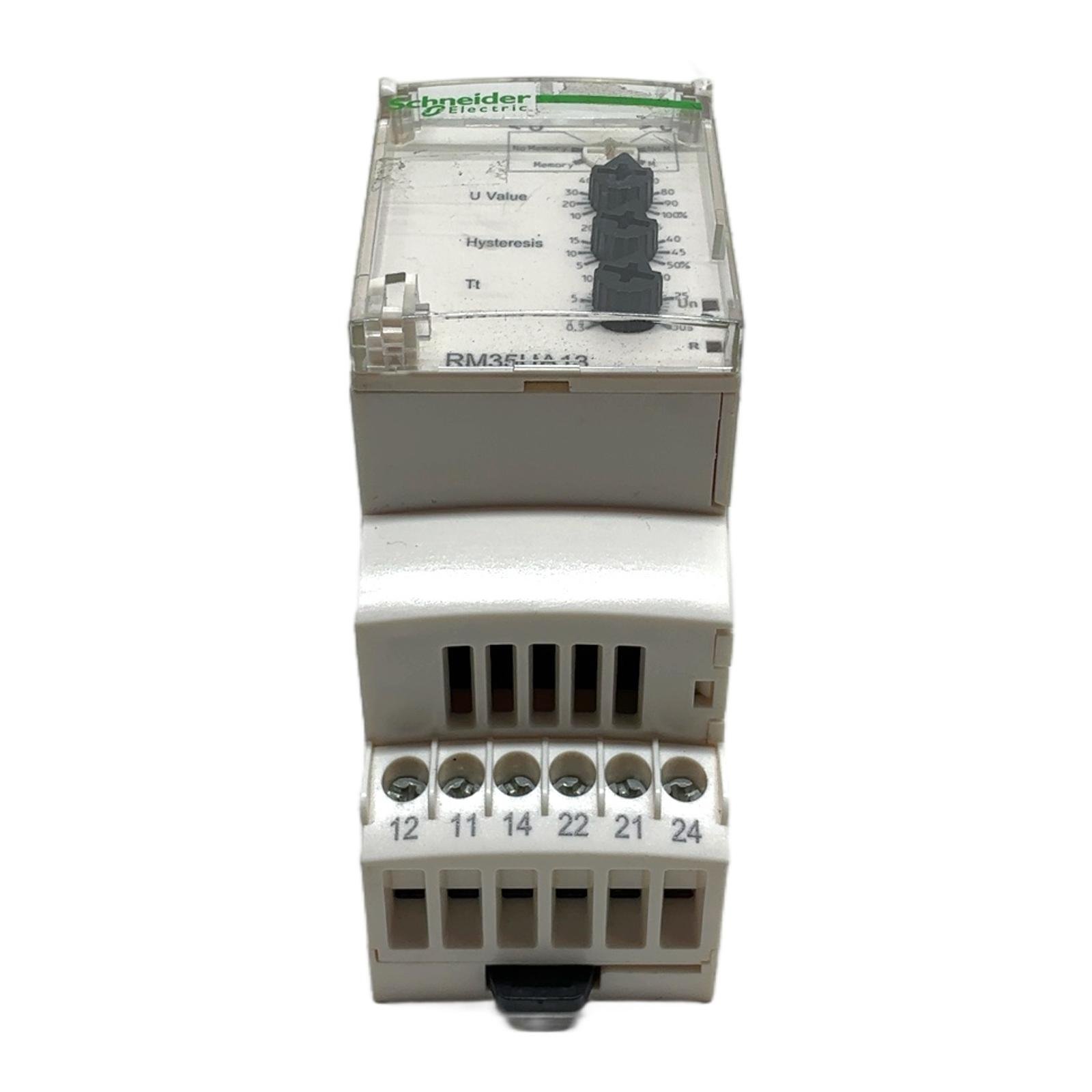

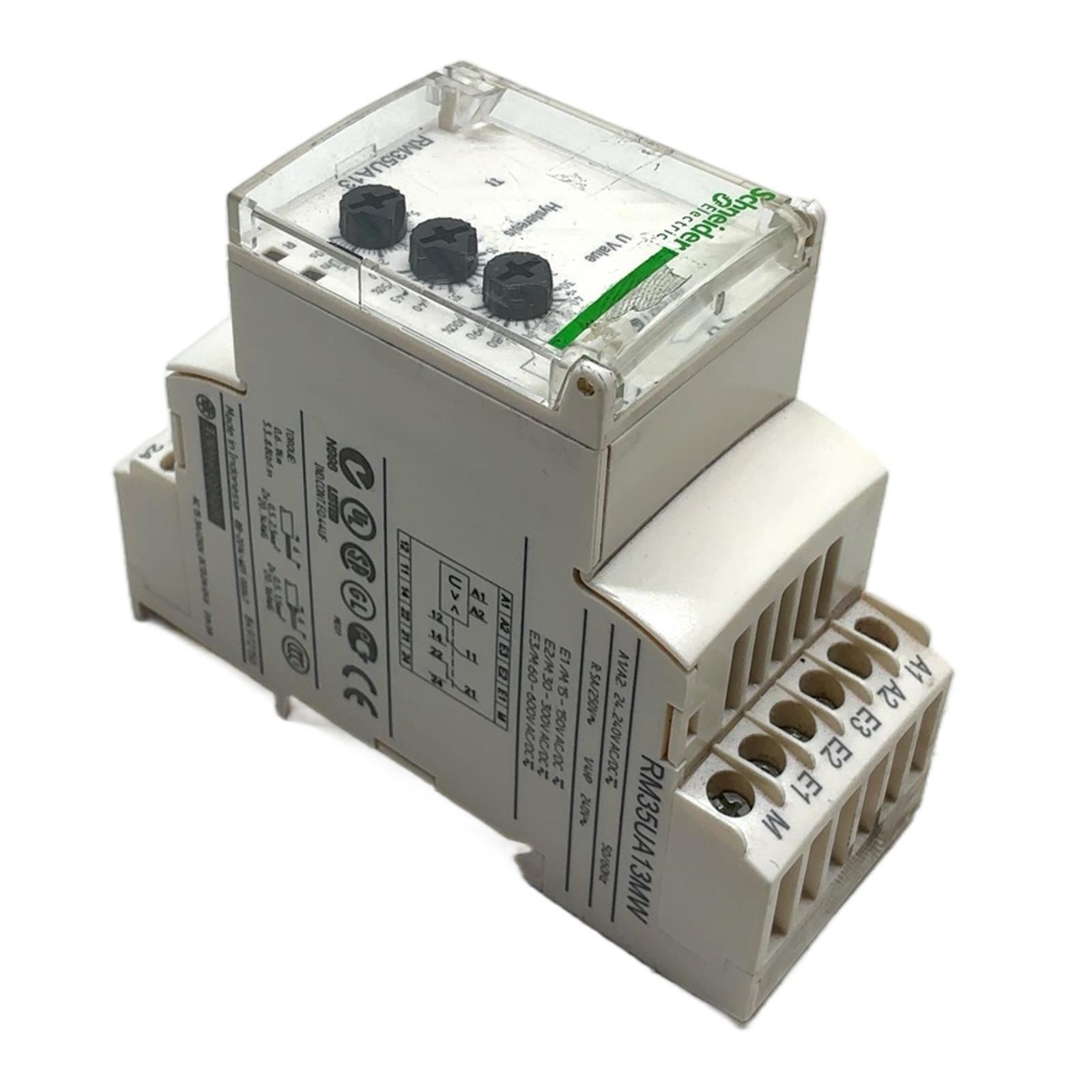

Schneider Electric RM35UA13MW Voltage Control Relay Description The RM35UA13MW is a versatile and reliable multifunction voltage control relay from the Schneider Electric Zelio Control range. It is designed to monitor single-phase AC or DC voltage, providing protection against both overvoltage and undervoltage conditions. With a wide supply voltage range and multiple measurement ranges, this compact, DIN-rail mountable unit is suitable for a broad array of industrial automation and panel building applications. Adjustable potentiometers on the front face allow for precise setting of voltage thresholds, hysteresis, and time delays. Specifications Manufacturer: Schneider Electric Model: RM35UA13MW Supply Voltage: 24 to 240V AC/DC, 50/60 Hz Function: Undervoltage and Overvoltage Control Measurement Ranges: 15-150V, 30-300V, 60-600V AC/DC Output: 2 C/O contacts Rated Current: 5 A Mounting: 35mm DIN Rail Label Info Brand: Telemecanique (Schneider Electric) Part Number: RM35UA13MW Date Code: 8B-2014-W01 (Week 1, 2014) Application This relay is ideal for applications requiring protection of equipment from voltage fluctuations, such as motor protection, power supply monitoring, and control of industrial processes sensitive to voltage variations. Country of Origin Made in Indonesia. CO2 Impact Reusing this component saves an estimated 4.8 kg of CO2, comparable to driving a car 24 km. Your choice supports a circular economy and reduces industrial waste. Availability This is an obsolete item, available as tested used stock. Limited quantities available. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘Tt’ potentiometer on the RM35UA13MW?The ‘Tt’ potentiometer adjusts the time delay. This allows you to set a specific duration for which a fault condition (overvoltage or undervoltage) must persist before the output relay changes state, preventing nuisance tripping from brief, transient voltage fluctuations. Can this relay monitor DC voltage as well as AC voltage?Yes, the RM35UA13MW is designed to monitor both AC and DC voltages across its specified measurement ranges, making it highly versatile for various electrical systems. What is the difference between the measurement inputs E1, E2, and E3?The terminals E1, E2, and E3 correspond to different selectable voltage measurement ranges. E1/M is for 15-150V, E2/M is for 30-300V, and E3/M is for 60-600V. You must connect your monitored voltage to the appropriate terminal for the range you require. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
