FAG H310

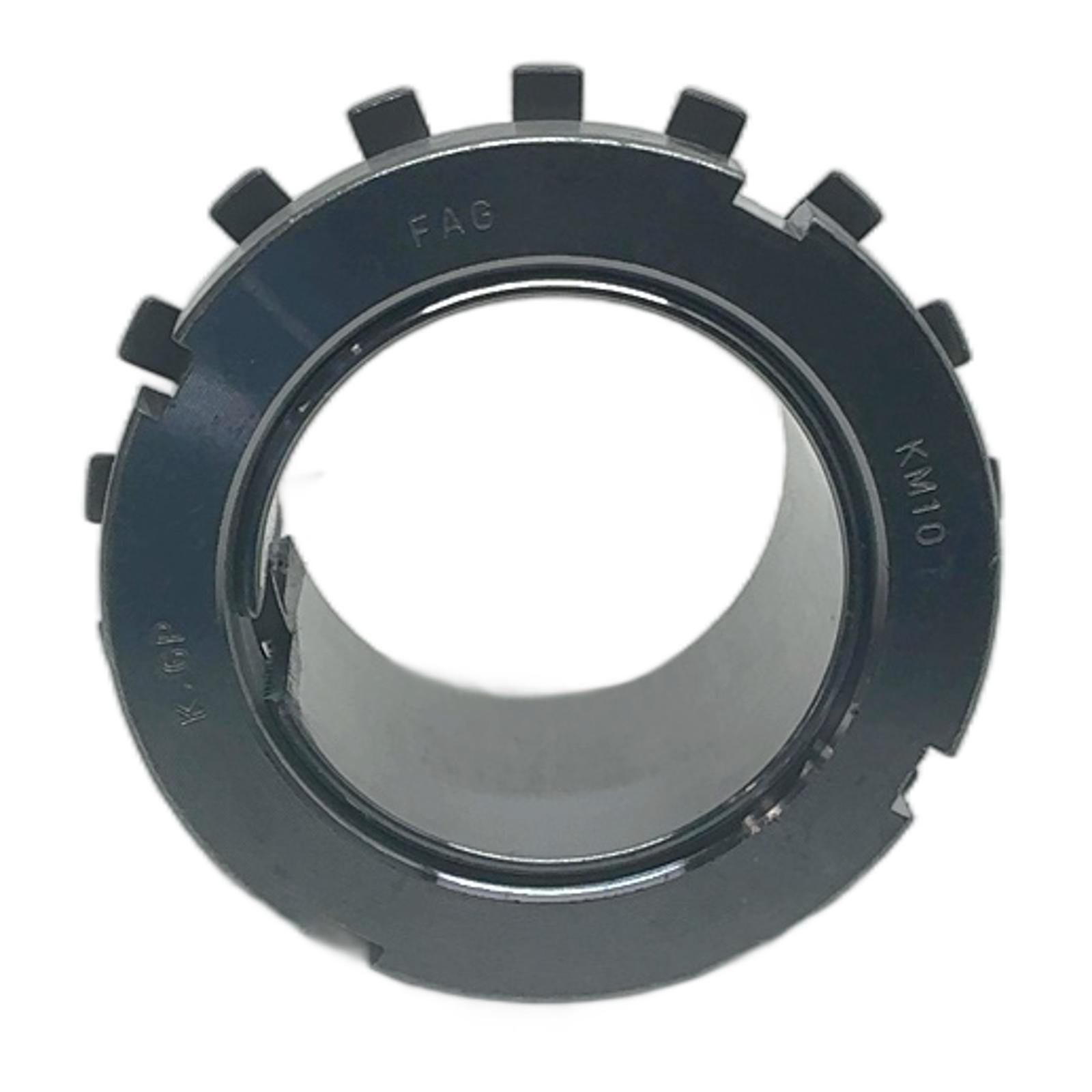

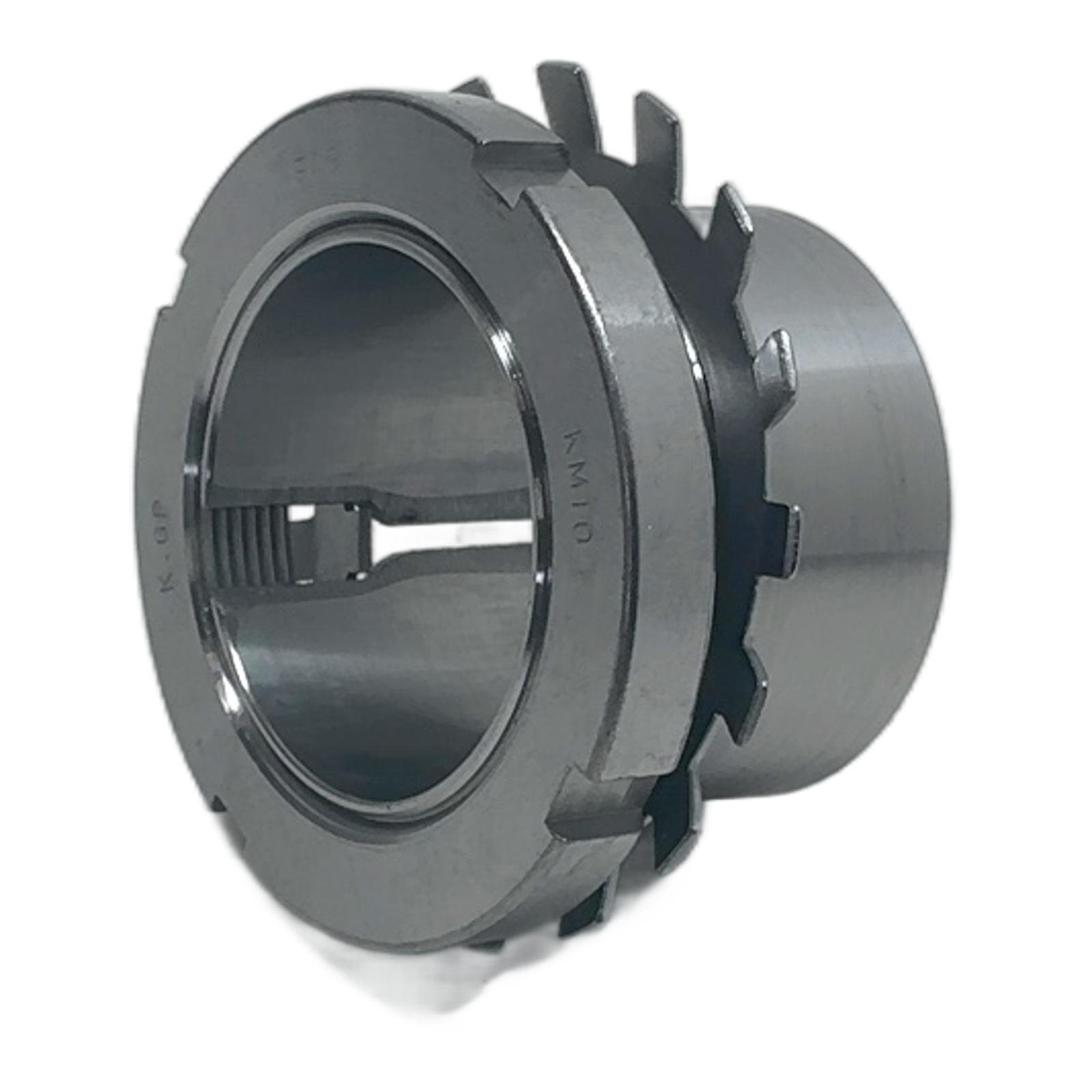

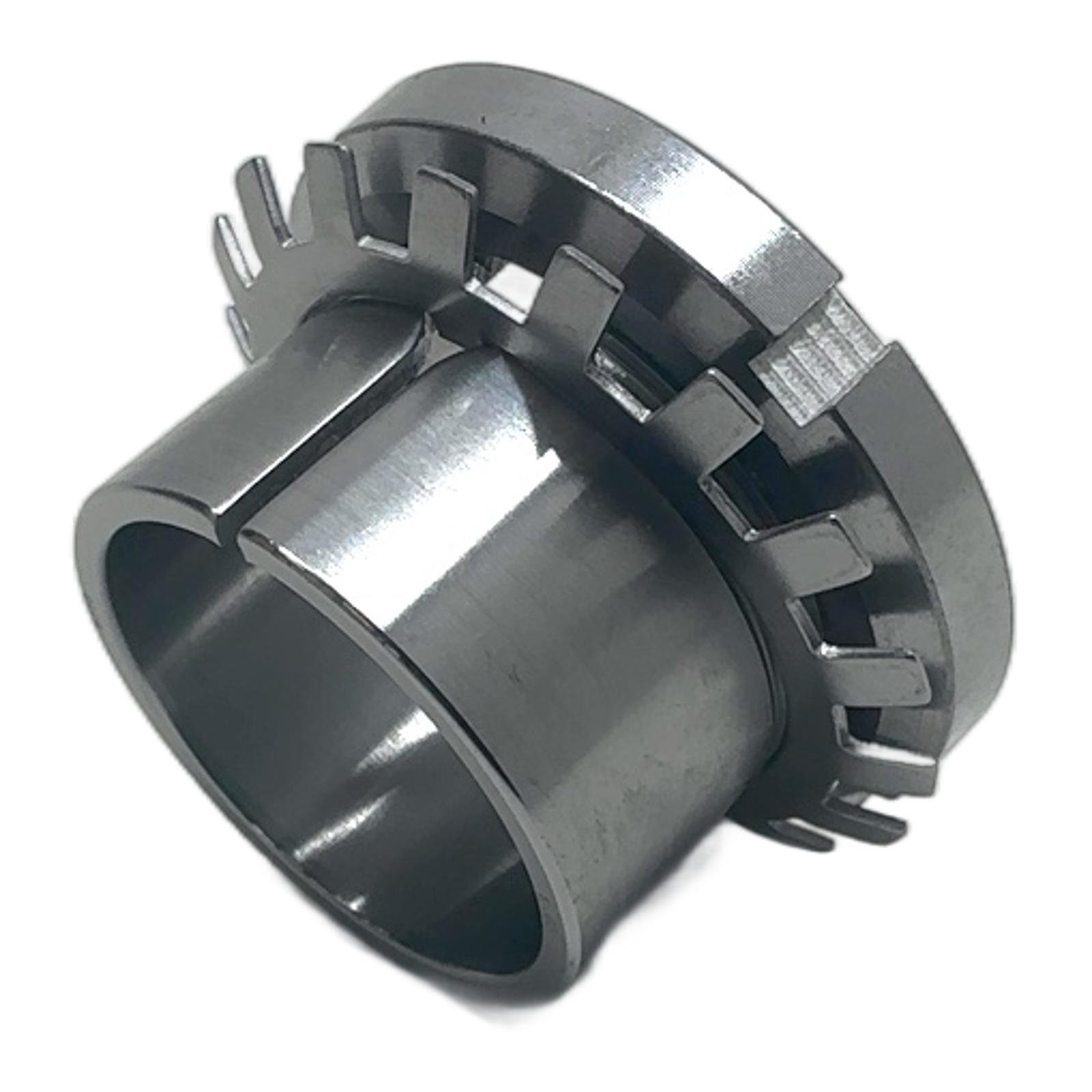

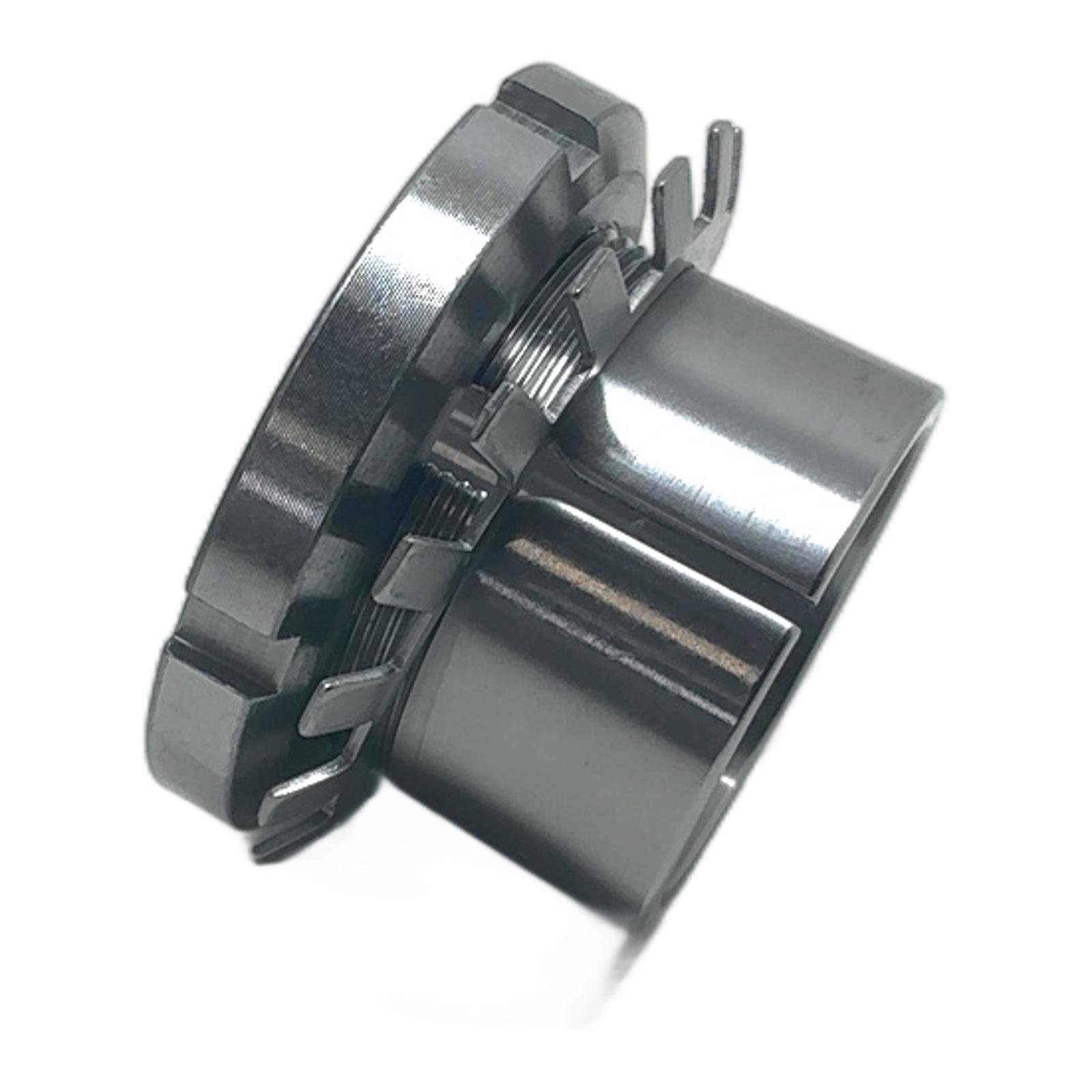

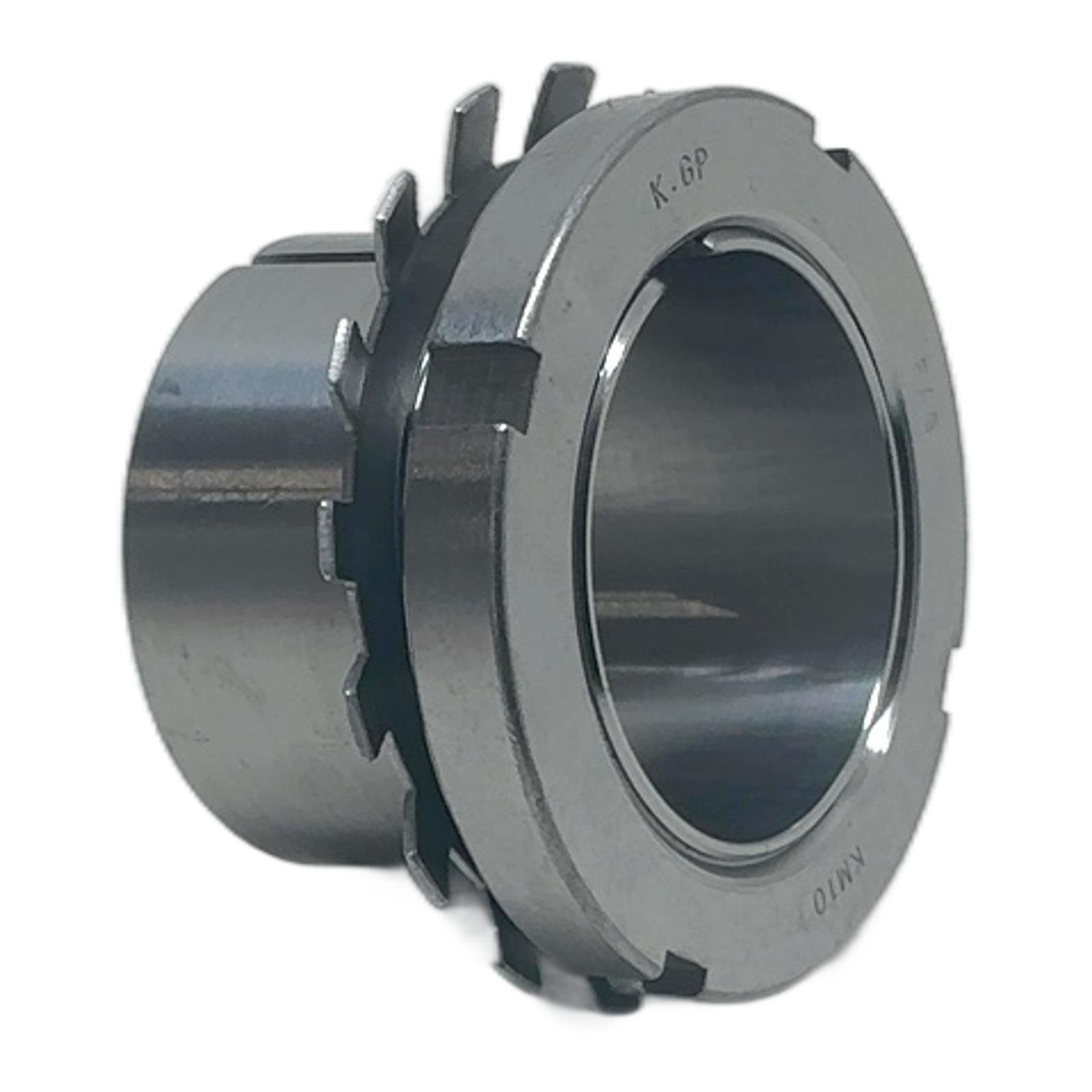

FAG H310 Adapter Sleeve for 45mm Shafts Description The FAG H310 is a high-precision adapter sleeve designed for mounting bearings with a tapered bore onto a cylindrical shaft seating. This component ensures a secure and concentric fit, simplifying both installation and dismounting processes. Manufactured by FAG, a leader in bearing technology, the H310 is a reliable choice for a wide range of industrial applications requiring robust and precise shaft-bearing connections. Specifications Manufacturer: FAG Part Number: H310 Product Type: Adapter Sleeve Shaft Diameter (d1): 45 mm Thread Size (G): M50x1.5 Sleeve Outside Diameter (d): 60 mm Sleeve Length (B1): 41 mm Corresponding Lock Nut: KM 10 Corresponding Locking Washer: MB 10 Material: Steel Label Info EAN: 4012801052344 Model: H310 Quantity: 1 Application Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical shaft. They are suitable for use on smooth or stepped shafts and can be used in various machinery, including conveyors, industrial fans, pumps, and agricultural equipment. Country of Origin This FAG H310 adapter sleeve is made in Taiwan. CO2 Impact Opting for this pre-owned FAG H310 adapter sleeve prevents the emission of approximately 0.88 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the carbon captured by a tree in over a month. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the primary function of the H310 adapter sleeve?The H310 adapter sleeve is used to secure a bearing with a tapered bore (like a 1210 K or 22210 K) onto a plain or stepped cylindrical shaft of 45mm diameter. It allows for easy mounting and dismounting without requiring a specially machined shaft seat. Which bearings are compatible with the FAG H310 sleeve?The H310 is compatible with several bearing series, including self-aligning ball bearings (1210 K, 1310 K) and spherical roller bearings (22210 EASK, 23010 EASK.M, 23210 CCK/W33). Always verify compatibility with the specific bearing datasheet. What is the correct procedure for tightening the corresponding KM10 lock nut?The KM10 lock nut should be tightened to remove the internal clearance of the bearing. This is often done using the ‘angle of rotation’ method or by measuring the residual clearance with a feeler gauge. It is crucial not to overtighten, as this can damage the bearing. Refer to the FAG mounting instructions for precise details. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
