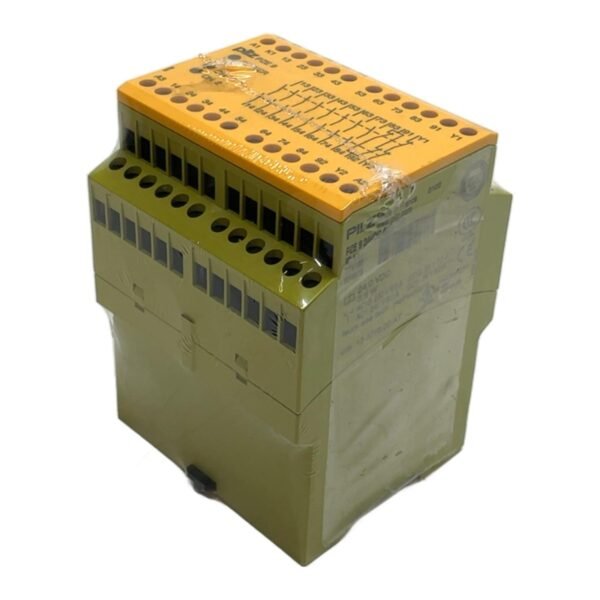

PILZ PZE 9 774150

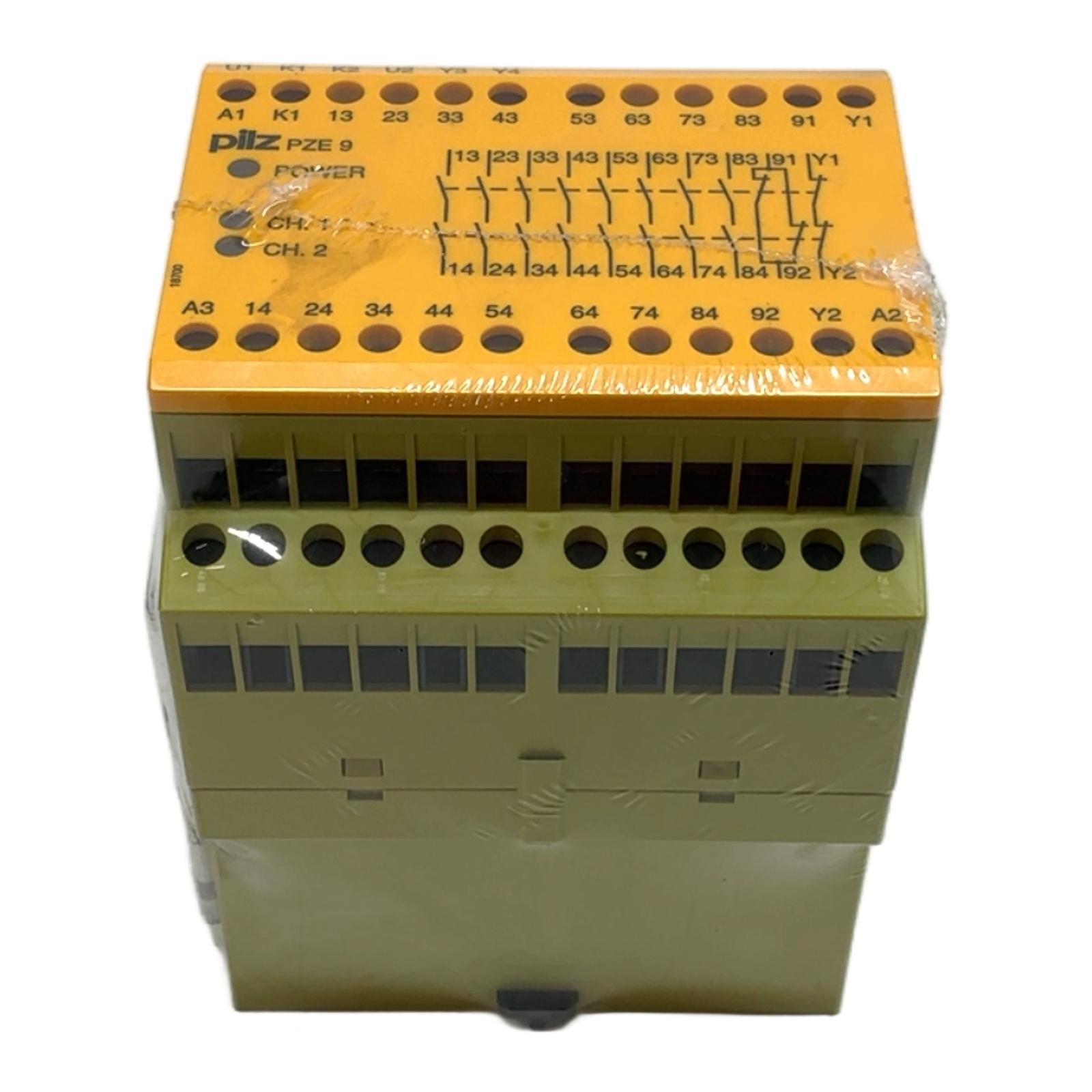

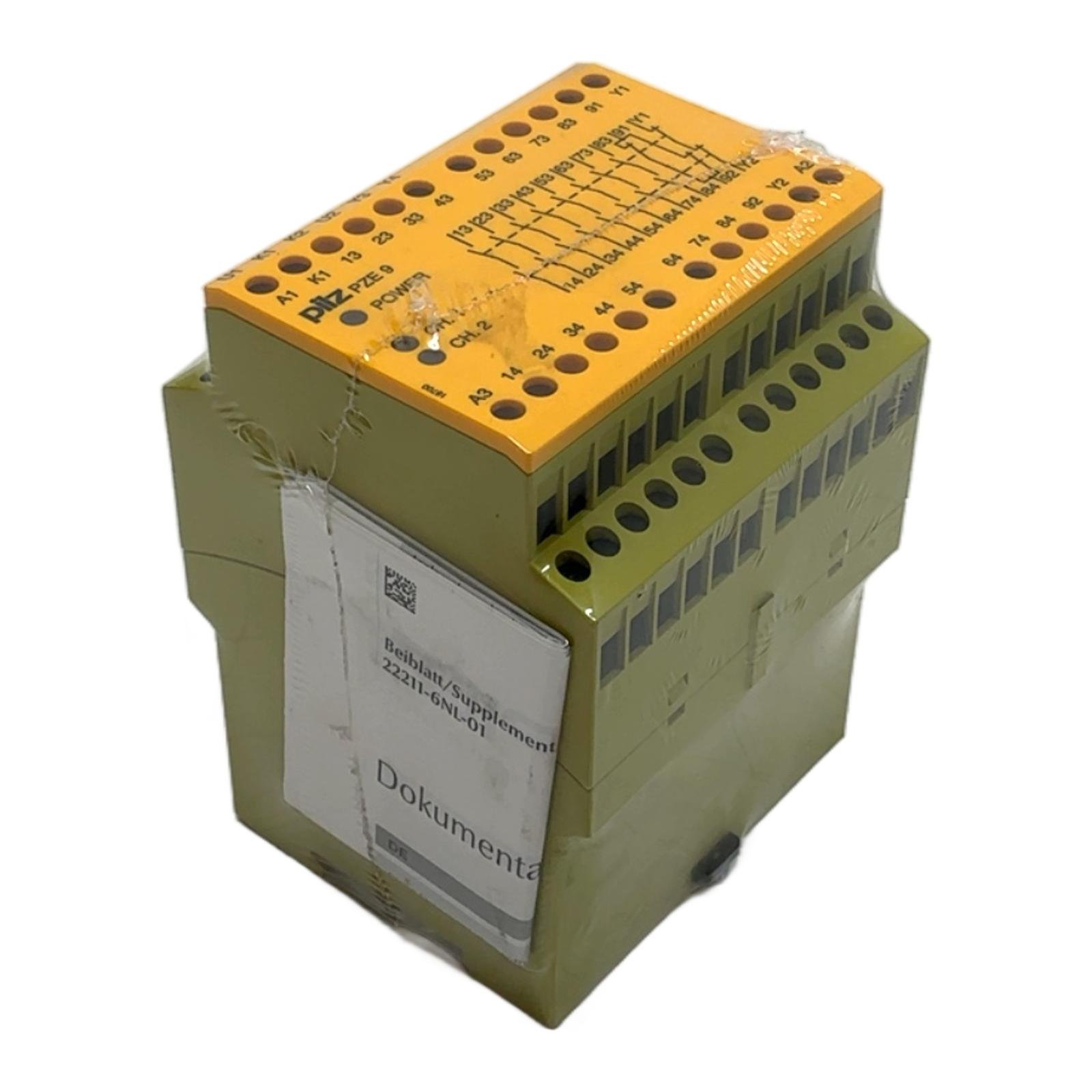

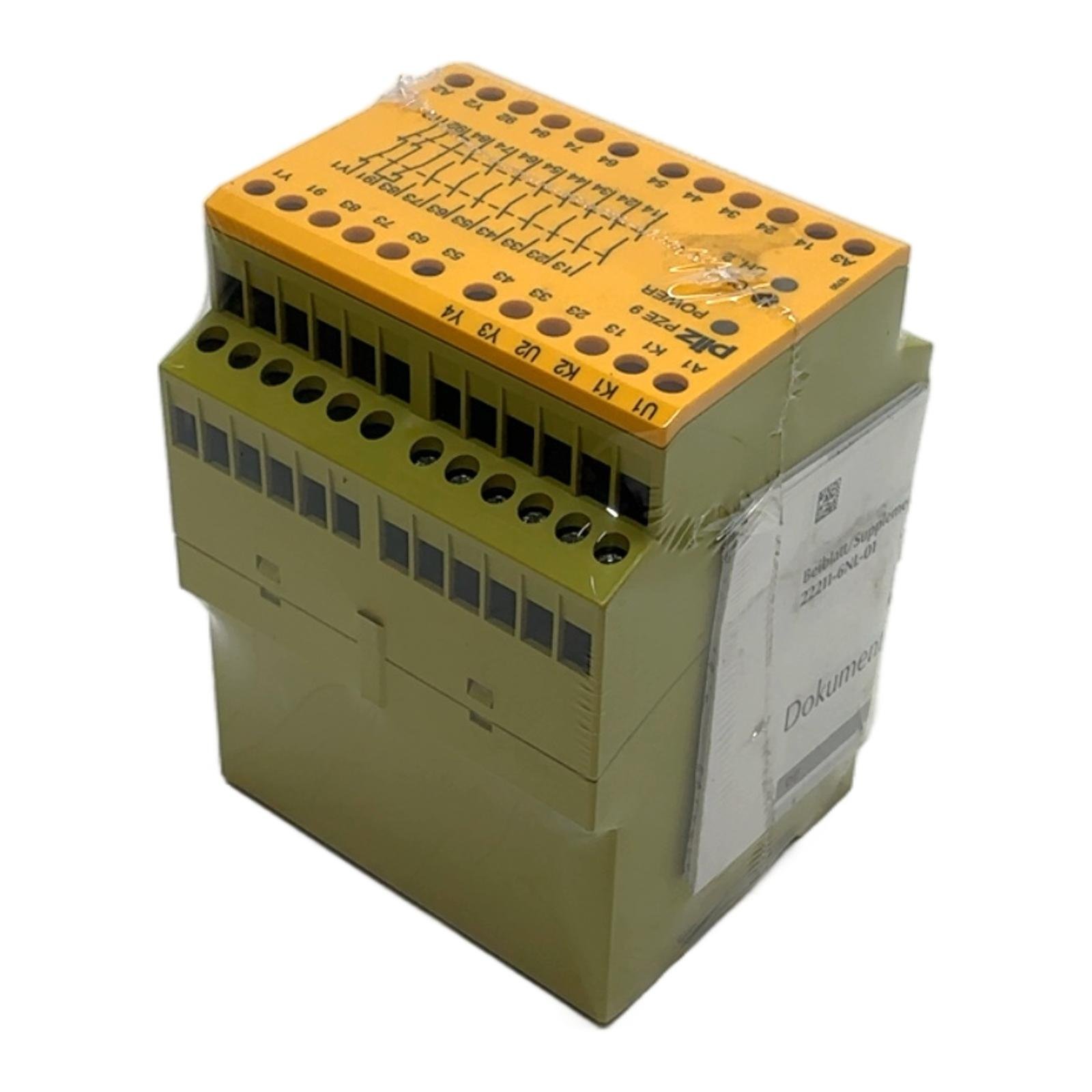

Pilz PZE 9 24VDC Contact Expansion Module Description The Pilz PZE 9 is a robust contact expansion module designed to increase the number of safety contacts in a safety circuit. It connects to a base safety monitoring relay (e.g., PNOZ X series) and provides additional instantaneous safety outputs. This unit is ideal for applications requiring multiple safety channels to de-energize different machine components simultaneously. Specifications Model: PZE 9 ID No.: 774150 Supply Voltage: 24V DC Power Consumption: 3.5 W Safety Contacts: 8 Normally Open (N/O) Auxiliary Contacts: 1 Normally Closed (N/C) Switching Capacity (DC13): 24V / 7.0 A Switching Capacity (AC15): 230V / 5.0 A Mounting: DIN Rail Label Info Manufacturer: Pilz Part Number: 774150 Type: PZE 9 24VDC 8n/o 1n/c Year of Manufacture: 2020 Application This module is typically used in conjunction with safety relays for applications such as emergency stop circuits, safety gate monitoring, and light curtain control to expand the number of available safety-rated outputs. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you are helping to avoid the production of a new one, which saves approximately 10 kg of CO2. This is equivalent to the emissions from driving a car for 50 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can the PZE 9 be used as a standalone safety relay?No, the PZE 9 is a contact expansion module. It must be connected to a base safety relay (like a PNOZ X or PNOZsigma) to expand the number of available safety contacts. It does not perform the monitoring function itself. What is the maximum switching current for the safety contacts?The contacts are rated for different loads. For a DC-13 load at 24V, the maximum current is 7.0 A. For an AC-15 load at 230V, it is 5.0 A. Always consult the datasheet for your specific application. Is this module compatible with Pilz PNOZmulti configurable safety systems?While typically used with basic safety relays, contact expansion modules like the PZE 9 can be driven by the outputs of a PNOZmulti controller to increase the number of safety-rated outputs for a specific safety function. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
