ALLEN-BRADLEY 100-C43D10

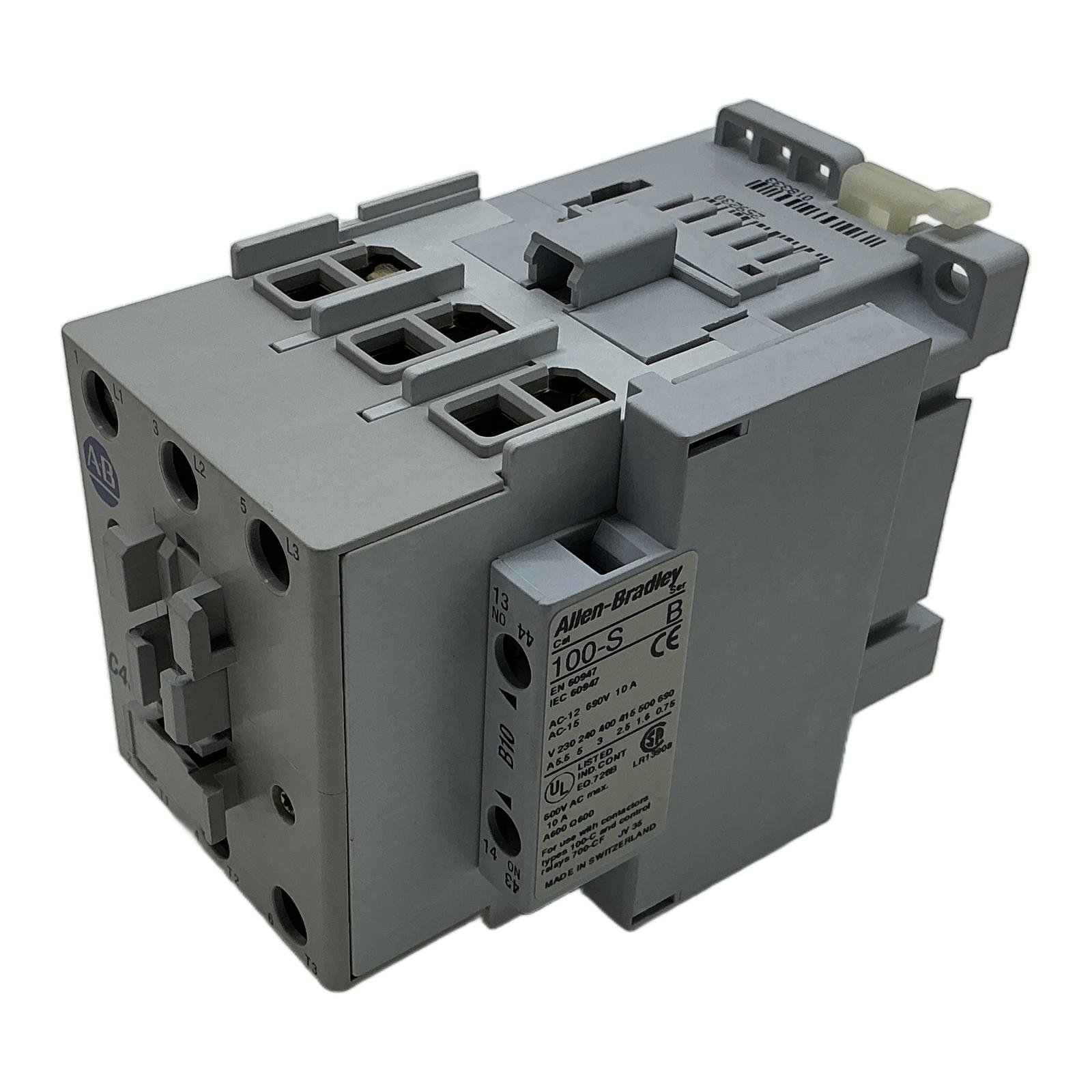

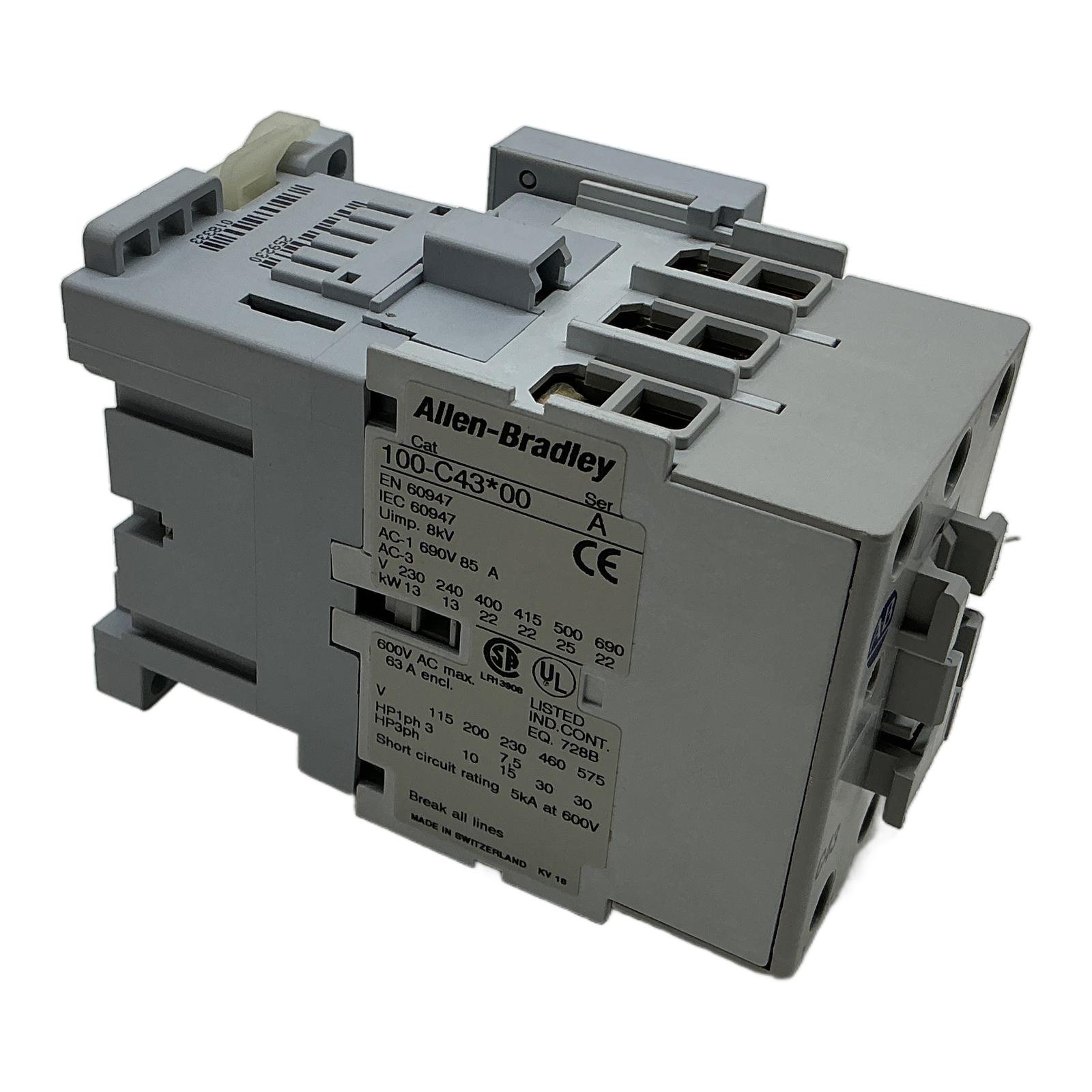

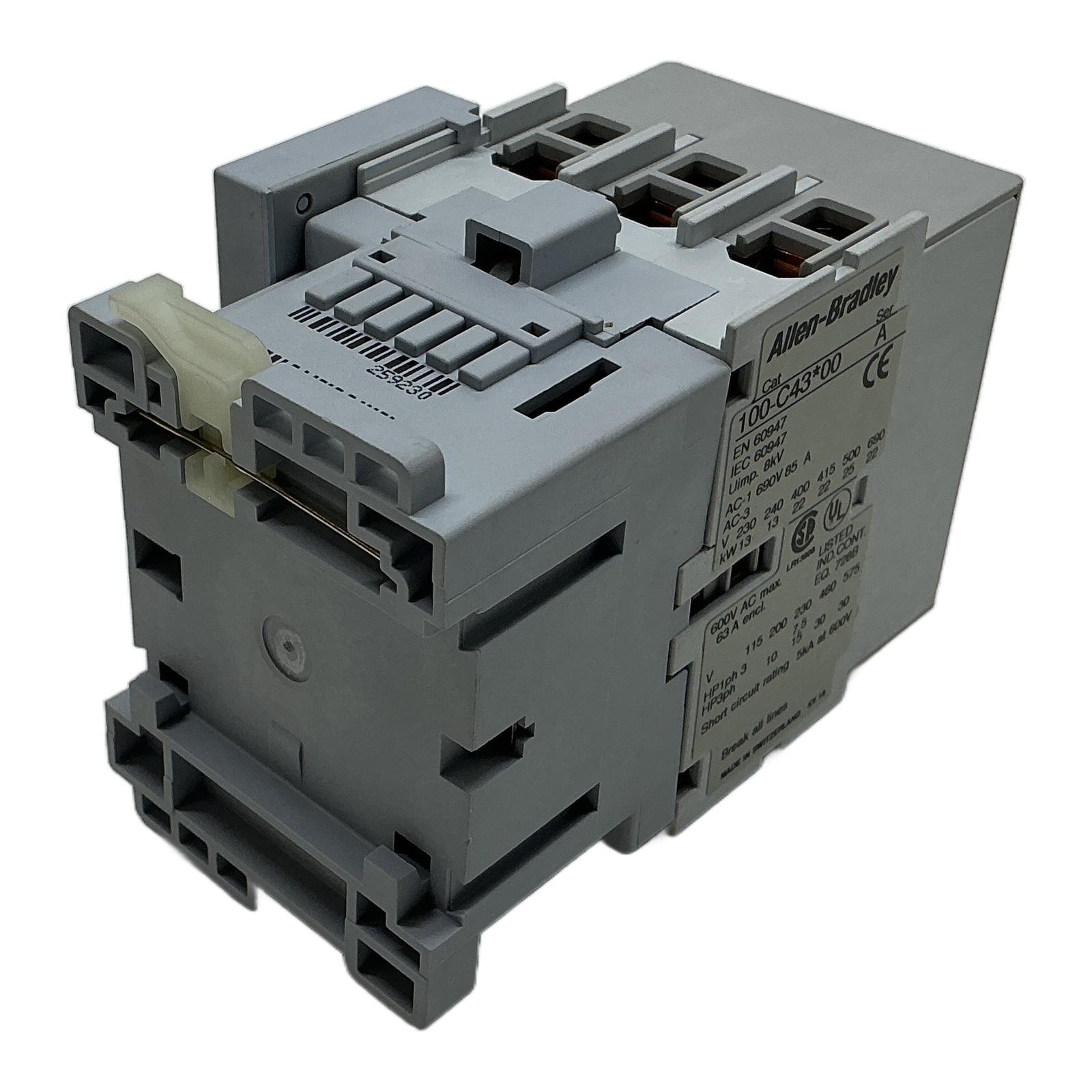

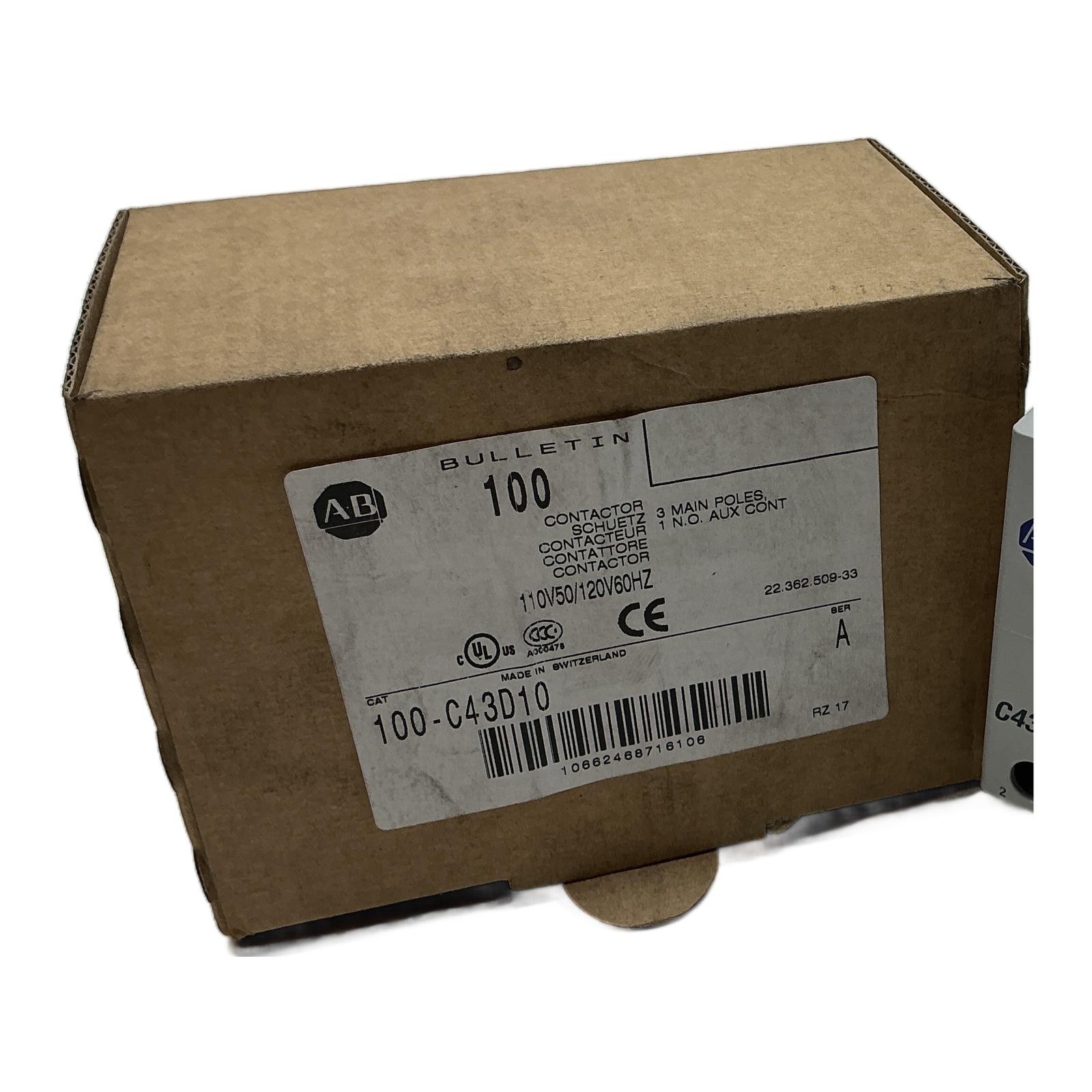

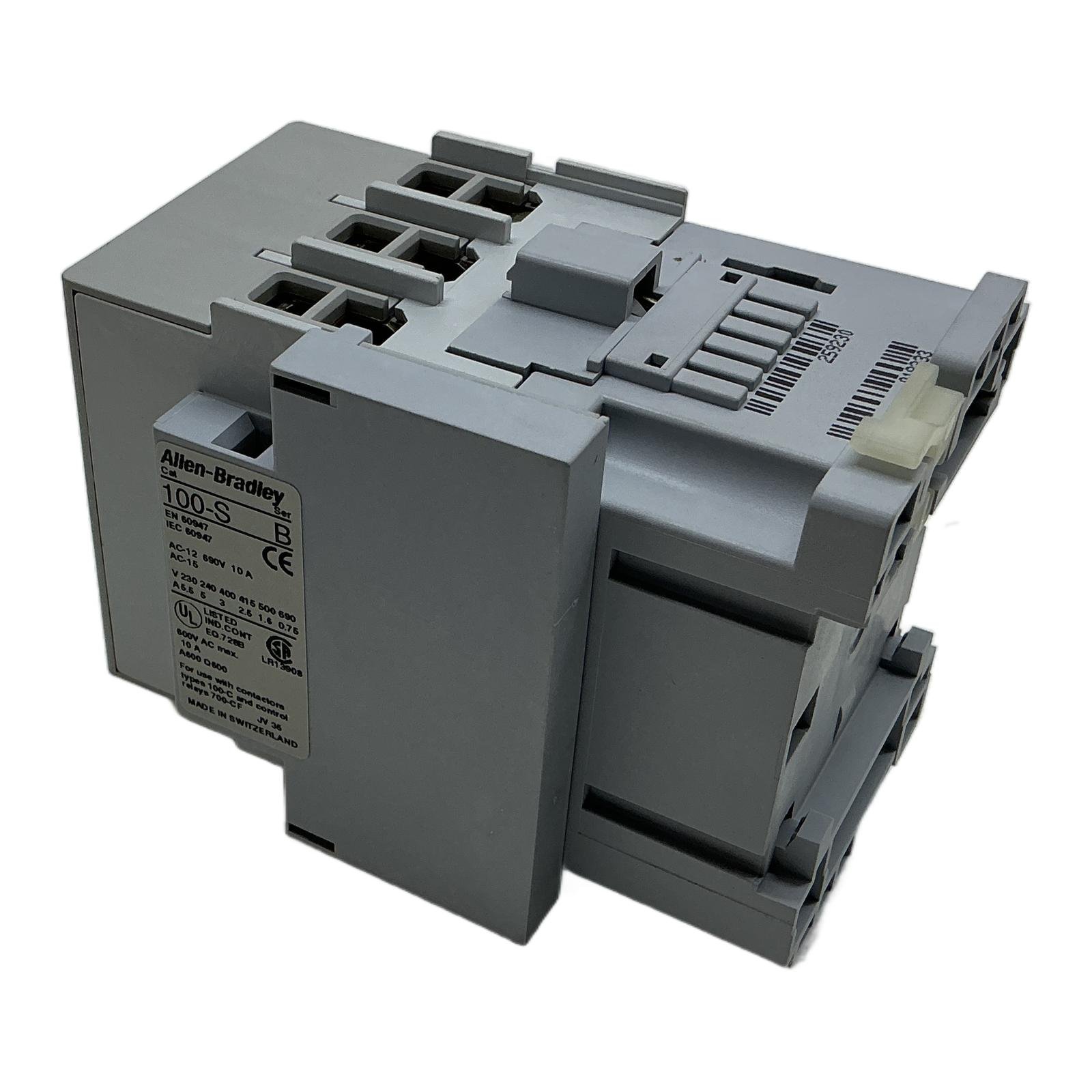

Allen-Bradley Contactor 22kW 110/120VAC Coil 100-C43D10 Description This Allen-Bradley 100-C43D10 is a robust 3-pole IEC contactor from the Bulletin 100-C series. It is engineered for switching motor loads and other demanding electrical circuits. With a 22kW rating at 400V and a control coil voltage of 110/120V AC, it provides reliable performance for a wide range of industrial applications. The integrated 1 N.O. auxiliary contact offers additional flexibility for control logic and signaling. Specifications Type: IEC Contactor Poles: 3-Pole Coil Voltage: 110V AC (50Hz) / 120V AC (60Hz) AC-3 Rating at 400V: 22 kW / 43 A AC-1 Thermal Current (Ith): 80 A Auxiliary Contacts: 1 Normally Open (1NO) Series: Bulletin 100-C Mounting: DIN Rail or Panel Mount Label Info Manufacturer: Allen-Bradley Catalog Number: 100-C43D10 Series: A EAN/UPC: 10662468716106 Application Ideal for motor control centers (MCCs), HVAC systems, pump and fan control, and general-purpose switching applications where high reliability and long electrical life are required. Country of Origin Made in Switzerland. CO2 Impact By purchasing this pre-owned contactor, you help avoid the emission of approximately 24 kg of CO2. This saving is comparable to the energy needed to drive a car for 120 kilometers. Availability In stock. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the 100-C43*00 on the contactor and the 100-C43D10 on the box?The 100-C43*00 is the base model number for a 43A (AC-3) contactor body. The 100-C43D10 is the complete, orderable catalog number, where ‘D’ specifies the 110V 50Hz / 120V 60Hz AC coil, and ’10’ indicates it includes one Normally Open (1NO) and zero Normally Closed (0NC) auxiliary contacts. Can this contactor be used for DC switching applications?While primarily designed for AC motor loads (AC-3 rating), this contactor can be used for some DC applications (DC-1, DC-3, DC-5 ratings), but the switching capacity is significantly derated. Always consult the Allen-Bradley technical datasheet for specific DC voltage and current limits to ensure safe operation and prevent premature contact wear. Is this contactor compatible with the 193-E series overload relays?Yes, the Allen-Bradley 100-C series contactors are designed to directly mount with the Bulletin 193-E series electronic overload relays. This creates a compact and efficient motor starter combination without the need for additional wiring or mounting adapters. Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
