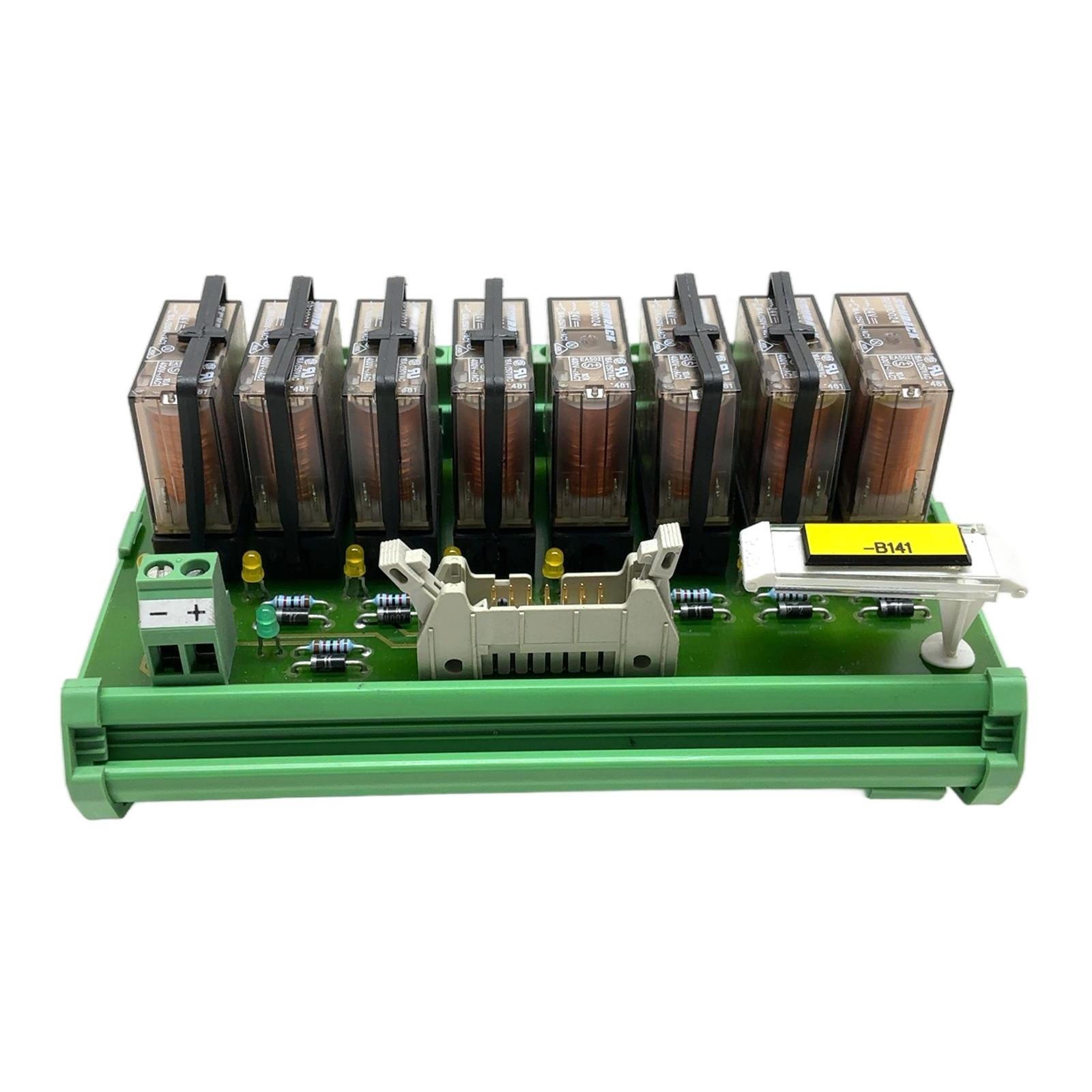

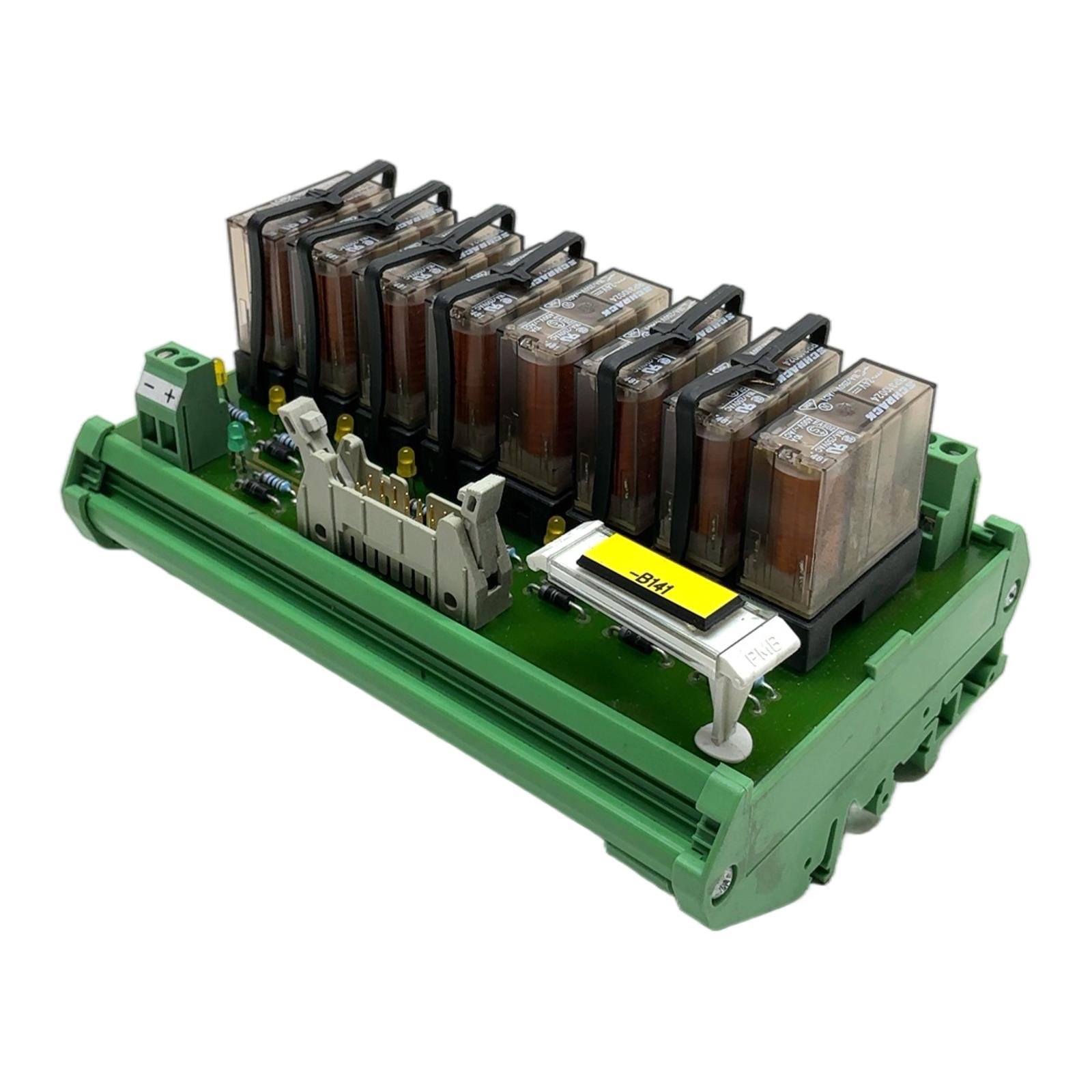

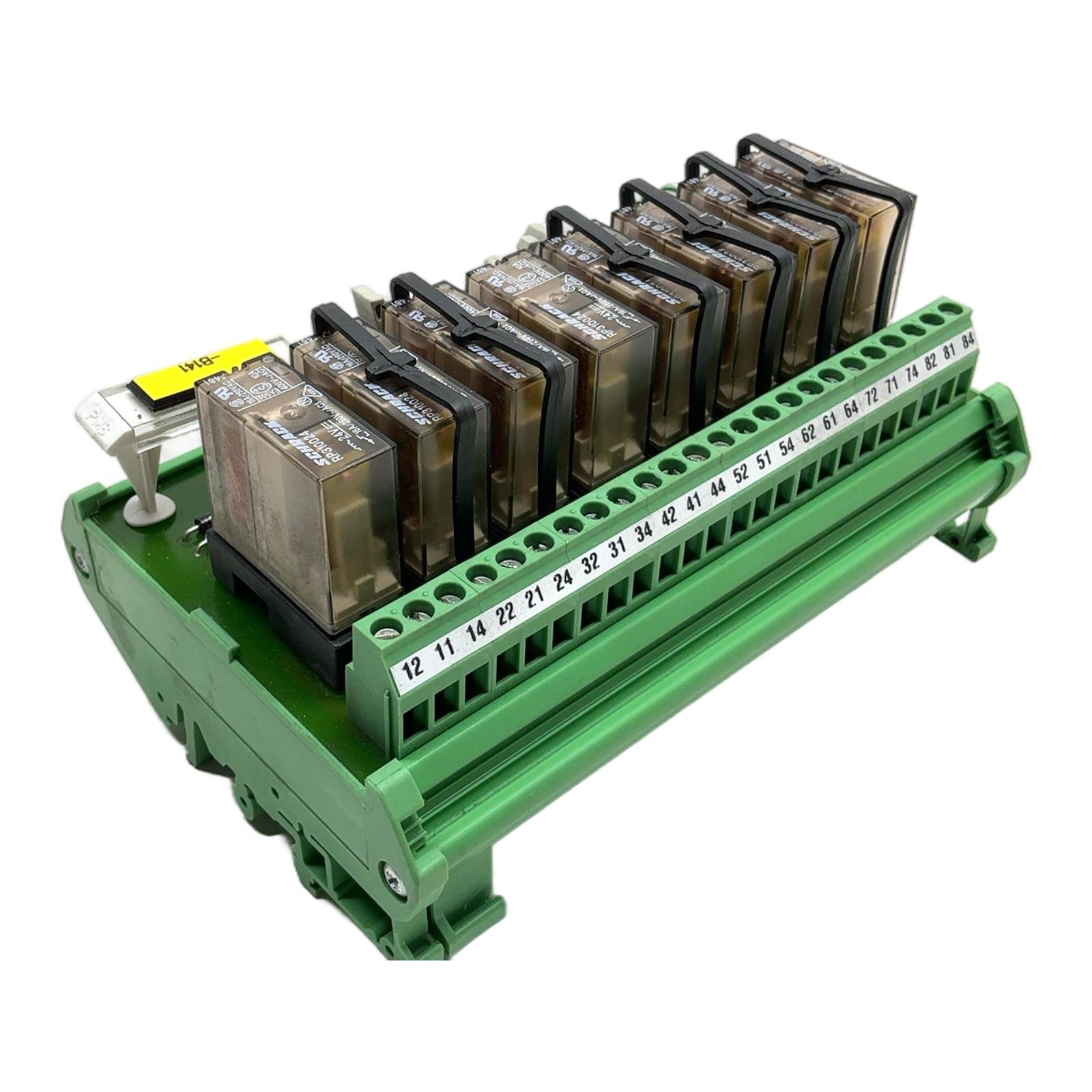

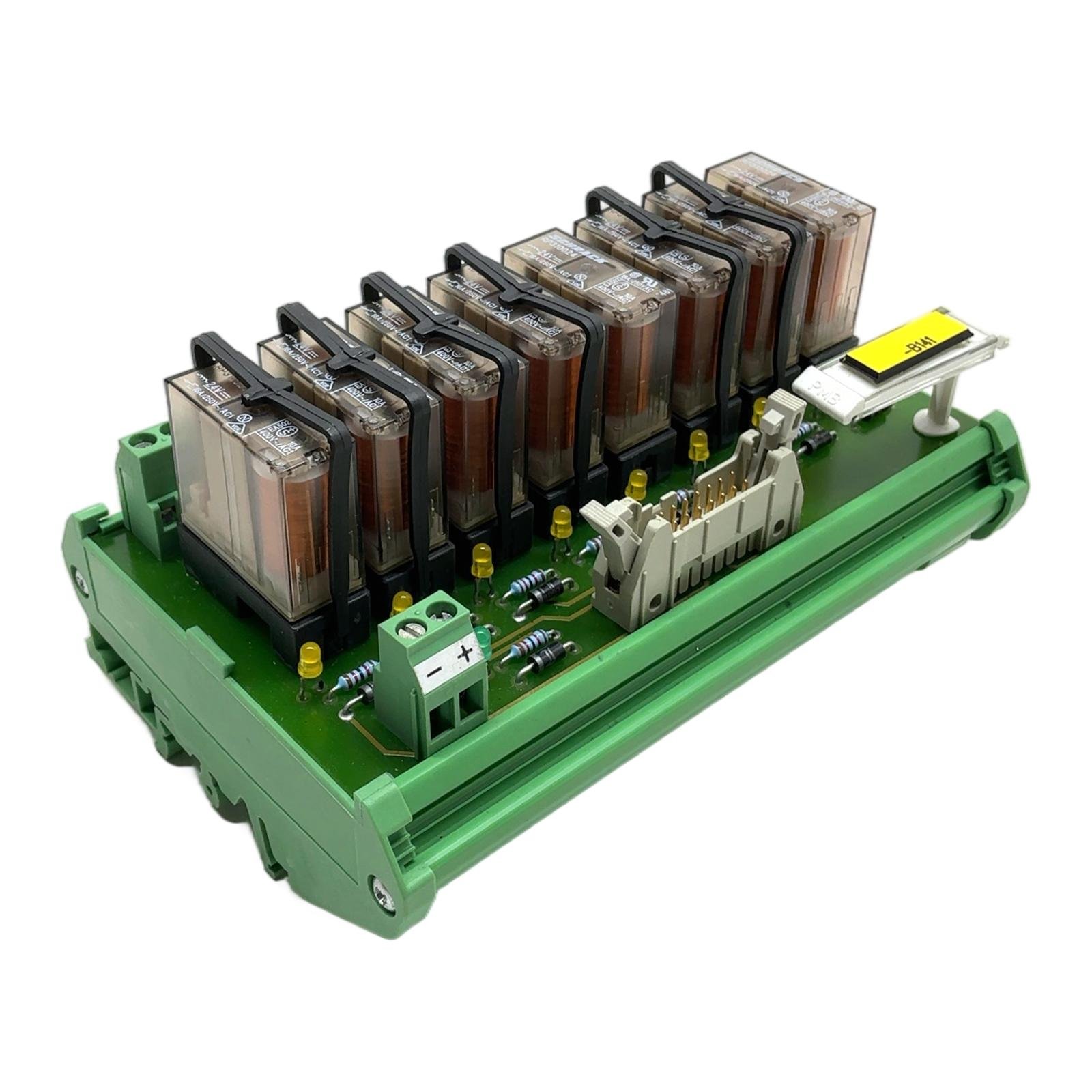

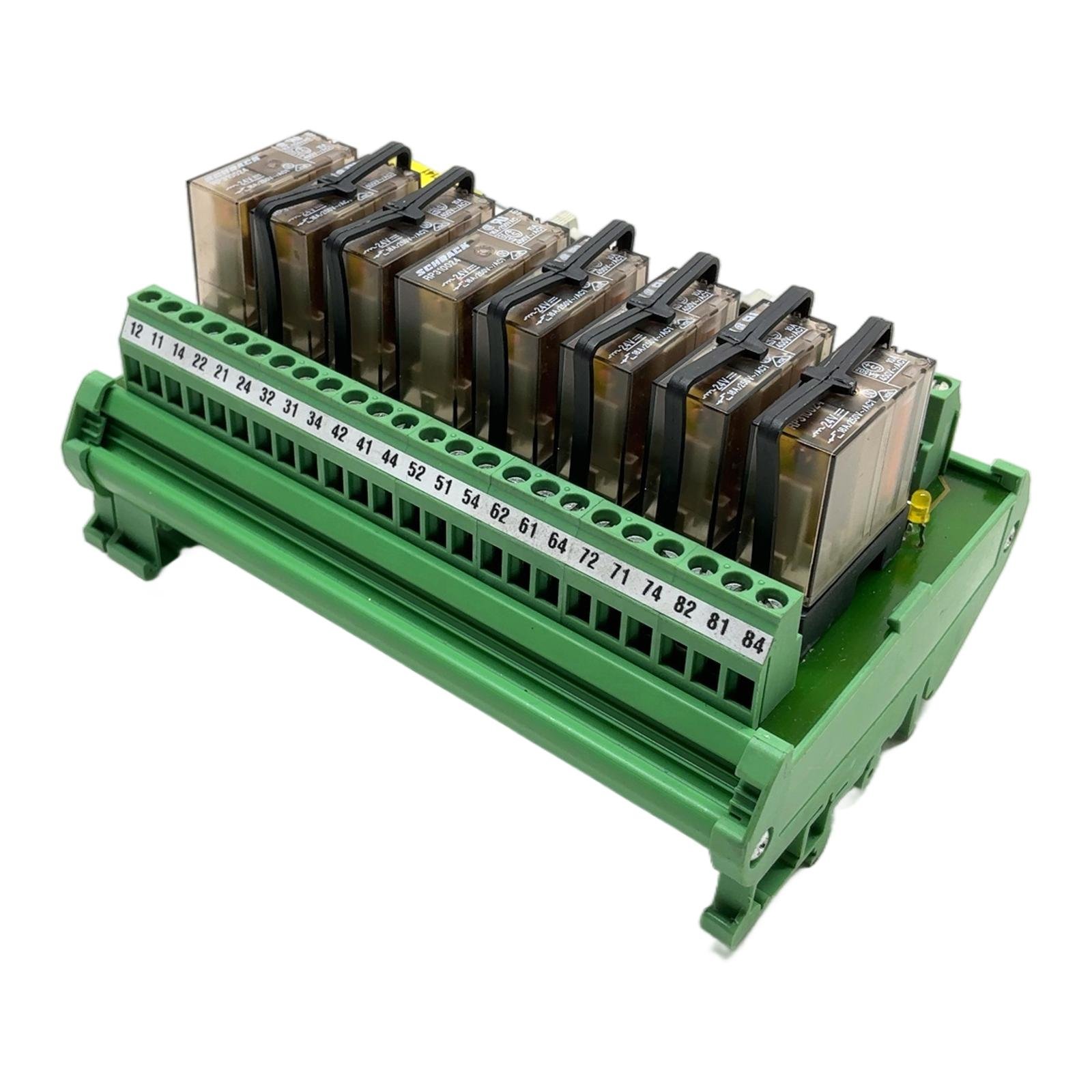

PHOENIX CONTACT UMK-8 RELS/KSR-G24/21/PLC 2974914

Phoenix Contact 8-Channel PLC Relay Interface Module Description The UMK- 8 RELS/KSR-G24/21/PLC with order number 2974914 is a robust relay module from Phoenix Contact. It is designed to provide a reliable interface between a PLC controller and field-level components. This module features eight independent channels, each equipped with a pluggable miniature relay with a power contact. Its screw-connection terminals ensure secure and durable wiring, making it suitable for a wide range of industrial automation applications. As an obsolete component, it is a crucial spare part for maintaining existing systems. Specifications Manufacturer: Phoenix Contact Type: UMK- 8 RELS/KSR-G24/21/PLC Part Number: 2974914 Nominal Input Voltage: 24V DC Number of Channels: 8 Contact Type: 1 Single Pole Double Throw (PDT) contact per channel Maximum Continuous Current: 10 A Connection Method: Screw terminals Mounting Type: DIN rail NS 35/7,5, NS 32 Label Info Individual Relay: Schrack RP310024 (24V, 16A/250V AC1) Module Ch.No.: 2727299-0 Application This module is typically used for signal amplification and electrical isolation in control cabinets. It is ideal for switching AC or DC loads such as motors, contactors, solenoid valves, and lamps, based on low-power 24V DC signals from a PLC’s digital output card. Country of Origin Manufactured in Germany. CO2 Impact Opting for this pre-owned module over a new one avoids the emission of approximately 14 kg of CO2, which is comparable to the emissions of a 70 km car journey. This promotes sustainable industrial maintenance. Availability This is an obsolete item, available from our stock as a tested, refurbished part. Order now from profideals for expert support and fast delivery. FAQ What is the maximum switching current for this module?While the individual Schrack relays are rated for 16A (AC1), the Phoenix Contact module as a whole is specified for a maximum continuous current of 10A per channel. It is crucial to adhere to the module’s specification for safe operation. Is this module compatible with modern PLCs?Yes, electrically it is compatible. The module operates on a standard 24V DC signal. The primary considerations are physical connection (screw terminals vs. modern connectors) and ensuring you have the correct wiring from your PLC output card to the module’s input terminals. Can I replace a single faulty relay on this board?Yes, one of the main advantages of this design is the use of pluggable relays. You can individually replace a faulty relay (Schrack RP310024 or equivalent) without needing to replace the entire module, making maintenance cost-effective. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
