IKO NA 6914

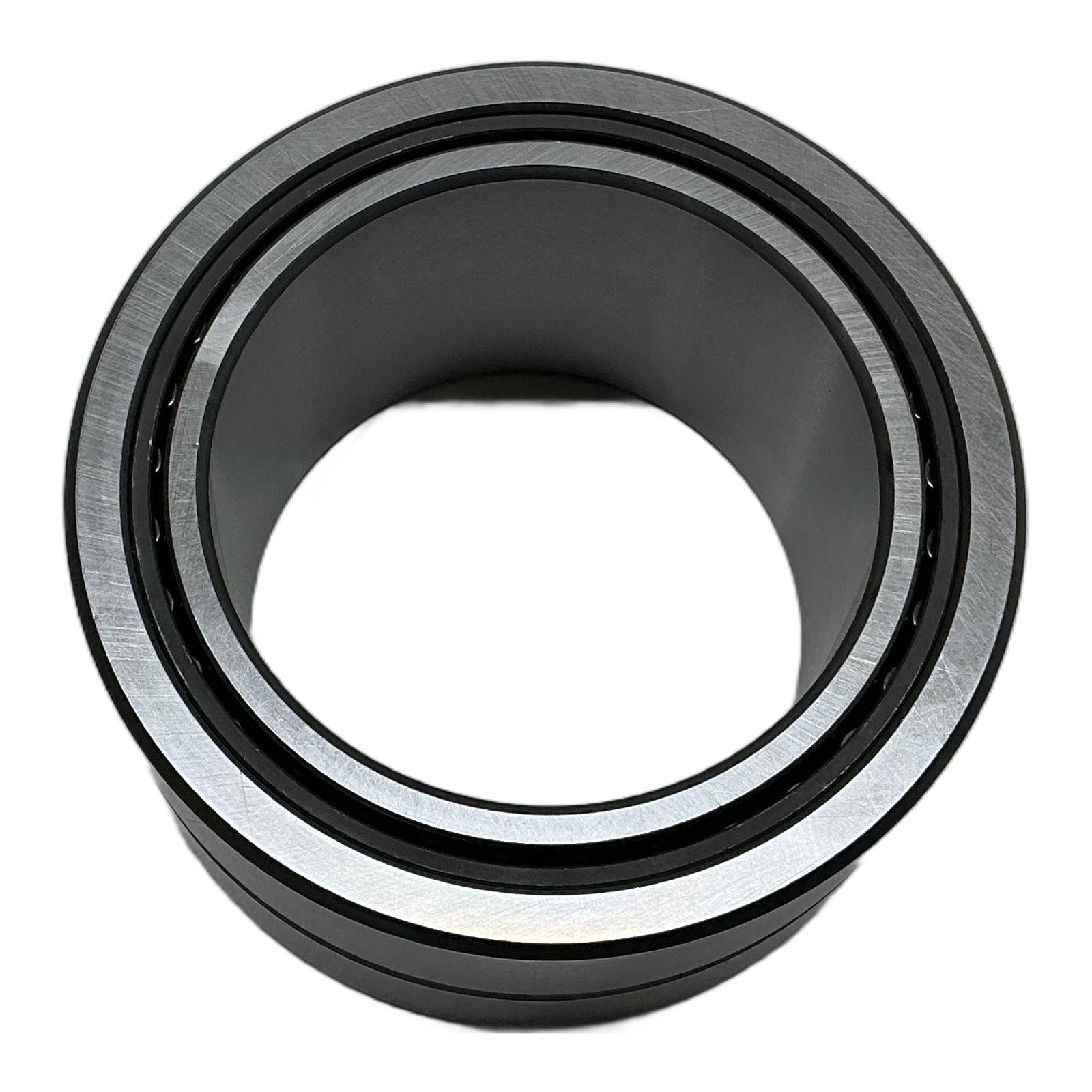

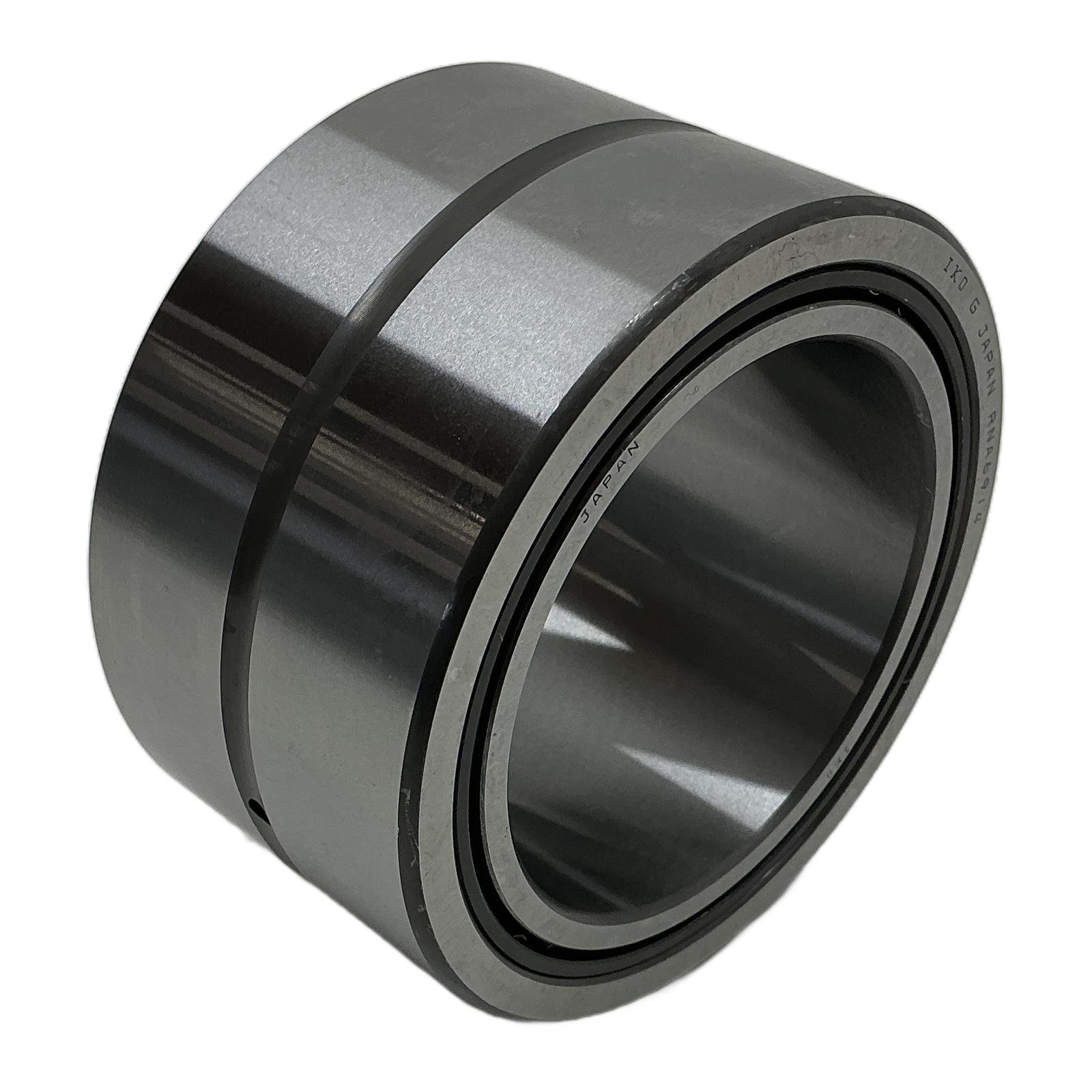

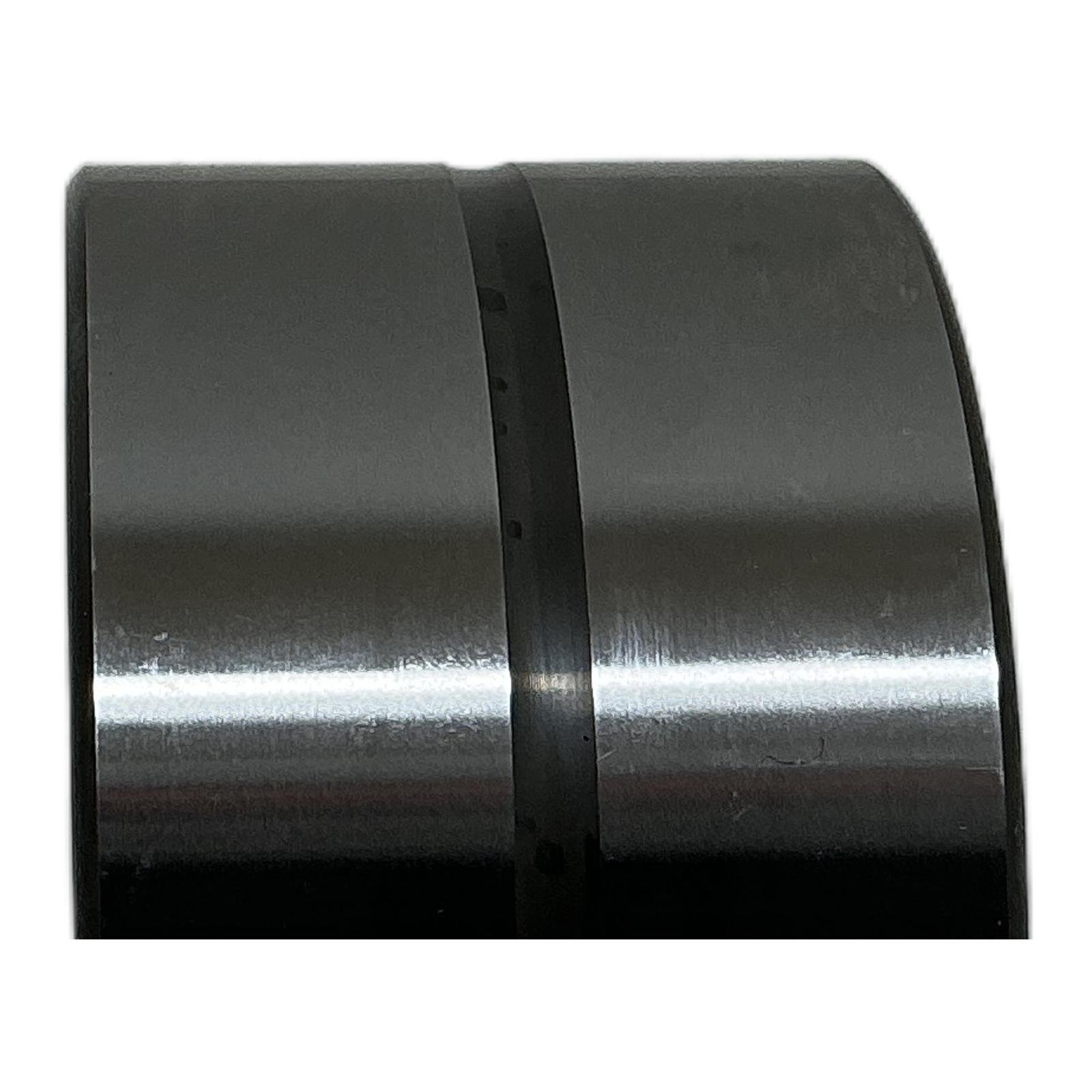

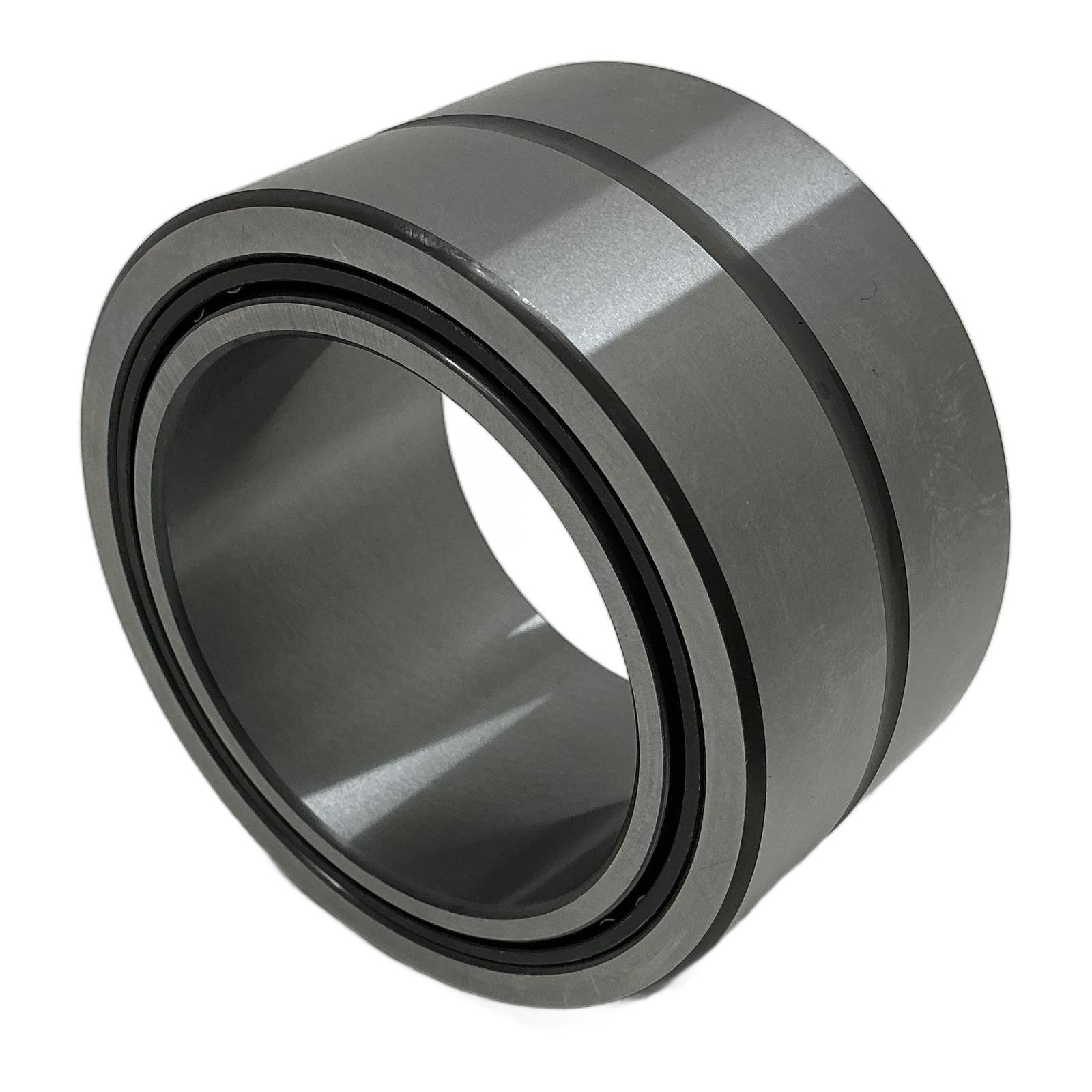

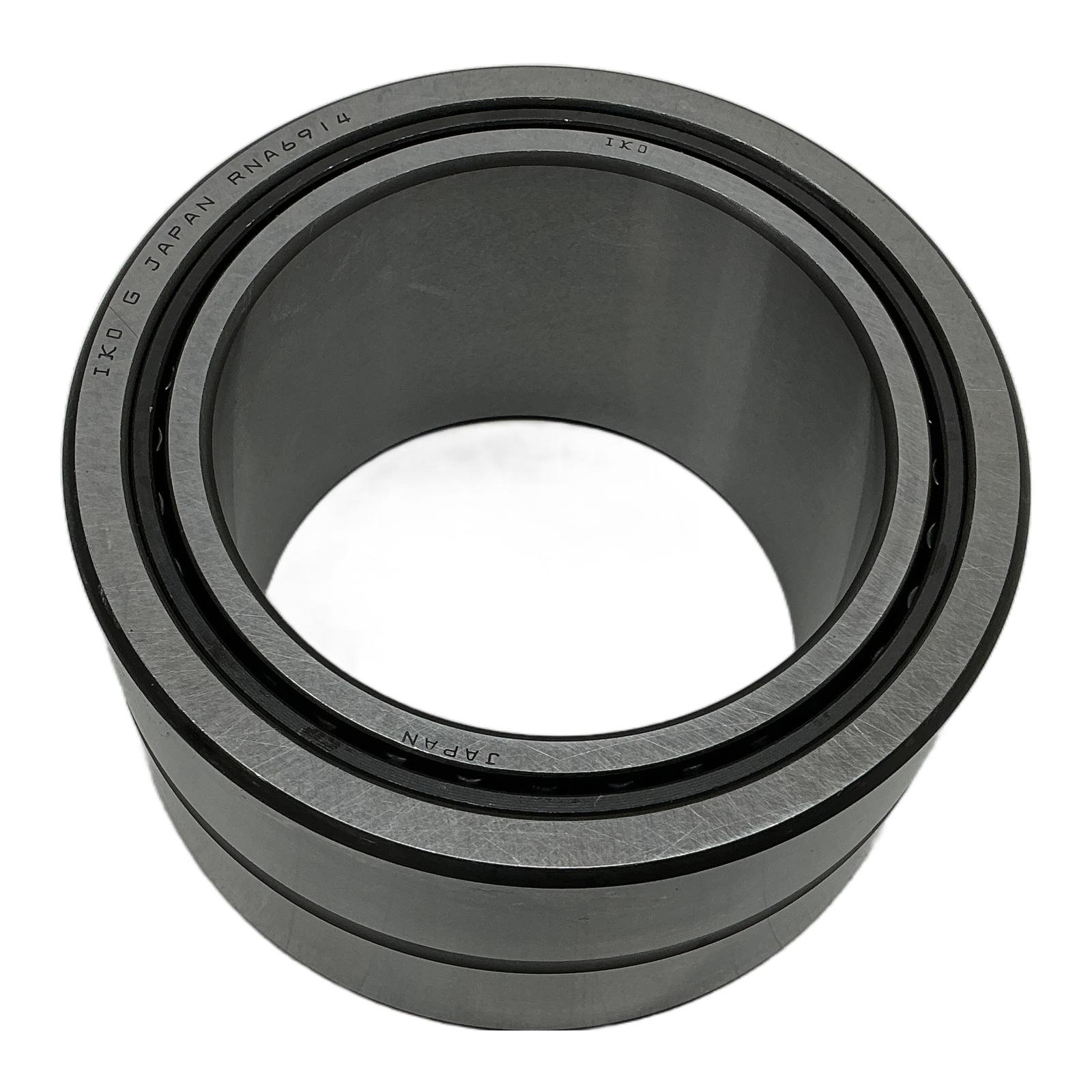

IKO Needle Roller Bearing NA 6914 Description The IKO NA 6914 is a high-quality machined type needle roller bearing with an inner ring, designed for superior performance in industrial applications. It features a compact cross-section while providing high load capacity and rigidity. This bearing is ideal for use where the shaft cannot be hardened and ground to serve as a raceway. Manufactured in Japan, it ensures reliability and a long service life. Specifications Manufacturer: IKO Part Number: NA 6914 Type: Machined Needle Roller Bearing with Inner Ring Inner Diameter (d): 70 mm Outer Diameter (D): 100 mm Width (C): 54 mm Label Info Outer Ring Marking: IKO G JAPAN RNA6914 Box Label Assembly: NA 6914 Box Label Components: RNA6914+LRT708054 Application This bearing is commonly used in machine tools, automotive transmissions, industrial gearboxes, pumps, and other machinery requiring precise rotational motion and the ability to support heavy radial loads. Country of Origin Manufactured in Japan. CO2 Impact Opting for this component saves approximately 3.5 kg of CO2 compared to manufacturing a new one, supporting sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between IKO NA 6914 and RNA 6914?The NA 6914 is a complete needle roller bearing assembly that includes both the outer ring with rollers (designated as RNA 6914) and a separate inner ring (LRT708054). The RNA 6914 is just the outer ring and roller assembly, intended for applications where the shaft itself can be hardened and ground to serve as the inner raceway. What are the recommended lubrication and mounting procedures for this bearing?For the NA 6914, it is crucial to use a high-quality grease or oil suitable for needle roller bearings, depending on the operational speed and temperature. Mounting should be done using a press or a bearing heater to ensure even pressure on the rings and prevent damage to the rollers or raceways. Always refer to IKO’s official maintenance guide for specific lubricant types and mounting tolerances. Can this bearing accommodate axial loads?The IKO NA 6914 is a radial needle roller bearing designed primarily to handle high radial loads in a compact space. It can accommodate minimal axial displacement of the shaft relative to the housing but is not designed to support significant axial (thrust) loads. For combined radial and axial loads, a different type of bearing, such as an angular contact or tapered roller bearing, should be considered. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
