SMC VHS30-F03B 101-8MN

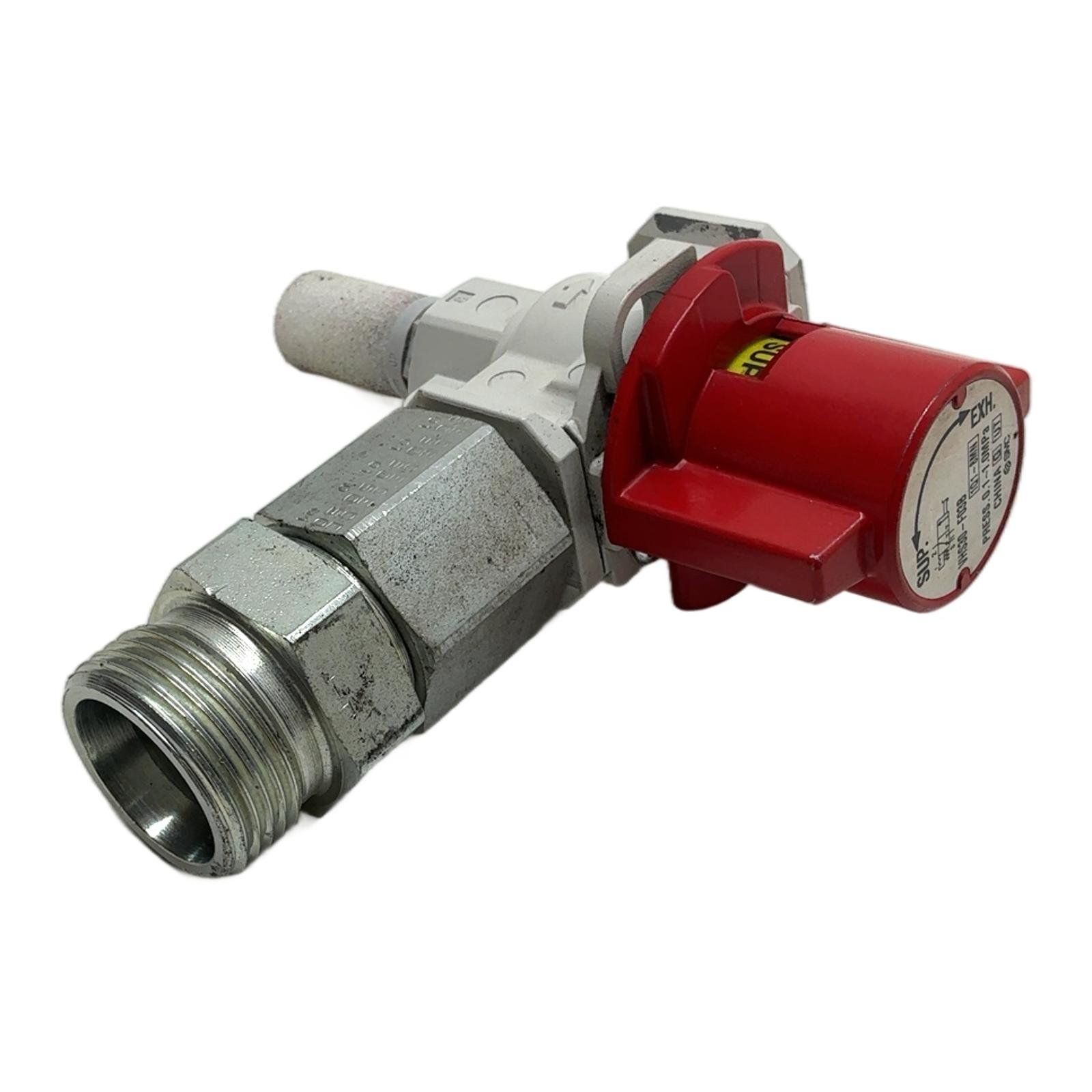

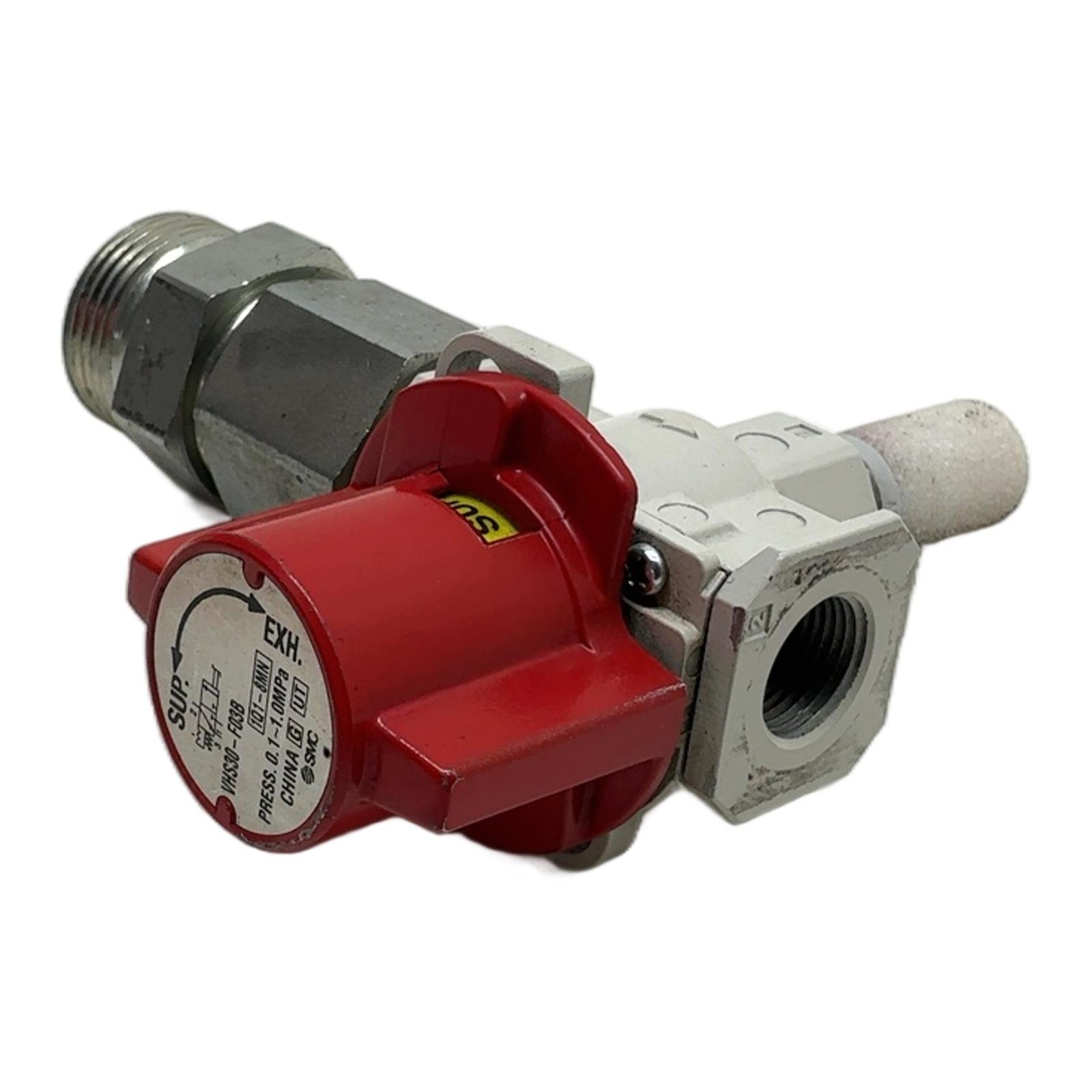

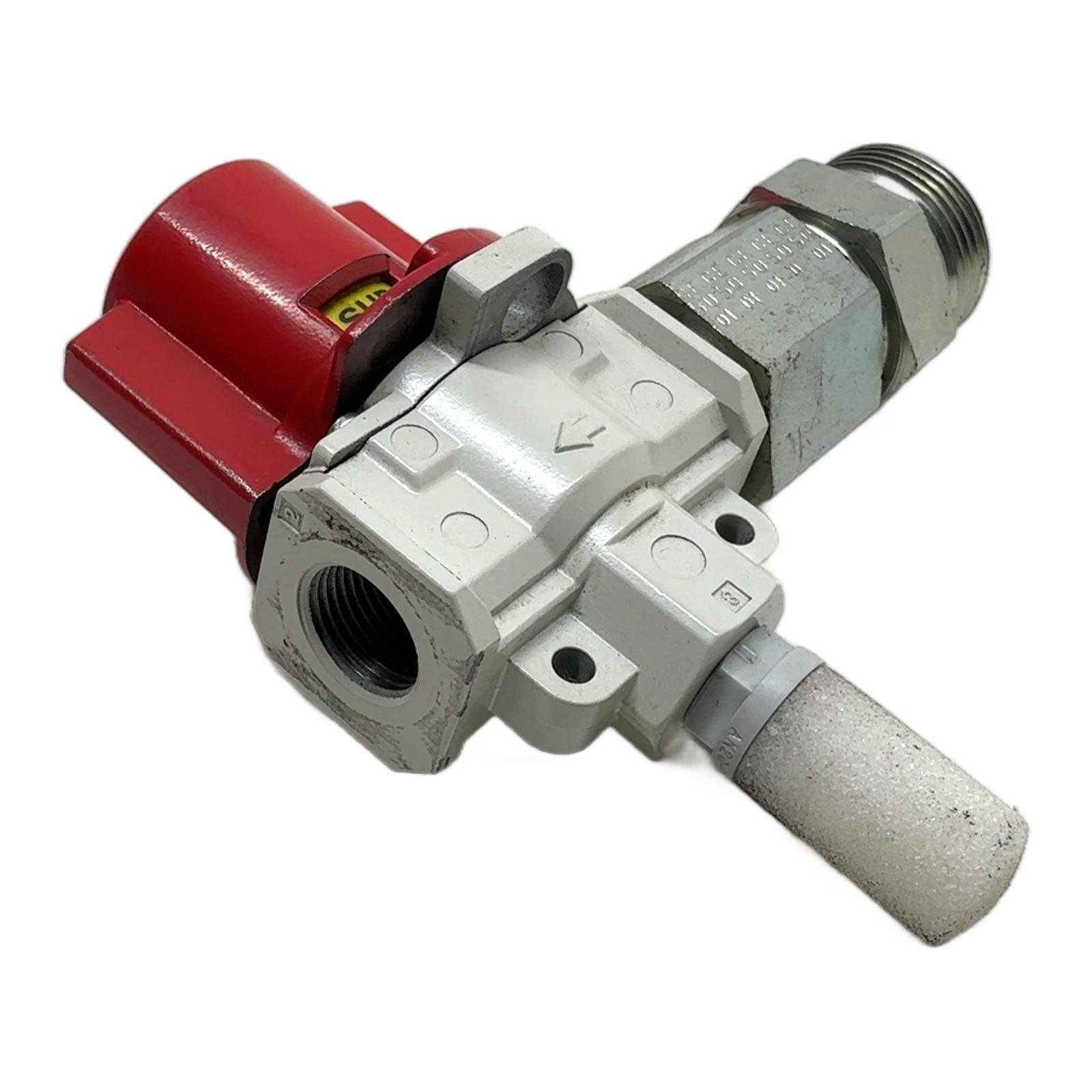

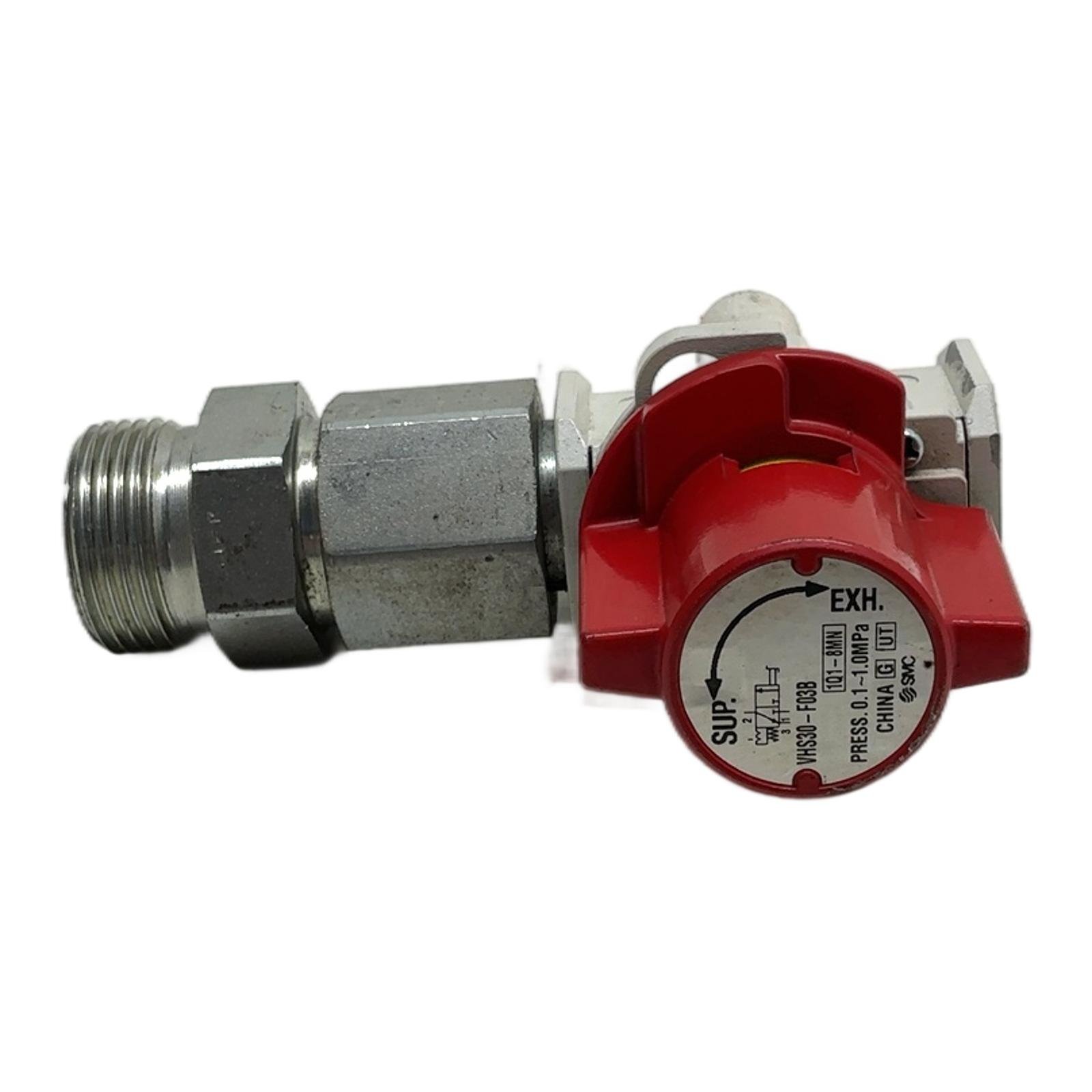

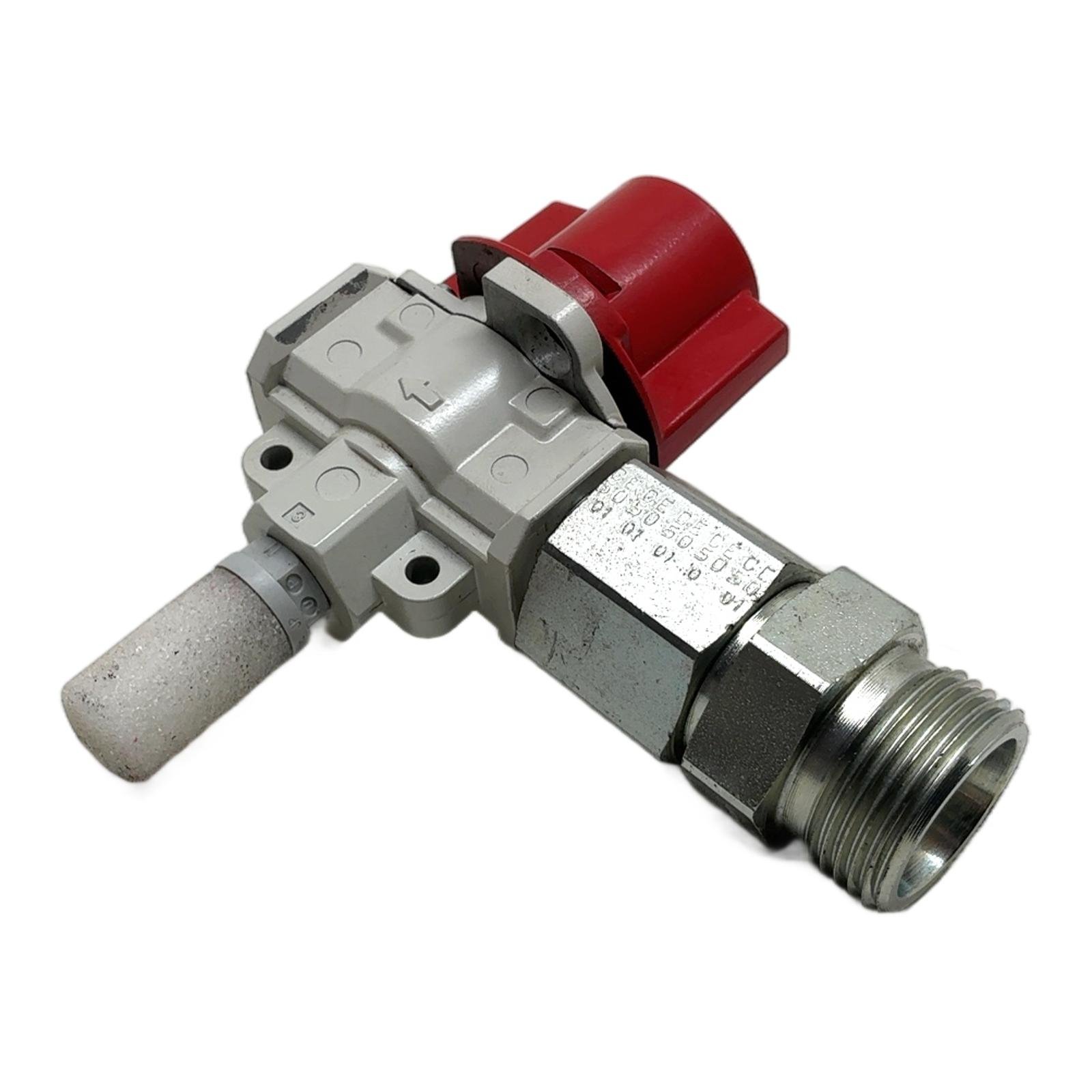

SMC VHS30-F03B Manual Shut-off Valve Description The SMC VHS30-F03B is a high-quality 3-port residual pressure release valve, designed for enhancing safety in pneumatic systems. By turning the manual handle, you can shut off the upstream air supply and exhaust any residual downstream pressure, preventing accidental machine operation during maintenance or servicing. Its robust construction and clear visual indicator (Red handle) make it an essential component for any industrial safety protocol. The valve is also lockable in the exhaust position for compliance with lockout/tagout (LOTO) procedures. Specifications Manufacturer: SMC Model: VHS30-F03B Valve Type: 3-Port Manual Shut-off Valve Fluid: Air, Inert Gas Operating Pressure Range: 0.1 to 1.0 MPa Port Size: Rc 3/8 Handle Type: Manual, Lockable Flow Direction: Marked for Supply (SUP) and Exhaust (EXH) Label Info Model: VHS30-F03B Order Code: 101-8MN Pressure: 0.1-1.0MPa Application This valve is widely used in industrial automation for isolating sections of pneumatic circuits for safe maintenance, tool changes, or system setup. It is critical for applications requiring dependable pressure release to ensure worker safety. Country of Origin This product is manufactured in China. CO2 Impact Opting for this pre-owned valve saves approximately 5.0 kg of CO2 compared to manufacturing a new one. This choice supports a circular economy and reduces industrial waste. Availability This item is a used, tested product in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the purpose of the built-in silencer on the VHS30-F03B?The porous, white component on the exhaust port is a silencer. Its function is to reduce the noise generated when compressed air is rapidly vented from the system to the atmosphere. This is important for both worker comfort and safety in industrial environments. Can this valve be used for vacuum applications?The standard VHS series is designed for positive pressure applications (0.1 to 1.0 MPa). While some configurations might handle a slight vacuum, it is not its primary design function. For dedicated vacuum use, SMC offers specific valve series designed to handle negative pressure without leaking. What does the ‘lockout’ feature on this valve do?The handle has a provision to insert a padlock when it is in the closed (exhaust) position. This is a critical safety feature for Lockout-Tagout (LOTO) procedures, ensuring that the air supply cannot be accidentally re-energized while a technician is performing maintenance on the machinery. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
