SCHNEIDER ELECTRIC GV2-P10 4-6.3A

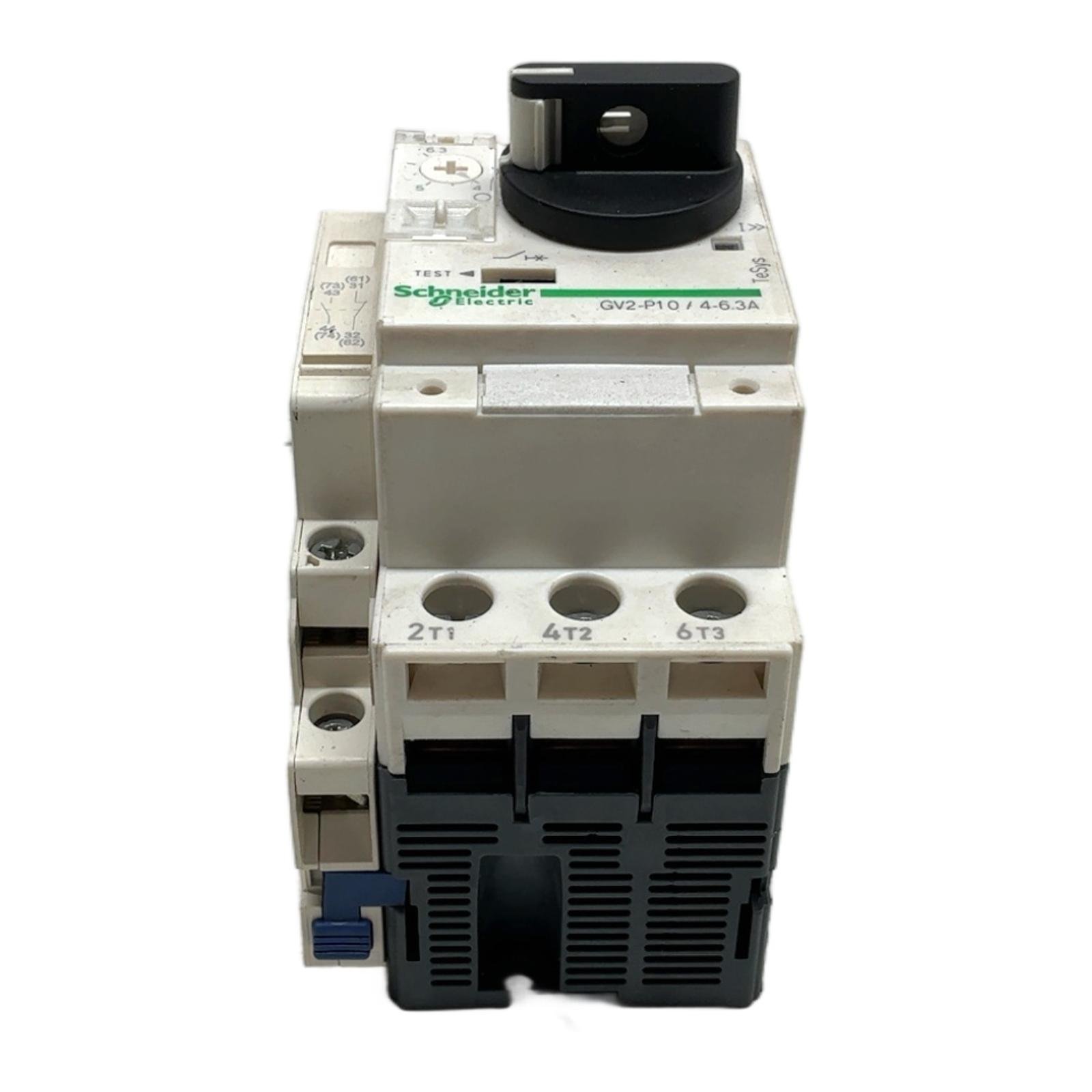

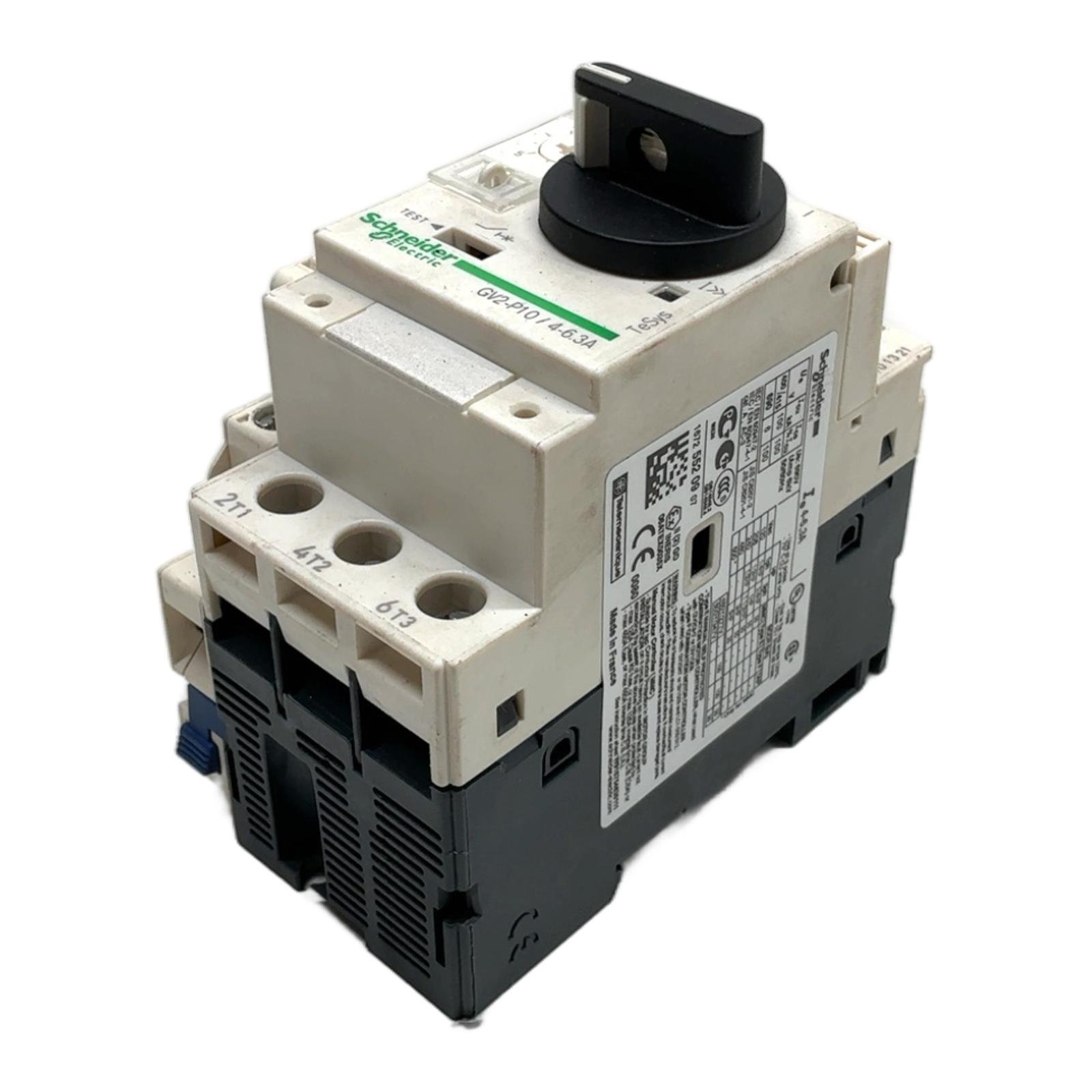

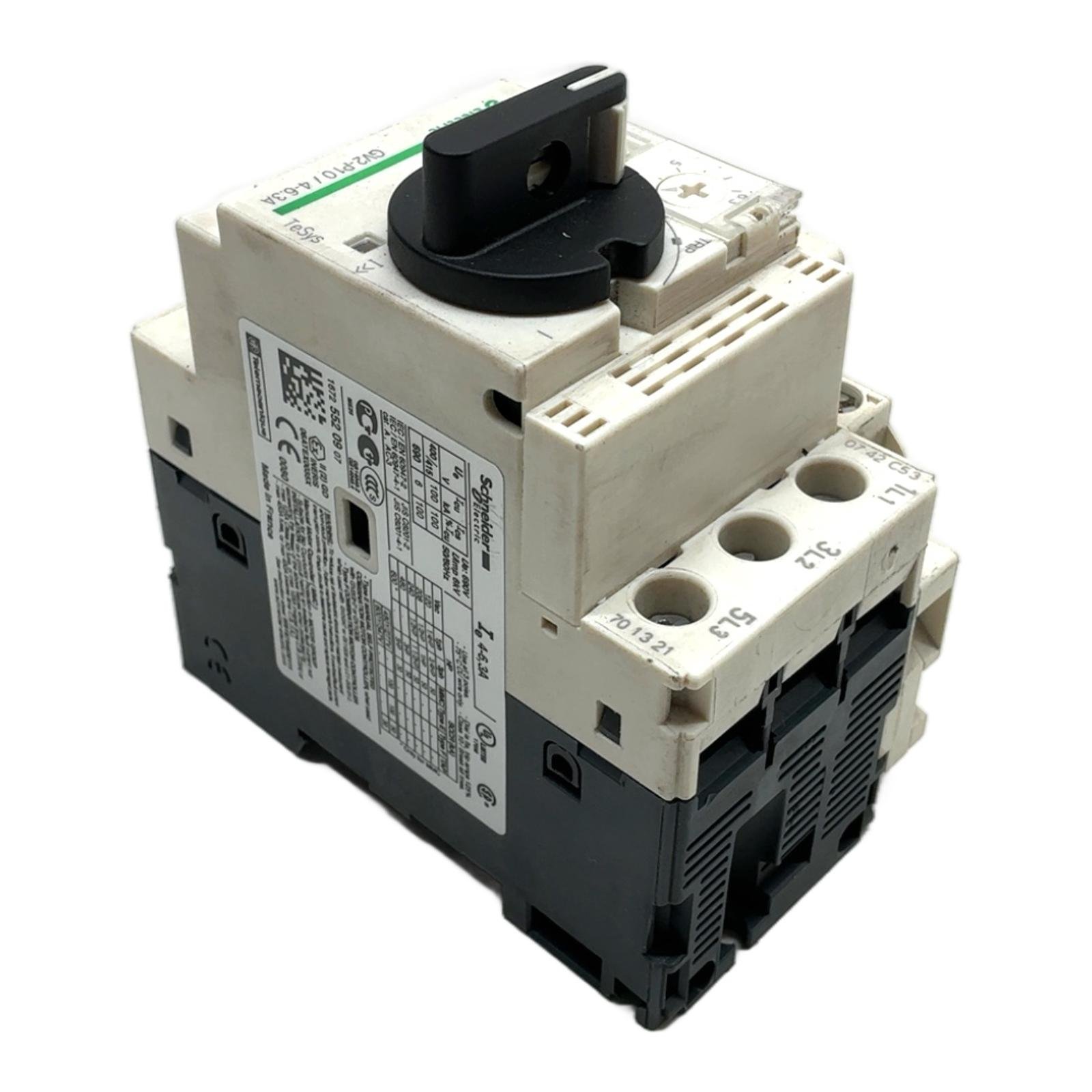

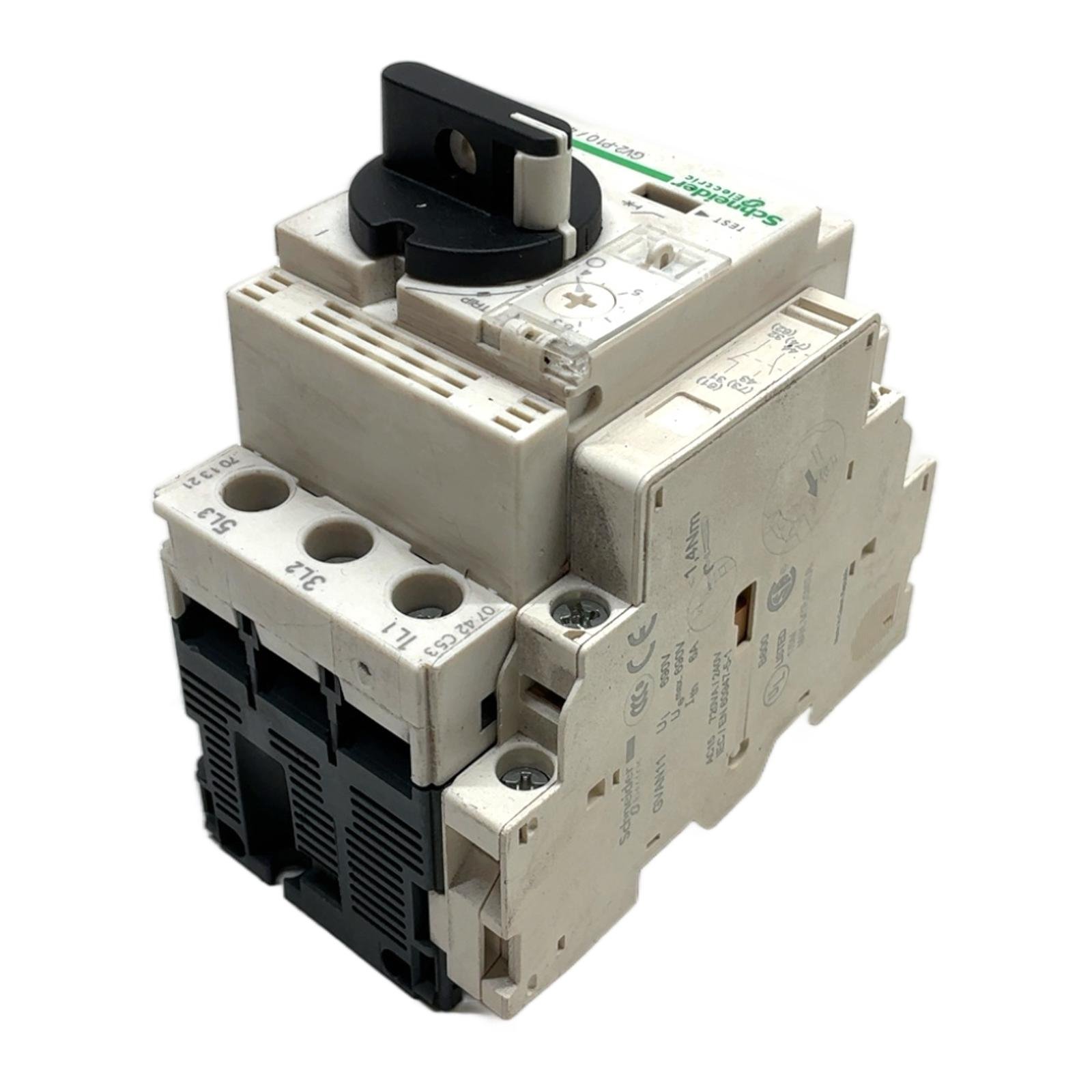

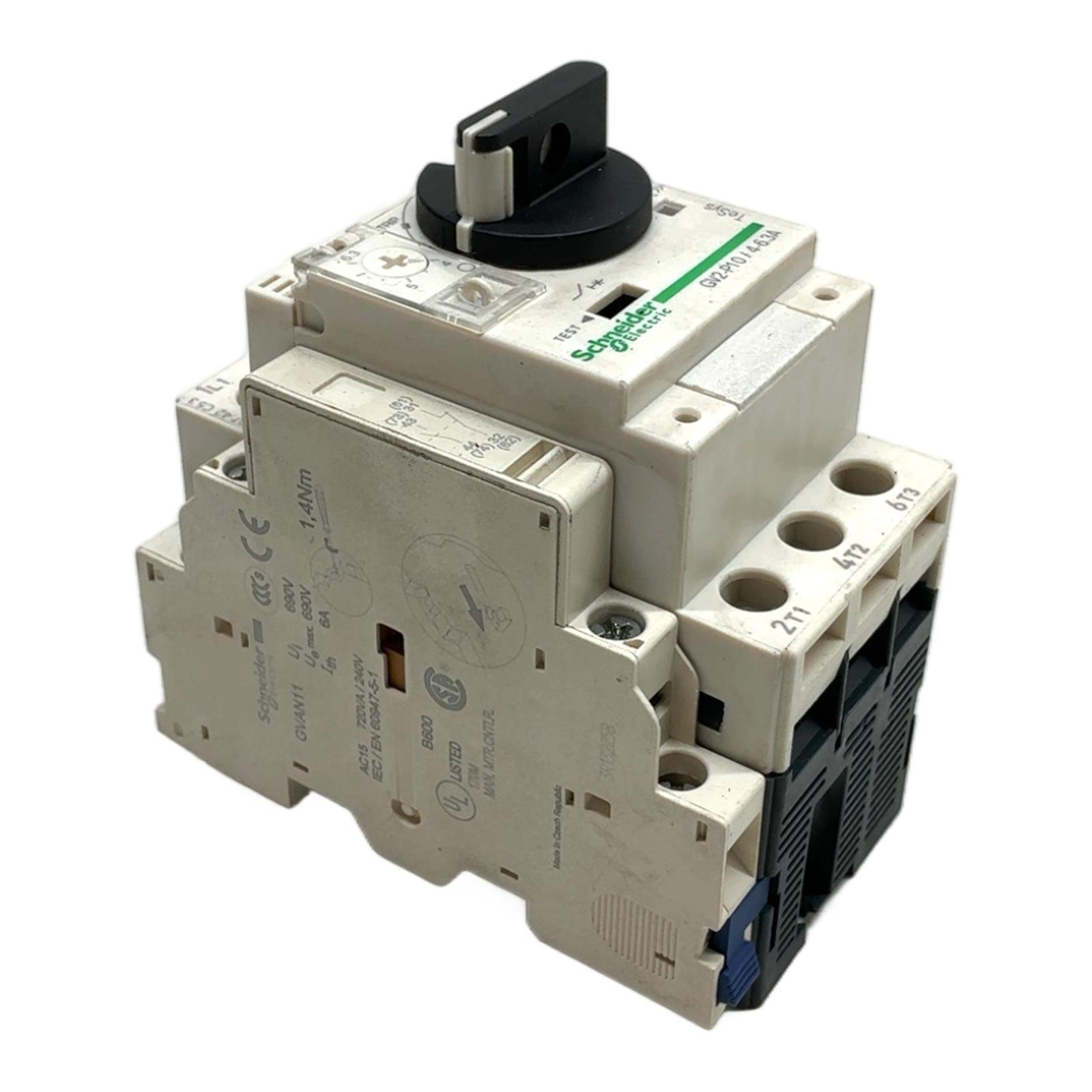

Schneider Electric TeSys GV2-P10 Motor Protector with Auxiliary Contact Description This is a TeSys GV2-P10 thermal-magnetic motor circuit breaker from Schneider Electric. It is designed to provide reliable protection for three-phase motors against overloads and short circuits. The device features an adjustable thermal setting from 4A to 6.3A and is operated via a robust rotary handle. This unit is supplied with a pre-mounted GVAN11 auxiliary contact block, providing one normally open and one normally closed contact for external signaling and control logic. Part of the well-regarded TeSys range, this component is ideal for industrial motor control applications. Specifications Manufacturer: Schneider Electric Product Line: TeSys GV2 Model: GV2-P10 Thermal Protection Range: 4.0 to 6.3 A Rated Operational Voltage (Ue): up to 690V AC Rated Impulse Withstand Voltage (Uimp): 6 kV Breaking Capacity (Icu): 100 kA at 400/415V AC Auxiliary Contact Block: GVAN11 (1 NO + 1 NC) Label Info Main Unit: GV2-P10 / 4-6.3A Auxiliary Unit: GVAN11 Standards: IEC/EN 60947-2, IEC/EN 60947-4-1 Application Suitable for direct manual control and protection of motors in various industrial settings, including conveyor systems, pumps, fans, and small machinery. The auxiliary contact allows for integration into larger automation systems for status monitoring or interlocking. Country of Origin The main unit is made in France, and the auxiliary contact is made in the Czech Republic. CO2 Impact Opting for this pre-owned unit over a new one prevents the emission of approximately 12.4 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the purpose of the GVAN11 auxiliary contact block included with this GV2-P10?The GVAN11 provides auxiliary contacts (1 Normally Open, 1 Normally Closed) that change state along with the main contacts of the circuit breaker. This is used to signal the status (On/Off/Tripped) of the motor to a PLC, indicator light, or another control device. How do I set the thermal overload protection on this device?The thermal protection is set using the graduated dial on the front of the unit. You should adjust the arrow to match the full load ampere (FLA) rating of the motor you are protecting, which is typically found on the motor’s nameplate. Is this motor protector suitable for both single-phase and three-phase motors?While designed for three-phase motors, it can be used for single-phase motor protection. To do this, you must wire the incoming and outgoing phases correctly through all three poles of the device to ensure the thermal protection mechanism works as intended. Refer to the manufacturer’s documentation for the correct wiring schematic. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
