SCHNEIDER ELECTRIC STB DDO 3705

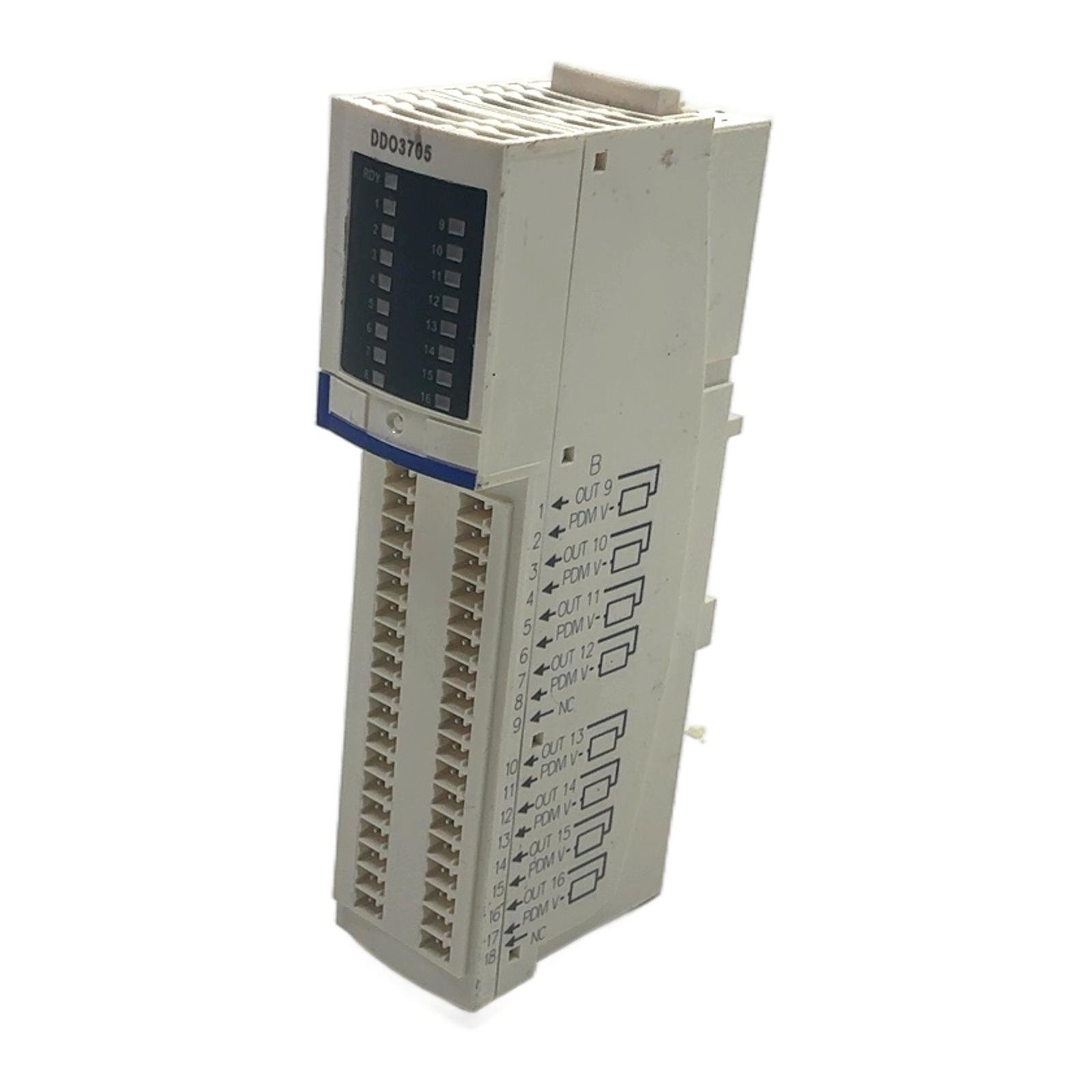

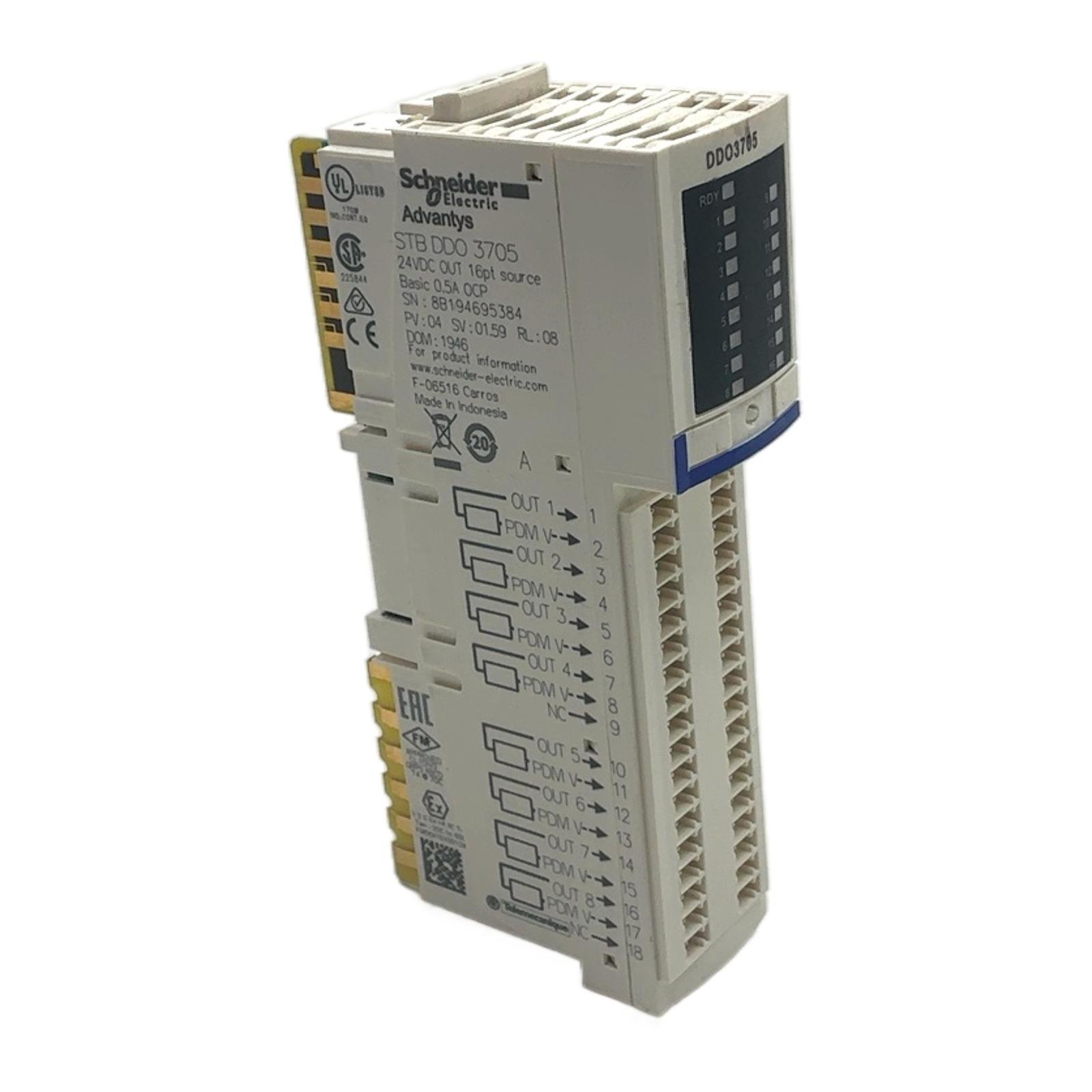

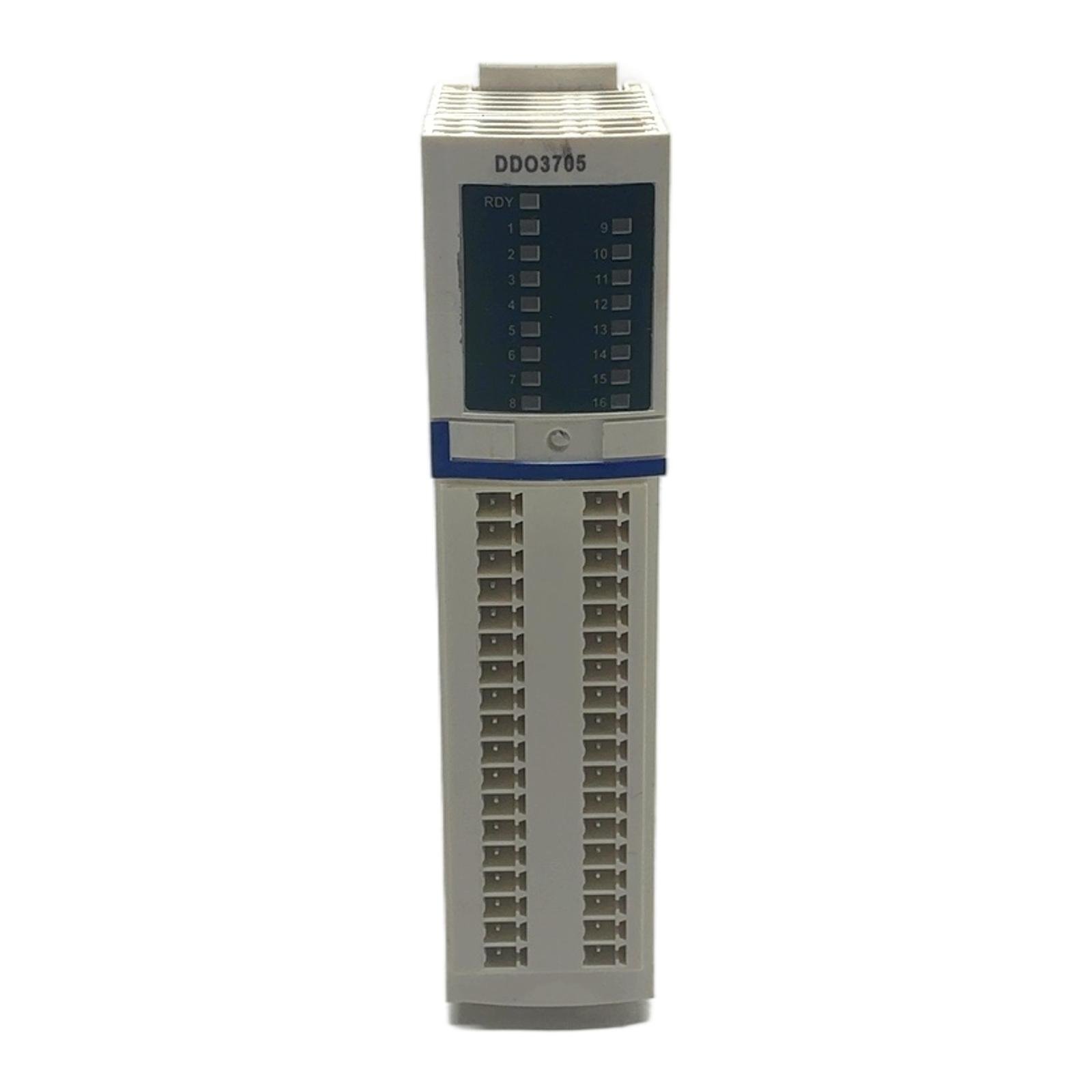

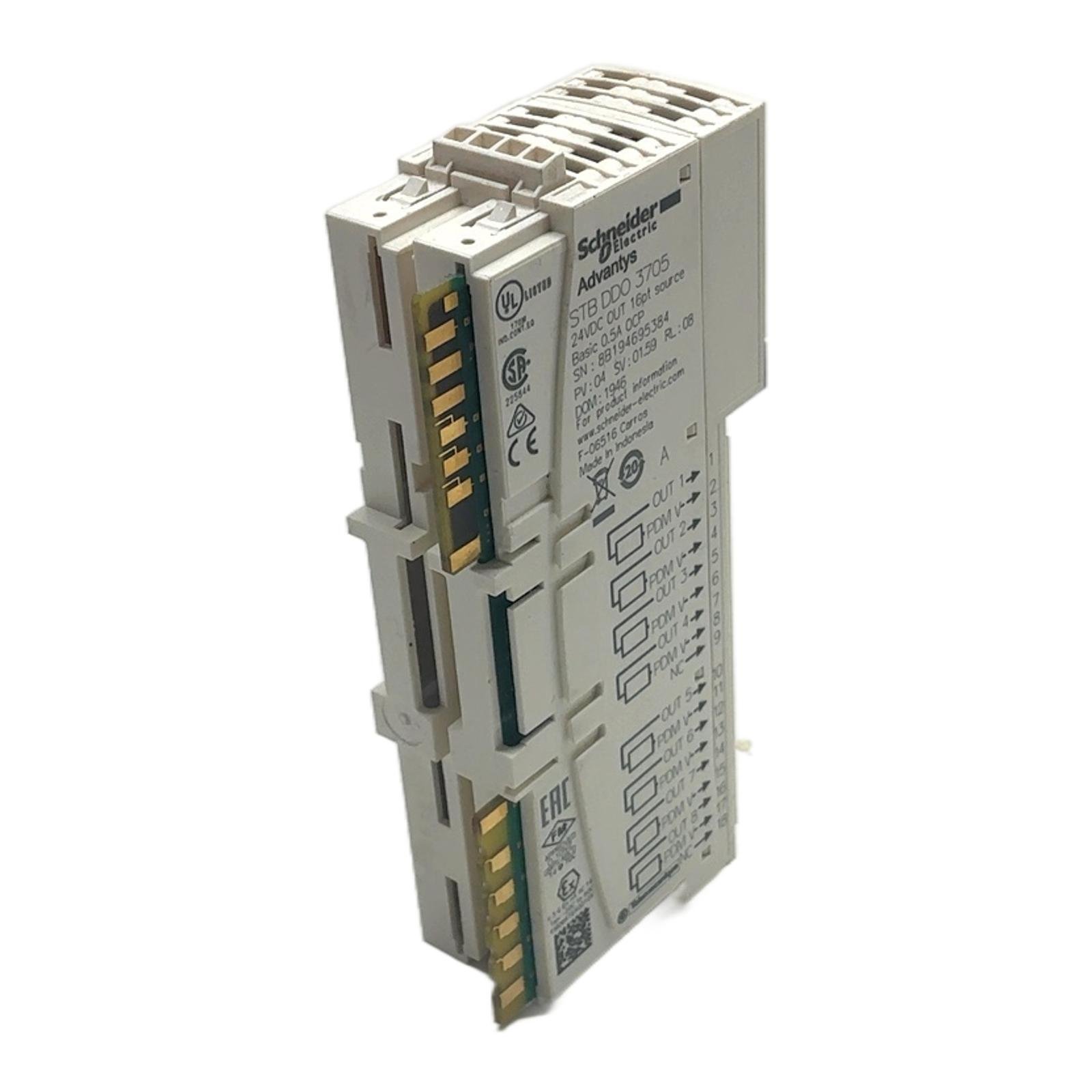

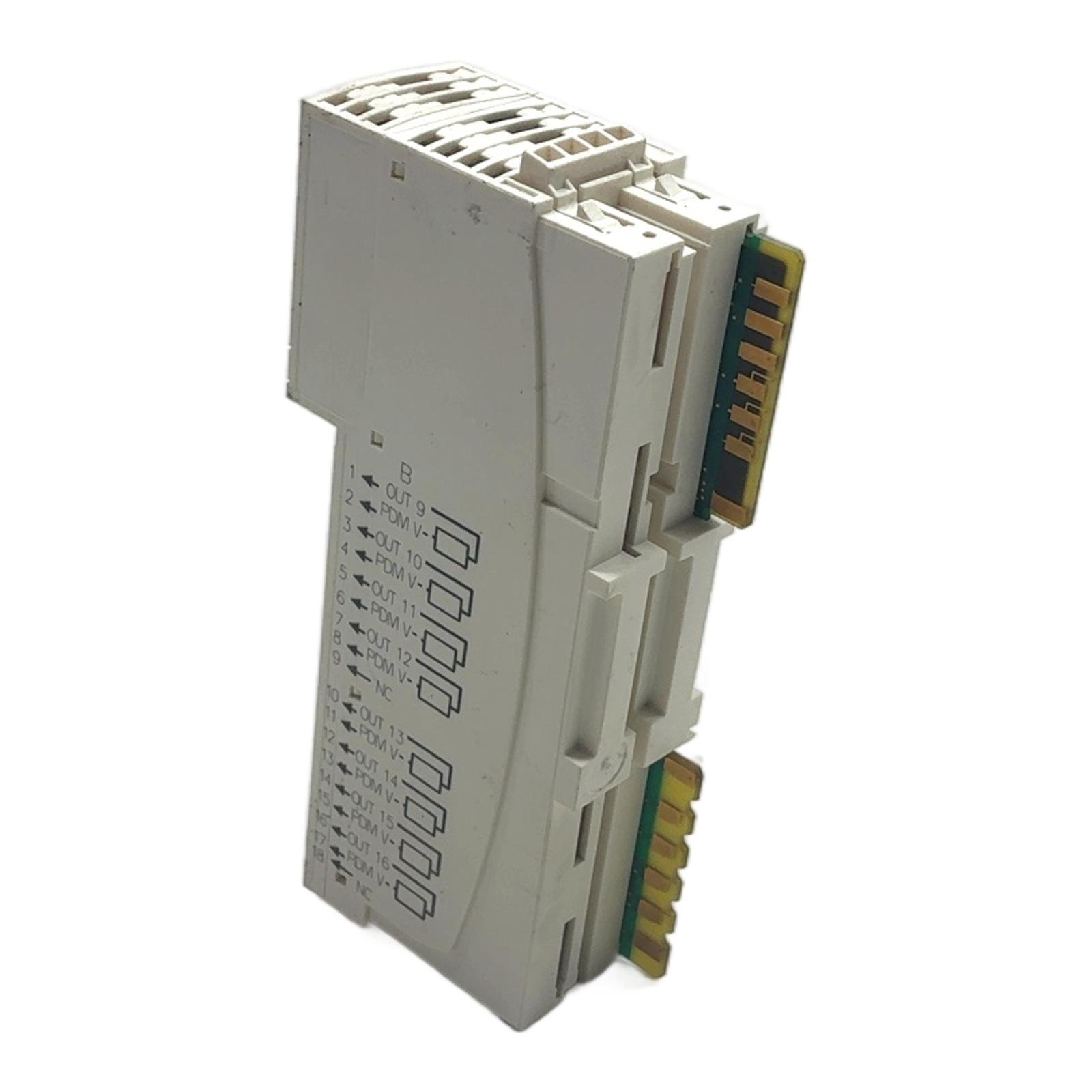

Schneider Electric STB DDO 3705 Digital Output Module Description The Schneider Electric STB DDO 3705 is a standard 16-point discrete output module for the Advantys STB distributed I/O system. It provides reliable 24V DC sourcing outputs, each rated for 0.5 A, making it ideal for controlling a variety of actuators, lamps, and other field devices in automated systems. This module is designed for seamless integration into a modular PLC setup, offering flexibility and robust performance. Specifications Manufacturer: Schneider Electric Part Number: STB DDO 3705 Type: Digital Output Module Outputs: 16 Sourcing Output Voltage: 24V DC Current per Output: 0.5 A with Over Current Protection (OCP) Series: Advantys STB Label Info SN: 8B194695384 PV: 04 SV: 01.59 RL: 08 DOM: 1946 Application This module is suitable for various industrial automation applications, including material handling, packaging machinery, and process control systems where reliable digital output signaling is required. Country of Origin Made in Indonesia. CO2 Impact Choosing this pre-owned module over a new one prevents the emission of approximately 4.8 kg of CO2, contributing to a more sustainable industrial environment. Availability This product is an obsolete item but is available from our stock. Ensure the continuity of your existing Advantys STB systems with this replacement part. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a ‘sourcing’ and ‘sinking’ output module? A sourcing output module, like this STB DDO 3705, provides (sources) a positive voltage (V+) to the load. The load is connected between the output terminal and the common ground (0V). A sinking module connects the load to ground (sinks current), and the load is powered by an external positive voltage source. Can this module be used without an Advantys STB network interface module (NIM)? No, the STB DDO 3705 is a distributed I/O module and requires a network interface module (like an STB NIP for Ethernet/IP or STB NDP for Profibus-DP) and a base to function. It cannot operate as a standalone device. What does the ‘0.5A OCP’ specification mean? OCP stands for Over Current Protection. This means each of the 16 outputs is protected against currents exceeding 0.5 Amperes. This feature helps prevent damage to the module and the connected device in case of a short circuit or overload. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
