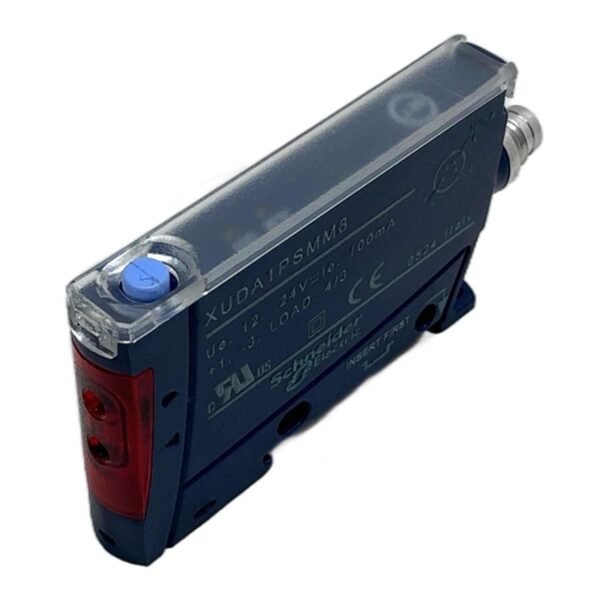

SCHNEIDER ELECTRIC XUDA1PSMM8 016037

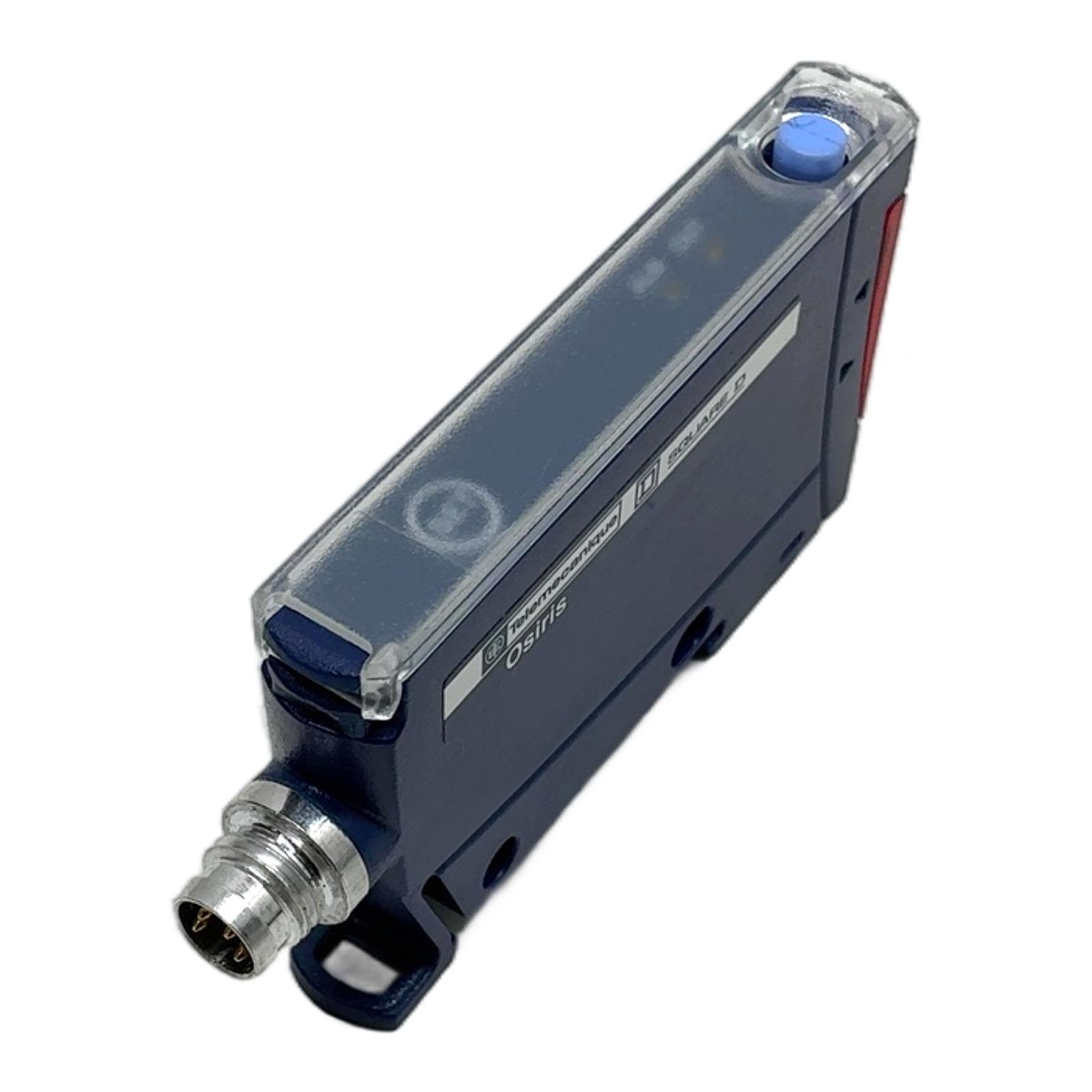

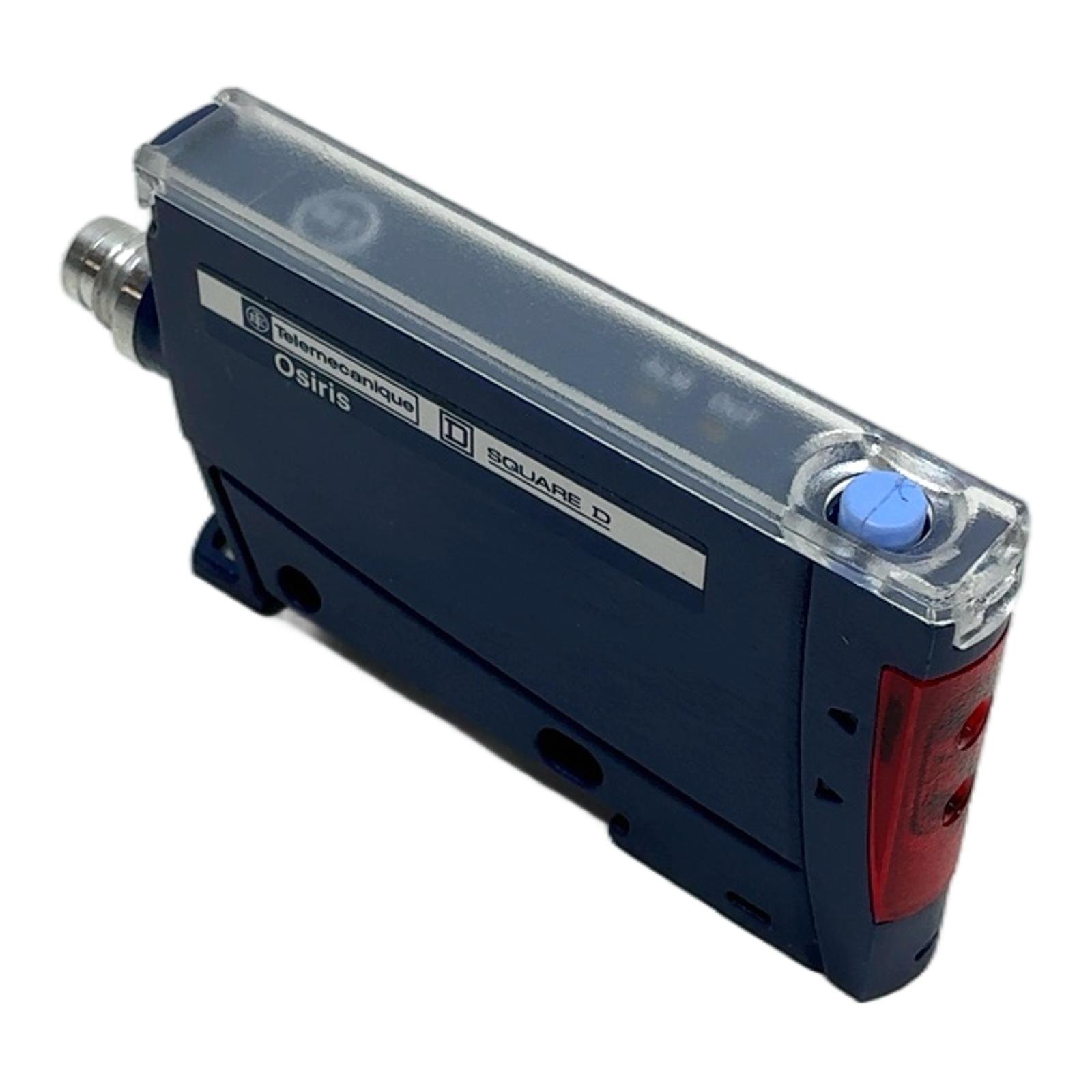

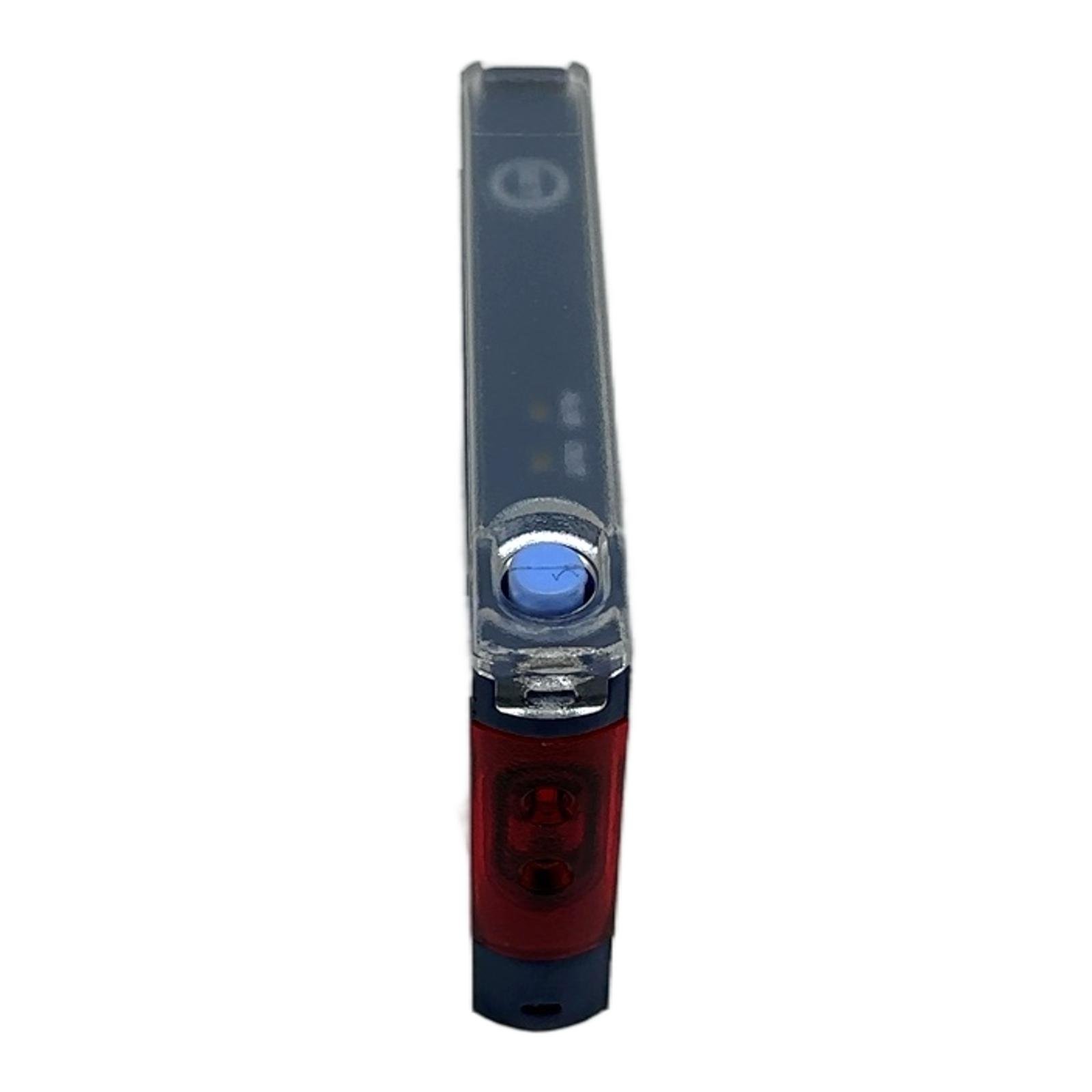

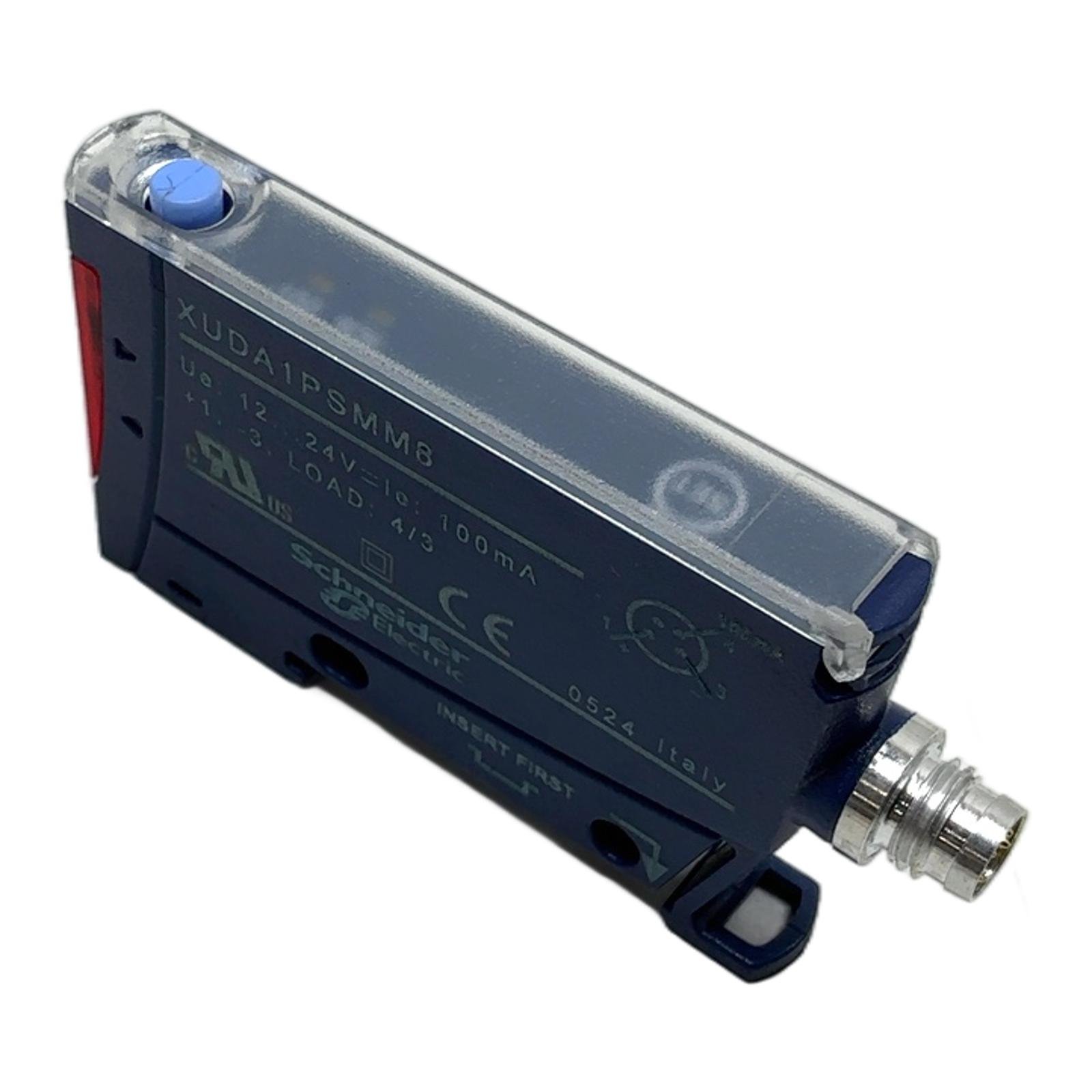

Schneider Electric OsiSense XU Photoelectric Sensor Description The XUDA1PSMM8 is a compact photoelectric sensor from Schneider Electric’s Telemecanique OsiSense XU series. It is specifically engineered for high-performance object detection in industrial environments. This model is particularly effective in detecting transparent materials, making it a valuable component in bottling, packaging, and material handling applications. As an obsolete part, it serves as a critical spare for maintaining existing machinery. This unit is New Old Stock, ensuring it’s in excellent working condition. Specifications Manufacturer: Schneider Electric Part Number: XUDA1PSMM8 Series: OsiSense XU Operating Voltage: 12 to 24V DC Output Type: PNP (NO/NC programmable) Sensing Distance: 0 to 0.4 meters Connection: M8 4-pin male connector Detection System: Diffuse, for transparent material Label Info Brand: Telemecanique / Square D (Schneider Electric) Model: XUDA1PSMM8 Order Code: 016037 Ue: 12…24V, Ie: 100mA Application Ideal for use in conveyor systems, automated packaging lines, food and beverage processing, and any application requiring the reliable detection of clear objects like plastic bottles or glass containers. Country of Origin Made in Italy. CO2 Impact Reusing this component saves approximately 3.0 kg of CO2 compared to producing a new one. This choice supports a circular economy and reduces industrial waste. Availability This is an obsolete item, available as New Old Stock. Limited quantity available. Order now from profideals for expert support and fast delivery. FAQ What is the specific application for the XUDA1PSMM8 sensor?This sensor is a diffuse-mode photoelectric sensor specifically designed for the detection of transparent materials. Its high sensitivity and adjustability make it suitable for bottling lines, packaging, and handling of glass or clear plastic objects. How can I configure the PNP output between Normally Open (NO) and Normally Closed (NC)?The XUDA1PSMM8 typically features a teach button or a wiring configuration to switch between NO and NC states. For this model, it is often programmed via the push-button on top of the unit. Refer to the official product datasheet for the exact teach-in procedure. Is this sensor compatible with modern PLC inputs?Yes, its 12-24VDC PNP output is a standard industrial signal type. It is directly compatible with most modern PLC digital input cards that are configured for sourcing (PNP) inputs. The M8 connector provides a robust and standard connection. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
