ABB S201-K10A S2C-H6R

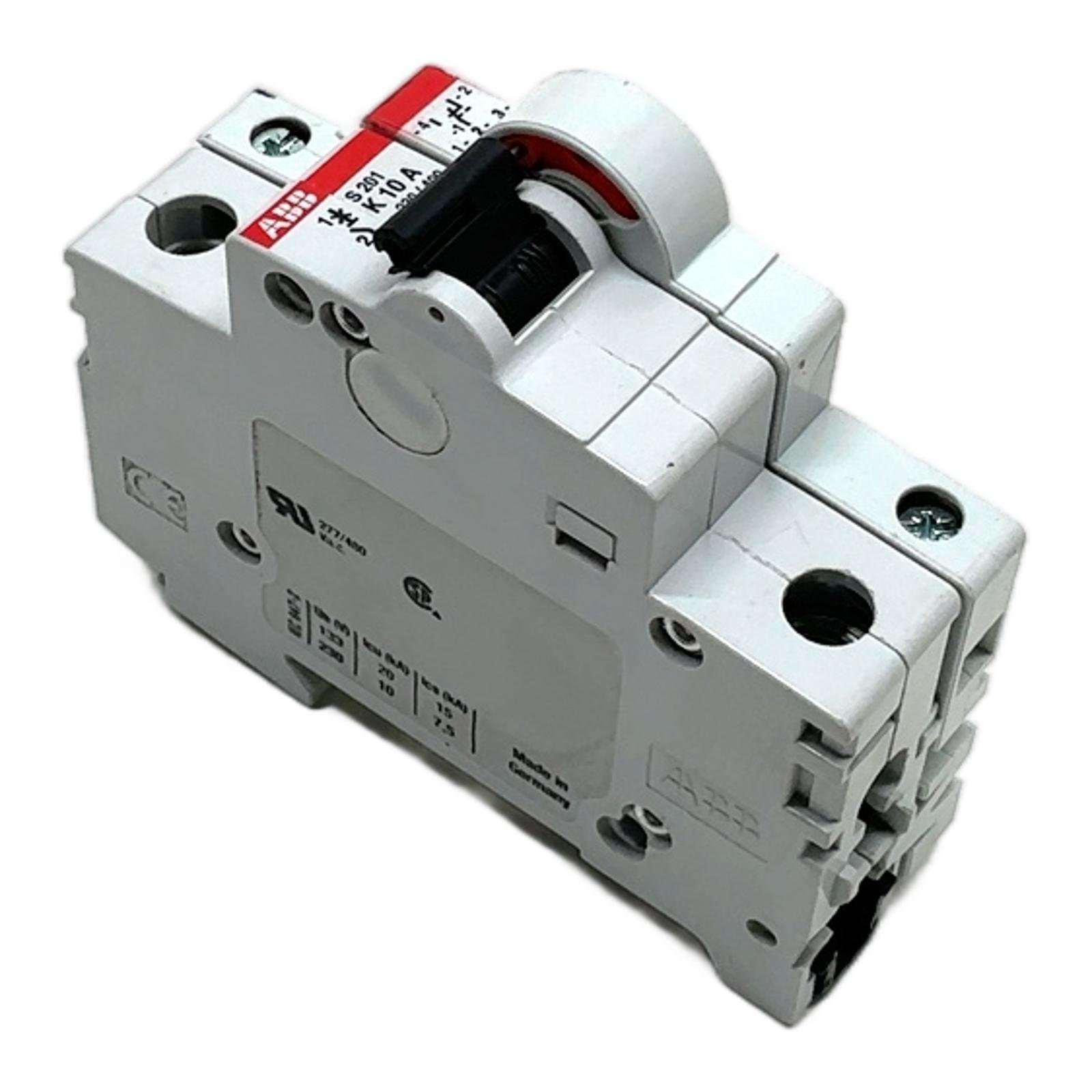

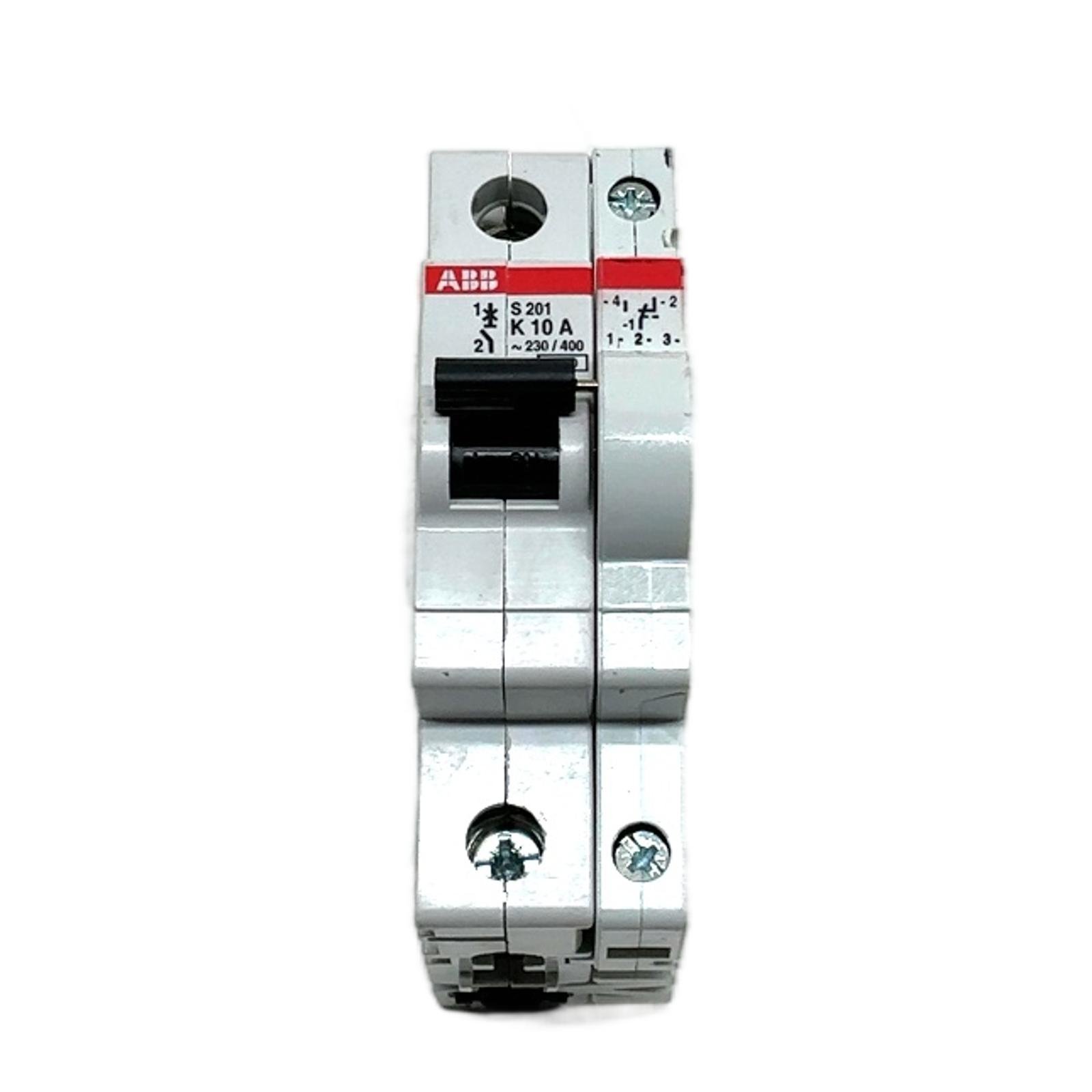

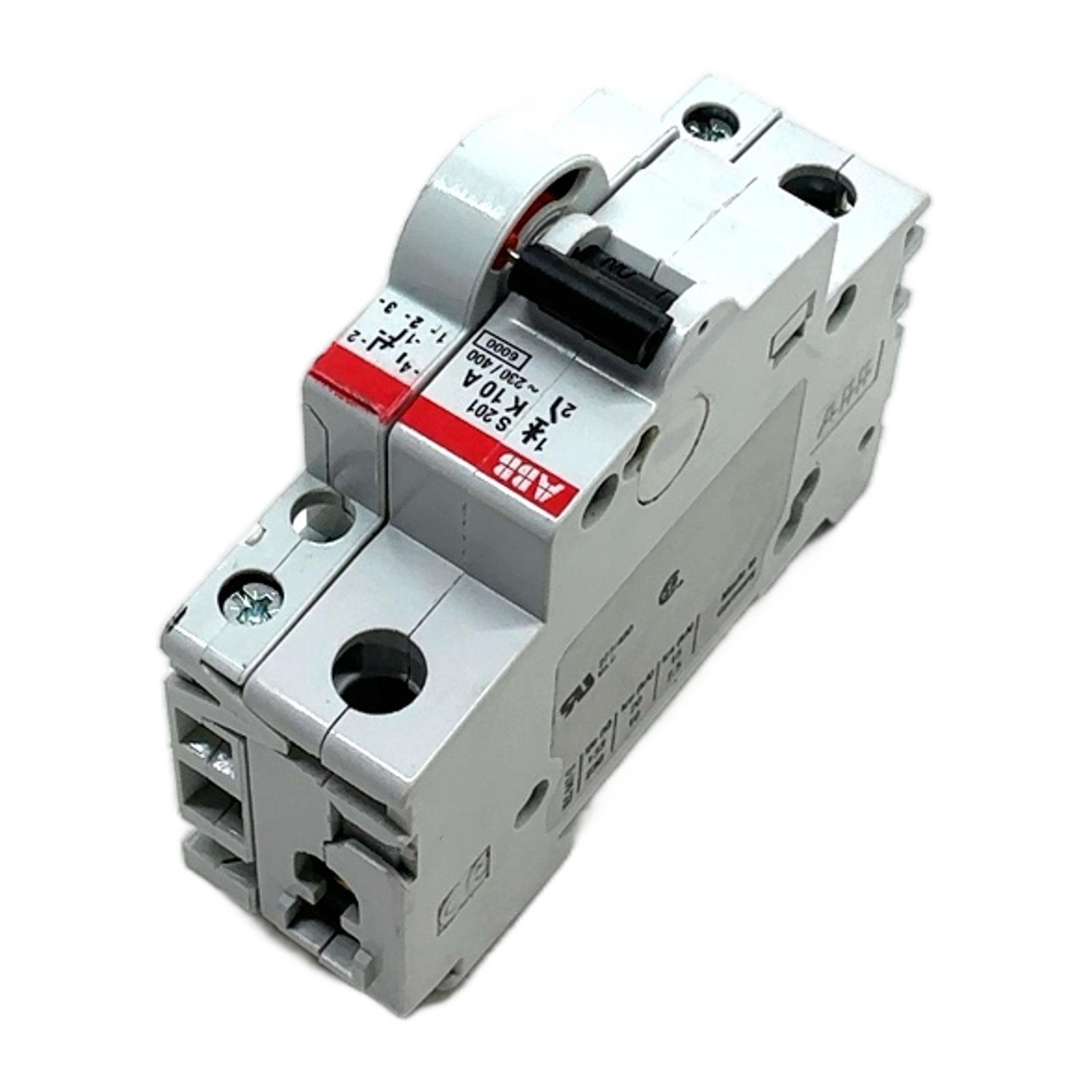

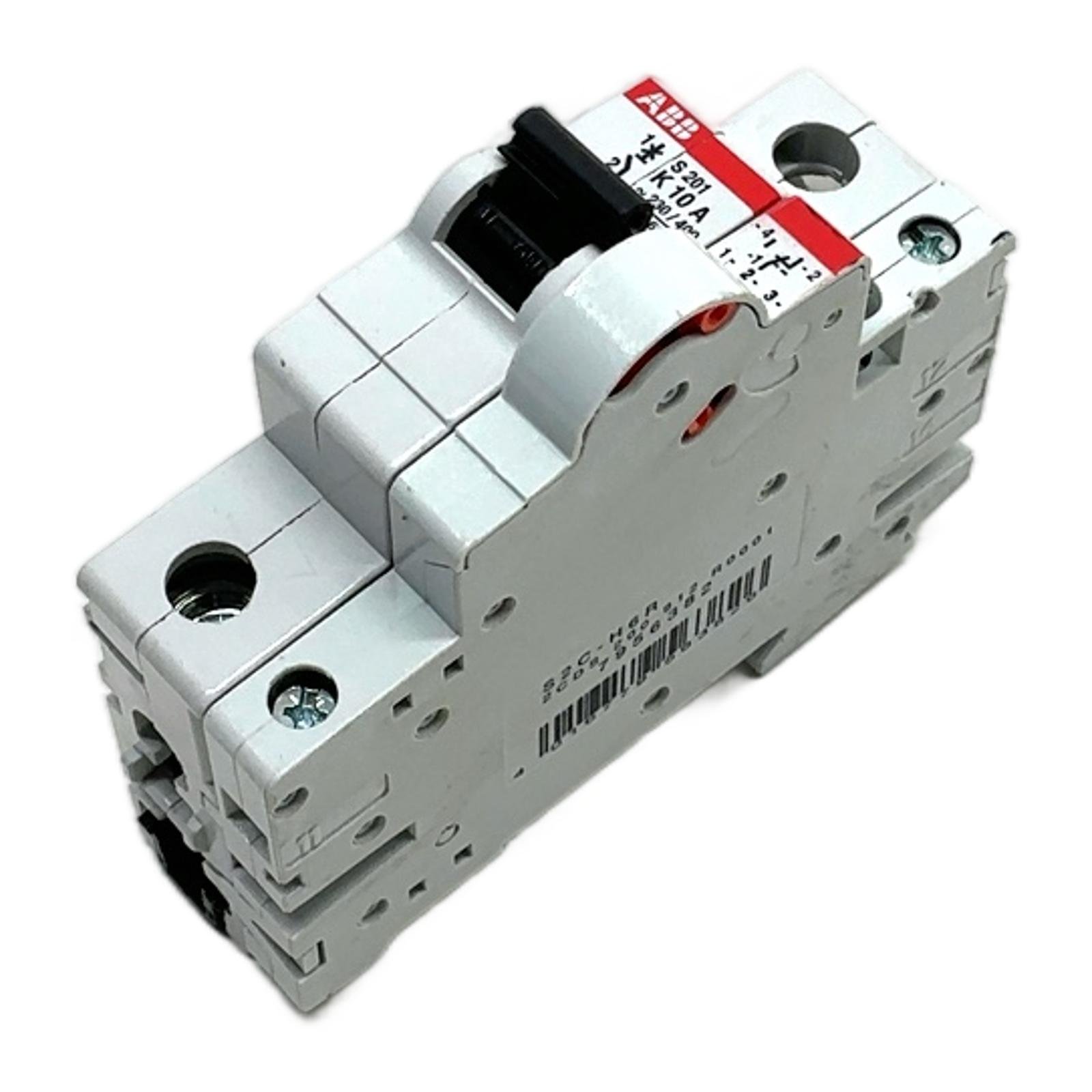

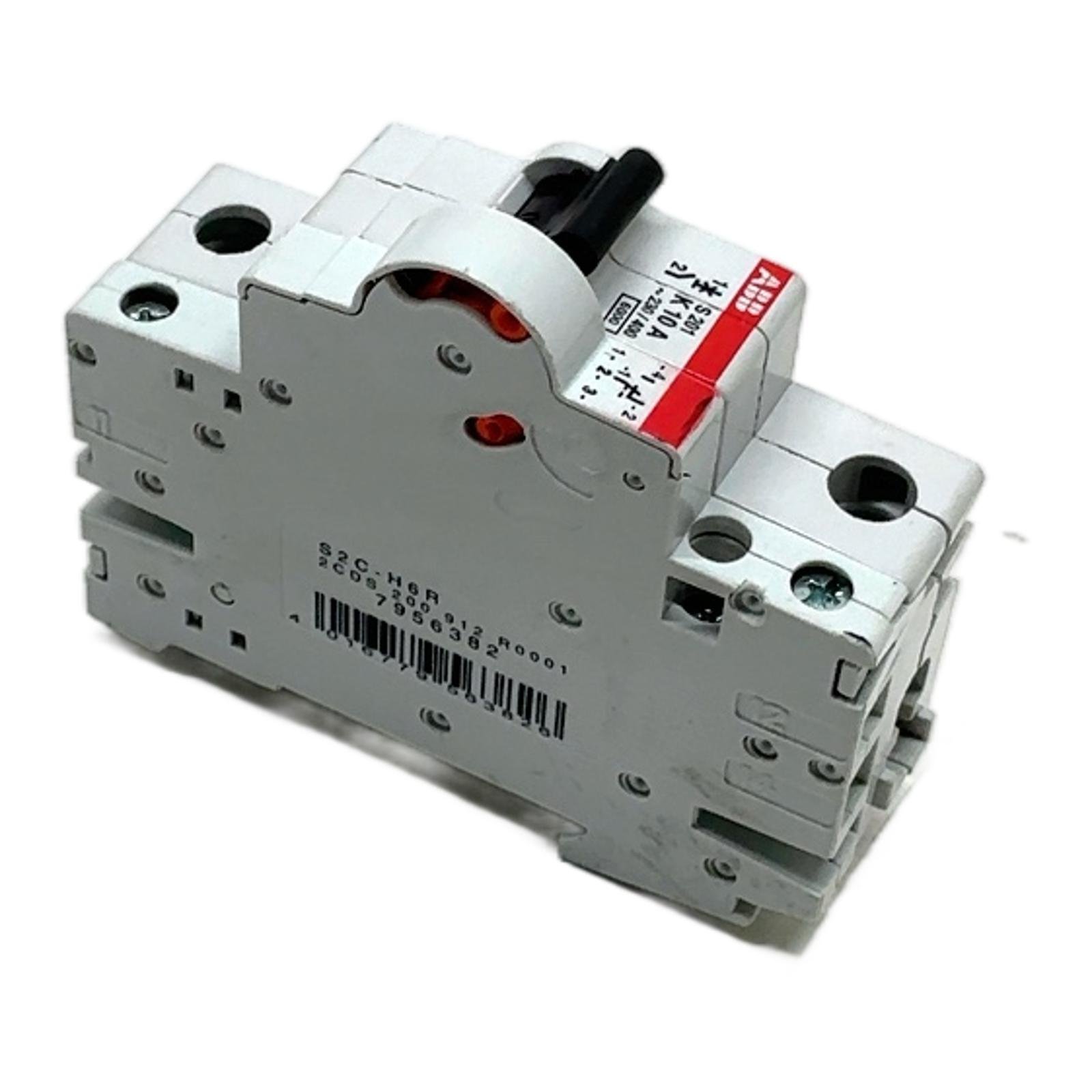

ABB Miniature Circuit Breaker 10A 1-Pole K-Curve S201-K10 Description This is an ABB S201-K10 miniature circuit breaker (MCB) from the System pro M compact S200 series. It provides reliable protection for industrial and commercial applications against both overloads and short circuits. This specific model has a rated current of 10A, is a single-pole device, and features a K-type tripping characteristic, which is ideal for circuits with high inrush currents like motors and transformers. This unit comes with a pre-mounted S2C-H6R auxiliary contact for signaling purposes. Specifications Manufacturer: ABB Model: S201-K10 Part Number: 2CDS251001R0427 Rated Current: 10 A Number of Poles: 1 Tripping Characteristic: K Rated Voltage (Ue): 230 / 400 V AC Rated Short-Circuit Capacity (Icn): 6 kA Label Info Front Marking: ABB, S201, K 10 A Side Marking: IEC 947-2, Ue 230V / Icu 10kA / Ics 7.5kA Attached Accessory Label: S2C-H6R, 2CDS 200 912 R0001 Application The S201-K10 is specifically designed for the protection of circuits with equipment that has high inrush currents, such as motors, transformers, and certain lighting systems. Its K-curve characteristic prevents nuisance tripping during the startup phase of these devices while still providing robust protection against faults. Country of Origin This product is Made in Germany. CO2 Impact By purchasing this reconditioned circuit breaker, you are helping to avoid 3.1 kg of CO2 emissions. This is comparable to the savings of driving a standard car for over 15 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the purpose of the K-type tripping characteristic?The K-curve is designed for circuits with high inrush currents, such as motors, transformers, and lamp groups. It trips between 8 and 12 times the rated current (In), providing protection without nuisance tripping during startup. Can the included S2C-H6R auxiliary contact be removed or replaced?Yes, the S2C-H6R is a modular accessory for the S200 series. It can be unclipped from the side of the MCB and replaced with other compatible accessories if needed, such as a different auxiliary contact or a signal contact. What is the breaking capacity of this MCB at 230V?According to the IEC 947-2 standard printed on the device, this MCB has a rated ultimate short-circuit breaking capacity (Icu) of 10 kA and a rated service short-circuit breaking capacity (Ics) of 7.5 kA at 230V AC. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
