FESTO SN-63 5156

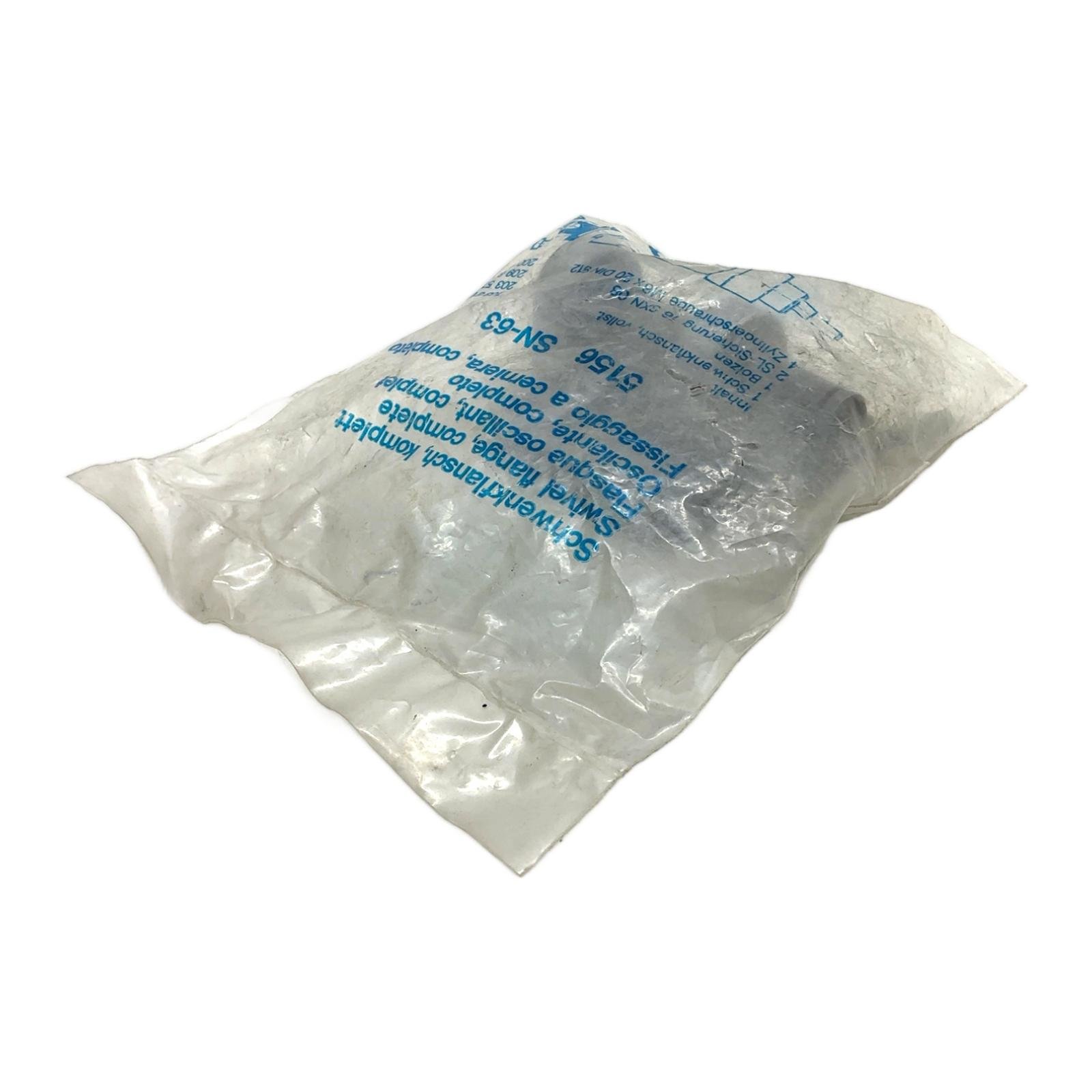

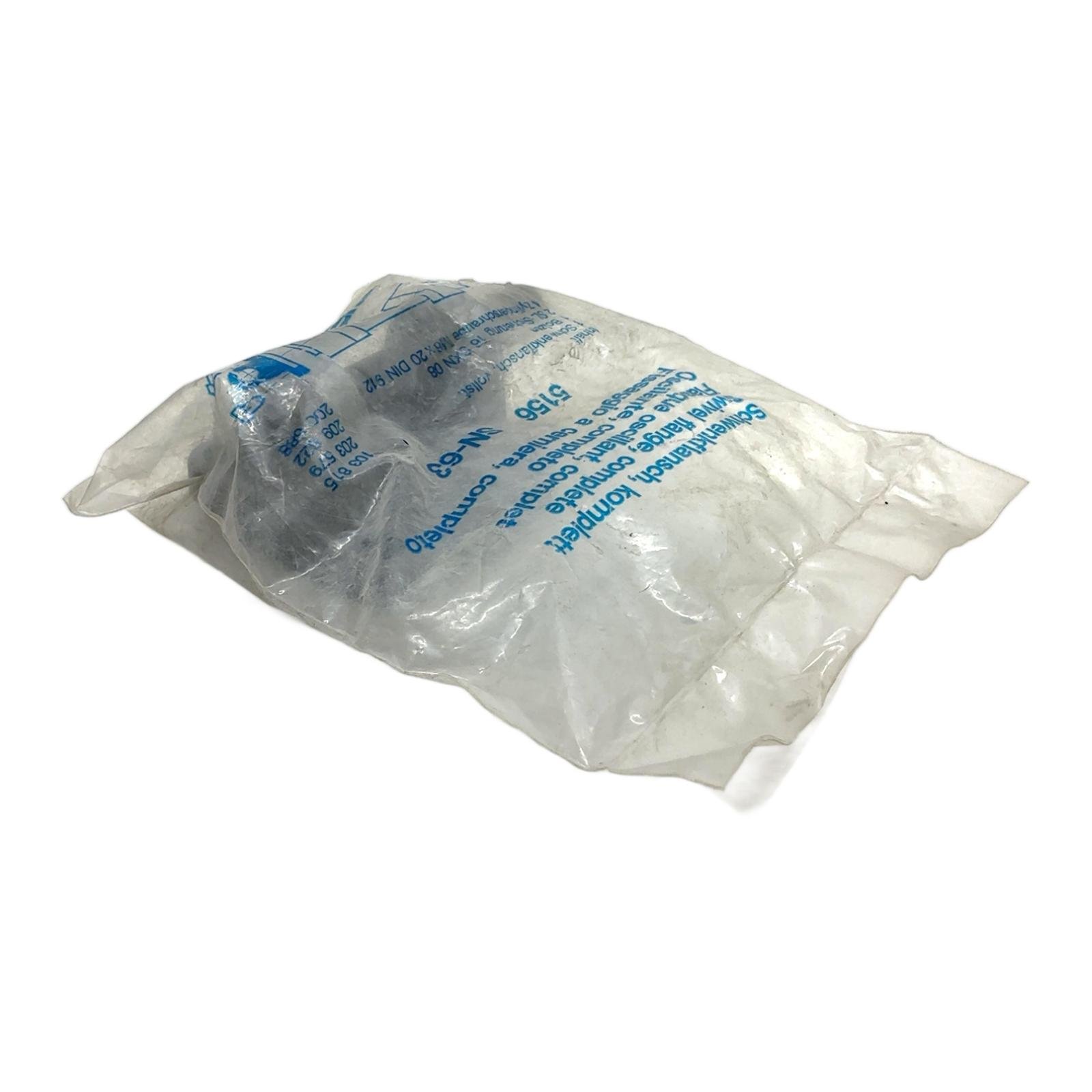

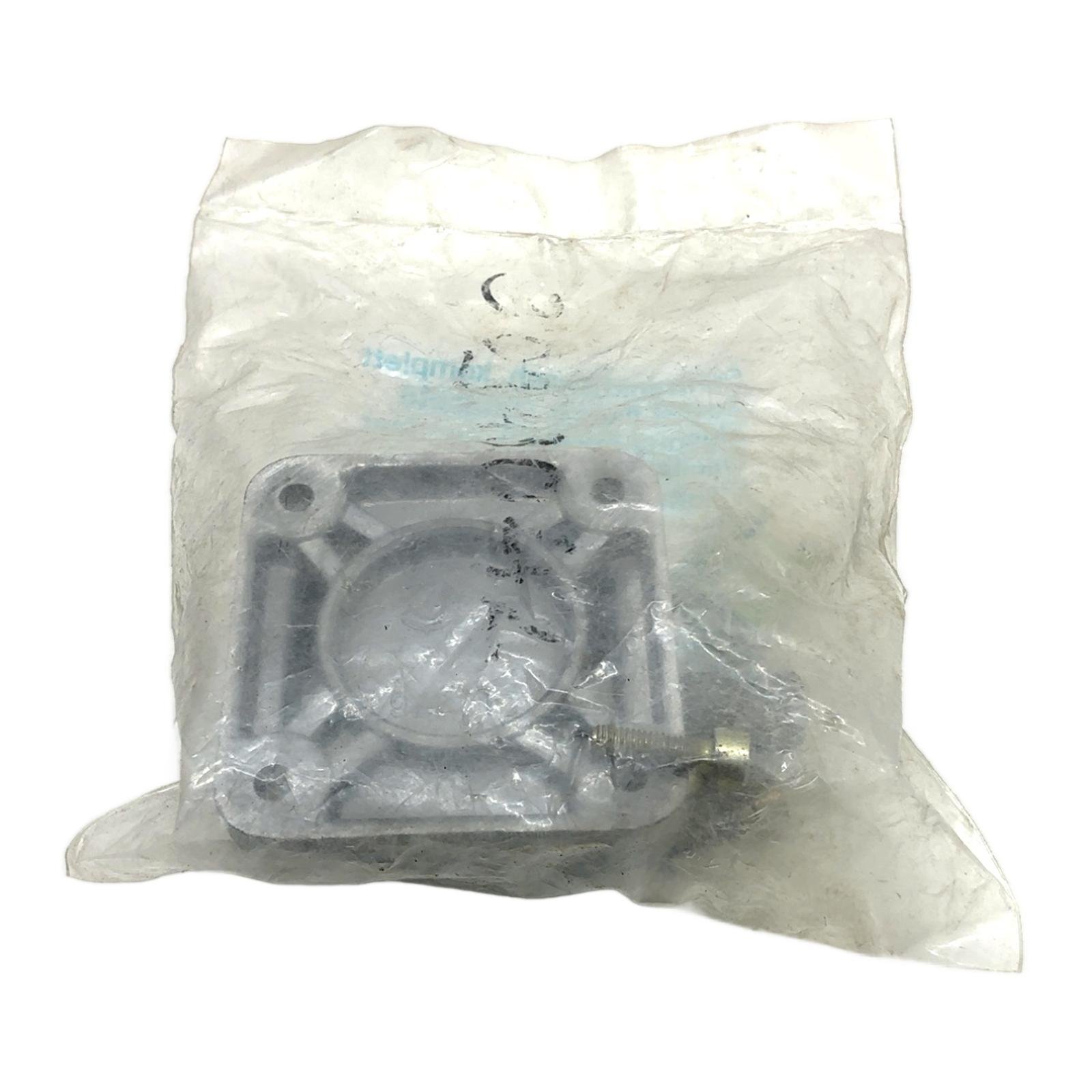

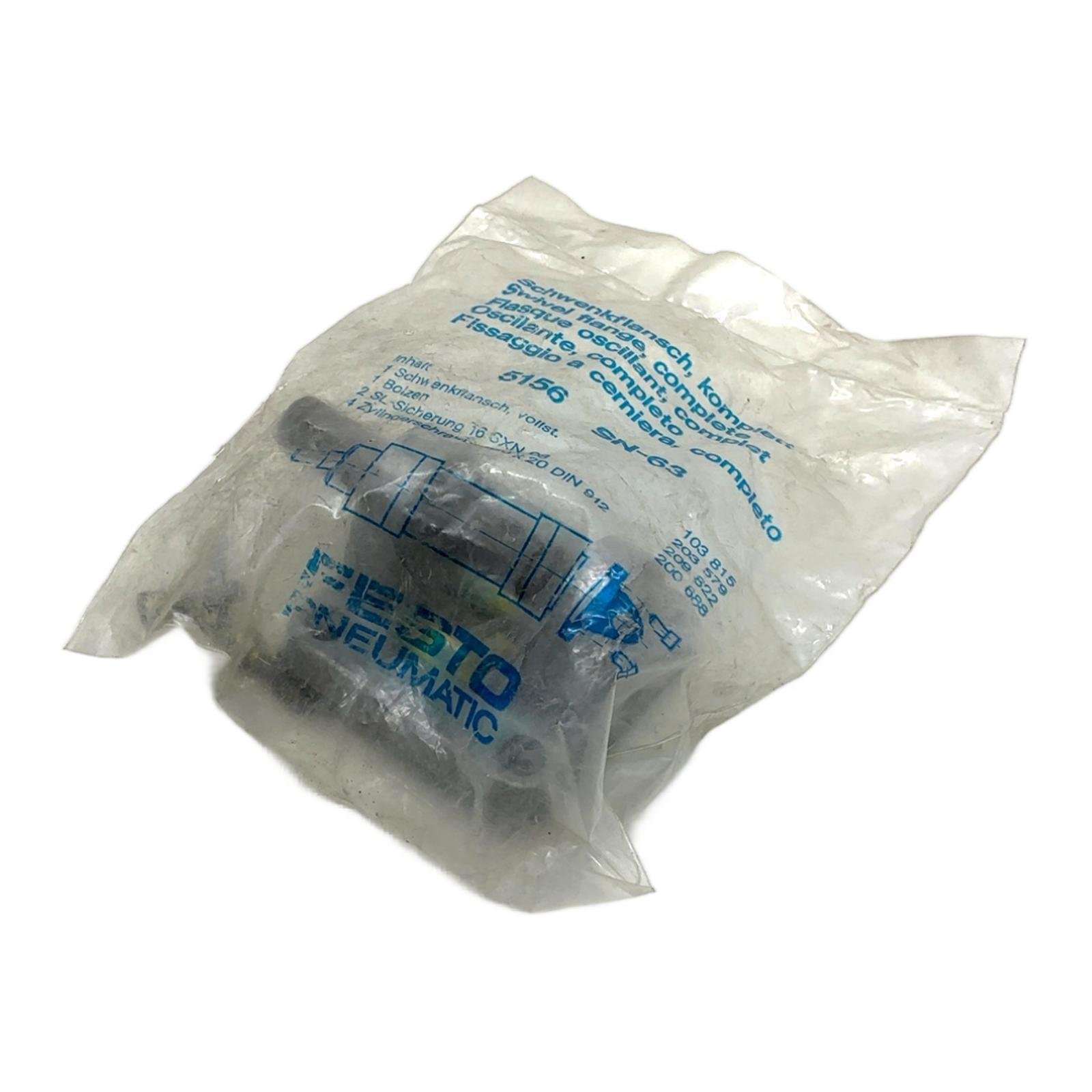

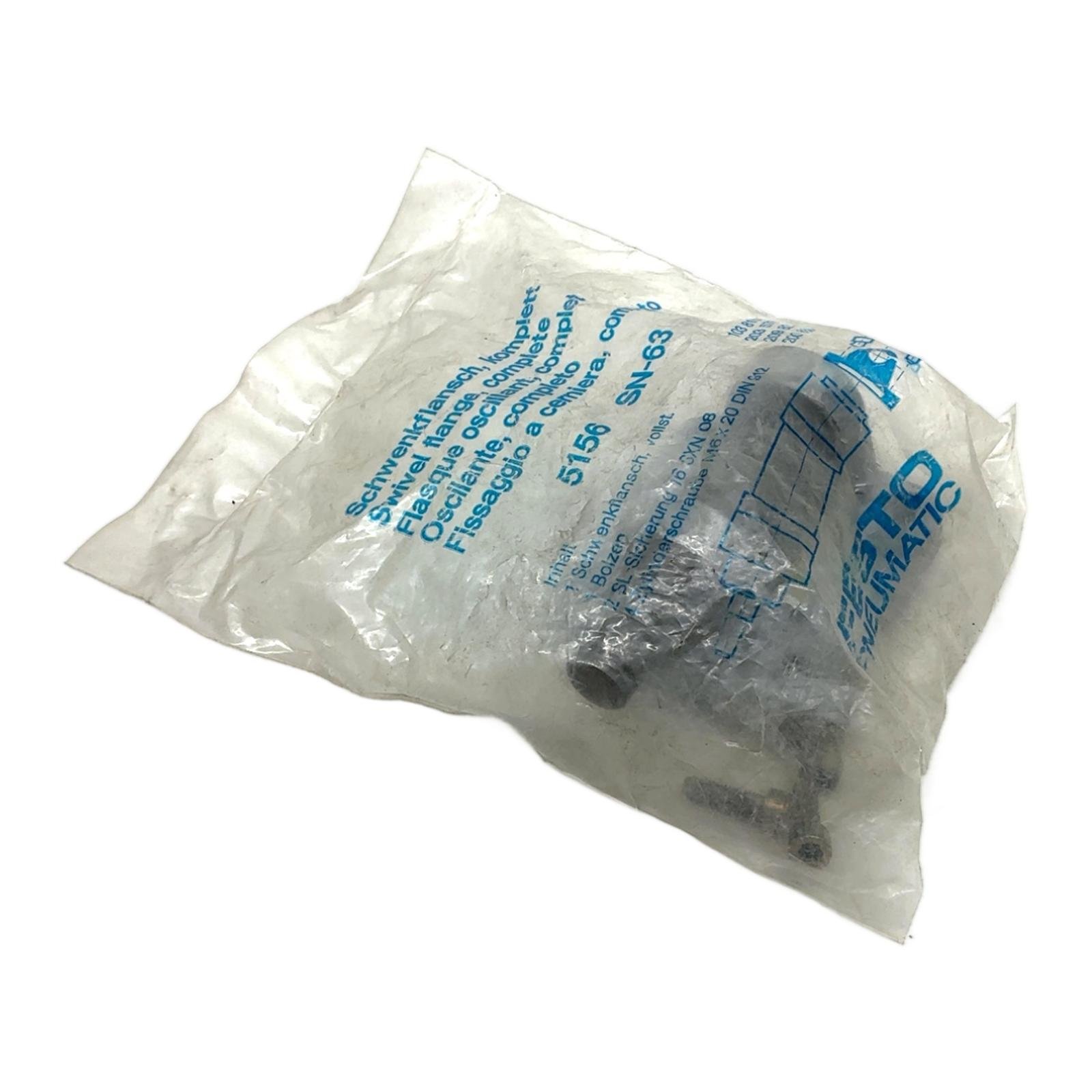

Festo SN-63 Swivel Flange Kit Description The Festo SN-63, part number 5156, is a complete swivel flange assembly designed for mounting pneumatic cylinders. This component allows for a pivoting or oscillating motion at the rear of the cylinder, making it suitable for a wide range of automation tasks. This kit comes complete with all necessary mounting hardware for immediate installation. Specifications Manufacturer: Festo Type: Swivel Flange SN-63 Part Number: 5156 Compatible Cylinder Bore: 63 mm Material: Die-cast aluminum flange, steel pin and screws Included Hardware: 1x Flange, 1x Pin, 2x Locking Rings, 4x M6x20 Screws (DIN 912) Application Ideal for use with Festo DNC, DNCB, DNG, and other compatible cylinder series. It is used in applications where a cylinder needs to pivot during its stroke, such as in lifting, tilting, or clamping mechanisms in industrial machinery. Country of Origin This product is manufactured in Germany. CO2 Impact Opting for this pre-owned component saves approximately 6.0 kg of CO2 emissions compared to manufacturing a new one, supporting sustainable industrial practices. Availability This is an obsolete item but available from our stock. The modern equivalent is the Festo SNCB-63 series. Order now from profideals for expert support and fast delivery. FAQ What series of Festo cylinders is the SN-63 5156 compatible with?The SN-63 swivel flange is designed for Festo cylinders with a 63mm bore diameter. It is specifically compatible with older series like DNC, DNCB, DNG, DNGU, and DNGVL. For newer series, it is recommended to check the compatibility with the modern equivalent, SNCB-63. What is included in the complete SN-63 kit (part number 5156)?The kit is complete as supplied by Festo and includes one swivel flange body, one pivot pin (Bolzen), two locking rings (SL-Sicherung), and four M6x20 cylinder head screws (DIN 912) for mounting. Is this part corrosion resistant? What is the material?The main body of the SN-63 is typically made from die-cast aluminum. The pin and screws are steel. While it offers good durability for standard industrial environments, for applications with high humidity or exposure to aggressive chemicals, a specific corrosion-resistant version or material should be considered. This standard version has basic corrosion protection. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
