SIEMENS 6FX5002-2CA31-1AD0

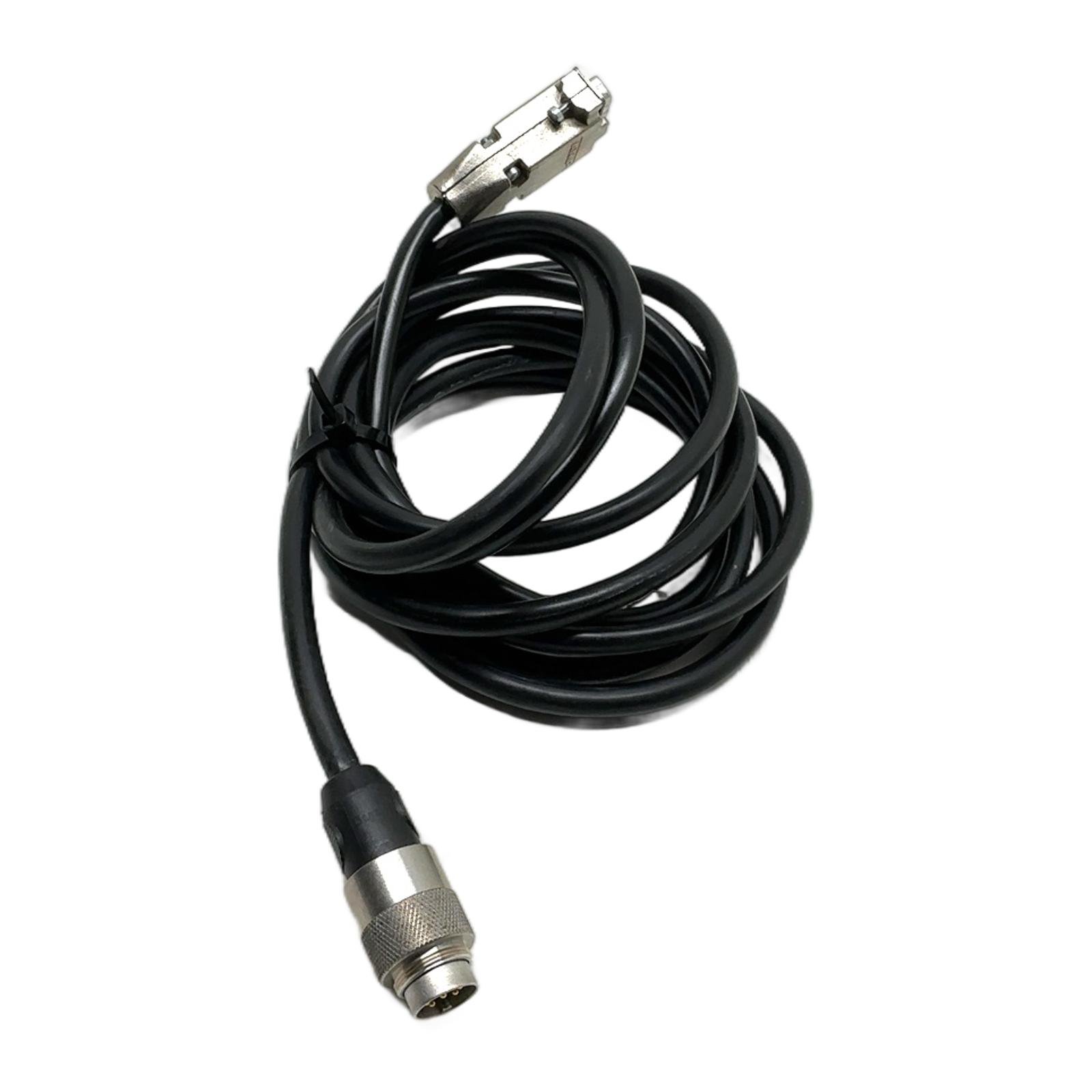

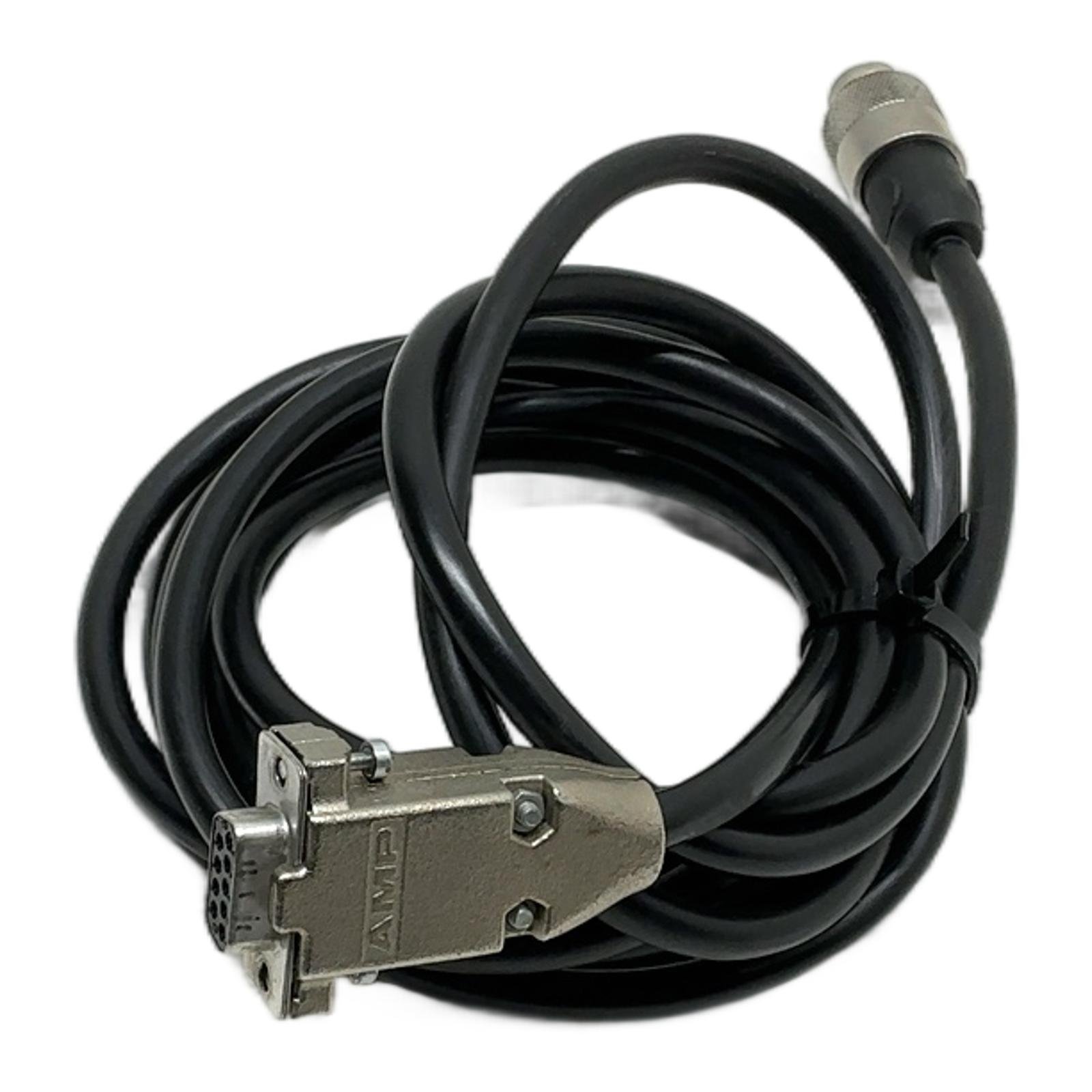

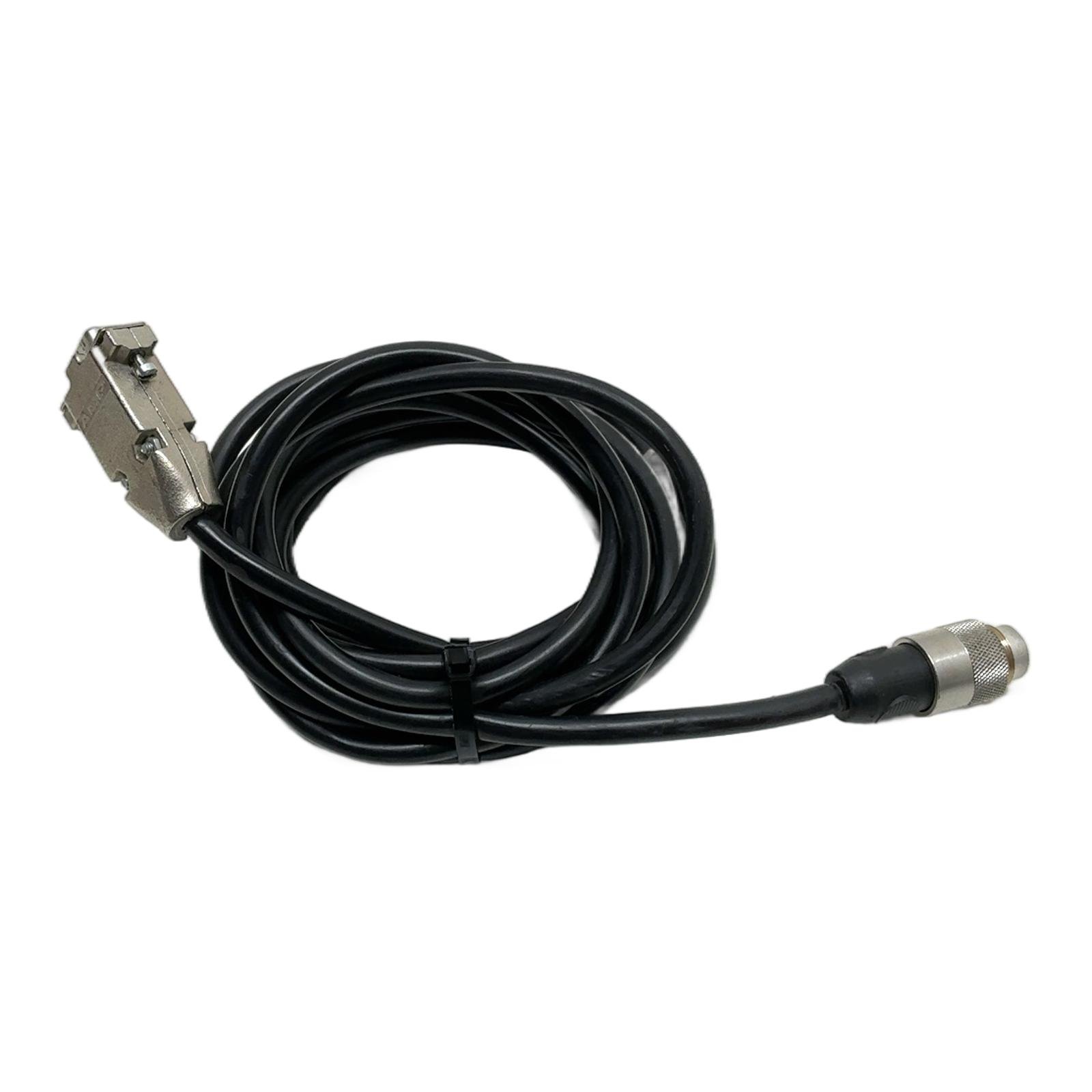

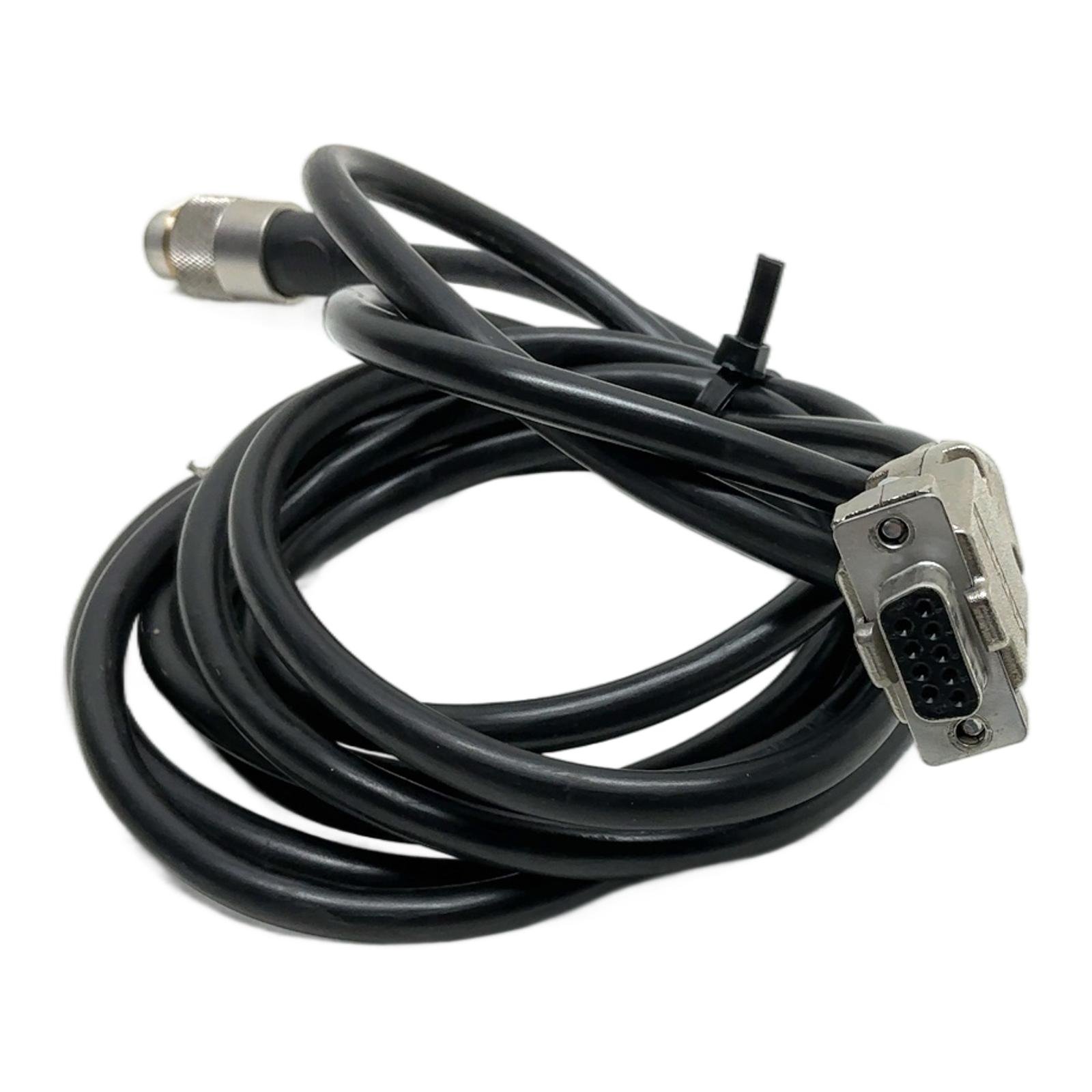

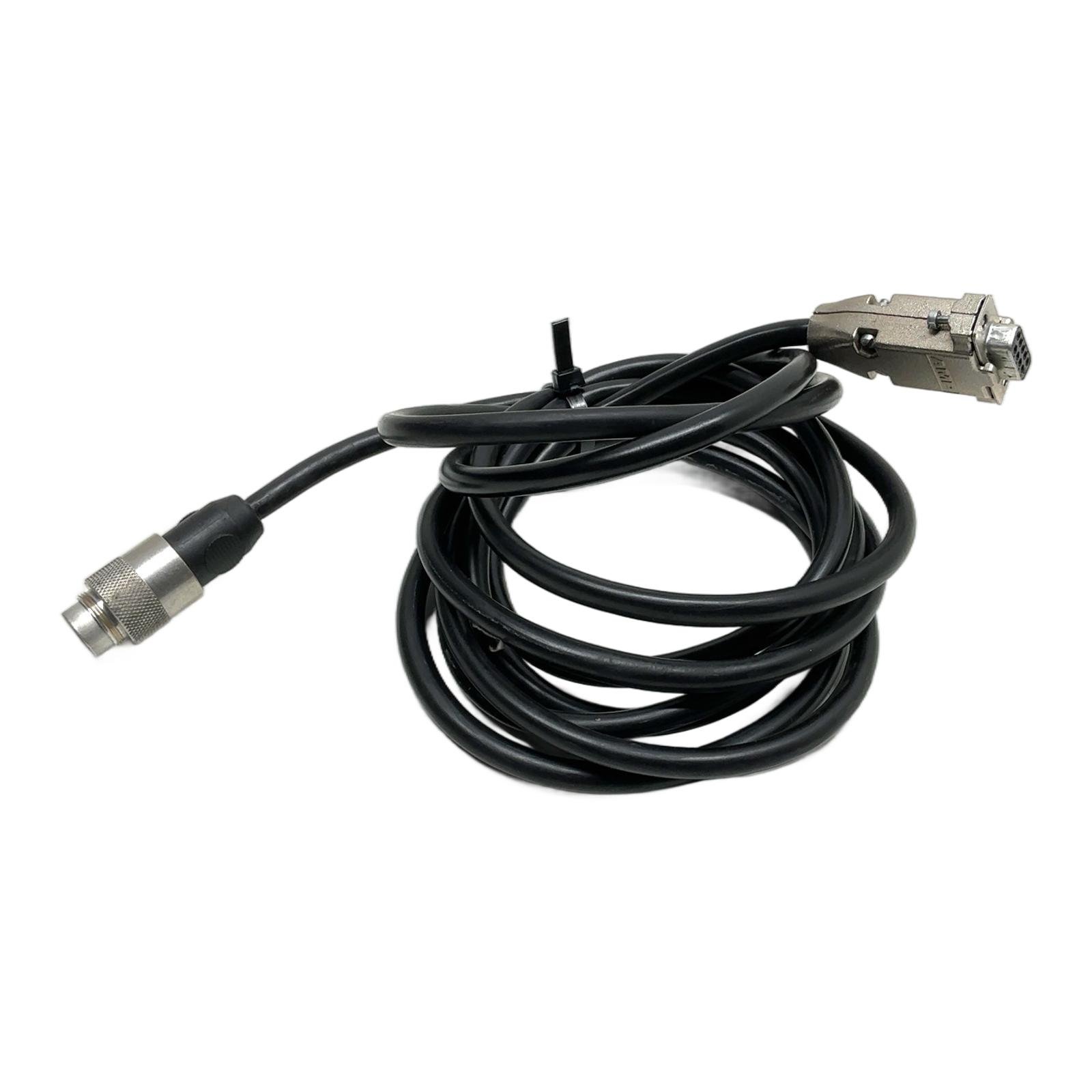

Siemens MOTION-CONNECT 500 Encoder Cable, 3m Description This is a pre-assembled MOTION-CONNECT 500 signal cable manufactured by Siemens, designed for reliable communication in motion control systems. With a length of 3 meters, it provides a flexible yet robust connection between an incremental encoder and a servo drive. The cable is terminated with an M23 12-pin connector on the motor side and a Sub-D 9-pin connector for the drive interface, making it suitable for a wide range of Siemens SINAMICS and SIMODRIVE applications. Specifications Manufacturer: Siemens Part Number: 6FX5002-2CA31-1AD0 Series: MOTION-CONNECT 500 Cable Type: Signal Cable for Incremental Encoder (sin/cos 1 Vpp) Length: 3 meters Connector 1 (Motor End): M23, 12-pin, Male Connector 2 (Drive End): Sub-D, 9-pin, Male Label Info Identified Part Number: 6FX5002-2CA31-1AD0 Functional Label: RS232 to RS232/9P Application This cable is specifically designed for connecting incremental encoders with sin/cos 1 Vpp signals to Siemens drive systems such as SINAMICS S120 and SIMODRIVE 611. It is commonly used in machine tools, robotics, and automated manufacturing lines where precise position feedback is critical. Country of Origin Germany CO2 Impact By reusing this industrial cable, you are helping to avoid approximately 12.0 kg of CO2 emissions that would be generated from manufacturing a new one. This choice supports a more sustainable industrial ecosystem. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Is this cable compatible with newer SINAMICS S120 drives?Yes, this cable is fully compatible with the booksize and chassis format SINAMICS S120 drives that utilize the SMC/SME modules for encoder feedback. What type of encoder signal does this cable support?This cable is designed for incremental encoders that output a sine/cosine 1 Vpp (Voltage peak-to-peak) signal, which is a standard for high-resolution feedback in servo applications. Can this cable be used in a cable carrier or drag chain?The MOTION-CONNECT 500 series is designed for fixed installation or occasional flexing. For continuous flexing applications, such as in a dynamic cable carrier, the more robust MOTION-CONNECT 800PLUS series (e.g., 6FX8) is recommended by Siemens. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
